917.382720 (1999 & Before) Page 1 of 5
Craftsman Engine 143.954002
917.382720 (1999 & Before) Page 2 of 5
Craftsman Engine 143.954002
Ref # Part Number Qty Description
1 36478A Cylinder Includes Reference Numbers 2,7,20 and 125
2 26727 DOWEL PIN
6 33734 BREATHER ELEMENT
7 36557 BREATHER BODY ASSY
9 30200 SCREW
12 36558 BREATHER TUBE
12B 34695 BREATHER TUBE ELBOW
14 28277 WASHER
15 30589 GOVENOR ROD
16 31383A GOVENOR LEVERR
17 31335 GOVENOR LEVER CLAMP
18 650548 SCREW
19 31361 EXT SPRING
20 32600 OIL SEAL
30 35996 CRANKSHAFT
40 36073 PISTON PIN AND RING SET
36074 PISTON PIN AND RING SET
36075 PISTON PIN AND RING SET
41 36070 PISTON PIN AND RING SET
36071 PISTON AND PIN ASSY
36072 PISTON AND PIN ASSY
42 36076 RING SET
36077 RING SET
36078 PISTON PIN RETAINING RING
43 20381 PISTON PIN RETAINING RING
45 30963B CONNECTING ROD ASSY
46 32610A CONNECTING ROD BOLT
48 27241 VALVE LIFTER
50 35992 CAMSHAFT
52 29914 OIL PUMP ASSY
69 35261 MOUNTING FLANGE GASKET
70 34311D MOUNTING FLANGE
72 30572 OIL DRAIN PLUG
73 28833 DRAIN PLUG GASKET
75 27897 OIL SEAL
80 30574A GOVENOR SHAFT
81 30590A WASHER
82 30591 GOVENOR GEAR ASSY
83 30588A GOVWENOR SPOOL
86 650488 SCREW
89 611004 FLYWHEEL KEY
90 611112 FLYWHEEL
92 650815 BELLEVILLE WASHER
93 650816 FLYWHEEL NUT
100 34443A SOLID STATE IGNITION
101 610118 SPARK PLUG COVER
103 650814 SCREW
110 34961 GROUND WIRE
119 36477 CYLINDER HEAD GASKET
120 36476 CYLINDER HEAD
125 36471 EXHAUST VALVE
36472 EXHAUST VALVE
126 29314B INTAKE VALVE
29315C INTAKE VALVE
130 6021A SCREW
135 35395 RESISTOR SPARK PLUG
150 35991 VALVE SPRING
151 31673 VALVE SPRING CAP
917.382720 (1999 & Before) Page 3 of 5
Craftsman Engine 143.954002
Ref # Part Number Qty Description
169 27234A VALVE COVER GASKET
172 32755 VALVE COVER
178 29752 NUT AND LOCK WASHER
182 6201 SCREW
184 26756 CARB TO INTAKE PIPE GASKET
185 31384A INTAKE PIPE
186 34358 GOVENOR LINK
189 650839 SCREW
191 36559 S.E. BRAKE BRKT
195 610973 TERMINAL
200 35727 CONTROL BRKT
202 36482 COMP SPRING
203 31342 COMPCOMP SPRING
204 650549 SCREW
205 650777 SCREW
207 34336 THROTTLE LINK
215 32410 CONTROL KNOB
223 650451 SCREW
224 34690A INTAKE PIPE GASKET
238 650932 SCREW
239 34338 AIR CLEANER GASKET
241 35797 AIR CLEANER COLLAR
245 35066 AIR CLEANER FILTER
250 35065 AIR CLEANER COVER
260 36420A BLOWER HOUSING
262 650831 SCREW
275 36473 MUFFLER
277 650988 SCREW
285 35000A STARTER CUP
287 650926 SCREW
290 30705 FUEL LINE
292 26460 FUEL LINE CLAMP
298 28763 SCREW
300 34369B FUEL TANK
301 35355 FUEL CAP
305 35647 OIL FILL TUBE
306 34265 O-RING
307 35499 O-RING
309 650562 SCREW
310 35648 DIPSTICK
313 34080 SPACER
327 35392 STARTER PLUG
370 35167 INSTR DECAL
370A 36261 INST DECAL
380 632569 CARB
390 590694 REWIND STARTER
400 36481 GASKET SET
416 36085 SPARK ARRESTER KIT
417 650760 SCREW
917.382720 (1999 & Before) Page 4 of 5

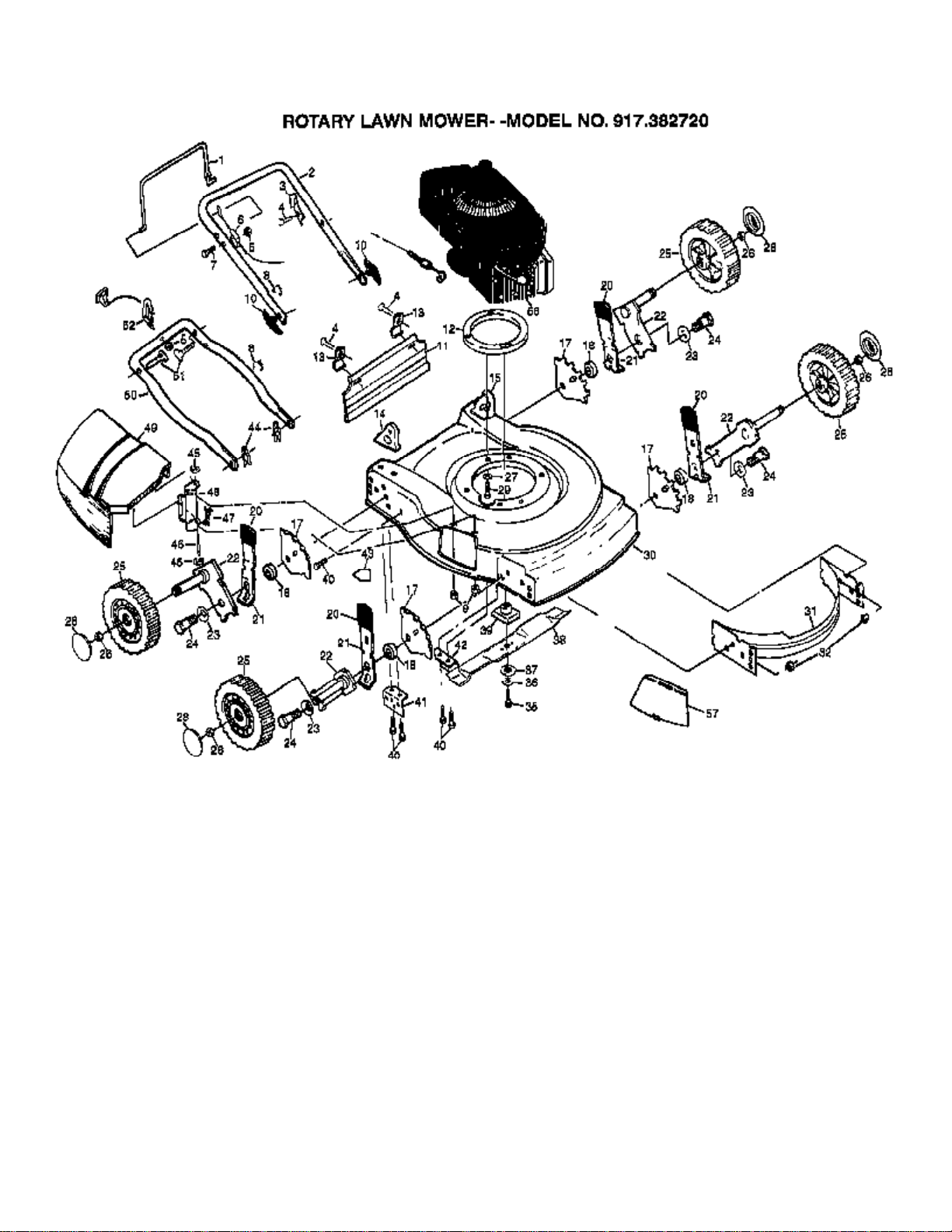

ROTARY LAWN MOWER
917.382720 (1999 & Before) Page 5 of 5
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 86902 CONTROL BAR PM
2 133088X479 SUB= 918133088X479
3 86899X004 "BRKT,UPSTOP PM"
4 750097 TAPPING SCREW
5 STD541425 LOCKNUT
6 130861 "CABLE,ENG ZONE CO"
7 74350424 BOLT 1/4-20-1 1/2
8 85827 CABLE CLIP PM
9 63601 SUB= 73800400
10 136376 KNOB HANDLE
11 140543 SKIRT.RD.20/22
12 701313 SPACER.ASM.ENGINE
13 87584X004 "BRKT,DEFL PM"
14 701969X479 SUB= 150959
15 701971X479 SUB= 150959
17 750085X007 BRKT.WHL.ADJ
18 84920 SUB= 146630
20 87877 KNOB PM
21 850855X004 SUB= 700331X004
22 145935X004 ARM.AXLE.ASM.BZP.
23 62335 "WASHER, BELLEVIL."
24 142748 BOLT SHLD 3/8-16
25 1462548 WHEEL AND TIRE ASSY
26 83923 HEX FLANGE LOCKNT
27 53998 SUB= 19131216
28 77400 HUB CAP
29 850998 SCREW
30 48341 KIT HSG 20SD PUSH
31 701706X479 BAFFLE.FRT.20SD
32 751592 LOCKNUT PM
35 851084 SCREW
36 850263 LOCKWASHER
37 851074 "WASHER,HARDEN"
38 752233 SUB= 204114-884
39 850977 BLADE ADAPTOR
40 55187 SCREW
41 88272X479 "BRKT,SUSP RH"
42 88271X479 BRKT SUSP LH
43 85463 DECAL-DANGER PM
44 51793 HAIRPIN COTTER
45 12000014 E-RING
46 87590 ROD PM
47 87589 SPRING PM
48 87593 BRACKET PM
49 750149 DISCHARGE GRD
50 84676X479 SUB= 151516X479
51 131959 BOLT.HANDLE.LM
52 103672X ROPER GUIDE PM
54 87576X479 REAR BAFFLE
56 146291 ENGINE CRAFTSMAN MODEL NUMBER 143.954002
57 751772X479 MULCHER PLATE
133213 SUB= 152095
146312 OWNERS MANUAL
128415 BLIND RIVET
