Page 1
DATE
8/21/03
PAR TS LI ST N O.
530086856
530086856 --- 3/19/03
Replaces
R
R
R
R
PARAMOUNT PARTS LIST
POULAN PARTS LIST
POULAN PRO PARTS LIST
Note: Illustration may differ from actual model due to design changes
r
PARTS LIST
MODEL(s)
PL25
PAGE N O.
1
24
1
2
3
4
5
9
10
TYPE 1,2,3,4
23
22
21
20
19
18
6
7
8
17
16
15
14
WARNING
All repairs, adjustments
and maintenance not described in the Operator’s
Manual must be performed
by qualified service personnel.
11
Ref. Part No. Description Ref. Part No. Description
1. 530038581 Hsg.---Throttle (Right)
2. 530016349 Screw---Throttle Hsg.
3. 530038682 Trigger
4. 530071548 Kit---Throttle Cable (incl.#3)
5. 530095391 Flex--- Shaft 52”
6. 530016284 Locknut---Gear Box
7. 530016225 Wingnut --- Gear Box
8. 530092062 Washer
9. 530052286 Line Limiter
10. 530015880 Screw---Line Limiter
11. 530069752 Kit---Shield Ass’y.
12. 530054223 Assy---Cap
13. 530403949 Guide---Line
14. 952711603 Accy.--- Wound Hub
15. 530016202 Screw
16. 530095638 Assy--- Gear Box
17. 530016224 Screw
= NEW PART NUMBER FOR THIS IPLn
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
=
D
(Incl. 9 & 10)
= REFER TO T HE SERVICE R EFERENCE IN DICATED FOR MOR E INFORMATIO N. (LOCATED AT END OF IPL )
K
18. 530016312 Screw
19. 530071563 Assy---Drive Shaft Hsg.
20. 530016118 Wingnut --- Handle
21. 530038599 Clamp---Handle
22. 530015820 Bolt---Handle
23. 530038584 Handle--- Assist
24. 530038580 Hsg.---Throttle (Left)
Not Shown
530163455 Manual --- Operator (Type 2,3,4)
n
530086780 Manual ---Operator (Type1)
530055350 Decal --- Shaft Warning
530054864 Decal --- Starting Inst.
13
12

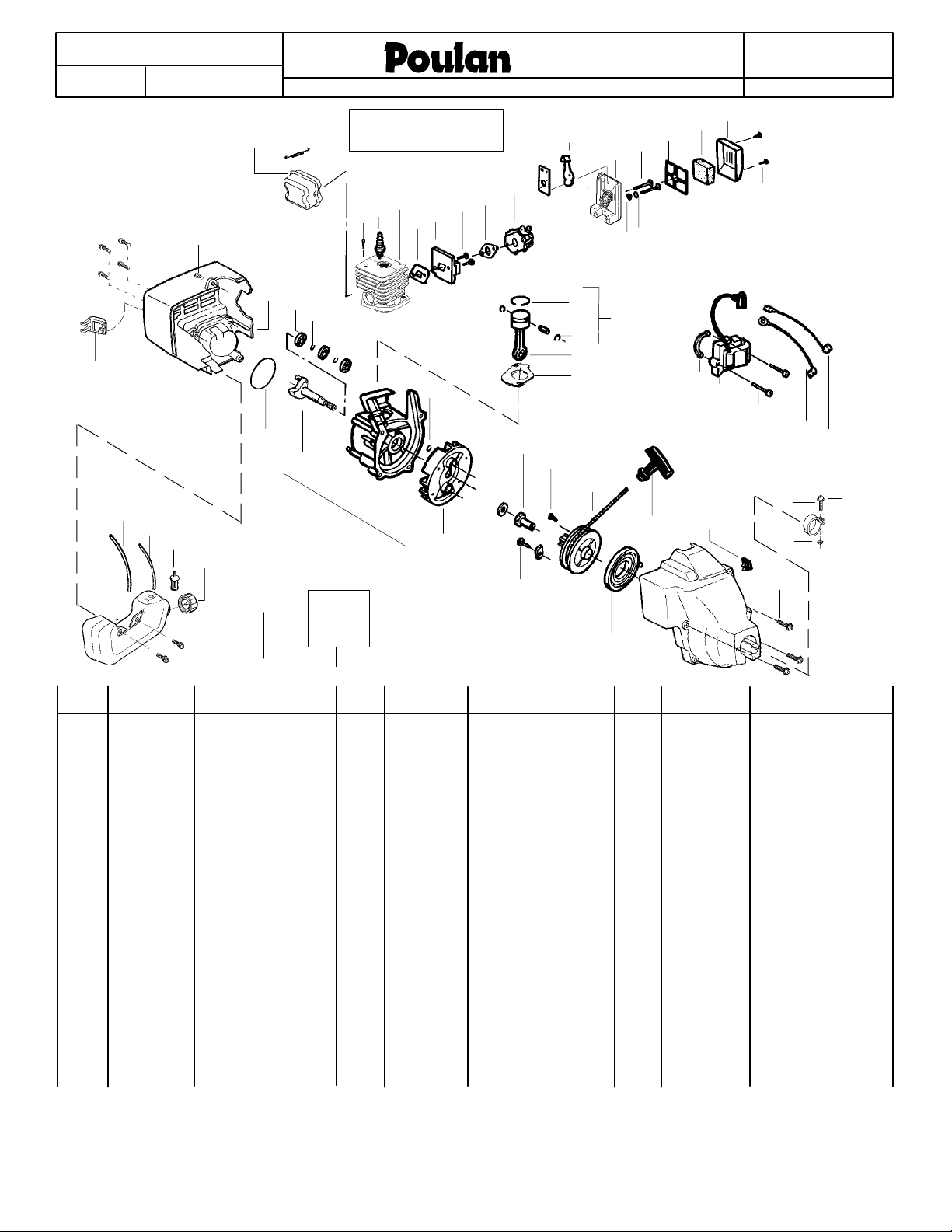

Page 2
DATE
8/21/03
PAR TS LI ST N O.
530086856
530086856 --- 3/19/03
Replaces
R
R
R
R
PARAMOUNT PARTS LIST
POULAN PARTS LIST
POULAN PRO PARTS LIST
Note: Illustration may differ from actual model due to design changes
r
PARTS LIST
MODEL(s)
PL25
PAGE N O.
2
TYPE 1
48
49
68
67
66
65
47
64
63
27
17
36
28
18
29
19
35
33
34
30
31
32
Spark
3
43
42
53
Engine
Gasket
Kit
61
Arrestor
Kit
5
4
52
13
12
11
6
7
41
10
9
8
40
39
54
55
56
57
14
23
22
24
25
26
38
58
59
2
1
46
45
44
50
51
62
21
15
20
16
37
60
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
1. 530071390 Kit -- Muffler (incl. 2,3)
2. 530042088 Spring--Muffler
3. 530071391 Kit-- Spark Arrestor
4. 530015953 Screw--Cylinder
5. 952030201 Spark Plug (RCJ 8Y)
6. 530069757 Kit -- Cylinder
7. 530069913 Gasket--Cyl/Carb.(kit)
8. 530069769 Kit -- Carb. Adaptor
9. 530016014 Screw
10. 530069913 Gasket--Carb.(kit)
11. 530069754 Kit -- Carburetor Ass’y
12. 530038747 Plate--Choke Mounting
13. 530038686 Shutter--Choke
14. 530052431 Box--Air
15. 530015887 Screw
16. 530036569 Plate -- Filter Support
17. 530036575 Foam-- Air Filter
18. 530036568 Cover--Air Filter
19. 530015880 Screw
20. 530015852 Spacer--Choke
21. 530015254 Washer
22. 530069987 Kit -- Piston
23. 530012472 Ring-- Piston
24. 530015162 Retainer--Piston Pin
=
NEW PART NUMBER FOR THIS IPLn = REFER TO T HE SERVICE R EFERENCE IN DICATED FOR MOR E INFORMATIO N. (LOCATED AT END OF IPL )K
(Incl. Limiter Cap)
(Incl. 23, 24 & Pin)
25. 530069615 Assy--Connecting Rod
26. 530069913 Gasket--Cylinder (kit)
27. 530036145 Spacer--Module
28. 530055160 Module-- Ignition
29. 530015954 Screw
30. 530014662 Assy--Ground Wire
31. 530014663 Assy--Leadwire
32. 530056365 Assy--Nose Cone Clamp
33. 530016381 Screw--Nose Cone
34. 530016382 Nut--Nose Cone
35. 530015810 Screw
36. 530071356 Kit-- Momentary Switch
37. 530027569 Handle-- Starter
38. 530069232 Kit -- Rope
39. 530016080 Screw
40. 530038604 Coupling-- Drive
41. 530015941 Retain. Ring--C’shaft
42. 530032124 Bearing--Outer
43. 530019179 Seal-- C’case
44. 530015945 Retainer Ring-- C’case
45. 530032125 Bearing--Inner
46. 530052263 Shroud--Rear
47. 530015934 Screw
48. 530015810 Screw
49. 530054536 Guard--Muffler
‘
(Incls. 33&34)
50. 530069913 O-- Ring--C’case (kit)
51. 530054083 Assy--Crankshaft
52. 530012414 Assy--Crankcase
(Incl. 42-- 45)
53. 530014729 Assy--C’case & C’shaft
(Incl. 41,51,52)
54. 530069886 Assy--Flywheel
55. 530015828 Washer-- Flat
56. 530015775 Screw
57. 530027523 Retainer
58. 530069400 Kit-- Starter Pulley
(Incl. 39)
59. 530042085 Spring--Starter
60. 530071525 Kit-- Fan Hsg. Assy.
61. 530069913 Kit-- Engine Gasket
(Incl. 7,10,26,50)
62. 530015886 Screw
63. 530016131 Washer
64. 530014347 Assy --Fuel Cap w/ret.
65. 530095646 Assy --Fuel Pickup
66. 530069247 Kit--Fuel Line (Small)
67. 530069216 Kit--Fuel Line (Large)
68. 530049379 Assy --Fuel Tank (Incl.
cap, fuel line, filter)

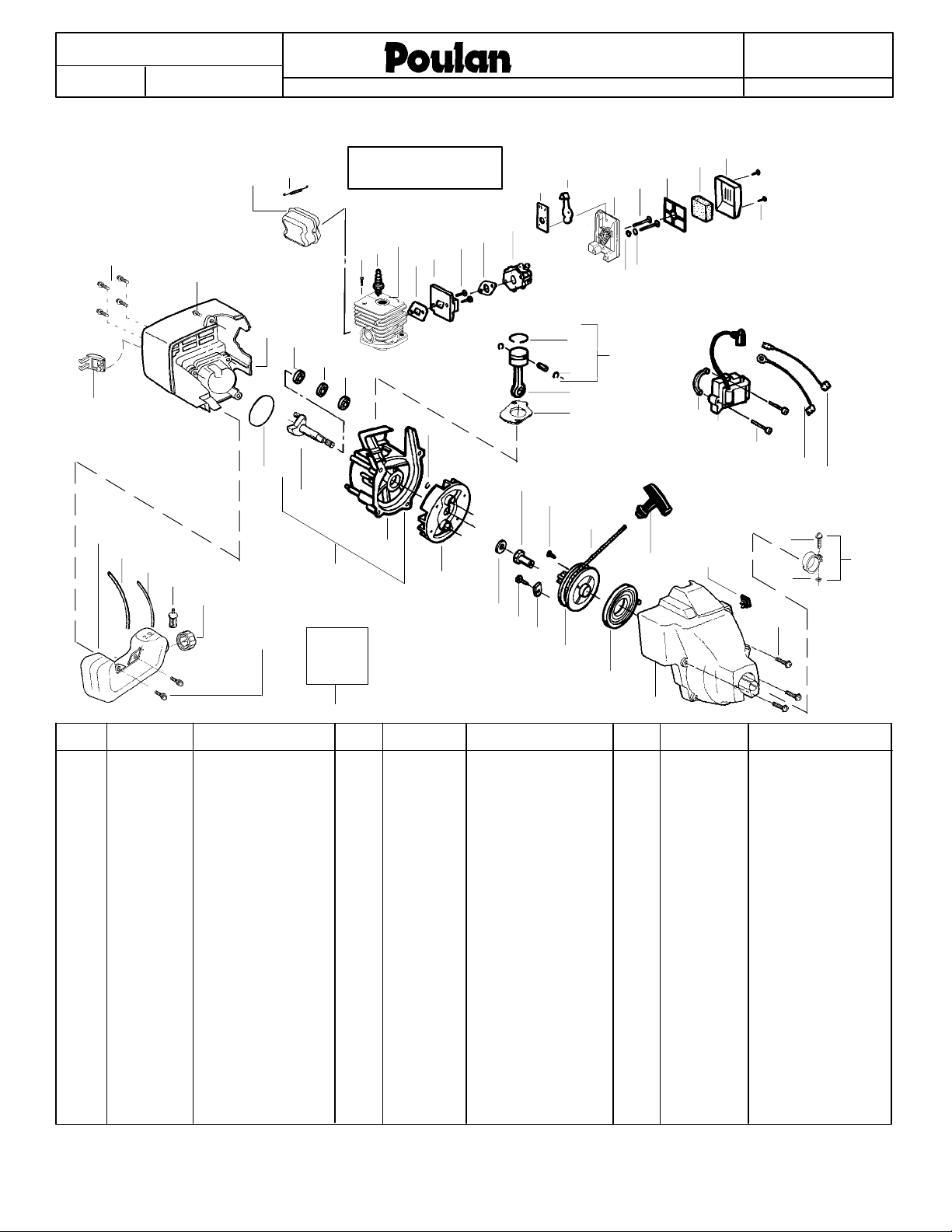

Page 3
DATE
8/21/03
PAR TS LI ST N O.
530086856
530086856 --- 3/19/03
Replaces
17
MODEL(s)
PL25
PAGE N O.
3
R
R
R
R
PARAMOUNT PARTS LIST
POULAN PARTS LIST
POULAN PRO PARTS LIST
Note: Illustration may differ from actual model due to design changes
2
1
TYPE 2
r
PARTS LIST
12
11
13
14
15
16
48
66
47
65
64
63
46
62
61
45
49
44
50
43
42
Engine
Gasket
Kit
52
60
41
10
53
9
8
19
20
22
21
23
24
54
39
55
25
38
37
56
57
58
36
26
35
59
5
4
3
51
7
6
40
27
28
18
34
32
33
29
30
31
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
1. 530071396 Kit -- Muffler (incl. 2)
2. 530042088 Spring--Muffler
3. 530015953 Screw--Cylinder
4. 952030164 Spark Plug (RCJ 6Y)
5. 530071359 Kit -- Cylinder
6. 530071363 Gasket--Cyl/Carb.(kit)
7. 530055459 Adaptor--Carb.
8. 530016014 Screw
9. 530071363 Gasket--Carb.(kit)
10. 530069754 Kit -- Carburetor Ass’y
11. 530038747 Plate--Choke Mounting
12. 530038686 Shutter--Choke
13. 530052431 Box--Air
14. 530016353 Screw
15. 530036569 Plate -- Filter Support
16. 530036575 Foam-- Air Filter
17. 530036568 Cover--Air Filter
18. 530015880 Screw
19. 530015852 Spacer--Choke
20. 530015254 Washer
21. 530071357 Kit -- Piston
22. 530055120 Ring-- Piston
23. 530015162 Retainer--Piston Pin
NEW PART NUMBER FOR THIS IPLn = REFER TO T HE SERVICE R EFERENCE IN DICATED FOR MOR E INFORMATIO N. (LOCATED AT END OF IPL )K
=
(Incl. Limiter Cap)
(Incl. 22, 23 & Pin)
24. 530069945 Assy--Connecting Rod
25. 530071363 Gasket--Cylinder (kit)
26. 530036145 Spacer--Module
27. 530055160 Module-- Ignition
28. 530015954 Screw
29. 530014662 Assy--Ground Wire
30. 530014663 Assy--Leadwire
31. 530056365 Assy--Nose Cone Clamp
32. 530016381 Screw--Nose Cone
33. 530016382 Nut--Nose Cone
34. 530015810 Screw
35. 530071356 Kit-- Momentary Switch
36. 530027569 Handle-- Starter
37. 530069232 Kit -- Rope
38. 530016080 Screw
39. 530038604 Coupling-- Drive
40. 530015941 Retain. Ring--C’shaft
41. 530032124 Bearing--Outer
42. 530019179 Seal-- C’case
43. 530015945 Retainer Ring-- C’case
44. 530032125 Bearing--Inner
45. 530052263 Shroud--Rear
46. 530015934 Screw
47. 530015810 Screw
48. 530054536 Guard--Muffler
‘
(Incls. 32&33)
49. 530071363 O-- Ring--C’case (kit)
50. 530054753 Assy--Crankshaft
51. 530012462 Assy--Crankcase
(Incl. 41-- 44)
52. 530071360 Assy--C’case & C’shaft
(Incl. 40,50,51)
53. 530069886 Assy--Flywheel
54. 530015828 Washer-- Flat
55. 530015775 Screw
56. 530027523 Retainer
57. 530069400 Kit-- Starter Pulley
(Incl. 38)
58. 530042085 Spring--Starter
59. 530071525 KIT--Fan Hsg. Assy.
60. 530071363 Kit-- Engine Gasket
(Incl. 6,9,25,49)
61. 530016379 Retainer--Fuel Tank
62. 530014347 Assy --Fuel Cap w/ret.
63. 530095646 Assy --Fuel Pickup
64. 530069247 Kit--Fuel Line (Small)
65. 530069216 Kit--Fuel Line (Large)
66. 530049379 Assy --Fuel Tank (Incl.
cap, fuel line, filter)

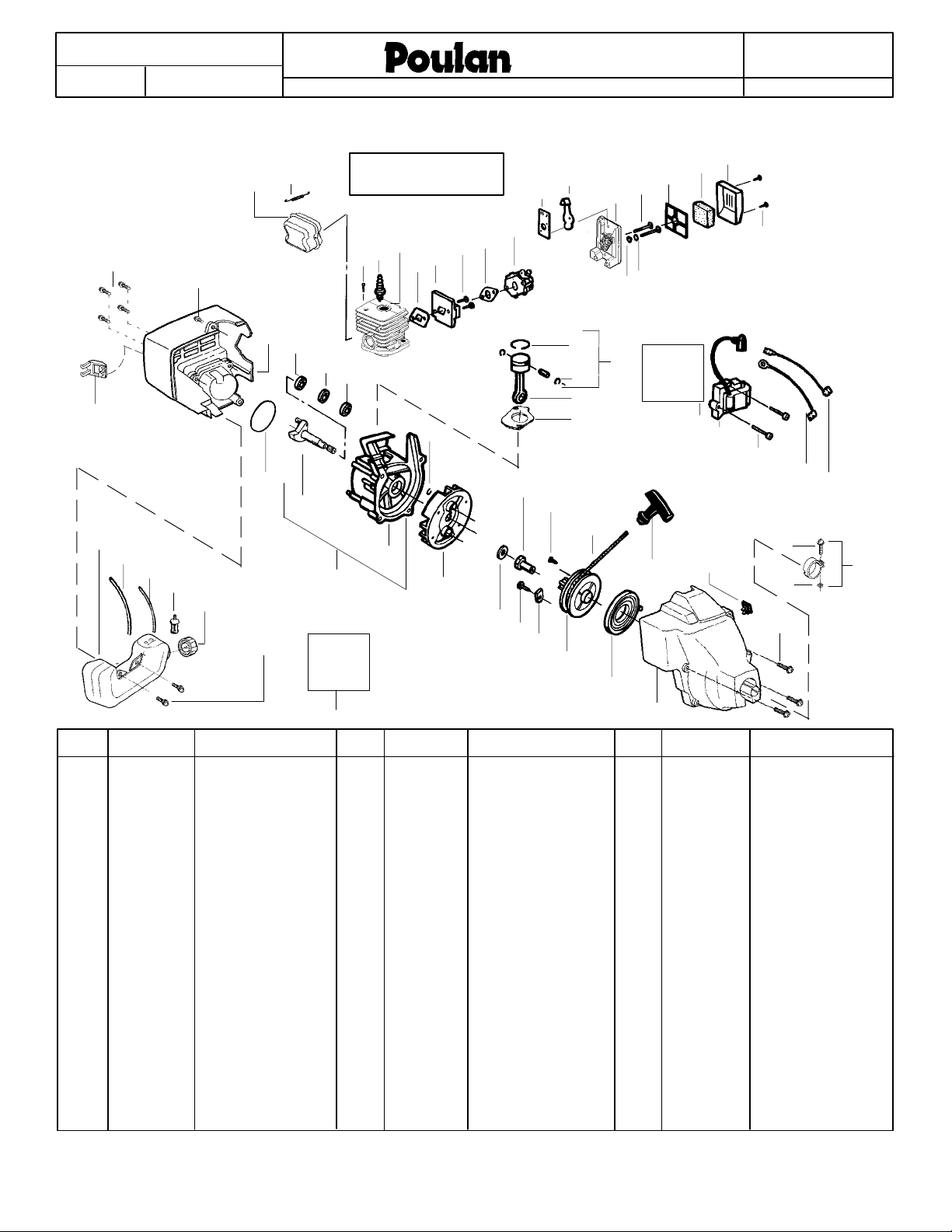

Page 4
DATE
8/21/03
PAR TS LI ST N O.
530086856
530086856 --- 3/19/03
Replaces
17
MODEL(s)
PL25
PAGE N O.
4
R
R
R
R
PARAMOUNT PARTS LIST
POULAN PARTS LIST
POULAN PRO PARTS LIST
Note: Illustration may differ from actual model due to design changes
2
1
TYPE 3
r
PARTS LIST
12
11
13
14
15
16
47
65
46
64
63
62
45
61
60
44
48
43
49
42
41
51
Engine
Gasket
Kit
59
10
52
9
8
19
20
22
21
23
24
53
39
54
25
38
37
55
56
57
36
26
35
58
5
4
3
50
7
6
40
27
28
18
34
32
33
29
30
31
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
1. 530071396 Kit -- Muffler (incl. 2)
2. 530042088 Spring--Muffler
3. 530015953 Screw--Cylinder
4. 952030164 Spark Plug (RCJ 6Y)
5. 530071359 Kit -- Cylinder
6. 530071363 Gasket--Cyl/Carb.(kit)
7. 530056403 Adaptor--Carb.
8. 530016014 Screw
9. 530071363 Gasket--Carb.(kit)
10. 530069754 Kit -- Carburetor Ass’y
11. 530038747 Plate--Choke Mounting
12. 530038686 Shutter--Choke
13. 530052431 Box--Air
14. 530016353 Screw
15. 530036569 Plate -- Filter Support
16. 530036575 Foam-- Air Filter
17. 530036568 Cover--Air Filter
18. 530015880 Screw
19. 530015852 Spacer--Choke
20. 530015254 Washer
21. 530071357 Kit -- Piston
22. 530055120 Ring-- Piston
23. 530015162 Retainer--Piston Pin
NEW PART NUMBER FOR THIS IPLn = REFER TO T HE SERVICE R EFERENCE IN DICATED FOR MOR E INFORMATIO N. (LOCATED AT END OF IPL )K
=
(Incl. Limiter Cap)
(Incl. 22, 23 & Pin)
24. 530069945 Assy--Connecting Rod
25. 530071363 Gasket--Cylinder (kit)
26. 530036145 Spacer--Module
27. 530055160 Module-- Ignition
28. 530015954 Screw
29. 530014662 Assy--Ground Wire
30. 530014663 Assy--Leadwire
31. 530056365 Assy--Nose Cone Clamp
32. 530016381 Screw--Nose Cone
33. 530016382 Nut--Nose Cone
34. 530015810 Screw
35. 530071356 Kit-- Momentary Switch
36. 530027569 Handle-- Starter
37. 530069232 Kit -- Rope
38. 530016080 Screw
39. 530038604 Coupling-- Drive
40. 530015941 Retain. Ring--C’shaft
41. 530055728 Bearing--Outer
42. 530071615 Seal-- C’case
43. 530032125 Bearing--Inner
44. 530056543 Shroud--Rear
45. 530015934 Screw
46. 530015810 Screw
47. 530054536 Guard--Muffler
‘
(Incls. 32&33)
48. 530071363 O-- Ring--C’case (kit)
49. 530054753 Assy--Crankshaft
50. 530012491 Assy--Crankcase
(Incl. 41-- 43)
51. 530071360 Assy--C’case & C’shaft
(Incl. 40,49,50)
52. 530069886 Assy--Flywheel
53. 530015828 Washer-- Flat
54. 530015775 Screw
55. 530027523 Retainer
56. 530069400 Kit-- Starter Pulley
(Incl. 38)
57. 530042085 Spring--Starter
58. 530071525 KIT--Fan Hsg. Assy.
59. 530071363 Kit-- Engine Gasket
(Incl. 6,9,25,48)
60. 530016379 Retainer--Fuel Tank
61. 530014347 Assy --Fuel Cap w/ret.
62. 530095646 Assy --Fuel Pickup
63. 530069247 Kit--Fuel Line (Small)
64. 530069216 Kit--Fuel Line (Large)
65. 530049379 Assy --Fuel Tank (Incl.
cap, fuel line, filter)
Page 5
DATE
8/21/03
PAR TS LI ST N O.
530086856
530086856 --- 3/19/03
Replaces
17
MODEL(s)
PL25
PAGE N O.
5
R
R
R
R
PARAMOUNT PARTS LIST
POULAN PARTS LIST
POULAN PRO PARTS LIST
Note: Illustration may differ from actual model due to design changes
2
1
TYPE 4
r
PARTS LIST
12
11
13
14
15
16
47
65
46
64
63
62
45
61
60
44
48
43
49
42
41
51
Engine
Gasket
Kit
59
10
52
9
8
19
20
53
39
54
22
23
24
25
38
37
55
56
57
21
Module
Spacer &
Screws
Kit
36
58
26
35
5
4
3
50
7
6
40
27
28
18
34
32
33
29
30
31
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
1. 530071396 Kit -- Muffler (incl. 2)
2. 530042088 Spring--Muffler
3. 530015953 Screw--Cylinder
4. 952030164 Spark Plug (RCJ 6Y)
5. 530071359 Kit -- Cylinder
6. 530071363 Gasket--Cyl/Carb.(kit)
7. 530057634 Adapter--Carb.
8. 530016014 Screw
9. 530071363 Gasket--Carb.(kit)
10. 530071635 Kit -- Carburetor Ass’y
11. 530038747 Plate--Choke Mounting
12. 530038686 Shutter--Choke
13. 530052431 Box--Air
14. 530016393 Screw
15. 530036569 Plate -- Filter Support
16. 530036575 Foam-- Air Filter
17. 530036568 Cover--Air Filter
18. 530016349 Screw
19. 530015852 Spacer--Choke
20. 530015254 Washer
21. 530071357 Kit -- Piston
22. 530055120 Ring-- Piston
23. 530015162 Retainer--Piston Pin
NEW PART NUMBER FOR THIS IPLn = REFER TO T HE SERVICE R EFERENCE IN DICATED FOR MOR E INFORMATIO N. (LOCATED AT END OF IPL )K
=
(WT--631)
(Incl. 22, 23 & Pin)
24. 530069945 Assy--Connecting Rod
25. 530071363 Gasket--Cylinder (kit)
26. 530071731 Kit-- Module Spacer
n
27. 530055160 Module-- Ignition
n
28. 530016357 Screw
29. 530014662 Assy--Ground Wire
30. 530014663 Assy--Leadwire
31. 530056365 Assy--Nose Cone Clamp
32. 530016381 Screw--Nose Cone
33. 530016382 Nut--Nose Cone
34. 530015810 Screw
35. 530071356 Kit-- Momentary Switch
36. 530027569 Handle-- Starter
37. 530069232 Kit -- Rope
38. 530016392 Screw
n
39. 530038604 Coupling-- Drive
40. 530015941 Retain. Ring--C’shaft
41. 530055728 Bearing--Outer
42. 530071615 Kit-- C’case Seal
43. 530032125 Bearing--Inner
44. 530056543 Shroud--Rear
45. 530015934 Screw
46. 530015810 Screw
47. 530054536 Guard--Muffler
&Screws
‘
(Incls. 32&33)
48. 530071363 O-- Ring--C’case (kit)
49. 530054753 Assy--Crankshaft
50. 530071627 Kit-- Assy--Crankcase
n
51. 530071624 Kit-- Assy--C’case &
n
52. 530069886 Assy--Flywheel
53. 530015828 Washer-- Flat
54. 530015775 Screw
55. 530027523 Retainer
56. 530069400 Kit-- Starter Pulley
57. 530042085 Spring--Starter
58. 530071525 KIT--Fan Hsg. Assy.
59. 530071363 Kit-- Engine Gasket
60. 530016379 Retainer--Fuel Tank
61. 530014347 Assy --Fuel Cap w/ret.
62. 530095646 Assy --Fuel Pickup
63. 530069247 Kit--Fuel Line (Small)
64. 530069216 Kit--Fuel Line (Large)
65. 530049379 Assy --Fuel Tank (Incl.
(Incl. 41-- 43)
Crankshaft
(Incl. 40,49,50)
(Incl. 38)
(Incl. 6,9,25,48)
cap, fuel line, filter)
Page 6
DATE
8/21/03
PAR TS LI ST N O.
530086856
530086856 --- 3/19/03
Replaces
R
R
R
R
PARAMOUNT PARTS LIST
POULAN PARTS LIST
POULAN PRO PARTS LIST
Note: Illustration may differ from actual model due to design changes
r
PARTS LIST

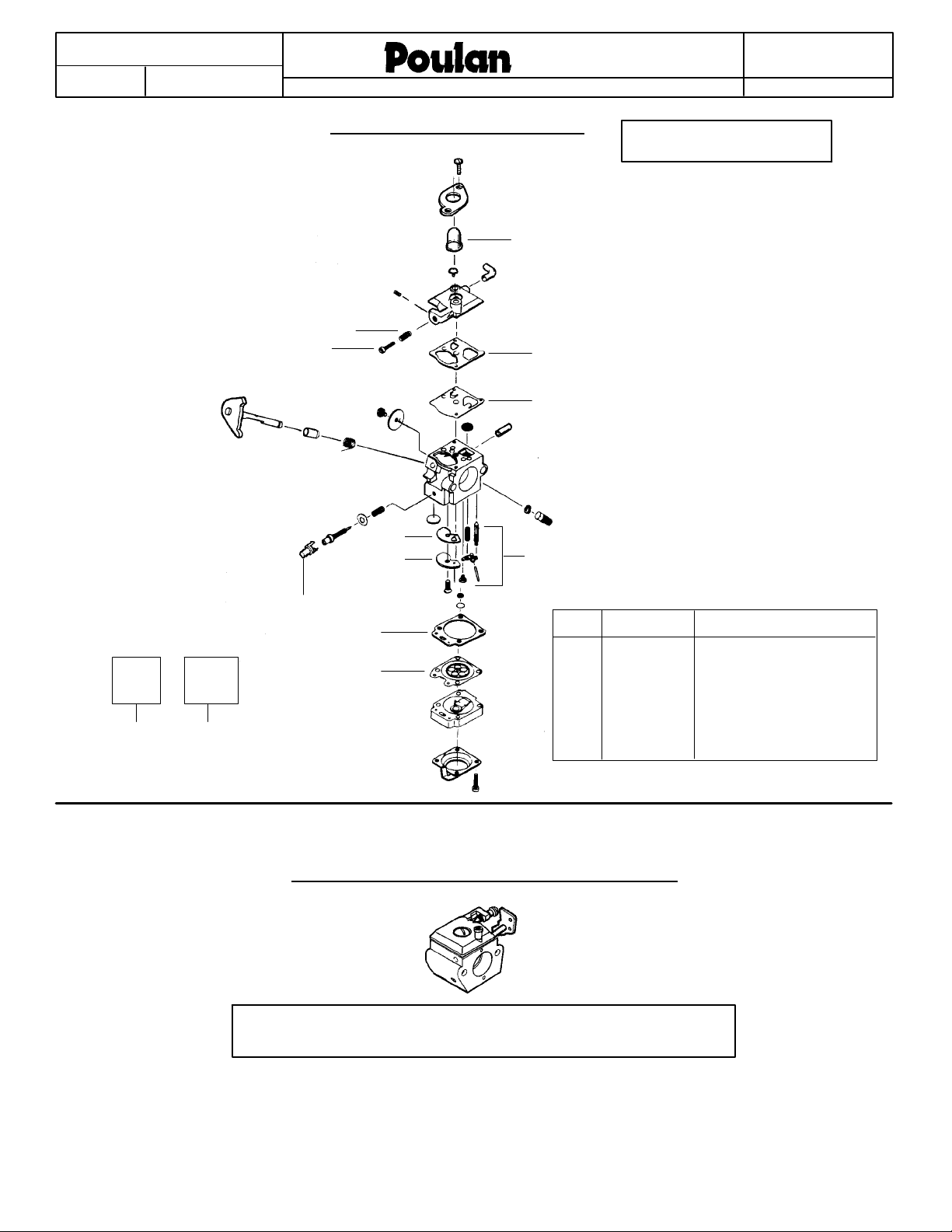

Carburetor Assembly #530069754
TYPE 1,2,3
KIT
KIT
KIT
KIT D
KIT D
MODEL(s)
PL25
PAGE N O.
6
Carb.
3.
Repair
Kit
2
Gasket/
3.
Dia.
Kit
3
D
KIT D
1
KIT D
KIT D
KIT
Ref. Part No. Description
1. 530038403 Limiter Cap
2. 530069838 Carburetor Repair Kit
3. 530069844 Gasket Diaphragm Kit
Kit -- Carburetor Assembly No. 530071635 -- WT--631
( KIT=Indicates Contents)
( D = Indicates Contents)
Note: No Repair kits are available for this carburetor, please order the
complete assembly part number 530--071635 (WT--631)
REFER TO THE SERVICE REFERENCE INDICATED FOR MO RE I NFORM ATION. ( LOCATED AT END OF IPL)
=
= NEW PART NUMBER FOR THIS IPLn
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
D
K
Loading...
