Ayp 86852 PARTS LIST

DATE

PARTS LIST NO.

530086852

Replaces

5/21/03

1

530086852 -- 11/18/02

283 6b

4 5 6a

9

R

R

R

PARAMOUNT PARTS LIST

POULAN PARTS LIST

POULAN PRO PARTS LIST

Note: Illustration may differ from actual model due to design changes

R

PARTS LIST

7

All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be

10

performedby qualified service
personnel.

11

12

13

MODEL(s)

Snapper (S31SST)

PAGE NO.

WARNING

1

14

15

16

17

23

24

20

2118

2219

25

26

Ref. Part No. Description Ref. Part No. Description

1. 530054942 Assy--Throttle cable

2. 530015805 Screw

3. 530015886 Screw

4. 530054837 Hsg.--Throttle Right

5. 530071553 Kit--Left Throttle Hsg.
6 . -- -- -- A s s y -- W i r e

530054943 (a) lower
530055724 (b) upper

7. 530071356 Kit--Switch

8. 530015886 Screw

9. 530054940 T rigger--Throttle

10. 530055699 Assy-- Handle Assist

11. 530015820 Bolt

12. 530088416 Clamp--Handle Assist

13. 530016118 Wingnut

14. 530095963 Shaft--Flex

15. 530055355 Assy-- Driveshaft

16. 530095812 Bracket-- Shield

17. 530071584 Kit--Gearbox

18. 530052285 Limiter--Line

19. 530015805 Screw

20. 530069779 Kit--Shield Ass’y.
(Incls.18,19,21,22)

21. 530015820 Bolt

22. 530016118 Wingnut

23. 530016014 Screw

24. 530016371 Screw

25. 530095814 Non--Blade Dust cup

26. 530056195 Assy-- Cutting Head

27. 530095772 Assy. -- Hub/Arbor (3/8lh , 2x)

28. 530053241 Spring -- Return

29. 530401957 Retainer -- Spool

30. 952711605 Accy.--Wound Spool

Not Shown

530163416 Operator Manual
530055350 Decal--Shaft Warning
530056415 Decal--Start Inst.

27

28

29

30

= NEW PART NUMBER FOR THIS IPLn = REFER TO THE SERVICE REFERENC E IN DICATED FOR MORE INFORM ATION. (LOCATED AT END OF IPL )

K

DATE

PARTS LIST NO.

530086852

5/21/03

Replaces

530086852 -- 11/18/02

R

R

R

PARAMOUNT PARTS LIST

POULAN PARTS LIST

POULAN PRO PARTS LIST

Note: Illustration may differ from actual model due to design changes

R

PARTS LIST

MODEL(s)

Snapper (S31SST)

PAGE NO.

2

27

22

28

29

23

30

31

34

32

33

49

51

50

24

1

2

8

9

35

48

52

36

10

37

38

11

12

13

14

15

16

39

40

41

42

3

4

17

44

45

43

18

6

5

46

19

47

20

7

21

25

26

53

54

Ref.

10. 530015849 Screw--carb.

11. 530054934 Air Box

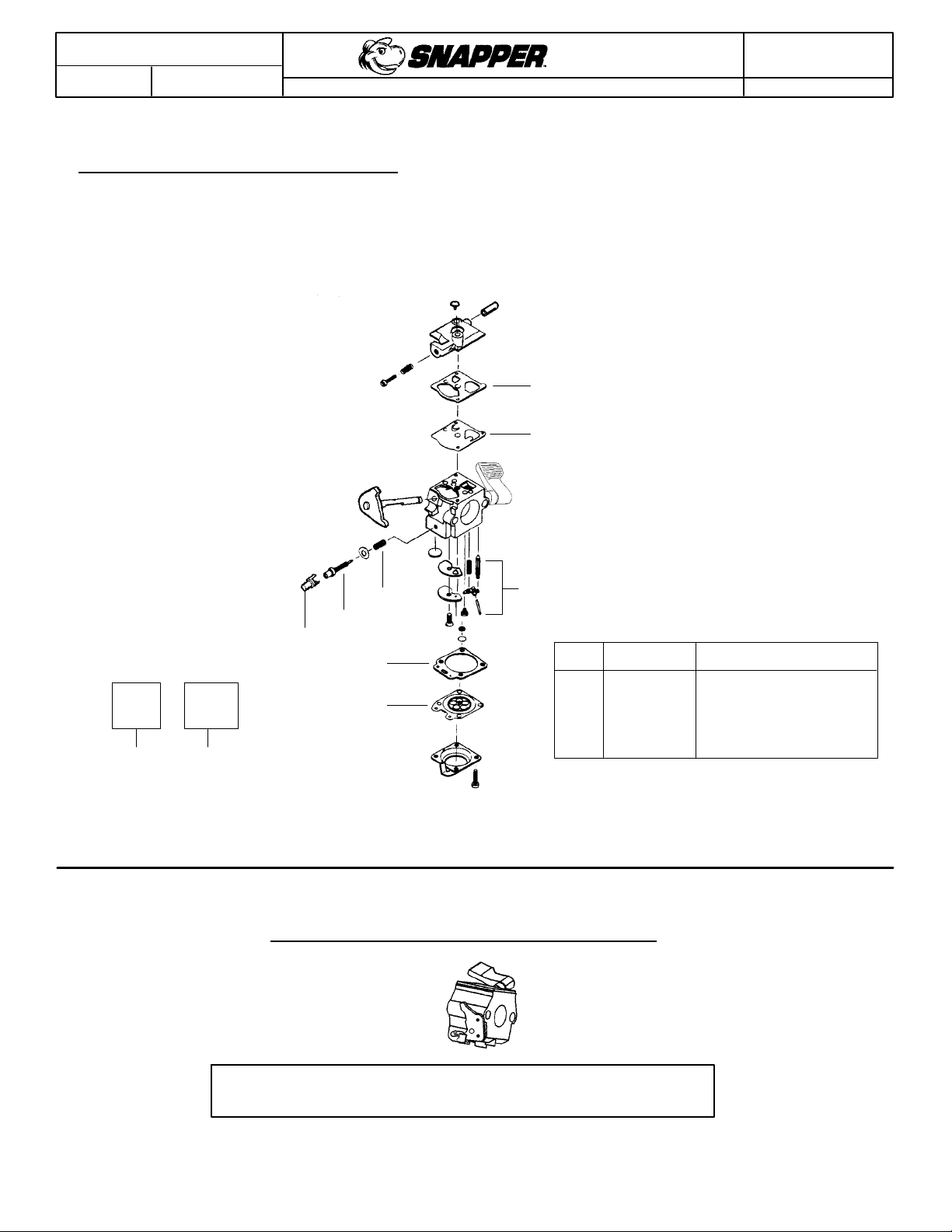

1 2 . -- -- -- K i t -- A s s y c a r b .

13. 530071401 Gasket--Carb.(kit)

14. 530055317 Assy--Fuel tank

15. 530015771 Screw--crankcase

16. 530015952 Screw--shrd to f/hsg.

17. 530056044 Shroud

18. 530071401 O--ring--c/case (kit)

19. 530027593 Valve-- reed

20. 530054596 Stop-- reed

Part No. Part No. Part No.

1. 530047721 Bulb-- purge

2. 530015843 Screw--tank

3. 530049386 Assy--Fuel cap

4. 530095646 Assy--Fuel pick--up

5. 530071404 Kit-- Fuel line

6. 530069216 Kit-- Fuel/Purge line

7. 530015775 Screw

8. 530054935 Cover--Air box

9. 530054946 Filter-- Air

530071566 (WT-- 618)
530071636 (WT-- 627)

n

n

= NEW PART NUMBER FOR THIS IPL

55

Description

56

57

58

59

60

61

Ref. Ref.Description

21. 530016064 Screw--reed valve

22. 530015875 Screw--tank retainer

23. 530055492 Isolator--fuel tank

24. 530054941 Ret.-- fuel tank

25. 530054834 Handle-- starter

26. 530071400 Kit--Rope

27. 530032103 Bearing--inner

28. 530015787 Retainer

29. 530019158 Seal

30. 530032102 Bearing-- outer

31. 530015789 Retainer-- crankshaft

32. 530012430 Assy--crankshaft

33. 530012514 Assy--crankcase

n

34. 530071686 Assy--c’case/c’shaft

n

35. 530071402 Kit -- Assy.--Flywheel

36. 530016030 Washer

37. 530055620 Spacer

38. 530015775 Screw--baffle

39. 530056864 Plate-- baffle

40. 530016326 Screw--rope

41. 530071399 Kit-- pulley (incl. #40)

=

REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED A T END OF IPL)

K

(incl. 27--31,32,33)

Engine
Gasket
Kit

62

Description

42. 530042086 Spring-- starter

43. 530019182 Grommet

44. 530015810 Screw--F/hsg

45. 530056225 Housing--Fan w/eyelet

46. 530016030 Washer

47. 530012427 Coupling-- drive

48. 530010960 Assy--Connecting rod

49. 530015162 Retainer-- piston pin

50. 530025875 Ring-- Piston

51. 530069899 Kit-- Piston

52. 530071401 Gasket--Cylinder (kit)

53. 530069310 Kit-- Muffler

54. 530053346 Heat shield/air dam

55. 530036409 Spring-- muffler

56. 530071582 Kit-- Cylinder

57. 952030249 Spark plug (RCJ--6Y)

58. 530001624 Bolt-- Cylinder

59. 530039217 Module-- Ignition

60. 530016357 Screw --module

61. 530057238 Assy--Rear wire

62. 530071401 Kit--Gasket
