7124A89 (1998) Page 1 of 42
CHASSIS AND ENCLOSURES
7124A89 (1998) Page 2 of 42
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 160393 CHASSIS
2 140356 SUB= 145009
3 17490612 SCREW
4 19131216 WASHER
5 155272 BUMPER-HOOD/DASH
6 155924X013 SADDLE.SLKSC.FLT
8 126471X "CLIP,INSULATOR"
9 161937X011 DASH SILKSCREEN
10 72140608 SUB= 72110608
11 155927 "PANEL-DASH,LH"
12 145660 CLIP.TINNERMAN
13 155934X010 SUB= 169117X010
14 17490608 SCREW LT
15 74780512 BOLT
16 73510500 NUT
17 159639X505 HOOD.STEEL.ASSY
18 126938X SUB= 532126938
23 124028X SUB= 532124028
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 157373 GRILLE-MS428
29 140273 LENS GRILLE
30 157584X505 FENDER BRACKET
31 136619 BRKT FENDER
33 105476X505 FOOTREST LH
34 105475X505 FOOTREST RH
35 72110606 BOLT
37 17490508 SCREW LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
51 73800400 NUT
52 19091416 WASHER
53 144697 BRACKET.GRILLE.LH
54 161464 SCREW.HEX.WS.HD
55 144696 BRACKET.GRILLE.RH
57 74780412 SUB= 74780414
58 150127 AIR DUCT
140 158418 BRKT SUSPENSION
145 156524 "ROD POVOT,CHASSIS"
5479J PLUG BUTTON T
7124A89 (1998) Page 3 of 42
DANA TRANSAXLE
7124A89 (1998) Page 4 of 42
DANA TRANSAXLE
Ref # Part Number Qty Description
1 160939 HOUSING.UPPER.DANA.(5305J)
2 2274J SUB= 74760412
3 134400 SUB= 68003
4 105904X "SPRING, DETENT LT"
5 160940 SCREW.TAPPING.1/4-20X.734
6 138235 KIT SHIFTER ASM
7 108727X SUB= 108776X
8 148266 SUB= 105911X
9 148269 SEAL.OIL.DAN.5508
10 2225J RETAINING RING LT
11 134793 ASM KIT SHIM 4689
12 148268 BEARING.FLNG.5511
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 161563 INPUT SHAFT KIT 6250
16 161564 PINION.BEVEL.12T(5620)
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 160942 COVER.DETENT.(5584)
20 160943 GEAR.SPUR.12T.(5627)
21 148267 CLUTCH.COL.5467
22 138236 ASM KIT CLTCH KEY
23 73810500 NUT.LOCK.5/16-24
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 124644X GEAR SPUR 30T
31 108980X GEAR 25T LT
32 160954 BRACKET, ANTI-ROTATION
33 134796 SPUR GEAR 19T
34 134797 SPACER
35 105925X "WASHER, PLAIN LT"
36 2228J WASHER 045
37 2231J WASHER 031
38 160944 ASSY.GEAR.6153 12T&30T
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 161565 GEAR.BEVEL.36T(5621)
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 142678 GEAR SPUR 12 TTH
46 124641X GEAR SPUR 20T
47 106589X "GEAR, SPUR 25T LT"
48 120951X PUCK T
49 105937X "GEAR, SPUR 31T LT"
50 105936X SPACER LT
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 160946 AXLE.LH(5528-1)
55 160947 MITER 5270 12T.SPLINED
56 160948 RING.RETAINING.(5270)
57 110071X SUB= 120478X
58 120952X SHAFT T
7124A89 (1998) Page 5 of 42
DANA TRANSAXLE
Ref # Part Number Qty Description
59 160949 MITER 5623.12T.IDLER
60 160946 AXLE.LH(5528-1)
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 160952 JAW, BRAKE
66 120954X PIN T
67 160953 SCREW.(5562) .5/16-18X2.35
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120416X SUB= 126976X
7124A89 (1998) Page 6 of 42
DECALS
7124A89 (1998) Page 7 of 42
DECALS
Ref # Part Number Qty Description
2 145005 DECAL.BATRY.3-3908
3 163015 DECAL.HOOD.RH
4 141517 DECAL DECK WIZ +
5 272632 DECAL, HP ENGINE
6 157002 "DECAL DANGER,FEND"
7 4900J DECAL T
8 163016 DECAL.HOOD.LH
9 141496 DECAL CHASSIS
13 146678 DECAL.INS.STRG.WL
15 136832 DECAL
16 127521 NLA
19 156867 "DECAL DASH,OPER."
138311 DECAL HANDLE LIFT
162781 MANUAL.O.7124A89
7124A89 (1998) Page 8 of 42
DRIVE
7124A89 (1998) Page 9 of 42
DRIVE
Ref # Part Number Qty Description
2 146682 SPRING.BRAKE.RETU
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17490512 SCREW
7 162240 BRKT.SADDLE.SHIFT
8 131679 SHIFT ROD
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
15 74490544 BOLT.HX.FLG.5/16
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 155071 SHAFT ASM-PEDAL F
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 154777 SUB= 165692
42 19131312 WASHER
47 127783 SUB= 139245
48 154407 BELLCRANK.CLUTCH
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 160855 "V-BELT,95.3"
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 154778 KEEPER-BELT
70 134683 KEEPER BELT ENG
72 19132012 WASHER
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
7124A89 (1998) Page 10 of 42
DRIVE
Ref # Part Number Qty Description
77 123583X SQUARE KEY
78 121748X WASHER
112 19091210 WASHER LT
116 72110610 BOLT RDHD 3/8-16
148 159103 SPACER
149 122052X SPACER RETAINER
150 150935 BUSHING.NYLON
151 19133210 WASHER
7124A89 (1998) Page 11 of 42
ELECTRICAL
7124A89 (1998) Page 12 of 42
ELECTRICAL
Ref # Part Number Qty Description
1 144925 SUB= 123899X
2 74760412 BOLT LT
3 19091016 WASHER
4 10040400 LOCKWASHER
6 73220400 SUB= 50675
8 156417 "CASE,BATTERY.MECH"
16 153664 SWITCH INTERLOCK
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
24 4799J "CABLE T, BATTERY"
25 146147 CABLE.BTRY.6GA.RD
26 108824X FUSE HYT
28 4207J CABLE T
29 121305X SWITCH SEAT
30 140301 SWITCH IGN 4POS
31 124211X NUT IGNITION
32 141226 COVER KEY SWITCH
33 122147X KEY
40 156442 HARNESS-IGNITION
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 145673 SUB= 146154
44 73640400 NUT HXKEP 1/4X20
48 140844 ADAPTER AMMETER
52 141940 PROTECTION LOOP
70 140413 HARNESS ENG DUAL
7124A89 (1998) Page 13 of 42
ENGINE
7124A89 (1998) Page 14 of 42
ENGINE
Ref # Part Number Qty Description
1 140310 CONTROL THROTTLE
2 17720410 SCREW LT
3 CHECK WITH SUPPLIER
4 137348 MUFFLER
13 272293 GASKET ENG 1 313 LD TIN PLATED
14 13280324 PIPE NIPPLE
15 13200300 ELBOW
16 11050600 LOCKWASHER
23 159880 SHIELD.BRN/DBR.GD
29 137180 SUB= 532137180
31 109202X TANK.FUEL.LT.
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
35 17490512 SCREW
37 137040 LINE FUEL
38 CHECK WITH SUPPLIER
40 124028X SUB= 532124028
44 17490412 SCREW HEX CRT
46 19091416 WASHER
62 10040500 LOCKWASHER
72 71070512 SCREW
78 17490620 SCREW
81 128861 NUT
7124A89 (1998) Page 15 of 42

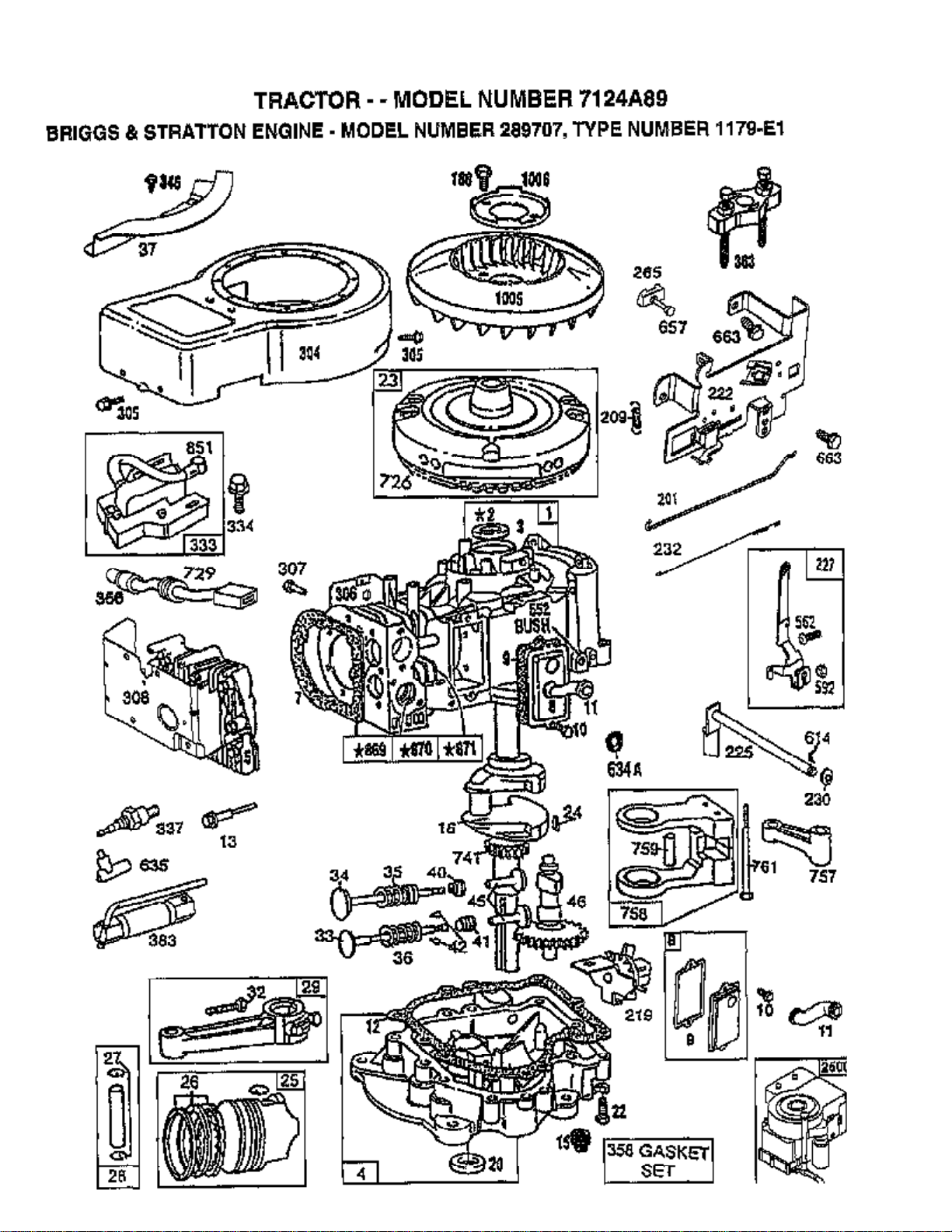

ENGINE-BRIGGS AND STRATTON
7124A89 (1998) Page 16 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
1 496413 CYLINDER ASSEMBLY
2 399265 P/N CONFLICT - CHECK WITH SUPPLIER
3 391086 SEAL, OIL
5 494240 HEAD, CYLINDER
7 271866 GASKET, CYLINDER HEAD
8 495735 BREATHER ASSY
9 27803 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 280100 TUBE, BREATHER
12 271916 GASKET, CRANKCASE COVER 1/64"
12 271997 GASKET, CRANKCASE COVER .005"
12 271996 GASKET, CRANKCASE COVER .009"
13 94622 SCREW, CYLINDER HEAD 3"
15 94239 PLUG, OIL DRAIN
16 498971 CRANKSHAFT
18 494238 BASE, ENGINE
20 291675 SEAL, OIL
22 94624 SCREW, SEMS, BASE MOUNTING
23 492326 FLYWHEEL & RING GEAR ASSY, MAGNETO
24 222698 KEY, FLYWHEEL
25 394661 PISTON ASSEMBLY, STANDARD
25 394662 PISTON ASSEMBLY .010" OVERSIZE
25 394663 PISTON ASSEMBLY .020" OVERSIZE
25 394664 PISTON ASSEMBLY .030" OVERSIZE
26 391780 RING SET, PISTON, STANDARD
26 392331 RING SET, PISTON, STANDARD SIZE
26 391781 RING SET, PISTON .010" OVERSIZE
26 391782 RING SET, PISTON .020" OVERSIZE
26 391783 RING SET, PISTON .030" OVERSIZE
27 263129 LOCK, PISTON PIN
28 299691 PIN ASSEMBLY, PISTON, STANDARD
28 391286 PIN ASSEMBLY, PISTON .005" OVER
29 490348 ROD ASSEMBLY, CONNECTING
29 490469 ROD ASSEMBLY, CONNECTING .020" UNDERSIZE
CRANKPIN
32 94671 SCREW, CONNECTING ROD
33 262246 VALVE, EXHAUST
34 262247 VALVE, INTAKE
35 65906 SPRING, INTAKE VALVE
36 26828 SPRING, EXHAUST VALVE
37 224502 GUARD, FLYWHEEL
40 221596 RETAINER, INTAKE VALVE
41 292260 RETAINER, EXHAUST VALVE
42 494553 KEEPER VALVE
45 262248 TAPPET-VALVE
46 212897 GEAR, CAM
51 272465 GASKET, CARBURETOR (CARBURETOR TO ELBOW)
52 272554 GASKET CARB
53 94637 STUD, CARBURETOR MOUNTING
73 224517 SCREEN, ROTATING
75 224061 WASHER, SPRING
78 94626 SCREW, SEMS
93 281346 BUSHING, THROTTLE SHAFT
94 498030 VALVE, IDLE, ADJUSTMENT
95 94098 SCREW, THROTTLE
98 495800 SCREW, IDLE SPEED
104 231789 PIN, FLOAT HINGE
7124A89 (1998) Page 17 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
105 231855 VALVE ASSY, INLET NEEDLE
106 231854 INLET VALVE SEAT
108 224540 VALVE, CHOKE
110 225137 WASHER, FLAT
121 499220 CARBURETOR OVERHAUL KIT
123 94913 SCREW, TORX HEX
125 498027 CARBURETOR ASSEMBLY
130 224539 VALVE, THROTTLE
131 494379 SHAFT & LEVER, THROTTLE
133 494381 FLOAT, CARBURETOR
137 281165 GASKET, FLOAT BOWL
138 281164 WASHER, FLOAT BOWL SCREW
141 495931 SHAFT & LEVER, CHOKE
142 497566 NOZZLE/JET, CARBURETOR
146 94196 KEY, TIMING GEAR
164 213819 ELBOW, INTAKE
171 281051 P/N CONFLICT - CHECK WITH SUPPLIER
186 493496 ELBOW, FUEL PIPE
187 296004 PIPE, FUEL
188 94627 SCREW, SEMS 3/4"
201 262767 LINK, GOVERNOR
209 260871 SPRING, GOVERNOR
216 262766 LINK, CHOKE
219 490815 GOVERNOR GEAR
222 495611 PLATE, GOVERNOR CONTROL
224 94513 SCREW, SEMS, AIR CLEANER
225 495157 CRANK, GOVERNOR, 1/4" DIAMETER
227 493935 LEVER ASSY, GOVERNOR
230 94927 WASHER, GOVERNOR LEVER
232 262785 SPRING, GOVERNOR LINK
240 394358 FILTER, FUEL
265 221535 CLAMP
284 94903 SCREW, HEX HEAD
284A 94704 SCREW, AIR CLEANER
304 496282 HOUSING, BLOWER
305 94786 SCREW
306 224545 SHIELD, CYLINDER
307 94930 SCREW
308 491490 COVER, CYLINDER HEAD
309 497595 MOTOR, STARTING, 12 VOLT
310 94003 BOLT
311 497608 BRUSH SET
333 492341 ARMATURE, MAGNETO
334 94731 SCREW, SEMS
337 802592 PLUG, SPARK
346 94896 SCREW, SEMS
356 494328 WIRE, GROUND
358 494241 GASKET SET
363 19203 PULLER, FLYWHEEL
383 89838 WRENCH SPARK PLUG
445 496984 CARTRIDGE, AIR CLEANER
455 222561 CUP, SCREEN MOUNTING
467 493903 KNOB, AIR CLEANER
474 393474 STATOR, ALTERNATOR, DUAL CIRCUIT
482 93621 SCREW, SEMS
583 806000 STRAP, STARTER
510 497606 DRIVE, STARTER
523 495230 CAP AND DIPSTICK, OIL FILLER
7124A89 (1998) Page 18 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
524 281370 SEAL, FILLER TUBE
525 496113 TUBE, OIL FILLER
535 272403 ELEMENT, AIR CLEANER
537 281106 O-RING, AIR CLEANER
544 497603 ARMATURE, STARTER
552 491986 BUSHING, GOVERNOR CRANK
562 94907 BOLT, GOVENOR LEVEL
592 231978 NUT, HEX
592A 92278 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
611 493496 ELBOW, FUEL PIPE
614 93306 COTTER, HAIR PIN
615 263080 RETAINER
618 262803 SPRING, CHOKE RETURN
634 494455 SEAL, SPRING ASSY.
634A 491323 SEAL, GOVERNOR
635 66538 ELBOW, SPARK PLUG
646 224546 BRACE, AIR CLEANER
657 94906 SCREW
663 94929 SCREW, SELF-TAPPING
668 280848 SPACER
726 392134 GEAR, RING
727 490324 COVER, STARTER
728 94951 SCREW, HEX HEAD
729 281159 CLIP, LEAD WIRE
729A 225170 RETAINER, WIRE
741 262932 GEAR, TIMING
757 213998 LINK, COUNTERWEIGHT
758 399891 COUNTERWEIGHT ASSY
759 230787 PIN, COUNTERWEIGHT
761 94593 SCREW, COUNTERWEIGHT
783 280104 GEAR, STARTER
801 497626 CAP, DRIVE
802 497607 P/N CONFLICT - CHECK WITH SUPPLIER
803 497604 HOUSING, STARTER
842 270920 SEAL, OIL FILLER CAP
847 496415 P/N CONFLICT - CHECK WITH SUPPLIER
851 493880 TERMINAL, IGNITION CABLE
869 261463 SEAT, INTAKE VALVE, STANDARD
870 262924 SEAT, EXHAUST VALVE, STANDARD
871 261961 GUIDE, EXHAUST VALVE
871 231218 GUIDE, INTAKE VALVE
872 281104 COVER, AIR CLEANER
875 494237 BODY, AIR CLEANER
877 393456 DIODE & CONNECTOR ASSY
955 94642 SCREW, FUEL BOWL
965 94010 LOCKNUT, AIR CLEANER MOUNTING
975 495933 BOWL ASSEMBLY, CARBURETOR
977 494385 CARBURETOR GASKET KIT
1005 280687 FAN, FLYWHEEL
1006 224413 RETAINER, FAN
1036 499362 LABEL, KIT-EMISSION
1044 94673 SCREW, SHOULDER, HEX HEAD
1090 497605 P/N CONFLICT - CHECK WITH SUPPLIER
1091 281364 CAP, LIMITER
2500 286707-4526 ENGINE
496606 SHORTBLOCK
499220 CARBURETOR OVERHAUL KIT
7124A89 (1998) Page 19 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
498539 VALVE OVERHAUL GASKET SET
7124A89 (1998) Page 20 of 42
ENGINE-BRIGGS AND STRATTON
7124A89 (1998) Page 21 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
1 496413 CYLINDER ASSEMBLY
2 399265 P/N CONFLICT - CHECK WITH SUPPLIER
3 391086 SEAL, OIL
5 494240 HEAD, CYLINDER
7 271866 GASKET, CYLINDER HEAD
8 495735 BREATHER ASSY
9 27803 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 280100 TUBE, BREATHER
12 271916 GASKET, CRANKCASE COVER 1/64"
12 271997 GASKET, CRANKCASE COVER .005"
12 271996 GASKET, CRANKCASE COVER .009"
13 94622 SCREW, CYLINDER HEAD 3"
15 94239 PLUG, OIL DRAIN
16 498971 CRANKSHAFT
18 494238 BASE, ENGINE
20 291675 SEAL, OIL
22 94624 SCREW, SEMS, BASE MOUNTING
23 492326 FLYWHEEL & RING GEAR ASSY, MAGNETO
24 222698 KEY, FLYWHEEL
25 394661 PISTON ASSEMBLY, STANDARD
25 394662 PISTON ASSEMBLY .010" OVERSIZE
25 394663 PISTON ASSEMBLY .020" OVERSIZE
25 394664 PISTON ASSEMBLY .030" OVERSIZE
26 391780 RING SET, PISTON, STANDARD
26 392331 RING SET, PISTON, STANDARD SIZE
26 391781 RING SET, PISTON .010" OVERSIZE
26 391782 RING SET, PISTON .020" OVERSIZE
26 391783 RING SET, PISTON .030" OVERSIZE
27 263129 LOCK, PISTON PIN
28 299691 PIN ASSEMBLY, PISTON, STANDARD
28 391286 PIN ASSEMBLY, PISTON .005" OVER
29 490348 ROD ASSEMBLY, CONNECTING
29 490469 ROD ASSEMBLY, CONNECTING .020" UNDERSIZE
CRANKPIN
32 94671 SCREW, CONNECTING ROD
33 262246 VALVE, EXHAUST
34 262247 VALVE, INTAKE
35 65906 SPRING, INTAKE VALVE
36 26828 SPRING, EXHAUST VALVE
37 224502 GUARD, FLYWHEEL
40 221596 RETAINER, INTAKE VALVE
41 292260 RETAINER, EXHAUST VALVE
42 494553 KEEPER VALVE
45 262248 TAPPET-VALVE
46 212897 GEAR, CAM
51 272465 GASKET, CARBURETOR (CARBURETOR TO ELBOW)
52 272554 GASKET CARB
53 94637 STUD, CARBURETOR MOUNTING
73 224517 SCREEN, ROTATING
75 224061 WASHER, SPRING
78 94626 SCREW, SEMS
93 281346 BUSHING, THROTTLE SHAFT
94 498030 VALVE, IDLE, ADJUSTMENT
95 94098 SCREW, THROTTLE
98 495800 SCREW, IDLE SPEED
104 231789 PIN, FLOAT HINGE
7124A89 (1998) Page 22 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
105 231855 VALVE ASSY, INLET NEEDLE
106 231854 INLET VALVE SEAT
108 224540 VALVE, CHOKE
110 225137 WASHER, FLAT
121 499220 CARBURETOR OVERHAUL KIT
123 94913 SCREW, TORX HEX
125 498027 CARBURETOR ASSEMBLY
130 224539 VALVE, THROTTLE
131 494379 SHAFT & LEVER, THROTTLE
133 494381 FLOAT, CARBURETOR
137 281165 GASKET, FLOAT BOWL
138 281164 WASHER, FLOAT BOWL SCREW
141 495931 SHAFT & LEVER, CHOKE
142 497566 NOZZLE/JET, CARBURETOR
146 94196 KEY, TIMING GEAR
164 213819 ELBOW, INTAKE
171 281051 P/N CONFLICT - CHECK WITH SUPPLIER
186 493496 ELBOW, FUEL PIPE
187 296004 PIPE, FUEL
188 94627 SCREW, SEMS 3/4"
201 262767 LINK, GOVERNOR
209 260871 SPRING, GOVERNOR
216 262766 LINK, CHOKE
219 490815 GOVERNOR GEAR
222 495611 PLATE, GOVERNOR CONTROL
224 94513 SCREW, SEMS, AIR CLEANER
225 495157 CRANK, GOVERNOR, 1/4" DIAMETER
227 493935 LEVER ASSY, GOVERNOR
230 94927 WASHER, GOVERNOR LEVER
232 262785 SPRING, GOVERNOR LINK
240 394358 FILTER, FUEL
265 221535 CLAMP
284 94903 SCREW, HEX HEAD
284A 94704 SCREW, AIR CLEANER
304 496282 HOUSING, BLOWER
305 94786 SCREW
306 224545 SHIELD, CYLINDER
307 94930 SCREW
308 491490 COVER, CYLINDER HEAD
309 497595 MOTOR, STARTING, 12 VOLT
310 94003 BOLT
311 497608 BRUSH SET
333 492341 ARMATURE, MAGNETO
334 94731 SCREW, SEMS
337 802592 PLUG, SPARK
346 94896 SCREW, SEMS
356 494328 WIRE, GROUND
358 494241 GASKET SET
363 19203 PULLER, FLYWHEEL
383 89838 WRENCH SPARK PLUG
445 496984 CARTRIDGE, AIR CLEANER
455 222561 CUP, SCREEN MOUNTING
467 493903 KNOB, AIR CLEANER
474 393474 STATOR, ALTERNATOR, DUAL CIRCUIT
482 93621 SCREW, SEMS
583 806000 STRAP, STARTER
510 497606 DRIVE, STARTER
523 495230 CAP AND DIPSTICK, OIL FILLER
7124A89 (1998) Page 23 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
524 281370 SEAL, FILLER TUBE
525 496113 TUBE, OIL FILLER
535 272403 ELEMENT, AIR CLEANER
537 281106 O-RING, AIR CLEANER
544 497603 ARMATURE, STARTER
552 491986 BUSHING, GOVERNOR CRANK
562 94907 BOLT, GOVENOR LEVEL
592 231978 NUT, HEX
592A 92278 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
611 493496 ELBOW, FUEL PIPE
614 93306 COTTER, HAIR PIN
615 263080 RETAINER
618 262803 SPRING, CHOKE RETURN
634 494455 SEAL, SPRING ASSY.
634A 491323 SEAL, GOVERNOR
635 66538 ELBOW, SPARK PLUG
646 224546 BRACE, AIR CLEANER
657 94906 SCREW
663 94929 SCREW, SELF-TAPPING
668 280848 SPACER
726 392134 GEAR, RING
727 490324 COVER, STARTER
728 94951 SCREW, HEX HEAD
729 281159 CLIP, LEAD WIRE
729A 225170 RETAINER, WIRE
741 262932 GEAR, TIMING
757 213998 LINK, COUNTERWEIGHT
758 399891 COUNTERWEIGHT ASSY
759 230787 PIN, COUNTERWEIGHT
761 94593 SCREW, COUNTERWEIGHT
783 280104 GEAR, STARTER
801 497626 CAP, DRIVE
802 497607 P/N CONFLICT - CHECK WITH SUPPLIER
803 497604 HOUSING, STARTER
842 270920 SEAL, OIL FILLER CAP
847 496415 P/N CONFLICT - CHECK WITH SUPPLIER
851 493880 TERMINAL, IGNITION CABLE
869 261463 SEAT, INTAKE VALVE, STANDARD
870 262924 SEAT, EXHAUST VALVE, STANDARD
871 261961 GUIDE, EXHAUST VALVE
871 231218 GUIDE, INTAKE VALVE
872 281104 COVER, AIR CLEANER
875 494237 BODY, AIR CLEANER
877 393456 DIODE & CONNECTOR ASSY
955 94642 SCREW, FUEL BOWL
965 94010 LOCKNUT, AIR CLEANER MOUNTING
975 495933 BOWL ASSEMBLY, CARBURETOR
977 494385 CARBURETOR GASKET KIT
1005 280687 FAN, FLYWHEEL
1006 224413 RETAINER, FAN
1036 499362 LABEL, KIT-EMISSION
1044 94673 SCREW, SHOULDER, HEX HEAD
1090 497605 P/N CONFLICT - CHECK WITH SUPPLIER
1091 281364 CAP, LIMITER
2500 286707-4526 ENGINE
496606 SHORTBLOCK
499220 CARBURETOR OVERHAUL KIT
7124A89 (1998) Page 24 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
498539 VALVE OVERHAUL GASKET SET
7124A89 (1998) Page 25 of 42
ENGINE-BRIGGS AND STRATTON
7124A89 (1998) Page 26 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
1 496413 CYLINDER ASSEMBLY
2 399265 P/N CONFLICT - CHECK WITH SUPPLIER
3 391086 SEAL, OIL
5 494240 HEAD, CYLINDER
7 271866 GASKET, CYLINDER HEAD
8 495735 BREATHER ASSY
9 27803 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 280100 TUBE, BREATHER
12 271916 GASKET, CRANKCASE COVER 1/64"
12 271997 GASKET, CRANKCASE COVER .005"
12 271996 GASKET, CRANKCASE COVER .009"
13 94622 SCREW, CYLINDER HEAD 3"
15 94239 PLUG, OIL DRAIN
16 498971 CRANKSHAFT
18 494238 BASE, ENGINE
20 291675 SEAL, OIL
22 94624 SCREW, SEMS, BASE MOUNTING
23 492326 FLYWHEEL & RING GEAR ASSY, MAGNETO
24 222698 KEY, FLYWHEEL
25 394661 PISTON ASSEMBLY, STANDARD
25 394662 PISTON ASSEMBLY .010" OVERSIZE
25 394663 PISTON ASSEMBLY .020" OVERSIZE
25 394664 PISTON ASSEMBLY .030" OVERSIZE
26 391780 RING SET, PISTON, STANDARD
26 392331 RING SET, PISTON, STANDARD SIZE
26 391781 RING SET, PISTON .010" OVERSIZE
26 391782 RING SET, PISTON .020" OVERSIZE
26 391783 RING SET, PISTON .030" OVERSIZE
27 263129 LOCK, PISTON PIN
28 299691 PIN ASSEMBLY, PISTON, STANDARD
28 391286 PIN ASSEMBLY, PISTON .005" OVER
29 490348 ROD ASSEMBLY, CONNECTING
29 490469 ROD ASSEMBLY, CONNECTING .020" UNDERSIZE
CRANKPIN
32 94671 SCREW, CONNECTING ROD
33 262246 VALVE, EXHAUST
34 262247 VALVE, INTAKE
35 65906 SPRING, INTAKE VALVE
36 26828 SPRING, EXHAUST VALVE
37 224502 GUARD, FLYWHEEL
40 221596 RETAINER, INTAKE VALVE
41 292260 RETAINER, EXHAUST VALVE
42 494553 KEEPER VALVE
45 262248 TAPPET-VALVE
46 212897 GEAR, CAM
51 272465 GASKET, CARBURETOR (CARBURETOR TO ELBOW)
52 272554 GASKET CARB
53 94637 STUD, CARBURETOR MOUNTING
73 224517 SCREEN, ROTATING
75 224061 WASHER, SPRING
78 94626 SCREW, SEMS
93 281346 BUSHING, THROTTLE SHAFT
94 498030 VALVE, IDLE, ADJUSTMENT
95 94098 SCREW, THROTTLE
98 495800 SCREW, IDLE SPEED
104 231789 PIN, FLOAT HINGE
7124A89 (1998) Page 27 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
105 231855 VALVE ASSY, INLET NEEDLE
106 231854 INLET VALVE SEAT
108 224540 VALVE, CHOKE
110 225137 WASHER, FLAT
121 499220 CARBURETOR OVERHAUL KIT
123 94913 SCREW, TORX HEX
125 498027 CARBURETOR ASSEMBLY
130 224539 VALVE, THROTTLE
131 494379 SHAFT & LEVER, THROTTLE
133 494381 FLOAT, CARBURETOR
137 281165 GASKET, FLOAT BOWL
138 281164 WASHER, FLOAT BOWL SCREW
141 495931 SHAFT & LEVER, CHOKE
142 497566 NOZZLE/JET, CARBURETOR
146 94196 KEY, TIMING GEAR
164 213819 ELBOW, INTAKE
171 281051 P/N CONFLICT - CHECK WITH SUPPLIER
186 493496 ELBOW, FUEL PIPE
187 296004 PIPE, FUEL
188 94627 SCREW, SEMS 3/4"
201 262767 LINK, GOVERNOR
209 260871 SPRING, GOVERNOR
216 262766 LINK, CHOKE
219 490815 GOVERNOR GEAR
222 495611 PLATE, GOVERNOR CONTROL
224 94513 SCREW, SEMS, AIR CLEANER
225 495157 CRANK, GOVERNOR, 1/4" DIAMETER
227 493935 LEVER ASSY, GOVERNOR
230 94927 WASHER, GOVERNOR LEVER
232 262785 SPRING, GOVERNOR LINK
240 394358 FILTER, FUEL
265 221535 CLAMP
284 94903 SCREW, HEX HEAD
284A 94704 SCREW, AIR CLEANER
304 496282 HOUSING, BLOWER
305 94786 SCREW
306 224545 SHIELD, CYLINDER
307 94930 SCREW
308 491490 COVER, CYLINDER HEAD
309 497595 MOTOR, STARTING, 12 VOLT
310 94003 BOLT
311 497608 BRUSH SET
333 492341 ARMATURE, MAGNETO
334 94731 SCREW, SEMS
337 802592 PLUG, SPARK
346 94896 SCREW, SEMS
356 494328 WIRE, GROUND
358 494241 GASKET SET
363 19203 PULLER, FLYWHEEL
383 89838 WRENCH SPARK PLUG
445 496984 CARTRIDGE, AIR CLEANER
455 222561 CUP, SCREEN MOUNTING
467 493903 KNOB, AIR CLEANER
474 393474 STATOR, ALTERNATOR, DUAL CIRCUIT
482 93621 SCREW, SEMS
583 806000 STRAP, STARTER
510 497606 DRIVE, STARTER
523 495230 CAP AND DIPSTICK, OIL FILLER
7124A89 (1998) Page 28 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
524 281370 SEAL, FILLER TUBE
525 496113 TUBE, OIL FILLER
535 272403 ELEMENT, AIR CLEANER
537 281106 O-RING, AIR CLEANER
544 497603 ARMATURE, STARTER
552 491986 BUSHING, GOVERNOR CRANK
562 94907 BOLT, GOVENOR LEVEL
592 231978 NUT, HEX
592A 92278 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
611 493496 ELBOW, FUEL PIPE
614 93306 COTTER, HAIR PIN
615 263080 RETAINER
618 262803 SPRING, CHOKE RETURN
634 494455 SEAL, SPRING ASSY.
634A 491323 SEAL, GOVERNOR
635 66538 ELBOW, SPARK PLUG
646 224546 BRACE, AIR CLEANER
657 94906 SCREW
663 94929 SCREW, SELF-TAPPING
668 280848 SPACER
726 392134 GEAR, RING
727 490324 COVER, STARTER
728 94951 SCREW, HEX HEAD
729 281159 CLIP, LEAD WIRE
729A 225170 RETAINER, WIRE
741 262932 GEAR, TIMING
757 213998 LINK, COUNTERWEIGHT
758 399891 COUNTERWEIGHT ASSY
759 230787 PIN, COUNTERWEIGHT
761 94593 SCREW, COUNTERWEIGHT
783 280104 GEAR, STARTER
801 497626 CAP, DRIVE
802 497607 P/N CONFLICT - CHECK WITH SUPPLIER
803 497604 HOUSING, STARTER
842 270920 SEAL, OIL FILLER CAP
847 496415 P/N CONFLICT - CHECK WITH SUPPLIER
851 493880 TERMINAL, IGNITION CABLE
869 261463 SEAT, INTAKE VALVE, STANDARD
870 262924 SEAT, EXHAUST VALVE, STANDARD
871 261961 GUIDE, EXHAUST VALVE
871 231218 GUIDE, INTAKE VALVE
872 281104 COVER, AIR CLEANER
875 494237 BODY, AIR CLEANER
877 393456 DIODE & CONNECTOR ASSY
955 94642 SCREW, FUEL BOWL
965 94010 LOCKNUT, AIR CLEANER MOUNTING
975 495933 BOWL ASSEMBLY, CARBURETOR
977 494385 CARBURETOR GASKET KIT
1005 280687 FAN, FLYWHEEL
1006 224413 RETAINER, FAN
1036 499362 LABEL, KIT-EMISSION
1044 94673 SCREW, SHOULDER, HEX HEAD
1090 497605 P/N CONFLICT - CHECK WITH SUPPLIER
1091 281364 CAP, LIMITER
2500 286707-4526 ENGINE
496606 SHORTBLOCK
499220 CARBURETOR OVERHAUL KIT
7124A89 (1998) Page 29 of 42
ENGINE-BRIGGS AND STRATTON
Ref # Part Number Qty Description
498539 VALVE OVERHAUL GASKET SET
7124A89 (1998) Page 30 of 42
MOWER DECK
7124A89 (1998) Page 31 of 42
MOWER DECK
Ref # Part Number Qty Description
1 142829 SUB= 145775
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 134148 "BLADE.38""V.MULCH"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
19 132827 BOLT SHD 5/16-18
21 73680500 SUB= 73690500
23 137607 BRKT DEFLECTOR
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 106736X DEFLECTOR-SHLD T
28 19111016 WASHER
29 106735X ROD-HINGE T
30 157722 "SCREW-THD ROLL,WA"
31 129963 WASHER
32 153532 PULLEY.MANDREL.38
33 137266 SUB= 139729
36 131494 FLAT IDLER PULLEY
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
43 133504 CLUTCH ROD SECOND
45 CHECK WITH SUPPLIER
53 130840 BRAKE ASM
54 133943 HARDENED WASHER
55 133840 IDLER ARM ASSY
56 122052X SPACER RETAINER
67 162132 KNOB.RD.7/16-14
68 144200 BELT.V.T-PATH
69 76020312 SUB= 3145
71 142427 ROD CLUTCH 38/42
72 131870 RETURN SPRING
73 127847 CLUTCH ARM SECOND
74 121748X WASHER
75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 160570 LEVER.ASM.CLUTCH
79 127498 BUSHING
80 153701 SPRING.CLUTCH.MWR
81 73350600 NUT
82 142028 TRUNION ADJ
86 7631J RUNNER-LH M
87 128772 RUNNER RH
88 19111216 WASHER M
89 19131612 WASHER GT
92 73800600 NUT
107 133502 RETAINER SPACER
7124A89 (1998) Page 32 of 42
MOWER DECK
Ref # Part Number Qty Description
108 133503 IDLER ARM STIFF
109 74760640 BOLT
110 142587 UPSTOP DECK FT 38
113 17490512 SCREW
122 131289 BRAKE ROD LH
123 131288 BRAKE ROD RH
124 72110614 BOLT
128 153390 WASHER.FELT.
141 6266H WASHER .T
130794 MANDREL ASM
142820 DECK SER 38 TPATH
7124A89 (1998) Page 33 of 42

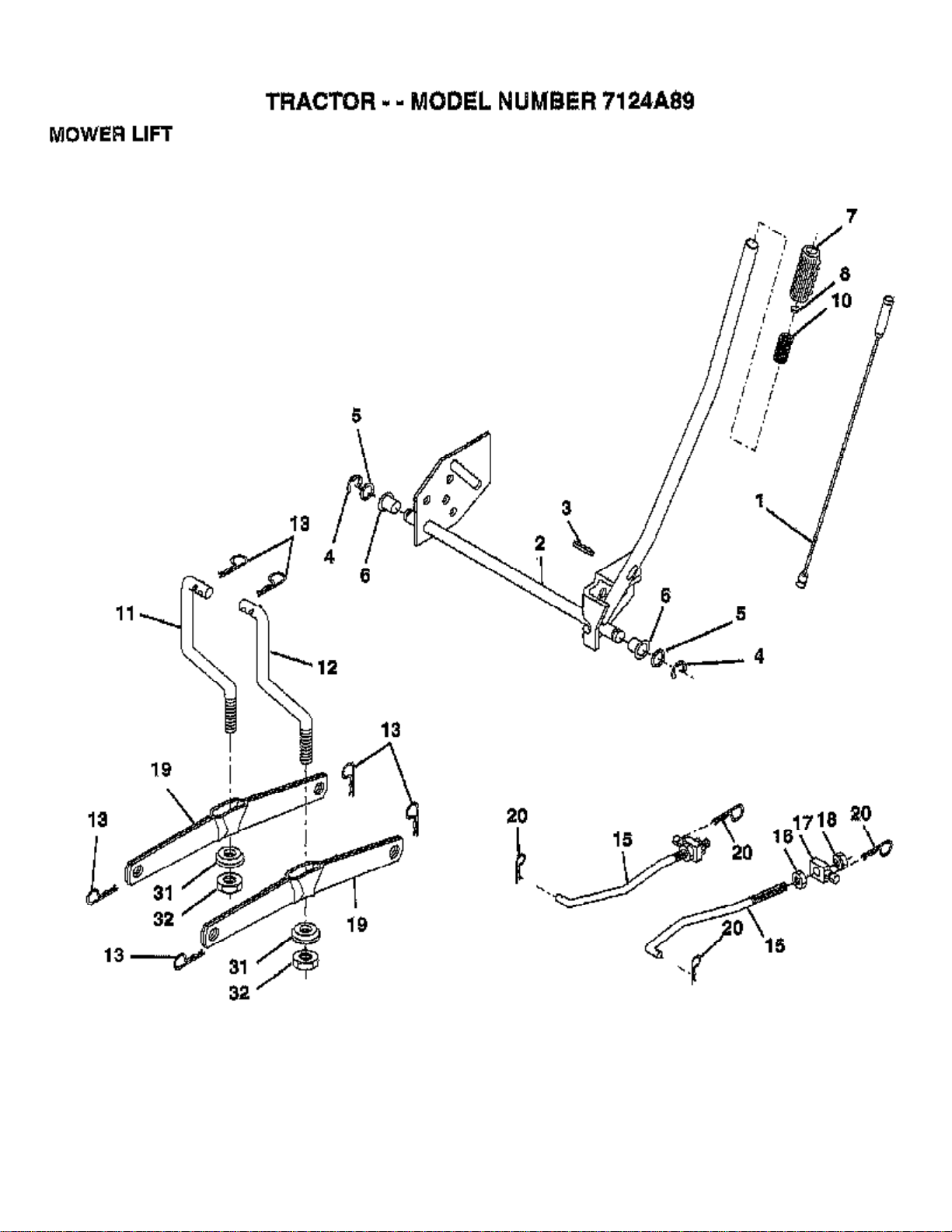

MOWER LIFT
7124A89 (1998) Page 34 of 42
MOWER LIFT
Ref # Part Number Qty Description
1 159460 WIRE ASM W.SPRING
2 159471 "SHAFT ASM LIFT,RH"
3 105767X PIN-GROOVE LT
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
32 73540600 NUT.CROWNLOCK.3/8
7124A89 (1998) Page 35 of 42
SCHEMATIC
7124A89 (1998) Page 36 of 42
SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
7124A89 (1998) Page 37 of 42

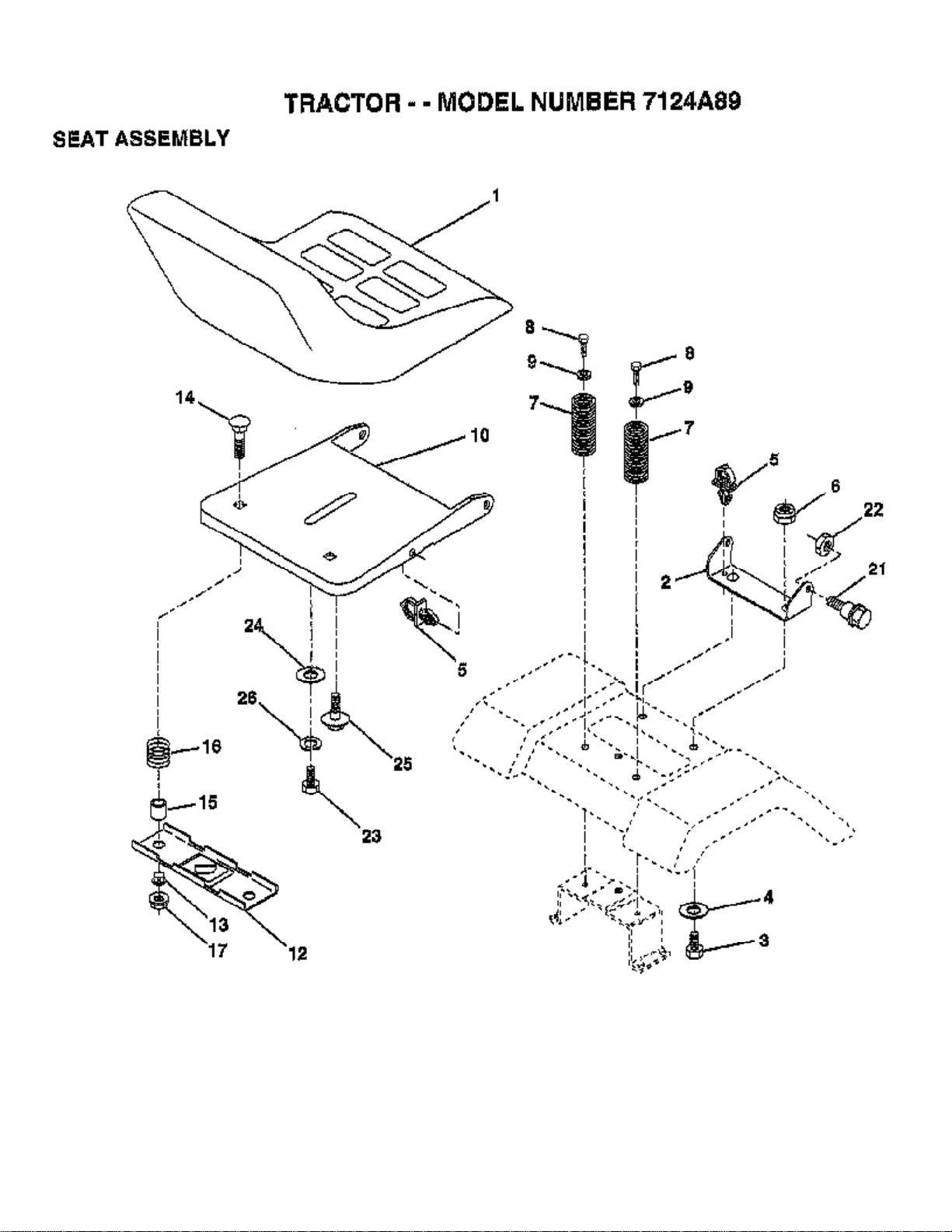

SEAT ASSEMBLY
7124A89 (1998) Page 38 of 42
SEAT ASSEMBLY
Ref # Part Number Qty Description
1 127427 SUB= 140119
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 155925 PAN-SEAT
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050412 BOLT-RD HD SQ NK
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
21 153236 "BOLT,SHOULDER"
22 73800500 NUT
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER
7124A89 (1998) Page 39 of 42

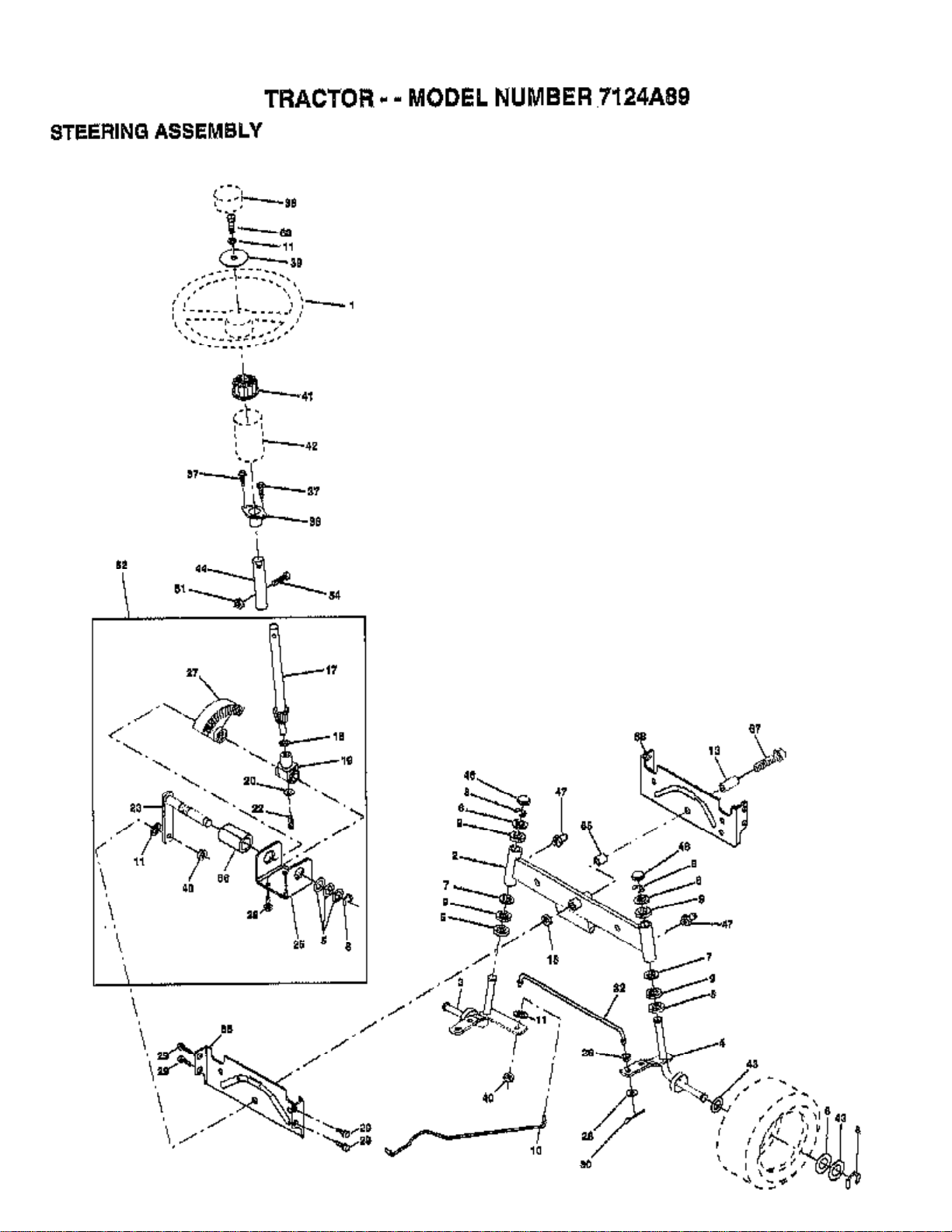

STEERING ASSEMBLY
7124A89 (1998) Page 40 of 42
STEERING ASSEMBLY
Ref # Part Number Qty Description
1 140044 WHEEL STR AYP BLK
2 154427 AXLE ASM
3 156483 SPINDLE.ASM.LH
4 157473 "SPINDLE ASM,RH"
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 156438 DRAGLINK-STAMPED
11 10040600 LOCKWASHER
13 154779 BEARING AXLE
15 73901000 "NUT-LOC,FLANGE LT"
17 156546 SHAFT ASM STEERIN
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
22 71200410 SCREW HEX SOC1/423 127501 SUB= 918127501
25 154406 BRKT-STEERING
26 126847X BUSHING.DRAGLINK
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17490612 SCREW
30 76020412 COTTER PIN
32 130465 TIE ROD
36 155099 BUSHING.STEERING
37 152927 "SCREW-TT,10-32 FL"
38 140045 CAP STEER AYP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 100711L ADAPTER LT
42 145054 BOOT.STEER.PL
43 121749X WASHER
44 153720 EXT SHAFT STEERIN
46 121232X CAP
47 6855M ZERK M
51 73800500 NUT
54 74780520 BOLT
62 156594 KIT STEERING ASM
63 74780616 BOLT
65 154780 SPACER AXLE
66 154404 "BEARING-ARM,PITMA"
67 74781044 BOLT
68 154429 BRACE AXLE
7124A89 (1998) Page 41 of 42

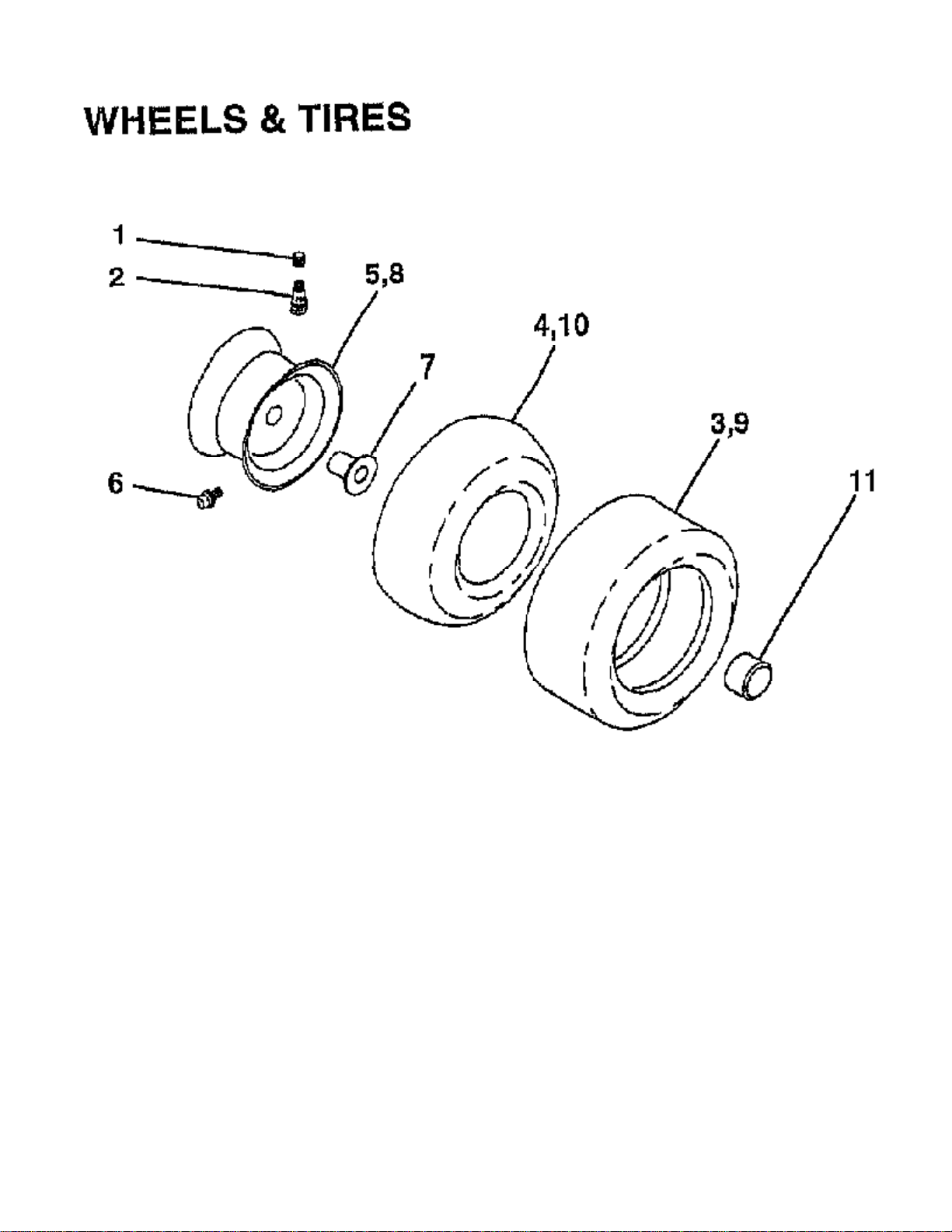

WHEELS AND TIRES
7124A89 (1998) Page 42 of 42
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X427 "RIM ASM 6"" FRT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X427 "RIM AS 8"" REAR"
9 106268X SUB= 122074X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
