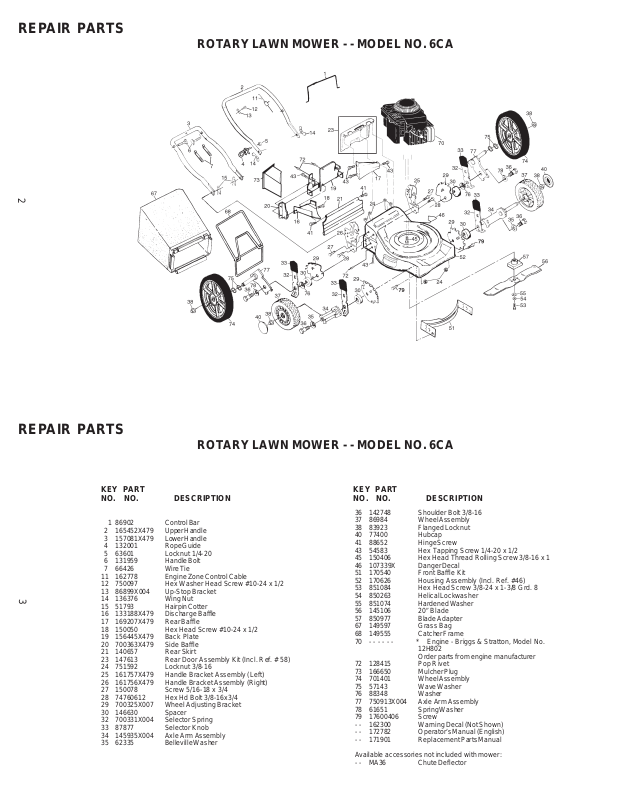

REPAIR PARTS
2
ROTARY LAWN MOWER - - MODEL NO. 6CA
REPAIR PARTS
KEY PART NO. NO. DESCRIPTION
1 86902 Control Bar
2 165452X479 Upper Handle 3 157081X479 Lower Handle 4 132001 Rope Guide 5 63601 Locknut 1/4-20 6 131959 Handle Bolt
7 66426 Wire Tie 11 162778 Engine Zone Control Cable 12 750097 Hex Washer Head Screw #10-24 x 1/2
3
13 86899X004 Up-Stop Bracket 14 136376 Wing Nut 15 51793 Hairpin Cotter 16 133188X479 Discharge Baffle 17 169207X479 Rear Baffle 18 150050 Hex Head Screw #10-24 x 1/2 19 156445X479 Back Plate 20 700363X479 Side Baffle 21 140657 Rear Skirt 23 147613 Rear Door Assembly Kit (Incl. Ref. # 58) 24 751592 Locknut 3/8-16 25 161757X479 Handle Bracket Assembly (Left) 26 161756X479 Handle Bracket Assembly (Right) 27 150078 Screw 5/16-18 x 3/4 28 74760612 Hex Hd Bolt 3/8-16x3/4 29 700325X007 Wheel Adjusting Bracket 30 146630 Spacer 32 700331X004 Selector Spring 33 87877 Selector Knob 34 145935X004 Axle Arm Assembly 35 62335 Belleville Washer
ROTARY LAWN MOWER - - MODEL NO. 6CA
KEY PART NO. NO. DESCRIPTION
36 142748 Shoulder Bolt 3/8-16 37 86984 Wheel Assembly 38 83923 Flanged Locknut 40 77400 Hubcap 41 88652 Hinge Screw 43 54583 Hex Tapping Screw 1/4-20 x 1/2 45 150406 Hex Head Thread Rolling Screw 3/8-16 x 1 46 107339X Danger Decal 51 170540 Front Baffle Kit 52 170626 Housing Assembly (Incl. Ref. #46) 53 851084 Hex Head Screw 3/8-24 x 1-3/8 Grd. 8 54 850263 Helical Lockwasher 55 851074 Hardened Washer 56 145106 20'’ Blade 57 850977 Blade Adapter 67 149597 Grass Bag 68 149555 Catcher Frame 70 - - - - - - * Engine - Briggs & Stratton, Model No.
72 128415 Pop Rivet 73 166650 Mulcher Plug 74 701401 Wheel Assembly 75 57143 Wave Washer 76 88348 Washer 77 750913X004 Axle Arm Assembly 78 61651 Spring Washer 79 17600406 Screw
- - 162300 Warning Decal (Not Shown)
- - 172782 Operator’s Manual (English)
- - 171901 Replacement Parts Manual Available accessories not included with mower:
- - MA36 Chute Deflector
12H802 Order parts from engine manufacturer
