6C1A7E (1999 & Before) Page 1 of 35
BRAKE/REAR MOWER LIFT
6C1A7E (1999 & Before) Page 2 of 35
BRAKE/REAR MOWER LIFT
Ref # Part Number Qty Description
1 71673 PLUNGER CAP T
2 123436X "ROD,PARK BRAKE"
3 123437X "BRKT,PARK BRAKE"
4 8156H FOOT PEDAL COVER
5 122504X "BRKT,CLU PEDAL LH"
6 76020312 SUB= 3145
7 19131616 WASHER HYT
8 17490508 SCREW LT
9 76020412 COTTER PIN
10 19131316 WASHER
11 123543X "ROD,FRT BRAKE"
12 139933 PEDAL ASM CL/BK36
13 123394X "ROD,CLUTCH"
14 121978X "BRKT,LIFT SHAFT"
15 133332 PVT BRAKE ARM ASM
16 19251816 WASHER T
17 12000034 KLIP RING
18 151332 SPRING ROD BRAKE
19 73350600 NUT
20 73800600 NUT
21 131460 SUB= 532131460
22 144585 TRUNNION.LIFT.
24 19132012 WASHER
25 4921H SPRING.RETAINER
26 73930600 LOCKNUT
27 127369 "LINK, MOWER REAR"
28 140776 LIFT ASM MOW REAR
29 72110506 SUB= 72270506
30 73510500 NUT
31 3146R RETAINER.SPRING
34 73680600 SUB= 73690600
6C1A7E (1999 & Before) Page 3 of 35
DASH
6C1A7E (1999 & Before) Page 4 of 35
DASH
Ref # Part Number Qty Description
1 141523 CAP BLK FUEL LR
2 138393 TANK.ASM.DASH.LR
3 123487X HOSE CLAMP
4 8544R SUB= 295J
5 8548R FUEL LINE T
6 73640400 NUT HXKEP 1/4X20
7 2751R CLIP T
8 19091216 WASHER PM
9 74760428 BOLT
10 19091413 WASHER
11 121249X SPACER SPLIT
12 3720R SPRING M
13 126450X "KNOB,HGT RETAINER"
14 126115X KNOB
15 122023X ADJUSTER QUAD
16 124346X NUT
17 72110404 BOLT
18 130745 SUPT ASSY DASH
19 134744 CROSS BRACE
20 17060408 SCREW.1/4-20X1/2
21 134014 PLUG DOME
6C1A7E (1999 & Before) Page 5 of 35
DECALS
6C1A7E (1999 & Before) Page 6 of 35
DECALS
Ref # Part Number Qty Description
1 145545 DECAL.OP.INST.SYM
2 141744 DECAL HD RLY LH
3 141743 DECAL HD RLY RH
4 132627 GRILL DECAL
5 139708 DECAL.HOOD.INSERT
6 132628 FENDER DECAL
7 145498 DECAL.READ.O.MANU
8 135013 NLA
9 127075 "DECAL,STR WHL"
10 145437 DECAL.EURO.ST.CE.
11 272748 DECAL, HP, ENGINE
12 146451 DECAL.BTRY.DANGER
14 125690X DECAL
16 145494 DECAL.DANGER.CUTF
17 136830 DECAL.V.BELT
138311 DECAL HANDLE LIFT
154066 MANUAL O WG1036A
154067 MANUAL.O.6H1A9D
154282 MANUAL.P.6C1A7E
MP36 SUB= MP36A
6C1A7E (1999 & Before) Page 7 of 35
ELECTRICAL
6C1A7E (1999 & Before) Page 8 of 35
ELECTRICAL
Ref # Part Number Qty Description
1 73640400 NUT HXKEP 1/4X20
2 108423X CABLE ASM.
3 146138 SUB= 123888X
4 69180 LOCKNUT
5 108236X BRACKET LT
6 109553X SWITCH INTERLOCKT
7 146374 KEEPER.ACTUAT.LR.
8 17021008 SCREW
9 140402 KEY STEEL DELTA
10 141226 COVER KEY SWITCH
11 140400 SUB= 145774
12 144921 SUB= 163088
15 121305X SWITCH SEAT
17 108824X FUSE HYT
18 128353 CABLE ASSY
19 146063 HARNESS.IGN.FEND.
20 73350400 NUT
21 10090400 SUB= 10040400
22 71110408 BOLT HXHD FIN
24 131563 SUB= 154336
25 145673 SUB= 146154
26 74760412 BOLT LT
27 19091016 WASHER
28 10040400 LOCKWASHER
30 73220400 SUB= 50675
36 11150400 LOCKWASHER
39 141735 BRACKET SWT CLUTC
55 17490508 SCREW LT
70 140413 HARNESS ENG DUAL
6C1A7E (1999 & Before) Page 9 of 35
ENGINE/THROTTLE
6C1A7E (1999 & Before) Page 10 of 35
ENGINE/THROTTLE
Ref # Part Number Qty Description
1 17060408 SCREW.1/4-20X1/2
2 133025 SUB= 532133025
3 REFER TO IMAGE
4 71070512 SCREW
5 10040500 LOCKWASHER
6 272293 GASKET ENG 1 313 LD TIN PLATED
7 11050600 LOCKWASHER
8 121094X BOLT T
9 19101216 WASHER
10 10040400 LOCKWASHER
11 CHECK WITH SUPPLIER
12 137437 MUFFLER
13 101326L DEFLECTOR.222573
14 17030808 SUB= 17030814
15 137180 SUB= 532137180
16 127951 "STOP,DASH THROTT"
17 17490624 SCREW LT
39 128861 NUT
6C1A7E (1999 & Before) Page 11 of 35
FENDER/CHASSIS
6C1A7E (1999 & Before) Page 12 of 35
FENDER/CHASSIS
Ref # Part Number Qty Description
1 144940 SUB= 156417
2 19132012 WASHER
3 17490612 SCREW
4 124181X SPRING COMPRESSIO
5 127115X505 BTRY FENDER PLATE
6 109596X HOSE CLAMP T
7 124144X PAD FOOTREST
8 17490512 SCREW
9 126993X CONSOLE SHFT 4SP
10 139783 PLATE LOCK SHIFT
11 124346X NUT
12 145190 CHASSIS.WELD.ASM.
13 109238X TUBE T
15 73640400 NUT HXKEP 1/4X20
16 141736 SUB= 146613
17 140782 DRAWBAR ASM LR
18 126470X "CLIP,INSULATOR"
19 140955X505 FENDER/FOOT MS505
20 19091413 WASHER
25 17190516 SCREW
6C1A7E (1999 & Before) Page 13 of 35

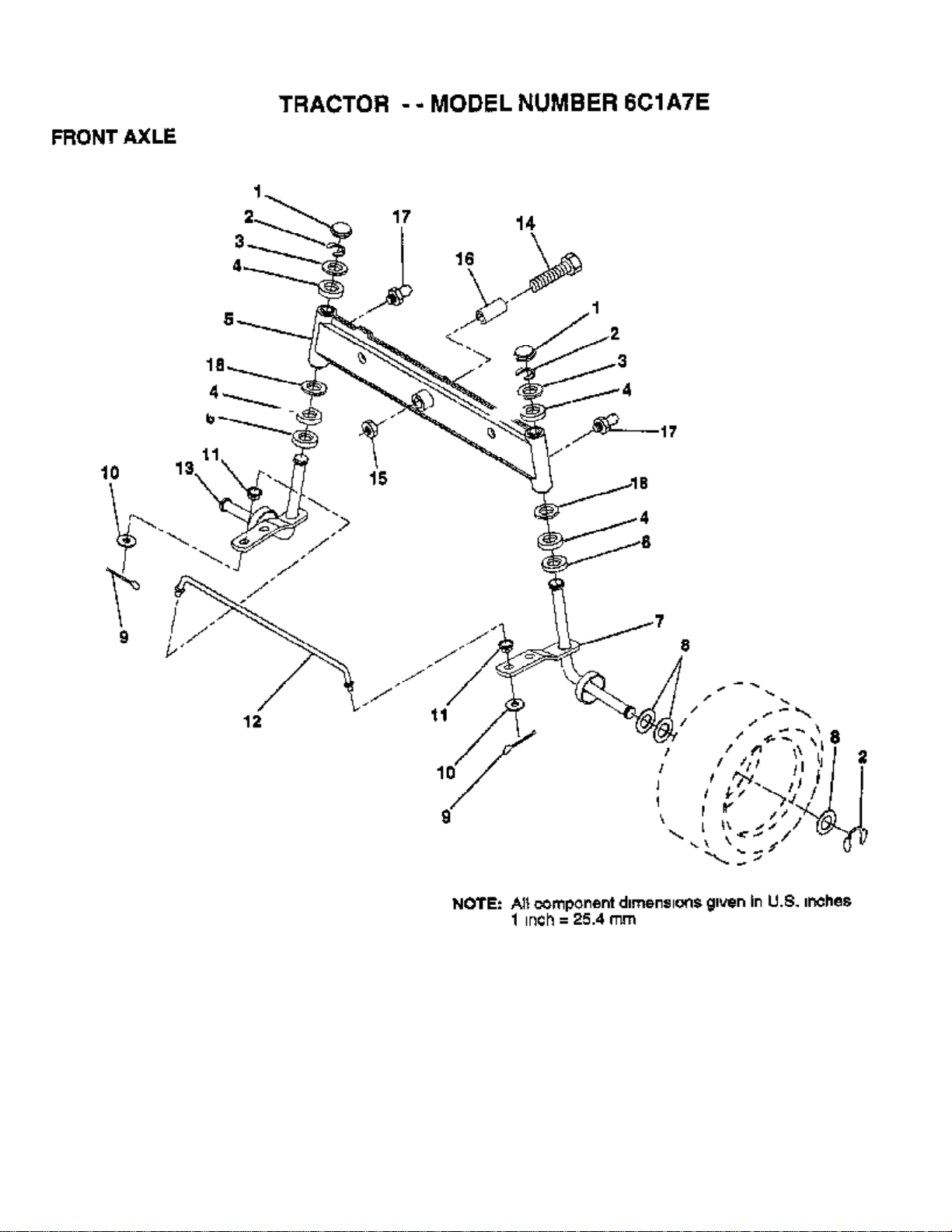

FRONT AXLE
6C1A7E (1999 & Before) Page 14 of 35
FRONT AXLE
Ref # Part Number Qty Description
1 121232X CAP
2 12000029 RING
3 121748X WASHER
4 3366R COL. SRTG. BEAR.
5 142033 AXLE ASM FRONT
6 6266H WASHER .T
7 137062 SPINDLE ASM RH
8 121749X WASHER
9 76020412 COTTER PIN
10 19131316 WASHER
11 126847X BUSHING.DRAGLINK
12 130465 TIE ROD
13 137061 SPINDLE ASM LH
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 110438X BEARING
17 6855M ZERK M
18 19272016 WASHER
6C1A7E (1999 & Before) Page 15 of 35
GROUND DRIVE
6C1A7E (1999 & Before) Page 16 of 35
GROUND DRIVE
Ref # Part Number Qty Description
1 73680500 SUB= 73690500
2 74760512 BOLT
3 141342 KEEPER RH
4 138029 PULLEY.ENGINE.LR
5 10040700 LOCKWASHER
6 71170744 HEX BOLT
7 124525X BELT
8 123405X "KEEPER,DRIVE BELT"
9 72140612 BOLT
10 123396X "KEEP,IDLER DR BEL"
11 150926 ARM-IDLER.DR.GRND
12 123674X PULLEY.IDLER.FLAT
13 19131316 WASHER
14 73930600 LOCKNUT
15 73680600 SUB= 73690600
16 126471X "CLIP,INSULATOR"
17 150932 SPACER
18 131459 SUB= 532131459
19 73510500 NUT
20 139919 KEEPER.BELT.T/A
21 19111016 WASHER
22 123404X "KEEPER,FRA DR BEL"
23 140916 KEEPER MOWER LH
24 17720408 SCREW
25 150935 BUSHING.NYLON
6C1A7E (1999 & Before) Page 17 of 35
HOOD
6C1A7E (1999 & Before) Page 18 of 35
HOOD
Ref # Part Number Qty Description
1 124657X EXT SPRING
2 73640400 NUT HXKEP 1/4X20
3 19091416 WASHER
4 74780412 SUB= 74780414
5 139888 BOLT.SHLD.5/16-18
6 122549X BRKT HOOD RH
7 122548X BRKT HOOD LH
8 17521312 SCREW SLTD HXHD
9 73800400 NUT
10 123693X "BRACE,HOOD"
11 132918X505 HOOD
12 127178 LENS T
13 134232X428 GRILL (BLACK)
16 124346X NUT
18 19111116 WASHER
19 11030400 LOCKWASHER GT
6C1A7E (1999 & Before) Page 19 of 35
MOWER DECK
6C1A7E (1999 & Before) Page 20 of 35
MOWER DECK
Ref # Part Number Qty Description
1 140064 SPRING CLUTCH MWR
2 122052X SPACER RETAINER
3 73680600 SUB= 73690600
4 130840 BRAKE ASM
5 131251 IDLER BELT GUIDE
6 121316X PULLEY IDLER
7 72110616 BOLT
8 19131410 WASHER
9 127744 SUB= 140092
10 72140610 BOLT.3/8-14X1.25
11 130841 BRAKE ROD
12 127356 "BRKT,LIFT REAR"
13 72140506 BOLT
14 73680500 SUB= 73690500
15 127357 "BRKT,LIFT REAR LH"
16 153298 "KEEPER-BELT,RH"
17 128508 MOWER LINK STAB
18 128511 "PIN,GROOVE"
19 127380 "BRKT,LINK STABILI"
20 138496 "BLADE.36"" HIPERF"
21 140296 WASHER.HARD.BLADE
22 10030600 SUB= 10040600
23 850857 BLADE BOLT
24 140329 STRIPPER RND MWR
25 138776 SUB= 157722
27 129983 SUB= 156600
28 153531 PULLEY.MAND.36/46
29 137266 SUB= 139729
30 136631 SUB= 532136631
31 17490508 SCREW LT
32 122051X "SUPT,IDLER ARM"
33 139083 SHIELD.DEFL.36TUV
36 121980X HINGE ROD
37 123713X SPRING TORSION
38 105304X CAP-SLEEVE LT
39 19111016 WASHER
40 110452X NUT PUSH M
41 131264 V-BELT.PRIM.78.5.
42 19171616 WASHER
43 3146R RETAINER.SPRING
44 140608 KEEPER BELT LH
45 110485X BEARING
46 128774 HSG ASM MANDREL
47 129895 BEARING.BALL
48 137645 SUB= 137646
49 133943 HARDENED WASHER
50 71161010 SCREW
51 136383 GUARD.DFTR.MWR.36
52 19070718 NLA
53 60867 ACORN NUT RB
130794 MANDREL ASM
144973 DECK.36.LR
6C1A7E (1999 & Before) Page 21 of 35
MOWER LIFT
6C1A7E (1999 & Before) Page 22 of 35
MOWER LIFT
Ref # Part Number Qty Description
1 126470X "CLIP,INSULATOR"
2 122018X BRKT CLUTCH
3 71110408 BOLT HXHD FIN
4 73680600 SUB= 73690600
5 145187 LEVER.ASM.CLUTCH
6 106451X "BOLT, SHOULDER LT"
7 135371 MWR CLUTCH ARM AS
8 74760636 BOLT
9 121930X "BELLCRANK,LIFT"
10 76020412 COTTER PIN
11 19131616 WASHER HYT
12 131861 SUB= 532131861
13 139352 HANDLE.ASM.LIFT
14 123496X SPRING COMPRESSIO
15 19131212 WASHER T
16 4921H SPRING.RETAINER
17 127359 "LINK,LIFT FRT"
18 142028 TRUNION ADJ
19 73680400 SUB= 73690400
20 74760644 BOLT
23 76020416 PIN COTTER 1/8
24 19171616 WASHER
25 121933X TUBE SPACER
26 141470 ROD LIFT MOWER
27 106932X KNOB T(3/8 HOLE)
28 76020312 SUB= 3145
29 131655 CLUTCH LINK
30 73350600 NUT
31 19132012 WASHER
6C1A7E (1999 & Before) Page 23 of 35
SEAT
6C1A7E (1999 & Before) Page 24 of 35
SEAT
Ref # Part Number Qty Description
1 72050411 SUB= 872050411
2 134647 SUB= 140119
3 140552 SUB= 155925
4 73800500 NUT
5 153236 "BOLT,SHOULDER"
6 145006 CLIP.PUSH-IN.HING
8 74760616 BOLT
9 140551 BRACKET PVT SEAT
10 126471X "CLIP,INSULATOR"
11 19133210 WASHER
12 73800600 NUT
13 74780814 BOLT
14 10040800 LOCKWASHER
15 19171912 WASHER
16 127018X "BOLT,SHOULDER"
17 121246X BRKT SWITCH
18 123976X SUB= 73900400
19 121248X BUSHING
20 121250X SPRING
21 134300 SPLIT SPACER
6C1A7E (1999 & Before) Page 25 of 35
SECTOR GEAR/AXLE SUPPORT
6C1A7E (1999 & Before) Page 26 of 35
SECTOR GEAR/AXLE SUPPORT
Ref # Part Number Qty Description
1 132566 DRAG LINK
2 74780828 "BOLT,HEX"
3 73680500 SUB= 73690500
4 73680600 SUB= 73690600
5 121926X GEAR SECTOR
6 121927X BUSHING
7 73030800 NUT
8 126472X CLIP INSULATOR
9 73680800 NUT LTV
10 76020412 COTTER PIN
11 19131616 WASHER HYT
12 126487X SUB= 532126487
13 74760512 BOLT
14 19111416 WASHER
15 72110606 BOLT
16 137096 SUPT AXLE FRONT
6C1A7E (1999 & Before) Page 27 of 35

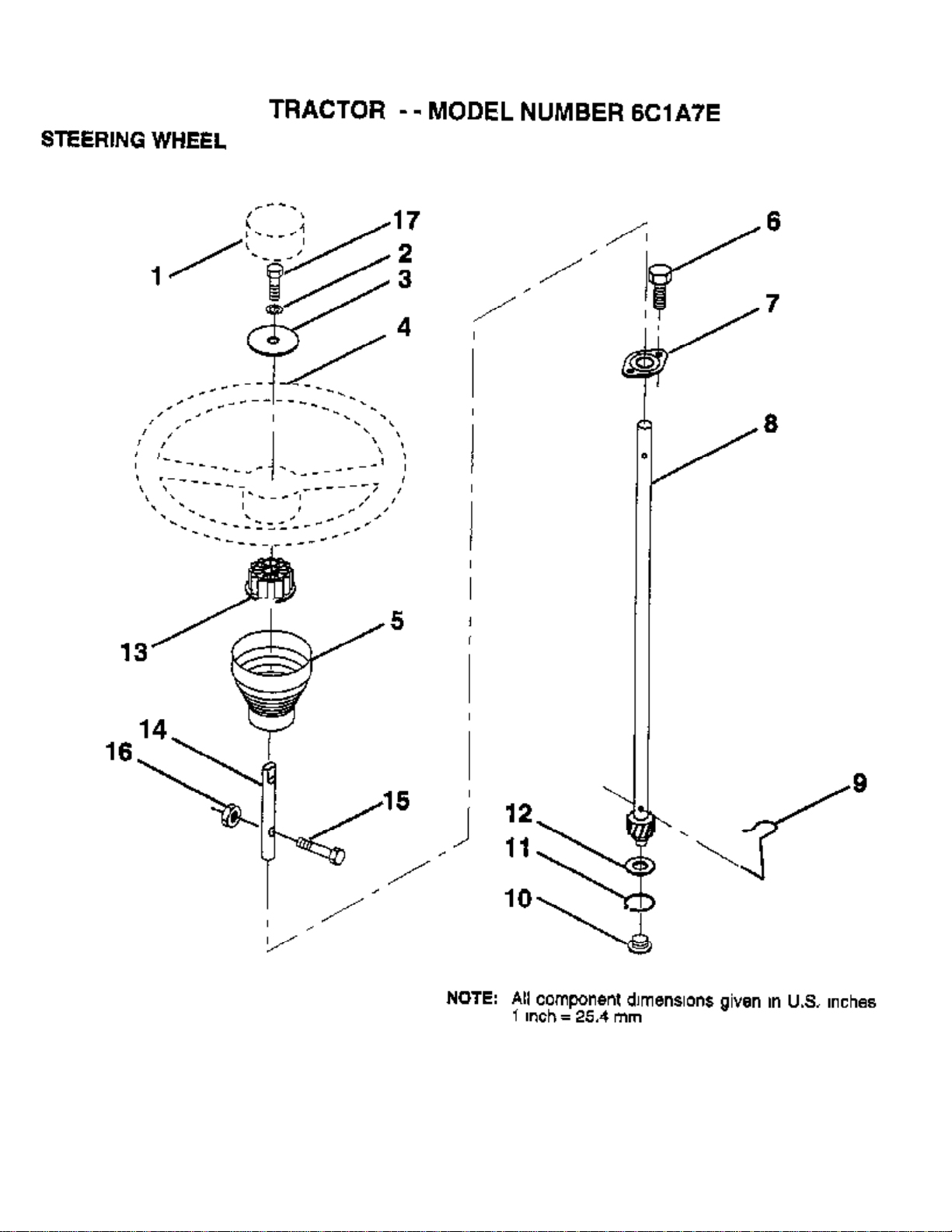

STEERING
6C1A7E (1999 & Before) Page 28 of 35
STEERING
Ref # Part Number Qty Description
1 133742 ST WHL INSERT CAP
2 10040600 LOCKWASHER
3 19133808 WASHER T
4 133741 SUB= 150547
5 121897X SLEEVE STEERING
6 17431008 SUB= 98000165
7 102803X SUB= 918102803X
8 123651X SUB= 148966
9 124210X STEERING CLIP
10 123438X BUSHING STEER LWR
11 12000045 RING
12 19211616 WASHER LT
13 100711L ADAPTER LT
14 153720 EXT SHAFT STEERIN
15 74780520 BOLT
16 73800500 NUT
17 74780616 BOLT
6C1A7E (1999 & Before) Page 29 of 35

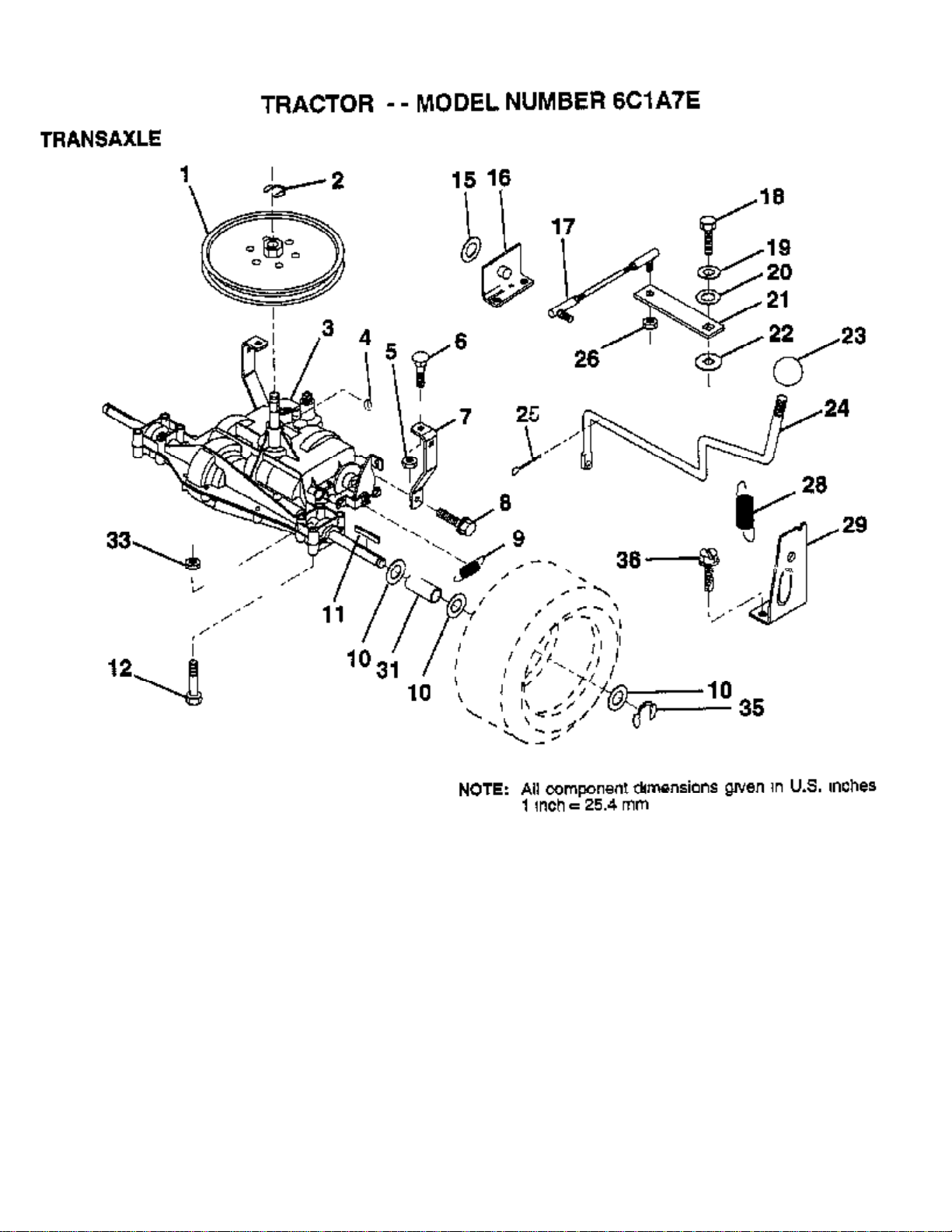

TRANSAXLE
6C1A7E (1999 & Before) Page 30 of 35
TRANSAXLE
Ref # Part Number Qty Description
1 142671 HOUSING UPPER TRN
2 2274J SUB= 74760412
3 134400 SUB= 68003
4 105904X "SPRING, DETENT LT"
5 105905X "SCREW, SET LT"
6 138235 KIT SHIFTER ASM
7 134399 SHIFTER BOOT
8 73810500 NUT.LOCK.5/16-24
9 143045 SEAL OIL DANA5416
10 142672 SUB= 2225J
11 134793 ASM KIT SHIM 4689
12 143051 SUB= 148268
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 138234 AS KIT INPUT SHFT
16 110078X PINION 14T T
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 142675 GEAR SPUR 14 TTH
21 138246 COLLAR CLUTCH
22 138236 ASM KIT CLTCH KEY
23 134791 SCREW TAP W/SEAL
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 120405X SUB= 124644X
31 108980X GEAR 25T LT
32 134796 SPUR GEAR 19T
33 138239 SPACER
34 106596X "SCREW, TAPPING LT"
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 110084X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 142678 GEAR SPUR 12 TTH
46 120407X SUB= 124641X
47 106589X "GEAR, SPUR 25T LT"
48 105937X "GEAR, SPUR 31T LT"
49 120523X SPACER T
50 120951X PUCK T
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T
6C1A7E (1999 & Before) Page 31 of 35
TRANSAXLE
Ref # Part Number Qty Description
59 110082X GEAR 1ST T
60 120475X SUB= 154659
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 120416X SUB= 126976X
6C1A7E (1999 & Before) Page 32 of 35
TRANSAXLE
6C1A7E (1999 & Before) Page 33 of 35
TRANSAXLE
Ref # Part Number Qty Description
1 123385X PULLEY
2 12000028 SUB= 2267J
3 142594 SUB= 918142594
4 2228M SUB= 2228M1
5 73680500 SUB= 73690500
6 72140506 BOLT
7 123378X "STRAP,TORQUE"
8 17490512 SCREW
9 146682 SPRING.BRAKE.RETU
10 121749X WASHER
11 123583X SQUARE KEY
12 74760644 BOLT
15 19171616 WASHER
16 124600X "SUPT,HDLE SHT LH"
17 123632X "LINK,SHIFT"
18 74550412 BOLT.1/4-28.W/PAT
19 10040400 LOCKWASHER
20 19091210 WASHER LT
21 123484X ARM SHIFT
22 105701X WASH-SHFT PLT LT
23 106933X KNOB T (1/2-HOLE)
24 128215 "ROD,SHIFT"
25 76020416 PIN COTTER 1/8
26 73810500 NUT.LOCK.5/16-24
28 128085 "SPRING,EXT"
29 128084 "SUPT,HDLE RH"
31 109502X SPACER LT
33 73680600 SUB= 73690600
35 12000001 E-RING LT
36 17720408 SCREW
6C1A7E (1999 & Before) Page 34 of 35
WHEELS/TIRES
6C1A7E (1999 & Before) Page 35 of 35
WHEELS/TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 278H FITTING LT
4 124142X SUB= 123410X
4 124143X SUB= 122075X
5 59904 TUBE.5.3/4.5/6
5 8134H TUBE.16X6.5/7.5-8
6 137237X427 "RIM FRONT 6"""
6 140325X427 "RIM ASM REAR 8"""
7 104757X HUB CAP
8 9040H "FLANGE, BEARING"
9 121748X WASHER
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
