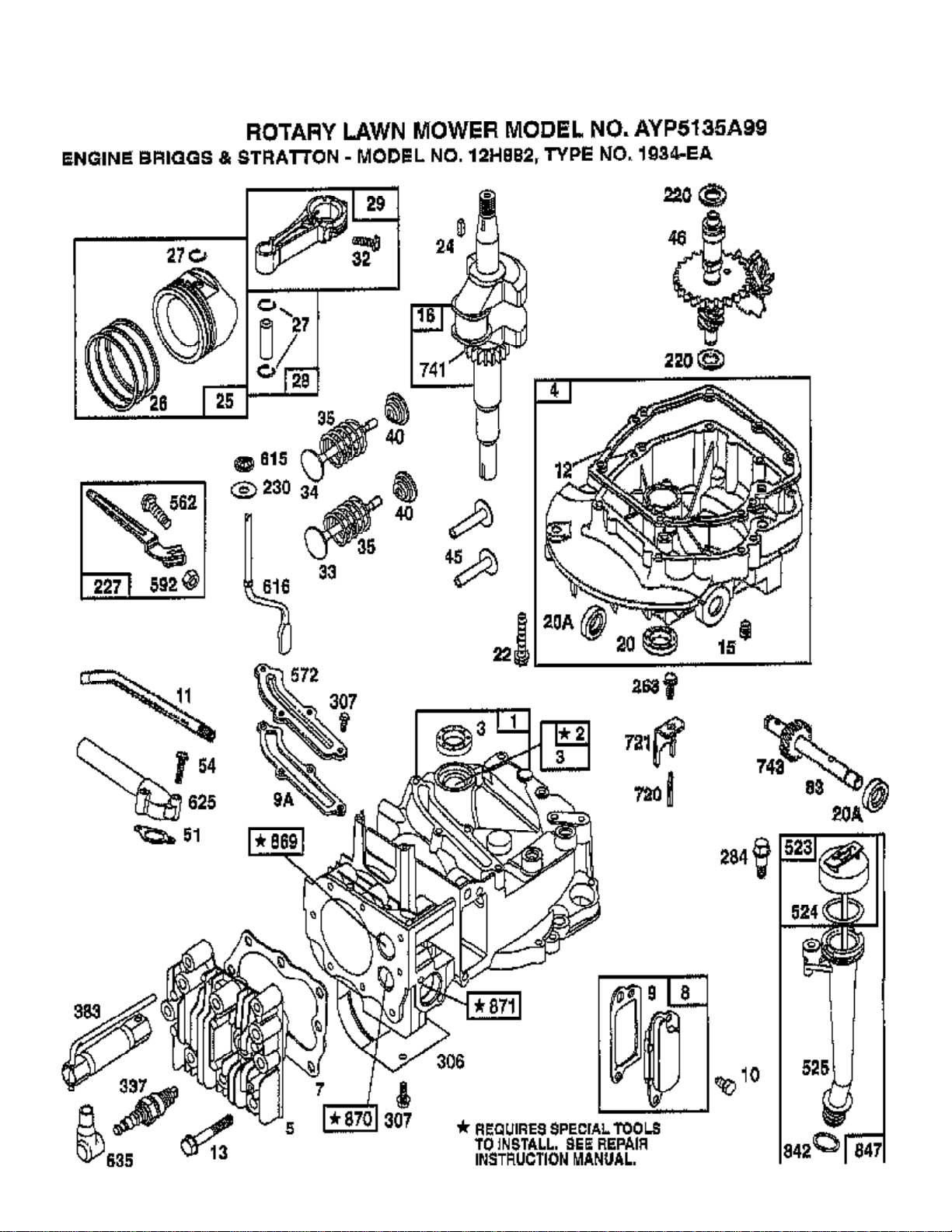

5135A99 (1999) Page 1 of 21
BRIGGS AND STRATTON ENGINE
5135A99 (1999) Page 2 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1 493260 CYLINDER ASSY
2 293708 BUSHING, CYLINDER
3 299819 SEAL, OIL
4 493365 SUMP, ENGINE
5 214368 HEAD, CYLINDER
7 272916 GASKET, CYLINDER HEAD
8 495786 BREATHER, VALVE CHAMBER
9 272481 GASKET, VALVE COVER
9A 272238 GASKET, BAFFLE PLATE
10 94650 SCREW
11 231933 TUBE, BREATHER
12 272198 GASKET, CRANKCASE
13 94547 SCREW, CYLINDER HEAD
15 94470 PLUG, PIPE
16 498565 CRANKSHAFT
16 94388 TIMING GEAR KEY
20 399781 SEAL, OIL
22 94220 SCREW, HEX HEAD
22 94612 SCREW, HEX HEAD
23 492177 FLYWHEEL
24 222698 KEY, FLYWHEEL
25 499429 PISTON ASSEMBLY
26 499425 RING SET, PISTON, STANDARD SIZE
27 263190 LOCK, PISTON PIN
28 499423 PIN, PISTON, STANDARD SIZE
29 499424 ROD, CONNECTING
32 94699 SCREW
33 262651 VALVE, EXHAUST
34 262652 VALVE, INTAKE
35 262224 SPRING, VALVE
40 93312 RETAINER, VALVE SPRING
45 262204 TAPPET, VALVE
46 498625 GEAR, CAM
51 272199 GASKET, INTAKE ELBOW
54 94526 SCREW, HEX HEAD
55 497442 HOUSING, REWIND STARTER
56 498144 PULLEY, REWIND STARTER
58 280399 ROPE, REWIND STARTER (CUT TO 88-5/8)
60 281434 GRIP, STARTER ROPE
81 223664 LOCK, MUFFLER SCREW
83 231711 SHAFT, AUXILIARY
95 94098 SCREW, THROTTLE
104 231371 PIN, FLOAT HINGE
110 PARTSIMAGE REFER TO PARTS IMAGE
117 494870 P/N CONFLICT - CHECK WITH SUPPLIER
121 498260 CARBURETOR KIT
124 94525 SCREW, CARBURETOR MOUNTING
125 498170 CARBURETOR
127 PARTSIMAGE REFER TO PARTS IMAGE
130 224908 VALVE, THROTTLE
131 493267 SHAFT, THROTTLE
133 398187 FLOAT, CARBURETOR
134 398188 VALVE, INLET
137 PARTSIMAGE REFER TO PARTS IMAGE
163 272653 GASKET AIR CLEANER
187 492790 HOSE, FUEL
188 398540 SCREW, HEX HEAD
188A 94644 SCREW, HEX HEAD
5135A99 (1999) Page 3 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
202 262579 LINK, GOVERNOR
209 263044 SPRING, GOVERNOR
220 68938 WASHER, THRUST
227 492349 LEVER, GOVERNOR
230 67072 WASHER, THRUST
258 94512 SCREW, HEX HEAD
263 94620 SCREW, HEX HEAD
284 94511 SCREW, HEX HEAD
300 494343 MUFFLER, EXHAUST
304 493293 HOUSING, BLOWER
305 94744 SCREW, SEMS
306 224324 SHIELD, CYLINDER
307 94515 SCREW HEX HD
332 94877 NUT, FLYWHEEL
333 802574 ARMATURE, MAGNETO
334 94731 SCREW, SEMS
337 802592 PLUG, SPARK
356 497833 WIRE GROUND
358 497316 GASKET SET
363 19069 PULLEY, FLYWHEEL
383 89838 WRENCH SPARK PLUG
387 496115 PRIMER, CARBURETOR
455 225121 CUP, STARTER
456 281503 RETAINER, STARTER
459 281505 PAWL, RATCHET
461 94943 P/N CONFLICT - CHECK WITH SUPPLIER
515 263073 SPRING, RETAINER
523 495264 CAP W/DIPSTICK, OIL FILTER
524 280393 SEAL, FILLER TUBE
525 495265 TUBE, OIL FILLER
529 281299 GROMMET, BREATHER
562 94852 BOLT, GOVERNOR LEVER
572 224328 BAFFLE, CYLINDER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
604 225103 P/N CONFLICT - CHECK WITH SUPPLIER
606 224815 STRAP, BRKT
608 497680 STARTER, REWIND
608 94904 SCREW, SEMS
608 94908 NUT, HEX
613 94648 SCREW
615 94474 FASTENER
616 263175 CRANK, GOVERNOR
617 270344 SEAL, FUEL INTAKE TUBE
620 497203 BRACKET, CARBURETOR
621 396847 SWITCH, STOP
625 281085 TUBE, FUEL INTAKE
634 PARTSIMAGE REFER TO PARTS IMAGE
635 66538 ELBOW, SPARK PLUG
670 280512 SPACER, FUEL TANK
670A 493823 SPACER, BRACKET
720 93474 PIN, SHAFT
721 224229 STOP, SHAFT
741 262598 GEAR, TIMING
743 231279 GEAR, DRIVE
842 280966 SEAL, O-RING
843 272616 SLEEVE, LEVER
847 495263 TUBE ASSEMBLY, OIL
5135A99 (1999) Page 4 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
851 493880 TERMINAL, IGNITION CABLE
869 213512 SEAT, INTAKE VALVE
870 213513 SEAT, EXHAUST VALVE
871 262001 GUIDE, EXHAUST VALVE
871 63709 GUIDE, INTAKE VALVE
883 272253 GASKET, MUFFLER
914 95013 SCREW, HEX
922 262640 SPRING, BRAKE
923 493442 BRAKE ASSEMBLY
925 281145 COVER, LINKAGE
930 281136 GUARD FINGER
957 397974 CAP, FUEL TANK
966 496116 BASE AIR CLEANER
967 491588 SUB= 3364
968 281340 COVER AIR CLEANER
969 94120 SCREW, HEX HEAD
971 94121 SCREW, HEX HEAD
971A 94749 SCREW, HEX HEAD
972 495224 TANK ASSY FUEL
975 493640 BOWL, FLOAT
977 498261 CARBURETOR GASKET SET
1036 499341 LABEL KIT, EMISSION
1095 498258 GASKET SET, VALVE OVERHAUL
2500 12J802-2915 ENGINE
498826 SHORTBLOCK
498528 GASKET SET
5135A99 (1999) Page 5 of 21
BRIGGS AND STRATTON ENGINE
5135A99 (1999) Page 6 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1 493260 CYLINDER ASSY
2 293708 BUSHING, CYLINDER
3 299819 SEAL, OIL
4 493365 SUMP, ENGINE
5 214368 HEAD, CYLINDER
7 272916 GASKET, CYLINDER HEAD
8 495786 BREATHER, VALVE CHAMBER
9 272481 GASKET, VALVE COVER
9A 272238 GASKET, BAFFLE PLATE
10 94650 SCREW
11 231933 TUBE, BREATHER
12 272198 GASKET, CRANKCASE
13 94547 SCREW, CYLINDER HEAD
15 94470 PLUG, PIPE
16 498565 CRANKSHAFT
16 94388 TIMING GEAR KEY
20 399781 SEAL, OIL
22 94220 SCREW, HEX HEAD
22 94612 SCREW, HEX HEAD
23 492177 FLYWHEEL
24 222698 KEY, FLYWHEEL
25 499429 PISTON ASSEMBLY
26 499425 RING SET, PISTON, STANDARD SIZE
27 263190 LOCK, PISTON PIN
28 499423 PIN, PISTON, STANDARD SIZE
29 499424 ROD, CONNECTING
32 94699 SCREW
33 262651 VALVE, EXHAUST
34 262652 VALVE, INTAKE
35 262224 SPRING, VALVE
40 93312 RETAINER, VALVE SPRING
45 262204 TAPPET, VALVE
46 498625 GEAR, CAM
51 272199 GASKET, INTAKE ELBOW
54 94526 SCREW, HEX HEAD
55 497442 HOUSING, REWIND STARTER
56 498144 PULLEY, REWIND STARTER
58 280399 ROPE, REWIND STARTER (CUT TO 88-5/8)
60 281434 GRIP, STARTER ROPE
81 223664 LOCK, MUFFLER SCREW
83 231711 SHAFT, AUXILIARY
95 94098 SCREW, THROTTLE
104 231371 PIN, FLOAT HINGE
110 PARTSIMAGE REFER TO PARTS IMAGE
117 494870 P/N CONFLICT - CHECK WITH SUPPLIER
121 498260 CARBURETOR KIT
124 94525 SCREW, CARBURETOR MOUNTING
125 498170 CARBURETOR
127 PARTSIMAGE REFER TO PARTS IMAGE
130 224908 VALVE, THROTTLE
131 493267 SHAFT, THROTTLE
133 398187 FLOAT, CARBURETOR
134 398188 VALVE, INLET
137 PARTSIMAGE REFER TO PARTS IMAGE
163 272653 GASKET AIR CLEANER
187 492790 HOSE, FUEL
188 398540 SCREW, HEX HEAD
188A 94644 SCREW, HEX HEAD
5135A99 (1999) Page 7 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
202 262579 LINK, GOVERNOR
209 263044 SPRING, GOVERNOR
220 68938 WASHER, THRUST
227 492349 LEVER, GOVERNOR
230 67072 WASHER, THRUST
258 94512 SCREW, HEX HEAD
263 94620 SCREW, HEX HEAD
284 94511 SCREW, HEX HEAD
300 494343 MUFFLER, EXHAUST
304 493293 HOUSING, BLOWER
305 94744 SCREW, SEMS
306 224324 SHIELD, CYLINDER
307 94515 SCREW HEX HD
332 94877 NUT, FLYWHEEL
333 802574 ARMATURE, MAGNETO
334 94731 SCREW, SEMS
337 802592 PLUG, SPARK
356 497833 WIRE GROUND
358 497316 GASKET SET
363 19069 PULLEY, FLYWHEEL
383 89838 WRENCH SPARK PLUG
387 496115 PRIMER, CARBURETOR
455 225121 CUP, STARTER
456 281503 RETAINER, STARTER
459 281505 PAWL, RATCHET
461 94943 P/N CONFLICT - CHECK WITH SUPPLIER
515 263073 SPRING, RETAINER
523 495264 CAP W/DIPSTICK, OIL FILTER
524 280393 SEAL, FILLER TUBE
525 495265 TUBE, OIL FILLER
529 281299 GROMMET, BREATHER
562 94852 BOLT, GOVERNOR LEVER
572 224328 BAFFLE, CYLINDER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
604 225103 P/N CONFLICT - CHECK WITH SUPPLIER
606 224815 STRAP, BRKT
608 497680 STARTER, REWIND
608 94904 SCREW, SEMS
608 94908 NUT, HEX
613 94648 SCREW
615 94474 FASTENER
616 263175 CRANK, GOVERNOR
617 270344 SEAL, FUEL INTAKE TUBE
620 497203 BRACKET, CARBURETOR
621 396847 SWITCH, STOP
625 281085 TUBE, FUEL INTAKE
634 PARTSIMAGE REFER TO PARTS IMAGE
635 66538 ELBOW, SPARK PLUG
670 280512 SPACER, FUEL TANK
670A 493823 SPACER, BRACKET
720 93474 PIN, SHAFT
721 224229 STOP, SHAFT
741 262598 GEAR, TIMING
743 231279 GEAR, DRIVE
842 280966 SEAL, O-RING
843 272616 SLEEVE, LEVER
847 495263 TUBE ASSEMBLY, OIL
5135A99 (1999) Page 8 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
851 493880 TERMINAL, IGNITION CABLE
869 213512 SEAT, INTAKE VALVE
870 213513 SEAT, EXHAUST VALVE
871 262001 GUIDE, EXHAUST VALVE
871 63709 GUIDE, INTAKE VALVE
883 272253 GASKET, MUFFLER
914 95013 SCREW, HEX
922 262640 SPRING, BRAKE
923 493442 BRAKE ASSEMBLY
925 281145 COVER, LINKAGE
930 281136 GUARD FINGER
957 397974 CAP, FUEL TANK
966 496116 BASE AIR CLEANER
967 491588 SUB= 3364
968 281340 COVER AIR CLEANER
969 94120 SCREW, HEX HEAD
971 94121 SCREW, HEX HEAD
971A 94749 SCREW, HEX HEAD
972 495224 TANK ASSY FUEL
975 493640 BOWL, FLOAT
977 498261 CARBURETOR GASKET SET
1036 499341 LABEL KIT, EMISSION
1095 498258 GASKET SET, VALVE OVERHAUL
2500 12J802-2915 ENGINE
498826 SHORTBLOCK
498528 GASKET SET
5135A99 (1999) Page 9 of 21
BRIGGS AND STRATTON ENGINE
5135A99 (1999) Page 10 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1 493260 CYLINDER ASSY
2 293708 BUSHING, CYLINDER
3 299819 SEAL, OIL
4 493365 SUMP, ENGINE
5 214368 HEAD, CYLINDER
7 272916 GASKET, CYLINDER HEAD
8 495786 BREATHER, VALVE CHAMBER
9 272481 GASKET, VALVE COVER
9A 272238 GASKET, BAFFLE PLATE
10 94650 SCREW
11 231933 TUBE, BREATHER
12 272198 GASKET, CRANKCASE
13 94547 SCREW, CYLINDER HEAD
15 94470 PLUG, PIPE
16 498565 CRANKSHAFT
16 94388 TIMING GEAR KEY
20 399781 SEAL, OIL
22 94220 SCREW, HEX HEAD
22 94612 SCREW, HEX HEAD
23 492177 FLYWHEEL
24 222698 KEY, FLYWHEEL
25 499429 PISTON ASSEMBLY
26 499425 RING SET, PISTON, STANDARD SIZE
27 263190 LOCK, PISTON PIN
28 499423 PIN, PISTON, STANDARD SIZE
29 499424 ROD, CONNECTING
32 94699 SCREW
33 262651 VALVE, EXHAUST
34 262652 VALVE, INTAKE
35 262224 SPRING, VALVE
40 93312 RETAINER, VALVE SPRING
45 262204 TAPPET, VALVE
46 498625 GEAR, CAM
51 272199 GASKET, INTAKE ELBOW
54 94526 SCREW, HEX HEAD
55 497442 HOUSING, REWIND STARTER
56 498144 PULLEY, REWIND STARTER
58 280399 ROPE, REWIND STARTER (CUT TO 88-5/8)
60 281434 GRIP, STARTER ROPE
81 223664 LOCK, MUFFLER SCREW
83 231711 SHAFT, AUXILIARY
95 94098 SCREW, THROTTLE
104 231371 PIN, FLOAT HINGE
110 PARTSIMAGE REFER TO PARTS IMAGE
117 494870 P/N CONFLICT - CHECK WITH SUPPLIER
121 498260 CARBURETOR KIT
124 94525 SCREW, CARBURETOR MOUNTING
125 498170 CARBURETOR
127 PARTSIMAGE REFER TO PARTS IMAGE
130 224908 VALVE, THROTTLE
131 493267 SHAFT, THROTTLE
133 398187 FLOAT, CARBURETOR
134 398188 VALVE, INLET
137 PARTSIMAGE REFER TO PARTS IMAGE
163 272653 GASKET AIR CLEANER
187 492790 HOSE, FUEL
188 398540 SCREW, HEX HEAD
188A 94644 SCREW, HEX HEAD
5135A99 (1999) Page 11 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
202 262579 LINK, GOVERNOR
209 263044 SPRING, GOVERNOR
220 68938 WASHER, THRUST
227 492349 LEVER, GOVERNOR
230 67072 WASHER, THRUST
258 94512 SCREW, HEX HEAD
263 94620 SCREW, HEX HEAD
284 94511 SCREW, HEX HEAD
300 494343 MUFFLER, EXHAUST
304 493293 HOUSING, BLOWER
305 94744 SCREW, SEMS
306 224324 SHIELD, CYLINDER
307 94515 SCREW HEX HD
332 94877 NUT, FLYWHEEL
333 802574 ARMATURE, MAGNETO
334 94731 SCREW, SEMS
337 802592 PLUG, SPARK
356 497833 WIRE GROUND
358 497316 GASKET SET
363 19069 PULLEY, FLYWHEEL
383 89838 WRENCH SPARK PLUG
387 496115 PRIMER, CARBURETOR
455 225121 CUP, STARTER
456 281503 RETAINER, STARTER
459 281505 PAWL, RATCHET
461 94943 P/N CONFLICT - CHECK WITH SUPPLIER
515 263073 SPRING, RETAINER
523 495264 CAP W/DIPSTICK, OIL FILTER
524 280393 SEAL, FILLER TUBE
525 495265 TUBE, OIL FILLER
529 281299 GROMMET, BREATHER
562 94852 BOLT, GOVERNOR LEVER
572 224328 BAFFLE, CYLINDER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
604 225103 P/N CONFLICT - CHECK WITH SUPPLIER
606 224815 STRAP, BRKT
608 497680 STARTER, REWIND
608 94904 SCREW, SEMS
608 94908 NUT, HEX
613 94648 SCREW
615 94474 FASTENER
616 263175 CRANK, GOVERNOR
617 270344 SEAL, FUEL INTAKE TUBE
620 497203 BRACKET, CARBURETOR
621 396847 SWITCH, STOP
625 281085 TUBE, FUEL INTAKE
634 PARTSIMAGE REFER TO PARTS IMAGE
635 66538 ELBOW, SPARK PLUG
670 280512 SPACER, FUEL TANK
670A 493823 SPACER, BRACKET
720 93474 PIN, SHAFT
721 224229 STOP, SHAFT
741 262598 GEAR, TIMING
743 231279 GEAR, DRIVE
842 280966 SEAL, O-RING
843 272616 SLEEVE, LEVER
847 495263 TUBE ASSEMBLY, OIL
5135A99 (1999) Page 12 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
851 493880 TERMINAL, IGNITION CABLE
869 213512 SEAT, INTAKE VALVE
870 213513 SEAT, EXHAUST VALVE
871 262001 GUIDE, EXHAUST VALVE
871 63709 GUIDE, INTAKE VALVE
883 272253 GASKET, MUFFLER
914 95013 SCREW, HEX
922 262640 SPRING, BRAKE
923 493442 BRAKE ASSEMBLY
925 281145 COVER, LINKAGE
930 281136 GUARD FINGER
957 397974 CAP, FUEL TANK
966 496116 BASE AIR CLEANER
967 491588 SUB= 3364
968 281340 COVER AIR CLEANER
969 94120 SCREW, HEX HEAD
971 94121 SCREW, HEX HEAD
971A 94749 SCREW, HEX HEAD
972 495224 TANK ASSY FUEL
975 493640 BOWL, FLOAT
977 498261 CARBURETOR GASKET SET
1036 499341 LABEL KIT, EMISSION
1095 498258 GASKET SET, VALVE OVERHAUL
2500 12J802-2915 ENGINE
498826 SHORTBLOCK
498528 GASKET SET
5135A99 (1999) Page 13 of 21
BRIGGS AND STRATTON ENGINE
5135A99 (1999) Page 14 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1 493260 CYLINDER ASSY
2 293708 BUSHING, CYLINDER
3 299819 SEAL, OIL
4 493365 SUMP, ENGINE
5 214368 HEAD, CYLINDER
7 272916 GASKET, CYLINDER HEAD
8 495786 BREATHER, VALVE CHAMBER
9 272481 GASKET, VALVE COVER
9A 272238 GASKET, BAFFLE PLATE
10 94650 SCREW
11 231933 TUBE, BREATHER
12 272198 GASKET, CRANKCASE
13 94547 SCREW, CYLINDER HEAD
15 94470 PLUG, PIPE
16 498565 CRANKSHAFT
16 94388 TIMING GEAR KEY
20 399781 SEAL, OIL
22 94220 SCREW, HEX HEAD
22 94612 SCREW, HEX HEAD
23 492177 FLYWHEEL
24 222698 KEY, FLYWHEEL
25 499429 PISTON ASSEMBLY
26 499425 RING SET, PISTON, STANDARD SIZE
27 263190 LOCK, PISTON PIN
28 499423 PIN, PISTON, STANDARD SIZE
29 499424 ROD, CONNECTING
32 94699 SCREW
33 262651 VALVE, EXHAUST
34 262652 VALVE, INTAKE
35 262224 SPRING, VALVE
40 93312 RETAINER, VALVE SPRING
45 262204 TAPPET, VALVE
46 498625 GEAR, CAM
51 272199 GASKET, INTAKE ELBOW
54 94526 SCREW, HEX HEAD
55 497442 HOUSING, REWIND STARTER
56 498144 PULLEY, REWIND STARTER
58 280399 ROPE, REWIND STARTER (CUT TO 88-5/8)
60 281434 GRIP, STARTER ROPE
81 223664 LOCK, MUFFLER SCREW
83 231711 SHAFT, AUXILIARY
95 94098 SCREW, THROTTLE
104 231371 PIN, FLOAT HINGE
110 PARTSIMAGE REFER TO PARTS IMAGE
117 494870 P/N CONFLICT - CHECK WITH SUPPLIER
121 498260 CARBURETOR KIT
124 94525 SCREW, CARBURETOR MOUNTING
125 498170 CARBURETOR
127 PARTSIMAGE REFER TO PARTS IMAGE
130 224908 VALVE, THROTTLE
131 493267 SHAFT, THROTTLE
133 398187 FLOAT, CARBURETOR
134 398188 VALVE, INLET
137 PARTSIMAGE REFER TO PARTS IMAGE
163 272653 GASKET AIR CLEANER
187 492790 HOSE, FUEL
188 398540 SCREW, HEX HEAD
188A 94644 SCREW, HEX HEAD
5135A99 (1999) Page 15 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
202 262579 LINK, GOVERNOR
209 263044 SPRING, GOVERNOR
220 68938 WASHER, THRUST
227 492349 LEVER, GOVERNOR
230 67072 WASHER, THRUST
258 94512 SCREW, HEX HEAD
263 94620 SCREW, HEX HEAD
284 94511 SCREW, HEX HEAD
300 494343 MUFFLER, EXHAUST
304 493293 HOUSING, BLOWER
305 94744 SCREW, SEMS
306 224324 SHIELD, CYLINDER
307 94515 SCREW HEX HD
332 94877 NUT, FLYWHEEL
333 802574 ARMATURE, MAGNETO
334 94731 SCREW, SEMS
337 802592 PLUG, SPARK
356 497833 WIRE GROUND
358 497316 GASKET SET
363 19069 PULLEY, FLYWHEEL
383 89838 WRENCH SPARK PLUG
387 496115 PRIMER, CARBURETOR
455 225121 CUP, STARTER
456 281503 RETAINER, STARTER
459 281505 PAWL, RATCHET
461 94943 P/N CONFLICT - CHECK WITH SUPPLIER
515 263073 SPRING, RETAINER
523 495264 CAP W/DIPSTICK, OIL FILTER
524 280393 SEAL, FILLER TUBE
525 495265 TUBE, OIL FILLER
529 281299 GROMMET, BREATHER
562 94852 BOLT, GOVERNOR LEVER
572 224328 BAFFLE, CYLINDER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
604 225103 P/N CONFLICT - CHECK WITH SUPPLIER
606 224815 STRAP, BRKT
608 497680 STARTER, REWIND
608 94904 SCREW, SEMS
608 94908 NUT, HEX
613 94648 SCREW
615 94474 FASTENER
616 263175 CRANK, GOVERNOR
617 270344 SEAL, FUEL INTAKE TUBE
620 497203 BRACKET, CARBURETOR
621 396847 SWITCH, STOP
625 281085 TUBE, FUEL INTAKE
634 PARTSIMAGE REFER TO PARTS IMAGE
635 66538 ELBOW, SPARK PLUG
670 280512 SPACER, FUEL TANK
670A 493823 SPACER, BRACKET
720 93474 PIN, SHAFT
721 224229 STOP, SHAFT
741 262598 GEAR, TIMING
743 231279 GEAR, DRIVE
842 280966 SEAL, O-RING
843 272616 SLEEVE, LEVER
847 495263 TUBE ASSEMBLY, OIL
5135A99 (1999) Page 16 of 21
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
851 493880 TERMINAL, IGNITION CABLE
869 213512 SEAT, INTAKE VALVE
870 213513 SEAT, EXHAUST VALVE
871 262001 GUIDE, EXHAUST VALVE
871 63709 GUIDE, INTAKE VALVE
883 272253 GASKET, MUFFLER
914 95013 SCREW, HEX
922 262640 SPRING, BRAKE
923 493442 BRAKE ASSEMBLY
925 281145 COVER, LINKAGE
930 281136 GUARD FINGER
957 397974 CAP, FUEL TANK
966 496116 BASE AIR CLEANER
967 491588 SUB= 3364
968 281340 COVER AIR CLEANER
969 94120 SCREW, HEX HEAD
971 94121 SCREW, HEX HEAD
971A 94749 SCREW, HEX HEAD
972 495224 TANK ASSY FUEL
975 493640 BOWL, FLOAT
977 498261 CARBURETOR GASKET SET
1036 499341 LABEL KIT, EMISSION
1095 498258 GASKET SET, VALVE OVERHAUL
2500 12J802-2915 ENGINE
498826 SHORTBLOCK
498528 GASKET SET
5135A99 (1999) Page 17 of 21
ROTARY MOWER
5135A99 (1999) Page 18 of 21
ROTARY MOWER
Ref # Part Number Qty Description
1 141912 SCREW HXHD 10-24
2 154049 DRIVE COVER
3 701477 FASTNER PUSH DRCV
4 164795 DRIVE PAWL
5 88043 PULLEY PM
6 12000030 RETAINING RING ST
7 54583 SCREW
8 851947X004 "CLUTCH,FRAME"
9 50962 LOCKNUT
10 702631X004 LEVER.CLUTCH
11 88067 SPACER PM
12 750253 LOCKNUT
13 72070504 CARRIAGE BOLT
14 74350424 BOLT 1/4-20-1 1/2
15 88069 SPACER PM
16 48160 IDLER ASSY
17 88576 IDLER SPACER
18 88517 SHOULDER BOLT
19 88516 IDLER PULLEY
20 87877 KNOB PM
21 152018 WHEEL ADJ ASSY LH
22 152019 WHEEL ADJ ASSY RH
24 88080 DUST SHROUD PM
25 67725 WASHER FLUT
27 151156 WHEEL DRIVE 8X2
28 145212 NUT.HXFLG.LOCK.
29 85179 RETAINER CLIP PM
30 77400 HUB CAP
31 12000058 E-RING.7/16.RE.
32 137054 PINION.GEAR
33 63601 SUB= 73800400
34 700537 SHAFT.DRIVE.17.81
35 88082 DRIVE PULLEY PM
36 111924X SUB= TH3H340
852000 "DECAL,CLEAN UNDER"
5135A99 (1999) Page 19 of 21
ROTARY MOWER
5135A99 (1999) Page 20 of 21
ROTARY MOWER
Ref # Part Number Qty Description
1 145793 BAIL.CNTRL.STD.BL
2 165451X479 HANDLE.UPPER.4POS
3 157081X479 HANDLE LOWER
4 132001 ROPE GUIDE
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 66426 SUB= 7192J
8 144929 SCREW.HXHD.WASH.
9 700417 "CONTROL, THROTTLE"
10 63601 SUB= 73800400
11 145285 GUARD.DISCH.CLIPO
12 146392 CONTROL.DRV.20FBD
13 63601 SUB= 73800400
14 128638 "NUT,WING PM"
15 51793 HAIRPIN COTTER
16 147738 DOOR ASM.MULCHER
19 156445X479 BACK PLATE
20 700363X419 SUB= 700363X479
21 140657 SKIRT.PUSH.20RD
22 166650 PLUG.MULCHER.20RD
23 147613 KIT.DOOR.RR.20STL
24 751592 LOCKNUT PM
25 161757X479 HDLE BRKT ASSY LH
26 161756X479 HDLE BRKT ASSY RH
27 150078 SCREW.HXWS.5/16
29 750085X007 BRKT.WHL.ADJ
30 146630 SPACER.HEIGHT.ADJ
31 130861 "CABLE,ENG ZONE CO"
32 700331X004 SPRING SELECTOR
33 87877 KNOB PM
34 750913X004 "AXLE ARM,REAR PM"
35 61651 WASHER
36 142748 BOLT SHLD 3/8-16
37 157176 WHELL ASM 14X2RAD
38 83923 HEX FLANGE LOCKNT
42 53998 SUB= 19131216
43 54583 SCREW
44 111190X CABLE CLAMP
45 850999 SCREW
46 85463 DECAL-DANGER PM
47 83816 SCREW PM
48 850988 ENGINE SPACER
51 144961 KIT.BAF.FRT.20RD
52 162786 KIT.HOUSING.20RD.FWBD.RED
53 851084 SCREW
54 850263 LOCKWASHER
55 851074 "WASHER,HARDEN"
56 145106 BLADE.20.MULCH.AY
57 851514 ADAPTOR.BLADE.LM
67 149599 GRASSBAG.250B1.BL
68 149555 FRAME.CATCHER.2.5
70 SUPPLIER CHECK WITH SUPPLIER
70 PARTSIMAGE REFER TO PARTS IMAGE
71 57143 WAVE WASHER
72 128415 BLIND RIVET
73 700063X479 REAR BAFFLE
74 133188X479 DISCHARGE GUARD
75 150050 SCREW.HXTAP.10-24
5135A99 (1999) Page 21 of 21
ROTARY MOWER
Ref # Part Number Qty Description
76 7460612 BOLT HEX
77 88348 WASHER PM
78 145669 GUIDE.CABLE.FWBD
79 88652 HINGE SCREW
81 751592 LOCKNUT PM
84 158755 PAN HEAD SCREW
85 751152 LOCKNUT
161058 DECAL.WARNING
167350 MANUAL.O.5135A99.E
Loading...
