Page 1
5056-34 (1999 & Before) Page 1 of 14
DECALS
Page 2
5056-34 (1999 & Before) Page 2 of 14
DECALS
Ref # Part Number Qty Description
1 138555 DECAL.CNTRL.PANEL
2 134092 DECAL, LOGO (BELT GUARD)
3 135331 DECAL, TINE SHIELD
4 135061 DECAL, LOGO (TINE SHIELD)
5 135062 NAMEPLATE LOGO
6 136943 DECAL.INSTRUCTION
7 120431X DECAL TI
8 102180X DECAL CRT
9 110593X SUB= 121858X
10 121543X SUB= 271948
11 120075X DECAL TI
138744 NLA
Page 3
5056-34 (1999 & Before) Page 3 of 14
HANDLE
Page 4
5056-34 (1999 & Before) Page 4 of 14
HANDLE
Ref # Part Number Qty Description
1 71091008 SCREW
2 126951X "PANEL,CONT TI"
3 104164X TIE CABLE CRT
4 8206H GRIP T
5 4497H RETAINER M
6 81328 SHOULDER BOLT ST
7 109335X SHIFT HANDLE CRT
8 109313X GROMMET CRT
9 109337X SHIFT ROD CRT
10 72110608 BOLT D
11 109229X LOCK CRT
12 73930600 LOCKNUT
13 19131611 WASHER CRT
14 109228X LEVER LOCK CRT
15 127013X424 SUB= 155117
16 10040400 LOCKWASHER
17 73220400 SUB= 50675
18 73731000 NUT
19 102162X CABLE.CLUTCH.CRT
20 9484R CONDIUT CLIP T
21 86777 SUB= 750097
22 102604X GRIP BAR CRT
23 102744X SUB= 102744X431
24 105216X "ASSY CONTROL, BAR"
25 127012X "CONT,THROTTLE"
26 72140404 BOLT
27 9266R SUB= 624A78
Page 5
5056-34 (1999 & Before) Page 5 of 14
MAINFRAME, LEFT SIDE
Page 6
5056-34 (1999 & Before) Page 6 of 14
MAINFRAME, LEFT SIDE
Ref # Part Number Qty Description
1 73510500 NUT
2 10040600 LOCKWASHER
3 73220600 NUT.HEX.3/8-16UNC
4 74930568 BOLT TI
5 1572H SUB= 2882J
6 110111X LEVER ASM CRT
7 72110404 BOLT
8 8700J PANEL TI
9 86777 SUB= 750097
10 9484R CONDIUT CLIP T
11 10040400 LOCKWASHER
12 73220400 SUB= 50675
13 23230506 SET SCREW
14 120938X SPACER
15 19111116 WASHER
16 100473M "SHEAVE 10"" CRT"
17 73220500 NUT.HEX.5/16-18
18 110651X SPACER CRT
19 2649M KEY T
20 110653X GUARD CRT
21 131691 SPLIT SPACER
22 104214X NUT TI
23 5015J TIRE TI
23A 124366X SUB= 128952
23B 795R SUB= 65139
24 126875X RIVET.DRILL.1.75
25 4497H RETAINER M
26 131159X424 "GUARD, BELT"
27 132801 BELT-V
28 104679X PULLEY-IDLER TI
29 12000032 KLIP RING
30 105611X SUB= 918105611X
31 102384X BOLT CRT
32 102141X SHIFT ARM CRT
33 74760616 BOLT
34 102383X COUNTERWEIGHT CRT
35 74760524 BOLT.HEX.5/16-1.5
36 102331X BRACKET LH CRT
37 130812 ENGINE PULLEY
38 131556 SUB= 532131556
Page 7
5056-34 (1999 & Before) Page 7 of 14
MAINFRAME, RIGHT SIDE
Page 8
5056-34 (1999 & Before) Page 8 of 14
MAINFRAME, RIGHT SIDE
Ref # Part Number Qty Description
1 73510500 NUT
2 102332X BRACKET RH CRT
3 74760524 BOLT.HEX.5/16-1.5
4 102173X COUNTERWEIGHT CRT
5 10040600 LOCKWASHER
6 73220600 NUT.HEX.3/8-16UNC
7 4497H RETAINER M
8 126875X RIVET.DRILL.1.75
9 5015J TIRE TI
9A 124366X SUB= 128952
9B 795R SUB= 65139
10 CHECK WITH SUPPLIER
Page 9
5056-34 (1999 & Before) Page 9 of 14
TINE ASSEMBLY
Page 10
5056-34 (1999 & Before) Page 10 of 14

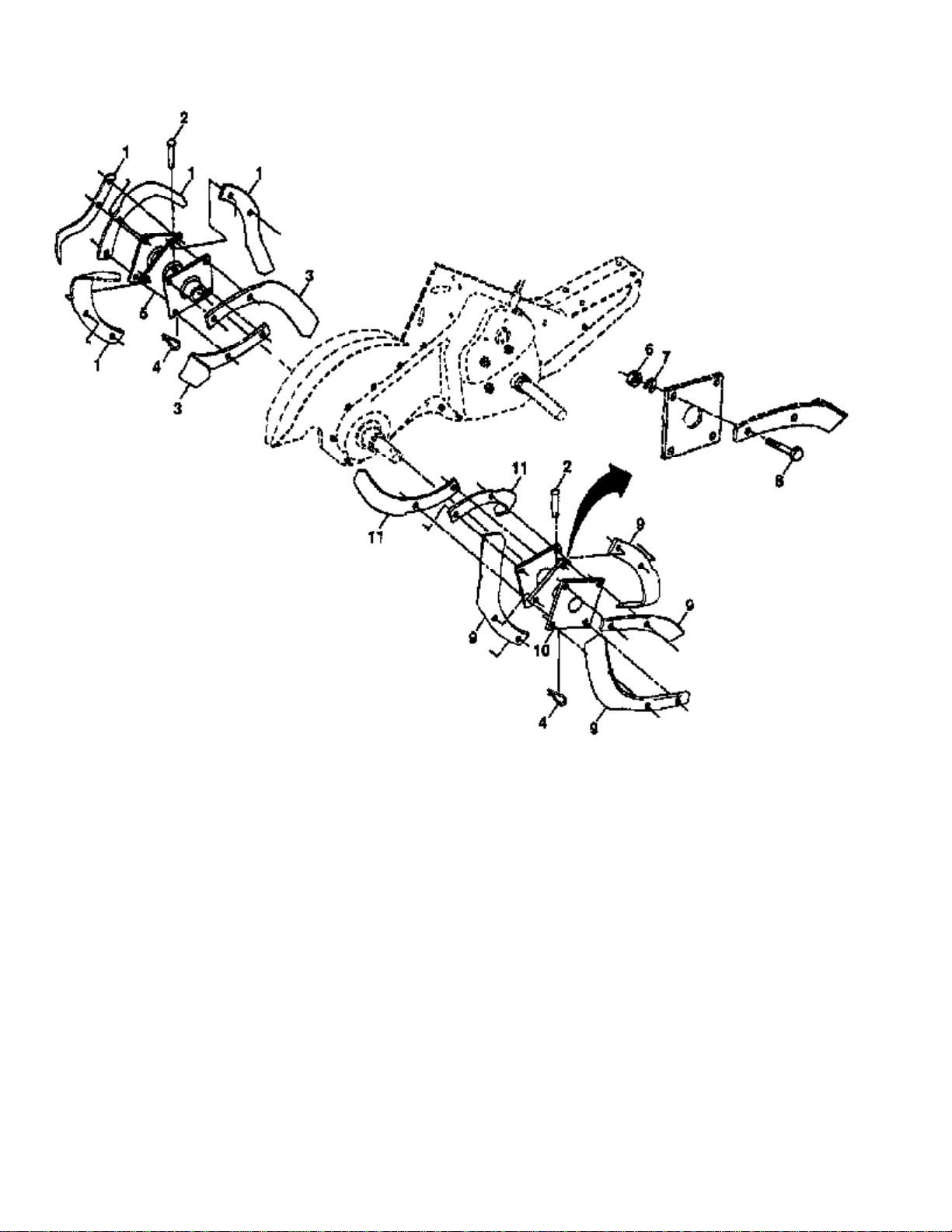

TINE ASSEMBLY
Ref # Part Number Qty Description
1 4459J SUB= 6554J
2 132673 PIN.CLEVIS.SHEAR
3 6554J "TINE.LH.12"""
4 3146R RETAINER.SPRING
5 132727 HUB&PLATE ASM LH
6 73610600 SUB= 7810H
7 10040600 LOCKWASHER
8 74610616 BOLT
9 4460J SUB= 6555J
10 132728 HUB&PLATE ASM RH
11 6555J "TINE.RH.12"""
Page 11
5056-34 (1999 & Before) Page 11 of 14
TINE SHIELD
Page 12
5056-34 (1999 & Before) Page 12 of 14
TINE SHIELD
Ref # Part Number Qty Description
1 98000129 NUT
2 104086X424 SHIELD.SD.OUT.LH
3 8393J STAKE PIN TI
4 12000036 KLIP RING TI
5 72110508 BOLT CRT
6 8394J SPRING TI
7 8392J LATCH BRACKET TI
8 109230X SPRING CRT
9 124289X424 "SHIELD,TINE"
10 72140506 BOLT
11 73220500 NUT.HEX.5/16-18
12 10040500 LOCKWASHER
13 72110510 BOLT
14 124311X "BRACKET,SHIELD"
15 104101X424 SHIELD.SD.OUT.RH
16 73220400 SUB= 50675
17 10040400 LOCKWASHER
18 72040410 BOLT
19 102701X GRIP CRT
20 73220600 NUT.HEX.3/8-16UNC
21 102156X SUB= 102156X500
22 74930632 BOLT
23 4440J HINGE CRT
24 72140404 BOLT
25 6712J VINYL CAP TI
26 109227X PAD IDLER TI
27 102695X424 SHLD LEV TI
28 120588X PIN HINGE
29 104085X424 SHLD SIDE
30 73970500 LOCKNUT TI
31 72140508 BOLT
Page 13
5056-34 (1999 & Before) Page 13 of 14
TRANSMISSION
Page 14
5056-34 (1999 & Before) Page 14 of 14
TRANSMISSION
Ref # Part Number Qty Description
1 137409 SUB= 155112
2 121147X SUB= 150698
3 106211X GASKET TI
4 5020J NEEDLE BRNG LT
5 1370H "T, BEARING"
6 102113X PINION-INPUT CRT
7 102110X SHAFT-INPUT CRT
8 4895H "TI, BEARING"
9 102136X WASHER SEAL CRT
10 7392M SUB= 100482K
11 100371K SPRING-SHIFT CRT
12 106160X O-RING TI
13 102107X ARM ASSY CRT
14 8353J SHIFT FORK TI
15 12000039 KLIP RING
16 102109X SHAFT SHIFT CRT
17 104159X SPACER SPLIT CRT
18 4358J WASHER
19 12000040 KLIP RING
20 102114X GEAR ASSY CRT
21 102115X GEAR-REV IDLR CRT
22 6803J NEEDLE BEARING TI
23 102111X SHAFT CRT
24 10040700 LOCKWASHER
25 73610700 NUT.ASF.HEX.7/16
26 102128X O RING CRT
27 102100X "CRT, BEARING"
28 106390X BUSHING TI
29 102134X CHAIN CRT
30 124458 SUB= 150737
31 102106X SUB= 918102106X
32 106388X SPACER TI
33 102121X SPRCKT 8 GEAR CRT
34 102112X SHFT 2ND RED. CRT
35 102101X SCRW WHIZ LOK CRT
36 137300 SPROCKET ASM.
37 4422J BEARING
38 137301 SUB= 137300
39 105345X GEAR TI
40 105346X GEAR TI
41 8358J REDUCTION SHFT TI
42 4220R BRNG RACE
43 106146X SPACER TI
44 9672R CUP.FORMED.
45 102144X RING SPIRAL CRT
46 9676R SUB= 147344
47 9674R SUB= 147344
48 121745X SUB= 150700
49 132688 TINE SHAFT
50 106147X CHAIN.50 LINK TI
51 17580408 SCREW CRT
52 73220500 NUT.HEX.5/16-18
6066J GREASE PREMIUM-1
