AYP 425131 Parts List

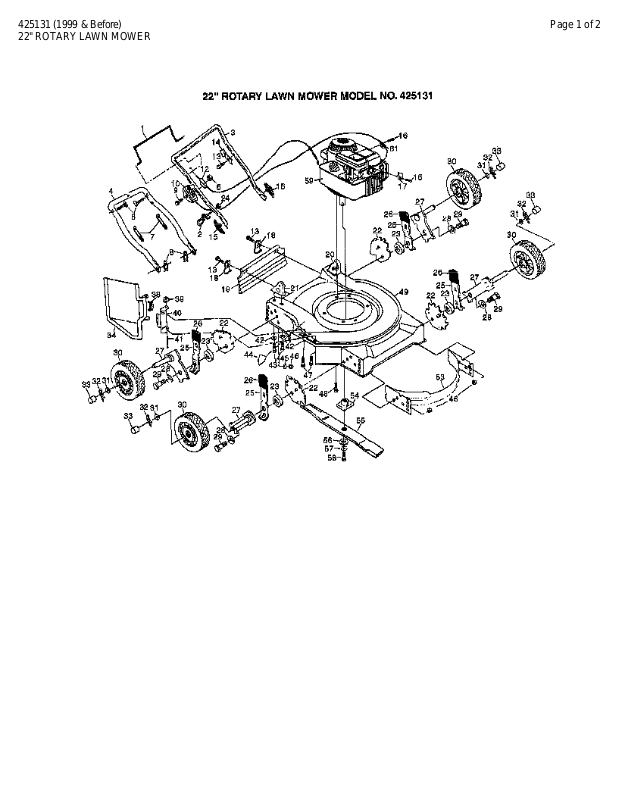

425131 (1999 & Before) Page 1 of 2
22" ROTARY LAWN MOWER

425131 (1999 & Before) Page 2 of 2
22" ROTARY LAWN MOWER

Ref # Part Number Qty Description

1 86902 CONTROL BAR PM
2 132001 ROPE GUIDE
3 132649X479 SUB= 160223X479
4 84676X479 SUB= 151516X479
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 66426 SUB= 7192J
8 51793 HAIRPIN COTTER

9 144929 SCREW.HXHD.WASH.
10 851462 CONTROL THROTTLE
12 130861 "CABLE,ENG ZONE CO"
13 750097 TAPPING SCREW
14 850733X004 "BRKT,UPSTOP"
15 136376 KNOB HANDLE
16 83816 SCREW PM
17 CHECK WITH SUPPLIER
17 213146 CABLE CLAMP
18 87584X004 "BRKT,DEFL PM"
19 140540 SKIRT.REAR.FGD.22
20 701971X479 SUB= 150959
21 701969X479 SUB= 150959
22 700325X007 BRACKET.ADJ.9POS.
23 84920 SUB= 146630
24 73510400 NUT
25 700331X004 SPRING SELECTOR
26 87877 KNOB PM
27 85021X004 AXLE ARM
28 62335 "WASHER, BELLEVIL."
29 142748 BOLT SHLD 3/8-16
30 800220 WHEEL.ASM
31 52160 WASHER
32 85179 RETAINER CLIP PM
33 800090 HUB CAP-PLASTIC
34 851750 SUB= 532851750
38 851855 "SPRING,TORSION"
39 83731 PUSH ON SPEED NUT
40 851852X004 "BRKT,HSG"
41 851854 "ROD,HINGE "
42 59289 STEEL WASHER
43 55187 SCREW
44 85463 DECAL-DANGER PM
45 61537 SUB= 19132012
46 751592 LOCKNUT PM
47 851856 SCREW
48 850998 SCREW
49 701492 KIT.HSG.22SD PUSH
53 700929X479 BAFFLE.FRT/REAR
54 850977 BLADE ADAPTOR
55 141114 "BLADE.MULCH.22"""
56 851074 "WASHER,HARDEN"
57 850263 LOCKWASHER
58 851084 SCREW
59 CHECK WITH SUPPLIER
61 87930 GUIDE CLIP PM

145655 MANUAL.OP.GEN.PUS
145986 MANUAL.P.425131
GCK2200 SUB= GCK3200A
