AYP 3P302B Parts List

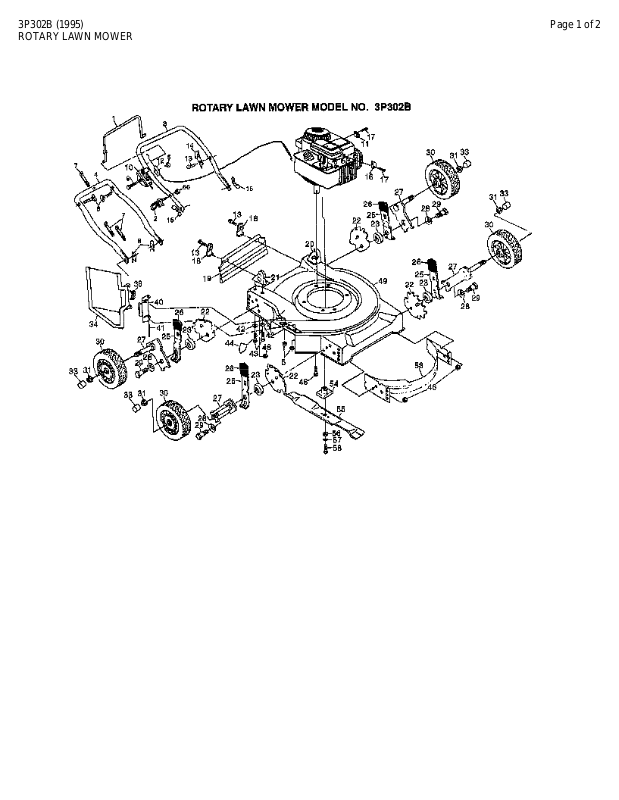

3P302B (1995) Page 1 of 2
ROTARY LAWN MOWER

3P302B (1995) Page 2 of 2
ROTARY LAWN MOWER

Ref # Part Number Qty Description

1 131696 CONTROL BAR
2 132001 ROPE GUIDE
3 131697X479 SUB= 154480X479
4 132813X479 SUB= 151721X479
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 66426 SUB= 7192J
8 51793 HAIRPIN COTTER

9 144929 SCREW.HXHD.WASH.
10 851462 CONTROL THROTTLE
11 87930 GUIDE CLIP PM
12 130861 "CABLE,ENG ZONE CO"
13 750097 TAPPING SCREW
14 850733X004 "BRKT,UPSTOP"
15 128638 "NUT,WING PM"
16 111190X CABLE CLAMP
17 83816 SCREW PM
18 87584X004 "BRKT,DEFL PM"
19 140539 SKIRT.REAR.22SD.
20 701971X479 SUB= 150959
21 701969X479 SUB= 150959
22 700325X007 BRACKET.ADJ.9POS.
23 84920 SUB= 146630
25 700331X004 SPRING SELECTOR
26 87877 KNOB PM
27 145935X004 ARM.AXLE.ASM.BZP.
28 62335 "WASHER, BELLEVIL."
29 142748 BOLT SHLD 3/8-16
30 800220 WHEEL.ASM
31 83923 HEX FLANGE LOCKNT
33 800090 HUB CAP-PLASTIC
34 145282 GUARD.DISCH.22SD.
38 145286 SUB= 152186
40 147775 BRACKET.HINGE.W/F
41 147286 ROD.HINGE.COMBI-C
42 59289 STEEL WASHER
43 55187 SCREW
44 107339X DECAL HYT
46 751592 LOCKNUT PM
48 850998 SCREW
49 702208 KIT.HSG.22SD.PUSH
53 700929X479 BAFFLE.FRT/REAR
54 850977 BLADE ADAPTOR
55 141114 "BLADE.MULCH.22"""
56 851074 "WASHER,HARDEN"
57 850263 LOCKWASHER
58 851084 SCREW
59 CHECK WITH SUPPLIER
60 73510400 NUT

145655 MANUAL.OP.GEN.PUS
149958 MANUAL.P.3P302B
GCK2200 SUB= GCK3200A
