3M402C (1999 & Before) Page 1 of 7
GEAR CASE
3M402C (1999 & Before) Page 2 of 7
GEAR CASE
Ref # Part Number Qty Description
702510 SUB= 48366
1 17490416 SCREW.1/4-20
2 137055X004 BRACKET.GEARCASE
3 137053 SHIFTER
4 57072 SEAL
6 48373 KIT GEARCASE HALV
7 77881 BEARING
8 137051 SHAFT.WORM
9 137077 SHAFT.DRIVE.SD
10 57079 THRUST WASHER
11 131484 CLUTCH YOKE
12 700343 BUSHING.GEAR BOX
13 86447 PLUG PM
14 137050 GEAR.HELICAL
15 750436X CLUTCH JAW
16 750369 SUB= 6066J
17 12000003 RING T
18 850848 HI PRO KEY
19 81585X004 SPRING BRKT
3M402C (1999 & Before) Page 3 of 7
ROTARY LAWN MOWER
3M402C (1999 & Before) Page 4 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 151516X479 LOWER HANDLE
2 132001 ROPE GUIDE
3 63601 SUB= 73800400
4 131959 BOLT.HANDLE.LM
5 145793 BAIL.CNTRL.STD.BL
6 151517 SUB= 7192J
7 144929 SCREW.HXHD.WASH.
8 700644 CONTROL.THL.49.35
10 130861 "CABLE,ENG ZONE CO"
11 145645X479 SUB= 165452X479
12 51793 HAIRPIN COTTER
13 128638 "NUT,WING PM"
14 140540 SKIRT.REAR.FGD.22
15 750097 TAPPING SCREW
16 151665X479 HDLE BRKT ASSY.RH
17 151667X479 HDLE BRKT ASSY LH
18 149741 SCREW 5/16-18X3/4
19 74100412 SCREW
21 751592 LOCKNUT PM
22 700325X007 BRACKET.ADJ.9POS.
23 146630 SPACER.HEIGHT.ADJ
24 87584X004 "BRKT,DEFL PM"
25 700331X004 SPRING SELECTOR
26 87877 KNOB PM
27 145935X004 ARM.AXLE.ASM.BZP.
28 62335 "WASHER, BELLEVIL."
29 142748 BOLT SHLD 3/8-16
30 146247 WHEEL.8X2.PR.RAD.
32 83923 HEX FLANGE LOCKNT
33 77400 HUB CAP
35 73510400 NUT
36 150406 BOLT.ENG.3/8-16
37 851201X004 WASHER
38 134612 SUB= 48283
39 132352X479 BAFFLE FRONT 22SD
40 147827 KIT.HSG.22SD.FWGD
43 851084 SCREW
44 850263 LOCKWASHER
45 851074 "WASHER,HARDEN"
46 141114 "BLADE.MULCH.22"""
47 851514 ADAPTOR.BLADE.LM
48 147286 ROD.HINGE.COMBI-C
49 147775 BRACKET.HINGE.W/F
51 152186 SPRING.HINGE
54 145282 GUARD.DISCH.22SD.
55 87677 HI PRO KEY PM
56 59708 SCREW
57 84596 ENGINE.PULLEY.FWG
58 213146 CABLE CLAMP
59 83816 SCREW PM
61 107339X DECAL HYT
62 CHECK WITH SUPPLIER
65 150117 MULCHER PLUG
66 150118 MULCHER BAIL
67 150119X004 LATCH.BAIL.MULCH.
83976X479 "BAFFLE,REAR"
145658 MANUAL.GEN.SP.E.
154182 MANUAL.P.3M402C
3M402C (1999 & Before) Page 5 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
GCK2200 SUB= GCK3200A

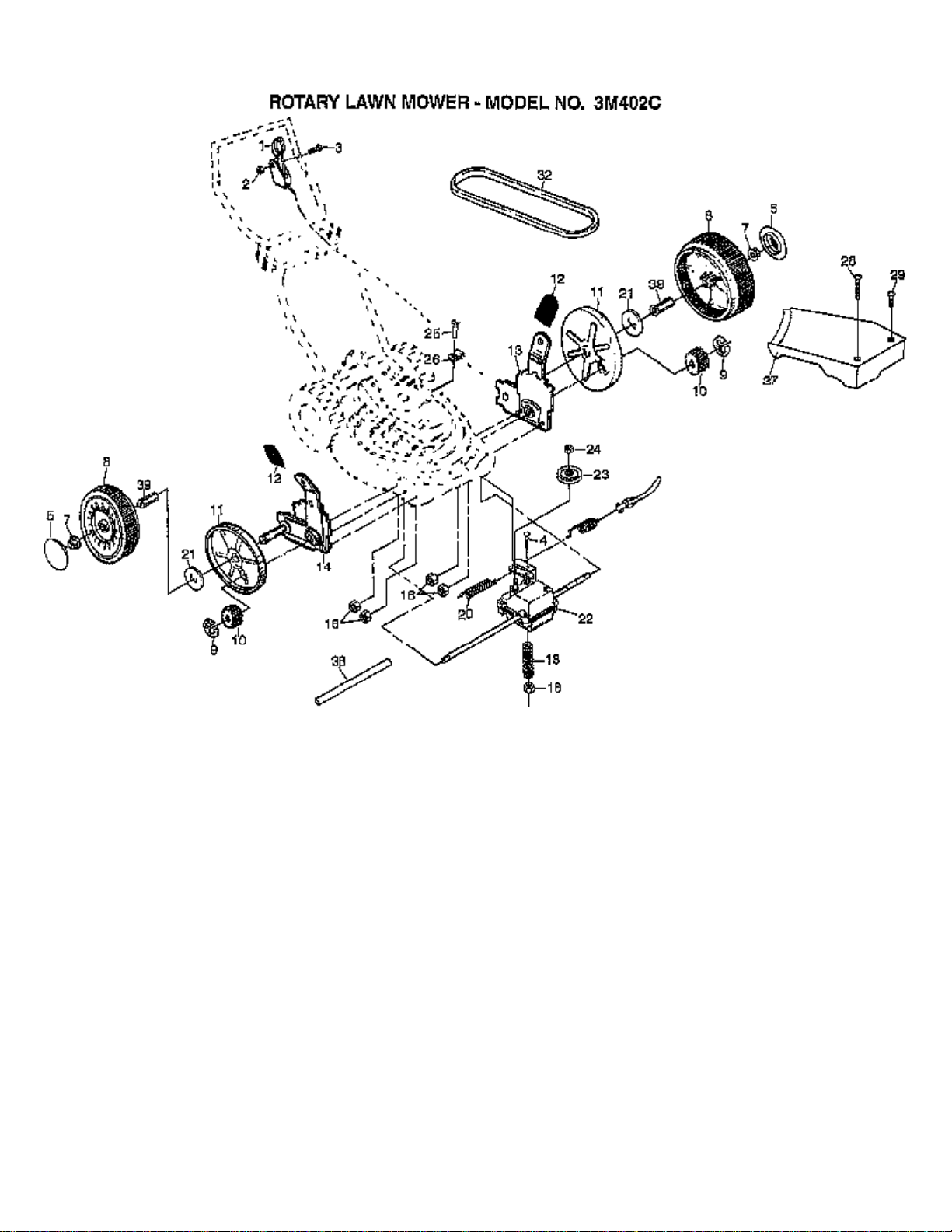

3M402C (1999 & Before) Page 6 of 7
ROTARY LAWN MOWER
3M402C (1999 & Before) Page 7 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 146323 CONTROL.DRV.56.25
2 63601 SUB= 73800400
3 144929 SCREW.HXHD.WASH.
4 700875 BOLT.1/4-20X2.0
5 77400 HUB CAP
7 145212 NUT.HXFLG.LOCK.
8 700953 WHEEL.8X2.LP.PR
9 12000058 E-RING.7/16.RE.
10 137054 PINION.GEAR
11 88080 DUST SHROUD PM
12 87877 KNOB PM
13 151521 WHEEL.ADJ.ASM.LH.
14 151520 WHEEL.ADJ.ASM.RH.
16 63601 SUB= 73800400
18 137090 SPRING.TENSION
20 75192 SPRING
21 67725 WASHER FLUT
22 702510 SUB= 48366
23 137052 PULLEY.DRIVEN
24 132010 LOCKNUT
25 750097 TAPPING SCREW
26 87930 GUIDE CLIP PM
27 137080 COVER DRIVE BLK
28 146072 SCREWL.SLOT.TORXT
29 149746 SCREW.SLOT.TORTX.
32 137078 SUB= 157769
38 86012 DRV SHAFT TUBE PM
39 88446 BUSHING.HEX
851812 NLA
