AYP 3441E94 Parts List

Download
3441E94 (1999 & Before) Page 1 of 44 AIR CLEANER/CARBURETOR
3441E94 (1999 & Before) Page 2 of 44 AIR CLEANER/CARBURETOR
Ref # Part Number Qty Description
1 212706 2 94289 NUT, WING 3 223579 COVER, AIR CLEANER 4 271271 ELEMENT, AIR CLEANER 5 223472 PLUG, WELCH 6 94166 SCREW 7 398826 BODY, AIR CLEANER 8 491535 CARBURETOR ASSY
9 399535 BODY ASSY - UPPER CARBURETOR 10 271411 GASKET AIR CLEANER 11 93499 SCREW 12 223534 VALVE, CHOKE 14 392673 SHAFT AND LEVER, CHOKE 15 271607 GASKET, CARBURETOR BODY 16 298514 FLOAT, CARBURETOR 17 94152 SCREW, SEMS, HEX HEAD 18 491543 BODY, LOWER CARBURETOR 19 231209 BUSHING, THROTTLE SHAFT 20 221939 VALVE, THROTTLE 21 271412 GASKET, CARBURETOR & INTAKE ELBOE 22 93897 SCREW, SEMS 23 93971 SCREW, SHOULDER 24 280818 CRANK - BELL 25 270884 GASKET, INTAKE MANIFOLD MOUNTING 26 93208 SCREW, SEMS INTAKE MANIFOLDING MOUNTING 27 93970 SCREW, SEMS, CARBURETOR MOUNTING 28 261587 LINK - THROTTLE 29 280319 SPACER, CARBURETOR 30 213290 MANIFOLD, INTAKE 31 93949 SCREW, SEMS 32 262351 SPRING, GOVERNOR 33 491297 LEVER ASSEMBLY, GOVERNOR 34 92278 NUT, HEX 35 222289 WASHER 36 261563 SPRING, GOVERNOR IDLE 37 93853 BOLT, GOVERNOR LEVER 38 261586 LINK - GOVERNOR 39 394538 PLATE ASSY - GOVERNOR CONTROL 40 393815 HOSE (CUT TO SUIT) 41 93053 CLAMP, HOSE, GREEN 44 491538 VALVE ASSEMBLY, CARBURETOR IDLE 45 392672 SHAFT AND LEVER, THROTTLE 46 271013 WASHER, THROTTLE SHAFT 47 26157 SPRING, THROTTLE ADJUSTMENT 48 91920 SCREW, MACHINE, FILLISTER HEAD 49 270988 DIAPHRAGM 50 261358 SPRING, DIAPHRAGM 51 221377 CAP, SPRING 52 261395 SPRING, PUMP 53 223688 COVER, DIAPHRAGM 54 93829 SCREW, DIAPHRAGM COVER 55 271025 GASKET, CARBURETOR 56 270989 DIAPHRAGM, DAMPING 57 280197 BODY, PUMP 58 394501 GASKET SET 59 394019 CARTRIDGE AIR CLEANER 60 224039 SHIELD, SPITBACK 61 223714 CARTRIDGE PLATE, AIR CLEANER
3441E94 (1999 & Before) Page 3 of 44 AIR CLEANER/CARBURETOR
Ref # Part Number Qty Description
62 230896 PIN, FLOAT HINGE 63 394681 VALVE, FUEL INLET 65 231338 JET, NEEDLE VALVE 66 397882 PLUG & SEAL, SOLENOID 67 280474 O-RING 68 490207 CRANK, BELL 69 262375 LINK 73 221535 CLAMP 74 393397 PUMP REPAIR KIT 75 491539 CARBURETOR OVERHAUL KIT 76 223882 WASHER, GOVERNOR CRANK, INSIDE 77 262337 SPRING, COMPRESSION 78 94297 SCREW, PAN HEAD 79 491282 PLATE ASSEMBLY, GOVERNOR CONTROL 80 94298 NUT, SQUARE
3441E94 (1999 & Before) Page 4 of 44 ALTERNATOR AND STARTER MOTOR
3441E94 (1999 & Before) Page 5 of 44 ALTERNATOR AND STARTER MOTOR
Ref # Part Number Qty Description
1 94326 SCREW, AIR CLEANER
2 222673 SCREEN, FLUSH ROTATING
3 230674 NUT, HEX
4 222511 WASHER SPRING
5 222674 CUP - SCREEN MOUNTING
6 491180 FLYWHEEL & RING GEAR ASSY, MAGNETO
7 93535 SCREW, HEX HEAD
8 393537 CONNECTOR ASSEMBLY, TRI-CIRCUIT
9 392595 STATOR, ALTERNATOR 10 93621 SCREW, SEMS 11 391362 GEAR, RING 12 19203 PULLER, FLYWHEEL 13 394891 ARMATURE GROUP MAGNETRON IGNITION 14 93381 SCREW, SEM, ARMATURE MOUNTING 15 221798 TERMINAL, IGNITION CABLE 16 394970 TRIGGER COIL ASSY MAGNATRON 17 93163 SCREW 18 222848 COVER, AIR GUIDE 19 222849 COVER, AIR GUIDE 20 222846 SHIELD, CYLINDER 21 222847 SHIELD, CYLINDER 24 394808 MOTOR, STARTING 25 395537 END CAP ASS'Y. COMMUTATOR 26 395538 BRUSH ASSEMBLY 27 393825 HOUSING ASSEMBLY 28 94003 BOLT 29 390837 ARRMATURE ASSEMBLY 30 394860 CAP, DRIVE 31 90366 LOCKWASHER 32 91162 SCREW 33 280104 GEAR, STARTER 34 398003 CLUTCH ASSEMBLY 35 393254 RETAINER & PIN 36 94192 ROLL PIN 40 394988 ARMATURE ASSEMBLY 42 396865 DRIVE ASSY 43 223726 RETAINER FAN 44 280815 FAN, FLYWHEEL
3441E94 (1999 & Before) Page 6 of 44 CHASSIS AND ENCLOSURES
3441E94 (1999 & Before) Page 7 of 44 CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 110840X SUB= 140121
2 121247 PAN - SEAT
3 105513X SUB= 140551
5 121642X392 FENDER
6 106202X REFLECTOR-TAIL YT
7 121586X NLA
8 121068X SPRING T
9 105511X SUB= 140675 10 121067X SPRING T 11 105531X NUT-PUSH YT 12 105509X SUB= 137113 13 6431J PAD-SPACER T 14 121221X SUB= 158990 15 106020X SUB= 151346 16 3645J BUSHING OUTLET T 17 8710J FUEL TANK STEM GT 18 6999R SUB= 123487X 19 5277J SUB= 8543R 20 19143210 SPACER WASHER YTH 21 105523X DASH PANEL T 24 105465X392 FOOTREST LH 25 101892X DECAL T 26 121215X DECAL DRIVE BELT 27 108256X PAD FOOTREST T 28 121306X SUB= 127866 29 109219X DEFLECTOR HYT 30 74180512 SCREW 31 121278X CHASSIS 32 105464X392 FOOTREST RH 33 110828X SUB= 133748 34 108105X SUB= 133746 35 110436X SUB= 9151R 37 121195X SADDLE 38 1554J SUB= 155108 40 104805X LOWER DASH 41 121312X DASH 42 2029J WELDNUT 43 121723X011 PLATE DASH 44 19131316 WASHER 46 108372X392 SUB= 132638X424 47 122199X SUB= 135062 49 122208X DECAL - HOOD, L.H. 50 106784X SUB= 155013 51 104618X SUB= 155013 52 108370X392 SUB= 150301X424 53 109458X FOAM STRIP T 54 110829X SUB= 124130X 55 106965X SUB= 140181 57 108371X392 SUB= 132639X424 58 122209X DECAL- HOOD, R.H. 59 104613X SUB= 147717 60 106395X LENS LT 61 110855X SUPPORT LH YTH 62 110854X SUPPORT RH YTH 62 104634X SUB= 105419X388 64 122100X GRILL ASSY 65 105529X SUB= 139888 66 73680500 SUB= 73690500
3441E94 (1999 & Before) Page 8 of 44 CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
67 74760612 SUB= 74780612 69 19131212 WASHER T 70 73680600 SUB= 73690600 71 17490608 SCREW LT 72 17490612 SCREW 73 19131614 WASHER 74 72140606 BOLT 75 17431008 SUB= 98000165 76 74760616 BOLT 77 121794X COVER ACCESS 79 19091216 WASHER PM 80 11050400 LOCKWASHER 81 73220400 SUB= 50675 82 74780512 BOLT 83 73510500 NUT 84 17211010 SCREW LT 85 104755X """J"" FASTENER LT" 86 17490512 SCREW 87 74760616 BOLT 88 7605J BOLT T 89 73680400 SUB= 73690400 90 74191008 SCREW 91 10071000 LOCKWASHER 92 17190412 SCREW 93 19131312 WASHER 96 74760612 SUB= 74780612 98 109808X HOOD LATCH T 99 73731000 NUT
100 7206J SPACER LT 101 19070818 WASHER 102 74981020 SCREW 104 19111116 WASHER 106 10090400 SUB= 10040400 108 17490616 SCREW GTV 109 2751R CLIP T 110 108885X GUARD MUFFLER HYT 111 19131616 WASHER HYT 112 109459X STRIP - FOAM 113 121144X SUB= 127018X 115 71616 NLA 116 121236X SPACER 117 105751X SUB= 123650X 118 105838X RETAINER LT 119 105839X RECEPTACLE LT 120 110853X SUPPORT RH YTH 121 110852X SUPPORT LH YTH 112 105419X392 STRAP GRILL 123 120068X "KNOB 1/2"" YT" 124 19171912 WASHER 125 11050600 LOCKWASHER 126 11030400 LOCKWASHER GT 127 19111216 WASHER M 128 72170410 BOLT 129 121251X STRIP FORM 130 121250X SPRING 131 121249X SPACER SPLIT 132 121246X BRKT SWITCH 133 121248X BUSHING
3441E94 (1999 & Before) Page 9 of 44 CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
134 4171R CLIP T 135 73900400 NUT T 136 71031012 SCREW 137 73951000 "NUT,KEPS"
3441E94 (1999 & Before) Page 10 of 44 CYLINDER/CRANKSHAFT/ENGINE BASE
3441E94 (1999 & Before) Page 11 of 44 CYLINDER/CRANKSHAFT/ENGINE BASE
Ref # Part Number Qty Description
1 90576 NUT, HEX
4 27803 GASKET, VALVE COVER
5 92791 WASHERLOCK
6 222892 COVER, BREATHER CYLINDER #2
7 93722 TERMINAL, SPADE
8 93394 SCREW, SEMS, BREATHER, MOUNTING
9 222912 BAFFLE - AIR 10 93777 SCREW, HEX HEAD BACK PLATE TO CYLINDER 11 93158 SCREW, SEMS 12 491247 HOUSING, BLOWER 13 93882 SCREW, SEMS 14 270981 GASKET, CRANKCASE 15 222860 COVER PLATE, CRANKCASE 16 261463 SEAT, INTAKE VALVE, STANDARD 17 210940 SEAT] 18 212462 HEAD - CYLINDER 19 93211 SCREW 21 93686 SCREW, HEX HEAD 22 92290 WASHER, LOCK 23 393415 OIL SLINGER ASSEMBLY 24 260924 LOCK, PISTON PIN 25 394959 RING SET, PISTON, STANDARD SIZE 25 394960 RING SET, PISTON,.010" OVERSIZE 25 394961 RING SET, PISTON,.020" OVERSIZE 25 394962 RING SET, PISTON,.030" OVERSIZE 26 394955 PISTON ASSEMBLY, STANDARD SIZE 26 394956 PISTON ASSEMBLY,.010" OVERSIZE 26 394957 PISTON ASSEMBLY,.020" OVERSIZE 26 394958 PISION ASSEMBLY,.030" OVERSIZE 27 299691 PIN ASSEMBLY, PISTON, STANDARD 27 391286 PIN ASSEMBLY, PISTON .005" OVER 28 394348 GEAR, GOVERNOR 29 222773 WASHER, THRUST 30 393270 ROD ASSEMBLY, CONNECTING 31 92909 SCREW, CONNECTING ROD 32 220863 WASHER 33 291675 SEAL, OIL 34 91084 PLUG OIL DRAIN 35 393552 BASE ASSY - CRANKCASE 36 271868 GASKET, CYLINDER HEAD #2 37 271142 GASKET, CRANKCASE COVER 1/64" 37 271188 GASKET, CRANKCASE COVER,.005" 37 271189 GASKET, CRANKCASE COVER,.009" 38 222698 KEY, FLYWHEEL 39 93585 SCREW, HEX HEAD 40 94296 RETAINER, E-RING 41 491287 SEAL, GOVERNOR SHAFT 42 261560 UPPER BUSHING - GOVERNOR 43 262332 LOWER BUSHING, GOVERNOR 44 491530 CRANK, GOVERNOR 45 223882 WASHER, GOVERNOR CRANK, INSIDE 46 394501 GASKET SET 47 271157 SEAL, FILLER TUBE 48 93469 SCREW, HEX HEAD 49 212337 GEAR, CAM 50 222875 CLAMP, OIL FILLER 51 280224 TUBE, OIL FILLER 52 271170 SEAL, OIL FILLER CAP
3441E94 (1999 & Before) Page 12 of 44 CYLINDER/CRANKSHAFT/ENGINE BASE
Ref # Part Number Qty Description
53 394020 CAP AND DIPSTICK, OIL FILLER 54 394394 DIPSTICK AND TUBE ASSEMBLY 55 390420 VALVE, EXHAUST 56 261528 VALVE, INTAKE 57 231445 GEAR - TIMING 58 393606 SEAL ASSEMBLY AND RETAINER 59 26828 SPRING, EXHAUST VALVE 60 292260 RETAINER, EXHAUST VALVE 61 93630 RETAINER, EXHAUST VALVE ROTOCOIL(2) 62 221596 RETAINER, INTAKE VALVE 63 65906 SPRING, INTAKE VALVE 64 261368 TAPPET, VALVE 65 393382 CRANKSHAFT 66 261961 GUIDE, EXHAUST VALVE 67 394941 CYLINDER ASSY 68 230318 CONNECTOR, IMPULSE PUMP 69 394539 RESISTOR SPARK PLUG 70 66538 ELBOW, SPARK PLUG 71 89838 WRENCH SPARK PLUG 72 280225 TUBE, BREATHER 73 394358 FILTER, FUEL 74 212461 HEAD, CYLINDER 75 271867 GASKET, CYLINDER HEAD #1 76 491304 BACK PLATE ASSEMBLY 77 399265 P/N CONFLICT - CHECK WITH SUPPLIER 78 391086 SEAL, OIL 79 391115 WIRE - GROUND 80 299146 LINE, FUEL, 28"(CUT TO SUIT) 81 93053 CLAMP, HOSE, GREEN 82 393370 BREATHER ASSEMBLY 83 223167 CLAMP, FUEL PUMP 84 221535 CLAMP 85 223890 BRACKET, CABLE 86 93496 SCREW, SEMS
3441E94 (1999 & Before) Page 13 of 44 DIFFERENTIAL AND PUMP
3441E94 (1999 & Before) Page 14 of 44 DIFFERENTIAL AND PUMP
Ref # Part Number Qty Description
1 121192X SUB= 123634X
2 76020312 SUB= 3145
3 121193X SUB= 123634X
4 121188X BRACKET
5 74780412 SUB= 74780414
6 121186X FAN
7 121180X PULLEY TRANSAXLE
8 121211X STANDOFF
9 121182X GUARD ASSY 10 REFER TO IMAGE 11 REFER TO IMAGE 12 74760572 BOLT 13 121323X PUMP.2003081. 14 73680500 SUB= 73690500 15 121250X SPRING 16 STD523707 BOLT, 3/8 - 16 X 3/4 17 73680600 SUB= 73690600 18 10040500 LOCKWASHER 19 71673 PLUNGER CAP T 20 7605J BOLT T 21 120529X WASHER T 22 73680400 SUB= 73690400 23 19092016 WASHER 24 10040400 LOCKWASHER
3441E94 (1999 & Before) Page 15 of 44 DRIVE
3441E94 (1999 & Before) Page 16 of 44 DRIVE
Ref # Part Number Qty Description
1 110012X BAFFLE - VERTICAL
2 9151R SNAP BUSHING T
3 110562X ENGINE 16 H.P. MODEL #402707 TYPE #1211 - 01
4 8545J SUB= 272250
5 108373X MUFFLER HYT
6 4497H RETAINER M
7 10040400 LOCKWASHER
9 13200300 ELBOW 10 13280336 PIPE NIPPLE LT 11 91084 PLUG OIL DRAIN 12 121524X CONTROL THROTTLE 14 108103X SUB= 120418X 15 2751R CLIP T 16 121187X PLATE TRANS SUPT 17 121191X SUB= 126649X 18 2703J SUB= 123583X 19 73510600 NUT 20 121189X U BOLT 21 121199X SPACER SPLIT 22 121748X WASHER 23 106108X SUB= 106108X417 24 12000001 E-RING LT 25 104757X HUB CAP 27 65139 VALVE STEM LT 28 59192 VALVE CAP 29 74610764 SUB= 71130768 30 19152405 WASHER LT 31 10040700 LOCKWASHER 32 108218X SUB= 142600 33 109841X SUB= 136905 35 74760644 BOLT 36 4859J SUB= 123674X 37 4470J SPACER T 38 19131312 WASHER 39 105730X "KEEPER,BLT ENG LT" 40 121218X KEEPER BELT ENGLH 41 109169X SUB= 109172X 42 76020412 COTTER PIN 44 106888X SPRING ROD LT 45 121200X ROD BRAKE 46 8883R PEDAL COVER T 47 106918X ARM BRAKE LT 48 109037X FOOT SHAFT PEDAL 49 1572H SUB= 2882J 50 71673 PLUNGER CAP T 51 105844X SUB= 125637X 52 105710X "LINK, CLUTCH T" 53 73680600 SUB= 73690600 54 106499X SUB= 123205X 55 12000039 KLIP RING 56 110812X WASHER LT 57 105707X "ASS T, BELLCRAN" 58 105709X "SPRING, RETURN LT" 59 105724X SUB= 123102X 60 74760624 SUB= 74930624 61 106298X SUB= 139245 62 105706X "LY, BEARING"
3441E94 (1999 & Before) Page 17 of 44 DRIVE
Ref # Part Number Qty Description
63 121749X WASHER 64 228M KEY WOODRUFF #9 65 17080408 SCREW 66 17490624 SCREW LT 67 11050600 LOCKWASHER 68 74760612 SUB= 74780612 69 74760616 BOLT 70 72140606 BOLT 71 76020412 COTTER PIN 79 10040600 LOCKWASHER 80 122082X SUB= 918122082X
80A 7152J TUBE.18X9.5-8
82 108236X BRACKET LT 83 17021008 SCREW 84 110442X SUB= 146682 88 19091016 WASHER 89 72140506 BOLT 90 73680500 SUB= 73690500 91 4921H SPRING.RETAINER 92 17490508 SCREW LT 93 74780412 SUB= 74780414 94 100229L EXHAUST TUBE T 95 104917X BAFFLE YT 96 110013X BRACKET HEAT SHIELD 97 17490508 SCREW LT 98 100091M SUB= 132922 99 73350600 NUT
3441E94 (1999 & Before) Page 18 of 44 ELECTRICAL
3441E94 (1999 & Before) Page 19 of 44 ELECTRICAL
Ref # Part Number Qty Description
1 123198X SUB= 146525
2 19091016 WASHER
3 102476X SUB= 150109
4 72240460 BOLT
5 121537X SUB= 123899X
6 7603J "TRAY T, BATTERY"
7 121534X NLA
8 121264X "CAP,BATTERY "
9 4171R CLIP T 10 110859X HARNESS T 11 7662J SUB= 4152J 12 100541K SUB= 7697J 13 7192J WIRE TIE 14 104445X SWITCH-INTER. GT 15 4206J CABLE-BATTERY T 16 4406R SUB= STD365402 18 109788X SUB= 124211X 19 122147X KEY 20 109081X SUB= 146154 21 110712X SWITCH LT 22 73680400 SUB= 73690400 24 4799J "CABLE T, BATTERY" 26 719J SUB= 154336 27 4207J CABLE T 30 17021008 SCREW
30A 109748X RELAY ASSY T
31 2751R CLIP T 32 109596X HOSE CLAMP T 33 10090400 SUB= 10040400 34 73350400 NUT 35 74780408 BOLT 36 73510400 NUT 37 74760412 BOLT LT 39 73220400 SUB= 50675 40 11050400 LOCKWASHER 43 10040400 LOCKWASHER 45 108824X FUSE HYT 46 9433R AMMETER T 47 6009J SUB= 532131708 48 10101000 SUB= 10071000 49 73911000 NUT 50 19070818 WASHER 51 102501X SUB= 141940 52 235R CLIPT 54 106315X SUB= 135665 55 4021J SWITCH.PTO.T 56 4022J HEX NUT T 57 109787X SUB= 147626 58 121305X SWITCH SEAT 59 74641008 SUB= 71031008 60 73951000 "NUT,KEPS"
101539X SHEET INSTR LT 101572X SHEET-INSTRUCTION (FRENCH) 122316X NLA 120663X SHEET - INSTRUCTION (GERMAN)
3441E94 (1999 & Before) Page 20 of 44 HARDWARE (CHASSIS AND ENCLOSURES)
3441E94 (1999 & Before) Page 21 of 44 HARDWARE (CHASSIS AND ENCLOSURES)
Ref # Part Number Qty Description
70 73680600 SUB= 73690600 87 74760616 BOLT 96 74760612 SUB= 74780612
111 19131616 WASHER HYT 125 11050600 LOCKWASHER
3441E94 (1999 & Before) Page 22 of 44 HARDWARE (DRIVE)
3441E94 (1999 & Before) Page 23 of 44 HARDWARE (DRIVE)
Ref # Part Number Qty Description
3441E94 (1999 & Before) Page 24 of 44 HARDWARE (LIFT ADJUSTMENT)
3441E94 (1999 & Before) Page 25 of 44 HARDWARE (LIFT ADJUSTMENT)
Ref # Part Number Qty Description
7 73680600 SUB= 73690600 10 105848X "BOLT, SHOULDER LT" 14 110739X WASHER T 15 73980600 NUT SPECIAL T 35 72140608 SUB= 72110608 36 72140606 BOLT 40 74780624 "BOLT,HEX"
3441E94 (1999 & Before) Page 26 of 44 HARDWARE (MOWER)
3441E94 (1999 & Before) Page 27 of 44 HARDWARE (MOWER)
Ref # Part Number Qty Description
1 73680600 SUB= 73690600 55 72140506 BOLT 56 19111116 WASHER 57 73680500 SUB= 73690500 58 74760648 BOLT - HEX 3/8 - 16 X 3 59 74110632 SCREW YT 61 19111216 WASHER M 62 74760580 BOLT 65 72140506 BOLT 66 17490612 SCREW 67 72140606 BOLT 70 72110506 SUB= 72270506
3441E94 (1999 & Before) Page 28 of 44 HARDWARE (STEERING)
3441E94 (1999 & Before) Page 29 of 44 HARDWARE (STEERING)
Ref # Part Number Qty Description
31 73680600 SUB= 73690600 33 19131312 WASHER 71 17490508 SCREW LT 89 17490512 SCREW 92 71011012 SCREW.HXHD.10-2 93 73661000 NUT.FLANGE 96 730536K SUB= 100536K 97 74760612 SUB= 74780612 98 73680500 SUB= 73690500
101 100536K SHOULDER BOLT LT
3441E94 (1999 & Before) Page 30 of 44 LIFT ADJUSTMENT
3441E94 (1999 & Before) Page 31 of 44 LIFT ADJUSTMENT
Ref # Part Number Qty Description
1 121891X HDLE ADJ LIFT
2 110807X NUT T
3 110729X ROD LIFT LT
4 76020308 SUB= 3145
5 2876H SPRING T
6 19131016 WASHER
7 73680600 SUB= 73690600
8 19151216 WASHER
9 110810X TRUNION LT 10 105848X "BOLT, SHOULDER LT" 11 109413X GRIP 12 105723X SUB= 125925X 13 121004X SUB= 123096X 14 110739X WASHER T 15 73980600 NUT SPECIAL T 16 4939M SUB= 85902 17 121006X LEVER ROD LT 18 4921H SPRING.RETAINER 19 19171516 WASHER T 20 110029X LIFT LINK LT 21 121001X SHAFT LIFT 22 110448X PIVOT PIN T 23 110447X SUB= 132793 24 73710700 NUT LOCK YTH 25 12000037 KLIP RING 26 105864X "BRACKET, SUSPE T" 27 121252X UPSTOP 28 121600X SUB= 121598X 29 9135R SPRING H 30 106308X SUB= 130171 32 73220800 NUT 33 121601X SUB= 121599X 34 12000022 E-RING 35 72140608 SUB= 72110608 36 72140606 BOLT 37 19292016 WASHER 38 73350600 NUT 39 73360700 NUT 40 74780624 "BOLT,HEX"
3441E94 (1999 & Before) Page 32 of 44 MOWER
3441E94 (1999 & Before) Page 33 of 44 MOWER
Ref # Part Number Qty Description
1 73680600 SUB= 73690600
2 19131614 WASHER
3 102403X IDLER-FLAT T
5 106902X SPACER RETAINER
6 677A451 IDLER-INSIDE T
7 106513X "WASHER, WEAR LT"
8 121425X ARM IDLER
9 109776X PIVOT PIN T 10 106523X "SUPPORT YT, BAR" 11 106522X BRACE-IDLER YT 14 121658X SUB= 136819 15 106214X GUARD YT 16 106085X BELT-V.79.1.MWR 17 73220600 NUT.HEX.3/8-16UNC 18 10040600 LOCKWASHER 19 102932X IDLER.FLAT.GTV 20 106526X ARM-IDLER YT 21 7644J SPRING T 22 121705X JACKSHAFT 24 109599X BRACKET LH YTH 25 105662X LINK.PARALLEL 26 4921H SPRING.RETAINER 27 105744X "ROD, FRT. PARAL T" 28 109835X HINGE PIN T 29 109600X BRACKET RH YTH 30 108119X GUARD BELT HYT 32 8418J SUB= 136321 33 121423X SUB= 144729 34 105304X CAP-SLEEVE LT 35 106734X SUB= 123713X 36 110452X NUT PUSH M 37 109743X SUB= 137607 38 109785X DEFLECTOR SHIELD 39 121349X DECAL WARNING 40 19111016 WASHER 41 109984X NLA 42 106735X ROD-HINGE T 43 106635X SUB= 25034 44 74610624 BOLT.3/8-24X1-1/2 45 19132012 WASHER 46 7631J RUNNER-LH M 47 109278X SUB= 123807X 48 108359X SUB= 123808X 49 108592X DECAL HYT 50 105185X DECAL-INST YT 51 72140614 BOLT 52 72140608 SUB= 72110608 53 72140612 BOLT 54 74760620 SUB= 74780620 55 72140506 BOLT 56 19111116 WASHER 57 73680500 SUB= 73690500 58 74760648 BOLT - HEX 3/8 - 16 X 3 59 74110632 SCREW YT 61 19111216 WASHER M 62 74760580 BOLT 65 72140506 BOLT 66 17490612 SCREW
3441E94 (1999 & Before) Page 34 of 44 MOWER
Ref # Part Number Qty Description
67 72140606 BOLT 68 102727X "SPRING.EXT.8.5""" 69 73930600 LOCKNUT 70 72110506 SUB= 72270506 71 72110505 BOLT 72 1685H SUB= 68478 73 109729X ROLLER T 74 19151610 WASHER T 75 19151616 SUB= 19171616
3441E94 (1999 & Before) Page 35 of 44 PUMP
3441E94 (1999 & Before) Page 36 of 44 PUMP
Ref # Part Number Qty Description
1 122756X SHAFT.PU.2003022
2 122716X RETAINIANG RING-(2003016)
3 122745X BALL BEARING
4 122715X SPACER
5 122700X SEAL LIP
6 122699X RING.RET.2003052
8 122767X CRADLE BEARING (2003023)
9 122729X PLUG 10 122746X O RING 11 122747X BEARING 12 122717X SEAL.9008000-0126 13 122748X TRUNION ARM (2003005) 14 122749X GUIDE.2000015.HYD 15 122768X SUB= 121430X 16 122769X JOURNAL BRG(2003071) 17 122770X SUB= 142936 18 122771 SUB= 122771X 19 122772X CENTER SECTION 20 122773X NEEDLE BEARING 21 122722X LIP SEAL-9008000-0127 22 122750X SHAFT 23 122774X WASHER 25 122775X SUB= 121430X 26 122776X SUB= 121430X 27 122777X SUB= 121430X 28 122778X SUB= 121430X 29 122779X SUB= 121430X 30 122723X SEAL LIP 31 122780X CYLINDER BLOCK 32 122781X CYLINDER BLOCK(70331) 33 122782X PISTON 34 122784X PISTON SPRING 35 122785X WASHER.TR.2003019 37 122786X PIN 38 122718X GASKET.20030600 39 122731X FILTER 40 122730X WASHER (2000011) 41 122728X SPRING 42 122706X PLUG 43 122705X O RING 44 122702X BALL 45 122704X SPRING.2003012.HY 46 122787X PLUG 47 122752X SCREW9007314-0808 48 122753X SCREW 50 122788X WASHER 51 122789X PIN 52 122754X PLUG 53 122711X O RING 54 122708X SPRING 55 122709X SUB= 122712X 56 122712X BYPAS KT 25130011 57 122710X O RING (9004175-0027) 58 122727X ADHESIVE LABEL 59 122790X PLUG 60 122791X SPRING
121430X PUMP.BDU-10S-114

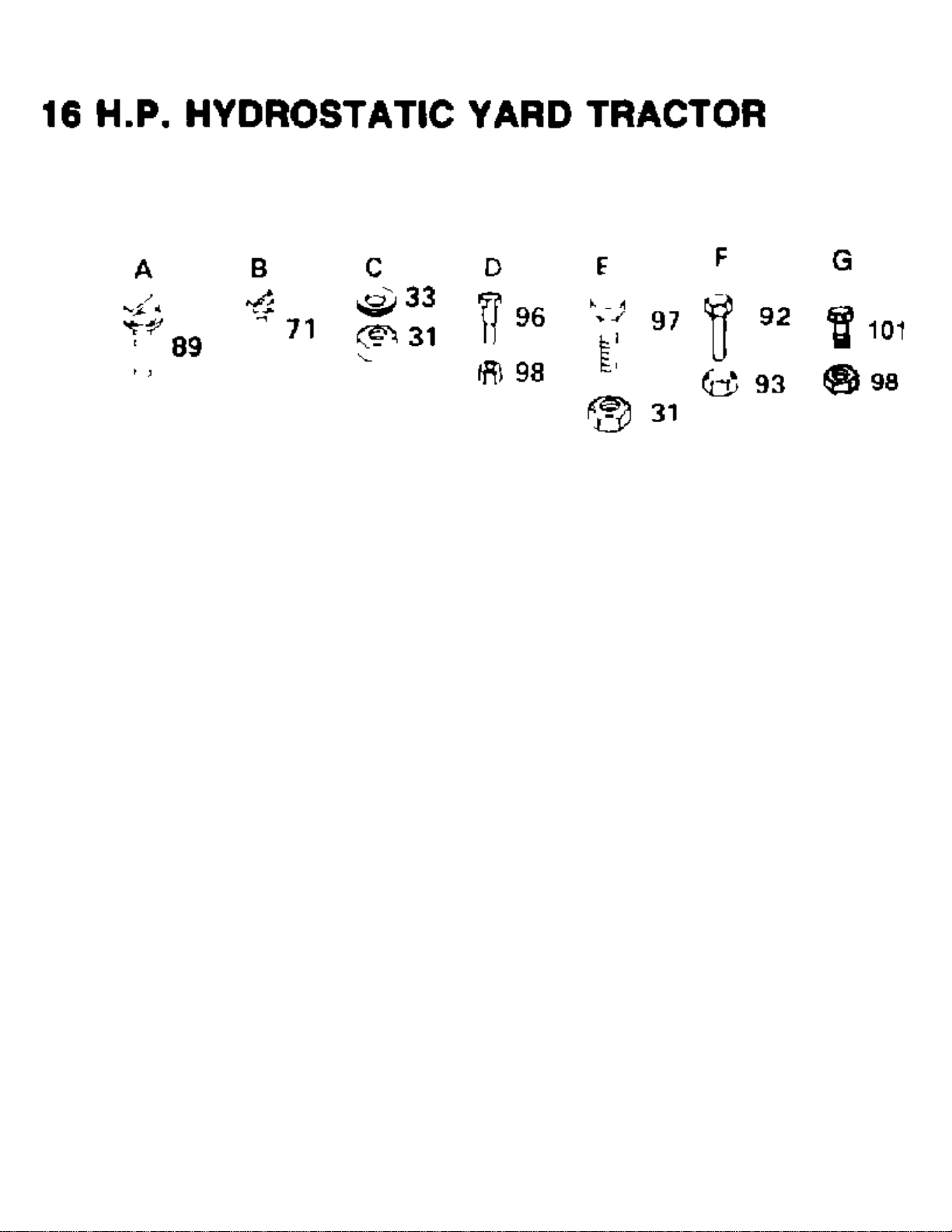

3441E94 (1999 & Before) Page 37 of 44 SCHEMATIC
3441E94 (1999 & Before) Page 38 of 44 SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
3441E94 (1999 & Before) Page 39 of 44 STEERING
3441E94 (1999 & Before) Page 40 of 44 STEERING
Ref # Part Number Qty Description
1 122202X DECAL, STEERING WHEEL INSERT
2 100710L INSERT-WHEEL LT
3 73940800 SUB= 73360800
4 100712X SUB= 100712K
5 100713N SUB= 150547
6 100711L ADAPTER LT
7 106945X TUBE YT
8 106943X SPACER LT
9 122232X SUB= 132778 10 102670X SPRING GTV 11 11050600 LOCKWASHER 12 73610600 SUB= 7810H 13 104757X HUB CAP 14 121274X KNOB.DUCKHEAD.1/2 15 110845X ROD.YTH 16 121631X SPRING TORSION 17 108196X BRKT CONTROL HYT 18 109557X STEERING SHAFT T 19 2882J DRIVE PIN 20 74580 SHAFT SPACER LT 21 71208 BUSHING 22 109432X SUB= 110150X 23 19212016 WASHER D 24 12000029 RING 25 6266H WASHER .T 26 108683X ROD STEERING T 27 108972X WASHER HYT 28 108684X GEAR.SECTOR.HYT 29 106126X KEY-WOODRUFF LT 30 76020412 COTTER PIN 31 73680600 SUB= 73690600 32 108200X WASHER FRIC HYT 33 19131312 WASHER 34 108518X BOLT HYT 35 19212016 WASHER D 36 108201X SPACER HYT 37 121202X LINK CONTROL 38 108844X SPRING HYT 39 19132012 WASHER 40 74760648 BOLT - HEX 3/8 - 16 X 3 41 121209X ARM ASM PUMP 42 105663X SUPPORT-SADDL T 43 74761060 BOLT LT 44 105664X SUPPORT.SADDLE.FT 45 105727X LINK-DRAG LT 46 10040600 LOCKWASHER 47 10040500 LOCKWASHER 48 121334X ROD TIE 49 73810500 NUT.LOCK.5/16-24 50 105656X SPINDLE-LH LT 51 19272016 WASHER 52 110438X BEARING 53 6266H WASHER .T 54 3366R COL. SRTG. BEAR. 55 73901000 "NUT-LOC,FLANGE LT" 56 108075X FRONT AXLE 57 105654X SUB= 130524 58 278H FITTING LT
3441E94 (1999 & Before) Page 41 of 44 STEERING
Ref # Part Number Qty Description
59 65139 VALVE STEM LT 60 59192 VALVE CAP 61 9040H "FLANGE, BEARING" 62 106732X SUB= 106732X417 63 106222X SUB= 122073X
63A 59904 TUBE.5.3/4.5/6
65 108212X TRUNION HYT 66 121750X ROD ADJ CONTROL 71 17490508 SCREW LT 73 6855M ZERK M 74 121748X WASHER 77 108685X GEAR PINION T 78 109816X NYLINER T 79 101930X WASHER YTV 80 4921H SPRING.RETAINER 81 19131212 WASHER T 82 121749X WASHER 83 19111216 WASHER M 84 19151516 WASHER 85 110739X WASHER T 86 121232X CAP 87 121217X GUIDE CONTROL 88 121216X BRKT 89 17490512 SCREW 90 17021008 SCREW 91 19070816 WASHER 92 71011012 SCREW.HXHD.10-2 93 73661000 NUT.FLANGE 94 121204X BELLCRANK 95 121206X BRKT BELLCRANK 96 730536K SUB= 100536K 97 74760612 SUB= 74780612 98 73680500 SUB= 73690500 99 121190X KEEPER
100 73800600 NUT 101 100536K SHOULDER BOLT LT 102 4497H RETAINER M
3441E94 (1999 & Before) Page 42 of 44 TRANSAXLE
3441E94 (1999 & Before) Page 43 of 44 TRANSAXLE
Ref # Part Number Qty Description
1 122614X HSG HALF LH-44077
2 122615X HSG HALF RH-44076
3 122616X AXLE LH -44273
4 122620X AXLE RH-44272
5 122621X BEARING.44121.AGR
6 122622X WASHER -44008
7 122623X GEAR MITER -44096
8 122624X GEAR MITER -44097
9 122625X NUT -44133 10 122626X SHAFT CROSS 11 122627X SUB= 122688X 12 122629X SNAP RING -44146 13 122631X "THRUST, BEARING -44128" 14 122633X HOUSING.ASM.DIFF.-62590 15 122634X "FLANGE, BEARING-44129" 16 122640X GEAR 17 122641X BOLT -44126 18 122624X GEAR MITER -44097 19 122643X SNAP RING -44145 20 122644X RET RING (44144) 21 122645X SUB= 155892 22 122646X "NEEDLE, BEARING 44099" 23 122647X BEARING.NEE.44139 24 122648X WASHER-44109 25 122649X KEY.44136.HYDRO 26 122650X SCREW 27 122651X SUB= 155892 28 122652X WASHER -44125
122653X WASHER -44150
122654X WASHER-44151 29 122656X PIN COTTER -44101 30 122658X NUT -44142 31 122659X WASHER FLAT -44130 32 122660X ARM BRAKE 23710 33 122662X PIN BRAKE ACTUATO -44127 34 122663X BRAKE YOKE 35 122664X DISC BRAKE -(44090) 36 122665X SUB= 123065X 37 122666X SCREW -44277 38 122667X PLATE PUCK -44134 39 122668X SUB= 142883 40 122669X SUB= 123066X 41 122670X SCREW -44123 42 122671X SCREW -44124 43 122672X "BALL, BEARING -44147" 44 122673X "BALL, BEARING -44232" 45 122674X SHAFT PINION 44083 46 122675X SHAFT DRIVE-44080 47 122676X SUB= 123059X 48 122677X SUB= 123060X 49 122678X NLA 50 122679X SUB= 122689X 51 122680X SUB= 121839X 52 122681X SUB= 126975X 53 122682X NUT -43178 54 122683X PINION-DR.44079 55 122684X BOLT SQ HD 56 122685X WASHER -44278
3441E94 (1999 & Before) Page 44 of 44 TRANSAXLE
Ref # Part Number Qty Description
57 122686X WASHER -44137 58 122687X PIN ROLL-44269 59 122688X SCREW-STUD -44271 60 122689X SPACER -23711 61 122690X SUB= 123063X 62 122691X WASHER, 1/4" STD. PLTD.
121431X TRANSAXLE.AGRIFAB
