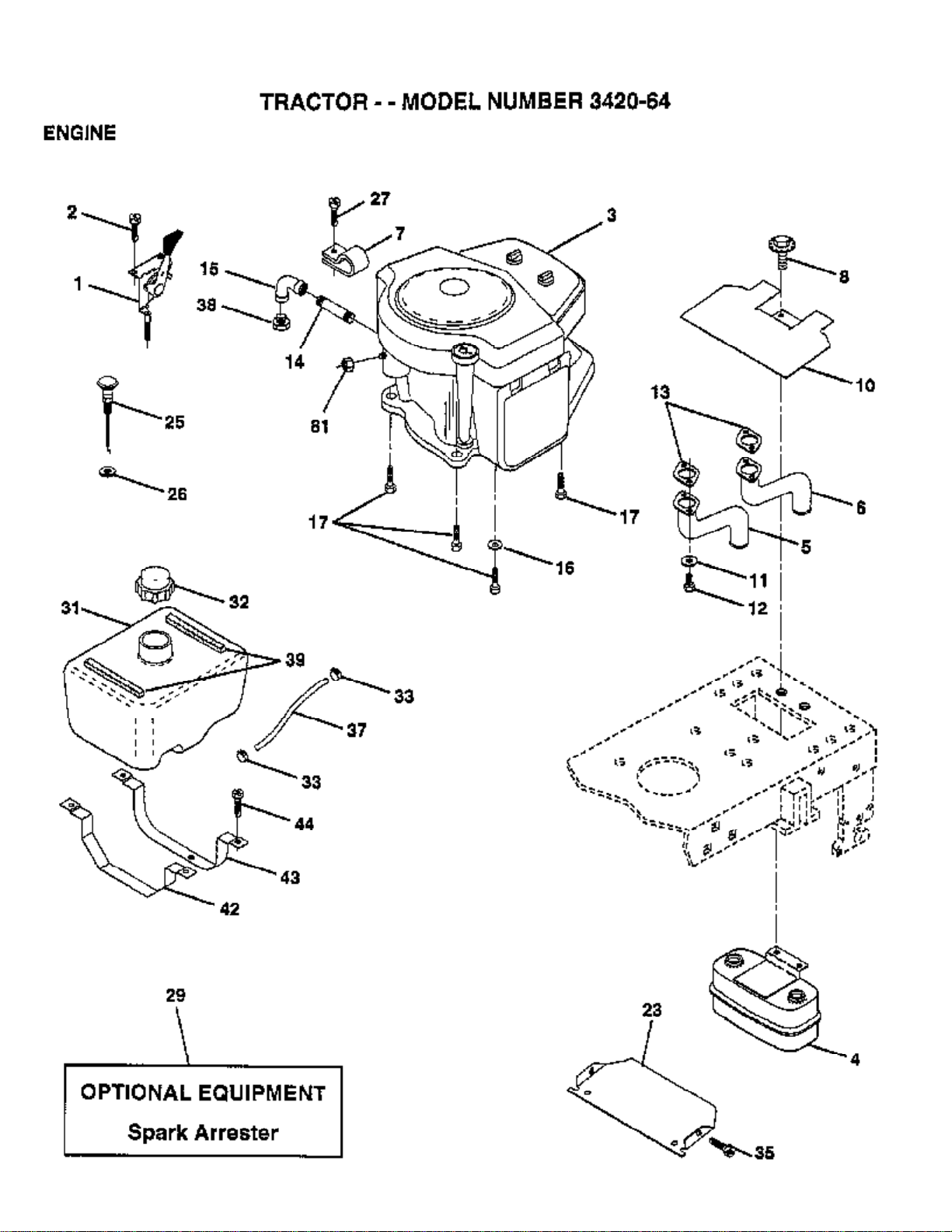

AYP 3420-64 Parts List

3420-64 (1996) Page 1 of 27
CHASSIS AND ENCLOSURES

3420-64 (1996) Page 2 of 27
CHASSIS AND ENCLOSURES

Ref # Part Number Qty Description

1 151169 CHASSIS WLDMT 11G
2 140356 SUB= 145009
3 17490612 SCREW
6 145206 SUB= 145206X431
8 126471X "CLIP,INSULATOR"

9 140398 DASHBOARD BLACK
10 72140608 SUB= 72110608
11 145230 PANEL.DASH.LH.PNT
13 145219 PANEL.DASH.RH.
15 74180512 SCREW
16 73510500 NUT
17 150301X424 HOOD.PNT.
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
27 17030814 SUB= 91817030814
28 150196 GRILLE ASM PNT
29 146959 PANEL.DASH.RH
30 140001X424 FENDER LT W/SHI
31 139976 BRACKET SUPT FEND
33 145244X424 FOOTREST.LH.LT/GT
34 145243X424 FOOTREST.RH.LT/GT
35 72110606 BOLT
36 108067X PAL NUT LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
40 139977 SPACER FENDER LT
41 139978 PLATE EXTEN FEND
43 17490616 SCREW GTV
45 147717 BEZEL.ASM.
50 145205 DASH.SUPT.YP/HUSQ
59 110436X SUB= 9151R
56 150271 EXT DASH LTYT
60 72140606 BOLT
61 19171416 WASHER
64 150272 DASH.LOWER.LT
66 140300X012 PLATE.SILKSCREEN
67 19111116 WASHER
72 144916X012 STRAP PNT GRILL
73 17580408 SCREW CRT
74 73680600 SUB= 73690600
77 74191008 SCREW
79 2029J WELDNUT
80 109808X HOOD LATCH T
82 74981020 SCREW
83 7206J SPACER LT
85 73731000 NUT
86 150432X424 PANEL.SIDE.RH
87 150431X424 PANEL.SIDE.LH
90 19091216 WASHER PM
91 73220400 SUB= 50675
92 10040400 LOCKWASHER

135 74291006 SCREW.10-24X3/8.
136 60867 ACORN NUT RB
137 110356X SNAP CAP LT
138 110357X WASHER LT
139 150195 BKT.SPT.HOOD/PANL
140 150556 SUB= 158739

3420-64 (1996) Page 3 of 27
DANA TRANSAXLE

3420-64 (1996) Page 4 of 27
DANA TRANSAXLE

Ref # Part Number Qty Description

1 132671 HARNESS.IGNITION

2 2274J SUB= 74760412

3 134400 SUB= 68003

4 105904X "SPRING, DETENT LT"

5 105905X "SCREW, SET LT"

6 138235 KIT SHIFTER ASM

7 134399 SHIFTER BOOT

8 120951X PUCK T

9 148266 SUB= 105911X
10 2225J RETAINING RING LT
11 134793 ASM KIT SHIM 4689
12 143679 PLUG.PLASTIC
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 106846X SUB= 167148
16 106095X SUB= 95-8060-6F
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 142675 GEAR SPUR 14 TTH
21 148267 CLUTCH.COL.5467
22 138237 KIT.ASM.CLUTCH KY
23 148268 BEARING.FLNG.5511
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 142681 GEAR SPUR 35 TTH
31 124644X GEAR SPUR 30T
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 106605X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 106596X "SCREW, TAPPING LT"
46 142678 GEAR SPUR 12 TTH
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T

3420-64 (1996) Page 5 of 27
DANA TRANSAXLE

Ref # Part Number Qty Description

59 110082X GEAR 1ST T
60 120475X SUB= 154659
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 73810500 NUT.LOCK.5/16-24
72 148269 SEAL.OIL.DAN.5508
73 120416X SUB= 126976X

3420-64 (1996) Page 6 of 27
DECALS

3420-64 (1996) Page 7 of 27
DECALS

Ref # Part Number Qty Description

1 135013 NLA

2 135341 GRILL DECAL

3 135344 HOOD DECAL LH

4 135343 NLA

5 135062 NAMEPLATE LOGO

6 140837 DECAL BRAK PARK

7 133796 DECAL

8 4900J DECAL T

9 152279 DECAL.CHAS.16.5
10 136832 DECAL
11 135619 NLA
12 138955 DECAL.DASH.INST.
13 106202X REFLECTOR-TAIL YT
14 146451 DECAL.BTRY.DANGER
15 273286 DECAL, HP ENGINE

133671 FOOTREST PAD
138311 DECAL HANDLE LIFT
151453 MANUAL.P.3420-64
145278 MANUAL.OP.GENERIC
LC05 WHEEL WTS.
LBD48 SNOW BLADE
LSB42 SNOW THROWER
C42 GRASS CATCHER
CH208 TIRE CHAINS
MK42 MULCH KIT W/BLADES

3420-64 (1996) Page 8 of 27
DRIVE

3420-64 (1996) Page 9 of 27
DRIVE

Ref # Part Number Qty Description

1 145605 SUB= 161899

2 146682 SPRING.BRAKE.RETU

3 123666X PULLEY TRANS

4 12000028 SUB= 2267J

5 121520X STRAP TORQUE

6 17490512 SCREW

8 141003 ROD SHIFT FEND LT
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
15 74490544 BOLT.HX.FLG.5/16
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 151128 SHAFT FOOT PEDAL
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 153399 KEEPER BELT
42 19131312 WASHER
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 153400 SUB= 129921
70 134683 KEEPER BELT ENG
72 19132012 WASHER
