AYP 2K4B3A Parts List

2K4B3A (1993) Page 1 of 28
CHASSIS AND ENCLOSURES

2K4B3A (1993) Page 2 of 28
CHASSIS AND ENCLOSURES

Ref # Part Number Qty Description

1 135034 SUB= 145501
2 130805 SUB= 145009
3 17490612 SCREW
6 130800X015 SADDLE 6 SP
7 17490608 SCREW LT
8 2751R CLIP T

9 137411X012 DASH
11 122795X PANEL DASH LH
12 121794X COVER ACCESS
13 124031X SUB= 155934X010
14 17490608 SCREW LT
15 74180512 SCREW
16 73510500 NUT
17 133956X505 HOOD/GRILL ASM
18 126938X SUB= 532126938
19 133805 SUB= 133954
20 132257 SUB= 918132257
21 19091216 WASHER PM
22 108067X PAL NUT LT
24 74760612 SUB= 74780612
25 19131312 WASHER
26 73680600 SUB= 73690600
27 17490608 SCREW LT
30 109872X505 FENDER
31 136619 BRKT FENDER
32 17490612 SCREW
33 105465X505 SUB= 145244X505
34 105464X505 SUB= 145243X505
35 72110606 BOLT
36 73680600 SUB= 73690600
37 134775 PIVOT BRKT RH
38 72140606 BOLT
39 134774 PIVOT BRKT LH
40 131864 "PAD,FOOTREST"
41 5479J PLUG BUTTON T
50 73800600 NUT
51 19131216 WASHER
52 74760614 SUB= 74760616
53 72140608 SUB= 72110608

2K4B3A (1993) Page 3 of 28
DECALS

2K4B3A (1993) Page 4 of 28
DECALS

Ref # Part Number Qty Description

1 136795 SUB= 138956

2 132627 GRILL DECAL

3 136434 NLA

4 129823 NLA

6 133795 DECAL CAUTION

7 101892X DECAL T

8 136433 NLA

9 131425 CHASSIS DECAL
11 137259 "DECAL, WARNING"
12 135013 NLA
13 127075 "DECAL,STR WHL"
14 121549X DECAL
16 132628 FENDER DECAL

137536 NLA
137372 MANUAL

2K4B3A (1993) Page 5 of 28
DRIVE

2K4B3A (1993) Page 6 of 28
DRIVE

Ref # Part Number Qty Description

1 137363 SUB= 137367

2 110422X SUB= 146682

3 123666X PULLEY TRANS

4 12000028 SUB= 2267J

5 121520X STRAP TORQUE

6 17490512 SCREW

7 130802 SUB= 162240

8 131679 SHIFT ROD

9 19151216 WASHER
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19091210 WASHER LT
13 71040412 SUB= 74550412
14 10040400 LOCKWASHER
15 74760540 BOLT
16 73680500 SUB= 73690500
17 121520X STRAP TORQUE
18 74760612 SUB= 74780612
19 73680600 SUB= 73690600
20 17490512 SCREW
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
23 73800600 NUT
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 128904 PARKING BRAKE ROD
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
33 73680500 SUB= 73690500
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
43 73680600 SUB= 73690600
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 19131316 WASHER
53 105710X "LINK, CLUTCH T"
54 76020412 COTTER PIN
55 105709X "SPRING, RETURN LT"
56 76020412 COTTER PIN
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"

2K4B3A (1993) Page 7 of 28
DRIVE

Ref # Part Number Qty Description

59 136715 SUB= 140312
60 19131312 WASHER
61 17490612 SCREW
62 8883R PEDAL COVER T
63 134825 SUB= 136004
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
67 74760616 BOLT
68 19131312 WASHER
69 73680600 SUB= 73690600
70 134683 KEEPER BELT ENG
71 74760616 BOLT
72 19132012 WASHER
73 73680600 SUB= 73690600
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
82 17490612 SCREW

2K4B3A (1993) Page 8 of 28
ELECTRICAL

2K4B3A (1993) Page 9 of 28
ELECTRICAL

Ref # Part Number Qty Description

1 121265X SUB= 123899X

2 4406R SUB= STD365402

3 124211X NUT IGNITION

4 137702 IGN HARNESS

5 4207J CABLE T

6 132202 SUB= 146147

7 4799J "CABLE T, BATTERY"

8 129965 SUB= 156417

9 109596X HOSE CLAMP T
10 138406 SUB= 146154
11 10090400 SUB= 10040400
12 73350400 NUT
13 74780408 BOLT
14 11050400 LOCKWASHER
15 73510400 NUT
16 131563 SUB= 154336
17 109553X SWITCH INTERLOCKT
20 17021008 SCREW
21 121305X SWITCH SEAT
22 121264X "CAP,BATTERY "
23 74760412 BOLT LT
24 19091016 WASHER
25 10040400 LOCKWASHER
26 73220400 SUB= 50675
27 122147X KEY
28 108824X FUSE HYT
29 109238X TUBE T
30 123620X SUB= 141226
31 110712X SWITCH LT
32 136850 "HARNESS,LIGHT SOC"
33 7662J SUB= 4152J
34 108236X BRACKET LT
35 17021008 SCREW
36 130890 SWITCH BRACKET
37 17021008 SCREW
38 11150400 LOCKWASHER

2K4B3A (1993) Page 10 of 28
ENGINE

2K4B3A (1993) Page 11 of 28
ENGINE

Ref # Part Number Qty Description

1 132771 THROTTLE CONTROL

2 17720410 SCREW LT

3 REFER TO IMAGE

4 13280324 PIPE NIPPLE

5 13200300 ELBOW

6 101273M MUFFLER LTV

7 108767X DEFLECTOR MUFFLER

8 17030808 SUB= 17030814

9 101159L SHIELD HEAT LTV
10 74780556 "BOLT,HEX"
11 19111012 WASHER T
12 74780408 BOLT
13 10040400 LOCKWASHER
14 125593X SUB= 272293
15 11050600 LOCKWASHER
16 17490620 SCREW
19 137180 SUB= 532137180
20 109202X TANK.FUEL.LT.
21 123549X SUB= 158990
22 123487X HOSE CLAMP
23 124028X SUB= 532124028
24 17490412 SCREW HEX CRT
25 19091416 WASHER
26 8548R FUEL LINE T
27 REFER TO IMAGE

2K4B3A (1993) Page 12 of 28
LIFT

2K4B3A (1993) Page 13 of 28
LIFT

Ref # Part Number Qty Description

1 122514X SUB= 136973

2 122507X SUB= 145117

3 105767X PIN-GROOVE LT

4 12000002 SUB= 2225J

5 19211621 WASHER

6 120183X NYLON BEARING

7 109413X GRIP

8 124526X SUB= 125925X

9 122364X SUB= 125925X
10 122512X SUB= 532122512
11 134619 LINK LIFT LH
12 135388 LIFT LINK RH
13 4939M SUB= 85902
14 135563 "PIN,SPRING"
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 130832 SUB= 130833

2K4B3A (1993) Page 14 of 28
MOWER DECK

2K4B3A (1993) Page 15 of 28
MOWER DECK

Ref # Part Number Qty Description

1 137525 SUB= 145338

2 72140506 BOLT

3 138017 BRKT ASM SWAY BAR

4 138019 BRKT SWAY BAR

5 4939M SUB= 85902

6 130832 SUB= 130833

7 73800500 NUT

8 850857 BLADE BOLT

9 10030600 SUB= 10040600
10 129962 WASHER BLADE
11 127843 SUB= 138498
12 129895 BEARING.BALL
13 133172 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 136929 SUB= 140329
17 72110618 BOLT CARRIAGE
18 72140505 BOLT
19 73800500 NUT
20 136888 SUB= 918136888
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 78158 SUB= 17580520
31 129963 WASHER
32 129861 SUB= 153535
33 73050900 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131612 WASHER GT
38 133502 RETAINER SPACER
39 133503 IDLER ARM STIFF
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
42 76020312 SUB= 3145
43 133504 CLUTCH ROD SECOND
44 134236 SUB= 140088
45 4497H RETAINER M
46 17720410 SCREW LT
47 131335 SPRING EXTENSION
48 133944 HARD SMALL WASHER
49 133940 SUB= 151785
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 105529X SUB= 139888
53 131845 BRAKE PAD ARM ASM
54 133943 HARDENED WASHER
55 133844 IDLER ARM
56 122052X SPACER RETAINER
57 127498 BUSHING
58 128759 SUB= 918128759

2K4B3A (1993) Page 16 of 28
MOWER DECK

Ref # Part Number Qty Description

59 133573 CLUTCH ARM PRI AS
60 134666 "ROD, CLUTCH PRIM"
61 131870 RETURN SPRING
62 127847 CLUTCH ARM SECOND
63 121748X WASHER
64 12000029 RING
65 128903 SHOULDER BOLT
66 127845 SPRING KEEPER
67 106932X KNOB T(3/8 HOLE)
68 130969 BELT-V.92.4.MWR

130794 MANDREL ASM
136322 SUB= 145411

2K4B3A (1993) Page 17 of 28

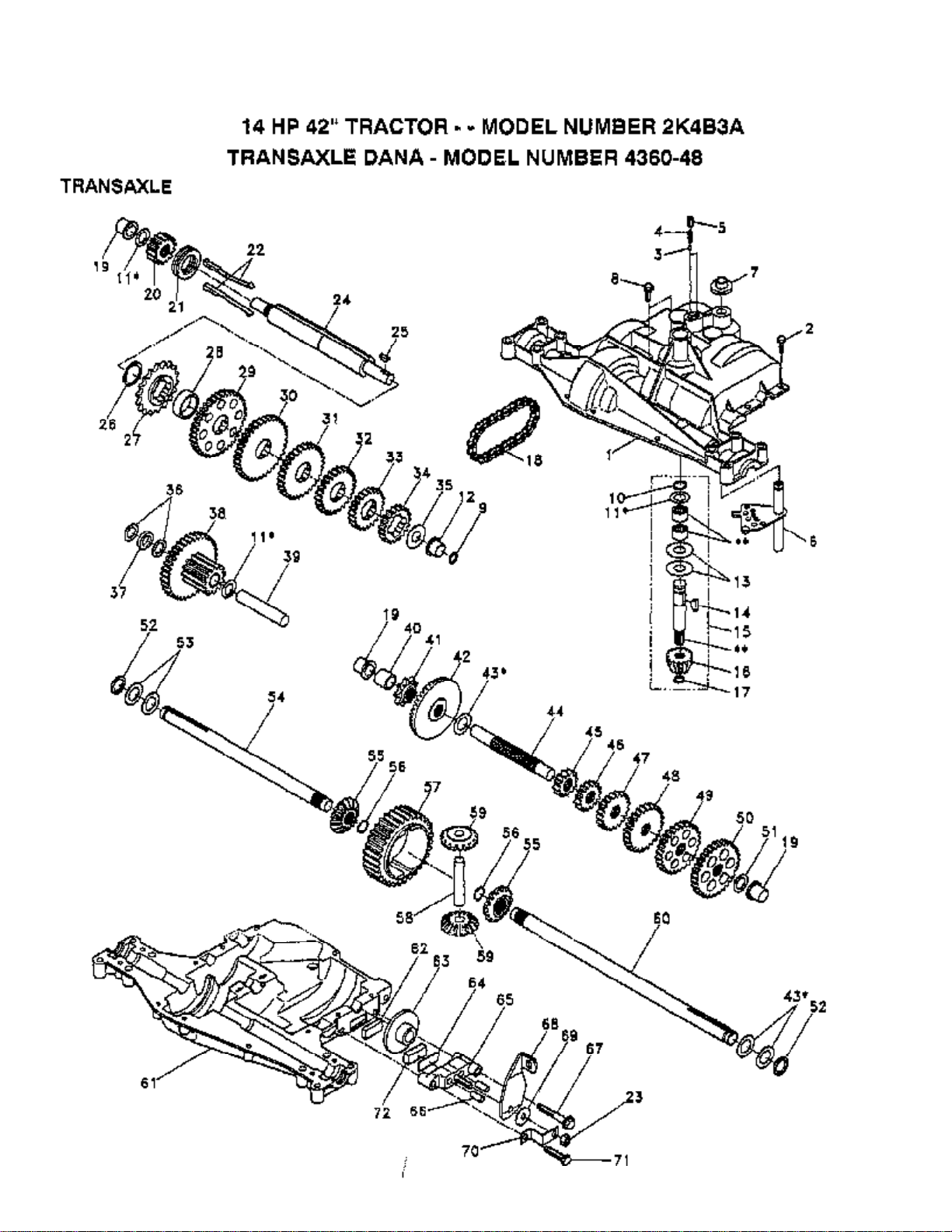

SCHEMATIC

2K4B3A (1993) Page 18 of 28
SCHEMATIC

Ref # Part Number Qty Description

1 138248 SUB= 160951

2 2274J SUB= 74760412

3 134400 SUB= 68003

4 105904X "SPRING, DETENT LT"

5 105905X "SCREW, SET LT"

6 138235 KIT SHIFTER ASM

7 134399 SHIFTER BOOT

8 134791 SCREW TAP W/SEAL

9 138241 SQUARE RING
10 2267J RETAINING RING LT
11 134793 ASM KIT SHIM 4689
12 138240 "FLANGE, BEARING"
13 120415X WASHER T
14 2257J WOODRUFF KEY
15 138234 AS KIT INPUT SHFT
16 110078X PINION 14T T
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 138242 GEAR SPUR 14T
21 138246 COLLAR CLUTCH
22 138236 ASM KIT CLTCH KEY
23 73810500 NUT.LOCK.5/16-24
24 138243 SHAFT INTERM
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 108977X KIT.GEAR.12/37TH
30 109254X SUB= 144893
31 120405X SUB= 124644X
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
36 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 110084X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 105933X SUB= 108977X
46 106151X SUB= 144893
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T

2K4B3A (1993) Page 19 of 28
SCHEMATIC

Ref # Part Number Qty Description

59 110082X GEAR 1ST T
60 120475X SUB= 154659
61 138247 SUB= 160951
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 106596X "SCREW, TAPPING LT"
72 120951X PUCK T
73 120416X SUB= 126976X

2K4B3A (1993) Page 20 of 28
SEAT

2K4B3A (1993) Page 21 of 28
SEAT

Ref # Part Number Qty Description

1 127428X SUB= 140121

2 126656X SUB= 140551

3 74760612 SUB= 74780612

4 19131210 WASHER

5 2751R CLIP T

6 73680600 SUB= 73690600

7 124181X SPRING COMPRESSIO

8 17490616 SCREW GTV

9 19131614 WASHER
10 131451 SUB= 155925
11 121251X STRIP FORM
12 121246X BRKT SWITCH
13 121248X BUSHING
14 7205411 BOLT, CARRIAGE
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
18 74641008 SUB= 71031008
19 73951000 "NUT,KEPS"
20 4171R CLIP T
21 105529X SUB= 139888
22 73680500 SUB= 73690500
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER

2K4B3A (1993) Page 22 of 28

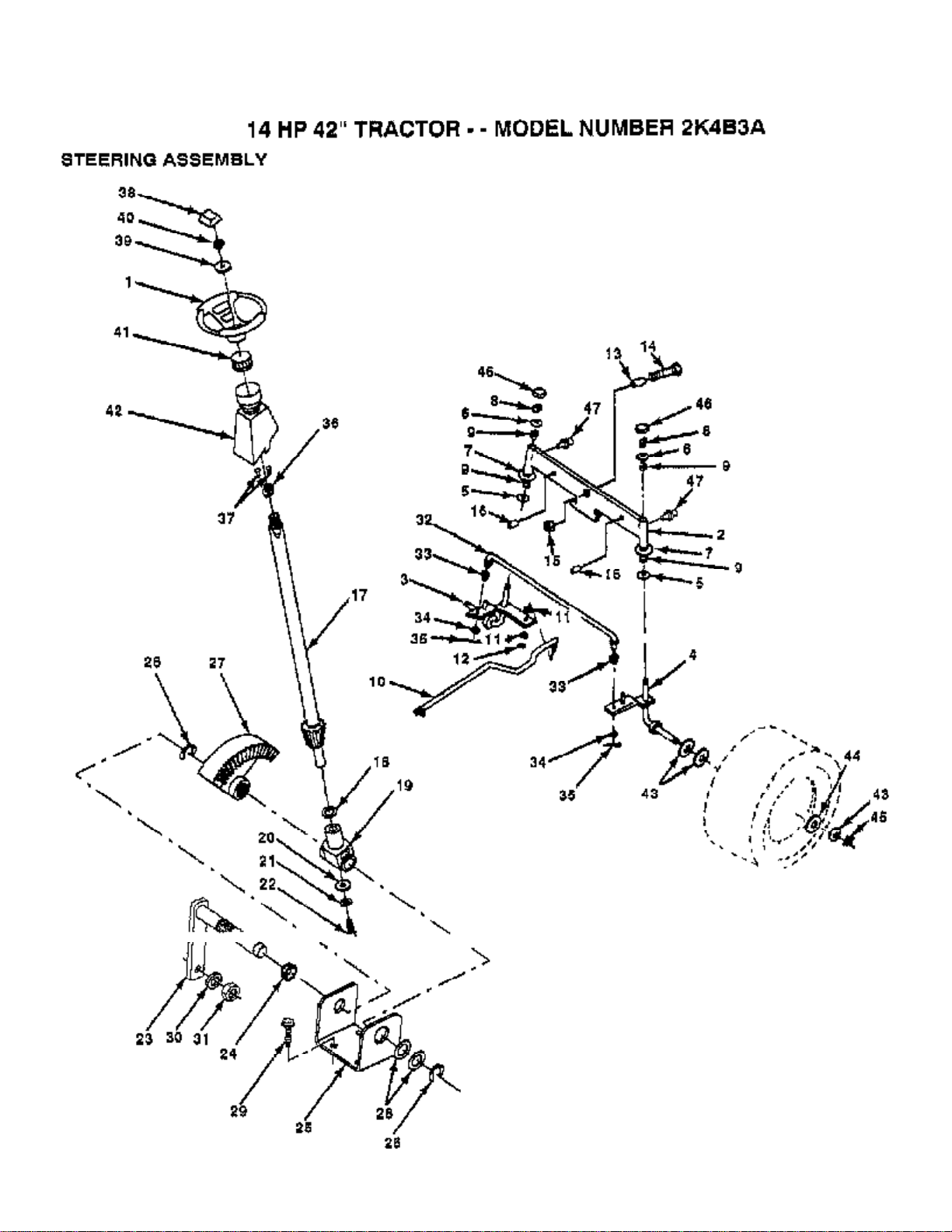

STEERING

2K4B3A (1993) Page 23 of 28
STEERING

Ref # Part Number Qty Description

1 133741 SUB= 150547

2 133988 SUB= 142033

3 135227 SPINDLE LH

4 135228 SPINDLE RH

5 6266H WASHER .T

6 121748X WASHER

7 19272016 WASHER

8 12000029 RING

9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 132614 SHAFT ASM
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 12000029 RING
27 124034X SUB= 136874
28 6266H WASHER .T
29 17490612 SCREW
30 10040600 LOCKWASHER
31 73610600 SUB= 7810H
32 130465 TIE ROD
33 126847X BUSHING.DRAGLINK
34 19131416 WASHER
35 76020412 COTTER PIN
36 132196 SUB= 155106
37 17431008 SUB= 98000165
38 133742 ST WHL INSERT CAP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 104820X ADAPTER-WHEEL LT
42 124418X "TUBE, STR SHAFT"
43 121749X WASHER
44 121748X WASHER
45 12000029 RING
46 121232X CAP
47 6855M ZERK M

2K4B3A (1993) Page 24 of 28
TRANSAXLE

2K4B3A (1993) Page 25 of 28
TRANSAXLE

Ref # Part Number Qty Description

1 138248 SUB= 160951

2 2274J SUB= 74760412

3 134400 SUB= 68003

4 105904X "SPRING, DETENT LT"

5 105905X "SCREW, SET LT"

6 138235 KIT SHIFTER ASM

7 134399 SHIFTER BOOT

8 134791 SCREW TAP W/SEAL

9 138241 SQUARE RING
10 2267J RETAINING RING LT
11 134793 ASM KIT SHIM 4689
12 138240 "FLANGE, BEARING"
13 120415X WASHER T
14 2257J WOODRUFF KEY
15 138234 AS KIT INPUT SHFT
16 110078X PINION 14T T
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 138242 GEAR SPUR 14T
21 138246 COLLAR CLUTCH
22 138236 ASM KIT CLTCH KEY
23 73810500 NUT.LOCK.5/16-24
24 138243 SHAFT INTERM
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 108977X KIT.GEAR.12/37TH
30 109254X SUB= 144893
31 120405X SUB= 124644X
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 110084X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 105933X SUB= 108977X
46 106151X SUB= 144893
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T

2K4B3A (1993) Page 26 of 28
TRANSAXLE

Ref # Part Number Qty Description

59 110082X GEAR 1ST T
60 120475X SUB= 154659
61 138247 SUB= 160951
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 106596X "SCREW, TAPPING LT"
72 120951X PUCK T
73 120416X SUB= 126976X

2K4B3A (1993) Page 27 of 28
WHEELS/TIRES

2K4B3A (1993) Page 28 of 28
WHEELS/TIRES

Ref # Part Number Qty Description

1 59192 VALVE CAP

2 65139 VALVE STEM LT

3 106222X SUB= 122073X

4 59904 TUBE.5.3/4.5/6

5 106732X311 SUB= 106732X427

6 278H FITTING LT

7 9040H "FLANGE, BEARING"

8 106108X311 SUB= 106108X427

9 106268X SUB= 122074X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
