2H4D3A (1995) Page 1 of 25
CHASSIS AND ENCLOSURES
2H4D3A (1995) Page 2 of 25
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 145501 CHASSIS.WLD.11GA
2 140356 SUB= 145009
3 17490612 SCREW
6 145208x016 No Desc
8 126471x CLIP,INSULATOR
9 145203 DASH.PLASTIC.BLK
10 72140608 SUB= 72110608
11 145223 PANEL.DASH.RH.NOT
17 123801x505 HOOD.ASM.YTGT.PNT
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 140671 GRILLE ASM WELD
29 110898x LENS T *NLA*
30 109872x505 FENDER
31 136619 BRKT FENDER
33 105476x505 FOOTREST LH *SUBS/2*
34 105475x505 FOOTREST RH *SUBS/2*
35 72110606 BOLT
36 108067x PAL NUT LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
45 132257 SUB= 918132257
59 110436x No Desc
64 145095 SUB= 150272
66 140943x011 PLATE DASH SILKSC
71 73640400 NUT HXKEP 1/4X20
72 110350x505 STRAP GRILLE 505 *NLA*
86 123764x505 PANEL.SIDE.RH.ASM
87 123765x505 PANEL.SIDE.LH.ASN
90 19091216 WASHER PM
102 2751r CLIP T
114 145349 BRACKET.SUPT.DASH
115 121794x COVER ACCESS
117 144283 WASHER.SERRATED.
118 145595 BRACKET.CLUTCH.MC
123 144712 SUB= 149036
124 144713 BRACKET.PICK.RH
125 74180412 SCREW
127 120579x PAL NUT
128 124201x SCREW SPECIAL
5479j PLUG BUTTON T
2H4D3A (1995) Page 3 of 25
DECALS
2H4D3A (1995) Page 4 of 25
DECALS
Ref # Part Number Qty Description
1 138956 DECAL.DASH.INSTR.
2 132627 GRILL DECAL
3 146747 DECAL.HD.RH.RALLY
5 138652 DECAL.ENG.272632
6 133795 DECAL CAUTION
7 101892X DECAL T
8 146748 DECAL.HD.LH.RALLY
9 131425 CHASSIS DECAL
10 135866 NLA
11 137259 "DECAL, WARNING"
12 135013 NLA
13 127075 "DECAL,STR WHL"
14 121549X DECAL
15 136832 DECAL
16 132628 FENDER DECAL
17 140837 DECAL BRAK PARK
138311 DECAL HANDLE LIFT
149235 MANUAL.P.2H4D3A
145278 MANUAL.OP.GENERIC
LBD48 SNOW BLADE
C42 GRASS CATCHER
LC05 WHEEL WTS.
CH12 TIRE CHAINS
LSB42 SNOW THROWER
MK420 MULCHING KIT W/BLADES
2H4D3A (1995) Page 5 of 25
DRIVE
2H4D3A (1995) Page 6 of 25
DRIVE
Ref # Part Number Qty Description
1 142603 SUB= 160664
2 146682 SPRING.BRAKE.RETU
3 123666X PULLEY TRANS
5 121520X STRAP TORQUE
6 17490512 SCREW
7 130802 SUB= 162240
8 131679 SHIFT ROD
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
15 74780544 BOLT HEX
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 149001 SHAFT.PEDAL.FOOT
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
70 134683 KEEPER BELT ENG
72 19132012 WASHER
74 109502X SPACER LT
2H4D3A (1995) Page 7 of 25
DRIVE
Ref # Part Number Qty Description
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
100 19111216 WASHER M
112 19091210 WASHER LT
2H4D3A (1995) Page 8 of 25
ELECTRICAL
2H4D3A (1995) Page 9 of 25
ELECTRICAL
Ref # Part Number Qty Description
1 121265x No Desc
2 74760412 BOLT LT
3 19091016 WASHER
4 10040400 LOCKWASHER
5 121264x CAP,BATTERY *
6 73220400 SUB= 50675
7 109238x TUBE T
8 144940 SUB= 156417
9 109596x HOSE CLAMP T
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152j HEADLAMP BULB
24 146136 CABLE.BTRY.6GA.RD
25 148009 CABLE.BTRY.6GA.38
26 108824x FUSE HYT
28 4207j CABLE T
29 121305x SWITCH SEAT
30 144921 SUB= 163088
31 140400 SUB= 145774
32 141226 COVER KEY SWITCH
33 140401 KEY MLD GEN DELTA
34 110712x SWITCH LT
35 108236x BRACKET LT
36 17021008 SCREW
38 140336 BRACKET SWITCH IN
39 109553x SWITCH INTERLOCKT
40 145489 HARNESS.IGN.DASH.
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 145673 SUB= 146154
44 73640400 NUT HXKEP 1/4X20
45 140844 ADAPTER AMMETER
49 11151000 LOCKWASHER
70 140413 HARNESS ENG DUAL
2H4D3A (1995) Page 10 of 25
ENGINE
2H4D3A (1995) Page 11 of 25
ENGINE
Ref # Part Number Qty Description
1 132770 THROTTLE CONTROL
2 17720410 SCREW LT
3 289707 ENGINE B&S
4 101273M MUFFLER LTV
10 101159L SHIELD HEAT LTV
11 CHECK WITH SUPPLIER
13 125593X SUB= 272293
14 13280324 PIPE NIPPLE
15 13200300 ELBOW
16 11050600 LOCKWASHER
29 137180 SUB= 532137180
31 109202X TANK.FUEL.LT.
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
37 137040 LINE FUEL
38 CHECK WITH SUPPLIER
40 110436X SUB= 9151R
44 17490412 SCREW HEX CRT
46 19091416 WASHER
67 108767X DEFLECTOR MUFFLER
68 17030808 SUB= 17030814
69 74780556 "BOLT,HEX"
70 19111012 WASHER T
71 REFER TO IMAGE
73 128230 "CLAMP,FUEL TANK T"
76 128229 BRKT FUEL TANK T
78 17490620 SCREW
81 73510400 NUT
2H4D3A (1995) Page 12 of 25

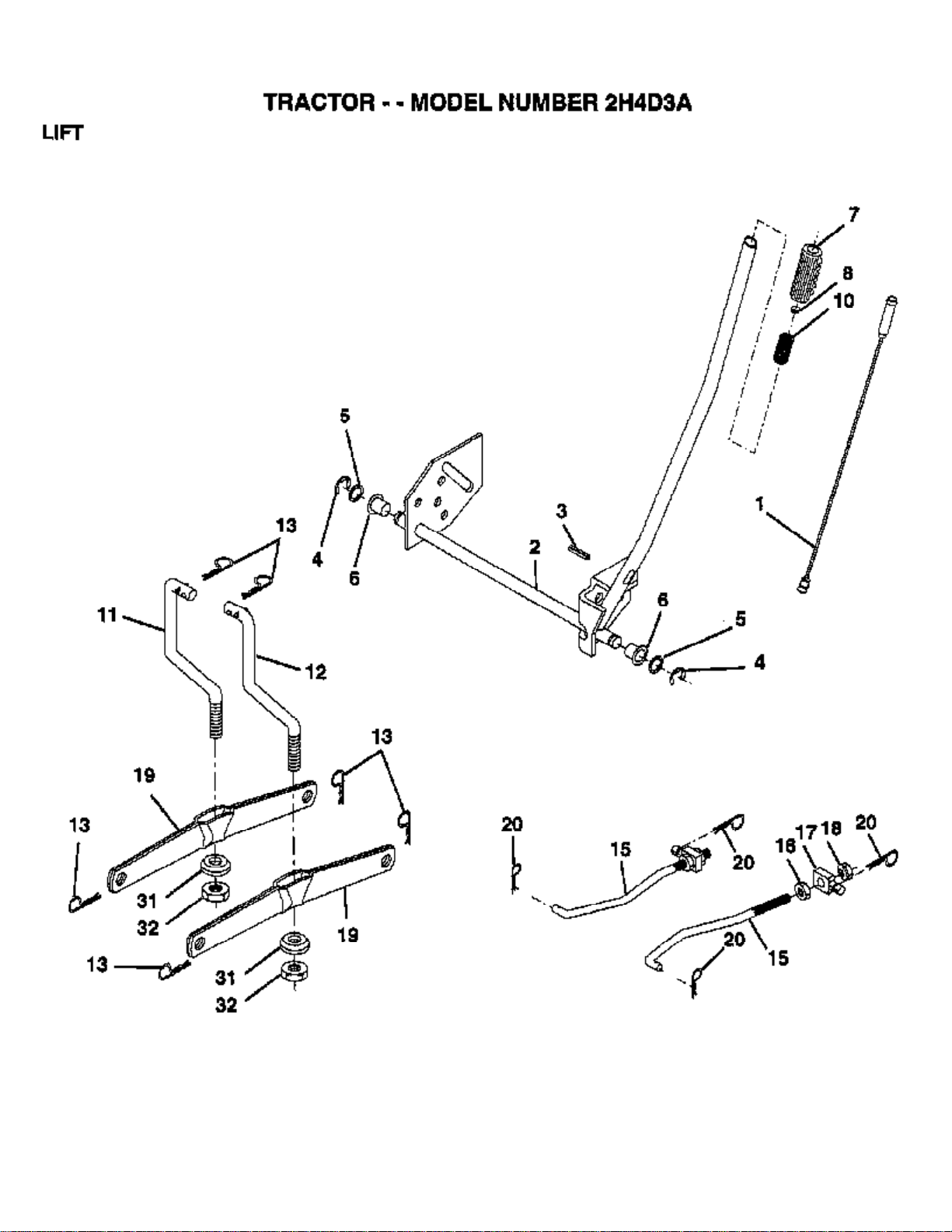

LIFT
2H4D3A (1995) Page 13 of 25
LIFT
Ref # Part Number Qty Description
1 136971 WIRE.ASM.INNER
2 136968 SHAFT.ASM.LIFT.RH
3 138284 PIN GROOVE
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
10 122512X SUB= 532122512
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
32 73540600 NUT.CROWNLOCK.3/8
2H4D3A (1995) Page 14 of 25

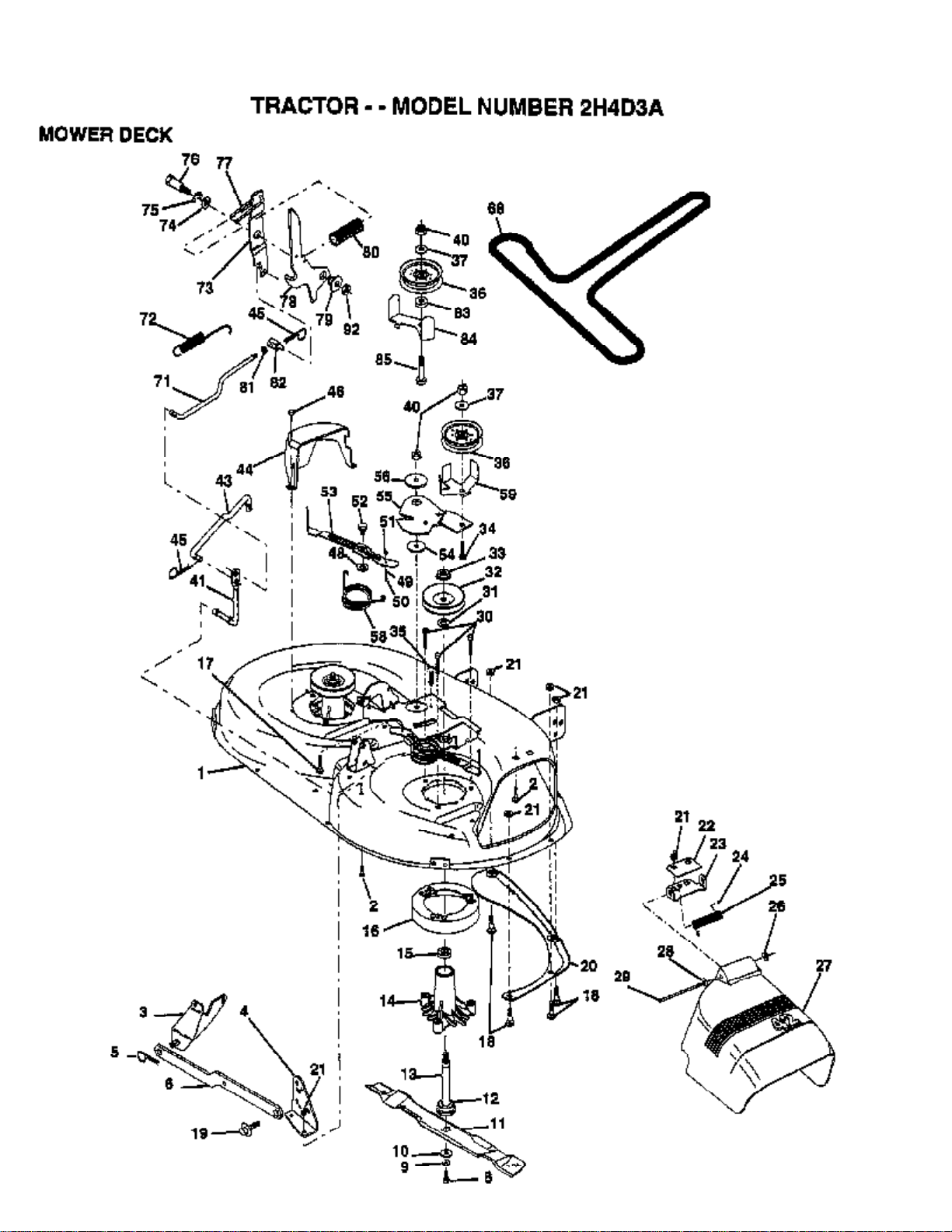

MOWER DECK
2H4D3A (1995) Page 15 of 25
MOWER DECK
Ref # Part Number Qty Description
1 144393 DECK.WELD.42.
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 138498 "BLADE.42"" HIPERF"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
17 72110610 BOLT RDHD 3/8-16
18 72140505 BOLT
19 132827 BOLT SHD 5/16-18
20 136888 SUB= 918136888
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 138776 SUB= 157722
31 129963 WASHER
32 129861 SUB= 153535
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
43 140083 ROD CLUTCH W/NIBS
44 140088 GUARD MAND LH BLK
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
48 133944 HARD SMALL WASHER
49 133940 SUB= 151785
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 139888 BOLT.SHLD.5/16-18
53 131845 BRAKE PAD ARM ASM
54 133943 HARDENED WASHER
55 140084 SUB= 151785
56 122052X SPACER RETAINER
58 140086 SPRING TORSN BRAK
59 141043 GUARD IDLER TUV
68 144200 BELT.V.T-PATH
71 142427 ROD CLUTCH 38/42
72 146927 SPRING.EXT.RETURN
73 127847 CLUTCH ARM SECOND
74 121748X WASHER
2H4D3A (1995) Page 16 of 25
MOWER DECK
Ref # Part Number Qty Description
75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 140333 SUB= 140333X431
78 127498 BUSHING
80 128759 SUB= 918128759
81 73350600 NUT
82 142028 TRUNION ADJ
83 120958X WASHER
84 144394 SUB= 156084
85 72140618 BOLT RDHD 3/8-16
92 73800600 NUT
130794 MANDREL ASM
144783 SUB= 164962
2H4D3A (1995) Page 17 of 25
SEAT
2H4D3A (1995) Page 18 of 25
SEAT
Ref # Part Number Qty Description
1 127427 SUB= 140119
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181x SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 140552 SUB= 155925
12 121246x BRKT SWITCH
13 121248x BUSHING
14 72050411 SUB= 872050411
15 134300 SPLIT SPACER
16 121250x SPRING
17 123976x No Desc
21 139888 BOLT.SHLD.5/16-18
22 73800500 NUT
23 74780814 BOLT
24 19171912 WASHER
25 127018x BOLT,SHOULDER
26 10040800 LOCKWASHER
2H4D3A (1995) Page 19 of 25
STEERING
2H4D3A (1995) Page 20 of 25
STEERING
Ref # Part Number Qty Description
1 133741 SUB= 150547
2 142033 AXLE ASM FRONT
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 128758 STEERING SHAFT
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 126847X BUSHING.DRAGLINK
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17490612 SCREW
30 76020412 COTTER PIN
31 138171 BRKT.PVT.MAN.LVR.
32 130465 TIE ROD
36 145207 BUSHING.STRG.3/4
37 17541008 SCREW.10-24X1/2
38 133742 ST WHL INSERT CAP
39 100712K WASHER
40 73940800 SUB= 73360800
41 100711L ADAPTER LT
42 140216 BOOT SHAFT STEER
43 121749X WASHER
45 106933X KNOB T (1/2-HOLE)
46 121232X CAP
47 6855M ZERK M
48 146841 LEVER.ASM.CLUTCH
49 131291 LINK CLTCH W/NUTS
52 106451X "BOLT, SHOULDER LT"
53 73680600 SUB= 73690600
62 149682 SUB= 156595
2H4D3A (1995) Page 21 of 25
TRANSAXLE
2H4D3A (1995) Page 22 of 25
TRANSAXLE
Ref # Part Number Qty Description
1 142671 HOUSING UPPER TRN
2 2274J SUB= 74760412
3 134400 SUB= 68003
4 105904X "SPRING, DETENT LT"
5 105905X "SCREW, SET LT"
6 138235 KIT SHIFTER ASM
7 134399 SHIFTER BOOT
8 134791 SCREW TAP W/SEAL
9 138241 SQUARE RING
10 142672 SUB= 2225J
11 134793 ASM KIT SHIM 4689
12 142673 BEARING FLAN-DANA
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 138234 AS KIT INPUT SHFT
16 110078X PINION 14T T
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 142675 GEAR SPUR 14 TTH
21 138246 COLLAR CLUTCH
22 138236 ASM KIT CLTCH KEY
23 73810500 NUT.LOCK.5/16-24
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 142681 GEAR SPUR 35 TTH
31 120405X SUB= 124644X
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 110084X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 142678 GEAR SPUR 12 TTH
46 142679 GEAR SPUR 15 TTH
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T
2H4D3A (1995) Page 23 of 25
TRANSAXLE
Ref # Part Number Qty Description
59 110082X GEAR 1ST T
60 120475X SUB= 154659
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 106596X "SCREW, TAPPING LT"
72 120951X PUCK T
73 120416X SUB= 126976X
2H4D3A (1995) Page 24 of 25
WHEELS & TIRES
2H4D3A (1995) Page 25 of 25
WHEELS & TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X427 "RIM ASM 6"" FRT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X427 "RIM AS 8"" REAR"
9 124635X SUB= 126957X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
