2H4B6A (1995) Page 1 of 15
CHASSIS AND ENCLOSURES
2H4B6A (1995) Page 2 of 15
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 140341 SUB= 145501
2 140356 SUB= 145009
3 17490612 SCREW
4 19131216 WASHER
5 11050600 LOCKWASHER
6 145206 SUB= 145206X431
8 126471X "CLIP,INSULATOR"
9 140637X011 DASH SILKSCRN 1
10 72140608 SUB= 72110608
11 135464 DASH PANEL LH
13 124031X012 SUB= 155934X010
14 17490608 SCREW LT
15 74180512 SCREW
16 73510500 NUT
17 133956X505 HOOD/GRILL ASM
18 126938X SUB= 532126938
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
29 133805 SUB= 133954
30 140001X505 FENDER PNT LT
31 136619 BRKT FENDER
33 105476X505 FOOTREST LH
34 105475X505 FOOTREST RH
35 72110606 BOLT
36 108067X PAL NUT LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
45 132257 SUB= 918132257
46 127316X RETAINER
5479J PLUG BUTTON T
2H4B6A (1995) Page 3 of 15
DECALS
2H4B6A (1995) Page 4 of 15
DECALS
Ref # Part Number Qty Description
1 138956 DECAL.DASH.INSTR.
2 132628 FENDER DECAL
3 141745 DECAL HOOD RH RLY
4 141746 DECAL HOOD LH RLY
5 135866 NLA
6 133795 DECAL CAUTION
7 101892X DECAL T
8 129823 NLA
9 138652 DECAL.ENG.272632
10 141801 DECAL CHAS 42 HYD
11 137259 "DECAL, WARNING"
12 132627 GRILL DECAL
13 127075 "DECAL,STR WHL"
14 121549X DECAL
15 136832 DECAL
16 135013 NLA
18 142337 DECAL SADL HYDRO
19 140837 DECAL BRAK PARK
138311 DECAL HANDLE LIFT
142341 DECAL DRAWBAR LH
145278 MANUAL.OP.GENERIC
146135 MANUAL.P.2H4B6A
LBD48 SNOW BLADE
LSB42 SNOW THROWER
C42 GRASS CATCHER
LC05 WHEEL WTS.
LA018 TIRE CHAINS
MK420 MULCHING KIT W/BLADES
2H4B6A (1995) Page 5 of 15
DRIVE
2H4B6A (1995) Page 6 of 15
DRIVE
Ref # Part Number Qty Description
1 140607 TRANSAXLE HYD 0319-0500
2 142431 SPRING RET BRAKE
3 144698 PULLEY.4.20.HYDRO
8 141003 ROD SHIFT FEND LT
40 76020416 PIN COTTER 1/8
15 74780544 BOLT HEX
16 73800500 NUT
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 145627 ROD.BRAKE.HYDRO.
24 73350600 NUT
25 106888X SPRING ROD LT
24 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 141416 BELT-V.HYDR.84.61
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
69 142432 SCREW HEXWSH H-L
70 134683 KEEPER BELT ENG
71 141417 STRAP.TORQ.LH.HYD
72 19132012 WASHER
73 141418 STRAP.TORQ.RH.HYD
74 121199X SPACER SPLIT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
2H4B6A (1995) Page 7 of 15
DRIVE
Ref # Part Number Qty Description
78 121748X WASHER
81 141420 SHAFT.CROSS.HYD
82 123782X "SPRING,TORSION"
83 19171216 WASHER
84 141423 ROD.TIE.BALL.HYD.
86 71208 BUSHING
87 19212016 WASHER D
88 12000008 KLIP RING
89 139988 SUB= 153764
91 74780536 NLA
92 74780524 HEX BOLT
93 142564 "LINE FUEL HYD 4"""
94 140462 "FAN 7"" HYDRO"
95 144643 SUB= 918144643
96 4497H RETAINER M
97 144201 KEEPER.BELT.RH.HY
98 73510600 NUT
100 19111216 WASHER M
103 50831 NUT NYLON 1/2-20
104 141421 ARM.CONTROL.PUMP
105 71070516 SCREW CAP 5/16-18
106 74780520 BOLT
108 17541026 SCREW.HXHD.10-20
109 145098 ADAPTOR.FAN.HYDRO
2H4B6A (1995) Page 8 of 15

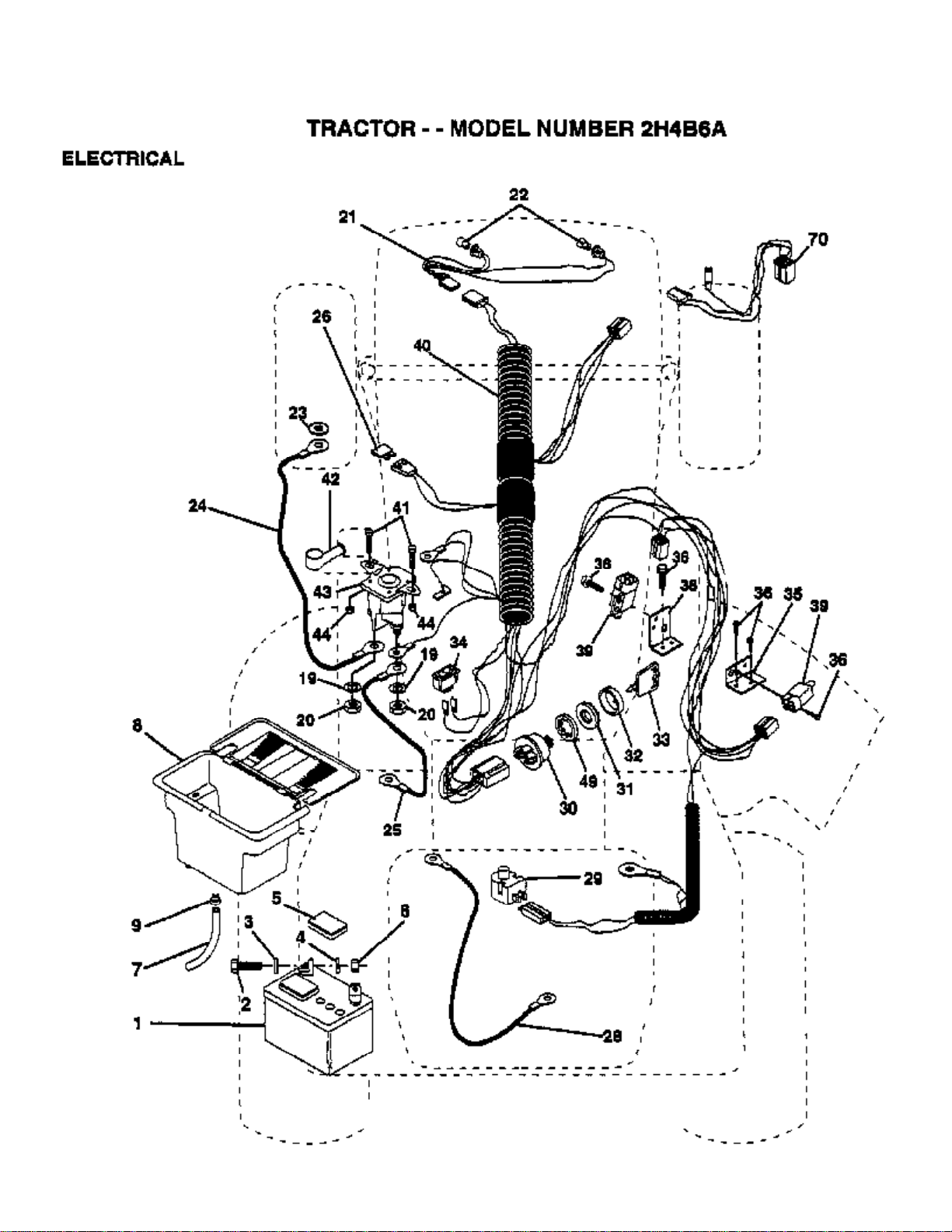

ELECTRICAL
2H4B6A (1995) Page 9 of 15
ELECTRICAL
Ref # Part Number Qty Description
1 121265X SUB= 123899X
2 74760412 BOLT LT
3 19091016 WASHER
4 10040400 LOCKWASHER
5 121264X "CAP,BATTERY "
6 73220400 SUB= 50675
7 109238X TUBE T
8 129965 SUB= 156417
9 109596X HOSE CLAMP T
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
23 11150400 LOCKWASHER
24 4799J "CABLE T, BATTERY"
25 132202 SUB= 146147
26 108824X FUSE HYT
28 4207J CABLE T
29 121305X SWITCH SEAT
30 144921 SUB= 163088
31 140400 SUB= 145774
32 141226 COVER KEY SWITCH
33 140401 KEY MLD GEN DELTA
34 110712X SWITCH LT
35 108236X BRACKET LT
36 17021008 SCREW
38 140336 BRACKET SWITCH IN
39 109553X SWITCH INTERLOCKT
40 140415 HARNESS IGN DASH
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 138406 SUB= 146154
44 73640400 NUT HXKEP 1/4X20
49 11151000 LOCKWASHER
70 140413 HARNESS ENG DUAL
2H4B6A (1995) Page 10 of 15

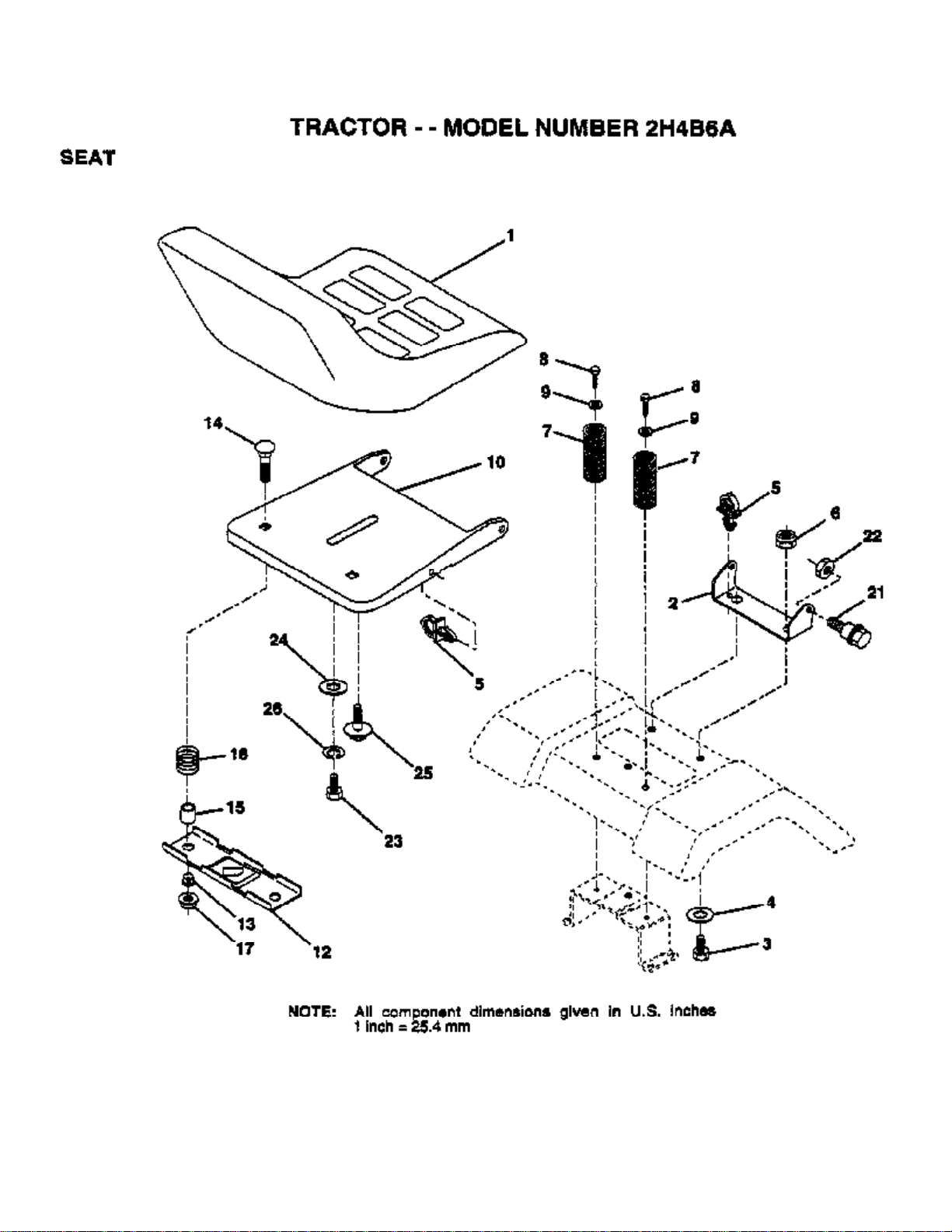

SEAT
2H4B6A (1995) Page 11 of 15
SEAT
Ref # Part Number Qty Description
1 127428 SUB= 140119
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 140552 SUB= 155925
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
21 139888 BOLT.SHLD.5/16-18
22 73800500 NUT
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER
2H4B6A (1995) Page 12 of 15
STEERING
2H4B6A (1995) Page 13 of 15
STEERING
Ref # Part Number Qty Description
1 133741 SUB= 150547
2 142033 AXLE ASM FRONT
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 132614 SHAFT ASM
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 126847X BUSHING.DRAGLINK
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17490612 SCREW
30 76020412 COTTER PIN
32 130465 TIE ROD
36 132196 SUB= 155106
37 17431008 SUB= 98000165
38 133742 ST WHL INSERT CAP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 104820X ADAPTER-WHEEL LT
42 124418X "TUBE, STR SHAFT"
43 121749X WASHER
46 121232X CAP
47 6855M ZERK M
2H4B6A (1995) Page 14 of 15
WHEELS/TIRES
2H4B6A (1995) Page 15 of 15
WHEELS/TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X427 "RIM ASM 6"" FRT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X427 "RIM AS 8"" REAR"
9 106268X SUB= 122074X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
