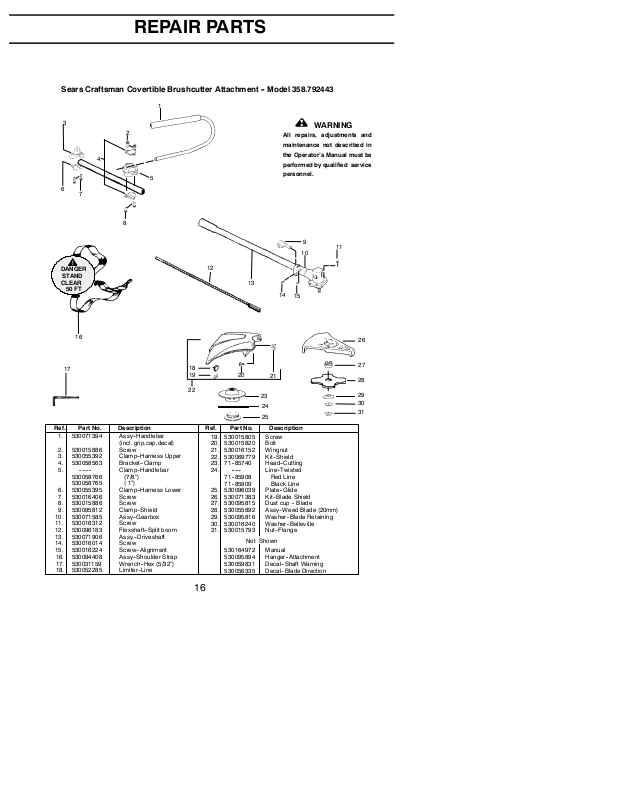

REPAIR PARTS

Sears Craftsman Covertible Brushcutter Attachment -- Model 358.792443

1

3

2

4

5

6

7

8

All repairs, adjustments and

maintenance not described in

the Operator’s Ma nual must be

performed by qualified service

personnel.

WARNING

DANGER

STAND

CLEAR

50 FT

16

17

Ref. Part No. Description

1. 530071394 Assy--Handlebar

2. 530015886 Screw

3. 530055392 Clamp-- Harness Upper

4. 530058563 Bracket-- Clamp

5. -- ---- -- Clamp-- Handlebar
530058766 (7/8”)
530058765 ( 1”)

6. 530055395 Clamp-- Harness Lower

7. 530016406 Screw

8. 530015886 Screw

9. 530095812 Clamp-- Shield

10. 530071585 Assy--Gearbox

11. 530016312 Screw

12. 530096183 Flexshaft-- Split boom

13. 530071906 Assy.--Driv es haft

14. 530016014 Screw

15. 530016224 Screw-- Alignment

16. 530094408 Assy--Shoulder Strap

17. 530031159 Wrench-- Hex (5/32”)

18. 530052285 Limiter-- Line

(incl. grip,cap,decal)

12

13

14

18
19

22

Ref. Part No. Description

20

19. 530015805 Screw

20. 530015820 Bolt

21. 530016152 Wingnut

22. 530069779 Kit-- Shield

23. 71-- 85740 Head-- Cutting
2 4 . -- -- -- L i n e -- T w i s t e d

71-- 85908 Red Line
71-- 85909 Black Line

25. 530096039 Plate-- Glide

26. 530071383 Kit-- Blade Shield

27. 530095815 Dust cup -- Blade

28. 530055892 Assy--Weed Blade (20mm)

29. 530095816 Washer--Bl ade Retai ni ng

30. 530016240 Washer--Bel leville

31. 530015793 Nut-- Flange

530164972 Manual
530095894 Hanger--Attachment
530059831 Decal-- Shaft Warning
530056335 Decal-- Blade Direction
