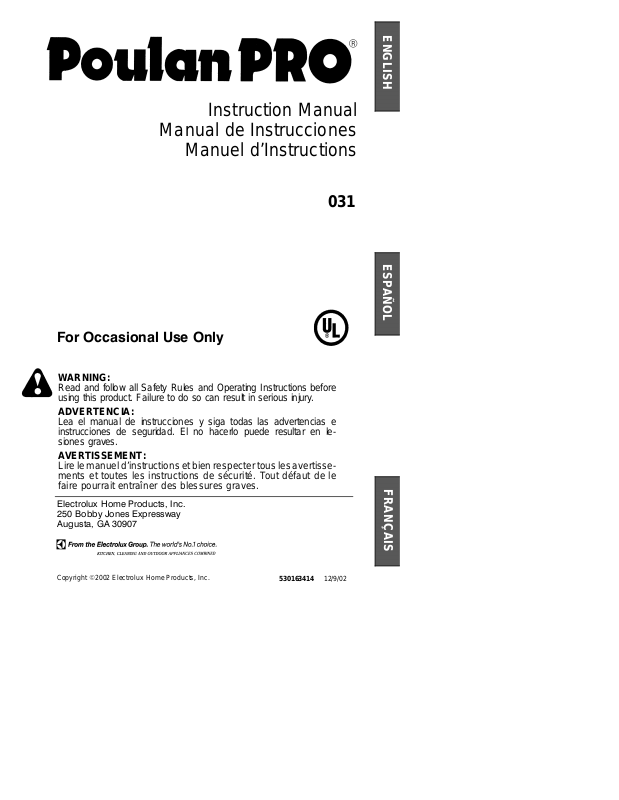

Ayp 163414E User Manual

R

Instruction Manual

Manual de Instrucciones

Manuel d’Instructions

031

ENGLISH ESPAÑOL

For Occasional Use Only

WARNING:

Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.

ADVERTENCIA:

Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en le­siones graves.

A VERTISSEMENT:

Lirelemanueld’instructions etbienrespecter tous lesavertisse­ments et toutes les instructions de sécurité. Tout défaut de le
faire pourrait entraîner des blessures graves.

Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907

CopyrightE2002 Electrolux Home Products, Inc.

530163414

12/9/02

FRANÇAIS

SAFETY RULES

WARNING:

appliances, basic safety precautions must al­ways befollowed to reduce the risk of fire and
serious injury. Read and follow all instruc­tions.

This power unit can be dangerous!

responsible for following instructions and warn­ings on unit and in manual. Read entire instruc­tion manual before using unit! Be thoroughly fa­miliarw iththe controlsandthe proper use ofthe
unit. Restrict the use of this unit to persons who
have read, understand, and will follow the
instructions and warnings on the unit and in the
manual. Never allow children to operate this
unit.

INSTRUCTION
MANUAL

DANGER:

ing devices. This unit isdesigned forlinetrim­meruseonly.Useof anyotheraccessories or
attachments will increase the risk of injury.

WARNING:

jects violently.Youandothers canbeblinded/in­jured. Wear eye and leg protection. Keep body
parts clear of rotating line.

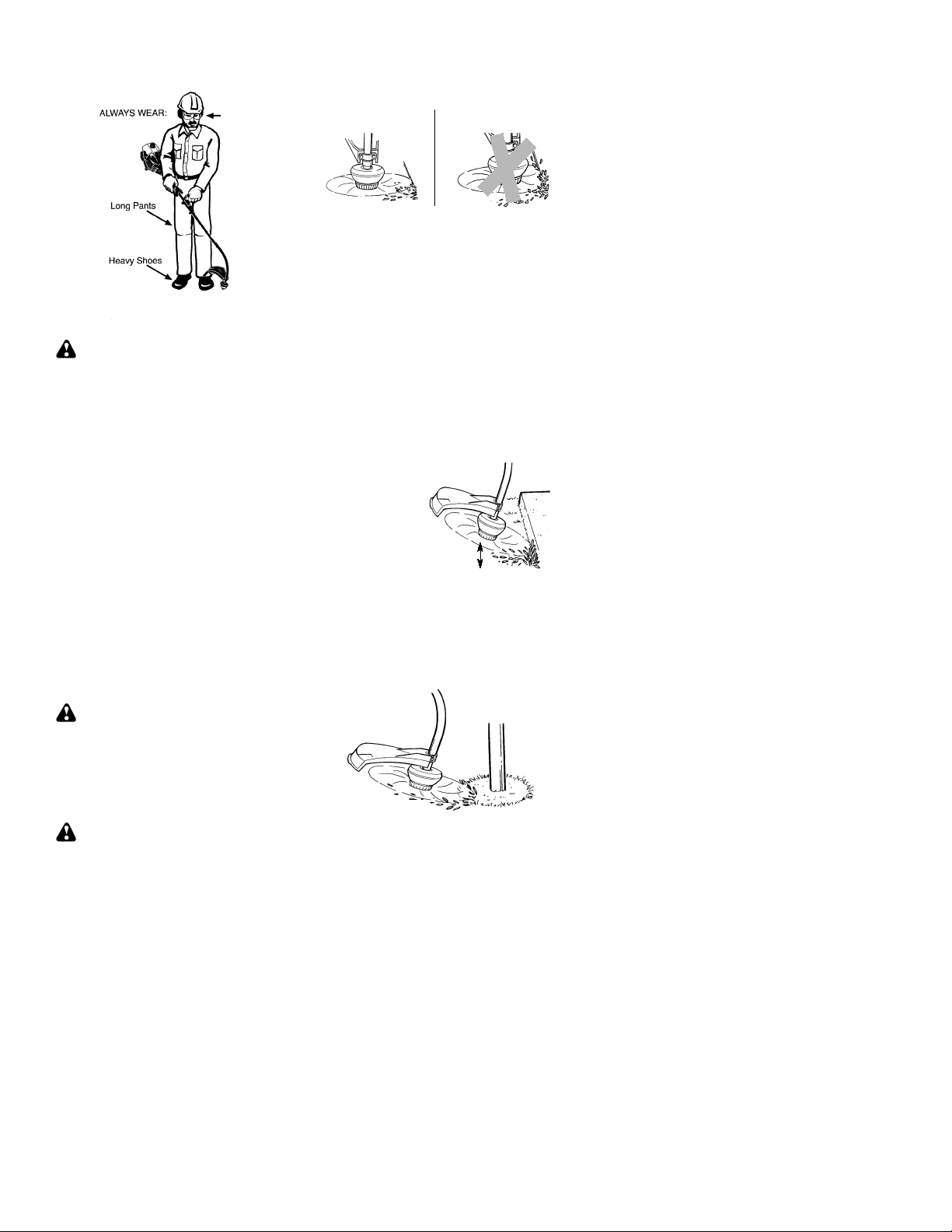

Eye Protection

Boots

Keep children, bystanders, and animals 50 feet
(15 meters) away. Stop unit immediately if ap­proached.
If situations occur which are not covered in
this manual, use care and good judgment. If
youneedassistance, contact yourauthorized
service dealer or call 1--800--554--6723.

OPERATOR SAFETY

Dress properly. Always wear safety

S

glasses or similar eye protection when op­erating, or performing maintenance, on
your unit (safety glasses are available).
Eye protection should be marked Z87.
Always wear face or dust mask if operation

S

is dusty.
Alwayswearheavy,longpants,longsleeves,

S

boots, andgloves. Wearingsafetylegguards
is recommended.

When using gardening

Operator is

SAFETY INFORMATION

ON THE UNIT

Never use blades or flail-

Trimme rline throws ob-

HazardZone

50 ft.

(15 m)

Always wear foot protection. Do not go

S

barefoot or wear sandals. Stay clear of
spinning line.
Secure hair above shoulder length. Secure

S

or remove loose clothing or clothing with
loosely hanging ties, straps, tassels, etc.
They can be caught in moving parts.
Being fully covered also helps protect you

S

from debris and pieces of toxic plants
thrown by spinning line.
Stay Alert. Do not operate this unit when

S

you are tired, ill, upset or under the influ­ence of alcohol, drugs, or medication.
Watch what you are doing; use common
sense.
Wear hearing protection.

S

Never start or run inside a closed room or

S

building. Breathing exhaust fumes can kill.
Keep handles free of oil and fuel.

S

UNIT / MAINTENANCE SAFETY

Disconnect the spark plug before perform-

S

ing maintenance except carburetor adjust­ments.
Look for and replace damaged or loose

S

parts before each use. Look for and repair
fuel leaks before use. Keepingood working
condition.
Replace trimmer head parts that are

S

chipped, cracked, broken, or damaged in
any other way before using the unit.
Maintain unit according to recommended

S

procedures. Keep cutting line at proper
length.
Use only 0.080!(2 mm) diameter Poulan

S

PRO"brand replacement line. Never use
wire, rope, string, etc.
Install required shield properly before using

S

the unit. Use only specified trimmer head;
makesureit is properlyinstalledandsecurely
fastened.
Make sure unit is assembled correctly as

S

shown in this manual.
Make carburetor adjustments with lower

S

end supported to prevent line fromcontact­ing any object.
Keep others away when making carburetor

S

adjustments.
Use only recommended Poulan PROrac-

S

cessories and replacement parts.
Have all maintenance and service not ex-

S

plained in this manual performed by an au­thorized service dealer.

FUEL SAFETY

Mix and pour fuel outdoors.

S

Keep away from sparks or flames.

S

Use a container approved for fuel.

S

Do not smoke orallow smoking near fuel or

S

the unit.
Avoid spilling fuel or oil. Wipe up all fuel

S

spills.
Move at least 10 feet (3 meters) away from

S

fueling site before starting engine.
Stop engine and allow to cool before re-

S

moving fuel cap.
Always store gasoline in a container ap-

S

proved for flammable liquids.

2

CUTTING SAFETY

WARNING:

each use. Remove objects (rocks, broken
glass, nails, wire, etc.) which can be thrown
by or become entangled in line. Hard objects
can damage the trimmer head and be thrown
causing serious injury.

Use only for trimming, scalping, mowing and

S

sweeping. Do not use for edging, pruning or
hedge trimming.
Keep firm footing and balance. Do not over-

S

reach.
Keep all parts ofyourbody away frommuffler

S

and spinning line. Keep engine below waist
level. A hot muffler can cause serious burns.
Cut from your left to your right. Cutting on

S

right side of the shield will throw debris away
from the operator .
Use only in daylight or good artificial light.

S

Use only for jobs explained in this manual.

S

Inspect the area before

TRANSPORTING AND STORAGE

Allow engine to cool before storing or trans-

S

porting in vehicle.
Empty the fuel tank before storing or trans-

S

porting the unit. Use upfuel leftinthecarbu­retor by starting the engine and letting it run
until it stops.
Store unitandfuel in areawherefuel vapors

S

cannot reach sparks or open flames from
water heaters, electric motors or switches,
furnaces, etc.
Store unit so line limiter blade cannot acci-

S

dentally cause injury. The unit can be hung
by the tube.
Store unit out of reach of children.

S

SAFETY NOTICE:

through prolonged use of gasoline powered
hand tools could cause blood vessel or nerve
damage in the fingers, hands, and joints of
people prone to circulation disorders or abnor­mal swellings. Prolonged use in cold weather
has been linked to blood vessel damage in
otherwise healthy people. If symptoms occur
such as numbness, pain, loss of strength,
change in skin color ortexture, orloss offeeling
in the fingers, hands, or joints, discontinue the
use of this tool and seek medical attention. An
anti--vibration system does not guarantee the
avoidance of these problems. Users whooper­ate powertools on a continualandregularbasis
must monitor closely their physical condition
and the condition of this tool.

SPECIAL NOTICE:

with a temperature limiting muffler and spark
arresting screen which meets the require­ments of California Codes 4442 and 4443. All
U.S. forest land and the states of California,
Idaho, Maine, Minnesota, New Jersey, Ore­gon, and Washington require by law that
many internal combustion engines be
equipped with aspark arresting screen. If you
operate inalocale wheresuchregulations ex­ist, you arelegally responsible for maintaining
the operating condition of these parts. Failure
to do so is a violation of the law. For normal
homeowner use, the mufflerandsparkarrest­ing screen will not require any service. After
50 hours of use, we recommend that your
muffler be serviced or replaced by an autho­rized service dealer.

Exposure to vibrations

This unit is equipped

ASSEMBLY

WARNING:

repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.

Examine parts for damage. Do not use dam­aged parts.

NOTE:

missing or damaged, call 1-800-554-6723.
It is normal for the fuel filter to rattle in the

empty fuel tank.
Finding fuel or oil residue on muffler is normal

due to carburetor adjustments and testing
done by the manufacturer.

If you need assistance or find parts

ADJUSTING THE HANDLE

WARNING:

dle, be sure it remains between the trigger
and the safety decal.

1. Loosen handle by turning T--handle/
screw counterclockwise.

2. Rotate the handle on the tube to an upright
position.

3. Adjust handle to a comfortable position
between the trigger and the safety label
on the tube.

4. Retighten handle by turning T--handle/
screw clockwise.

If received assembled,

When adjusting the han-

ATTACHING SHIELD

WARNING:

erly installed. The shieldprovidespartial protec­tion to the operator and others from the risk of
thrown objects, and is equippedwitha line limit­er blade which cuts excess line to the proper
length. The line limiter blade (on underside of
shield) is sharp and can cut you.
For proper orientation of shield, see KNOW
YOURTRIMMER illustration in OPERATION
section.

1. Remove wing nut from shield.

2. Insert bracket into slot as shown.

3. Pivot shield until bolt passes through hole
in bracket.

4. Securely tighten wing nut onto bolt.

Shield

The shield must be prop-

Slot

Bracket

Wing
nut

3

OPERATION

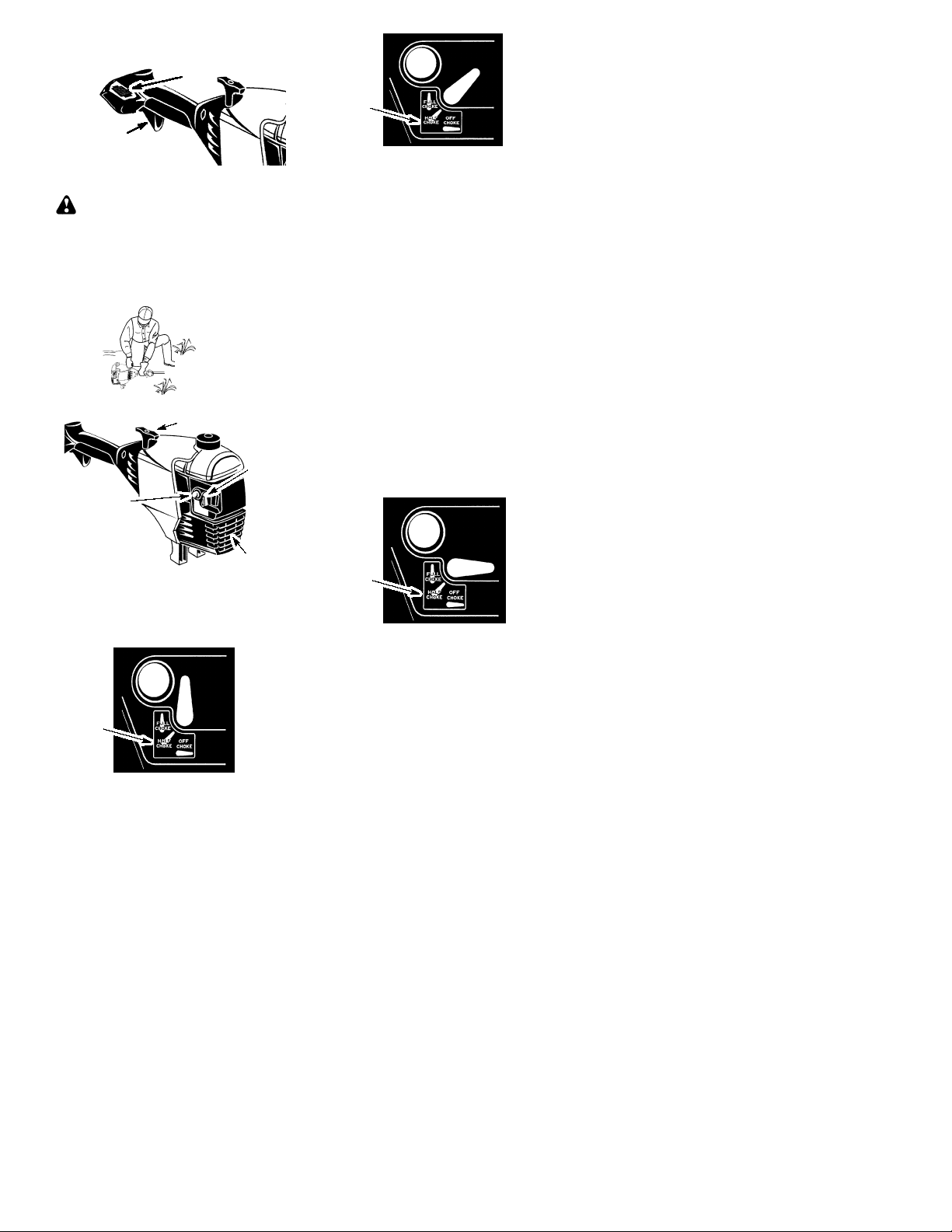

KNOW YOUR TRIMMER

READ THIS INSTRUCTION MANUAL ANDSAFETY RULES BEFORE OPERATING YOUR UNIT .

Comparethe illustrationswithyour unit to familiariz eyourself withthelocation of the variouscontr o ls

and adjustments. Save this manual for future reference.

Assist Handle

Tube

Trimmer
Head

Line Limiter
Blade

Shield

Throttle
Trigger

Choke
Lever

Starter Handle

ON/STOP Switch

Primer Bulb

Muffler

ON/STOP SWITCH

The ON/STOP switch is used to stop the
engine. To stop the engine, push and release
the engine ON/STOP switch.

PRIMER BULB

The PRIMER BULBremovesairfrom the car­buretor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer
bulb by pressing it and allowing it to return to
its original form.

BEFORE STARTING ENGINE

WARNING:

information in the safety rules before you be­gin. If you do not understand the safety rules,
do not attempt to fuel your unit. Call
1-800-554--6723.

Be sure to read the fuel

FUELING ENGINE

WARNING:

when refueling.
This engine is certified to operate on unleaded
gasoline. Before operation, gasoline must be
mixed with a good quality synthetic 2-cycle
air-cooled engine oil designed to be mixed at a
ratio of 40:1. Poulan/Weed Eater brand
synthetic oil is recommended. A 40:1 ratio is
obtained bymixing3.2 ounces (95ml) of oil with
1 gallon (4 liters) of unleaded gasoline.
DO NOT USE automotive oil or boat oil.
These oils will cause engine damage. When
mixing fuel, follow instructions printed on
container. Once oil is added to gasoline,
shake container momentarily to assure that
the fuel is thoroughly mixed. Always read and

Remove fuel cap slowly

CHOKE

The CHOKE helps to supply fuel to the engine
to aid in cold starting. Activate the choke by
moving the choke lever to the FULL CHOKE
position. Afterthe engineattemptsto start, move
the choke lever to the HALF CHOKE position.
Once engine hasstarted,movethe choke lever
to the OFF CHOKE position.

follow the safety rules relating to fuel before
fueling your unit.

IMPORTANT

Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads to
separation and formation of acids during stor­age. Acidic gas can damage the fuel system
of an engine while in storage.
To avoid engine problems, empty the fuel sys­tem before storage for 30 days or longer.
Drain the gas tank, start the engine and let it
run until the fuel lines and carburetor are
empty. Use fresh fuel next season.
Never use engine or carburetor cleaner prod­ucts in the fuel tank or permanent damage
may occur.
See the STORAGE section for additional in­formation.

HOW TO STOP YOUR UNIT

To stop the engine, push and release the

S

engine ON/STOP switch. The switch will
automatically return to the ON position.
Wait 5 seconds before attempting torestart
unit to allow switch to reset.

4

If engine does not stop, move choke lever

S

to FULL CHOKE position.

ON/STOP Switch

Throttle Trigger

HOW TO START YOUR UNIT

WARNING:

turn while starting the engine. Avoid any con­tact with the muffler. A hot muffler can cause
serious burns.

The trimmer head will

STARTING A COLD ENGINE (or a
warm engine after running out of
fuel)

Starting Position

Starter Handle

Choke
Lever

Primer Bulb

Choke
position
decal

7. Pull starter rope sharply until engine runs,
but no more than 6 pulls. If the engine
doesn’t start after 6 pulls (at the HALF
CHOKE position), move the choke lever to
the FULL CHOKE position and press the
primer bulb 6 times. Squeeze and hold the
throttle trigger and pull the starter rope 2
more times. Move the choke lever to the
HALF CHOKE position and pull the starter
ropeuntiltheengineruns, but nomorethan
6 pulls. If the engine doesn’t start, repeat
procedure 2 additional times.

NOTE:

probablyflooded.ProceedtoSTARTING A
FLOODED ENGINE.

8. Once the engine starts, allow it to run 10
seconds, then move the choke lever to
OFF CHOKE by aligning lever with posi­tion shown on decal (see illustration be­low). Allow the unit to run for 30 more se­conds at OFF CHOKE before releasing
the throttle trigger.
dies with the choke lever in the OFF
CHOKE position, move the choke lever
to theHALFCHOKEposition and pull the
rope until engine runs, but no morethan6
pulls.

If engine still doesn’t start, it is

NOTE:

If engine

Muffler

1. Set unit on a flat surface.

2. Slowly press the primer bulb 6 times.

3. Move choke lever to FULL CHOKE by
aligning lever with position shown on de­cal (see illustration below).

Choke
position
decal

4. Squeeze the throttle trigger fully and hold
through

5. Pull starter rope handle sharply until en-

6. As soon asengine sounds as if it istrying

all remaining steps.

gine sounds as ifitis trying to start, but do
not pull rope more than 6 times.

to start, move choke lever to HALF
CHOKE by aligning lever with position
shown on decal (see following illustra­tion).

Choke
position
decal

STARTING A WARM ENGINE

1. Move the choke lever to the HALF
CHOKE position.

2. Squeeze and hold the throttle trigger.
Keep throttle trigger fully squeezed until
the engine runs smoothly.

3. Pull starter rope sharply until engine runs,
but no more than 5 pulls.

4. Allow engine to run 15 seconds, then
movethechokelevertothe OFFCHOKE
position.

NOTE:

er rope 5 more pulls. If engine still does not
run, it is probably flooded.

If engine has not started, pull start-

STARTING A FLOODED ENGINE

Flooded engines can be started by placing
the choke lever in the OFF CHOKE position;
then, pull the rope to clear the engine of ex­cessfuel.Thiscould require pulling the starter
handle many times depending on how badly
the unit is flooded.

5

If the unit still doesn’t start, refer to
TROUBLESHOOTING TABLE or call
1-800-554--6723.

OPERATING POSITION

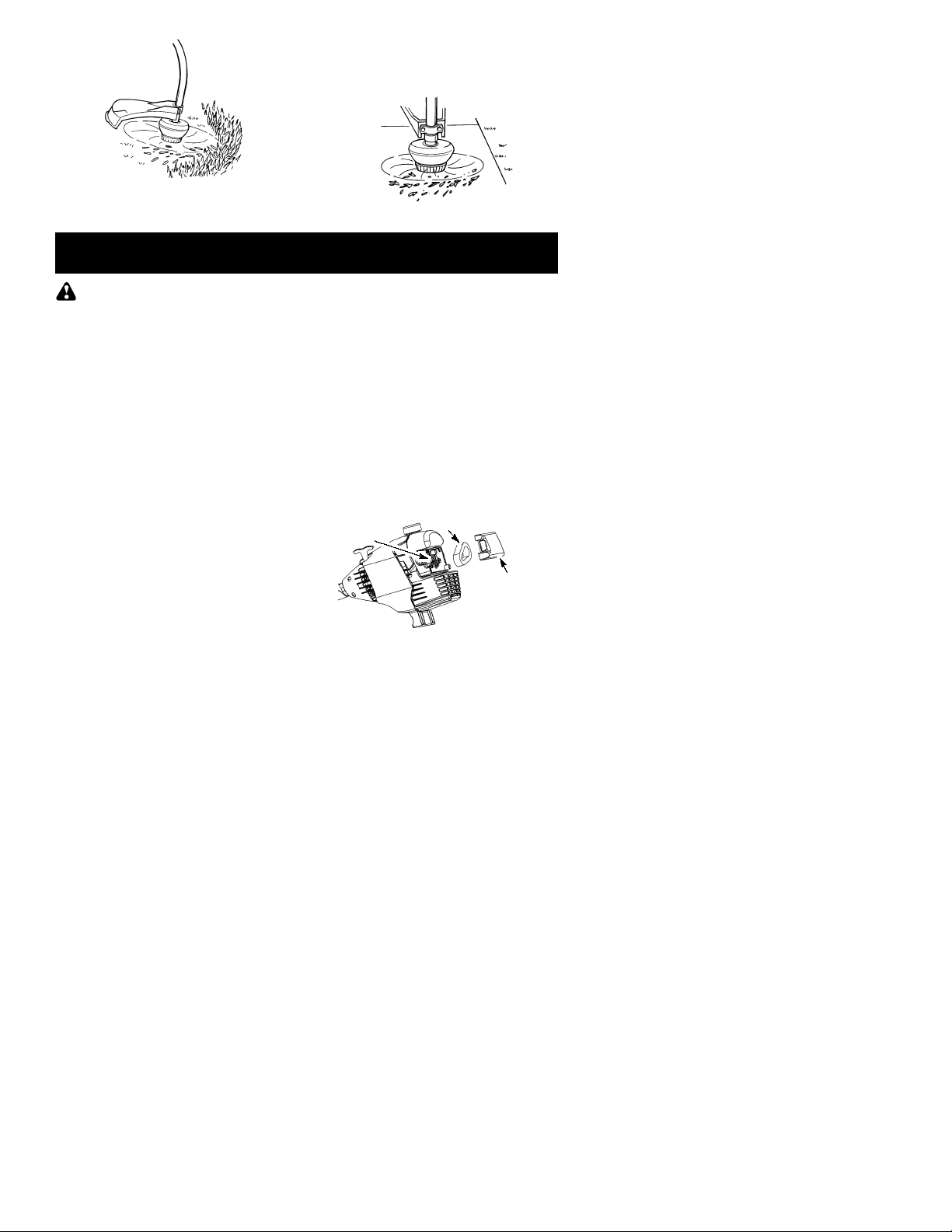

The tip of the line does the cutting. You will

S

achieve the best performance and
minimum line wear bynot crowding the line
into the cutting area. The right and wrong
ways are shown below.

Tip of the Line
Does The Cutting

Line Crowded Into
Work Area

Cut from your left to your right.

WARNING:

tion. Never lean over the trimmer head. Rocks
or debris can ricochet or be thrown into eyes
and face and cause blindness or other serious
injury.

Do not run the engine at a higher speed than
necessary. The cutting line will cut efficiently
when the engine is run at less than full throttle.
At lower speeds, thereis less engine noise and
vibration. The cutting line will last longer andwill
be less likely to “weld” onto the spool.

Always release the throttle trigger and allow
the engine to return to idle speed when not
cutting.

To stop engine:

Release the throttle trigger.

S

Push and release the engine ON/STOP

S

switch.

Always wear eye protec-

TRIMMER LINE ADVANCE

The cutting head advances line automati­cally. Do nottaphead on theground to ad­vance line.

cutting head to malfunction.
Upon unit start up, the line will advance auto­matically to the correct cutting path length.
Always keep the shield in place when the tool
is being operated.

WARNING:

diameter line. Other sizes of line will not ad­vance properly and can cause serious injury.
Do not use other materials such as wire,
string, rope, etc. Wire can break off during
cutting and become a dangerous missile that
can cause serious injury.

This may break parts and cause

Use only 0.080!(2mm)

CUTTING METHODS

Right

The line will easily remove grass and

S

weedsfromaround walls,fences, trees and
flower beds, but it also can cut the tender
bark of trees or shrubs and scar fences.
For trimming or scalping, use less than full

S

throttle to increase line life and decrease
head wear, especially:

During light duty cutting.

S

Near objects around which the line can

S

wrap such as small posts, trees or fence
wire.

Formowingorsweeping, usefull throttle for

S

a good clean job.

TRIMMING

head about 3 in. (8 cm) above the ground and
at an angle. Allow only the tip of the line to
make contact. Do not force trimmer line into
work area.

Trimming

3in.(8cm)
Above Ground

SCALPING

moves unwanted vegetation. Hold the bottom
of the trimmer head about 3 in. (8 cm) above
the ground and atanangle. Allow thetipofthe
line to strike the ground around trees, posts,
monuments, etc. This technique increases
line wear.

Scalping

-- Hold the bottom of the trimmer

-- The scalping technique re-

Wrong

WARNING:

and donotcrowdthe line when cutting around
hard objects (rock, gravel, fence posts, etc.),
whichcandamage the trimmer head, become
entangled in the line, or be thrown causing a
serious hazard.

Use minimum speed

MOWING

in places conventional lawn mowers cannot
reach. In the mowing position, keep the line
parallel to the ground. Avoid pressing the
head into the ground as this can scalp the
ground and damage the tool.

-- Your trimmer is ideal for mowing

6

Mowing

SWEEPING

ing line can be used for a quick and easy
clean up. Keep the line parallel to and above
the surfaces being swept and move the tool
from side to side.

Sweeping

MAINTENANCE

-- The fanning action of the rotat-

WARNING:

plug before performing maintenance except
for carburetor adjustments.

Disconnect the spark

CHECK FOR LOOSE
FASTENERS AND PARTS

Spark Plug Boot

S

Air Filter

S

Housing Screws

S

Assist Handle Screw

S

Debris Shield

S

CHECK FOR DAMAGED OR
WORN PARTS

Contact an authorized service dealer for re­placement of damaged or worn parts.

ON/STOP Switch -- Ensure ON/STOP

S

switch functions properly by pushing and
releasing the switch. Make sure engine
stops. Wait 5 seconds before attempting to
restart unit to allow switch to reset. Restart
engine and continue.
Fuel Tank -- Discontinue use of unit if fuel

S

tank shows signs of damage or leaks.
Debris Shield -- Discontinue use of unit if

S

debris shield is damaged.

INSPECT ANDCLEANUNIT ANDDE­CALS

After each use, inspect complete unit for

S

loose ordamaged parts. Clean the unit and
decals using a dampcloth with amilddeter­gent.
Wipe off unit with a clean dry cloth.

S

CLEAN AIR FILTER

A dirty air filter decreases engine perform­ance and increases fuel consumption and
harmful emissions. Always clean after every
5 hours of operation.

1. Clean the cover and the area around it to
keep dirt from falling into the carburetor
chamber when the cover is removed.

2. Remove parts by pressing button to re­lease air filter cover.

NOTE:

producing harmful evaporative emissions, do
not clean filter in gasoline or other flammable
solvent.

3. Wash the filter in soap and water.

4. Allow filter to dry.

5. Add a few drops of oil to the filter;

6. Replace parts.

To avoid creating a fire hazard or

squeeze the filter to distribute oil.

Button

Air Filter

Air Filter
Cover

REPLACE SPARK PLUG

Replace the spark plug each year to ensure
the engine starts easier and runs better. Set
spark plug gap at 0.025 in. Ignition timing is
fixed and nonadjustable.

1. Twist, then pull off spark plug boot.

2. Remove spark plug from cylinder and
discard.

3. Replace with Champion RCJ-6Y spark
plug and tighten securely with a 3/4 inch
socket wrench.

4. Reinstall the spark plug boot.

7

SERVICE AND ADJUSTMENTS

REPLACING THE LINE

Pre--wound spools offer the most convenient
method for replacing line and ensuring opti­mum performance.

Replacement spools are color--coded to

S

ensure use of the correct spool with your
unit. Be suretousethe samecolorspoolas
the existing spool.

NOTE:

cutting head components when performing
any type of maintenance.

S

S

NOTE:

ensure dust cup remains installed over shaft.

Use a pre--wound spool or refill spool with
line. If usingapre--wound spool, removetape
strip from line and spool.

Always clear dirt and debris from

Hold spool and unscrew cap by turning in
the direction shown on top of the cap.
Remove line guide ring and spool.

Whenremoving and/orinstallingspool,

REFILLING THE SPOOL WITH LINE

WARNING:

diameter round line.

of line willnotadvanceproperly and will resultin
impropercutting headfunctionor can cause se­rious injury. Do not use other materials such as
wire, string, rope, etc. Wire can break off during
cutting and become a dangerous missile that
can cause serious injury.

1. Cut alength of 30 feet of .080” (2 mm) di­ameter round Poulan PRO"brand line.

Use only 0.080” (2 mm)

Other sizes and shapes

Feed line in
direction
shown on
spool.

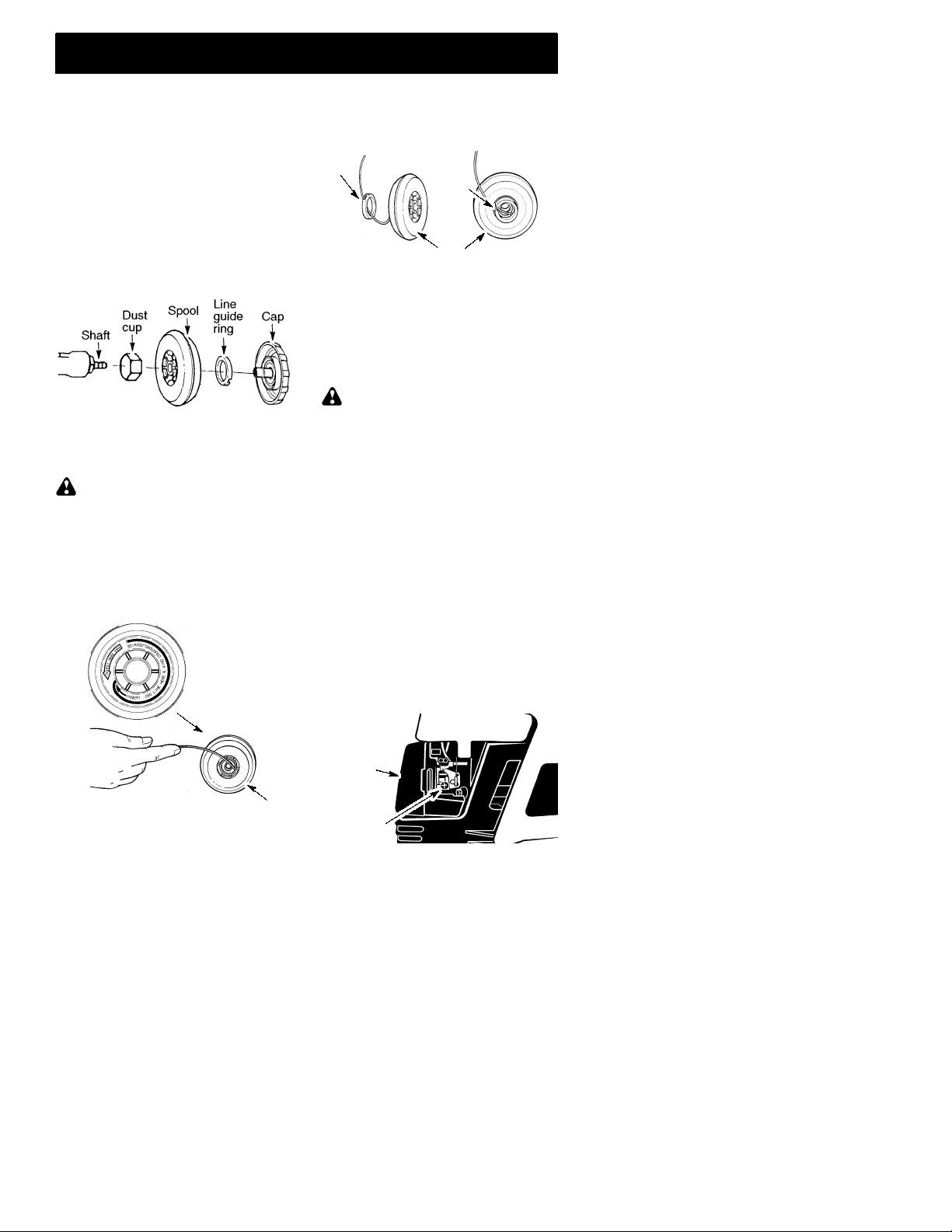

INSTALLING SPOOL WITH LINE

1. Install replacement spool.

2. Thread line through line guide ring.
Line through guide ring

Slot

Replacement Spool

3. Rest guide ring on spool and place line in

slot. Allow line to extend 4 -- 6 inches (10

-- 15 cm) from center of spool.

4. Ensure line remains in slot while screw-

ing caponto the shaft.

hand tight!

Only tighten cap

CARBURETOR ADJUSTMENT

WARNING:

making idle speed adjustments. The trimmer
head will be spinning during this procedure.
Wear your protective equipment and observe
all safety precautions.

The carburetor has been carefully set at the
factory. Adjustments may benecessary ifyou
notice any of the following conditions:

Engine will not idle when the throttle is

S

released.
Make adjustments with the unit supported so
the cutting attachment is off the ground and
will not make contact with any object. Hold
the unit byhandwhilerunningandmakingad­justments. Keep all parts of your body away
from the cutting attachment and muffler.

Keep others away when

Idle Speed Adjustment

Allow engine to idle. Adjust speed until engine
runs without stalling (idle speed too slow).

Turn idle speed screw clockwise to

S

increase engine speed if engine stalls or

dies.

Turn idle speed screw counterclockwise to

S

decrease engine speed.

Spool

2. Insert one end of line into center cavity of
empty spool. Ensure line will feed into
spool in the direction shown on the spool
(counterclockwise).

3. Continue feeding line into spool, leaving 4

-- 6 inches (10 -- 15 cm) unwound from
center of spool.

Air Filter
Cover

Idle Speed

Screw

If yourequire further assistance or areunsure
about performing this procedure, contact an
authorized service dealer or call
1--800--554--6723.

8

STORAGE

WARNING:

steps after each use:

Allow engine to cool before storing or trans-

S

porting.
Store unit and fuel in a well ventilated area

S

where fuel vapors cannot reach sparks or
open flames from water heaters, electric
motors or switches, furnaces, etc.
Store unit with all guards in place. Position

S

unit so that any sharp object cannot acci­dentally cause injury.
Store unit and fuel well out of the reach of

S

children.

SEASONAL STORAGE

Prepare unit for storage at end of season or if
it will not be used for 30 days or more.
If your unit is to be stored for a period of time:

Clean the entire unit before lengthy

S

storage.
Store in a clean dry area.

S

Lightly oil external metal surfaces.

S

FUEL SYSTEM

Under FUELING ENGINE in the OPERA­TION section of this manual, seemessagela­beledIMPORTANT regarding the use of ga­sohol in your engine.

Perform the following

Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits
during storage. Add stabilizer to the gasoline
in the fuel tank or fuel storage container. Fol­low the mix instructions found on stabilizer
container. Run engine at least 5 minutes after
adding stabilizer.

ENGINE

Remove spark plug and pour 1 teaspoon of

S

40:1, 2-cycleengine oil (air cooled) through
the spark plug opening. Slowly pull the
starter rope 8 to 10 times to distribute oil.
Replace spark plug with new one of recom-

S

mended type and heat range.
Clean air filter.

S

Check entire unit for loose screws, nuts,

S

and bolts. Replace any damaged, broken,
or worn parts.
At the beginning of the next season, use

S

only fresh fuel having the propergasoline to
oil ratio.

OTHER

Do not store gasoline from one season to

S

another.
Replace your gasoline can if itstarts torust.

S

9

TROUBLESHOOTING TABLE

WARNING:

recommended remedies below except remedies that require operation of the unit.

Always stop unitanddisconnect spark plugbeforeperforming all ofthe

TROUBLE CAUSE REMEDY

Engine will not
start.

Engine will
not idle
properly.

Engine will not
accelerate,
lacks power,
or dies under
a load.

Engine
smokes
excessively.

Engine runs
hot.

1. Engine flooded.

2. Fuel tank empty.

3. Spark plug not firing.

4. Fuel not reaching
carburetor.

5. Carburetor requires
adjustment.

1. Carburetor requires
adjustment.

2. Crankshaft seals worn.

3. Compression low.

1. Air filter dirty.

2. Spark plug fouled.

3. Carburetor requires
adjustment.

4. Carbon build-up on
muffler outlet screen.

5. Compression low.

1. Choke partially on.

2. Fuel mixture incorrect.

3. Air filter dirty.

4. Carburetor requires
adjustment.

1. Fuel mixture incorrect.

2. Spark plug incorrect.

3. Carburetor requires
adjustment.

4. Carbon build-up on
muffler outlet screen.

1. See “Starting a Flooded Engine” in
Operation Section.

2. Fill tank with correct fuel mixture.

3. Install new spark plug.

4. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.

5. Contact an authorized service dealer.

1. See “Carburetor Adjustment” in
Service and Adjustments Section.

2. Contact an authorized service dealer.

3. Contact an authorized service dealer.

1. Clean or replace air filter.

2. Clean or replace plug
and regap.

3. Contact an authorized service dealer.

4. Contact an authorized service dealer.

5. Contact an authorized service dealer.

1. Adjust choke.

2. Empty fuel tank and refill with
correct fuel mixture.

3. Clean or replace air filter.

4. Contact an authorized service dealer.

1. See “Fueling Engine” in Operation
section.

2. Replace with correct spark plug.

3. Contact an authorized service dealer.

4. Contact an authorized service dealer.

10

LIMITED WARRANTY

ELECTROLUX HOME PRODUCTS, INC.,

warrants to the original purchaser that each

Poulan PRO

new
tachment is free from defects in material and
workmanship and agrees to repair or replace
under this warranty any defective gasoline
product or attachment as follows from the
original date of purchase.

2 YEARS

household purposes.

90 DA YS

commercial, professional, or income produc­ing purposes.

30 DAYS

purposes.
This warranty isnottransferable and does not
cover damage or liability caused by improper
handling, improper maintenance, or the use
of accessories and/or attachments not spe­cifically recommended by

HOME PRODUCTS, INC.,

tionally, this warranty does not cover tune­ups, spark plugs, filters, cutting line, or rotat­ing head parts that will wear and require
replacement with reasonable use during the
warranty period. This warranty does not cov-

-- Parts and Labor, when used for

-- Parts and Labor, when used for

-- Parts and Labor, if used for rental

brand gasoline tool or at-

""""

ELECTROLUX

for this tool. Addi-

U.S. EPA

EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGA­TIONS:

Agency and ELECTROLUX HOME PROD­UCTS, INC., are pleased to explain the emis­sions control system warranty on your year
2002--2004 small off- -road engine. ELECTRO­LUX HOME PRODUCTS, INC., must warrant
the emission control system on your small off-­road engine for the periods of time listed below
provided there has been no abuse, neglect, or
improper maintenance of your small off--road
engine. Y our emission control system includes
parts such as the carburetor and the ignition
system. Where a warrantable condition exists,
ELECTROLUX HOME PRODUCTS, INC., will
repair your small off--road engine at no cost to
you. Expenses covered underwar rantyinclude
diagnosis, parts and labor.

ER’S WARRANTY COVERAGE:

sions related part on your engine (as listed un­der Emissions Control Warranty Parts List) is
defective or a defect in the materials or work­manshipoftheenginecauses the failureofsuch
anemissionrelatedpart,the partwillbe repaired
or replaced by ELECTROLUX HOME PROD­UCTS, INC.

SPONSIBILITIES:

gine owner , you are responsible for the
performanceof the required maintenance listed
in your instruction manual. ELECTROLUX
HOME PRODUCTS, INC., recommends that
you retain all receipts covering maintenance on
your small off--road engine, but ELECTROLUX
HOME PRODUCTS, INC., cannot deny war­ranty solely for the lack of receipts or for your

The U. S. Environmental Protection

MANUFACTUR-

If any emis-

OWNER’S WARRANTY RE-

As the small off--road en-

er predelivery setup or normal adjustments
explained in the instruction manual.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EX­PRESSLY STIPULATED HEREIN.
SOME STATES DO NOT ALLOW LIMITA­TIONS ON HOW LONGANIMPLIED WAR­RANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CON­SEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSION MAY NOT
APPLY TO YOU.
The policy of

UCTS, INC.,

products. Therefore,

PRODUCTS, INC.,

change, modify, or discontinue models, de­signs, specifications, and accessories of all
products at any time without notice orobliga­tion to any purchaser.

failure to ensure the performance of all sched­uled maintenance. As the small off--road en­gine owner, you should be aware that ELEC­TROLUX HOME PRODUCTS, INC., may deny
you warranty coverage if your small off- -road
engine ora part ofithas failed due toabuse,ne­glect, impropermaintenance, unapproved mod­ifications, or the use of parts not made or ap­proved by the original equipment manufacturer .
You are responsible for presenting your small
off--road engine to an ELECTROLUX HOME
PRODUCTS, INC., authorized repair center as
soon as a problem exists. Warranty repairs
should be completed in areasonableamount of
time, not to exceed 30 days. If you have any
questionsregar dingyourwar r antyrights andre­sponsibilities, you should contact your nearest
authorized service center or call ELECTRO­LUX HOME PRODUCTS, INC., at
1--800--554--6723.

MENCEMENT DATE:

gins on the date the small off--road engine is
purchased.
warranty shall be for a period of two years from
the initial date of purchase.

ERED: REPAIR OR REPLAC EM ENT OF
PARTS.

rantedpartwill be performedat no charge to the
owner at an approved ELECTROLUX HOME
PRODUCTS, INC., servicing center. If you
have any questions regarding your warranty
rights and responsibilities, you should contact
your nearest authorized service center or call
ELECTROLUX HOME PRODUCTS, INC., at
1--800--554--6723.

ELECTROLUX HOME PROD-

is to continuously improve its

ELECTROLUX HOME

reserves the right to

WARRANTY COM-

The warrantyperiodbe-

LENGTH OF COVERAGE:

WHA T IS COV-

Repair or replacement of any war-

WARRANTY PERIOD:

11

This

Any

warranted part which is not scheduled for re­placement asrequired maintenance, orwhichis
scheduled only for regular inspection to the ef­fect of “repair or replace as necessary” shall be
warrantedfor 2years. Anywarr antedpart which
is scheduled for replacement as required main­tenance shallbewarrantedforthe periodoftime
up to the first scheduled replacement point for
that part.
charged for diagnostic labor which leads to the
determination that a warranted part is defective
if the diagnostic work is performed at an ap­proved ELECTROLUX HOME PRODUCTS,
INC., servicing center.

DAMAGES:

UCTS,INC.,may be liablefordamages toother
engine components caused by the failure of a
warranted part still under warranty.

NOTC OVERED:

neglect, or improper maintenance are not cov­ered.
useofadd--on ormodifiedpartscan be grounds
for disallowing a warranty claim. ELECTRO­LUX HOME PRODUCTS, INC., is not liable to
cover failures of warranted parts caused by the

This engine is certified to be emissions compliant for the following use:

DIAGNOSIS:

ELECTROL UX HOME PROD-

ADD--ON OR MODIFIED PARTS:

Moderate (50 hours)
Intermediate (125 hours)
Extended (300 hours)

The owner shall not be

CONSEQUENTIAL

All failures caused by abuse,

WHA T IS

useofadd--onormodifiedparts.

ACLAIM:

your warranty rights and responsibilities, you
should contact your nearest authorized service
center or call ELECTROLUX HOME PROD­UCTS, INC., at 1--800--554--6723.

GET WARRANTY SERVICE:

vices or repairs shall be provided at all ELEC­TROLUX HOME PRODUCTS, INC., service
centers. Call 1--800--554--6723.

NANCE, REPLACEMENT AND REPAIR OF
EMISSION RELATED PARTS:

TROLUX HOME PRODUCTS, INC., approved
replacement part used in the performance of
any warranty maintenance or repair on emis­sion related parts will be provided without
chargetothe owner ifthe partisunder warranty.

EMISSION CONTROL WARRANTY PARTS
LIST:

(covered up to maintenance schedule), Ignition

The

Module.
owner is responsible for the performance of all
required maintenance as defined in the in­struction manual.

If you have any questions regarding

Carburetor, Ignition System: Spark Plug

MAINTENANCE STATEMENT:

HOW TOFILE

WHERE TO

Warranty ser-

MAINTE-

Any ELEC-

The

12
