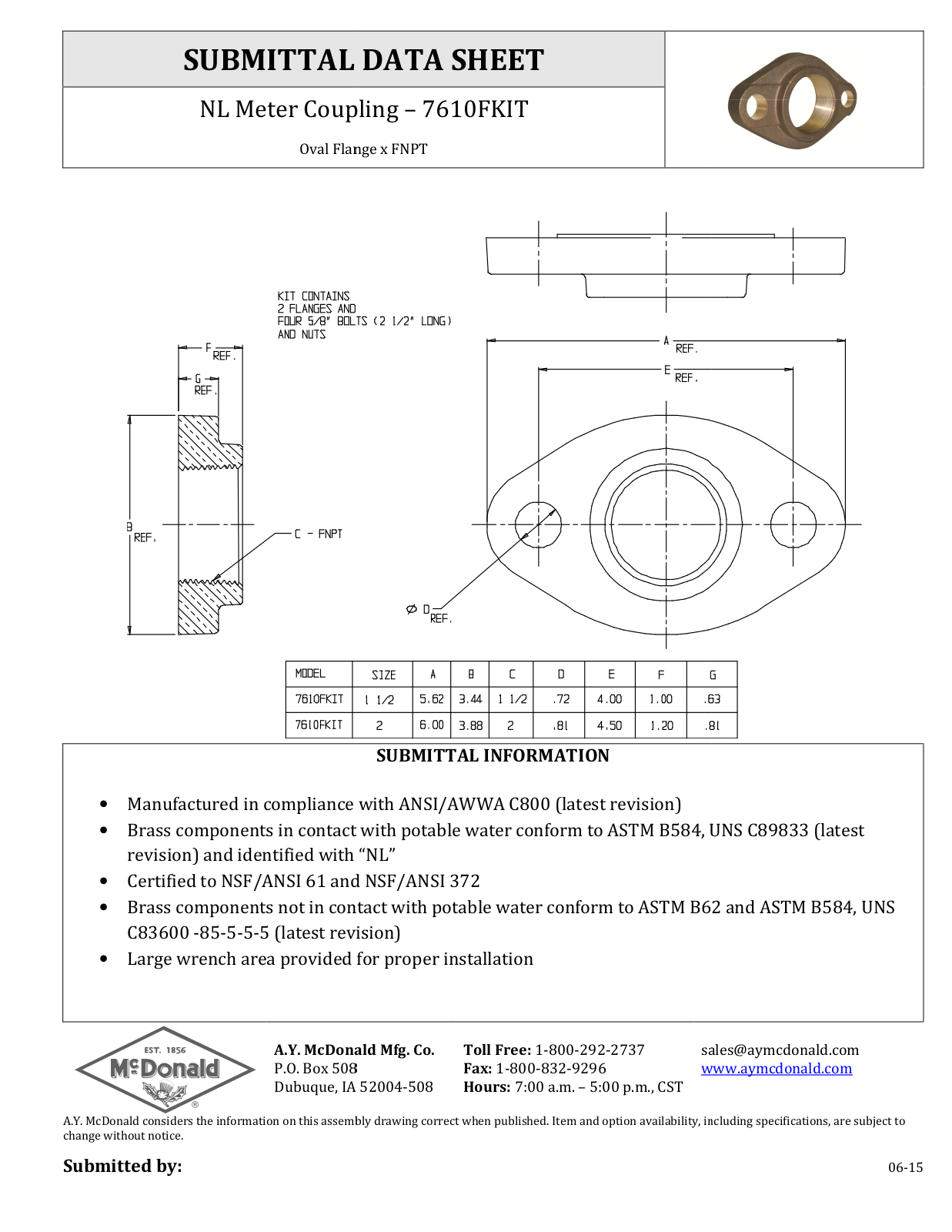

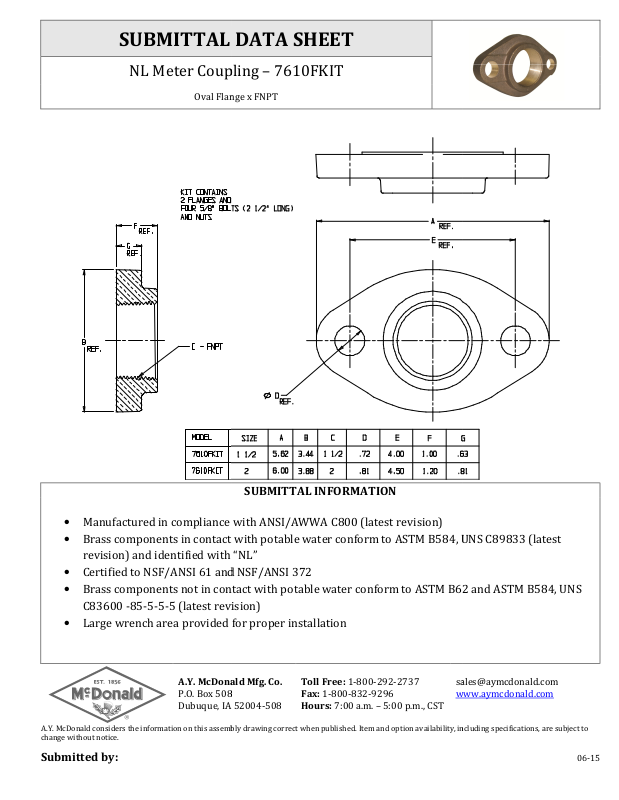

SUBMITTAL DATA SHEET

Meter Coupling

Oval Flange x FNPT

Manufactured in compliance with ANSI/AWWA C800 (latest revision)

Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest

revision) and identified with “NL”

and NSF/ANSI 372

Brass components not in contact with potable water conform to ASTM B62 and ASTM B584, UNS

5 (latest revision)

Large wrench area provided for proper installation

A.Y. McDonald Mfg. Co.

P.O. Box 508

Dubuque, IA 52004

information on this assembly drawing correct when published. Item and option availability, including specifications, are subj

[e-mail]

www.aymcdonald.com

NL

– 7610FKIT

•

•

• Certified to NSF/ANSI 61

•

C83600 -85-5-5-

•

A.Y. McDonald considers the
change without notice.

Submitted by:

SUBMITTAL INFORMATION

-508

Toll Free: 1-800-292-2737
Fax: [phone]
Hours: 7:00 a.m. – 5:00 p.m., CST

ect to

06-15
