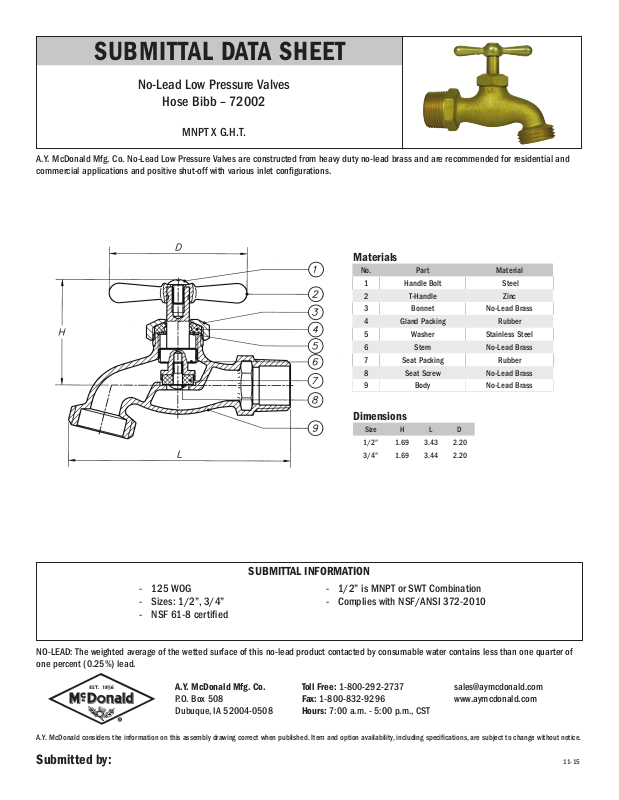

SUBMITTAL DATA SHEET
No-Lead Low Pressure Valves
Hose Bibb – 72002
MNPT X G.H.T.
A.Y. McDonald Mfg. Co. No-Lead Low Pressure Valves are constructed from heavy duty no-lead brass and are recommended for residential and
commercial applications and positive shut-off with various inlet congurations.
Materials
No. Part Material
1 Handle Bolt Steel
2 T-Handle Zinc
3 Bonnet No-Lead Brass
4 Gland Packing Rubber
5 Washer Stainless Steel
6 Stem No-Lead Brass
7 Seat Packing Rubber
8 Seat Screw No-Lead Brass
9 Body No-Lead Brass
Dimensions
Size H L D
1/2” 1.69 3.43 2.20
3/4” 1.69 3.44 2.20
SUBMITTAL INFORMATION
- 125 WOG
- Sizes: 1/2”, 3/4”
- NSF 61-8 certied
NO-LEAD: The weighted average of the wetted surface of this no-lead product contacted by consumable water contains less than one quarter of
one percent (0.25%) lead.
A.Y. McDonald Mfg. Co. Toll Free: 1-800-292-2737 sales@aymcdonald.com
P.O. Box 508 Fax: 1-800-832-9296 www.aymcdonald.com
Dubuque, IA 52004-0508 Hours: 7:00 a.m. - 5:00 p.m., CST
- 1/2” is MNPT or SWT Combination
- Complies with NSF/ANSI 372-2010
A.Y. McDonald considers the information on this assembly drawing correct when published. Item and option availability, including specications, are subject to change without notice.
