USERS MANUAL
CFP19 Family
Panel Mount
Rack Mount
VESA Wall Mount
LCD Monitor User Guide
150-CFP-190(-)
Contents
Section 1 Display Set-up
Product Safety Precautions ................................................................................................ 3
Included Parts .................................................................................................................... 3
Connecting Your Display .................................................................................................... 4
Section 2 Getting Started
Display Features ................................................................................................................. 5
Adjusting the Display .......................................................................................................... 5
Keyboard Layout & Functions ........................................................................................... 5
Section 3 Touch Screen Set-up
Introduction to Touch Screen ........................................................................................... 10
Touch Screens Provided .................................................................................................. 10
Touch Screens and Special Drivers ................................................................................. 10
Section 4 Mounting Instructions
Panel Mounting................................................................................................................. 11
Rack Mounting.................................................................................................................. 11
VESA Wall Mounting ........................................................................................................ 11
Section 5 Touble Shooting Tips
Section 6 Cleaning and Maintenance
Section 7 Appendices ................................................................................................................. 15
Appendix A - VGA Pin Assignments................................................................................. 15
Appendix B - RS-232 Pin Assignments ............................................................................ 15
Appendix C - DVI Video Pin Assignments........................................................................ 16
Appendix D - S-Video Pin Assignments ........................................................................... 16
Appendix E - NTSC Pin Assignments............................................................................... 16
Appendix F - General Specifications ................................................................................ 17
Appendix G - Supported Video Modes ............................................................................. 18
Appendix H - Mounting Dimensions ................................................................................. 20
............................................................................................................... 3
.............................................................................................................. 5
.................................................................................................. 10
.............................................................................................. 11
................................................................................................. 12
........................................................................................ 14
150-CFP-190(-) 2
Display
1
Setup
Section
Product Safety Precautions
Safety Precautions
CAUTION: SHUT OFF YOUR TOUCH SCREEN BEFORE CLEANING!!
IF YOUR DISPLAY HAS A TOUCH SCREEN PANEL, THE SCREEN WILL BE ACTUATED BY
CLEANING. PRESSING ON THE SCREEN WHILE CLEANING WILL BE SEEN AS A TOUCH
TO THE SYSTEM WHICH COULD CREATE A POTENTIALLY DANGEROUS CONDITION!
• Do not attempt to service this display yourself. The rear chassis has a seal so that
non-qualified personnel will not expose themselves to dangerous voltages or other
risks.
• To protect from electrical shock, unplug the display power supply from the wall before
moving.
• Do not use this display near water.
• Do not place any heavy objects on the power cords. Damage may cause electrical
shock.
• Unplug the power supply from the wall or unit if one of the following conditions exists:
o Power cord or plug is damaged or frayed.
o Liquid is spilled into the display or the display is exposed to rain or water.
o The display does not operate normally when the operating instructions are
followed.
o The display has been dropped or the enclosure has been damaged.
o The display exhibits a distinct change in performance, indicating a need for service.
• Ensure that sufficient space is available around the display to provide air circulation for
cooling.
• Ensure that the ambient air temperature will not exceed the specified maximum
temperature.
Included Parts
Open shipping container and lay all components on a flat clean surface.
Your LCD monitor package will consist of the primary components listed below:
• Do not expose the display to direct sunlight or heat.
• LCD Monitor
• 6 ft Video Cable
• 6 ft AC Power Cord
• 6 ft RS-232 Touch Interface Cable (touch screen units only)
• 6 ft USB Touch Interface Cable (touch screen units only)
• Suitable Mounting Hardware (for use with Panel Mount or Rack Mount)
• Documentation and Driver CD ROM
• Users Manual
150-CFP-190(-) 3
Connecting Your Display
1. Connect all cables to the computer first. This includes the VGA cable, and if the unit has a touch screen,
the RS-232 serial or the USB touch screen connection.
2. After connecting the cables between the LCD monitor and the computer, connect the supplied AC
Power Cord to a suitable power source.
3. The LCD will immediately power up.
4. If your computer is off, turn on your computer.
5. Your display should now operate as a normal computer display – displaying the computers BIOS
screens and booting into Windows or other operating system.
NOTE: If for any reason the display goes blank and/or displays an “Out of Range” or “No Input Signal”
message on the screen, your computer or video source may be putting out a signal that is incompatible
with the LCD monitor. If this happens, you will need to adjust the computer to output a compatible video
signal (see Appendix G).
Below are the most common reasons a display may not operate correctly:
1. The resolution is too high or low for the LCD or wrong sync signal configuration is provided.
2. The refresh rate is set too high. Refresh on an LCD is different than a CRT. Set the refresh to
60Hz. CRT’s need a high refresh rate to avoid flicker. The refresh rate has no impact on an LCD.
3. The power source is incorrect, or there is no power. Check if the rear LED is ON or blinking. If the
LED is not lit, check to be sure there is power to the unit.
4. The unit is malfunctioning. If you believe this to be true, disconnect the video cable from the rear
of the LCD and connect to a known good display. If an alternate display operates correctly, and
the video is in a compatible range then contact Aydin Displays, Inc. technical support.
150-CFP-190(-) 4
Getting
2
Section
Started
Display Features
• The LCD is capable of displaying 16.7M colors in a continuous spectrum.
• The high contrast LCD enhances the image with no geometric distortion.
• The LCD directly accepts an Analog 3, 4 or 5 Wire RGB with sync input.
• The LCD is auto synchronous – adjusting the display to the appropriate
VGA/SXGA input.
• The LCD is supplied with an Anti-Glare Touch Screen or an Anti-Glare impact
window on non touch screen models.
Adjusting the Display
The LCD display has an embedded microprocessor in the converter card which is the
electronics that drives the LCD. In most cases the unit will require very little, if any, user
intervention to operate correctly - that is to produce a sharp stable picture. The
micoprocessor in the display has the capability to adjust itself to the computer to which it is
attached. If the picture is not satisfactory, the first step is to allow the unit to attempt to adjust
itself to your computer.
The membrane keypad used for adjusting the display is below:
Keyboard Layout & Functions

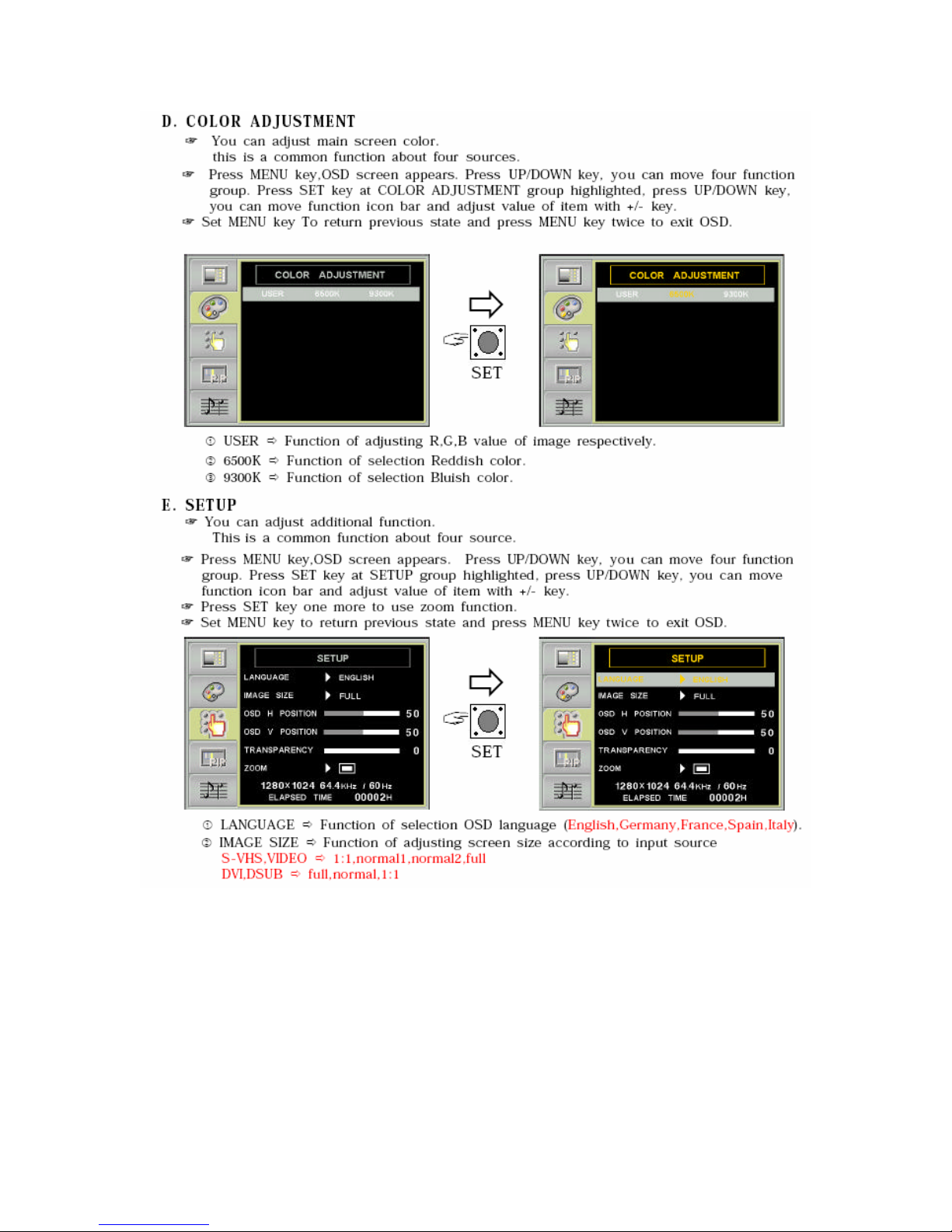

1. With the OSD off, push the Menu button to activate the main OSD Menu.
2. Use the Up/Down buttons to move from one function to another. As you move from
one icon to another, the function name changse to reflect the function or group of
functions represented by the icon.
3. Press the Set button once to activate the highlighted function. Use the Up/Down
buttons to select the function.
4. After selecting a function, use the – or + buttons to make necessary adjustments.
The setting bar moves and the numeric value indicator changes to reflect the
adjustment.
NOTE: The numeric value indicator is provided as a point of reference only and has
no refernce to a real meaurement.
150-CFP-190(-) 5
5. Push the Menu button a couple of times to return to the Main Menu to slect another
function or to exit from the OSD.
150-CFP-190(-) 6
150-CFP-190(-) 7
150-CFP-190(-) 8
150-CFP-190(-) 9
Touch Screen
3
Set-up
Section
Introduction to Touch Screens
Touch screen interfaces have become the standard interface in the past 5 years. They are
rugged, reliable, extremely flexible and easier than ever to implement! The universal
acceptance of the Windows GUI (Graphical User Interface) along with the extensive use of a
mouse interface has significantly accelerated the use of a touch interface. Think of your touch
screen as if it were a mouse.
Touch Screens Provided
5 Wire Resistive RS-232 or USB
Capacitive RS-232 or USB
SAW RS-232 or USB
Touch Screens and Special Drivers
Software drivers for touch screen systems are provided in the Aydin Displays, Inc.
accessory kit. It is always good to download the latest drivers from the respective web
sites.
Refer to the individual manufacturer’s documentation or contact the manufacturer to
obtain special drivers:
3M Touch
Additional drivers, manuals and instructions for touch systems can be found at:
www.3m.com/3mtouchsystems
Touch International
Additional drivers, manuals and instructions for touch systems can be found at:
www.touchintl.com
ELO Touch
Additional drivers, manuals and instructions for touch systems can be found at:
www.elotouch.com/support/dnld.asp
Follow the manufacturer’s instructions for installing special drivers.
150-CFP-190(-) 10
4
Mounting
Section
Instructions
Panel Mounting Procedure
1. Cut and drill the panel to the proper size (see panel cutout in Appendix H).
Measurements are shown in inches.
2. If access to the side of monitor is not available following installation, attach the
power and video cables to the side of the monitor at this time.
3. Install the monitor in the prepared cutout.
4. Install the washers and lock nuts.
5. Tighten all mounting nuts evenly to approximately a torque of 24 inch-pounds.
ATTENTION: Mounting nuts must be tightened to a torque of approximately 24 inchpounds to provide panel seal and avoid potential damage. Aydin Displays, Inc.
assumes no responsibility for water or chemical damage to the monitor or other
equipment within the enclosure due to improper installation.
6. Attach the power, video and touch screen cables (if applicable) to the side of the
monitor.
Rack Mounting Procedure
1. Position the monitor to the proper position in the rack.
2. Install the screws. Tighten all mounting screws evenly to approximately a torque
of 23 inch-pounds.
3. Attach the power, video and touch screen cables (if applicable) to the side of the
monitor.
4. If access to the side of the monitor is not available following the installation,
attach the power and video cables to the side of the monitor at the same time
VESA Wall Mounting Procedure
The monitor is a self contained, rugged, industrial, aluminum metal enclosure. The rear
of the unit has 4 100mm 10/32” holes for mounting hardware from an external arm or
stand or special feature.
1. Position the monitor on the face being careful not to scratch the front.
2. Attach the 100mm bracket supplied with arm kit.
3. Install the arm based on the instructions supplied with the arm.
4. Attach the power, video and touch screen cables to the under side of the monitor.
150-CFP-190(-) 11
No picture
Image persistence
Picture quality & image
stability
Green LED not lit
Troubleshooting
5
Section
Tips
The signal cable should be properly connected to the
display and computer.
Try disconnecting the video cable from the display and
connecting to another display if available to confirm the
presence of proper video.
Make sure the power is connected to the proper AC source.
Make sure the resolution mode is supported by the display
and check display settings of the PC.
Confirm that the video cable is not defective.
Image persistence occurs when a ghost of an image remains
on the screen after the screen image has been changed.
Unlike a CRT monitor, an LCD monitor’s image persistence is
not permanent. To erase an image ghost, turn the monitor off
for several hours. What happens is that after extended
periods of operation the liquid crystals “set”. To avoid this
condition, install a screen saver program on the computer.
Check for proper video cable for proper grounding and
shielding.
Check the signal source for proper signal.
Check for proper adjustment of the phase and frequency
controls.
Check for proper recommended signal timing.
Check for proper power and power connections.
150-CFP-190(-) 12
Display image is not
properly sized
Press the “Select” button to Auto Adjust the display.
Adjust the Vertical and Horizontal size controls via the OSD
(reference OSD Adjustments).
Ensure that a supported mode is selected on the display card
or system being used. Consult the display card or system
Image will not adjust
Slight distortion in text or
manual for proper video.
Video timing outside of range.
Use the on-screen menu to adjust the Clock Setting.
Make sure timing is within VESA standard.
Not working in native resolution.
graphics
Display is present but
“bars” appear or roll across
screen
Ground loop problem between computer and display.
Interference from adjacent equipment.
Vertical shaded bars on
screen image
Horizontal size is not properly adjusted. Adjust horizontal
size.
Image is not stable Monitor has incorrect or bad sync signals.
Check for proper video cable installation.
Replace suspected faulty cable.
Check to ensure that the video source is within the display’s
operating range.
150-CFP-190(-) 13
6
Cleaning &
Section
Maintenance
Cleaning
Occasionally clean the display panel and cabinet with a soft cloth dampened (not soaked)
with a mild (non-abrasive) glass cleaner. Keep turning a fresh side of the cloth toward the
screen surface to avoid scratching it with accumulated grit.
NOTE: The solvent should be applied only to the cloth, NOT directly on the monitor screen.
Do not use paper products as they may scratch the surface. To minimize the risk of abrasion,
allow the screen to air dry. Special care should be taken when cleaning a touch screen or
polycarbonate shield that is installed over the screen. Abrasive and certain chemical cleaners
can damage the surface.
Never use alcoholic or ammoniac cleaners to clean the polycarbonate shield or a touch
screen.
Replacing a Line Cord
To avoid shock and fire hazards, the monitor’s power cord should be replaced if the insulation
becomes broken or if it develops a loose internal connection.
Other Maintenance
Qualified service personnel should perform all maintenance, except for the power cord
replacement described above.
150-CFP-190(-) 14
7
Section
Appendices
Appendix A – Video Pin Assignments
Pin assignments for the HD15 Video Connector
Pin 1 Red Video Pin 9 No Connection
Pin 2 Green Video Pin 10 Sync Ground
Pin 3 Blue Video Pin 11 Not Used
Pin 4 Not Used Pin 12 Bi-Directional Data
Pin 5 Return Pin 13 Horizontal Sync
Pin 6 Red Video Ground Pin 14 Vertical Sync
Pin 7 Green Video Ground Pin 15 Data Clock (SCL)
Pin 8 Blue Video Ground
Appendix B – RS-232 Pin Assignments
Pin assignment for the 9 Pin Optional Touch Screen Connector
Pin 1 DCD Data Carrier Detect
Pin 2 RD (Rx) Receive Data
Pin 3 SD (Tx) Transmit Data
Pin 4 DTR Data Terminal Ready
Pin 5 SG Signal Ground
Pin 6 DSR Data Set Ready
Pin 7 RTS Request to Send
Pin 8 CTS Clear to Send
Pin 9 NC No Connection
150-CFP-190(-) 15
Appendix C – DVI Video Pin Assignments
Pin 1 TMDS Data 2-
Pin 2 TMDS Data 2+
Pin 3 TMDS Data 2/4 Shield
Pin 4 TMDS Data 4- (NC)
Pin 5 TMDS Data 4+ (NC)
Pin 6 DDC Clock
Pin 7 DDC Data
Pin 8 No Connection
Pin 9 No Connection
Pin 10 TMDS Data 1-
Pin 11 TMDS Data 1/3 Shield
Pin 12 TMDS Data 3- (NC)
Pin 13 TMDS Data 3+ (NC)
Pin 14 5 V
Pin 15 Ground
Pin 16 Hot Plug Detect
Pin 17 TMDS Data 0-
Pin 18 TMDS Data 0+
Pin 19 TMDS Data 0/5 Shield
Pin 20 TMDS Data 5-
Pin 21 TMDS Data 5+
Pin 22 TMDS Clock Shield
Pin 23 TMDS Clock +
Pin 23 TMDS Clock –
Appendix D – S-Video Pin Assignments
Pin 2 Ground
Pin 3 Chroma
Pin 4 Luma
Pin 1 Ground
Appendix E – NTSC Pin Assignments
Pin 1 Composite Video
Pin 2 Ground
150-CFP-190(-) 16
Appendix F – CFP19 Specifications
Active Screen Area 14.82” x 11.85”
(376.32 x 301.056mm)
Pixel Pitch
Response Time
Brightness
Contrast 600:1
Lamp Life 40K
Wide Dimming Range Optional
Max Screen Resolution VGA/SXGA
PC Video Input Separate Sync (5 Wire)
Screen Controls
Video
.294mm
15/10ms typical
250 nits typical
Composite Sync (4 Wire)
Sync on Green (3 Wire)
Front or Rear
NTSC/PAL
Native Resolution (best picture) SXGA
View Angle L / R 85/85
View Angle Up / Dn 85/85
Input Voltage 90 to 264VAC auto-switching
Current Draw .40a @ 120VAC
Input Power 48W
Chassis Construction 16 Ga SS
Bezel Construction
Bezel Finish Black Textured
Auto Adjust Yes, On Power Up, Manual
Resistive Touch Yes
5 Wire Touch Yes
Touch Interface RS-232 or USB
Recessed Cable Exit Yes
DVI Interface DVI-D Standard (female)
PC Video Interface VGA (HD-15F) (female)
S-Video 4 Pin Mini Din (female)
NTSC RCA (female)
Colors
Operating Temperature 0° to 50° C
Storage Temperature 0° to 60° C
Storage Humidity 10% to 95% relative humidity
NEMA Front End 4/12
Al Machined .250”
24bit (16.7M)
non-condensing
150-CFP-190(-) 17
Appendix G – Supported Video Modes
Mode Resolution Clk [MHz] Horizontal freq
[KHz]
E1_70 640x350 25.175 31.469 70 Digital Separate Sync
E1_70 640x350 25.175 31.469 70 Sync On Green (with or without serrate pulse)
E1_70 640x350 25.175 31.469 70 Composite Sync (with or without serrate pulse)
E1_85 640x350 31.500 37.861 85 Digital Separate Sync
E1_85 640x350 31.500 37.861 85 Sync On Green (with or without serrate pulse)
E1_85 640x350 31.500 37.861 85 Composite Sync (with or without serrate pulse)
E2_70 640x400 25.175 31.469 70 Digital Separate Sync
E2_70 640x400 25.175 31.469 70 Sync On Green (with or without serrate pulse)
E2_70 640x400 25.175 31.469 70 Composite Sync (with or without serrate pulse)
E2_85 640x400 31.500 37.861 85 Digital Separate Sync
E2_85 640x400 31.500 37.861 85 Sync On Green (with or without serrate pulse)
E2_85 640x400 31.500 37.861 85 Composite Sync (with or without serrate pulse)
T_70 720x400 28.322 31.469 70 Digital Separate Sync
T_70 720x400 28.322 31.469 70 Sync On Green (with or without serrate pulse)
T_70 720x400 28.322 31.469 70 Composite Sync (with or without serrate pulse)
T_85 720x400 35.500 37.927 85 Digital Separate Sync
T_85 720x400 35.500 37.927 85 Sync On Green (with or without serrate pulse)
T_85 720x400 35.500 37.927 85 Composite Sync (with or without serrate pulse)
V_62 736x480 28.200 31.403 62 Digital Separate Sync
V_62 736x480 28.200 31.403 62 Sync On Green (with or without serrate pulse)
V_62 736x480 28.200 31.403 62 Composite Sync (with or without serrate pulse)
V_60 640x480 25.175 31.469 60 Digital Separate Sync
V_60 640x480 25.175 31.469 60 Sync On Green (with or without serrate pulse)
V_60 640x480 25.175 31.469 60 Composite Sync (with or without serrate pulse)
V_67 640x480 31.500 37.500 67 Digital Separate Sync
V_67 640x480 31.500 37.500 67 Sync On Green (with or without serrate pulse)
V_67 640x480 31.500 37.500 67 Composite Sync (with or without serrate pulse)
V_72 640x480 31.500 37.861 72 Digital Separate Sync
V_72 640x480 31.500 37.861 72 Sync On Green (with or without serrate pulse)
V_72 640x480 31.500 37.861 72 Composite Sync (with or without serrate pulse)
V_75 640x480 31.500 37.500 75 Digital Separate Sync
V_75 640x480 31.500 37.500 75 Sync On Green (with or without serrate pulse)
V_75 640x480 31.500 37.500 75 Composite Sync (with or without serrate pulse)
V_85 640x480 36.000 43.269 85 Digital Separate Sync
V_85 640x480 36.000 43.269 85 Sync On Green (with or without serrate pulse)
V_85 640x480 36.000 43.269 85 Composite Sync (with or without serrate pulse)
SV_56 800x600 36.000 35.156 56 Digital Separate Sync
SV_56 800x600 36.000 35.156 56 Sync On Green (with or without serrate pulse)
SV_56 800x600 36.000 35.156 56 Composite Sync (with or without serrate pulse)
SV_60 800x600 40.000 37.879 60 Digital Separate Sync
SV_60 800x600 40.000 37.879 60 Sync On Green (with or without serrate pulse)
SV_60 800x600 40.000 37.879 60 Composite Sync (with or without serrate pulse)
SV_72 800x600 50.000 48.077 72 Digital Separate Sync
SV_72 800x600 50.000 48.077 72 Sync On Green (with or without serrate pulse)
SV_72 800x600 50.000 48.077 72 Composite Sync (with or without serrate pulse)
SV_75 800x600 49.500 46.875 75 Digital Separate Sync
SV_75 800x600 49.500 46.875 75 Sync On Green (with or without serrate pulse)
SV_75 800x600 49.500 46.875 75 Composite Sync (with or without serrate pulse)
SV_85 800x600 56.250 53.674 85 Digital Separate Sync
SV_85 800x600 56.250 53.674 85 Sync On Green (with or without serrate pulse)
SV_85 800x600 56.250 53.674 85 Composite Sync (with or without serrate pulse)
Vertical freq
[Hz]
Sync Mode
150-CFP-190(-) 18
X_60 1024x768 65.000 48.363 60 Digital Separate Sync
X_60 1024x768 65.000 48.363 60 Sync On Green (with or without serrate pulse)
X_60 1024x768 65.000 48.363 60 Composite Sync (with or without serrate pulse)
X_70 1024x768 75.000 56.476 70 Digital Separate Sync
X_70 1024x768 75.000 56.476 70 Sync On Green (with or without serrate pulse)
X_70 1024x768 75.000 56.476 70 Composite Sync (with or without serrate pulse)
X_72 1024x768 75.000 57.515 72 Digital Separate Sync
X_72 1024x768 75.000 57.515 72 Sync On Green (with or without serrate pulse)
X_72 1024x768 75.000 57.515 72 Composite Sync (with or without serrate pulse)
X_75 1024x768 78.750 60.023 75 Digital Separate Sync
X_75 1024x768 78.750 60.023 75 Sync On Green (with or without serrate pulse)
X_75 1024x768 78.750 60.023 75 Composite Sync (with or without serrate pulse)
X_87I 1024x768 43Hz
X_87I 1024x768 43Hz
X_87I 1024x768 43Hz
X_85 1024x768 94.500 68.677 85 Digital Separate Sync
X_85 1024x768 94.500 68.677 85 Sync On Green (with or without serrate pulse)
X_85 1024x768 94.500 68.677 85 Composite Sync (with or without serrate pulse)
SX_60 1280x1024 108.000 63.981 60 Digital Separate Sync
SX_60 1280x1024 108.000 63.981 60 Sync On Green (with or without serrate pulse)
SX_60 1280x1024 108.000 63.981 60 Composite Sync (with or without serrate pulse)
SX_72 1280x1024 135.000 78.125 72 Digital Separate Sync
SX_72 1280x1024 135.000 78.125 72 Sync On Green (with or without serrate pulse)
SX_72 1280x1024 135.000 78.125 72 Composite Sync (with or without serrate pulse)
SX_75 1280x1024 135.000 79.976 75 Digital Separate Sync
SX_75 1280x1024 135.000 79.976 75 Sync On Green (with or without serrate pulse)
SX_75 1280x1024 135.000 79.976 75 Composite Sync (with or without serrate pulse)
NTSC
S_Video
PAL S-
Video
NTSC
Composite
Video
PAL
Composite
Video
Interaced
Interaced
Interaced
--- 14.318 15.734 60 ---
--- 17.75 15.625 50 ---
--- 14.318 15.734 60 ---
--- 17.75 15.625 50 ---
44.900 35.522 87 Digital Separate Sync
44.900 35.522 87 Sync On Green (with or without serrate pulse)
44.900 35.522 87 Composite Sync (with or without serrate pulse)
150-CFP-190(-) 19
Appendix H – Mounting Dimensions

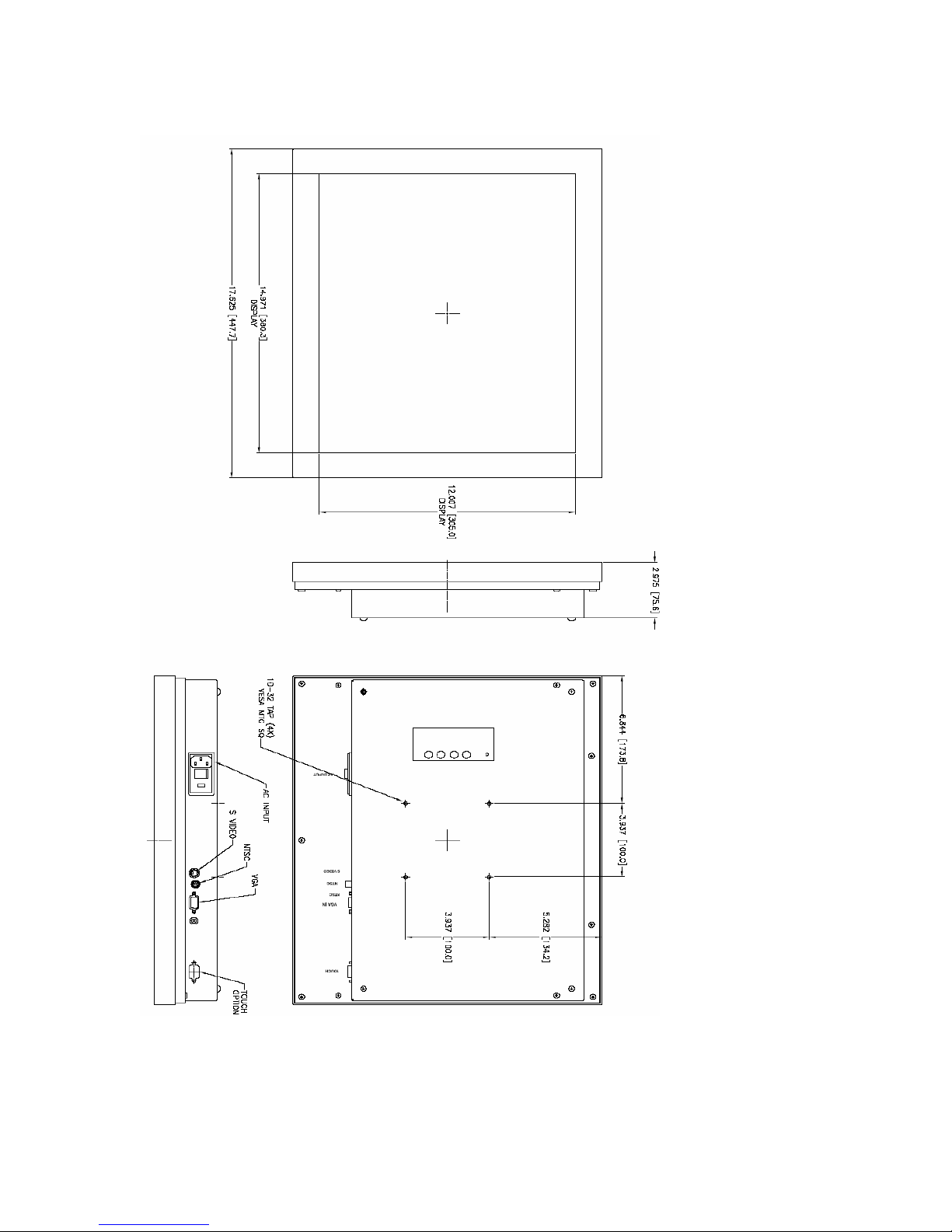

CFP19P1 Outline Dimensions
150-CFP-190(-) 20
Appendix H – Mounting Dimensions
CFP19P1 Cutout Dimensions
150-CFP-190(-) 21
Appendix H – Mounting Dimensions
CFP19R1 Rack Mount
150-CFP-190(-) 22
Appendix H – Mounting Dimensions
CFP19W1 Wall Mount
150-CFP-190(-) 23
Loading...
