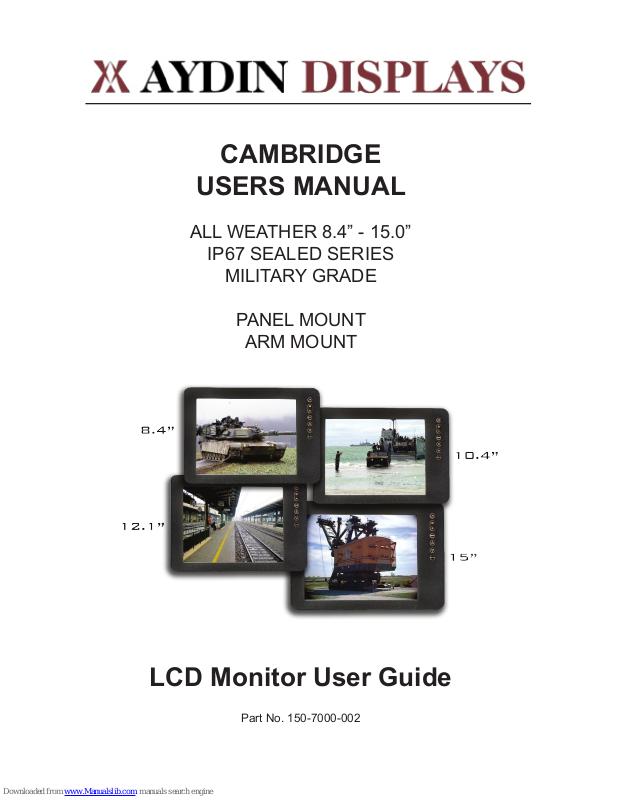

CAMBRIDGE
USERS MANUAL
ALL WEATHER 8.4” - 15.0”
IP67 SEALED SERIES
MILITARy GRADE
PANEL MOUNT
ARM MOUNT
LCD Monitor User Guide
Part No. 150-7000-002
Page 2
2 150-7000-002
Table of Contents
Introduction .............................................................................. 3
Safety ..................................................................................... 4
Product Care and Maintenance.................................................... 6
System Set-up .......................................................................... 8
Installation ............................................................................... 9
Display Connections ................................................................ 11
Computer Hook-up .................................................................. 13
Operator Controls .................................................................... 16
On-Screen Display (OSD) ......................................................... 17
Optional Touch Screen ............................................................. 21
Appendix A - Mechanical Drawings .......................................... 28
Appendix B - Troubleshooting ................................................... 28
Appendix C -Technical/Environmental Specications .................... 31
Page 3
150-7000-002 3

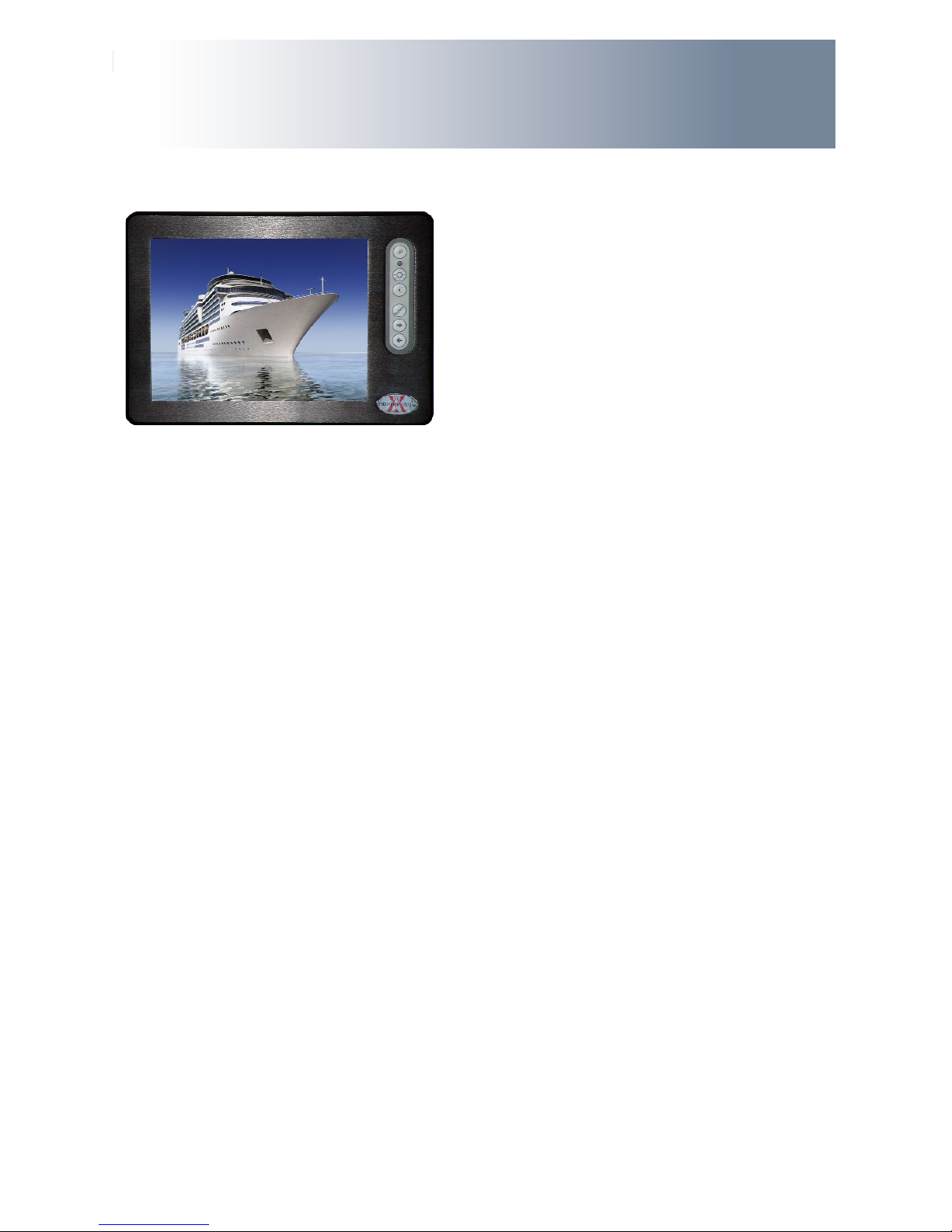

The Aydin MIL-Spec Monitor is a ruggedized marine grade LCD Display for use
with a conventional RGB computer input. It is designed to operate under the
most extreme environments found in high performance vessels such as public
safety, government and military marine craft, as well as submarine vessels. The
ruggedized displays are capable of operating in environments that include extended
temperatures, extreme shock and vibration, direct exposure to salt water and other
environmental conditions.
Housed in a milled billet aluminum case, the slim-prole model is light weight and
watertight, with fully sealed, military grade connectors. Front-mounted controls and
various mounting options makes this a user-friendly display.
This model incorporates the latest optical engineering to achieve optimal viewability
in all lighting conditions.
It is engineered to operate on low power consumption, and may be equipped with
optional Analog Resistive Touch Screen. This manual contains instructions for
conguring the touch screen as well.
Welcome.
Page 4
4 150-7000-002
SAFETY
General Safety Instructions
• Before operating this Monitor, read this User Manual thoroughly
• Retain this User Manual for future use
• Verify the computer system capability (see System Set-up) to insure operation of
the Monitor
• For expeditious installation, follow these User Manual instructions in the
sequence presented
• Adhere to all Caution and Warnings on system parts and as stated in this User
Manual
• All User Manual instructions for installation and operation must be followed
precisely
• Adjust only those controls covered by the User Manual’s operating instructions;
improper adjustment of other controls voids the unit’s warranty and may result in
unit damage, and
• Adhere to local installation codes.
General Unit Safety
• Always disconnect the unit from the power source before cleaning
• Do not operate the unit with a damaged cord
• Do not operate if the unit has been dropped or damaged. The unit needs inspected
by qualied Aydin Service Personnel
• Position the power cord so it shall not be in contact with hot surfaces
• Do not allow anything to rest on the power cord, and
• Do not place the power cord where there shall be foot trafc.
General Safety Precautions
• Power cord must be connected to a properly wired and grounded power source
• Any equipment to which the unit shall be attached must also be connected to properly
wired and grounded power sources
• Do not connect or disconnect the unit during an electrical storm
• Do not remove the unit covers – there are no user serviceable parts in the unit
• Do not disassemble or modify the unit to avoid the possibility of electrical shock,
damage to electrical components or scratching the Display surface, and
• Disassembly of the unit voids the warranty.
warning!
caution!
Warning! Shock Hazards
This icon is intended to tell you of a potential risk of electrical shock.
Caution! Instructional
This icon is intended to tell you of important operating and/or
maintenance instructions.
Safety Icons
warning!
Page 5
150-7000-002 5
Electrical Safety
Connecting Cables
• Disconnect the power to the computer when the Monitor is being installed, and
• Upon installation, verify the power connector is securely seated on the unit.
Ratings and Grounding
This unit may be operated from an 8-36 VDC power source.
• Use the supplied power cable, and
• Always connect to a properly grounded power source.
Protection on Servicing
Servicing - User
• User care is limited to cleaning the exterior of the unit.
• Do not disassemble or modify the unit or cables to avoid the possibility of an
electrical shock, damage to electrical components or scratching the
Display surface, and
• Disassembly voids the warranty.
Servicing
Aydin Displays Qualied Service Personnel may be required if the unit:
• Does not operate normally when installation instructions are followed
• Does not operate normally when operating instructions are followed
• Has been dropped or damaged, or
• Exhibits a distinct change in performance, indicating a need for service.
Shipping
If the unit should need to be shipped to the Aydin Displays Service Center, the original
packing material should be used to insure safety in shipping. Repack the unit as it
would have originally been received from Aydin Displays.
Fluids from LCD Display
• If the Monitor should ever become shattered, do not touch uids from an LCD Display
• If uid should get on hands or clothing, immediately wipe off with liquid soap or rubbing
alcohol; wash with water; consult with a doctor, and
• If uid gets in the eyes, ush eyes immediately with water for a minimum of 15 minutes;
consult with a doctor.
This equipment generates, uses and can radiate radio frequency energy. If not
installed with the unit’s accompanying cables, it may cause harmful interference
to radio communications.
Radio Frequency Interference
caution!
caution!
Page 6
6 150-7000-002
This monitor has been designed to provide optimum performance and service without
any required scheduled maintenance other than occasional cleaning.
Display Screen Cleaning
• A vinegar-based cleaner is preferred to prevent streaking and degradation of the
coatings, or
• A non-abrasive glass cleaner such as a professional foam glass cleaner
• Apply the cleaning solution to a soft clean cloth, dampening slightly
• Keep a fresh side of the cleaning cloth towards the screen surface to avoid
scratching it with accumulated grit, and
• To minimize the risk of abrasion to the screen, air drying is recommended.
Disconnect cabling from the Touch Screen Display before cleaning. A Touch Screen
Display will be activated by cleaning the Display. This may create a potentially
dangerous condition.
Optional Touch Screen Cleaning
• Follow cleaning directions above, or use a special screen cleaning tissue or a
solution specically formulated for antistatic coatings.
• Lightly dampen a soft clean cloth with water, vinegar based cleaner or a general
purpose mild detergent solution
• Keep a fresh side of the cleaning cloth towards the screen surface to avoid
scratching it with accumulated grit, and
• To minimize the risk of abrasion to the screen, air drying is recommended.
Monitor Enclosure
• Clean the unit enclosure with a soft clean cloth lightly dampened with a
general purpose mild detergent solution
• To rinse, wipe down with clean water, and
• Dry with a soft clean cloth.
Optional Touch Screen
PRODUCT CARE AND MAINTENANCE
Product Care
• Do not use abrasive cleaners or solvent-based (ammable) cleaners on the
Flat Panel or Touch Screen Display, its enclosure or any other electrical device (cables, power cord, etc)
• Do not use paper products as they may scratch the Display screen, and
• Do not directly apply cleaning solutions to the Display screen.
Turn off the Monitor power before cleaning the Monitor, optional Touch Screen
or unit’s enclosure.
warning!
caution!
warning!
In marine or similar environments,
an added benet of a vinegar-based
cleaner is its effectiveness in
dissolving salt deposits.
Page 7
150-7000-002 7
To avoid risk of electrical shock, do not disassemble the unit’s enclosure. Users
cannot service the Monitor. User maintenance is restricted to cleaning, as ex-
plained. Disassembling the unit voids the warranty.
Long-term Storage
• For long-term storage, it is suggested the unit be stored in a normal indoor environ-
ment and the Display glass be protected from accidental damage.
• For pedestal mount units, disconnect the cable(s) and loosen the arm adjustment to
a point where the ball can be removed from the arm, or
• For Flush or Panel Mount units, cover the product with a protective covering that
shall not scratch or transfer any dyes to the Display screen.
Maintenance
Other Maintenance
Only Aydin Qualied Service Personnel shall perform all maintenance except for the
power cord replacement described above.
To avoid shock and re hazards, replaced the unit’s power cord if:
• Insulation becomes damaged, or
• A loose connection is suspected.
Power Cord
warning!
warning!
Page 8
8 150-7000-002
SYSTEM SET-UP
System Requirements
The computer must have this capability:

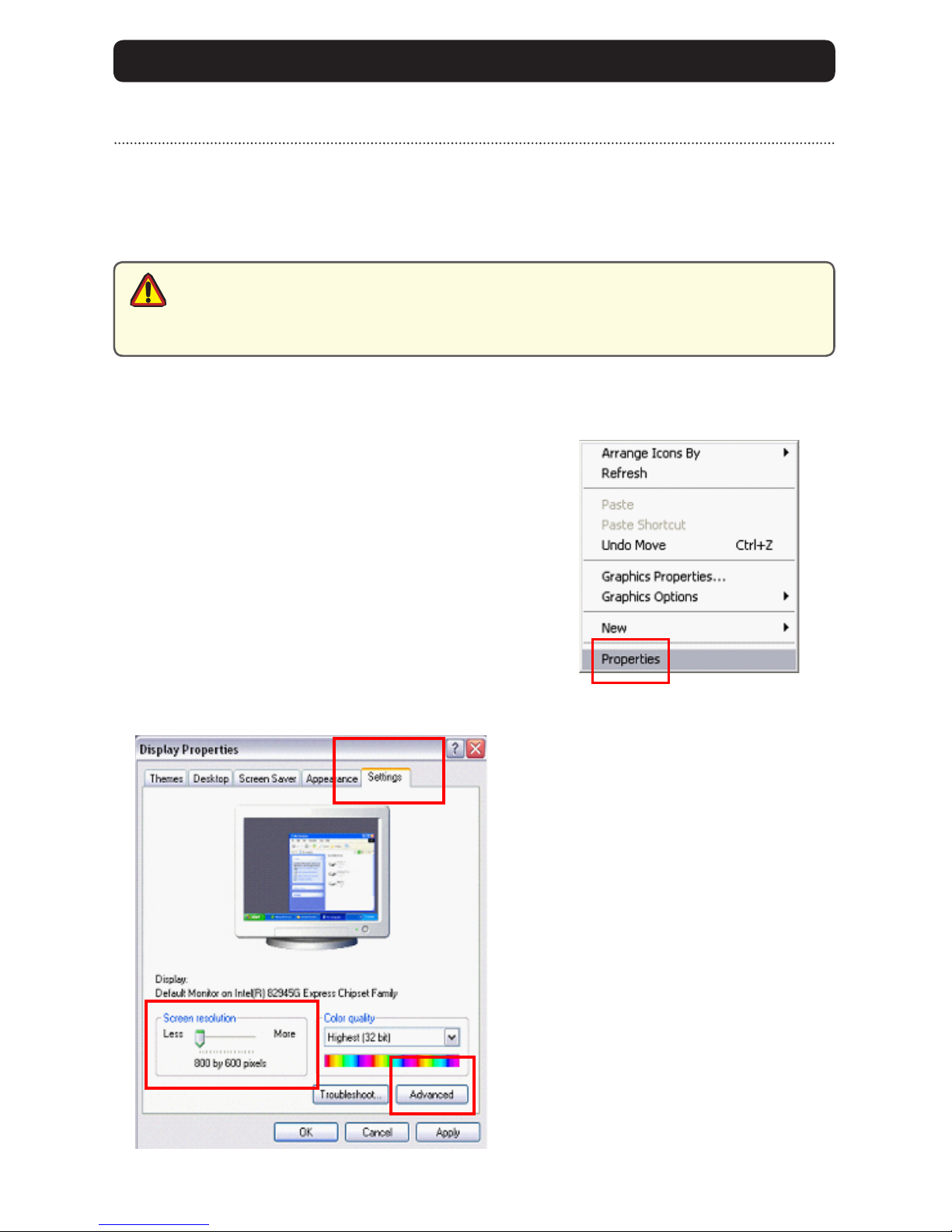

8.4=800 x 600 (SVGA)
10.4=1024 x 768 (XGA)
12.1=1024 x 768 (XGA)
15.0=1024 x 768 (XGA)
• If the optional Touch Screen Display is ordered, an available COM port for the
connector is required.

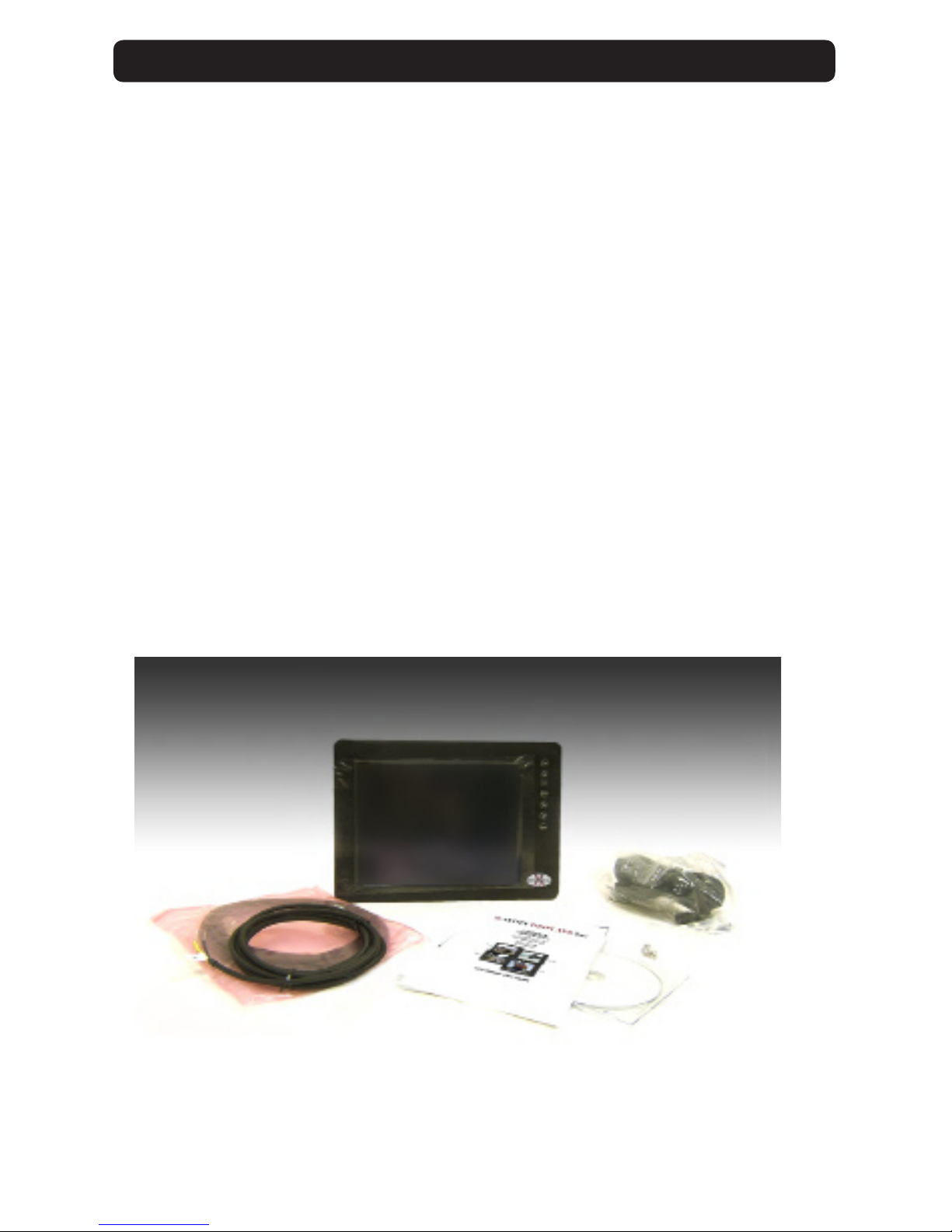

Shipping Box Contents
The display is shipped in a custom box with custom foam packaging. We
recommend you save the box and all packaging materials in case the unit would
need to be returned to the Aydin Displays Service Center.
In the shipping box you shall nd:
• CFP 8.4, 10.4, 12.1 or 15.0
• Custom Power Cable
• Custom VGA Cable
• Mounting System and Hardware
• Touch Screen Cable if the optional Touch Screen is ordered
• USB Cable if the optional USB Pass-through is ordered, and
• Optional Touch Screen Drivers (located on Aydin website)
Figure 1
Page 9
150-7000-002 9
INSTALLATION
The display is designed to be mounted with a universal ball-and-socket mounting kit,
in a at panel or optional ush mount conguration.
Optional Pedestal Mount
The display can be supplied with a RAM® universal ball-and-socket system mounting
kit (Figure 2). By installing the monitor with this kit, the user can quickly adjust the
viewing angle to improve viewability in changing environments. This ball-and-socket
system has proven to be successful in supporting an extreme amount of weight in
high vibration and difcult-mount applications.

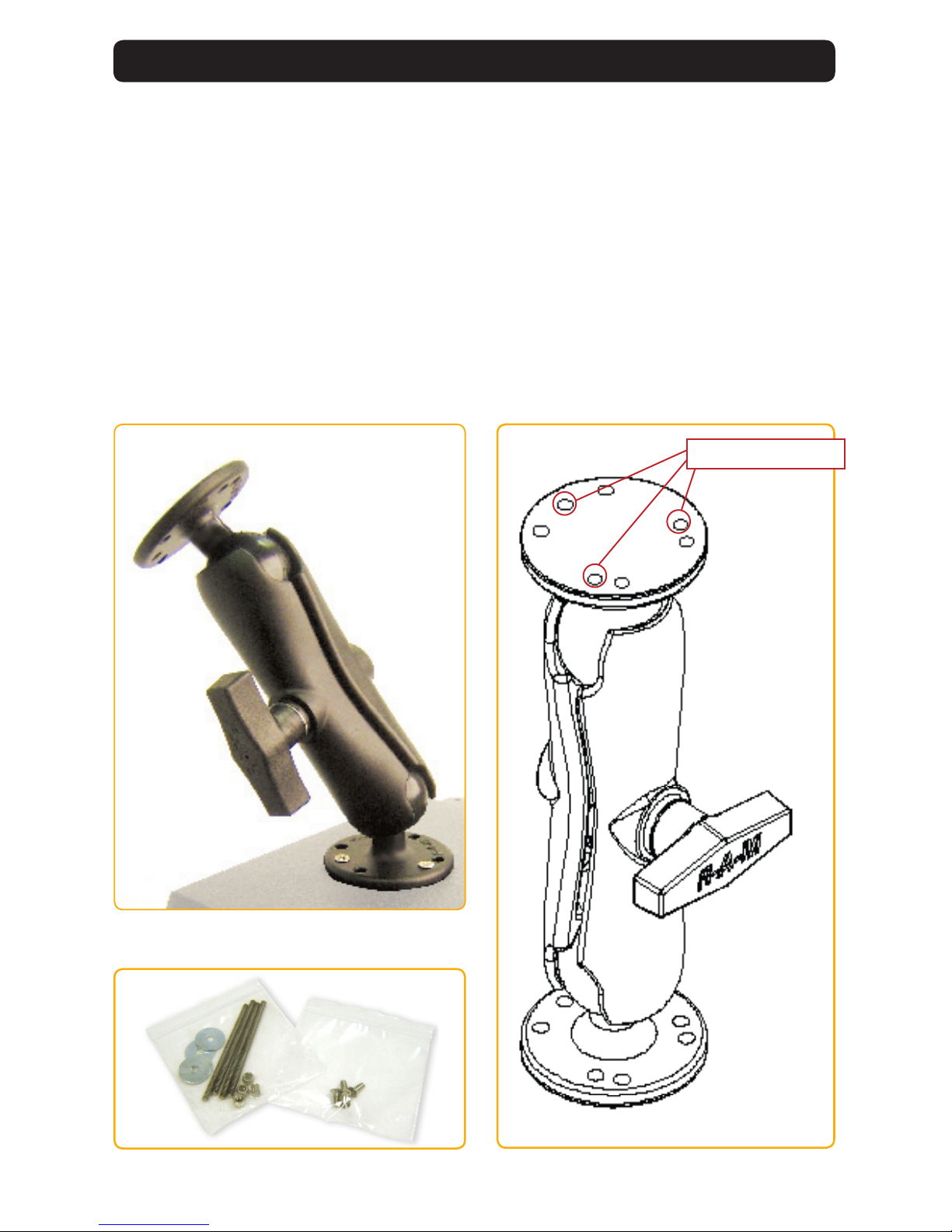

Locate the ball-and-socket system in the shipping box. The kit consists of two RAM
balls on mounting plates and a RAM arm, with an adjustable T-knob and a packet of
three (3) M4 x 10 counter-sunk stainless screws for mounting to the display.
Figure 2
Figure 3 Figure 4
Mounting Holes
Page 10
10 150-7000-002

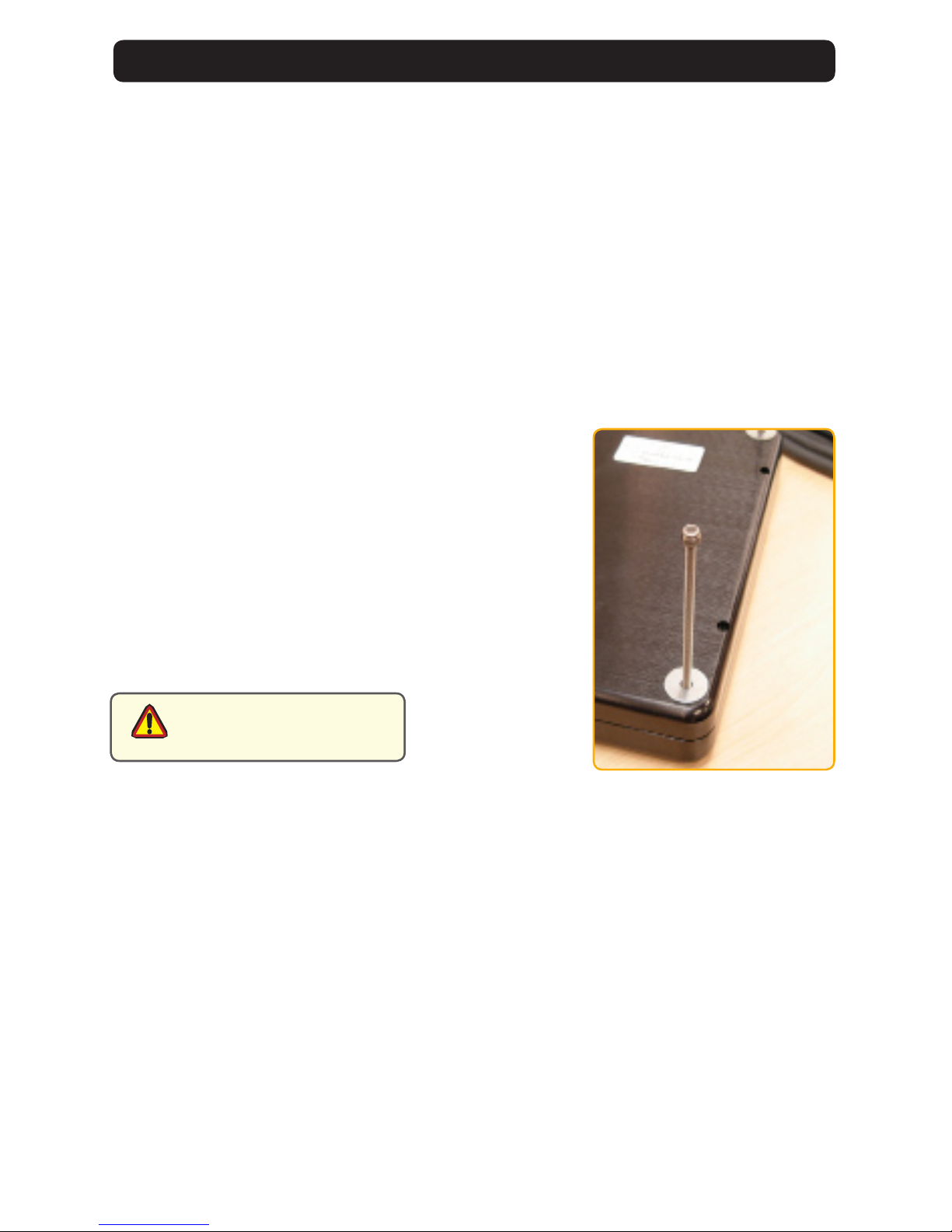

There are three mounting holes in the back of the Monitor for the ball mounting plate.
Take care not to strip the screw holes or over tighten. (Figure 4)
• Line up one of the ball mounting plates on these three holes (Figure 4)
• With three (3) M4 x 10 counter-sunk stainless screws attach this mounting plate to
the back of the unit.
• Mount the second ball mounting plate where the Monitor shall be installed
• Insert each ball into the RAM arm
• Lightly tighten the arm around the balls using the T-knob on the arm (Figure 2, 4)
• Adjust the Monitor to the viewing preference, and
• Tighten the T-knob to hold the Monitor in position.
It is recommended the remaining ball be mounted on a at surface. Because of the
various surface substrates the Monitor shall be mounted on, the installer shall provide
the screws to mount the other ball.
Panel Mount
The panel mount installation should be specied at the
time of order; the ball-and-socket mount system will
not be included in the shipping box.
The mounting hardware packet is included with the unit
accessories in the shipping box. This packet includes
four (4) threaded screws (approximately 7.6 cm [3”]
long), four (4) Nylock nuts and four (4) at washers.
For installation, there are four tapped mounting holes
on the four corners of the unit’s rear panel.
Take care not to strip the
screw holes or over tighten
as the enclosure is aluminum.
caution!
Figure 5
Page 11
150-7000-002 11
Power Input
The Power Amphenol Connector is a MILDTL-26482 Series I Connector.
• End User supplied or Optional Power Cable
• 3-Pin Connector pin-out is listed in Table 1
• Line up with Connector # 1 in Figure 7
• Add a twist to lock.
DISPLAY CONNECTIONS
1
2
Figure 7
1 Power Input
2 Video Input
1 2
Figure 6
Connectors

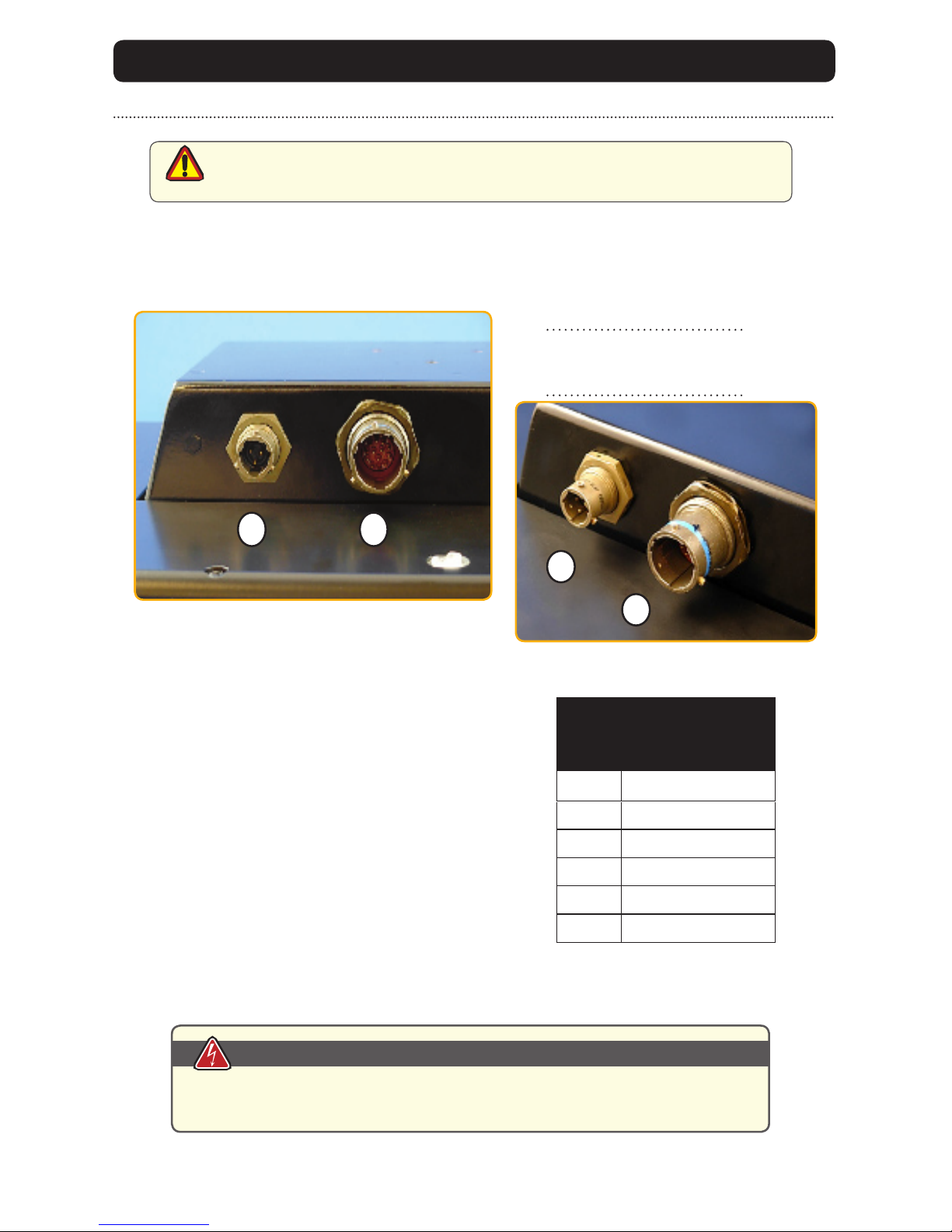

There are two (2) MIL-DTL connectors on this model: Power Input and Video Input.
(Figure 6, 7). Connectors are located on bottom of Display housing. From left to right:
Power Input, a 3-Pin Connector and Video Input, a 13-Pin Connector.
Power cable
3-Pin Plug
MIL-C-26482 SERIES I
PIN SIGNAL
A 28 VOLT DC
B 28 VOLT RTN
C CHASSIS_GND
AMPH 71-533721-33P
MATE PT06E833SSR
Table 1
caution!
Use care when inserting or removing connector. Do not force their mating.
The 8.4”, 10.4”, and 12.1” are listed at 20 watts.
The 15” is listed at 35 watts.
Power Consumption
warning!
Page 12
12 150-7000-002
Video Input
The Video Amphenol Connector is a
MIL-DTL-38999 Series I Connector. See Table 2.
• End User supplies Video Cable
• 13-Pin Connector pin-out is listed in Table 2
• Line up with Connector # 2 in Figure 6
• Add a twist to lock.
Table 2
Video cable
13-Pin Plug
MIL-DTL-38999 SERIES I
PIN SIGNAL
1 Red Video Signal
2 Red Video Ground
3 Green Video Signal
4 Green Video Ground
5 Blue Video Signal
6 Blue Video Ground
7 H-SNYC
8 V-SNYC
9 H/V SYNC Ground
10 USB+/RS-232 RXD
11 USB-/RS-232 TXD
12 Digital Ground
13 RI-OUT
AMPH 88-569722-35P
MATE MS27467E11B35S
Page 13
150-7000-002 13
COMPUTER HOOK-UP
Prior to connecting the monitor to the computer, with another monitor, verify the
computer display properties are set to between 640x480 and 1024 x 768 in 4:3
aspect ratio.
• The optimum setting for viewing is 800 x 600 (8.4”) or 1024x768 pixels (all other sizes).
• The refresh rate must be set between 60-75Hz to eliminate screen icker.
• Pixel settings different from the native resolution may exhibit less precise images, and
• Pixel settings over 1024 x 768 ash “out of range”, with no display.
1. Right mouse click on an open area of the
desktop screen to bring up the Desktop Menu.
2. Left mouse click on Properties to
open the Display Properties menu.
3. Connect to a CRT monitor to establish the
computer display properties.
4. Select the Settings tab.
5. Under Screen Resolution, verify
or slide the bar until the Screen
Resolution is at 800 x 600 pixels
(SGVA) or 1024x768(XGA).
6. Select the Advanced button to
go to the next menu to verify the
Hz refresh rate.
Computer Display Properties - XGA or SVGA
Setting the Display Settings
caution!
Page 14
14 150-7000-002

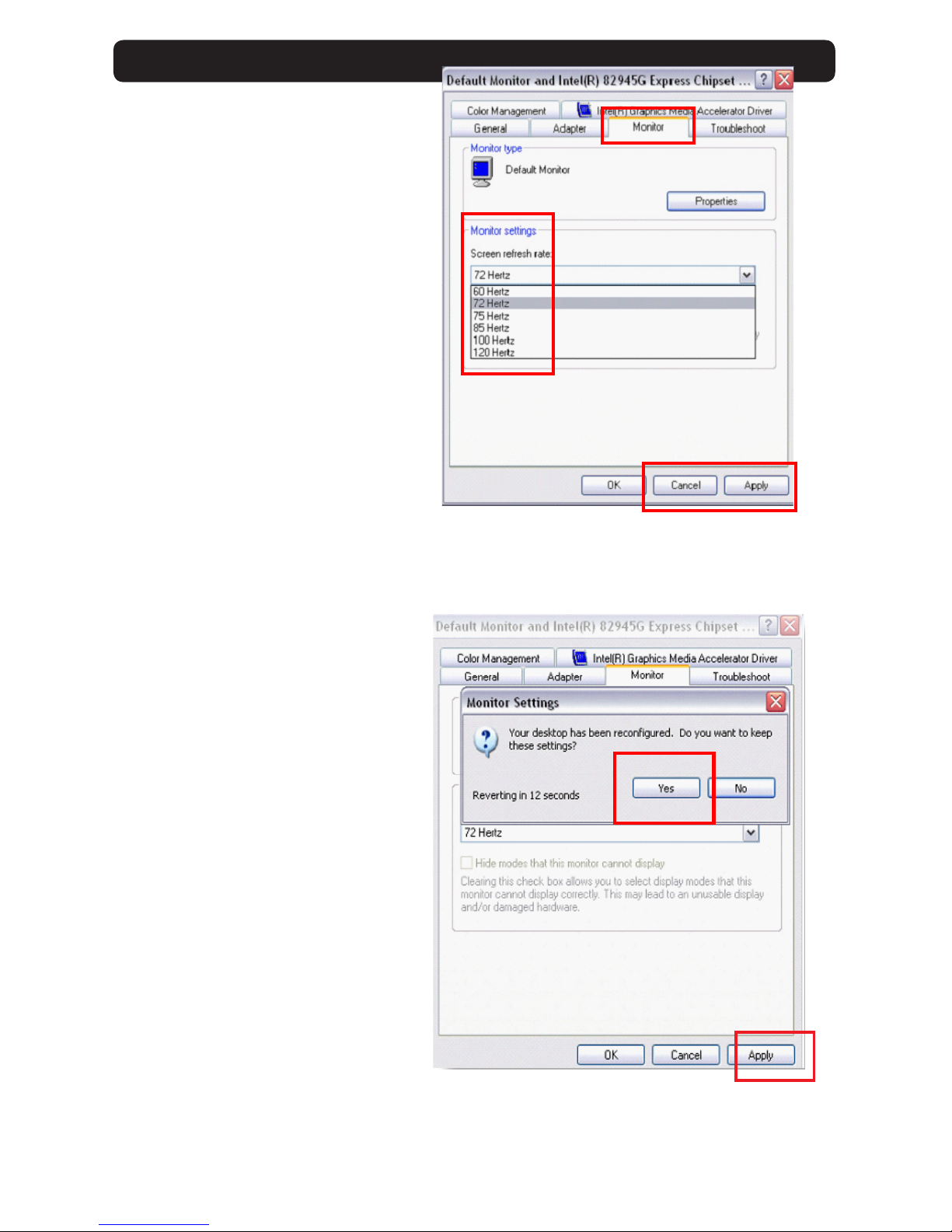

9. At the Monitor Settings dialog
box, select “Yes” to accept the
new desktop view settings.
10. In the Display Properties dialog
box, verify the Screen Resolution is
at 800 x 600 (SVGA) or 1024x768
(XGA).
11. Select the Apply button.
7. Select the Monitor tab.
8. Under Monitor Settings, verify
the Screen Refresh Rate is
between 60 and 75Hz.
• If so, select the Cancel button
and go to step 9.
• If not, select a setting within
the 60 – 75Hz range
• Select the Apply button.
Page 15
150-7000-002 15
Power on the Monitor
• The Windows Operating System should automatically apply the best generic driver
for this connection, and
• Follow the instructions under section Computer Display Properties for optimum
display quality.
Signal Quality
• The strength of the video signal provided to the display has a direct bearing
on the quality of the images displayed
• The cable supplied with the unit shall provide the optimum image if proper
wiring practices are followed
• Install the cable properly and keep it away from sources of EMI such as
electric motors, or unshielded RF sources such as radar and microwaves
• Splitting the video signal also splits the strength of the signal
• If your installation requires more than one Monitor to be driven from a single
video source, it is highly recommended that a video signal booster (line
driver) be used in the circuit, and
• Some splitters are available with an integral line driver. Whether or not a line
driver is used, single cable lengths in excess of our standard cable length
should be of high quality shielded VGA cable.
Page 16
16 150-7000-002

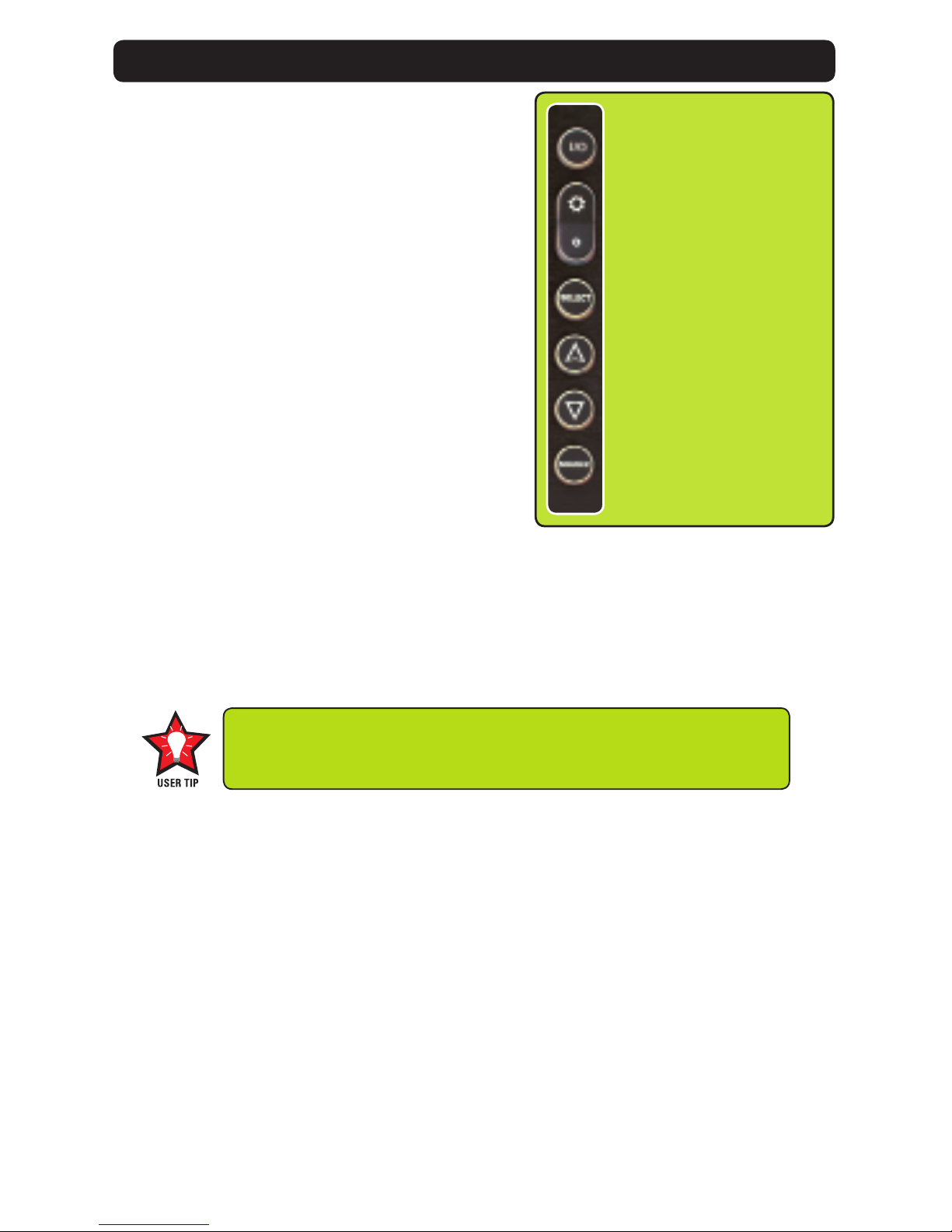

OPERATOR CONTROLS
On the right hand side of the Monitor bezel
are seven Operator Control buttons.
Power Button
Note: Monitor defaults to an AUTO-OFF state when
power is applied.
• The Power On/Off button is marked with
the I/O (Input/Output) symbol
• Momentarily pressing this button shall
turn ON or turn OFF the unit, and
• Blue LEDs glow behind the buttons when
the unit is powered on.
Optional Feature: Monitor defaults to an
AUTO-ON state when power is applied. This
feature must be ordered when the Monitor is
ordered. It is not an add-on after the unit is
built.
Brightness Toggle
This toggle controls the brightness of the LCD Panel Display.
• The large sun toggle side, when repeatedly pressed or held down, shall cause the
Display’s backlight brightness to increase
• The small sun toggle side, when repeatedly pressed or held down can be stepped
down in increments to the lowest setting, which is just above total black and suitable in very subdued light, as in night time operations, and
• The Monitor shall revert to a mid-range setting when the unit is powered off.
Select Button
The Select Button is the access point to the On-Screen Display (OSD) Source Screen
Menu. (See On-Screen Display.)
Up Button
The Up Button is an adjustment tool in the OSD Source Screen Menu. (See OSD
Screen Menu Parameters.)
Down Button
The Down Button is an adjustment tool in the OSD Source Screen Menu. (See OSD
Screen Menu Parameters.)
Source Button
The Source Button allows the user to switch between video signal sources attached
to the Monitor – Composite Video 1, 2 & 3, and VGA.
Source Select Button
Up Button
Down Arrow
Power On/Off (I/O)
Button
Brightness Control Toggle
(large sun, small sun)
Select Button
Adjust the brightness of the Display to the lowest possible setting for
a given set of conditions and display characteristics. Doing so shall
provide the best viewing of the image, extend the lamp life of the
backlight and reduce the internal heat of the Display.
Page 17
150-7000-002 17
ON-SCREEN DISPLAY
The On-Screen Display (OSD) user interface is the path to all display signal source
adjustments. The Source Screen Menu, with its user-friendly graphical interface,
provides access to ne-tuning the Display.
OSD Source Screen Menu Activation
To activate the OSD menu in the current video source, press and release the SELECT
button.
Note: OSD Source Screen Menu shall close after 15 seconds of inactivity. This setting can be
adjusted in the OSD Source Screen Menu (OSD Menu icon), under OSD Duration.
OSD Source Screen Menu Parameters
The Source Screen Menu is comprised of six icons, each representing distinct source
screen categories and their corresponding functions menu with adjustable settings.
Picture Menu Source Menu OSD Menu Set up Menu Inactive OSD Tools Menu
Parameter Adjustments
• To choose a Display Parameter Category, use the UP (right) or DOWN (left) buttons
to move across the Source Screen Menu
• As each Category icon is highlighted, its related Functions Menu appears
in a drop-down box
• To activate a Display Parameter Category, move the highlight box over its icon and
single press the SELECT button
• In the Functions Menu, a highlight bar is superimposed over the rst function
• Press the UP or DOWN buttons to move the highlight bar through the related
Functions Menu
• Single press the SELECT button to choose a Related Functions Menu item when it is
highlighted
• A smiley face appears to the left and a new color bar appears on the Function,
indicating the Category is active; its parameters can be adjusted
• The adjustment controls are the UP and DOWN buttons, which increase or decrease
the value of the parameter as noted in the percentage bar
• Create the new parameter value
• Single press the SELECT button to save the new value; this returns the user to the
Source Screen Menu
• Exit from the Function Menu
• To choose another Display Parameter Category, use the UP (right) or DOWN (left)
buttons to move across the Source Screen Menu and follow the above instructions,
or
• Single press the SELECT button again to exit from the OSD Source Screen Menu, or
• Close the main menu; all changes are saved.
Page 18
18 150-7000-002
• New settings shall be stored in memory upon pressing the SELECT button to
exit the Source OSD Source Screen Category’s Function Menu.
• If SELECT is not pressed, or inactivity is detected within the 15 second factory
default OSD duration, any function adjustments made shall not be saved.
It is recommended to adjust the LED back light brightness to maximum before
ne-tuning the OSD Source Screen Menu Picture Menu Parameter: Brightness.
Picture Menu Parameters
Brightness
Before adjusting the Brightness function parameters, set the LCD panel backlight
brightness using the control toggle (large sun/small sun); set to its brightest (large sun
button) in the ambient light source.
• Open the “Brightness” function
• Press the UP or DOWN buttons to set the Display’s desired brightness, and
• Adjustments go from very dim (black) to 100%, very bright (dazzling white).
Contrast
Contrast is the difference in brightness between the light and dark areas of the pixels
of a picture.
• Open the “Contrast” function
• Press the UP or DOWN buttons to set the Display’s desired contrast, and
• Predened minimum to maximum is in the display bar.
Saturation
Saturation is the vividness or intensity of the hue or color.
• Open the “Saturation” function, and
• Press the UP or DOWN buttons to set the Display’s desired saturation.
Tint
Tint is the pinks, blues and greens of the Display.
• Open the “Tint” function
• Press the UP or DOWN buttons to set the Display’s desired tint, and
• Ranges on the Display bar are: low – pinks; mid-range – blues and upper – greens.
Sharpness
• Open the “Sharpness“ function
• Press the UP or DOWN buttons to select a desired sharpness for the Display, and
• Sharpness choices in the Display bar are preset at - 0, 33, 66 and 100%.
Auto Color
• Auto Color is best calibrated from an all-white background. From the VGA video
source, create an all-white background
• Open the “Auto Color“ function
• Press the SELECT button to run the Auto Color Setup. Repeat twice, and
• When complete, press the SELECT button to save the changes and exit.
OSD Source Screen Menu Parameter Selections
caution!
Page 19
150-7000-002 19
Source Menu Parameters
A check in a box indicates an enabled signal source attached to the monitor.
Deselecting the box disables the monitor’s ability to display the signal.
Video 1 - Composite
• Open the “Video1“ function, and
• Press the UP or DOWN buttons to enable (ON) or disable (OFF) the Video 1 source.
Video 2 – INACTIVE or, if connected, as above.
Video 3 - INACTIVE or, if connected, as above.
PC - VGA
• Open the “PC“ function, and
• Press the UP or DOWN buttons to enable (ON) or disable (OFF) the PC source.
OSD Menu Parameters
OSD H-Position
• Open the “OSD H-Position” function, and
• Press the UP or DOWN buttons to adjust the horizontal position for the OSD menu
on the Display.
OSD V-Position
• Open the “OSD V-Position” function, and
• Press the UP or DOWN buttons to adjust the vertical position for the OSD menu on
the Display.
OSD Duration
• Open the “OSD Duration“ function, and
• Press the UP or DOWN buttons to adjust the time elapse between the last menu
activity and when the menu disappears. The range is between 0 and 100 seconds;
factory default is 15 seconds.
Set-up Menu Parameters
AUTO Power
• Select “AUTO Power” function if user wants system data (channel, signal source)
saved when the system is powered off.
Reset
• Select “Reset“ function, and
• Select “YES” to automatically adjust picture data to default such as: brightness,
Page 20
20 150-7000-002
contrast, saturation, tint and sharpness.
System
• Select “System“ function to select the source signal type: NTSC, PAL and AUTO
• Video 1 - Composite - NTSC
• Video 2 - Inactive
• Video 3 - Inactive
• PC – RGB, and
• AUTO - Recommended selection. Automatically assigns the correct video signal
source association.
TV Category Parameters - INACTIVE
Screen Menu Parameters
NOTE: Source Screen Menu Category is enabled when the input signal is VGA.
H-Position
• Open the “H-Position” function, and
• Press the UP or DOWN buttons to adjust the horizontal position of the screen
display.
V-Position
• Open the “V-Position” function, and
• Press the UP or DOWN buttons to adjust the vertical position for the screen display.
Phase
• Open the “Phase” function, and
• Press the UP or DOWN buttons to adjust phase (analog to digital) for the screen
display.
Clock
• Open the “Clock” function, and
• Press the UP or DOWN buttons to adjust clock (horizontal stretch) for the Display.
Page 21
150-7000-002 21
OPTIONAL TOUCH SCREEN
Optional Touch Screen Installation
If you are installing a new operating system (O/S), do not install the Touch Screen
Controller Driver CD until you have installed the O/S and veried the computer’s
monitor display is working properly. The Touch Screen Controller Driver uses the
computer’s O/S display driver software settings to accurately congure the Touch
Screen Controller Driver les.
Previous Versions of Touch Screen Controller Drivers
Previous versions of ANY Touch Screen Controller Driver must be removed before
installing the latest version of the TSHARC™ Touch Screen Controller Driver.
Uninstall a Previous Version of TSHARC

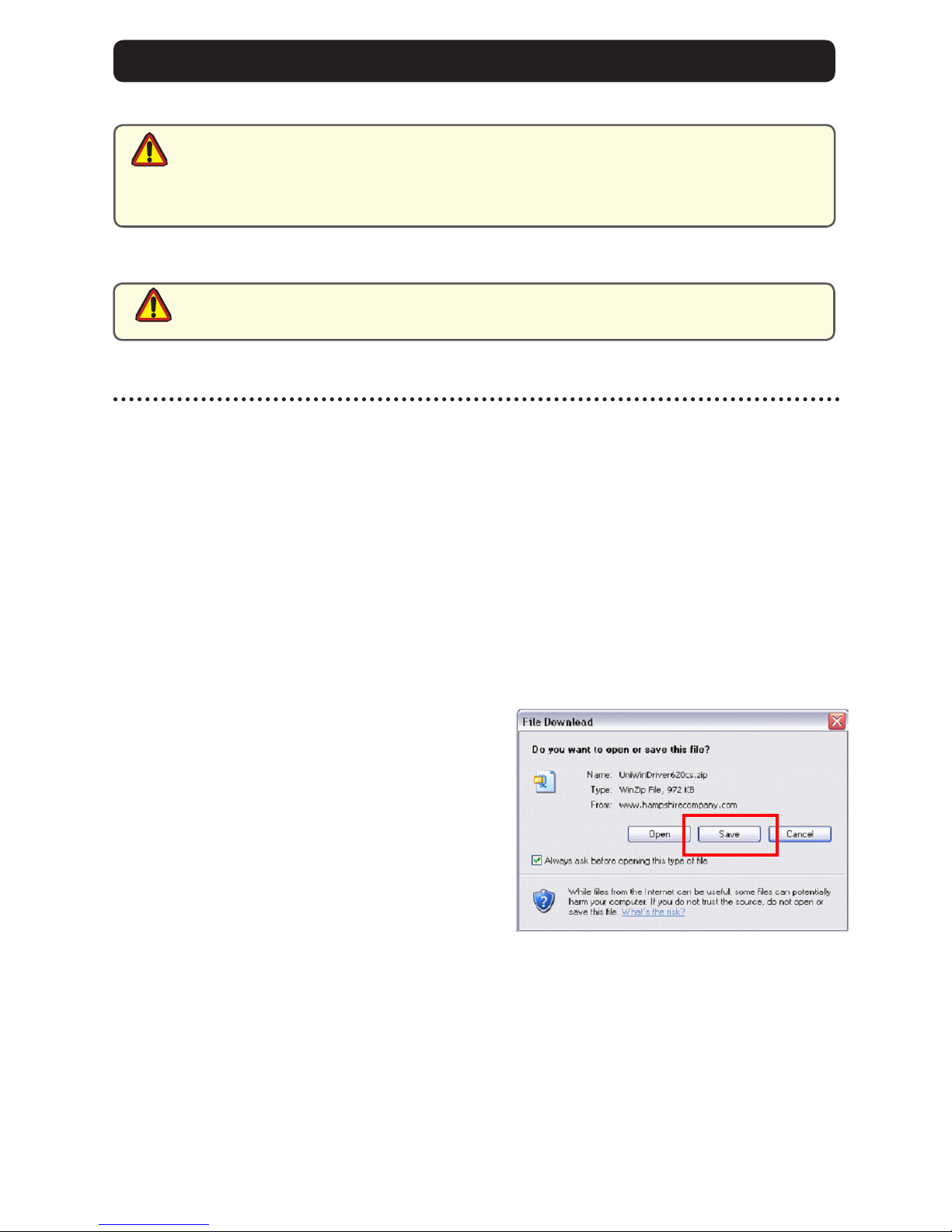

The uninstall utility “TSUN10.exe” is included on the TSHARC Touch Screen Controller Installation CD, in the shipping box with the product accessories. This utility
uninstalls TSHARC drivers only.
From the Product CD
To uninstall: install the CD > go to My Computer (desktop) > Left double mouse click
> Locate the drive with the Installation CD > Left mouse click to open > Left double
mouse click on the Uninstall Drivers folder > Left double mouse click on “TSUN10.
exe” to execute the uninstall utility > Follow the instructions.
Note: The dialog box stating it is removing all Touch Screen Drivers from the computer means
it is removing all TSHARC drivers. Other Touch Screen Drivers must be uninstalled with their
manufacturer’s uninstall utility.
From the Aydin Website
Go to: www.aydindisplays.com
navigate to Customer Service,
then Touch Driver Downloads
Note: The dialog box stating it is removing all Touch Screen Drivers from the computer means
it is removing all TSHARC drivers. Other Touch Screen Drivers must be uninstalled with their
manufacturer’s uninstall utility.
Uninstall TSHARC Utility
caution!
caution!
Page 22
22 150-7000-002
Uninstall a Previous Version of Other Touch Screen Drivers
If a version of a different Touch Screen Controller Driver (not TSHARC) is on the computer, it must be completely removed before installing the TSHARC. Note: The typical
driver uninstall program or Microsoft’s® remove program utility does not remove all
tracks of the Touch Screen Driver program. Contact the manufacturer of the previously installed driver program to learn how to completely uninstall their product. These
instructions may be available from the manufacturer’s web site.
Installation
1. Attach the RGB/Touch Screen Cable to the connector 2
2. Attach the Touch Screen Cable RS-232 connector to a computer serial port, or
3. Attach the Touch Screen Cable USB connector to a computer USB port.
Note: For Multi-monitor applications, all Touch Screens must be connected to the
computer before installing the TSHARC driver.
• If installing RS-232 connectors, the driver has to be installed
for each Touch Screen, or
• If installing USB connectors, the driver is installed one time
for multiple Touch Screens.
• If the Touch Screen connector is USB, Window shall load a
temporary USB driver. Wait for the driver to load.
1. Boot up the computer
2. Insert the TSHARC Controller Driver CD
3. On the desktop, left double mouse click on
the My Computer icon
4. Locate the drive with the TSHARC Touch
Screen Controller Drivers Installation CD
5. Left mouse click to open
6. Left mouse double click to open the Resistive
Touch Driver le
7. Left mouse double click to open the le for
2000, XP, 98, ME O/S, and
8. Left mouse double click to run “set-up.exe”.
Touch Screen Installation
Before loading Touch Screen Controller drivers, verify the COM ports are enabled
(especially if using a laptop computer).
caution!
caution!
TSHARC Touch Screen Controller Driver
A TSHARC Touch Screen Controller Installation CD is included in the shipping box with
the product accessories. The driver is compatible with these O/S: Windows® 98 SE
(Second Edition), ME, 2000 and XP.
Page 23
150-7000-002 23

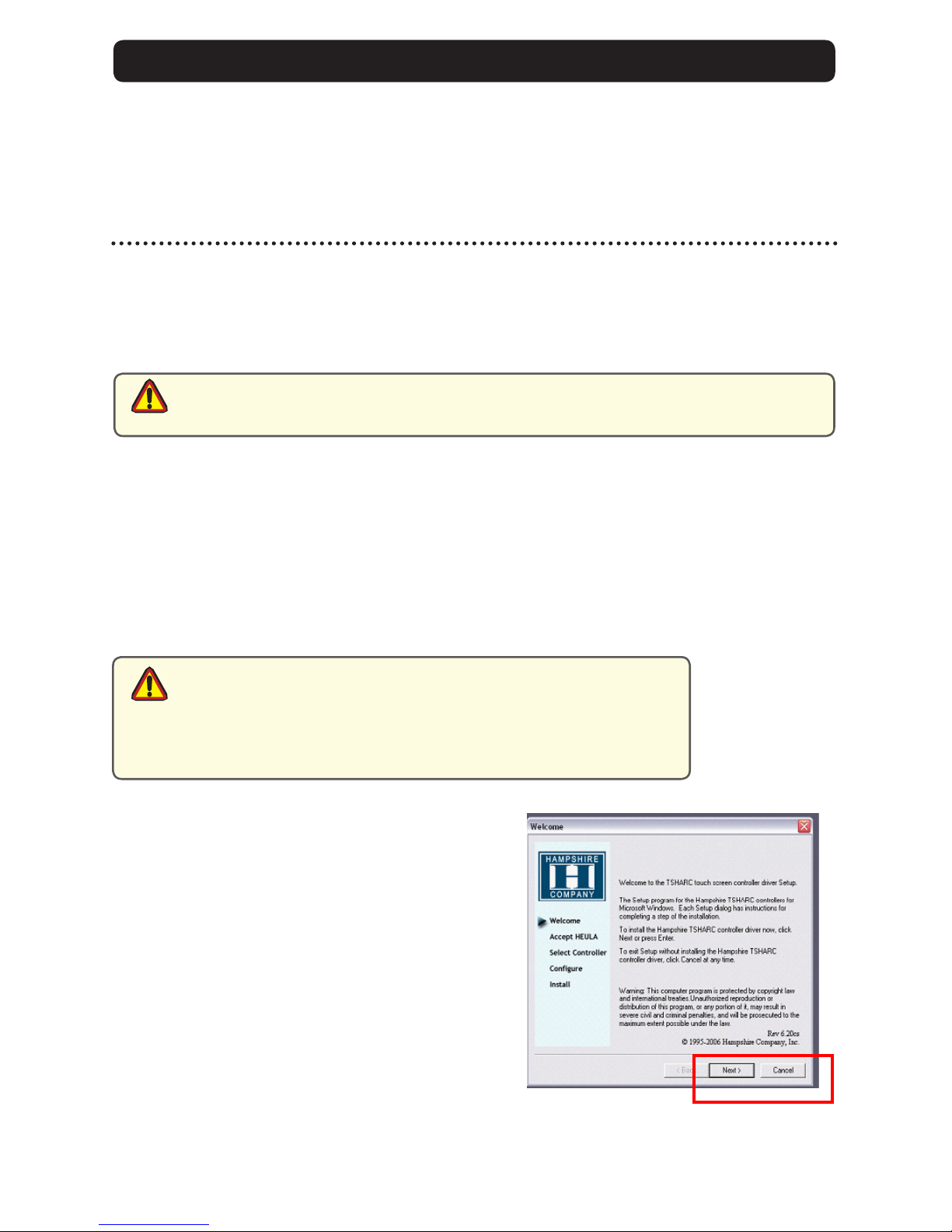

1. At the Welcome screen, select Next to go to the
Software License Agreement (EULA)
2. After reading the EULA, if in agreement, check
the box “I accept all of the terms…”
3. Select Next.
Note: Any unlawful use of the TSHARC driver is a strict
violation of the United States and International copyright
laws. Using a TSHARC driver with any third party Touch
Screen is strictly prohibited.
TSHARC Installation
If you need to cancel this driver installation at any time, select the Cancel button on
the driver installation dialog screen.

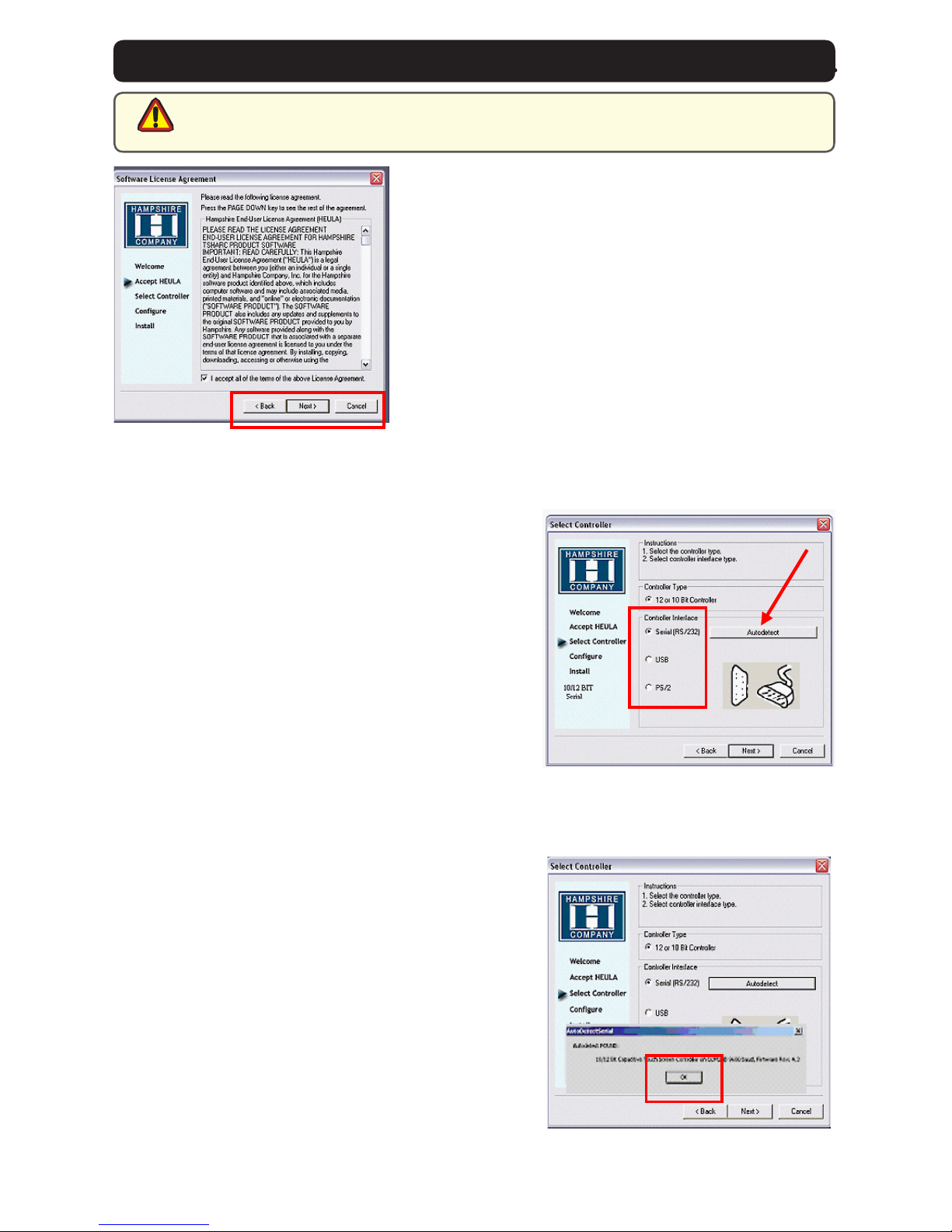

Select Controller
1. The TSHARC Driver is a 12-bit controller; the radio button is selected by default
Note: A PS/2 controller interface is not available.
2. Select the controller interface matching the
cable used to install the monitor
3. Select the Autodetect button if installing the
Touch Screen through a RS-232 (serial)
interface
4. There are two options for RS-232 installation:
Autodetect and Manual. Manual instructions
are found in section Manual RS-232 Controller
Set-up
5. If connecting through a USB interface, select
the USB radio button
6. Select Next

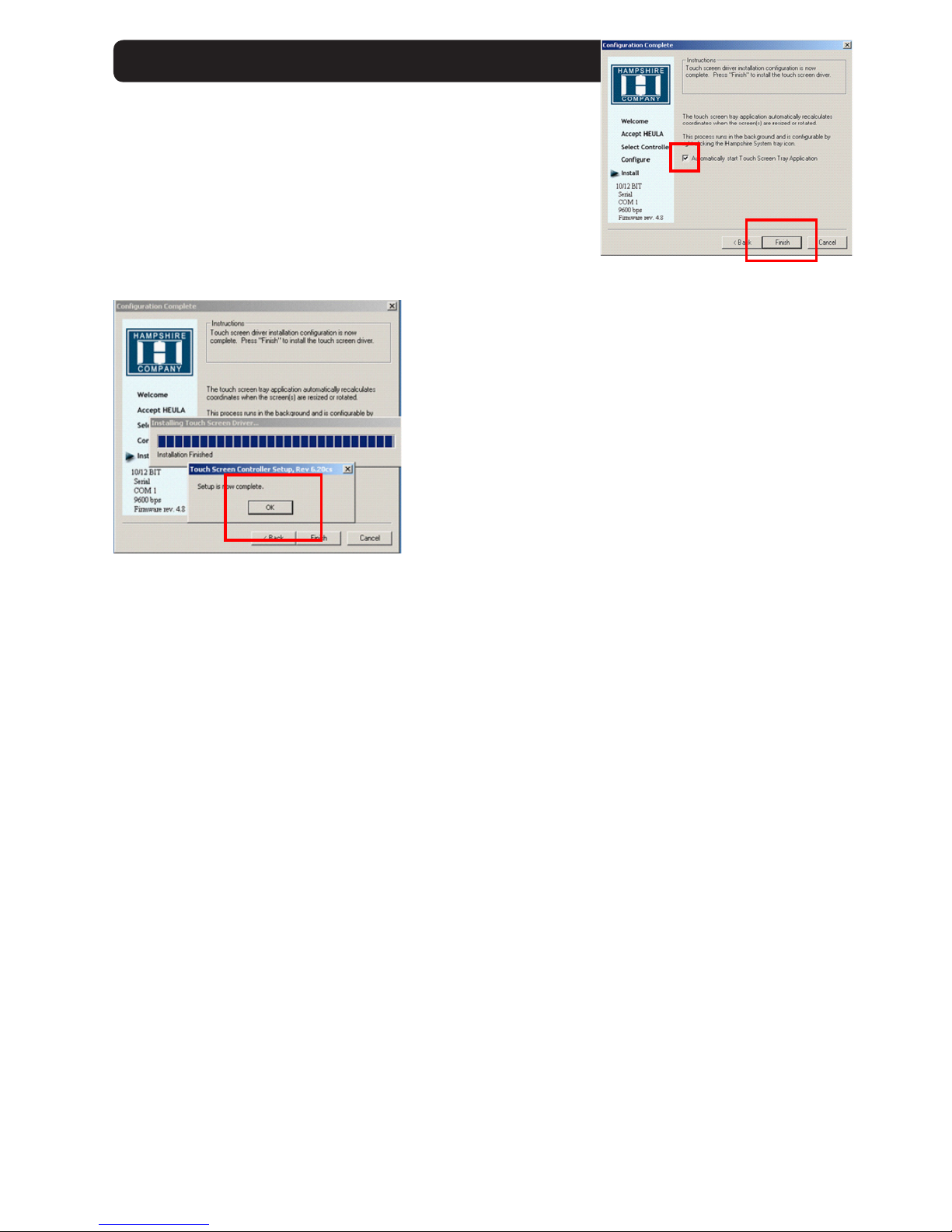

7. Following installation, select Finish, and
8. Reboot the computer when prompted.
Autodetect RS-232 Controller Set-up
1. Select the Autodetect button
2. The “AutoDetect Serial” dialog box lists the
detected RS-232 controller information. Select
OK
3. “Installing Touch Screen Driver” text box pops
up, indicating the progress of the installation
4. Following installation, select Finish, and
5. Reboot the computer when prompted.
caution!
Page 24
24 150-7000-002
Manual RS-232 Controller Set-up

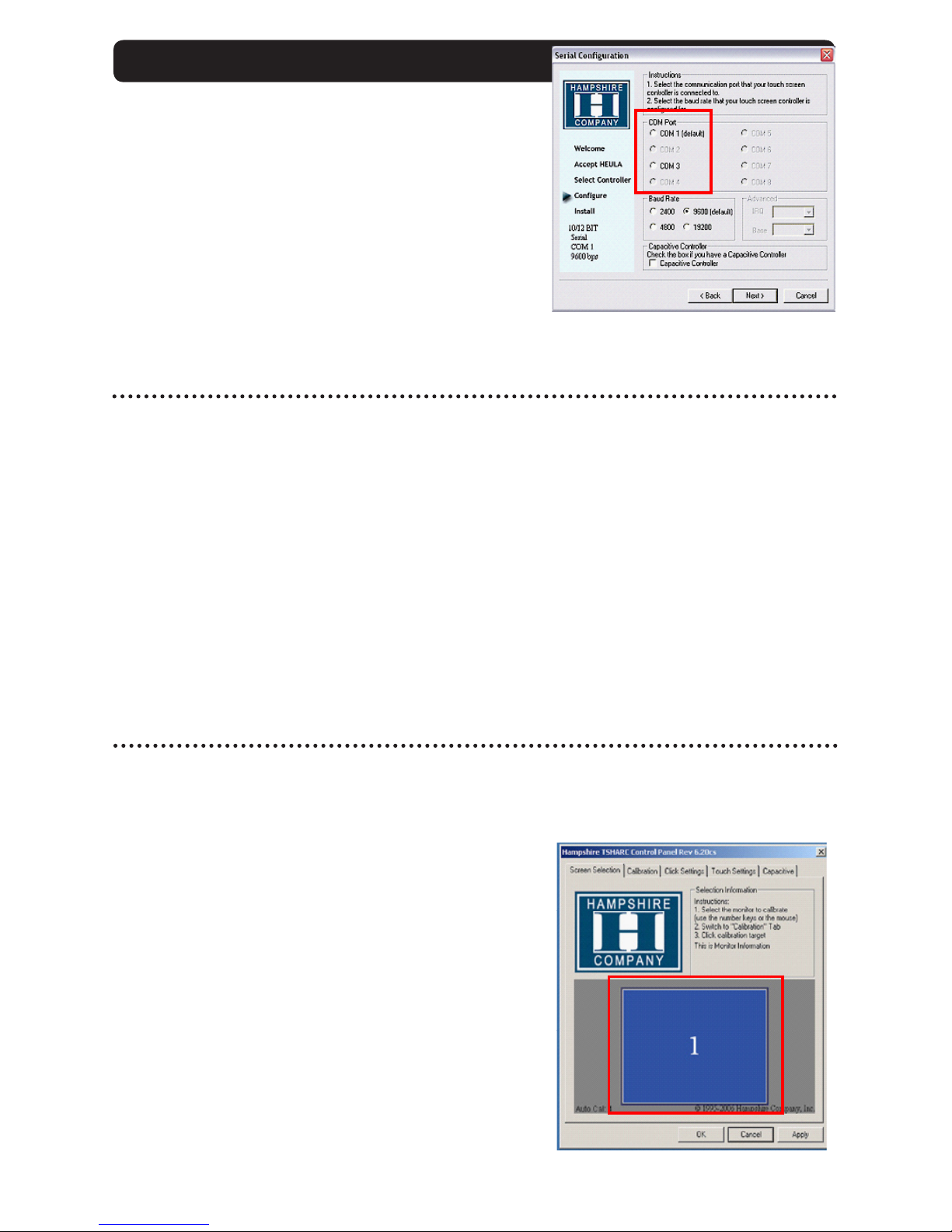

1. Select the Controller Interface RS-232
radio button
2. Select Next
Note: Do not select Autodetect
3. Follow the instructions, entering the COM port
selection
4. The Touch Screen Controller baud rate default
is 9600
Note: Capacitive Controller option is not available.
5. Select Next
6. Following installation, select Finish, and
7. Reboot the computer when prompted.
Upon reboot, the Touch Screen is functional, but not calibrated. Calibration must be
congured for the Touch Screen to work properly. The TSHARC Control Panel initiates
the calibration process.
• Go to Start > Programs > Hampshire TSHARC Control Panel. The Control Panel
has ve tabs. Each tab provides links to tools that can modify the TSHARC Drivers
to meet specic needs.
• Touch Screen Display Selection
• Calibration
• Click Settings
• Touch Settings
• Capacitive Settings
TSHARC Calibration Program
TSHARC Control Panel
Screen Selection
Note: If this is not a Multi-monitor installation, skip to section Calibration.
Conguring a Multi-monitor Installation
Note: Microsoft does not support a Multi-monitor
installation in Win98 SE.
1. The controller installation program opens
to the Screen Selection tab. Note the graphic
representation of the Monitors installed on the
system
2. Using the keypad or the mouse, select the
Monitor to calibrate
3. Switch to the Calibration tab. Go to the next
section: Calibration
4. When complete, return to the Screen Selection
tab; select the next Monitor. Repeat the
process until all Monitors are calibrated.
Page 25
150-7000-002 25

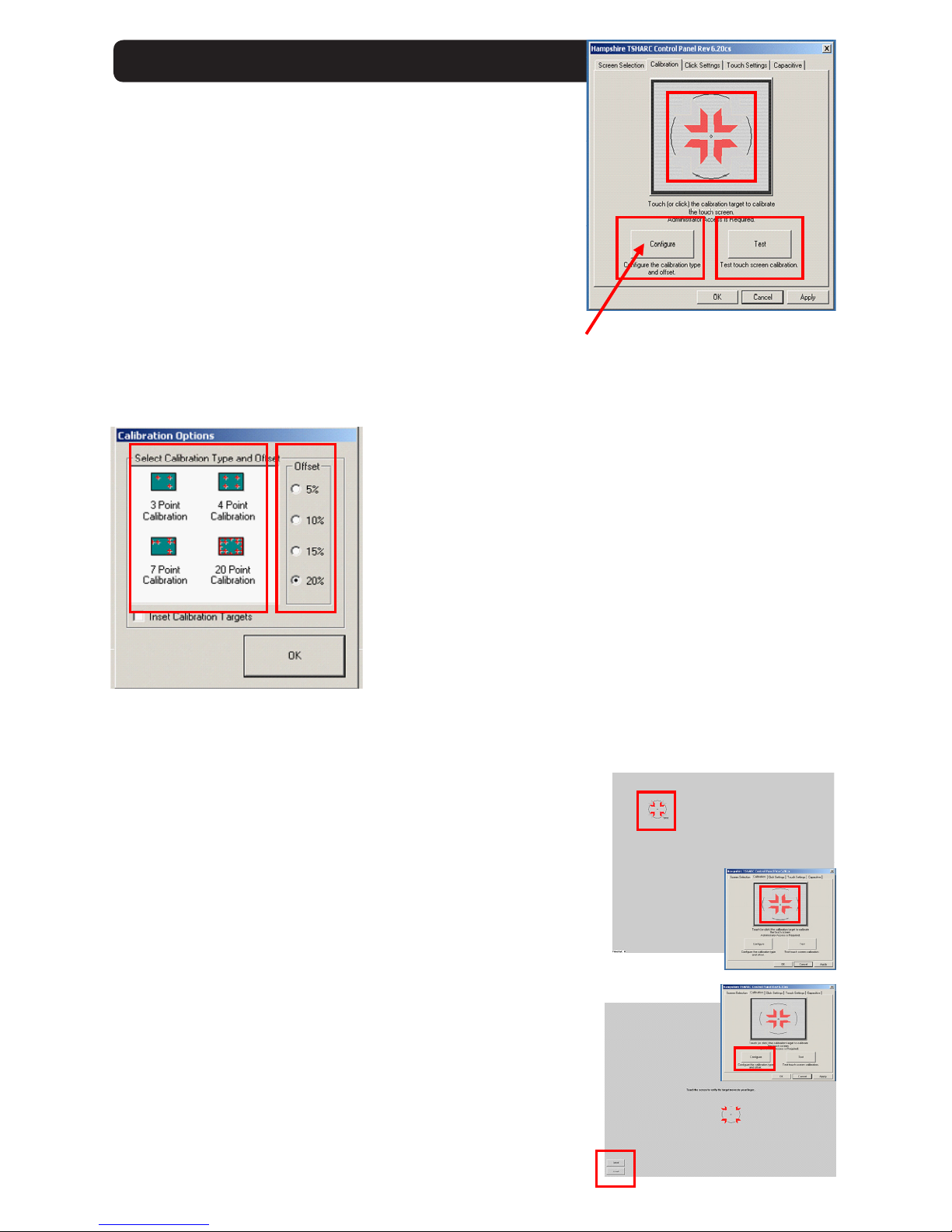

Calibration
The calibration process aligns the Touch Screen overlay
to specic points on the Display screen.
1. Select the Calibration tab or, in ten seconds, the
calibration program launches, unless a Multi-monitor
situation is present, then go to section Conguring a
Multi-monitor Installation
2. There are three buttons: Graphic, Calibration and
Test. For default Four-point calibration, select the
Graphic square. This is the best known general
calibration; it compensates for skew and some edge
linearity anomalies, and
3. Go to section Calibration Process.
Custom Calibration Settings
1. To customize the calibration process, select the Calibration button to bring up
Calibration Options and the Offset menu
2. Select OK when calibration and/or offset selections
are made:
• Three-Point Calibration: Quick calibration of a
known good Touch Screen overlay.
No correction is applied
• Four-Point Calibration: Compensates for skew
and some edge linearity anomalies
• Seven-Point Calibration: More accurate than
three-point calibration. No correction is applied
• Twenty-Point Calibration: Provides the highest
level of Touch Screen linearization and skew
correction, and
• Offset: Varied linearity exists between Touch
Screen types; user may want to calibrate the
edges of the Touch Screen more precisely.
Default is 20%.
Calibration Process
1. Press the Center Graphic to start calibration
2. Targets are used to calibrate the Touch Screen. Follow
the on-screen instructions - “Touch” the target center,
“hold” until it shrinks, then “release” the target, and
3. Repeat the process for all targets.
Note: the calibration screen shall time-out and return to the
Calibration tab if the rst point is not touched within 10
seconds.
Calibration Verication Test
1. Touch the screen in several places to verify the
calibration target is displayed under the nger, and
2. Select the Accept button to apply and record the
calibration data.
Note: If the calibration target is not displayed under the nger,
select the Cancel button, repeat Custom Calibration Settings,
then Calibration Process.
Page 26
26 150-7000-002

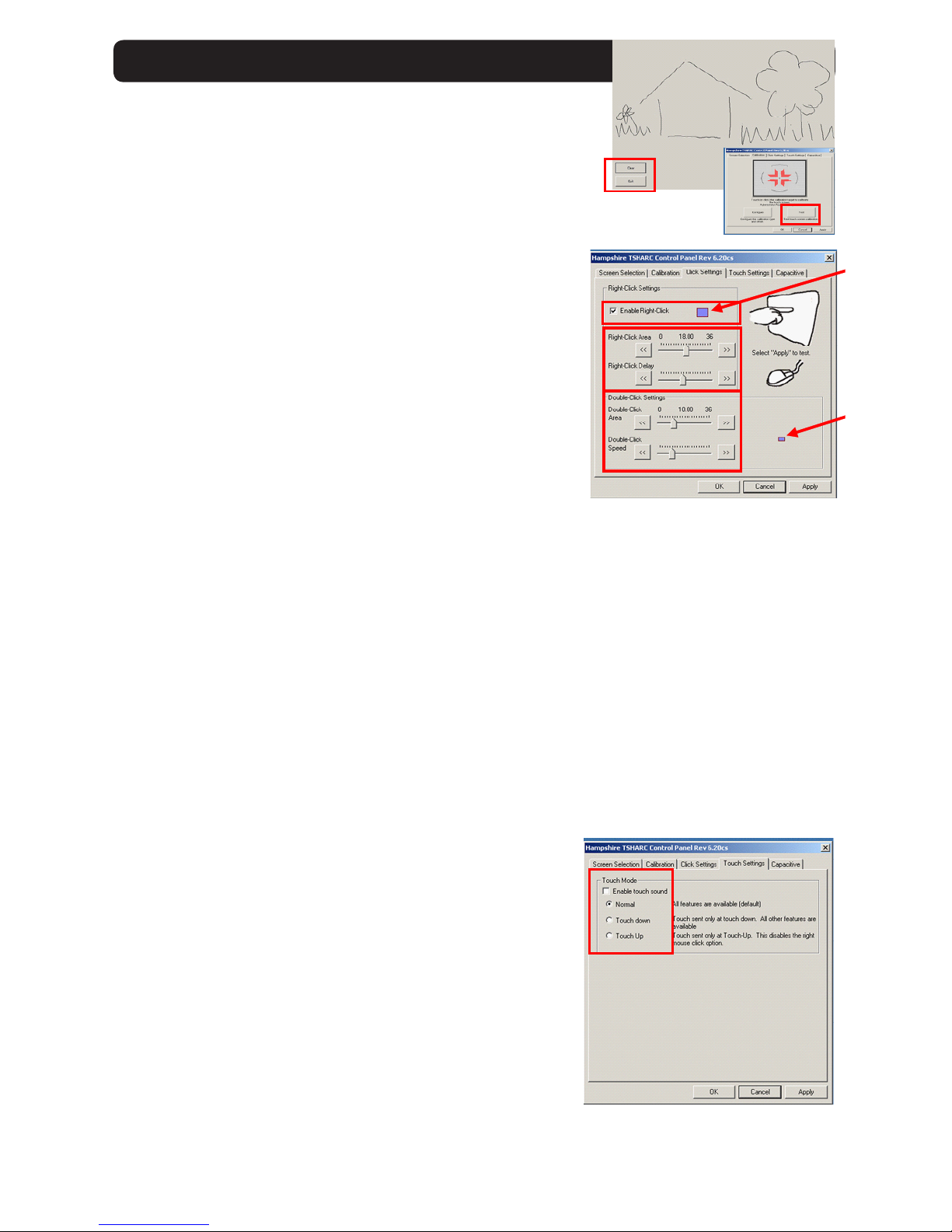

Calibration Drawing Test
1. Select the Test button on the Calibration tab
2. Using a nger or stylus, draw or write, and
3. Observe if the screen displays the drawing accu-
rately. If it does not, repeat the Custom Calibration
Settings and Calibration Process instructions
4. Select the Quit button to exit the test.
Click Settings
Right Click
1. If desirable for Touch Screen application, check the
“Enable Right Click” box to set the right click option
Right Click Area
2. Use the slide bar to set the Touch Screen event
area to a size slightly larger than the activator
– larger for a nger tip, smaller for a stylus; the
box displays the activator size
Right Click Delay
The timed-hold right click mouse event allows the
user to initiate a right click by holding down a touch
point for a specic period of time.
3. Use the slide bar to set the Right Click Delay value to the time necessary to
produce a right click event
Double Click Area
This step sets the area that shall allow for a double click event. Limit this to areas that
can be accurately touched several times.
4. Use the slide bar to set the double click area; the box displays the activator size
Double Click Speed
5. Use the slide bar to set sufcient time to perform a double touch in the specied
area
6. Select the Apply button to enter the selection, and
7. Select the OK button to apply all Click Settings.
Touch Settings
1. Normal: Emulates a standard mouse, allowing a
single click, double click, drawing, dragging and
right click option (if enabled)
2. Touch Down: Allows for a click event to take
place at touch down. No draw or drag is available
3. Touch Up: Touch only. Double click is disabled. If
right click was earlier enabled, it shall be disabled.
Touch Sound
1. Check the Enable Touch Sound to enable a tonal
beep when the screen is touched
2. Select the Apply button to enter the selection, and
3. Select the OK button to apply all Touch Settings.
Page 27
150-7000-002 27
Capacitive Tab – Disabled
The Touch Screen is a resistive type; the Capacitive Tab
shall be disabled.
Touch Screen Tray Icon
1. If you do not want a Touch Screen Controller Icon to
display in the toolbar tray, go to step 3, or
2. If you want a Touch Screen Controller Icon to display
in the toolbar tray, select the box, and
3. Select the Finish button; the TSHARC drivers shall be
installed.
Installation Complete
1. At the dialog box, “Setup is now complete”,
select OK, exiting the TSHARC Touch
Screen Controller installation
2. The display touch is now active!
Page 28
28 150-7000-002
Mechanical Drawings
Mount diagrams and its dimensions may assist you in installation of the Monitor. You
may nd them on our website at:
http://www.aydindisplays.com
navigate to Marine/Bridge/COTS Displays
Mount diagrams of the optional Flush Mount Bezel and its dimensions may assist you
in installation of the Monitor. You may nd them on our website at:
http://www.aydindisplays.com
navigate to Marine/Bridge/COTS Displays
APPENDIX A
APPENDIX B
Symptom: No light behind button LEDs
Possible Problem Solution
No power, loose power connection Conrm the Monitor is properly connected to a
DC or AC power source.
Verify the power source is live or try another
battery or AC power outlet.
Verify the Monitor is powered on.
Reverse Polarity Check polarity of the power connection.
Symptom: Light behind button LEDs, no display, or “No Signal” error
message and/or no image on the display
Possible Problem Solution
Power on, no video signal Verify the video cable is plugged into the VGA
video connector.
Verify a video signal is coming out of the
computer (i.e., plug into a known good display
source).
Verify the incoming signal source selected
matches the Monitor signal source (Composite,
S-Video, VGA).
Check the Brightness front panel setting on the
Monitor. This may be set too low.
Check the Brightness and Contrast controls in
the OSD. These may be set too low.
Computer may have gone into power manage-
ment stand-by. Press any key on the keyboard,
move the mouse or cursor, or it there is the
Touch Screen option, touch the screen to wake
up the computer.
Display
Page 29
150-7000-002 29
Symptom: Display has rolling “bars” across the screen or vertical
shaded bars on the image.
Possible Problem Solution
VGA video display is not set to view at 800 x
600 pixels, or 1024x768 pixels.
Verify the computer video display settings of
the signal are set to match the display and 60
- 75Hz refresh rate.
Defective video cable On a known good display source, conrm the
video cable is not defective.
Interference from adjacent equipment For proper grounding and shielding, verify use
of a proper video cable.
Keep the cable away from sources of EMI
such as electric motors, or unshielded RF
sources such as radar and microwave.
Horizontal size is not adjusted In the OSD, adjust the horizontal size controls.
Symptom: Picture quality, image stability is distorted.
Possible Problem Solution
Not working in 800 x 600 or 1024x768 pixel
resolution
Press the arrow down button one time to auto
adjust the display.
Verify the video display settings match the
monitor, and 60 – 75Hz refresh rate.
Proper cable grounding and shielding Verify the use of a proper video cable with
suitable grounding and shielding. Keep the
video cable away from sources of EMI and RF.
Improper video display settings Check signal source for proper signal.
Check for proper display properties selection
of the display pixel setting.
Verify the display refresh rate: 60 – 75Hz.
Display unit is farther than 3 m (10 ft) from
signal source
Single cable lengths should be of high quality
shielded VGA cable. Contact Aydin for information on custom cables.
Multiple Monitors are driven from the same
signal source.
Splitting the video signal divides the strength
of the signal. A video signal booster (line
driver) is recommended if installation requires
more than one Monitor driven from a single
video source.
Monitor has incorrect or bad sync signals. Check for proper video cable installation, or
replace suspected faulty cable.
Check the video source is within the display’s
operating range: max. 1280x1024 pixels, and
60 – 75Hz.
Page 30
30 150-7000-002
Symptom: Display image is not properly sized
Possible Problem Solution
OSD adjustments need to be made Adjust the vertical and horizontal size controls
through the OSD.
Improper video display settings Check for proper display properties selection
of the display settings. Monitor autosize will
only display full screen if source is 4:3 aspect
ratio.
VGA signal source “Auto Adjust” needs
activated
The VGA source is able to auto adjust the
Monitor to its optimum viewing setting. Press
the arrow down button one time to auto
adjust the display.
Possible Problem Solution
T/S cable is not plugged in Verify the connections between the T/S and
the computer.
T/S cable is installed in a different COM port
than installed by the software
Install the T/S into another COM port. If using
a laptop, verify the COM port(s) is enabled.
T/S controller driver has not been installed Install the TSHARC controller driver.
Hardware failure Contact an Aydin Technical Support
Technician (610-404-5370).
Symptom: Touch Screen (T/S) does not respond
Symptom: T/S moves, but does not follow a nger or stylus
Possible Problem Solution
Controller is not calibrated Run the calibration in the TSHARC Control
Panel software.
T/S Controller Driver is not installed Install the TSHARC Controller Driver.
T/S cable is not installed correctly Verify the T/S cable is installed correctly.
Symptom: “Error in Calibration” message appears
Possible Problem Solution
The T/S Controller Driver is not installed
correctly
Uninstall the driver using “TSUN10.exe”. If a
previous T/S Controller Driver was installed,
all footprints must be removed. Go to the T/S
manufacturer’s web site or contact the manufacturer for instructions to uninstall drivers.
Reinstall the TSHARC Driver software.
Page 31
150-7000-002 31
APPENDIX C
Technical Specications
8.4” 10.4” 12.1” 15”
Display
TFT AM, SVGA, LCD,
262K Colors. 800 x 600 pixels
OPTIONAL
1024 x 768
XGA Display
OPTIONAL
1024 x 768
XGA Display
1024 x 768
XGA Display
Sunlight
Readable
Standard: 1400 nits
NVIS : 1000 nits
MIL-L-85762A (AF-Open Canopy)
Dimming
Ratio
1000:1
Video Input
RGB
Connectors
Video Input Amphenol:
MIL-DTL-38999 Series I
Power Input Amphenol:
MIL-C-26482 Series I
Housing
Milled AL; Black Hard Anodized:
SAE AMS 2469 E
Other Coatings: MIL-C-22750
Mounting
RAM Mount (Standard)
Flush, Panel, 19” Rack (Optional)
Wide Range
DC Power
Input
8-36 VDC
(12, 24, 28 VDC nominal)
MIL-STD-1275D
Power
Consumption
6 Watts Min - 20 Watts Max
Power
Conditioning
Internal Short Circuit Protection
Load Dump Protection
Over Voltage Protection
Reverse Polarity Protection
6 Watts Min -
35 Watts Max
Page 32
32 150-7000-002
Environmental Specications
8.4” 10.4”
12.1” 15”
Operating
Temperature
-40°C to 70°C (-40°F to 158°F)
MIL-STD-810F: 501.4/502.4: II-Op
Storage
Temperature
-40°C to 75°C (-40°F to 167°F)
Shock
50 G
Vibration
5.8 G (5-500 Hz)
Altitude
45,000 ft.
IP Rating
IP67 (NEMA 6 Submersible)
Humidity
0-100%
EMI
MIL-STD-461E
MIL-PRF-
22885G
Sunlight Readability for Buttons
Page 33
150-7000-002 33
Warranty Terms and Conditions
Aydin offers it’s products and services
for sale under the following terms and
conditions. Any and all orders will be
accepted only at the sole discretion of Aydin
and under these terms and conditions. Any
modication to these terms and conditions
can only be made by Aydin in writing.
Agreement to any modications must be
made by all participants of the sale prior to
the acceptance of any order.
Prices: All published prices are in effect
from the date noted on the price sheet.
Prices are subject to change without notice.
Written quotations may be requested.
Written quotations are valid for 30 days. All
prices are quoted in U.S. dollars. Any and all
taxes, tariffs, currency translations, duties,
insurance, freight charges and any other
handling charges are the responsibility of
the purchaser, and must be prepaid and/
or charged.
Acceptance: All orders will be accepted
at the sole discretion of Aydin. Any order
can be rejected for any reason at any time
without liability.
Payment: All purchasers must prepay the
order, accept COD shipment or arrange for
other acceptable methods of guaranteed
payment (credit card, cash prepayment,
etc.) before any order will be shipped. VISA,
MasterCard, DiscoverCard and American
Express are welcomed and encouraged.
Shipments: All shipments are FOB
Sc o t ts da l e, Ar i z on a. P ur c ha se r is
encouraged to provide Aydin with shipping
authorization on their freight account.
Unless otherwise specied, Aydin will select
the best way for shipment, using common
carrier, FedEx Ground or UPS Ground.
Shipments that are not FOB consignee or
third party will incur a 20% handling charge
and be added to the invoice. Delivery is not
guaranteed. All risk of loss is assumed by
the purchaser upon delivery by Aydin to
the carrier. Special terms may apply for
international shipments. Unless otherwise
specied by the purchaser and accepted
by Aydin at the time of purchase, Aydin
reserves the right to partial ship any order.
Cancellations: Once an order is placed by
the purchaser and accepted by Aydin,
cancellation charges will apply to any and
all unshipped items. Partial credit may be
extended if products are returned unused
in original packaging within 30 days of
shipment. No credit will be issued on any
returns or cancellations after 30 days from
date of shipment.
Returns: Once a product has been shipped,
no returns will be accepted unless an RMA
number has been issued by Aydin prior
to it’s return. The RMA number must be
prominently displayed on the outside of the
returned packing materials. Aydin cannot
be responsible for damage from shipping.
All authorized returns must be shipped
prepaid directly back to Aydin in the original
packaging. Returnee is responsible for all
shipping and handling costs to and from the
closest Aydin authorized repair location. For
authorized in-warranty service only, Aydin
will pay for the return of the unit via normal
domestic ground service. Expedited return
service or shipment outside of U.S. must be
prepaid by receiving party.
Standard Limited Warranty: Aydin warrants
its products to be free from defects in
materials for a period of Two (2) Years from
the date of the original shipment from the
factory. Aydin agrees to repair the product
without labor cost to the purchaser, for a
period of One (1) Year from the original ship
date. No other warranty is expressed or
implied. Specically excluded is normal wear
and tear, abuse or misuse of the products.
Aydin does not make any claims or warrant
the products with respect to the purchaser’s
use or application of the products. Products
returned but found not to be within the terms
of this warranty are subject to a service fee
to be paid prior to the return of the product
to the purchaser.
Liability: Any claim which may be made
against Aydin with regard to this contract for
sale must occur within One (1) year from date
of original shipment from the factory. IN NO
EVENT SHALL Aydin BE LIABLE FOR LOSS
OF PROFITS, LOSS OF USE, LEGAL OR
PROFESSIONAL FEES, CONSEQUENTIAL
OR INCIDENTAL DAMAGE OR FOR SPECIFIC
PERFORMANCE OF THE PRODUCTS, THEIR
MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE.
Loading...
