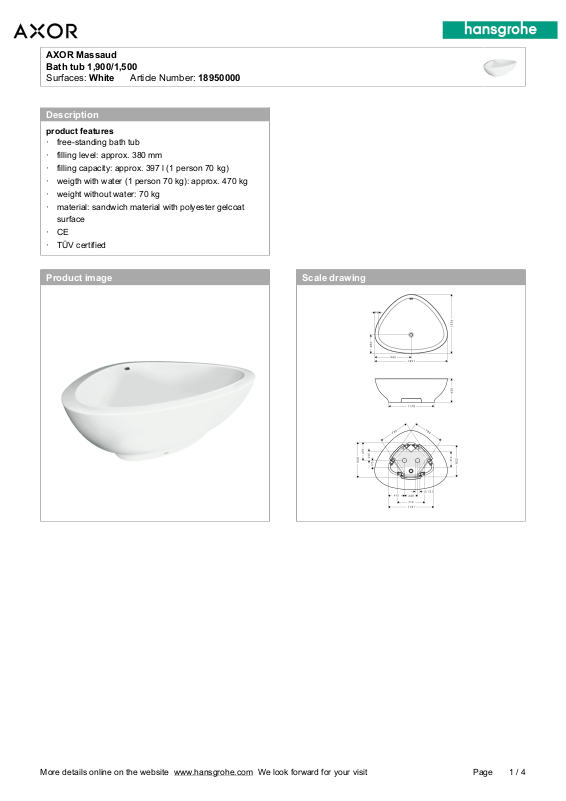

Page 1
AXOR Massaud
Bath tub 1,900/1,500
Surfaces: White___Article Number: 18950000
Description
product features
· free-standing bath tub
· filling level: approx. 380 mm
· filling capacity: approx. 397 l (1 person 70 kg)
· weigth with water (1 person 70 kg): approx. 470 kg
· weight without water: 70 kg
· material: sandwich material with polyester gelcoat
surface
· CE
· TÜV certified
Product image Scale drawing
More details online on the website_www.hansgrohe.com_We look forward for your visit 1 / 4Page
Page 2
AXOR Massaud
Bath tub 1,900/1,500
Surfaces: White___Article Number: 18950000

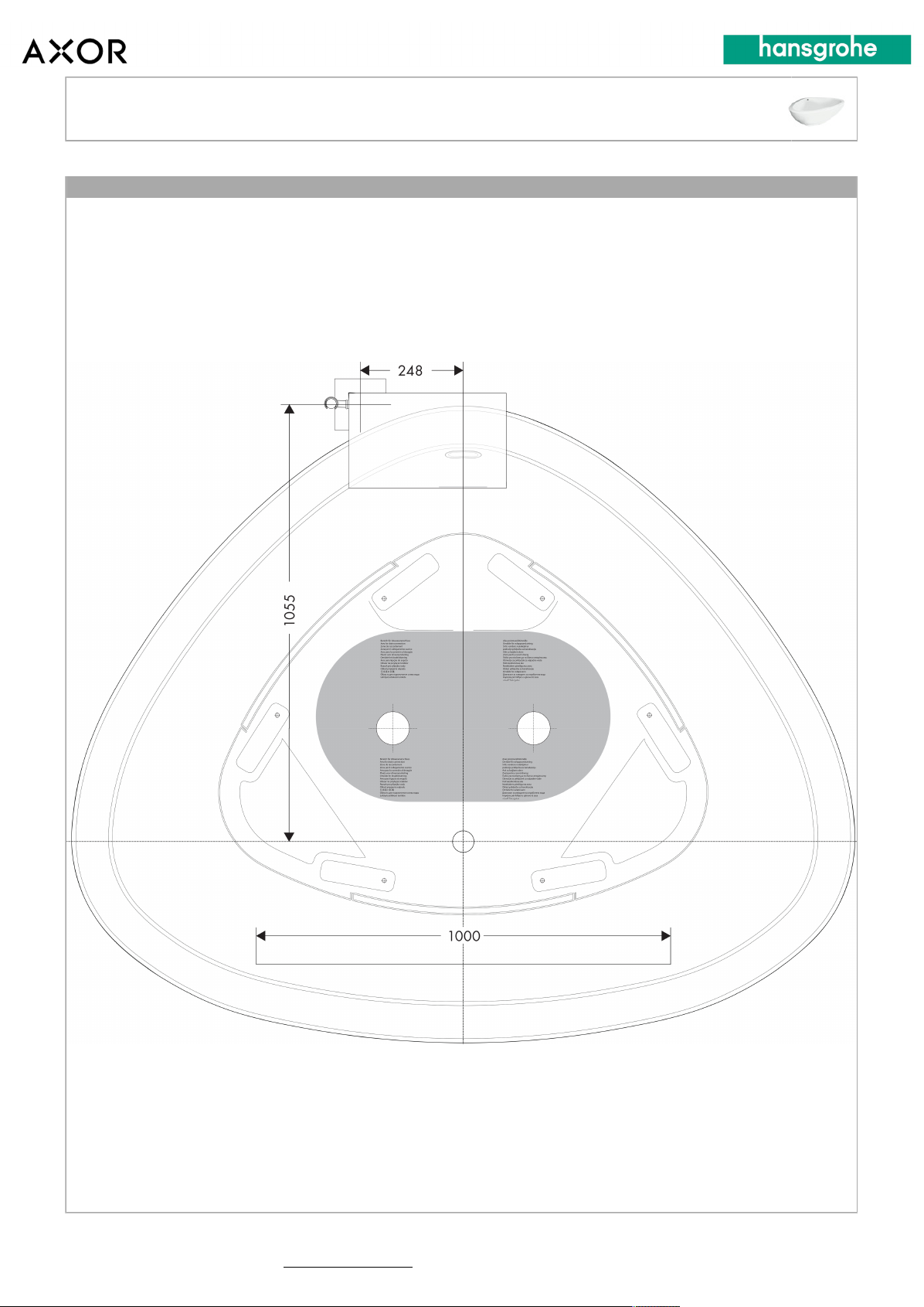

Installation examples
More details online on the website_www.hansgrohe.com_We look forward for your visit 2 / 4Page
Page 3
AXOR Massaud
Bath tub 1,900/1,500
Surfaces: White___Article Number: 18950000

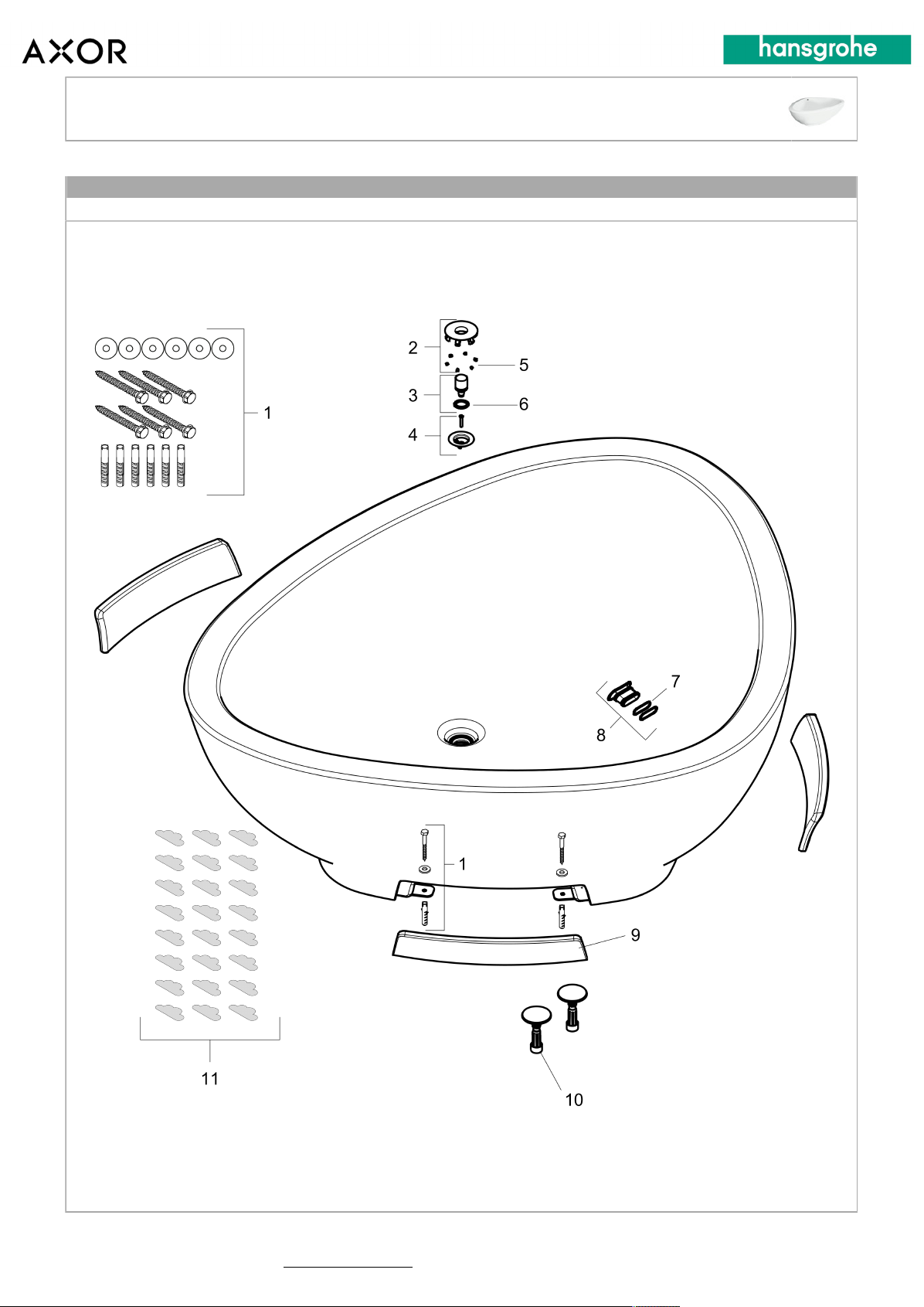

Exploded Drawing
Year of production: >05/09
More details online on the website_www.hansgrohe.com_We look forward for your visit 3 / 4Page
Page 4
AXOR Massaud
Bath tub 1,900/1,500
Surfaces: White___Article Number: 18950000
Spare part list
Year of production: >05/09
Pos. Description Article Number Price PU
1 mounting kit 95430000 - 1
2 hair guard tray 95429000 - 1
3 plug 95425000 - 1
4 pop up waste 95427000 - 1
5 screw cover 96762000 - 1
6 seal 95426000 - 1
7 O-ring 44x2,5 98162000 - 1
8 spout body 95432000 - 1
9 cover 95428000 - 1
10 shower tray feet 29965000 - 1
11 anti-slip stickers 95434000 - 1
a trap cpl. 56373000 - 1
More details online on the website_www.hansgrohe.com_We look forward for your visit 4 / 4Page
