Axor HAN3215 Installation & Assembly

Installation Instructions / Warranty

Citterio

39453XX1

90501301 7/2005

Axor Citterio four-hole roman tub set
39453XX1

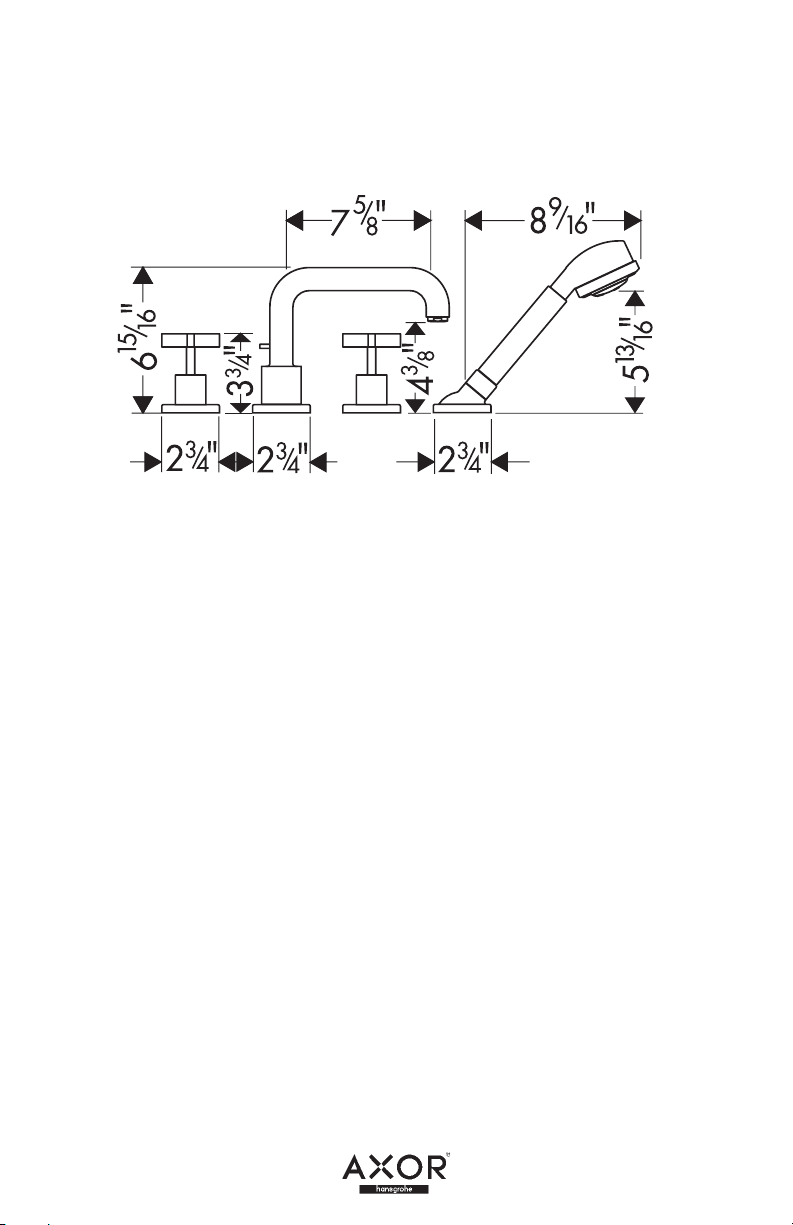

Technical Data

Flow rate @ 45 psi 6.0 gpm per side
Handshower 2.5 gpm max.
Maximum water pressure 145 psi
Recommended water pressure: 14.5 - 75 psi
Recommended hot water temp.: 120

o

F - 140oF*

*Some municipalities limit the maximum water temperature from the water heater to 120o or below. Please
know and follow all applicable local codes when setting the temperature on the water heater.

Installation Considerations

• Roman tub rough 13444181must be installed, and the finished deck surface must be
complete before this trim kit can be installed.

• Backflow preventer cartridge 94146000 is included with this kit, and must be used to
provide protection from back siphonage. It is already installed on the 94148000
inner Secu-flex hose.

The 13444181 roman tub rough is listed by IAPMO.

2

Installation Instructions

The water supply must be turned off at the main prior to installation of this
kit.

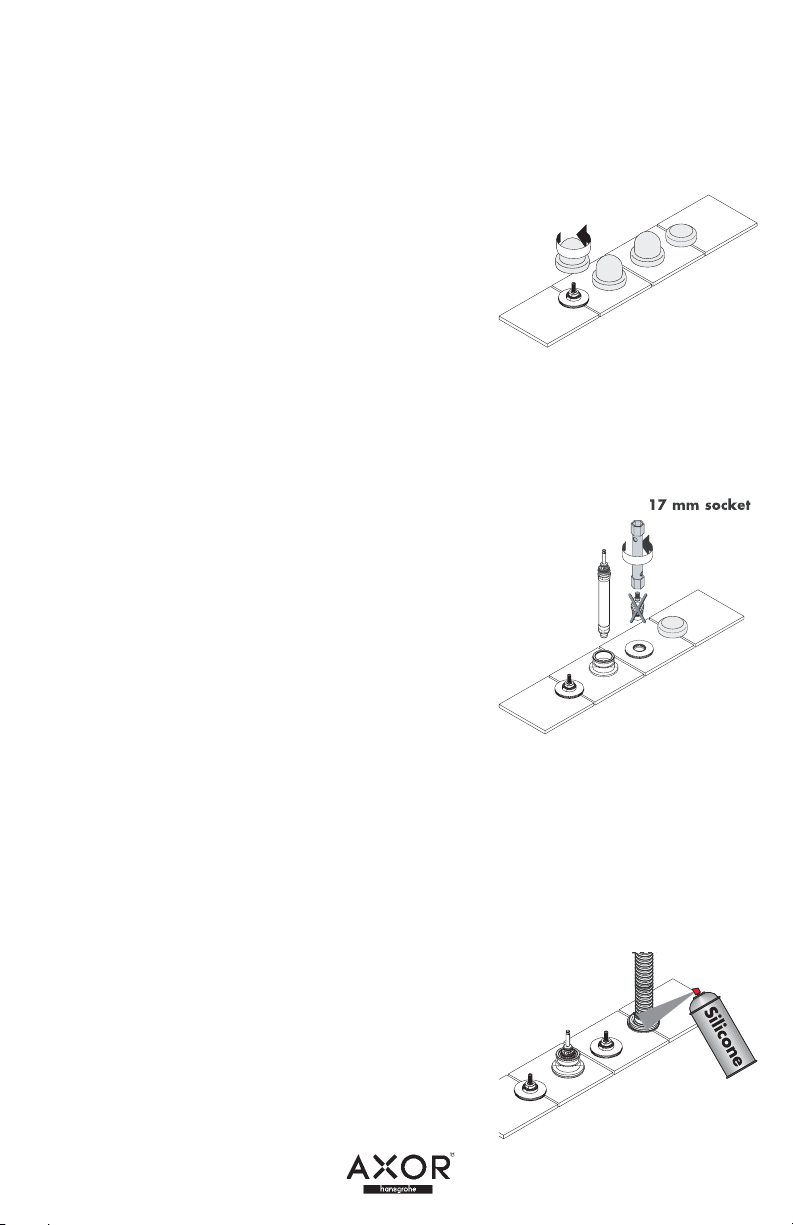

• Remove the plastic plaster shields from the valves
and the spout tee. Use a phillips head screwdriver
to remove the screws from the white plastic handle
snap connectors. Remove the snap connectors.

• Remove the brass nut from the spout tee. Push the
diverter firmly into the spout tee.

• Pull the outer SecuflexTM hose through the
handshower mount.

• Lubricate the handshowr mount and outer
SecuflexTM hose with spray silicon lubricant or with
a tablespoon or so of water.

3

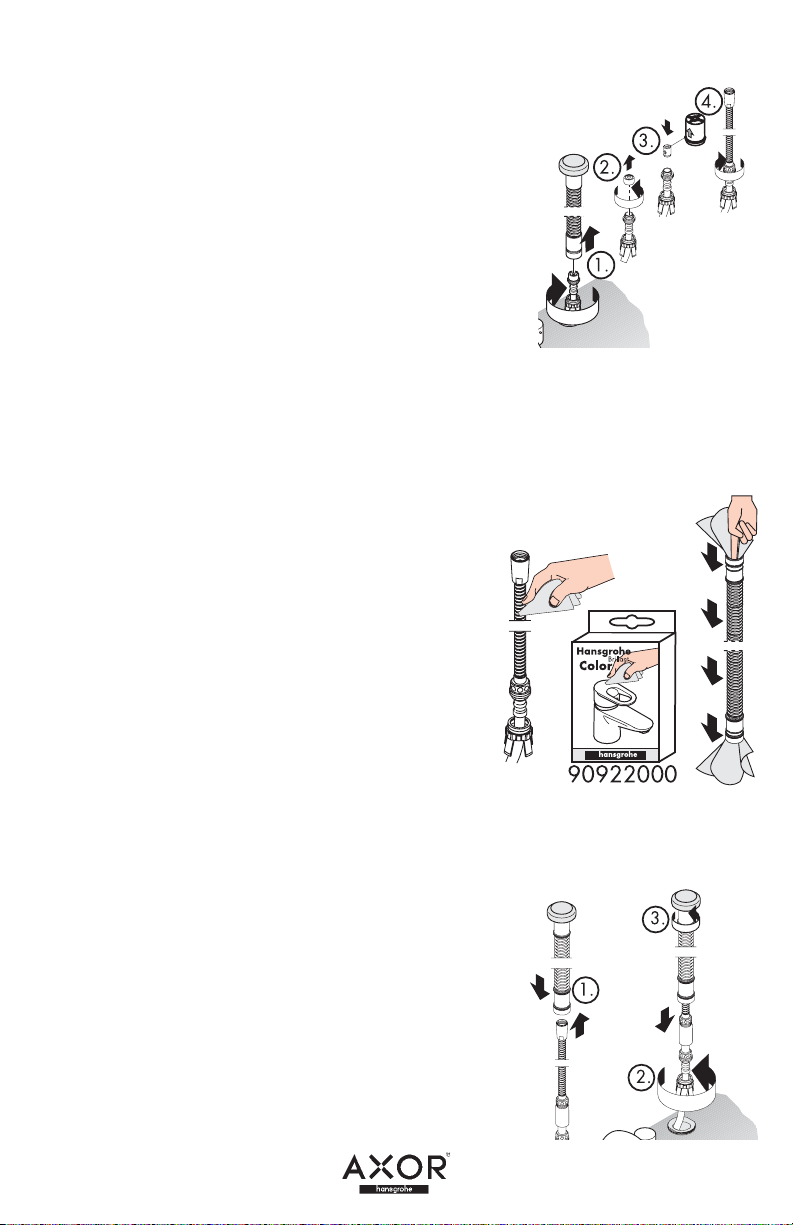

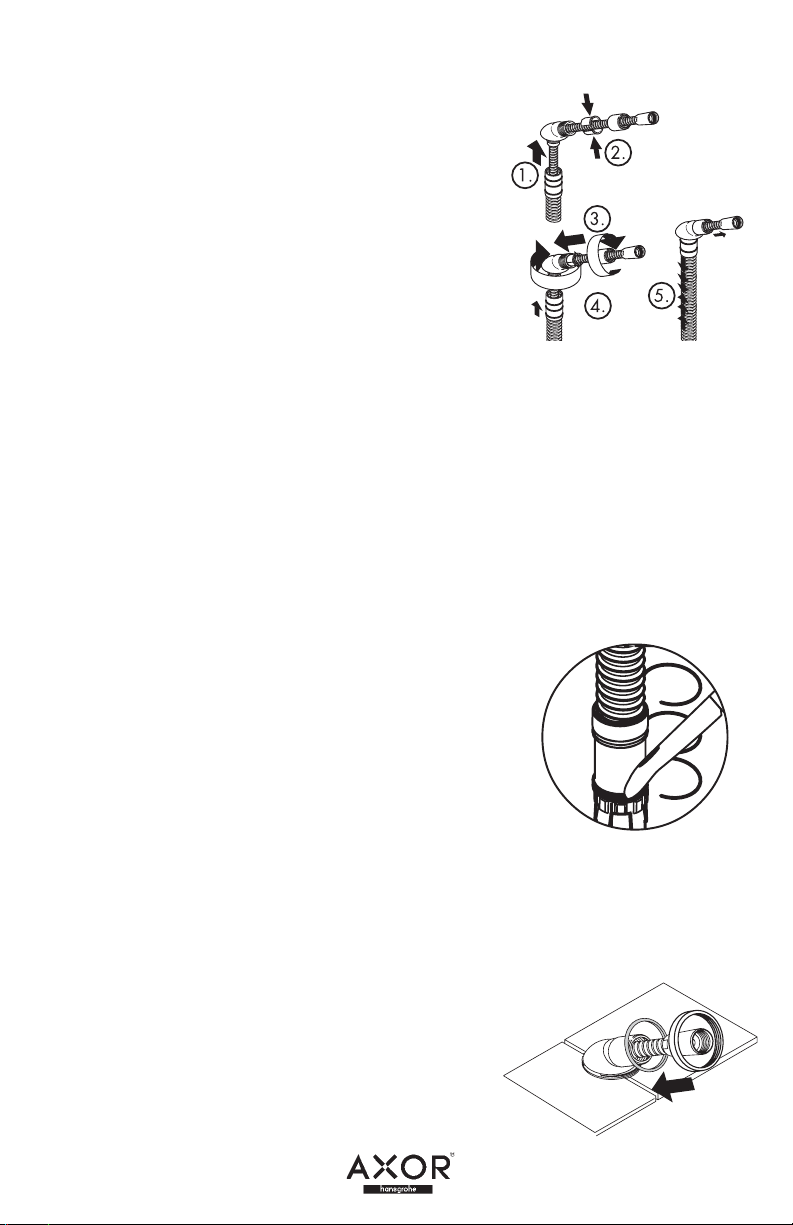

• Pull the outer SecuflexTM hose completely from the
handshower mount. Unscrew the outer Secuflex

TM

hose (1) from the handshower connector hose (2).
Do not allow the handshower connector hose to
fall back through the hole!

• Remove the brass plug (3) from the handshower
connector hose (2).

• Install the check valve(4) to the handshower
connector hose. Make sure that the arrow on the
check valve points in the direction of the water
flow!

• Use the enclosed cleaning towelette to thoroughly
clean the outer Secuflex

TM

hose.

• Feed the inner SecuflexTM hose through the outer
SecuflexTM hose (1)

• Attach the inner SecuflexTM hose to the handshower
connector hose (2).

• Remove the plaster guard from the outer Secuflex
hose (3).

TM

4

• Remove the end cap and the liner from the
handshower holder.

• Compress the outer hose until you can grasp the
end of the inner hose

• Feed the inner hose through the handshower holder
(1), liner (2), and end cap (3).

• Screw the end cap (4) over the end of the
handshower holder.

• Continue pulling "out" on the inner hose (5).

• Use a knife to cut the o-rings at the end of the outer

hose.

• Feed the hoses back through the handshower mount.

• Place the handshower holder onto the handshower

mount so that the pin on the mount engages the
corresponding hole on the handshower holder.

• Secure the handshower holder to the handshower
mount with the retainer ring.

5

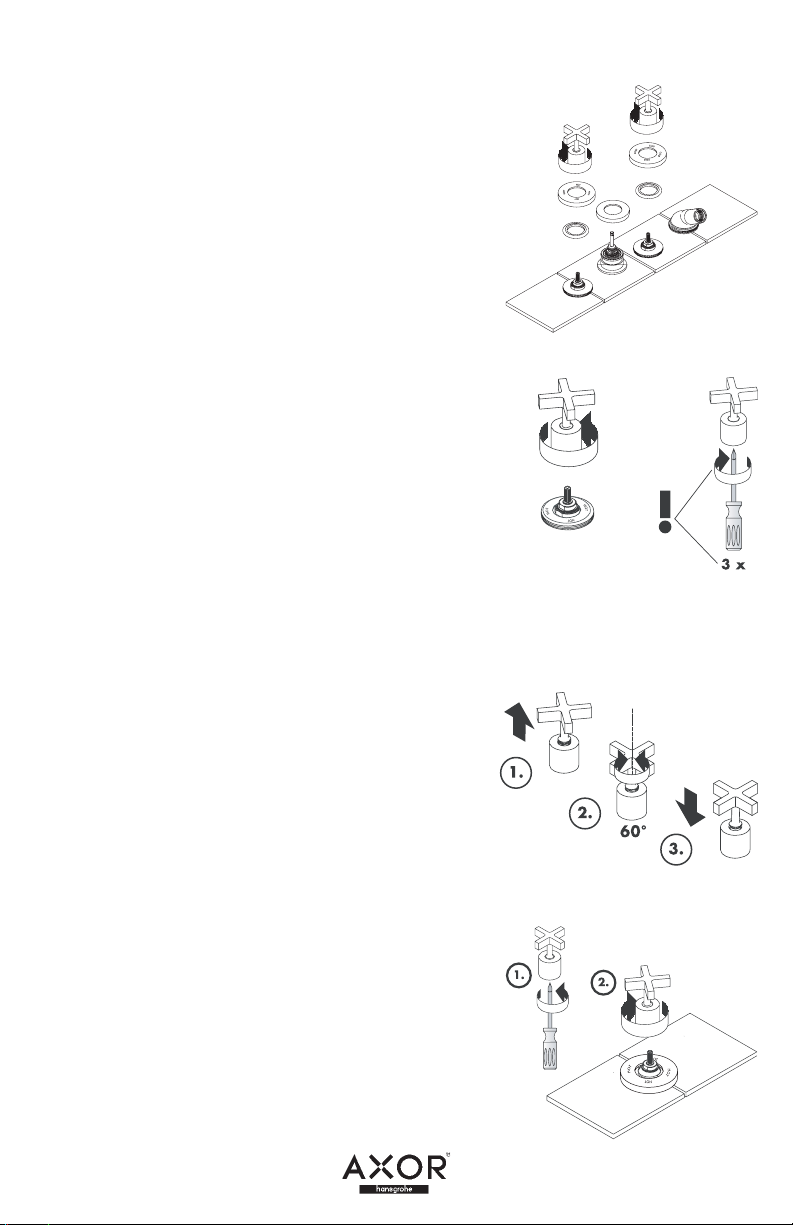

• Screw the sub-escutcheon rings onto the hot and cold
valves..

• Press the hot and cold escutcheons over the sub­escutcheon rings.

• Inspect the handles, making sure that they are
aligned properly.

• If the handle is not straight, remove it from the valve
by grasping the barrel and turning it counter
clockwise.

• Use a phillips head screwdriver to loosen the screw
inside the handle assembly 3 complete turns
clockwise.

• Pull upward on the cross to remove it. Turn it
approximately 60o. Reinsert it.

• Tighten the screw. Reinstall the handle.

6

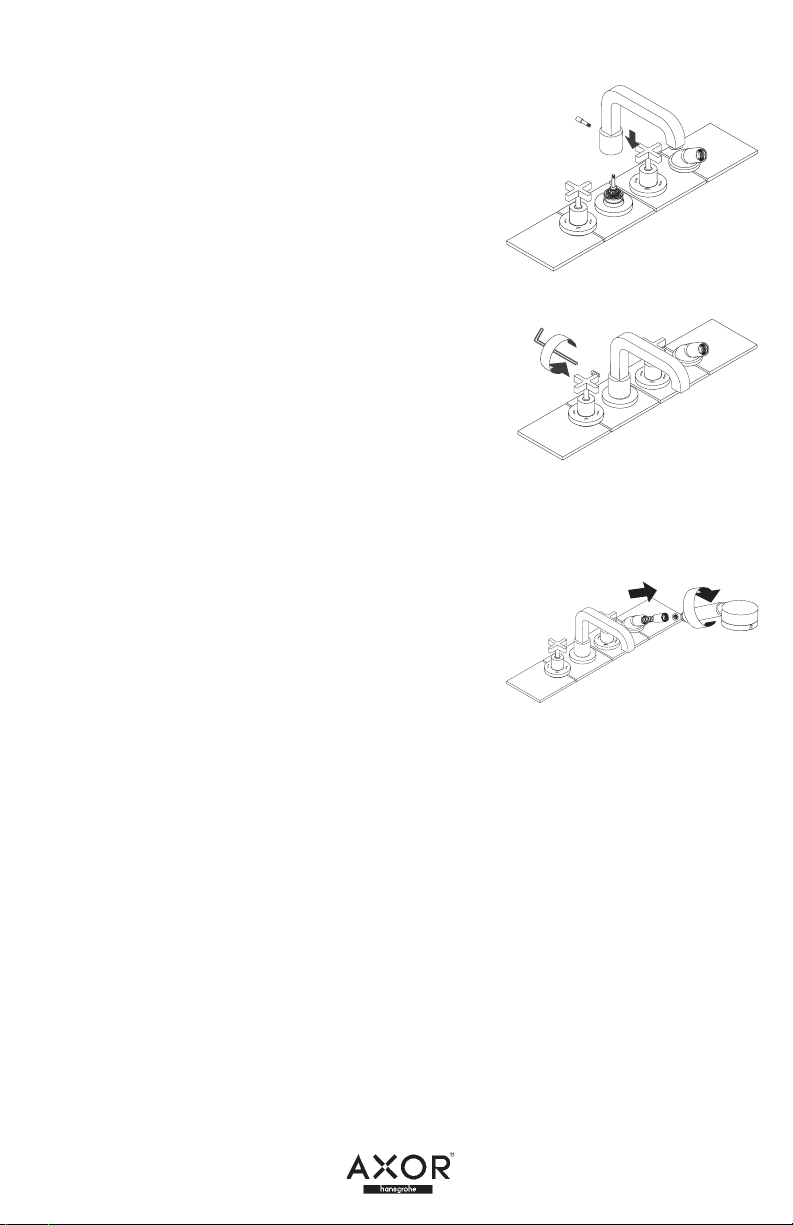

• Place the spout escutcheon over the diverter
assembly. Push the spout down over the diverter.
Insert the diverter knob and tighten. Tighten the set
screw, using the enclosed 3 mm allen wrench.

• Pull outward on the inner Secu-flex hose. Install a
screen washer in the hose end connector. Install the
handshower.

• Guide the handshower back into the handshower
holder.

User Instructions

• Turn the left handle to obtain hot water, the right handle to obtain cold water.

• When the water comes on, it will come through the spout. Pull the diverter lever up

to divert the water to the handshower. When the water is turned off, the diverter will
automatically reset to the spout position.

7

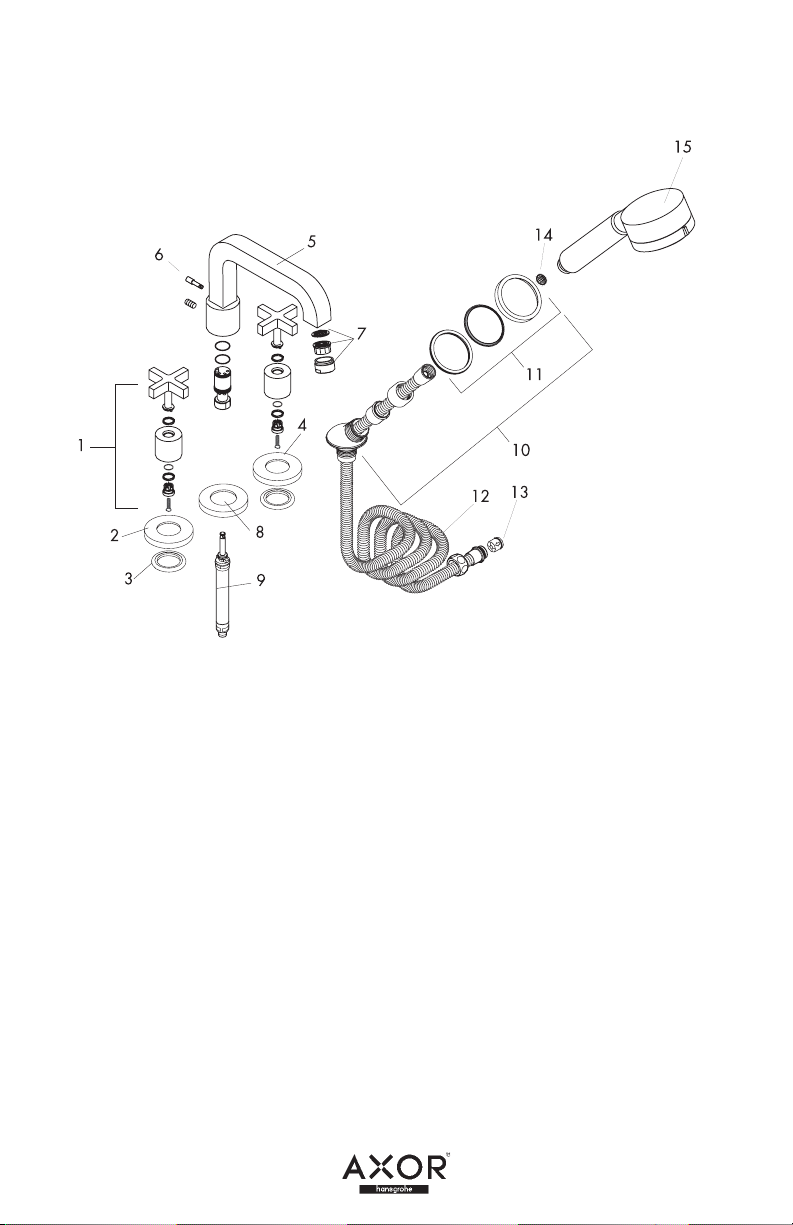

Replacement Parts

1 handle 39292XX0
2 hot escutcheon 96771XX0
3 sub-escutcheon
4 cold escutcheon 96772XX0
5 spout 96773XX0
6 diverter knob 96774XX0
7 aerator 13956XX0
8 spout escutcheon 97779XX0
9 diverter 96775000
10 handshower holder 96483XX0
11 handshower holder escutcheon 96237XX0
12 inner Secuflex hose 94148000
13 backflow preventer cartridge 94074000
14 screen washer 94246000
15 Uno handshower 38850XX1

XX = color
00 = chrome
42 = platinum

8

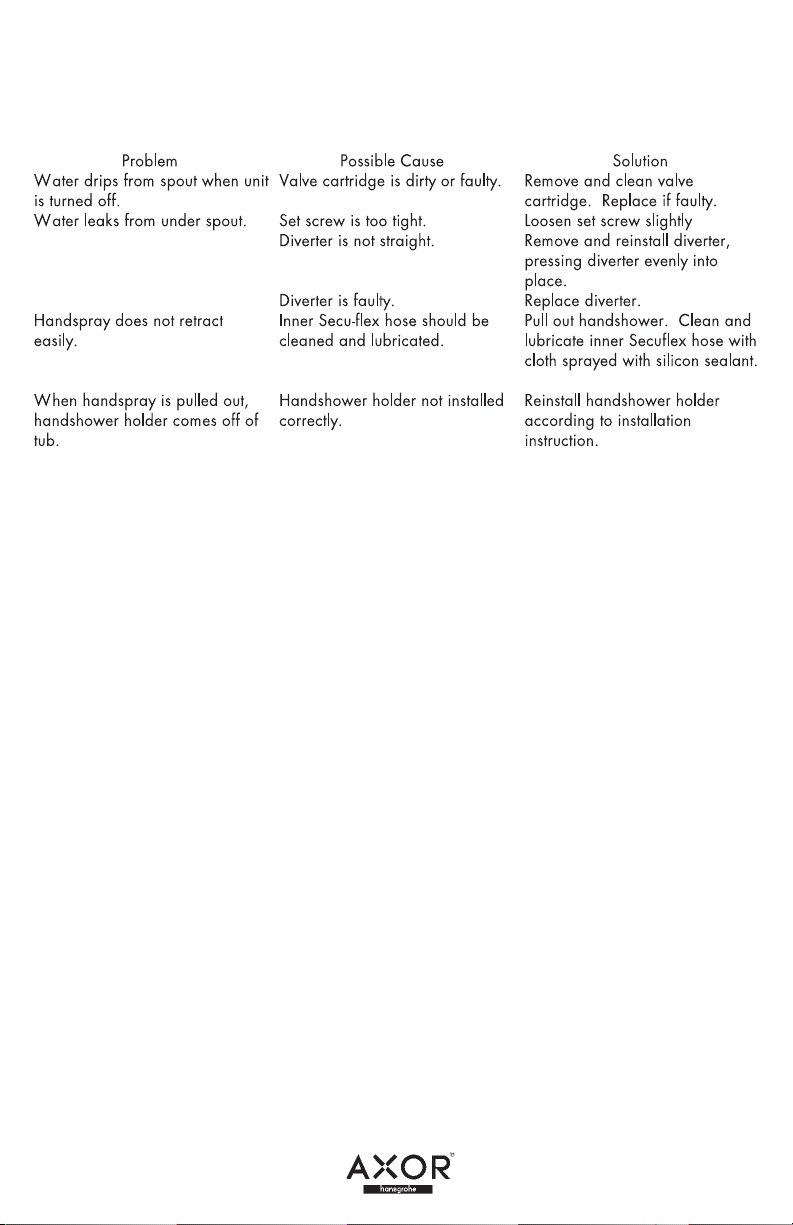

Troubleshooting

9

Cleaning Recommendation for Hansgrohe Products

Modern faucetry and shower products utilize a combination of materials to comply with the needs of the market with
regard to design and functionality.

To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment is not
covered under the Hansgrohe warranty.

Cleaning Materials for Faucets and Showers

• To remove lime scale, use only products made specifically for that purpose. Always follow the manufacturer’s
instructions when using.

• Do not use cleaners that contain hydrochloric, formic, acetic, or phosphoric acids, as these will cause considerable
damage to finishes and to plastic components.

• Never mix cleaning materials.

• Never use cleaners containing abrasives. Do not use abrasive cleaning cloths, pads, or sponges.

Cleaning Procedures

• Clean your faucets and shower products as and when required. Regular cleaning will prevent scale buildup and
water spotting.

• Follow the label instructions. Do not allow any cleaner to remain on the product for longer than necessary.

• When using spray cleaners, spray first onto a sponge or cloth – do not spray directly onto the product.

• After cleaning, rinse thoroughly with clear water to remove any cleaner residue.

Important

• Soap and shampoo residue can also cause damage to the product. Rinse well with clean water after use.

• If the surface is already damaged, harsh cleaning materials will cause further damage.

Limited Lifetime Consumer Warranty

This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is
limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the
United States or Canada.

WHO IS COVERED BY THE WARRANTY

This warranty extends to the original consumer purchaser only.

WHAT IS COVERED BY THE WARRANTY

This warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material or
workmanship as follows: Hansgrohe will repair at no charge for parts only or, at its option, replace any product or part of the product
which proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If
Hansgrohe is unable to provide a replacement and repair is not practical or cannot be timely made, Hansgrohe may elect to refund the
purchase price in exchange for the return of the product.

LENGTH OF WARRANTY

Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences. If you
are a consumer who purchased the product for use primarily for personal, family, or household purposes, this warranty extends for as
long as you own the product and the home in which the product is installed. If you purchased the product for use primarily for any other
purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Interaktiv and
Retroaktiv products, and (ii) for 5 years, with respect to AXOR, ShowerPower and Pharo products.

10

THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR:

A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.

B. Conditions, malfunctions or damage resulting from (1) improper installation, improper maintenance, misuse, abuse, negligence,

accident or alteration, or (2) the use of abrasive or caustic cleaning agents or “no rinse” cleaning products, or the use of the
product in any manner contrary to the product instructions.

C. Labor or other expenses for the disconnection or return of the product for warranty service, or for installation or reinstallation of the

product.

D. Accessories or related products not manufactured by Hansgrohe.

TO OBTAIN WARRANTY SERVICE

Contact your Hansgrohe retailer, or write to Technical Service at:

Hansgrohe Inc.
1492 Bluegrass Lakes Parkway
Alpharetta GA 30004

Or, call Hansgrohe toll-free at [phone].

In requesting warranty service, you will need to provide

1. The sales receipt or other evidence of the date and place of purchase.

2. A description of the problem.

3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to Hansgrohe Inc. 1492
Bluegrass Lakes Parkway, Alpharetta, Georgia 30004, Attention: Technical Service, if required by Hansgrohe.

When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.

EXCLUSIONS AND LIMITATIONS

REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED
UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR
AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THIS
PRODUCT.

HANSGROHE SHALL NOT BE LIABLE TO PURCHASER OR ANY PERSON FOR ANY INCIDENTAL, SPECIAL, OR
CONSEQUENTIAL DAMAGES, ARISING OUT OF BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY
(INCLUDING MERCHANTABILITY).

Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.

This warranty gives you specific legal rights, and you may have other rights which vary from State to State.

You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring any
action in court against us under the Magnuson-Moss Warranty Act.

PRODUCT INSTRUCTIONS AND QUESTIONS

Upon purchase or prior to installation, please carefully inspect your Hansgrohe product for any damage or visible defect. Prior to
installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of the product. If you
have questions at any time about the use, installation, or performance of your Hansgrohe product, or this warranty, please call or write to
us at the toll-free number and address printed above.

11
