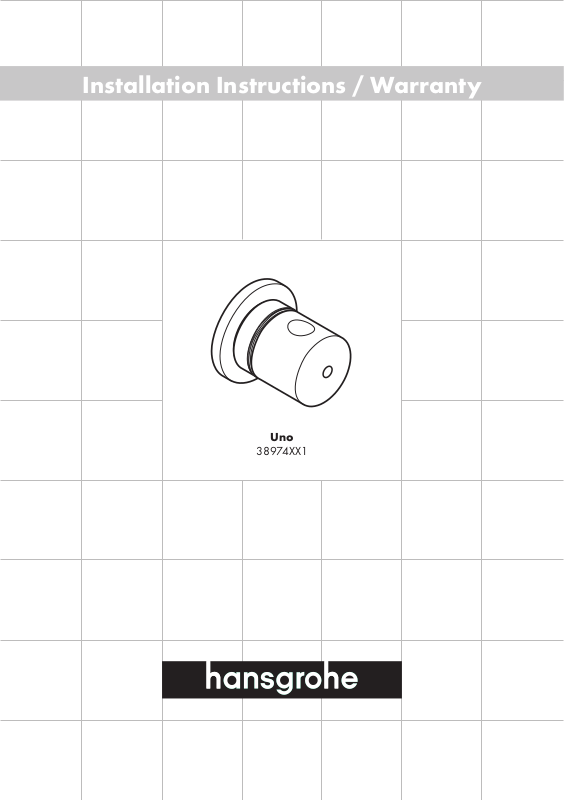

Installation Instructions / Warranty
Uno
38974XX1
Page 2

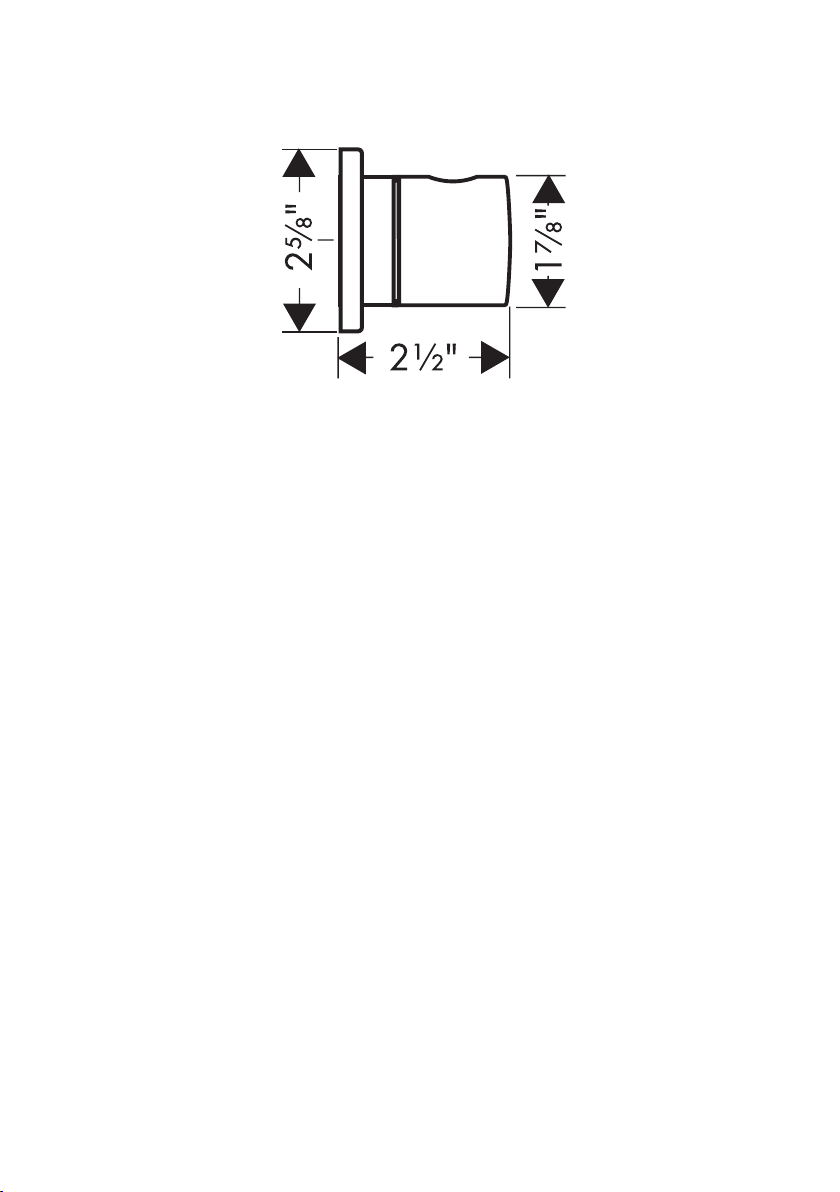

Installation Considerations
For best results, Hansgrohe recommends that
•
this unit be installed by a licensed, professional
plumber.
Please read over these instructions thoroughly
•
before beginning installation. Make sure that
you have all tools and supplies needed to complete the installation.
This trim kit is for use with volume control roughs
•
15974181 and 15977181.
The rough valve must be installed, and the
•
nished wall completed and made watertight
before installation of this trim kit.
To prevent scald injury, the maximum output
•
temperature of the shower valve must be no
higher than 10°F. In Massachusetts, the
maximum output temperature of the shower
valve can be no higher than 11° F.
Keep this booklet and the receipt (or other
•
proof of date and place of purchase) for
this product in a safe place. The receipt is
required should it be necessary to request
warranty parts.
Page 3
Installation

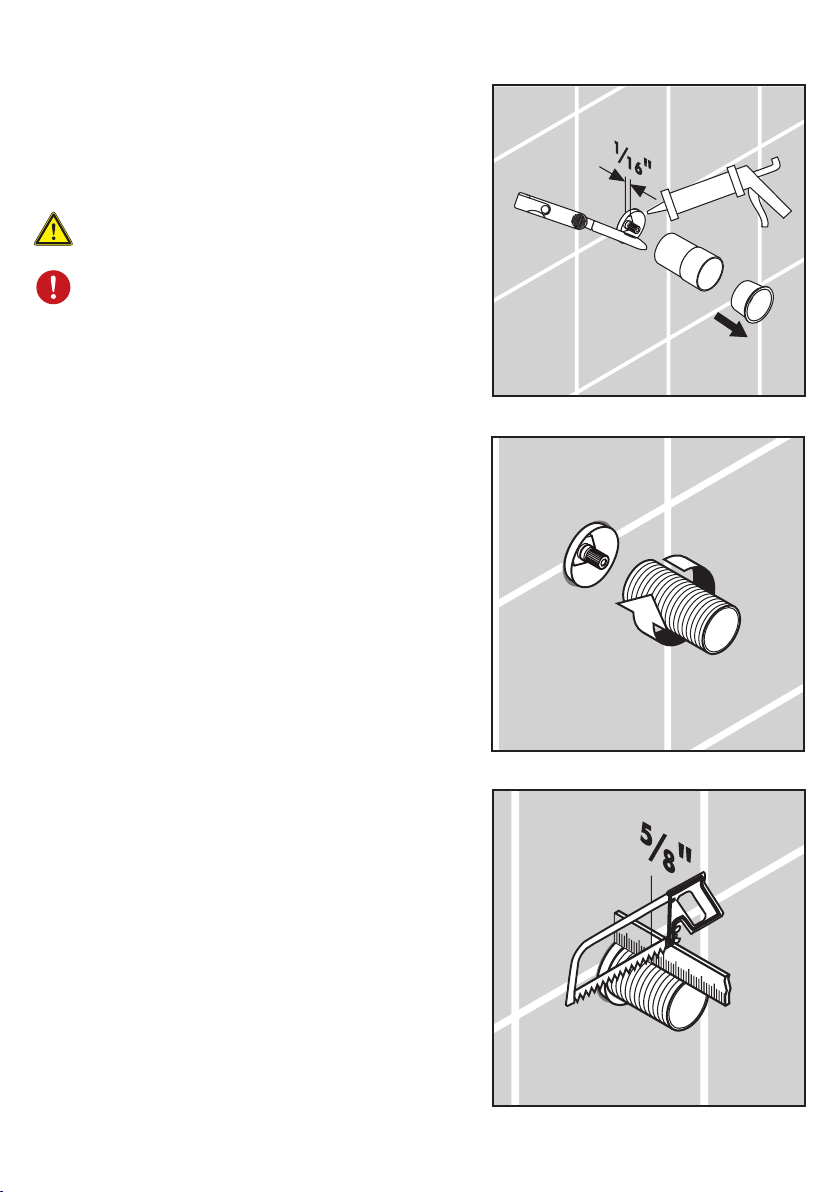

Remove the plaster shield cap.
Cut the plaster shield so that it extends ¹⁄₁₆" outside the
surface of the nished wall.
Seal the wall around the plaster shield
using waterproof sealant.
Failure to seal the wall can lead to
water damage.
Installl the slip coupling.
Cut the slip coupling so that it extends ⅝" outside the surface of the nished wall.
3
Page 4
4

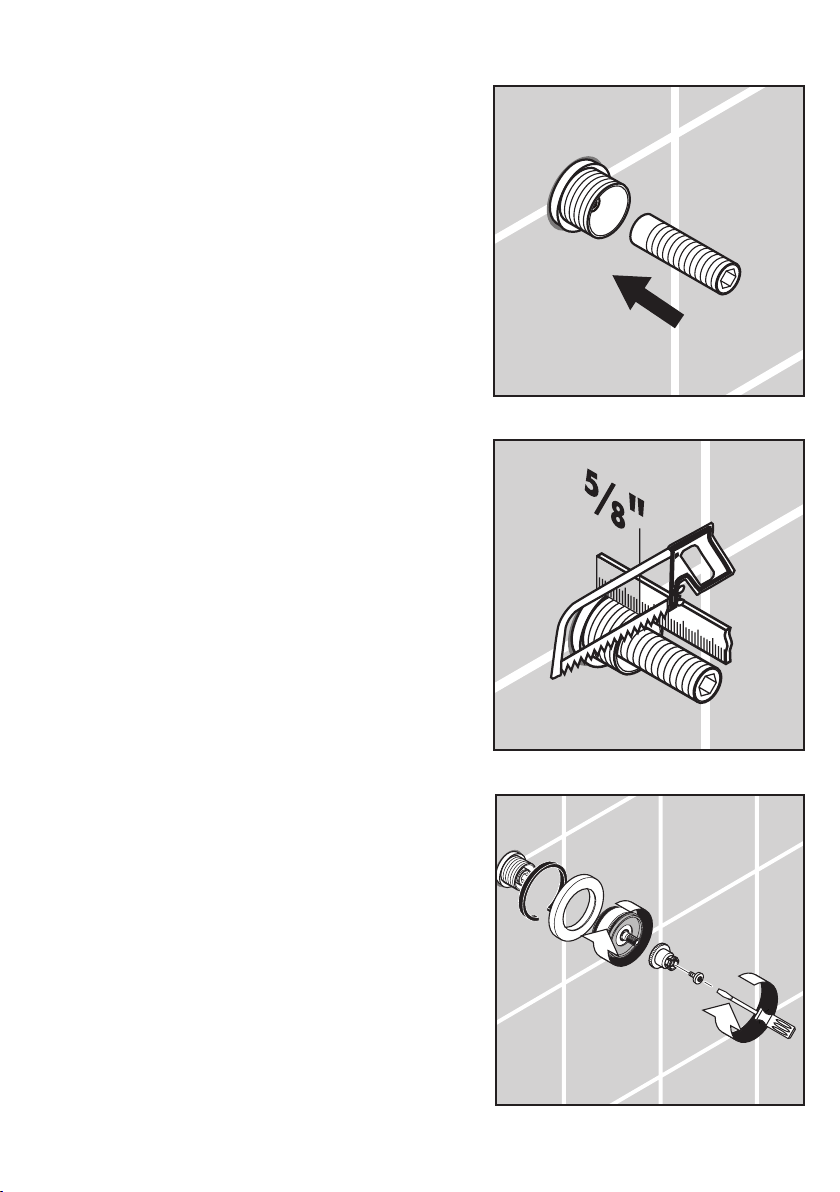

Install the extension spindle.
Cut the extension spindle so that it extends ⅝" outside
the surface of the nished wall.
Install the seal, escutcheon, nut, and glide ring.
Press the handle snap connector into place.
Install the snap connector screw, but tighten it only 3
turns.
3 X
Page 5

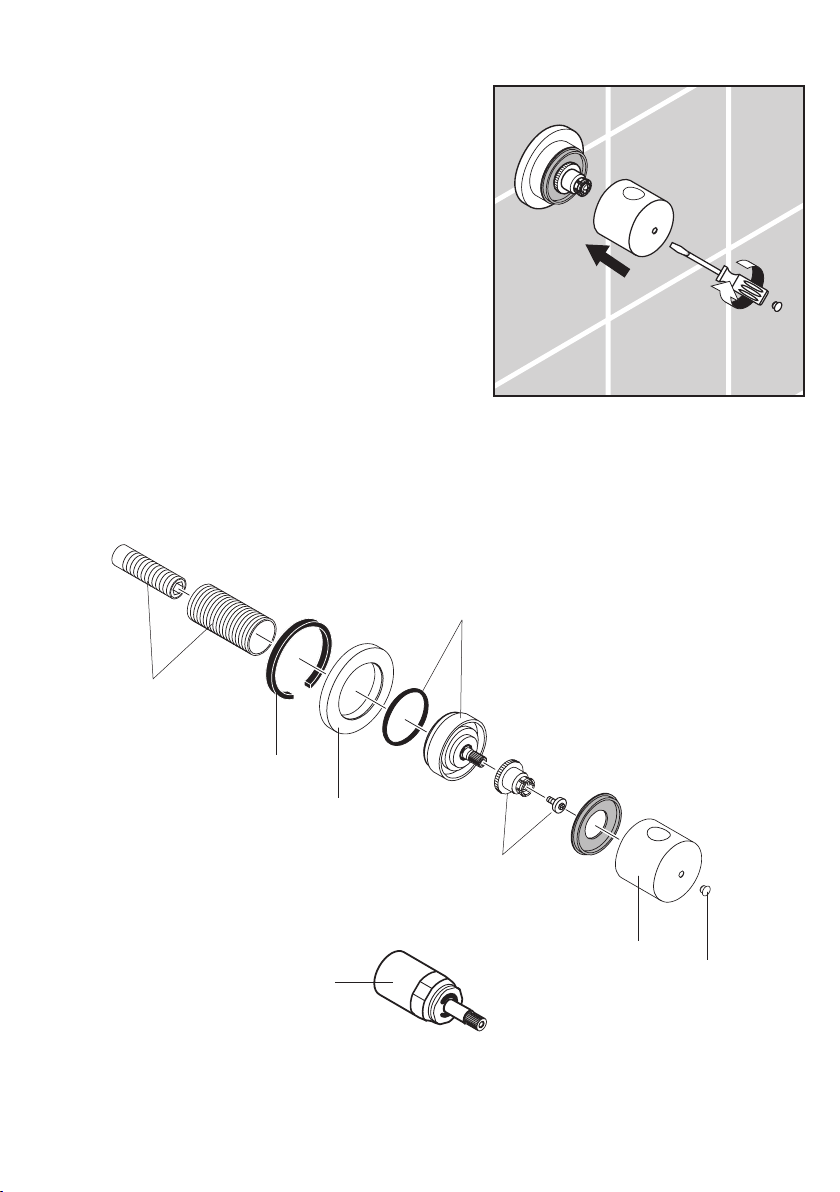

Press the handle into place over the snap connector.
Tighten the snap connector screw.
Replacement Parts
9765XX0
9639000
XX = colors
00 = chrome
8 = brushed nickel
97530000
96498XX0
extension
96370000
94184001
38991XX1
96541001
5
Page 6
6
Cleaning Recommendation for Hansgrohe Products
Modern lavatory faucets, kitchen faucets, and showers consist of very dierent materials to comply with the needs of the market with regard to
design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.
Cleaning Materials for Faucets and Showers
Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when cleaning
faucets and showers:
Only use cleaning materials which are explicitly intended for this type of application.
•
Never use cleaning materials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable damage.
•
Never mix one cleaning material with another.
•
Never use cleaning materials or appliances with an abrasive eect, such as unsuitable cleaning powders, sponge pads, or micro ber
•
cloths.
Cleaning Instructions for Faucets and Showers
Please follow the cleaning material manufacturer’s instructions. In addition, pay attention to the following points:
Clean the faucets and showers as and when required
•
Use the amount of cleaning product and the amount of time recommended by the manufacturer. Do not leave the cleaner on the xture
•
longer than necessary.
Regular cleaning can prevent calcication.
•
When using spray cleaners, spray rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings
•
and gaps and cause damage.
After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
•
Important
Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.
Please note: if the surface is already damaged, the eect of cleaning materials will cause further damage.
Components with damaged surfaces must be replaced or injury could result.
Damage caused by improper treatment is not covered under the warranty.
Limited Lifetime Consumer Warranty
This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to
Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the United States or
Canada.
WHO IS COVERED BY THE WARRANTY
This warranty extends to the original consumer purchaser only. This warranty is non-transferable.
WHAT IS COVERED BY THE WARRANTY
This warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material or workmanship as follows: Hansgrohe will repair at no charge for parts only or, at its option, replace any product or part of the product that proves
defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If Hansgrohe is unable
to provide a replacement and repair is not practical or cannot be timely made, Hansgrohe may elect to refund the purchase price in exchange
for the return of the product.
LENGTH OF WARRANTY
Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences. If you are a
consumer who purchased the product for use primarily for personal, family, or household purposes, this warranty extends for as long as you
own the product and the home in which the product is originally installed. If you purchased the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe and Commercial
Page 7
products, and (ii) for 5 years, with respect to AXOR products.
THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from (1) normal wear and tear, improper installation, improper maintenance, misuse, abuse,
negligence, accident or alteration, or () the use of abrasive or caustic cleaning agents or “no-rinse” cleaning products, or the use of the
product in any manner contrary to the product instructions. (3) Conditions in the home such as excessive water pressure or corrosion.
C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for installation or reinstalla
tion of the product (including but not limited to proper packaging and shipping costs), or for installation or reinstallation of the product.
D. Accessories, connected materials and products, or related products not manufactured by Hansgrohe.
TO OBTAIN WARRANTY PARTS OR INFORMATION
Contact your Hansgrohe retailer, or contact Technical Service at:
Hansgrohe Inc.
149 Bluegrass Lakes Parkway
Alpharetta GA 30004
Toll-free (800) 334-0455.
In requesting warranty service, you will need to provide
1. The sales receipt or other evidence of the date and place of purchase.
. A description of the problem.
3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to Hansgrohe Inc. 149 Bluegrass
Lakes Parkway, Alpharetta, Georgia 30004, Attention: Technical Service, if required by Hansgrohe.
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.
EXCLUSIONS AND LIMITATIONS
REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO
CREATE FOR IT ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
HANSGROHE SHALL NOT BE LIABLE TO PURCHASER OR ANY PERSON FOR ANY INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES, ARISING OUT OF BREACH OF THIS WARRANT Y OR ANY IMPLIED WARRANTY (INCLUDING MERCHANTABILITY).
Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you. This warranty gives you specic legal rights, and you may have other rights which vary from State to State. You may be required
by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in court against us under
the Magnuson-Moss Warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your Hansgrohe product for any damage or visible defect. Prior to installing,
always carefully study the enclosed instructions on the proper installation and the care and maintenance of the product. If you have questions
at any time about the use, installation, or performance of your Hansgrohe product, or this warranty, please call or write to us or call us toll-free
at 800 334 0455.
-
7
Page 8
Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004
Tel. 770-360-9880 • Fax 770-360-9887
www.hansgrohe-usa.com
US - Installation Instructions • Part No. 9084441 • Revised 08/009
