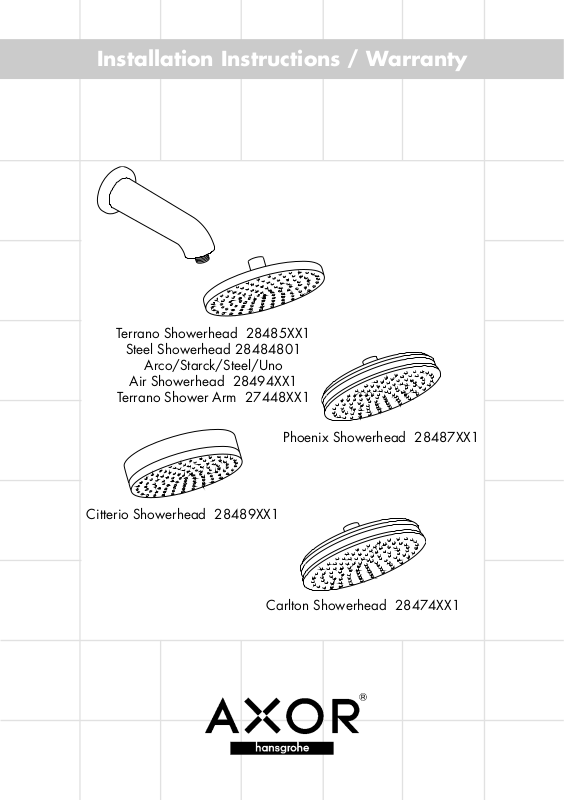

Installation Instructions / Warranty

Terrano Showerhead 28485XX1

Steel Showerhead 28484801

Arco/Starck/Steel/Uno

Air Showerhead 28494XX1

Terrano Shower Arm 27448XX1

Phoenix Showerhead 28487XX1

Citterio Showerhead 28489XX1

Carlton Showerhead 28474XX1

3

Terrano Shower Arm 27448XX1

Phoenix Showerhead 28487XX1 Citterio Showerhead 28489XX1

Carlton Showerhead 28474XX1

Terrano Showerhead 28485XX1
Steel Showerhead 28484801

Arco/Starck/Steel/Uno Air Showerhead
28494XX1

2

Product Information:

Maximum flow rate 2.5 gpm
Recommended working
water pressure 45 - 72 PS

Installation Considerations:

Due to the size and configuration of the 28485
showerhead, we recommend that it be installed only
with the 27448 shower arm.

Installation Instructions:

Installation of the shower arm requires a 1/2”
male nipple, extending 3/8” from the surface of
the finished wall.

We recommend the installation of a properly
anchored drop-ear ell, into which a nipple of the
proper length can be installed when the finished
wall is complete.

Wrap both ends of the pipe nipple with teflon
Screw one end into the drop-ear ell.

Seal the wall around the nipple with silicone bathroom
sealer.

Screw the arm onto the pipe nipple.

If a final tightening by wrench is desired, wrap the arm
with a cloth to prevent damage to the finish, or use a
strap wrench.

TM

tape.

2 mm

Confirm that the filter gasket is in place in the pivot ball
of the showerhead. Thread the showerhead by hand
onto the arm. Teflon
be used if desired.

Use an adjustable wrench to finish tightening the
showerhead onto the arm. Take care not to over­tighten, or damage to the showerhead may result.

Secure the showerhead with the hollow set screw.
(allenwrench = 3 mm)

TM

tape is not required, but can

3
