Axor 16523XX1, 16514XX1, 16524XX1, 16513XX1 User Manual
Installation Instructions / Warranty
Montreux
16513XX1
Montreux
16523XX1
Montreux
16514XX1
Montreux
16524XX1
2

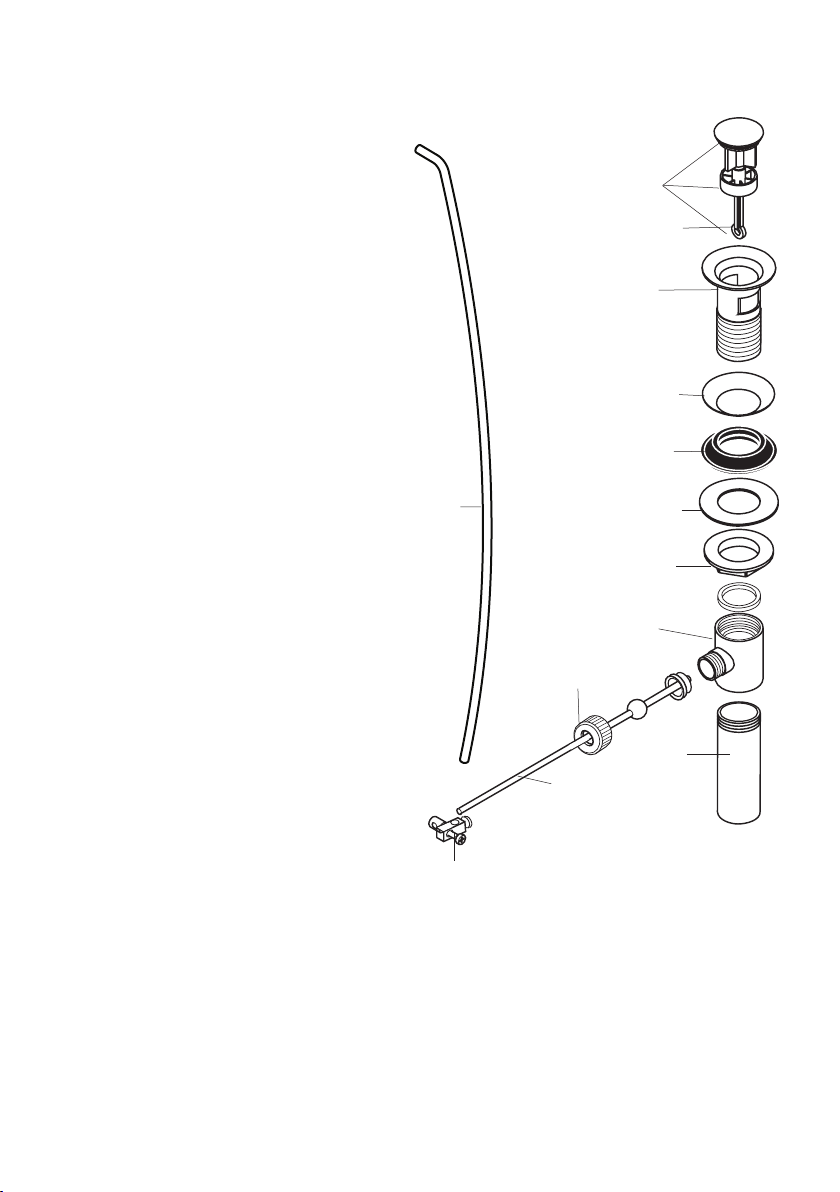

Axor Montreux Widespread Lavatory Faucet 16513XX1
Axor Montreux Widespread Lavatory Faucet 16514XX1
Axor Montreux Widespread Bidet Faucet 16523XX1
Axor Montreux Widespread Bidet Faucet 16524XX1
16513XX1 16514XX1
16523XX1 16524XX1
Technical Data
Max. flow rate 2.2 gpm
Max. water pressure 145 psi
Recommended pressure: 14.5 - 72 psi
Max. hot water temperature: 176° F
Recommended hot water temp. 120°F - 140°F*
Hole size in mounting surface
valve 1 1/4"
spout 1 3/8"
Maximum mounting surface depth 1 5/8"
Requires 1/2" supply lines and nuts.
Bidet faucet not for use on vertical spray bidets.
*Please know and follow all applicable local codes when setting
the temperature on the water heater.
Installation
Remove the mounting ring with o-ring and stop
ring from the valve body.
Push the valve up through the hole in the mounting
surface.
Install the stop ring on the valve. Install the
mounting ring -- it will stop at the proper mounting
height.
Installation Considerations
For best results, Hansgrohe recom-
•
mends that this unit be installed by a
licensed, professional plumber.
Please read over these instructions
•
thoroughly before beginning installation. Make sure that you have all
tools and supplies needed to complete
the installation.
This faucet may be used with a con-
•
tinuous flow water heater as long as
the flow pressure is at least 14.5 psi.
Rest the valve on the mounting surface.
Tighten the mounting nut and the tensioning
screws.
3
4
Turn the valve cartridges to the “off” position by
turning the cold stem counter-clockwise and the hot
stem clockwise.
Place the handle over the valve. Thread the flange
to the mounting ring.
Place the spout on the mounting surface.
Install the friction washer, metal washer and
mounting nut.
Tighten the mounting nut by hand.
