Axor 04170XX0 User Manual
Installation Instructions / Warranty
Solaris² E
04170XX0
Solaris² E
04171XX0
Allegro² E
04183XX0
Allegro² E
04184XX0
Metro² E
04196XX0
Metro² E
04197XX0
Trim, 3- and 4-Hole Roman Tub Sets
Solaris² E
04171XX0
Allegro² E
04184XX0
Metro² E
04197XX0
2
Solaris² E
04170XX0
Allegro² E
04183XX0
Metro² E
04196XX0
Installation Considerations
The 4-Hole Roman Tub Set trim kits require rough 06646000. The 3-Hole trim kits
•
require rough 06607000. The roughs are not included.
The rough must be installed and the mounting surface complete and made watertight
•
before installation of this trim kit.
The elbow for the handshower incorporates a check valve to prevent back siphonage.
•
This check valve should be removed and inspected yearly.
The flow rate of the handshower is 2.5 gpm.
•
The water must be shut off at the main before beginning installation.
•
3
Installation - 3-Hole Trim Kits
If you are using a 4-Hole set, please turn to page 6
Install the Handles

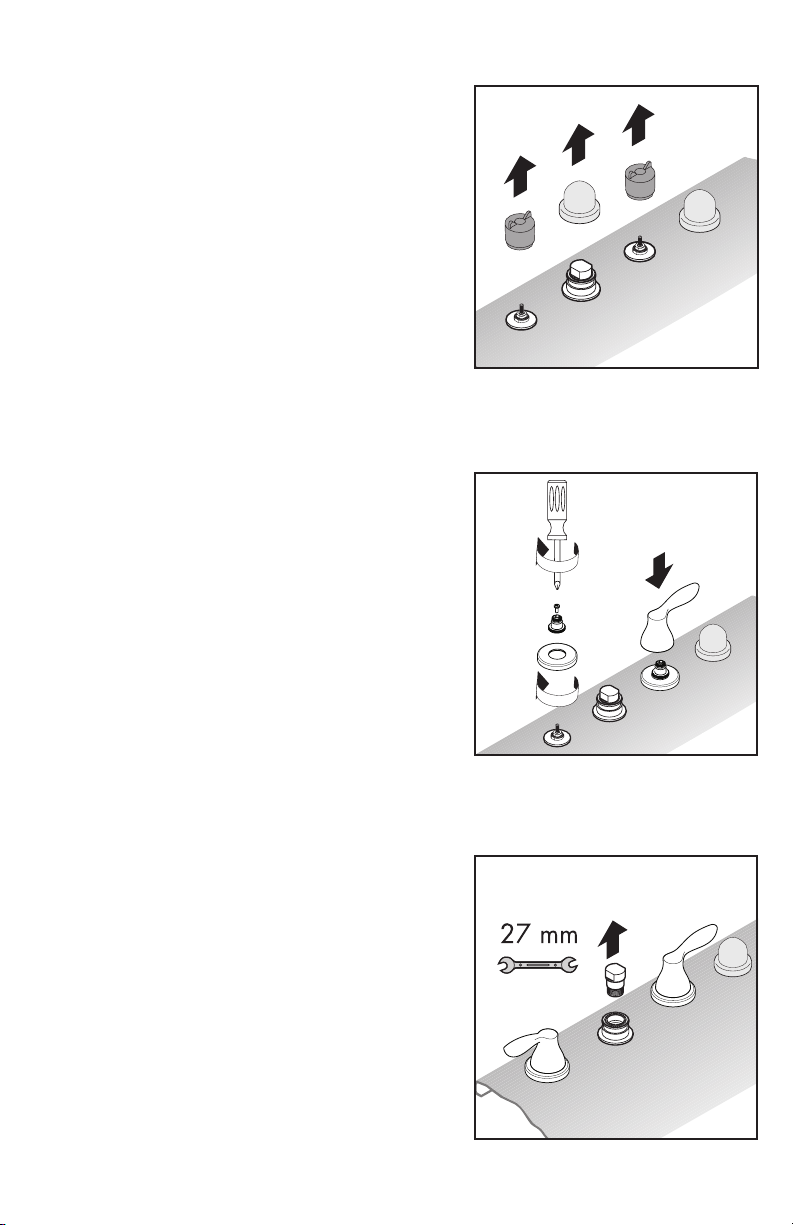

Remove the plaster shields from the hot and cold
valves and the spout tee.
Install the handle escutcheons.
Install the white plastic snap connectors and the
screws.
Push the handle down firmly over the snap
connectors.
Install the Spout
Remove the brass plug from the tee.
4
Push the spout sealing ring firmly into the spout
tee.
Install the spout escutcheon.
Press the spout over the spout tee. Install and
tighten the screw with a 3 mm Allen wrench.
CAUTION: do not overtighten the screw or the orings on the diverter will deform, which will cause
a leak.
Turn on the water and check all connections for
leaks.
5
