Axminster Tool Centre,
Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH
www.axminster.co.uk

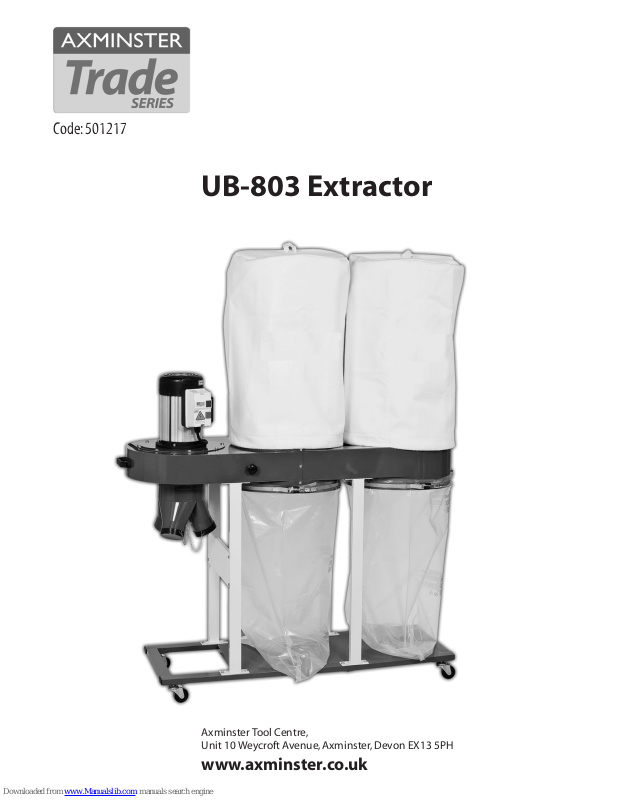

UB-803 Extractor
Code: 501217
1
CONTENTS
IMPORTANT SAFETY RULES-------------------------------------------------------------- 2
IMPORTANT SAFETY RULES FOR DUST COLLECTORS---------------------------
3
GROUNDING INSTRUCTIONS-------------------------------------------------------------
4
SPECIFICATIONS------------------------------------------------------------------------------
5
UNPACKING CONTENTS-------------------------------------------------------------------- 6
HARDWARE PACKAGE---------------------------------------------------------------------- 7
ASSEMBLY INSTRUCTION-----------------------------------------------------------------
8
EXPLODED DIAGRAM----------------------------------------------------------------------
10
PARTS LIST--------------------------------------------------------------------------------------
11
• WARNING!
Please read this manual carefully before assembly, testing
and operating.
• WARNING!
Do not operate this unit until hose or pipe is installed onto
the dust inlet port.
IMPORTANT SAFETY RULES
2
Wood working can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved
with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if
normal safety precautions are overlooked or ignored, personal injury to the operator may result.
Safety equipment such as guards, push sticks, hold-downs, featherboards, goggles, dust masks and hearing protection can reduce your potential for
injury. But even the best guard won’t make up for poor judgment, carelessness or inattention. Always use common sense and exercise caution in the
workshop. If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your personal safety is your
responsibility.
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY
1. FOR YOUR OWN SAFETY, READ INSTRUCTION
MANUAL BEFORE OPERATING THE TOOL. Learn the
tool’s application and limitations as well as the specific hazards
peculiar to it.
2. KEEP GUARDS IN PLACE and in working order
3. ALWAYS WEAR EYE PROTECTION
4. GROUND ALL TOOLS. If tool is equipped with three-prong
plug, it should be plugged into a three-hole electrical
receptacle. If an adapter is used to accommodate a two-prong
receptacle, the adapter plug must be attached to a known
ground. Never remove the third prong.
5. REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches are
removed from tool before turning it “ON”.
6. KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
7. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use
power tools in damp or wet locations, or expose them to rain.
Keep work area well lighted.
8. KEEP CHILDREN AND VISITORS AWAY. All children and
visitors should be kept a safe distance from work area.
9. MAKE WORKSHOP CHILDPROOF – with padlocks, master
switches, or by removing starter keys.
10. DON’T FORCE TOOL. It will do the job better and be safer at
the rate for which it was designed.
11. USE RIGHT TOOL. Don’t force tool or attachment to do a job
for which it was not designed.
12. WEAR PROPER APPAREL. No loose clothing, gloves,
neck-ties, rings, bracelets, or other jewelry to get caught in
moving parts. Non-slip footwear is recommended. Wear
protective hair covering to contain long hair.
13. ALWAYS USE SAFETY GLASSES. Wear safety glasses.
Everyday eyeglasses only have impact resistant lenses; they are
not safety glasses. Also use face or dust mask if cutting
operation is dusty.
14. SECURE WORK. Use clamps or a vise to hold work when
practical. It’s safer than using your hand and frees both hands to
operate tool.
15. DON’T OVERREACH. Keep proper footing and balance at all
times.
16. MAINTAIN TOOLS IN TOP CONDITION. Keep tools sharp
and clean for best and safest performance. Follow instructions
for lubricating and changing accessories.
17. DISCONNECT TOOLS before servicing and when changing
accessories such as blades, bits, cutters, etc.
18. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by us may
cause hazards or risk of injury to persons.
19. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure switch is in “OFF” position before plugging in
power cord.
20. NEVER STAND ON TOOL. Serious injury could occur if the
tool is tipped or if the cutting tool is accidentally contacted.
21. CHECK DAMAGED PART S. Before further use of the tool, a
guard or other part that is damaged should be carefully checked
to ensure that it will operate properly and perform its intended
function – check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any other
conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced.
22. DIRECTION OF FEED. Feed work into a blade or cutter
against the direction of rotation of the blade or cutter only.
23. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
POWER OFF. Don’t leave tool until it comes to a complete
stop.
24. DRUGS, ALCOHOL, MEDICATION. Do not operate tool
while under the influence of drugs, alcohol or any medication.
25. MAKES SURE TOOL IS DISCONNECTED FROM POWER
SUPPLY while motor is being mounted, connected or
reconnected.
26. WARNING: The dust generated by certain woods and wood
products can be injurious to your health. Always operate
machinery in well ventilated areas and provide for proper dust
removal. Use wood dust collection systems whenever possible.
IMPORTANT SAFETY RULES FOR DUST COLLECTORS
3
WARNING: Basic precautions should always be
followed when using your dust collector. To reduce the risk
of injury, electrical shock or fire, comply with the safety
rules listed below:
1. READ and understand the instruction manual before
operating the dust collector.
2. DO NOT leave the dust collector plugged into the
electrical outlet. Unplug dust collector from outlet when
not in use and before servicing, changing bags,
unclogging and cleaning.
3. ALWAYS turn the power switch “OFF” before
unplugging the dust collector.
4. WARNING: TO REDUCE THE RISK OF
ELECTRICAL SHOCK do not use outdoors or on wet
surfaces. Use for dry pickup only!
5. FOLLOW all electrical and safety codes, including the
National Electric Code (NEC) and the Occupational
Safety and Health Regulations (OSHA). All electrical
connections and wiring should be made by qualified
personnel only.
6. DO NOT use the dust collector to pick up flammable or
combustible liquids, such as gasoline. NEVER use the
dust collector near any flammable or combustible
liquids.
7. USE the dust collector to pick up wood materials only.
DO NOT use the dust collector to pick up metal
shavings, dust, water, or parts.
8. NEVER use the dust collector to dissipate fumes or
smoke. NEVER pick-up anything that is burning or
smoking, such as cigarettes, matches or hot ashes.
9. USE only as described in this manual.
10. DO NOT pull the dust collector by the power cord.
NEVER allow the power cord to come in contact with
sharp edges, hot surfaces, oil or grease.
11. DO NOT unplug the dust collector by pulling on the
power cord. ALWAYS grasp the plug, not the cord.
12. DO NOT handle the plug or dust collector with wet
hands.
13. REPLACE a damaged cord immediately. DO NOT use
a damaged cord or plug. If the dust collector is not
operating properly, or has been damaged, left outdoors
or has been in contact with water, return it to an
Authorized Service Center for service.
14. DO NOT use the dust collector as a toy. DO NOT use
near or around children.
15. DO NOT insert fingers or foreign objects into the dust
intake ports. Keep hair, l oos e cl ot hi n g, fin gers, and all
body parts away from openings and moving parts of
the dust collector.
16. DO NOT use the dust collector without a filter bag and
dust collection bag in place and properly secured.
17. DO NOT operate the dust collector with unused dust
intake ports uncapped. ALWAYS cover exposed dust
intake ports.
18. PERIODICALLY INSPECT dust and filter bags for
any cuts, rips or tears. NEVER operate the dust
collector with a damaged bag or vacuum hose.
19. The dust collector is designed fo r home use or light
commercial duty ONLY!
20. CONNECT dust collector to a properly grounded
outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
4
The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having
equipment-ground conductor and grounding plug. The plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
WARNING – Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet; have a
proper outlet installed by a qualified electrician.
For grounded, cord-connected appliances:
This appliance is for use on a circuit having a normal rating more than 120 volt and is factory-equipped with a
specific electric cord and plug to permit connection to a proper electric circuit. Make sure that the appliance is
connected to an outlet having the same configuration as the plug. No adaptor should be used with this appliance.
If the appliance must be reconnected for use on a different type of electric circuit, qualified service personnel
should make the reconnection.
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring system; or an equipment-grounding
conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead
on the appliance.
5
Specifications:
Motor----------------------------------------------------------------------------------------- 3HP/240V/50Hz/ 1 Phase
AMP------------------------------------------------------------------------------------------------------------------ 16.1 A
Motor Speed--------------------------------------------------------------------------------------------------- 3450 RPM
Suction Capacity---------------------------------------------------------------------------------------------- 2300 CFM
Static Pressure-------------------------------------------------------------------------------------------- 15 Inch H2O
Impeller Size------------------------------------------------------------------------------------------------------------- 13”
Inlet Size------------------------------------------------------------------------------------------------------------------- 8”
Switch------------------------------------------------------------------------------------------------------ Magnetic Switch
N.W. BOX 1------------------------------------------------------------------------------------------------------ 58 KGS
BOX 2------------------------------------------------------------------------------------------------------ 8.6 KGS
G.W. BOX 1------------------------------------------------------------------------------------------------------ 62 KGS
BOX 2------------------------------------------------------------------------------------------------------ 10.3 KGS
CUFT BOX 1------------------------------------------------------------------------------------------------------ 12.4’
BOX 2------------------------------------------------------------------------------------------------------ 1.2’
6
UNPACKING & CHECKING CONTENTS:
A：Impeller Housing
H : Belt Clamp
B： Collector Housing
I : PE Bag
C： Left Stand
J : 5 Micron Filter Bag
D：Right Stand
K : Hanger
E： Base
L : Wheel
F： Inlet Adaptor
M : Stiffening Plate
G：Handle
7
Hardware package:
NO. Description Specification Q’TY Part List No.
A Button Head screw 1/4”*1/2” 14 NO.36
B Flange Bolt 5/16”*1/2” 16 NO.35
C Flange Bolt 1/4”*1/2” 4 NO.17
D Phillips Head Screw 3/16”*3/8” 1 NO.8
E
Countersunk Phillips
Head Screw
1/4”*5/8” 2 NO.34
E Open Wrench 10*12 1 NO.29
F Allen Wrench M5 1 NO.30
8
ASSEMBLY INSTRUCTION
STEP1.
Secure Wheel (No.15) on Base (No.14) as Fig.1
(FIG.1)
STEP2-1.
Secure the bottom part of Right Stand and Left
Stand on Base (No.14) with Flange Bolt 5/16”*1/2”
(No.35).
STEP2-2
Secure the Stiffening Plate on both side of Right
and Left Stand with Flange Bolt 1/4”*1/2” (NO.17).
(FIG.2)
STEP3.
Sec ure and tighten Impeller Housing(No.37) and
Collector Housing(No.9) with Phillips Head Screw
1/4”*1/2” (No.36) as Fig. 3
(FIG.3)
9
STEP4.
Assemble the upper part of Right and Left Stand
on Impeller Housing with Flange Bolt 5/16”*1/2” (No.35)
(FIG.4)
STEP4-1.
Assemble PE Bag (No.11) under Impeller Housing
and tighten it with Belt Clamp (No.10) as Fig. 4A
STEP4-2.
Assemble the Hanger (No.13) on Collector
Housing as Fig.4A
STEP4-3.
Secure Inlet Adaptor (No.7) under Impeller Housing
with Phillips Head Screw 3/16”*3/8” (No.8)
(Fig.4A)
10
STEP5-1.
Assemble the 5micron Filter Bag (No.12) on upper of
Collector Housing and tighten with Belt Clamp(No.10)
STEP5-2.
Secure the Handle (No.16) on front of Collector Housing
With Countersunk Phillips Head Screw 1/4”*1/2” (No.34)
(FIG.5)
11
EXPLODED DIAGRAM----
12
Part List
NO. Description Specification Q’TY
1 Motor 1
2 Nut 5/16” 4
3 Lock Washer 5/16” 4
4 Cap 25*50 4
5 Motor Plate 1
6-1 Left Stand 2
6-2 Right Stand 2
7 Inlet Adapter 8”*4”*3holes 1
8 Phillips Head Screw 3/16”*3/8” 1
9 Collector Housing 1
10 Belt Clamp 4
11 PE Bag 2
12 5 micron Filter Bag 2
13 ㄇ type Hanger 2
14 Base 1
15 Wheel 4
16 Handle 1
17 Flange Bolt 1/4”*1/2” 4
18 Magnetic Switch 1
19 Phillips Head Screw 3/16”*3/8” 4
20 Power cord 1
21 Cap 4” 2
22 Chain 2
23 Impeller 13” 1
24 Impeller Washer 1
25 Cap Screw M6*20 1
26 Hex Head Bolt 3/8”*1/2” 1
27 Hex Head Bolt 5/16”*1” 4
28 Motor washer 1
29 Open Wrench 10*12 1
30 Allen Wrench M5 1
31 Switch Plate 1
32 Flange Bolt 5/16”*3/4” 8
33 Stiffening Plate 1
34 Countersunk Phillips Head Screw 1/4”*5/8” 2
35 Flange Bolt 5/16”*1/2” 16
13
36 Button Head Screw 1/4”*1/2” 14
37 Impeller Housing 1
38 Lock Nut 5/16” 2
39 Screw 5/16”*70 1
40 Nut 5/16” 1
41 Phillips Head Screw 3/16”*3/4” 2
Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to
protect the environment, take the packaging to the local recycling centre and place into the appropriate
recycling bin.
Do not dispose of electric tools together with household waste material. In observance of European
Directive 2002/96/EC on waste electrical and electronic equipment and itsimplementation in accordance
with national law, electric tools that have reached the end of their life must be collected separately and
returned to an environmentally compatible recycling facility.
Only for EU countries
Loading...
