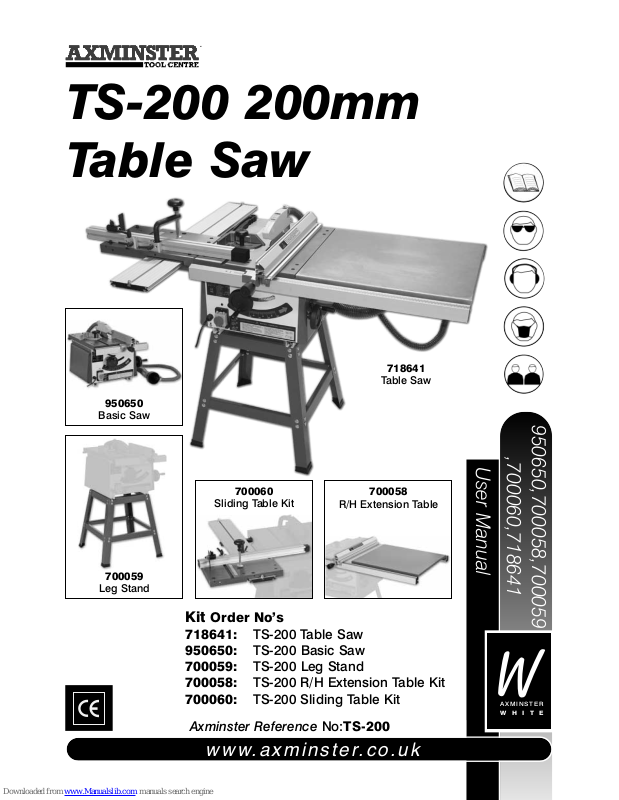

TS-200 200mm
Table Saw
Kit Order No’s
718641: TS-200 Table Saw
950650: TS-200 Basic Saw
700059: TS-200 Leg Stand
700058: TS-200 R/H Extension Table Kit
700060: TS-200 Sliding Table Kit
User Manual
WHITE
AXMINSTER
W
www.axminster.co.uk
Axminster Reference No:TS-200
950650
Basic Saw
700059
Leg Stand
700058
R/H Extension Table
718641
Table Saw
700060
Sliding Table Kit
WHITE
AXMINSTER
W
Declaration of Conformity...
Page No.
Index of Contents...
Index of Contents.......................................................................................................01
Declaration of Conformity………….……..…………...................................................01
Parts Index………….………........……..…..............................................02-03-04-05-06
General Instructions for 230V Machines.........................................................06-07-08
Specific Instructions/Precautions for the Saw Table...........................................08-09
Specifications….………........……..…………..............................................................10
Assembly Instructions….………........…...................…10-11-12-13-14-15-16-17-18-19
Illustration & Parts Description ...........................................................................20-21
Setup & Adjustments............................................................................................22-23
Operating Instructions………........……..…………............................................... 24-25
Changing the Saw Blade......................................................................................25-26
Maintenance.............................................................................................................. 26
Parts Breakdown for TS-200 Table Saw...............................................................27-28
Parts List for TS-200 Table Saw.................................................................................29
Parts List & Breakdown for the Sliding Carriage......................................................30
The undersigned, P. Hartstein authorised
by Qingdao Henry Machinery Co. Ltd.
North Point, Cuihou Road
Tonghe Industrial Zone
Pingdu, Qingdao 266706
P.R. China declares that this product:
HM-TS200
manufactured by Qingdao Henry
Machinery Co.is in compliance with the
following standards or standardisation
documents in accordance
with Council Directives
93/68/EEC
Copied from CE Certificate
Safety Protection Symbols
SAFETY!!
!
The symbols shown on the cover of this manual
advise that you wear the correct safety protection
when using this machine.
E
y
e
P
r
o
t
e
c
t
i
o
n
S
a
f
e
t
y
H
e
l
m
e
t
P
r
o
t
e
c
t
i
v
e
G
l
o
v
e
s
S
a
f
e
t
y
F
o
o
t
w
e
a
r
R
e
s
p
i
r
a
t
o
r
S
a
f
e
t
y
V
i
s
o
r
R
e
a
d
M
a
n
u
a
l
T
w
o
M
a
n
A
s
s
e
m
b
l
y
E
a
r
D
e
f
e
n
d
e
r
s
D
u
s
t
M
a
s
k
WHITE
AXMINSTER
W
02
Parts Index...
Model Number: HM-TS200
1 off Basic Table Saw (with Saw Blade & Riving Knife fitted) A
2 off Sliding Carriage Supporting Arms B
1 off Push Stick B1
1 off Mitre Fence Steel Bar B2
1 off Saw Guard Steel Mesh B3
1 off Work Clamp Assembly C
1 off Sliding Carriage Table D
1 off Mitre Fence E
2 off Operating Wheel Handles F
1 off Mitre Fence Clamping Knob G
1 off 30mm Hose Support Bracket H
1 off Dust Extraction Moulding Support Bracket I
1 off 4mm, 3mm Allen Keys
1 off 10-13mm, 13-15mm & 17-19 Spanners J
2 off Screwdrivers
4 off M6 x 30 Hex Bolts
4 off M6 x 46 Countersunk Heads & Nuts
4 off M6 x 16 Hex Bolts & Nuts K
2 off Carriage Arm End Stops
1 off 100mm Dust Extraction Moulding with Inlets 50/30mm L
1 off Flip Over Stop M
1 off Fence Clamp Assembly N
1 off Work Clamp Block O
1 off Connecting Block O
4 off Leg ‘A’ Frames P
4 off Long Struts Q
4 off Short Struts R
4 off Rubber Feet S
Kit Order No’s.
DescriptionQuantity
950650,718641
700060
950650,718641
950650,718641
950650,718641
950650,718641
700060
950650,718641
950650,718641
950650,718641
718641
718641
718641,700060
950650, 718641
950650,718641
950650,718641
950650,718641
950650 ,718641
700060,718641
700059,718641
700059,718641
700059,718641
700059,718641
03
WHITE
AXMINSTER
W
Parts Index...
32 off M8 x 12 Coach Bolts with Nuts
4 off M8 x 11 Bolts with Large Washer & Nut T
1 off Saw Guard with M6 x 25 Coach Bolt & Nut U
1 off Carriage Arm V
1 off Angle Fence W
2 off Extens ion Table Supporting Arms X
1 off Extension Table Y
1 off Fence Z
2 off Hose 50mm & 30mm Z1
2 off Jubilee Clips 50mm & 30mm Z2
6 off M6 x 25 Phillip Head Screw
6 off M6 x 25 Phillip Head Screw with Square Nut Z3
6 off M6 x 16 Phillip Head Screw with Square Nut
1 off Instruction Manual
Having unpacked your saw and its accessories please dispose of any unwanted
packaging properly. The packaging is biodegradable.
A
B
B1
B2
B3
700059,718641
950650,718641
700060,718641
700060,718641
700058,718641
700058,718641
950650,718641
950650,718641
950650,718641
700058,718641
Kit Order No’s.
WHITE
AXMINSTER
W
04
Parts Index...

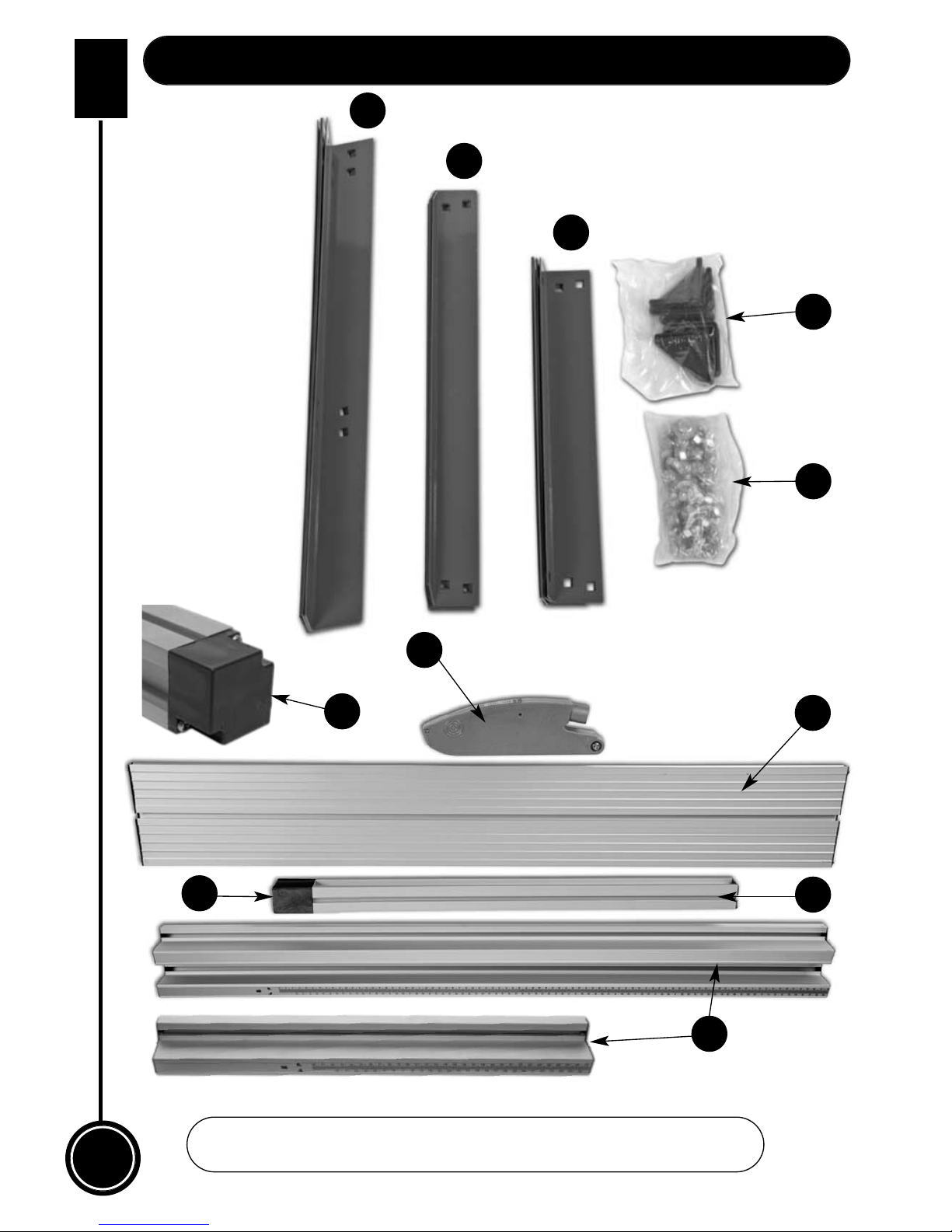

C
D
E
I
J
F
G
H
K
M
N
O
L
Box
05
WHITE
AXMINSTER
W
Parts Index...
www.axminster.co.uk
P
Q
R
S
T
U
V
W
W1
W1
X
950650: Fence Supporting Arm
WHITE
AXMINSTER
W
Parts Index...
Y
Z
Z1
Z1
Z2
Z3
06
General Instructions for 230V Machines...
The following suggestions will enable you to observe good working
practices, keep yourself and fellow workers safe and maintain your
tools and equipment in good working order.
Good Working Practices/Safety
Mains Powered Tools
WARNING!!
!
KEEP TOOLS AND EQUIPMENT OUT
OF THE REACH OF YOUNG CHILDREN
Primary Precautions
These machines are supplied with a moulded 13 Amp. Plug and 3 core power cable. Before
using the machine inspect the cable and the plug to make sure that neither are damaged. If
any damage is visible, have the damaged item inspected/repaired by a suitably qualified
person. If it is necessary to replace the plug, it is preferable to use an 'unbreakable' type
that will resist damage on site. Only use a 13 Amp plug, and make sure the cable clamp is
tightened securely.
Continues on next page....
07
WHITE
AXMINSTER
W
General Instructions for 230V Machines...
Work Place/Environment
The machine is not designed for sub-aqua operation, do not use when or where it is liable
to get wet. If the machine is to be used outside and it starts to rain (unusual though this
would be in U.K.), stop work and move it inside. If machine has got wet; dry it off as soon
as possible, with a cloth or paper towel.
DO NOT use 230V a.c. powered machines anywhere within a site area that is flooded or
puddled, and do not trail extension cables across wet areas.
Keep the machine clean; it will enable you to more easily see any damage that may have
occurred. Clean the machine with a damp soapy cloth if needs be, do not use any solvents
or cleaners, as these may cause damage to any plastic parts or to the electrical
components.
Keep the work area as uncluttered as is practical, this includes personnel as well as
material.
UNDER NO CIRCUMSTANCES SHOULD CHILDREN BE
ALLOWED IN WORK AREAS
!
It is good practice to leave the machine unplugged until work is about to commence, also
make sure to unplug the machine when it is not in use, or unattended. Always disconnect
by pulling on the plug body and not the cable. Once you are ready to commence work,
remove any tools used in the setting operations (if any) and place safely out of the way.
Re-connect the machine. It is also recommended that you use switched supply outlets.
Carry out a final check e.g. check the cutting tool, drill bit, saw blade etc., is securely
tightened in the machine, check you have the correct speed and function set, check that the
cutting path of the timber is unobstructed, etc..
Most machines these days are fitted with NVR contact switches so that machines cannot
remain inadvertently switched 'ON'. However, it is a good habit to train yourself to check that
the machine is not 'Switched On' prior to connecting the mains supply. (In case you happen
to be using one of the older machines).
Make sure you are comfortable before you start work, balanced, not reaching etc..
If the work you are carrying out is liable to generate flying grit, dust or chips, wear the
appropriate safety clothing, goggles, gloves, masks etc.. If the work operation appears to be
excessively noisy, wear ear-defenders. If you wear your hair in a long style, wearing a cap,
safety helmet, hairnet, even a sweatband, will minimise the possibility of your hair being
caught up in the rotating parts of the machine, likewise, consideration should be given to
the removal of rings and wristwatches, if these are liable to be a 'snag' hazard.
Consideration should also be given to non-slip footwear, etc.
DO NOT work with cutting or boring machines of any description if you are tired, your
attention is wandering or you are being subjected to distraction. A deep cut, a lost fingertip
or worse; is not worth it!
Fuse as required. If extension leads are to be used, carry out the same safety checks on
them, and ensure that they are correctly rated to safely supply the current that is required
for your machine.
WHITE
AXMINSTER
W
08
General Instructions for 230V Machines...
FREEPHONE 0800 371822
DO NOT use this machine within the designated safety areas of flammable liquid stores or
in areas where there may be volatile gases. There are very expensive, very specialised
machines for working in these areas, THIS IS NOT ONE OF THEM.
Check that cutters, drills, blades etc., are the correct type and size, are undamaged and are
kept clean and sharp, this will maintain their operating performance and lessen the loading
on the machine.
If possible always fit dust extraction to machines that are producing high rates of sawdust,
shavings, chips etc.
Above all, OBSERVE…. make sure you know what is happening around you, and USE
YOUR COMMON SENSE.
REMEMBER, YOU ARE ULTIMATELY RESPONSIBLE FOR YOUR OWN SAFETY
THIS MACHINE IS DESIGNED TO CUT TIMBER AND TIMBER DERIVATIVE
PRODUCTS. DO NOT use for any other materials.
Specific Instructions/Precautions
for the Saw Table...
Make sure the saw blade is the correct type for the job in hand.
DO NOT force the saw, if the saw begins to 'stall' you are 'forcing the cut' or over working
the saw.
Ensure that the saw blade is clean and sharp. Resin build up on the blades will increase the
friction of the saw passing through the timber, and cause over heating of the blade, blunt
teeth will work harder tearing the fibre of the timber as opposed to shearing it, also with
subsequent overheating. Both faults unnecessarily load the machine beyond normal usage,
and shorten its longevity.
DO NOT use blades that are deformed in any way.
DO NOT remove the blade guard. The design of the riving knife on the machine will not
allow for slotting or 'blind' grooving, so there is no reason to remove the guard.
DO NOT remove the riving knife.
DO NOT use any blades that cut a smaller kerf than the riving knife thickness.
Make sure the riving knife is correctly adjusted to the blade and is securely fastened.
If the table insert becomes damaged or broken, and will not support the timber 'up close' to
the blade, replace it.
DO NOT start the saw with the workpiece touching the blade.
DO NOT commence sawing until the blade has run up to full speed.
After switching off, never try to slow the saw down more quickly by applying side pressure
(with a piece of wood?) to the blade.
Apply the old joiner's adage of never getting hands within one handbreadth of the blade.
Leave the machine disconnected from the mains supply until you are about to commence
work.
Continues on next page....
09
WHITE
AXMINSTER
W
ALWAYS disconnect the machine if you are leaving it unattended.
NEVER leave the vicinity of the machine unless the blade has come to a complete stop.
DO NOT attempt to carry out any maintenance, corrective work, setting up etc., unless the
machine is disconnected from the mains supply.
If any tools have been used during setting up procedures, make sure they are removed
from the machine and stowed safely away.

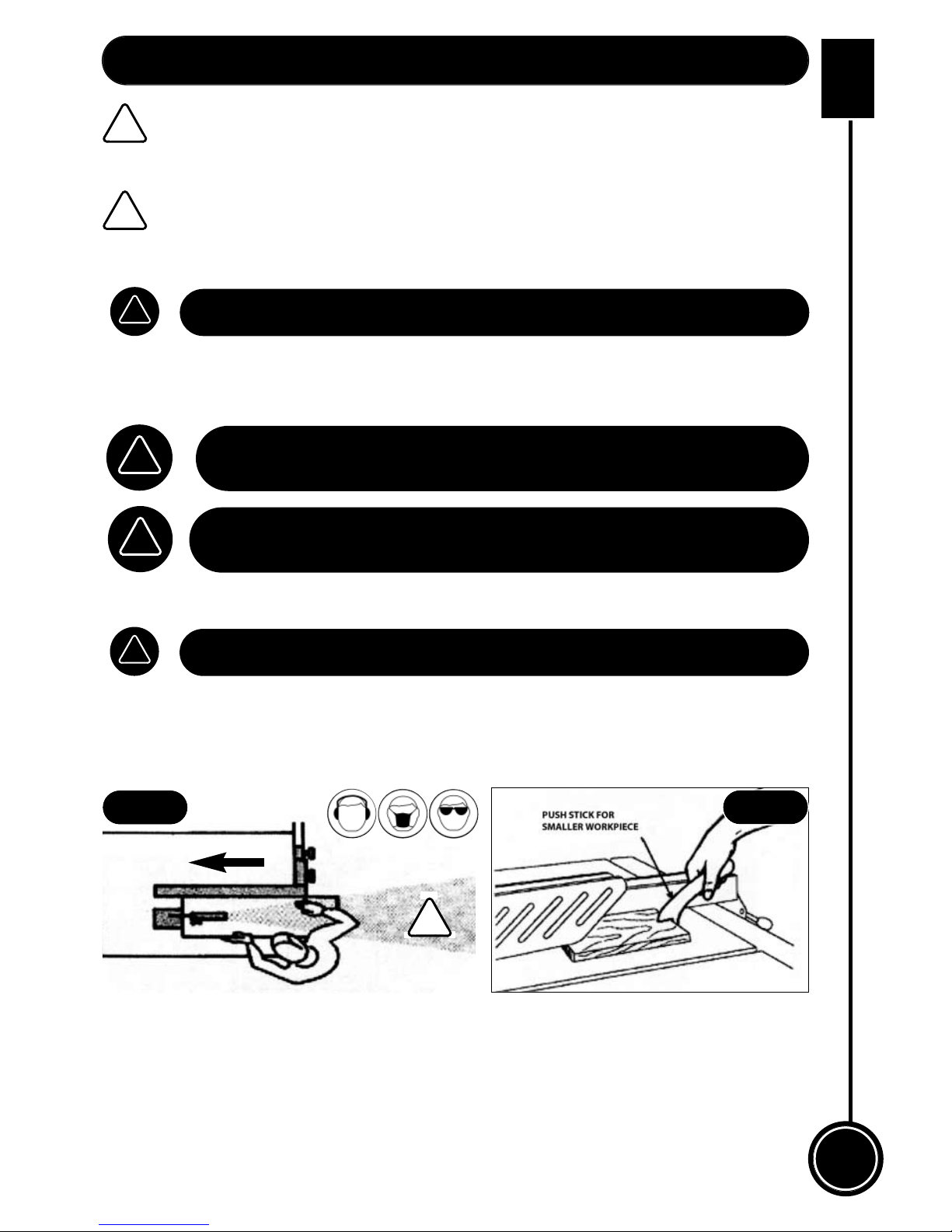

DO NOT attempt to carry out cross cutting operations 'freehand', always use the mitre fence
for small stuff and the sliding carriage for larger work pieces.
Unless you are an experienced machine operator, do not attempt to 'rip' freehand, always
use the guiding facility of the rip fence.
It is perfectly acceptable to support guide and feed the timber with your hands whilst
ripping stuff of some length, however, as you approach the blade ensure that the push stick
is to hand, and you use it.
REMEMBER the emphasis of the 'push' should be between the blade and the fence and
close to the fence. Use your free hand to support and guide the material on the offside of
the saw blade and at least 100mm away from it. If the timber does not extend to at least
100mm to the offside of the saw blade, the material possibly? does not need guiding or
supporting.
CHECK (especially on site), that there are no foreign objects e.g. old nails, screws, small
stones etc embedded in the material you are about to cut. If necessary take a wire brush to
the timber before working.
If you are being assisted whilst using the saw (by a 'take off' or 'support' number?),
remember there is only one sawyer at a machine, and they stand in front of it. The assistant
does not push, pull, guide etc., unless specifically asked or instructed to do so by the
sawyer.
Specific Instructions/Precautions
for the Saw Table...
Specification...
Axminster No. TS-200
950650Order No: 718641
Rating:
Motor Power:
Blade Dia/Bore:
Blade Tilt:
Max Depth of Cut at 45˚:
Max Depth of Cut at 90˚:
Max Ripping Width:
Table Size:
Table Height:
Table Size with Extensions:
Dust Extraction Outlet:
Overall L x W x H:
Weight:
Light Trade
230V 50Hz 1,100W
200mm/30mm
0˚- 45˚
40mm
60mm
535 x 400mm
320mm
N/A
100mm
535 x 400 x 325mm
55kg
Light Trade
230V 50Hz 1,100W
200mm/30mm
0˚- 45˚
40mm
60mm
535 x 400mm
880mm
530 x 1,000mm
100mm
1,200 x 550 x 820mm
68kg
150mm standard, 750mm with R/H Table Kit (700058)
WHITE
AXMINSTER
W
10
Assembly Instructions...
Initial Assembly
Please take some time to read the section entitled “Identification and Parts Description” to
identify the various parts of your machine so that you are familiar with the terminology we
will use to enable you to set up and operate your table saw safely and correctly.

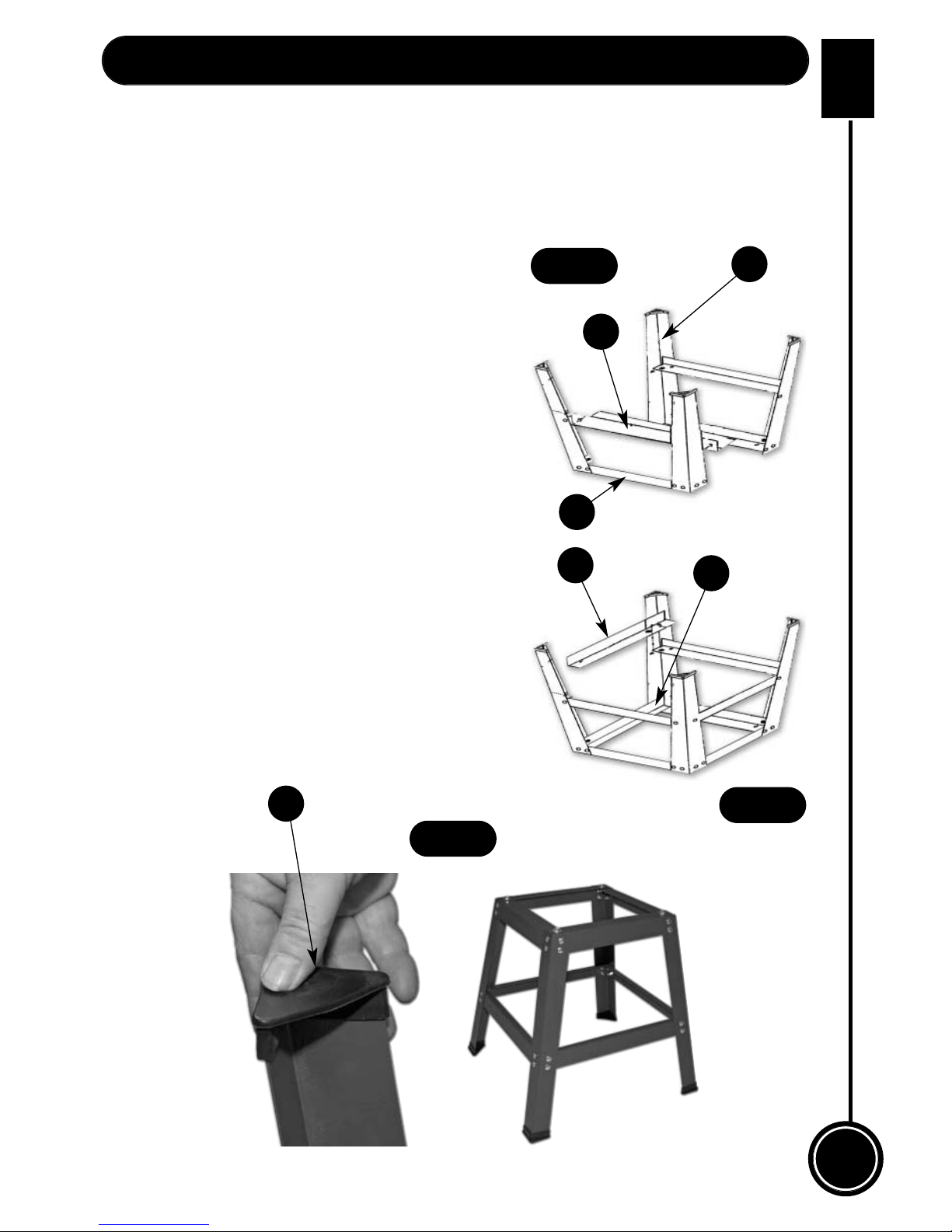

Locate and identify the 4 legs (P), the short struts (R)
and the long struts (Q) for the stand, and the packet
containing 32 M8 x 10mm coach bolts, washers and
nuts.(T).
Using the M8 x 10mm coach bolts, nuts and washers
bolt together two ‘A’ frames using two legs (P) one long
strut (R) in the middle and one short strut (Q) at the
top. Tighten the nuts only ‘finger tight’ at this time.
(See fig 1).
When the two ‘A’ frames have been assembled,
select one, turn it upside down on a flat surface and
loosely bolt the ‘short strut’ (R) and long strut (Q) in
place (See fig 2). Attach the other “A’ frame and bolt the
remaining struts for the other side.
When all the components are assembled, using the flat
surface as a reference, tighten up all the nuts. Turn the
stand on it’s side and place the four rubber feet (S) to
the ends of the ‘A’ frames. Upright the frame and stand
on the floor. (See fig 3).
Assembling the stand (Kits: 700059, 718641)
P
Q
R
Q
R
S
Fig 3
Fig 1
Fig 2
11
WHITE
AXMINSTER
W
Assembly Instructions...
With assistance, place the Saw Bench (A) onto the stand. Align the four mounting
holes at the base of the Saw Bench with the four mounting holes at each corner
of the stand. Using four M8 x 11mm hex bolts, large washers & nuts (T) secure
the Saw Bench to the stand. (See fig 5 & 5a).
Attaching the Saw Bench to the Stand (Kit: 718641)
Attaching the
Saw Guard Steel Mesh (Kits: 950650, 718641)
Locate the
Saw Guard Steel Mesh (B3), turn the Saw Bench (A) upside down and remove the four
phillips screws & washers to each corner of the frame. Lay the Saw Guard Steel Mesh on top of the
frame and replace the phillip screws & washers to secure it in position. (See fig 4 & 4a).
A
B3
Phillips screw & washer
M8 x 11mm hex bolt, washer & nut
Assembling the Sliding Carriage Table (Kits: 700060, 718641)
Attach the two sliding carriage support arms (B) to the underside of the cast iron saw
bench (A) using four M6 x 50mm countersink heads & M6 nuts, secure using a 4mm allen
key (J). (See figs 6,7).
J
B
M6 Countersink Head
Secure the support arms with the
supplied 4mm allen key
Fig 4
Fig 4a
Fig 5
Fig 6
Fig 7
Fig 5a
Locate the sliding carriage table (D) and slide it onto the carriage arm (V), see fig 10. Using
a level or straight edge place across the sliding table (D) and the saw bench (A), fit the four
M6 x 30mm Hex bolts to the underside of the carriage support arms (B) and adjust until the
sliding table (D) is level with the saw bench. (See figs 11 & 12).
Place an M6 x 16mm hex bolt in each of the four clearance holes on both support arms (B),
and loosely put an M6 nut and washer on the bottom of each. (See fig 8). Slide the
extruded carriage arm (V) onto the four M6 x 16mm bolts. (See fig 9).
Two M6 x 30mm hex bolt
M6 x 16mm hex bolt
Assembling the Sliding Carriage Table (Kits: 700060, 718641)
When both the tables are level tighten the four M6 nuts on the M6 x 16mm hex bolts
underneath the carriage arms (B), see fig 11. Lastly fit the carriage arm end stops (K) to
each end of the carriage arm (V). (See fig 13).
Fig 8
Fig 9
Fig 10
Fig 11
Fig 12
Fig 13
M6 x 16mm bolts into each of the four
clearance holes in both support arms
Slide the extruded carriage arm onto the
four M6 x 16mm bolts
V
D
V
B
K
WHITE
AXMINSTER
W
12
Assembly Instructions...
13
WHITE
AXMINSTER
W
Assembly Instructions...
Angle Fence Assembly (Kits: 700060, 718641)
Put to hand the work clamp block (O), and slide it onto the T-slot on the angle fence (W).
Locate the connecting block (O) and slide it onto the angle fence as before. (See fig 14).
Slide the T-bolt on the base of the connecting block (O) into the T-slot on the sliding
carriage table (D), see fig 16. Locate the plastic block (W1) and using the two phillips
screws secure it to the end of the angle fence (W) (See fig 15).
Locate the work clamp (C), slot the work clamp into the 20mm hole in the work clamp block
(O), secure in position with the lift and shift handle. (See figs 16 & 17). To set the angle
fence at 90˚, push the angle fence (W) up against the stop (See fig 18).
Note: Make sure the plastic block on the end is just missing the blade. Using a 90˚ square
check that the blade is at 90˚ to the angle fence (W), (see fig 19). When correct
tighten the lift and shift handle on the connecting block (O). (See fig 15). If the angle fence
(W) is not set to 90˚, undo the grub screw to the side of the sliding carriage table (D),
using a flat screwdriver turn the eccentric bush until the angle is correct. (See figs 20 & 21).
Work clamp block
Connecting block
Fig 14
Fig 15
O
C
T-bolt
Fig 16
Fig 17
Fig 18
Fig 19
20mm Hole
90˚ stop
W1
WHITE
AXMINSTER
W
14
Assembly Instructions...
Angle Fence Assembly (Kits: 700060, 718641)
To set the angle fence (W) to angles between 45˚ and 90˚ loosen the three lift and shift
handles on the connecting & work clamp blocks (O) and the fence to the required angle on
the scale on the sliding carriage table (D). (See figs 22). Tighten the three lift & shift
handles to lock the angle fence in position. Note: The fence can also be used at the rear
of the sliding carriage table if you prefer to push the timber against the fence.
Locate the flip over stop (M) and slide it into the T-slot on top of the angle fence (W).
(See fig 23).
Locate the mitre fence steel bar (B2), mitre fence (E) and clamping knob (G). Slot the
threaded pin on the steel bar (B2) through the curved slot in the mitre fence (E) and screw
the clamping knob (G) to clamp the assembly together. (See figs 24 & 25). Slide the Mitre
fence assembly into the machined T-slot on the saw table. (See fig 26).
Fig 20
Fig 21
Fig 22
Fig 23
Fig 24
Fig 25
Mitre Fence Assembly (Kits: 950650, 718641)
M
W
B2
E
G
Continues on next page....
15
WHITE
AXMINSTER
W
Assembly Instructions...
Fig 26
Fig 27
Fig 28
Fig 29
Fig 30
Fig 31
Locate the two operating wheel handles (F) and, using the supplied 3mm allen key (J),
secure one to the tilt mechanism shaft to the front of the saw by undoing the grub screw on
the operating wheel handle (F) and sliding it onto the shaft, making sure the grub screw is
in line with machined slot (a), in the shaft. Retighten the grub screw. Repeat for the height
mechanism to the right hand side of the saw. (See figs 27 & 28).
Find the saw guard (U) (you will require a 10mm socket), undo the M6 nut and remove
the M6 coach bolt. Slot the saw guard over the riving knife and line up the pre-drilled hole in
the riving knife and replace the M6 coach bolt & nut and tighten. (DO NOT OVERTIGHTEN)
(See fig 29).
Put to hand six M6 x 25mm Phillip head screws with nuts (Z3), remove the nuts and place
the screws into the three holes to the front and rear of the main table. Replace the nuts.
(Note: Leave a gap between the base of the table and nut) (See figs 30 & 31).
Operating Wheel Handles Assembly (Kits: 950650, 718641)
Saw Guard Assembly (Kits: 950650, 718641)
Tilt operating wheel handle
Height operating wheel handle
M6 x 25mm Phillip head screw & nut
F
a
J
U
Extension Table Assembly Part 1 (Kits: 700058, 950650 718641)
Z3
Continues on next page....
NOTE: KIT 950650 COMES WITH THE FENCE SUPPORTING ARM ONLY AND DOES
NOT INCLUDE THE BACK SUPPORTING ARM.
WHITE
AXMINSTER
W
16
Assembly Instructions...
Locate the two extension table support arms (X). Remove the plastic cover to the left hand
side of the support arm with the scale. (See fig 32). Slot the extension table support arm (X)
onto the M6 nuts so that nut sits in the T -slot. (See fig 33) Push the support arm so it is
flush with the end of main table and lightly secure the extension support arm to the main
table using a phillips screwdriver. Replace the plastic cover you removed earlier. (See figs
34 & 35). Repeat for the other extension support arm (700058 & 718641 ONLY).
Put to hand six M6 x 16mm Phillip head screws with square nuts (Z3), remove the nuts and
place safely aside. Slot the screws into each of the 6 holes on the extention table lip (Y),
replace the square nuts (Note: Leave a gap between the base of the extension table
lip and nut) (See figs 36 & 37).
Fig 32
Fig 33
Fig 34
Fig 35
Fig 36
Fig 37
X
Lightly secure the extension arm to the
main table with a Phillips screwdriver
Replace the plastic cover to the end
of the extension arm
Extension Table Assembly Part 2 (Kits: 700058, 718641)
Plastic Cover
Continues on next page....
17
WHITE
AXMINSTER
W
Assembly Instructions...
Extension Table Assembly Part 2 (Kits: 700058, 718641)
Fence Assembly (Kits: 950650, 718641)
Remove the plastic covers from the ends of the two extension table support arms (X), (see
fig 38). Offer up the M6 nuts to the support arms T-slots and slide the extension table (Y)
into the extension support arms (X). Push the extension table (Y) until it is flush up against
the main saw table, place six Phillips screws into the captive nut locations (a), place a level
between both tables, adjust the screws (a) until both tables are level & tighten the six M6
Phillips screws & square nuts (b) to clamp the extension table to the supporting arms.
Replace the plastic covers you removed earlier. (See figs 39,40 & 41).
Locate the fence clamp assembly (N) and fence (Z) Slot the steel square clamp into the
T-slot to the end of the fence (Z) and tighten the bolt using a 10mm socket/spanner.
(See figs 42 & 43).
Fig 38
Fig 39
Fig 40
Fig 41
Using a Phillips screwdriver level & tighten
the Phillip screws to clamp (X & Y)
Extension table assembled
X
Y
a
b
a
N
Z
Plastic Cover
T-slot
M6 x 16 Phillip
screw & square nut
Fig 42
Fig 43
Steel square clamp 10mm SocketT-slot
WHITE
AXMINSTER
W
18
Assembly Instructions...
Fence Assembly (Kits: 700058, 718641)
Lower the fence assemby so the clamp assembly (N) slots over the extention table support
arm (X), clamp the fence assembly in position by turning the knob clockwise. (See figs 44 &
45).
Note: Check that the fence is parallel to the saw blade by sliding it up against it. If the fence
is out of alignment loosen the steel square clamp bolt beneath the clamp assembly (N) and
adjust until correct, re-tighten the bolt. (See figs 43 & 46).
Note: Lubricate the Fence supporting arm (X) and the underside of the clamp assembly (N)
with Slideaway Spray (Order no: 810141), so the fence assembly runs smoothly back and
forth.
Locate the 50 & 30mm hoses (Z1), jubilee clips (Z2), dust extraction moulding support
bracket (I) & 100mm dust extraction moulding (L). Place one of the large jubilee clips over
the end of the 50mm hose and fit the hose over the table saw’s dust extraction outlet &
tighten. (See fig 48). Do the same as before & place the 30mm hose over the end of the
saw guard’s dust extraction outlet (U) & tighten. (See fig 49).
Fig 44
Fig 45
Fig 46
Fig 47
Fig 48
Fig 49
N
Z
Dust Extraction Assembly (Kits: 950650, 718641)
Continues on next page....
50mm hose
30mm hose
Z2
19
WHITE
AXMINSTER
W
Assembly Instructions...
Dust Extraction Assembly (Kits: 718641, 700058)
Fig 50
Fig 51
Fig 52
Fig 53
(718641 Only) Remove the nuts, bolts & washers from the 30mm hose support bracket
(H), line up the pre-drilled holes to the underside of the rear extention support arm (X) &
secure using the nuts,bolts & washers you removed earlier. (See figs 50 & 51).
Locate the dust extraction moulding support bracket (I) & slot the bracket’s ring over the
end of the 50mm inlet on the dust extraction moulding (L) (718641 Only). Slot the 30mm
hose through the support bracket ring (H) (718641 Only), locate a jubilee clip (Z2), place
over the end of the hose & slot the hose onto the 30mm inlet on the dust extraction
moulding (L) & secure. (See fig 52).
Remove the nuts, bolts & washers from the support bracket (I), line up the pre-drilled hole
to the underside at the end of the extention support arm (X) & secure using the nut, bolt &
washer you removed earlier. (See fig 53).
Loosen the support bracket ring (I), by undoing the clamping screw, see fig 53, slot the
50mm hose through the ring and onto the 50mm inlet on the dust extraction moulding (L),
retighten the clamping screw. (See figs 52 & 53).
H
I
I
L
Z2
X
50mm inlet
Nuts, bolts & washers
30mm hose
Support bracket ring
Clamping screw
(718641 Only)
WHITE
AXMINSTER
W
20
Illustration & Parts Description...
A
F
Q
S
X
Y
Z
F
V
U
T
R
P
M
W
O
N
C
D
E
G
A Saw Bench M Flip Over Stop
B1 Push Stick O Work Clamp/Connecting Blocks
C Work Clamp Assembly P Leg ‘A’ Frames
D Sliding Carriage Table Q Long Struts
E Mitre Fence R Short Struts
F Operating Wheel Handles S Rubber Feet
G Mitre Fence Clamping Knob T M8 x 12 Coach Bolts with Nuts
H 30mm Hose Support Bracket U Saw Guard
I Dust Extraction Support Bracket V Carriage Arm
L 100mm Dust Extraction Moulding WW1Angle Fence/Plastic Block
NVR On/Off
switch shroud
W1
21
WHITE
AXMINSTER
W
Illustration & Parts Description...
A
V
H
L
I
D
Y
Z
X
B1
Z1
Z1
X Extension Table Support Arms Z Fence
Y Extension Table Z1 Hoses 50mm & 30mm
www.axminster.co.uk
WHITE
AXMINSTER
W
22
Setup & Adjustments...
Fig 54
Fig 55
Fig 56
Fig 57
Fig 58
Fig 59
Adjusting the Riving Knife
Adjusting the Fence to the Blade
Raise the saw blade to its highest point and remove the saw blade guard. Remove the four
hex screws and place carefully aside, remove the table insert. Using the spanner provided
loosen the riving knife and adjust until the tip of the riving knife is 3mm away from the saw
blade & re-tighten. (See fig 54).
NOTE: Check that the riving knife is parallel to the saw blade by placing the fence
up against them. (See fig 55).
The fence assembly must be parallel to the saw blade for producing accurate cuts. Firstly
loosen the fence clamp assembly knob (N), slide the fence until it reads “ZERO” on the
table support arm scale (X). (See figs 56 & 57).
“Zero”
NOTE: Use the ‘T’ slot to the right side of the saw blade as a reference to check the fence is
parallel. (See figs 58 & 59). Regularly check the fence is parallel to ensure a perfect cut.
Z
Z
“T” Slot
Continues on next page....
X
23
WHITE
AXMINSTER
W
Setup & Adjustments...
Adjusting the Fence to the Blade
Fig 62
Fig 63
The fence (Z) can be repositioned to face the opposite direction for guiding thin timber
pieces through.
Loosen the square clamp bolt beneath the clamp assembly (N), See fig 57, turn the fence
(Z) around so the large surface of the fence is pointing away from the blade, re-attach the
fence clamp assembly (N). The two illustrations below, figs 60 & 61, shows the fence in
both positions.
Z
F
Z
The small surface of the fence is for
guiding thin timber through.
The large surface of the fence is for
guiding thick timber through.
Adjusting the Cutting Height
Adjust the blade height with the hand wheel (F), see fig 62, so that the blade teeth are
protruding through the work piece.
Adjusting the pivot
Release the locking handle (A), the saw can be angled up to a maximum of 45˚ by turning
the hand wheel (B). (See fig 63).
NOTE: If the blade is at maximum height, it will need to be lowered by 10mm when the
pivot angle is 30˚ or more.
Fig 60
Fig 61
Thick Timber
Thin Timber
www.axminster.co.uk
A
B
NOTE: Secure larger pieces of timber to the table by using the clamp assembly (C), see
page 20.
WHITE
AXMINSTER
W
24
Operating Instructions...
NOTE: Before using your table saw, go round and make sure everything is
secure, fastened down, that all tool, are cleared away from the work area.
!
CHECK the blade for sharpness, missing teeth, resin buildup, etc., clean if
necessary. Check the blade is securely clamped in place. (i.e. not loose).
!
Give the machine a 'quick' burst check ( i.e. quick ON-OFF) to ensure everything is O.K. If
everything is satisfactory, the table saw is ready for use.
UNDER NO CIRCUMSTANCES SHOULD
CHILDREN BE ALLOWED IN WORK AREAS
!
WARNING!
!
KEEP TOOLS AND EQUIPMENT OUT
OF THE REACH OF YOUNG CHILDREN
CONNECT THE SAW TO THE MAINS SUPPLY
!
CONNECT A DUST EXTRACTION VACUUM TO THE
DUST EXTRACTION OUTLET ON YOUR TABLE SAW
!
Feeding Work by Hand
Start up the saw, wait until it has reached full speed and slowly feed the timber through using
both handles, (making sure to keep your hands well clear of the blade and using a
push stick for small pieces), until the timber is behind the riving knife. Switch off the saw,
wait until the blade has come to a complete stop and remove the timber. (See figs 64 & 65).
Fig 64
Fig 65
!
Cutting Narrow pieces
Use the small flat surface of the fence (Z) to cut thin timber narrower that 120mm.
(See fig 60) (Use a push stick).
25
WHITE
AXMINSTER
W
Operating Instructions...
The Mitre Fence
The mitre fence can be mounted on either side of the saw blade in the two ‘T’ slots, pre
machined into the saw table. (See fig 26). The mitre fence can be angled from 90˚ to 45˚
degrees . (See fig 66).
Fig 66
LOCK THE
MITRE FENCE
AND HOLD THE
WORK FIRMLY
BLADE GUARD
THE BLADE IS SET
AT AN ANGLE LESS
THAN 90˚ DEGREES
FOR BEVEL CUTS
HOLD THE
WORK FIRMLY
Changing the Saw Blade...
Fig 67
Fig 68
Raise the saw blade to its highest point, remove the saw blade guard, remove the
four hex screws that secure the table insert, place carefully aside and remove the table
insert. Using the spanner provided, put the spanner onto the flats on the nut.
(See figs 67 & 68).
Note: Be careful not to disturb the shims beneath the table insert, as the shims are
set so the table insert is level with the table surface.
Slacken off the saw bolt (remember right hand thread). Remove the saw nut, then remove
the sawplate washer and the saw blade. (See figs 68 & 70). Now is a good time to give the
interior of the machine, the dust extraction channels, etc. a thorough clean. Check the new
blade for damage, missing teeth,sharpness etc. Fit the new blade, ensure that the teeth are
pointing towards the front of the machine. Put the sawplate washer onto the shaft and twist
on the saw bolt. Spin the bolt up finger tight and check the saw is correctly seated.
DISCONNECT THE SAW FROM THE MAINS SUPPLY
!
Hex screw
Undoing the
saw bolt
Table insert
height shims
WHITE
AXMINSTER
W
26
Assembly Instructions...
FREEPHONE 0800 371822
Fig 69
Fig 70
Tighten up the saw bolt, check the riving knife is aligned with the saw blade, and correctly
positioned. Replace the table insert and secure with the 4 hex screws. Replace the saw
blade guard. When everything is satisfactory, turn the saw blade once by hand to check it
doesn't foul anywhere.
Reconnect the machine to the mains supply. Give the machine a 'quick' burst check ( i.e.
quick ON-OFF) to ensure everything is O.K. If everything is satisfactory, continue to use the
machine. Check the old blade for sharpness, missing teeth, resin build up, etc., clean if
necessary and send for refurbishment/resharpening if required. If the blade is not to be
re-sharpened, clean and pack away in its storage case.
Maintenance...
Sawplate washer
Remove the
saw blade
Keep the saw as clean and free from saw dust build up as is practical. Periodically, remove
the saw gullet and vacuum out and clean out the saw box and the extraction housing.
Remove any resin build up in the saw box, using a proprietary resin cleaner.
Clean the threaded drive shafts of the rise and fall and tilt mechanisms. At the same time
check the belt drive, i.e. the belt is not 'glazing' with resin build up, likewise with the pulley
wheels. Check the belt tension. If the belt is becoming slack, loosen the motor hold down
bolts and drive the motor backward with its adjusting bolt.
Check the saw blade regularly for chipped, missing, damaged teeth etc. and remove any
resin build up from the blade, riving knife etc.
If you have finished using the saw bench, clean above and below the work table and using
a damp cloth wipe the saw bench over. If the saw bench is not going to be used for a period
of time, smear a light coat of oil over the work table and place a dust sheet over the saw
bench. (Order no: 600410).
27
WHITE
AXMINSTER
W

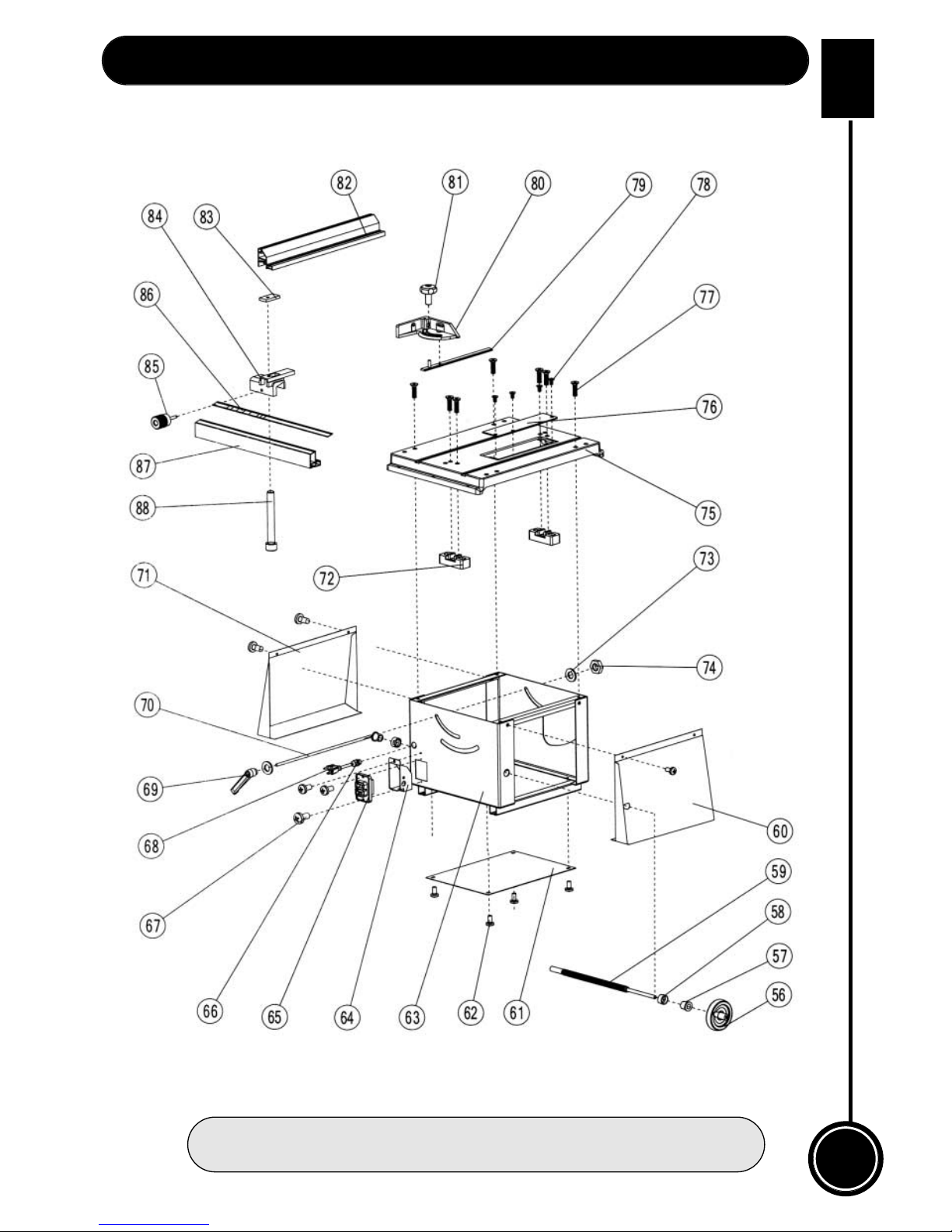

Parts Breakdown for TS-200 Table Saw...
www.axminster.co.uk
WHITE
AXMINSTER
W
28

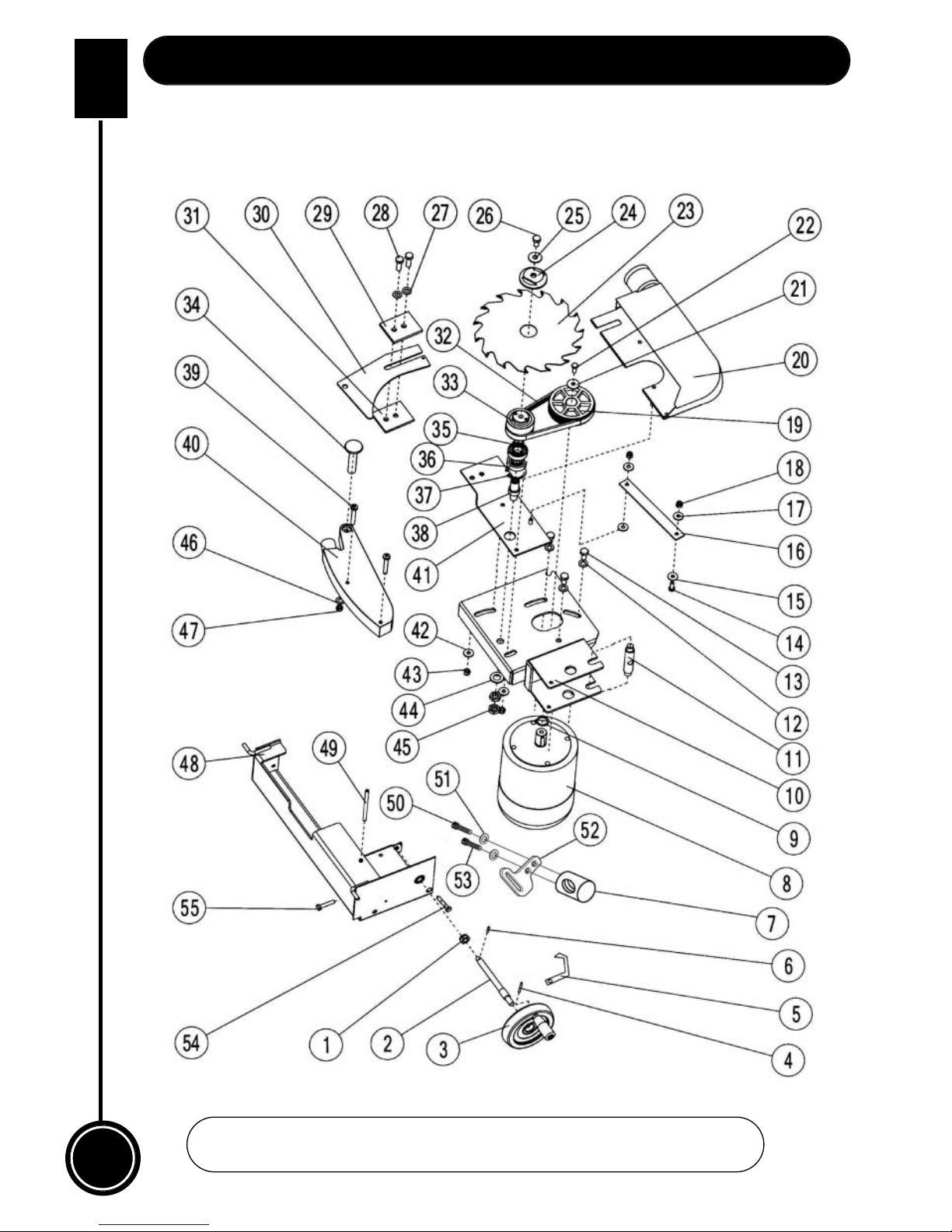

Parts Breakdown for TS-200 Table Saw...
FREEPHONE 0800 371822
29
WHITE
AXMINSTER
W
Parts List for TS-200 Table Saw...
www.axminster.co.uk
WHITE
AXMINSTER
W
30
Parts LIst & Breakdown for the Sliding Carriage...
FREEPHONE 0800 371822
WHITE
AXMINSTER
W
950650,700058,700059
,700060,718641
www.axminster.co.uk
Axminster Devon EX13 5PH UK
FREEPHONE 0800 371822
Axminster Reference No:TS-200
TS-200 200mm Table Saw
Please dispose of packaging for the product in a
responsible manner. It is suitable for recycling. Help to
protect the environment, take the packaging to the local
amenity tip and place into the appropriate recycling bin.
Do not dispose of electric tools together with household
waste material! In observance of European Directive
2002/96/EC on waste electrical and electronic equipment
and its implementation in accordance with national law,
electric tools that have reached the end of their life must be
collected separately and returned to an environmentally
compatible recycling facility.
Only for EU countries
Loading...
