Axminster SIEG C4 User Manual

Download

2007

600856

SIEG C4 Bench Lathe

Axminster Reference No: C4

User Manual

WHITE

AXMINSTER

www.axminster.co.uk

600857 Mill Attachment for

the C4 Lathe (Optional)

Manual (See Pages 20-41)

600856 C4 Bench Lathe

Manual (See Pages 02-19)

No. 4 Spanner Set Change Wheel Gears Comprising of:

No. 1 Main Chuck Key

No. 4 External Jaws

No. 4 Internal Jaws

Set of Allen Keys

No. 1 2MT Dead Centre

No. 1 3MT Dead Centre

ACCESSORY'S

PACKING LIST

No.1 127 Teeth

No.2 100 Teeth

No.1 80 Teeth

No.1 70 Teeth

No.1 56 Teeth

No.1 55 Teeth

No.2 50 Teeth

No.1 49 Teeth

No.1 45 Teeth

No.1 40 Teeth

No.1 35 Teeth

2a. SCREW CUTTING

For selection of the required thread pich please refer to the chart on the gear train cover, select the correct gears from the change wheel set and mount them in the correct sequence. (See fig 1 & 1a)

Fig 1

Fig 1a

GEAR CHART

2a. SCREW CUTTING CONTINUED

PIVOTING BRACKET

CLAMPING BOLT

The "C/B" axis is adjusted via the pivoting bracket and clamp bolt as shown. (See figs 2 & 2a)

Fig 2a

4. THE CARRIAGE/SADDLE

Note: The chuck guard must be in the lower position as there is a interlock switch proventing the machine operating with the guard in the raised position.

Your C4 bench lathe is a precision tool. In order to maintain this precision and prolong its useful

life, it is advised that you follow the recommended daily and periodic maintenance tables printed

below.

Daily and Periodic Maintenance

Daily Pre-use

1. Using an oil can with a narrow nozzle, oil all the oil points on the machine, incl. A) Saddle (4), B) tailstock (2), C) traverse slide (1), D) compound slide (2), E) leadscrew gearbox (2), and F) leadscrew end bearing (1).

2. Move the traverse and compound slides to give access to their drive shaft threads and lightly coat with oil, work the oil up the threads to lubricate the thread followers.

3. Spray-oil the slides and the lathe bed, exercise the saddle and the slides to spread the oil to all surfaces, both hidden and visible.

4. Spray up under the rack cover to lubricate the rack. (G)

5. Apply oil to the change gears and their axle mountings. (H)

Daily after-use

1. Clean all swarf and chips away from the machine bed, slide surfaces, and the tool post.

2. Exercise the slides and ensure no swarf etc., is lodged in the drive shaft tunnels.

3. If you have been using ʻsudsʼ make sure the machine is throughly dried off. Clear the suds tray of all swarf and chips, especially around the drain.

4. Check the tool, ensure it is usable the next time, if not re-sharpen or replace the tool tip.

5. Lightly oil spray all the machine beds and surfaces, and the tailstock barrel.

6. Clean and lightly oil any tools you may have been using (centres, drill chucks, spanners chuck keys etc, and put them away.

7. Switch off the power supply. Disconnect the plug.

8. Cover the machine over with a dust cloth.

Weekly

a) Check the belt tension. b) Check the tautness of the slides. c) Check the level of the suds reservoir. (if you are using suds).

Accessories

May we recommend the following products for use with your C4 lathe.

Grease - Rocol Saphire 2 (Part number: 810129). Lubricant - Rocol Slideway lubricant spray (Part Number: 810141). Cutting Fluid - Rocol Multisol cutting fluid (Part Number: 810140). There are numerous accessories listed for the machine listed in the Axminster catalogue in section 1

LATHE MAINTENANCE

Oil

LATHE MAINTENANCE (OIL LUBRICATION POINTS)

NOTES

600857

Mill Attachment

for the C4 Lathe

User Manual

WHITE

AXMINSTER

2007

The undersigned, Ole Stilling authorised

by Shanghai SIEG Machinery Co., Ltd.

No.555 Caofeng Rd., South to No. 17 Bridge of

Caoan Rd., Shanghai

declares that this product:

(Micro Mill)

manufactured by Shanghai SIEG Machinery Co.

is in compliance with the following standards or

standardisation documents in accordance with

Council Directives

EN55014-1:2000, EN55014-2:1997

EN61000-3-2:2000, EN61000-3-3:1995

(89/336/EEC amended by 93/68/EEC

)

DECLARATION OF CONFORMITY

WHATʼS IN THE BOX

Quantity Item Model Number

1 No. Mill with Chuck and Draw Bar fitted X1

Box containing:1 No. Chuck Key 1 No. Nipple ʻCʼ Spanner 28mm-32mm 4 No. ʻTʼ Slot Keepers 1 No. Tommy Bar 1 No. Oiling Bottle 1 No. Spare Fuse (250v x 1 Amp) 1 No. Guarantee Card

Please read the Instruction Manual prior to using your new machine; as well as the installation procedure, there are daily and periodic maintenance recommendations to help you keep your machine on top line and prolong its life. Keep this Instruction Manual readily accessible for any others who may also be required to use the machine.

Having unpacked you machine and its accessories, please check the contents against the equipment list "Whatʼs in the box", if there are any discrepancies, please contact Axminster Power Tool Centre using the procedures laid down in the catalogue. Please dispose of the packaging responsibly, much of the material is bio-degradable. The machine and its accessories will arrive coated with heavy corrosion preventative grease. This will need to be cleaned from the machine, its components and accessories prior to it being set up and commissioned. Use coal oil, paraffin or a proprietary degreaser to remove the barrier grease. Be warned, it will stain if you splash it on clothing etc., wear overalls, coverall et al., rubber gloves are also a good idea, as is eye protection if your cleaning process tends to be a little bit enthusiastic. After cleaning, lightly coat the exposed metal surfaces of the machine with a thin layer of light machine oil. N.B If you used paraffin/kerosene make sure you apply this thin film sooner rather than later.

SPECIFICATIONS

DEFINITIONS

Axminster No 600857 Power Supply 230V a.c. 50 Hz. Motor 220V d.c. 150W Quill Travel 30mm Spindle Speeds Low Gear 100-1000rpm (variable) High Gear 100-2000 rpm (variable) Reversing Method Electrical Quill Mandrel Taper No. 2 MT Draw Bar Thread M10 Drilling Capacity 10mm End Mill Capacity 10mm Face Mill Capacity 20mm Weight 25 Kg

ʻXʼ Axis. This is the axis described by the work table as it is moved side to side.

Normally, movement that moves the tool to the right in the workpiece is referred to as +ve ʻXʼ, and movement that moves the tool to the left in the workpiece is referred to as –ve ʻXʼ. Where the initial position of the tooling and the worktable is designated 0,0. (Horizontal plane only).

ʻYʼ Axis. This is the axis described by the work table as it is moved from front to

back. (Traverse) Normally movement that moves the tool to the front in the workpiece is referred to as-ve ʻYʼ, and movement that moves the tool to the rear in the workpiece is referred to as+ve ʻYʼ. Where the initial position of the tooling and the worktable is designated 0,0.(Horizontal plane only).

ʻZʼ Axis This is the axis described by the worktable in the vertical plane.

(Not possible with this machine). However, to establish a point in space, the co-ordinates can be transferred to the ʻtipʼ of the tooling, whereby, if we assume that the tool and the worktable in their initial positions, where designated 0,0,0, (Horizontal and vertical planes) any point above the tool tip is referred to as +ve ʻZʼ, and any point below the tool tip is referred to as -ve ʻZʼ

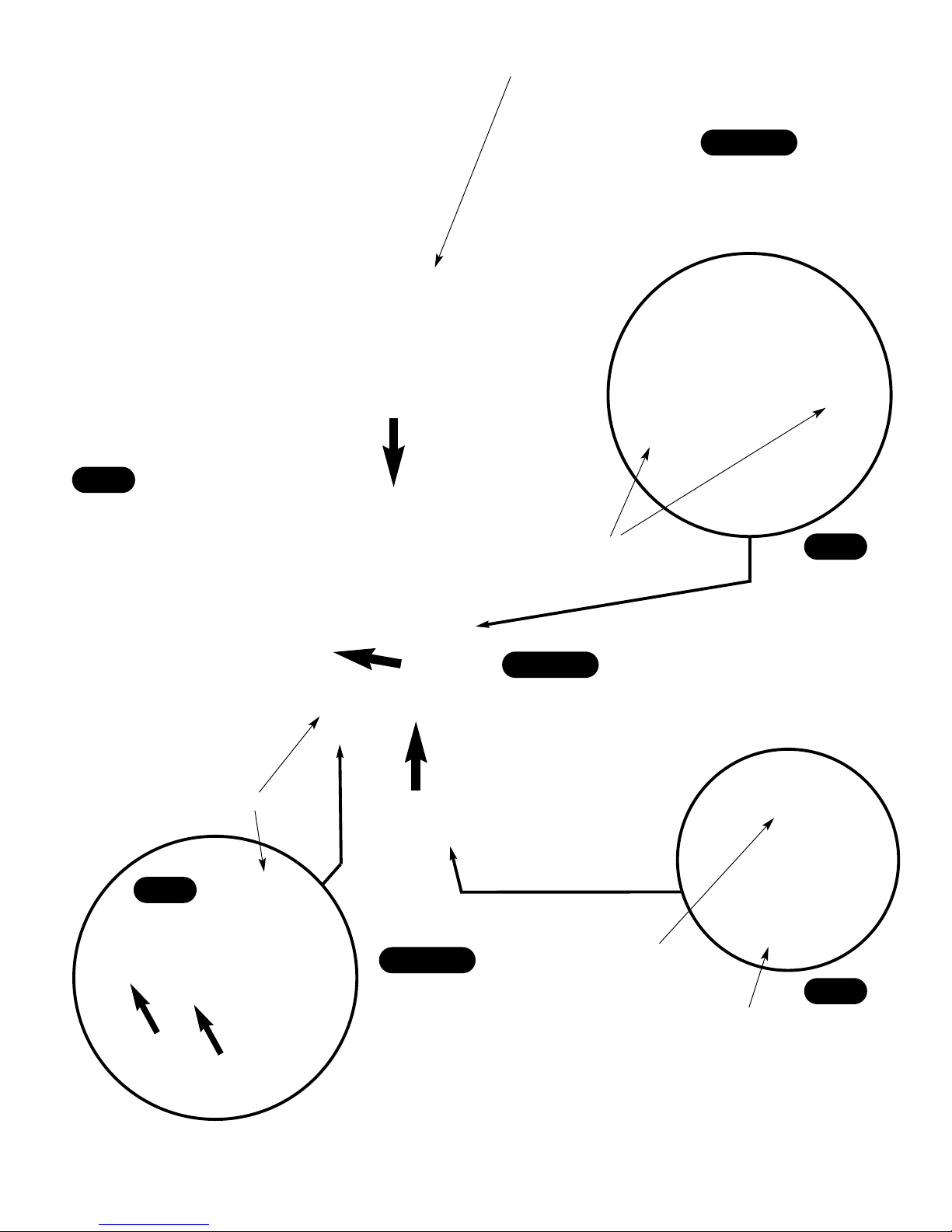

INITIAL ASSEMBLY

Remove the four M5 caphead bolts using a

4mm allen key as shown in figures A & B and

remove the splash guard.

Fig A

Fig B

WARNING

When mounting the Mill to the Lathe, we strongly advise you get the assistance of another person because of the weight of the machine.

Step 1

Splash guard

Mill assembly

M8 Caphead bolts

Lower the mill assembly down onto the angle support casting

and secure in place using four M8

caphead bolts. (See ﬁgs C & E)

Offer up and secure the angle support casting to the side of the lathe bed using four M10 caphead bolts/ washers and tighten securely. (See ﬁgs C & D) DO NOT OVERTIGHTEN

Tip the lathe forward and have your assistant thread the support leg up into the angle support casting. (See ﬁgs C & F ) Adjust the the support leg until it makes contact with the surface of your bench or stand, tighten the lock nut to lock the leg in position.

Leg Support

Lock nut

Angle support casting

Step 2

Step 4

Step 3

INITIAL ASSEMBLY

Fig E

Fig C

Fig D

Fig F

Make sure that everything is secure then replace the splash guard as described on page 22.

INITIAL TESTING

Please read the section entitled Identification and Parts description so that you

may more easily identify the parts to which reference is made in the text.

Testing

When the Mill is mounted to your satisfaction, proceed as follows:-

a) Close the chuck jaws b) Check the millhead is ʻlockedʼ in position on the column. c) Check that all loose items are removed from the worktable. d) Set the worktable approximately mid-positioned under the chuck jaws. e) Check the speed control is switched OFF (fully anti-clockwise). f) Check the Forward/Off/Reverse Switch is in the Off position g) Select L (Low) on the gear box . h) Connect the machine to the mains supply and switch power on. i) Turn the Speed Control Switch On (Clicks On) and Select Forward on the

Forward/Off/Reverse switch.

J) Check the Amber LED (Fault Light) is illuminated and the green light is illuminated. k) Switch the Speed Control Switch Off ( Clicks Off) and the Amber Led is now Off and the

Green light stays on.

l) Turn the Forward/Off/Reverse switch to Off position (Clicks Off) all lights are now off. m) Select Forward on the Forward/Off/Reverse switch. n) Turn the Speed Control Switch On and advance until the Chuck starts to rotate. o) Turn the Forward/Off/Reverse switch to Off position, check that the machine stops, turn

the Forward/Off/Reverse switch to Forward, check that the Green light comes on and the Amber LED comes on and the machine does not start. Turn all switches off (All lights are off).

p)Turn Forward/Off/Reverse switch to Forward. q) Turn the Speed Control Switch On (Clicks On), advance until the chuck starts to rotate. r) Over a period of approximately 5 minutes advance the speed in stages to maximum, run at

maximum for at least 2 minutes, check that there is nothing untoward, (no excessive vibration, speed progression is smooth etc.). Stop the spindle and change the gear selector to H (High), carry out the previous check. Repeat the checks with the motor set in reverse. s) If all the above checks are correct, stop the spindle, (turn the speed control to zero and select Off on the direction selector switch. Ensure the fine feed control is disengaged, using the ʻcoarseʼ feed lever handle, exercise the quill up and down, check the movement is smooth and precise. t) Select the fine feed function, (if necessary ʻjoggleʼ the feed hand to enable the gears to mesh). Raise and lower the quill using the fine feed control. Check the movement is smooth and precise, there are no hard spots and the feed doesnʼt bind up. u) Ensure the head lock clamp is loosened and exercise the rise and fall, driving the head up and down the tool post. Check the movement is smooth and tight. Leave the head fairly well down the tool post for the next check. v) Loosen the tilt clamp bolts, and tilt the tool post to the left and right, clamp the tool post in an arbitrary position and tighten the clamp bolts. Check that the tool post remains locked in place. w) If all the above checks are correct, your mill is now ready for use.

PARTS IDENTIFICATION AND DESCRIPTION

Please take some time to identify the various parts of your machine so that you are familiar with the terminology we will use to enable you to set up and operate your Mill safely and correctly.

Main tool post This is the column of the mill, it is an 65 x 50 bar with a dovetail

slide machined on the front onto which the milling head is mounted, the lower part is the circular ʻbossʼ for the tilt assembly. On the left side of the post a scale, graduated in mmʼs, is mounted to read against an adjustable pointer mounted on the head casting.

Rise and fall The Rise and Fall drive screw is anchored in a machined housing

at the top of drive screw the main tool post. It has a wheel and rod handle keyed to the shaft to enable the screw to be turned. It is fed through a threaded dog that is bolted to the head casting allowing the head to be moved up and down. Viewed from above the drive screw is turned clockwise to raise the head and anti-clockwise to lower it.

Tilt housing The tilt housing is mounted to the base casting using 4 bolts. The

tilt ʻbossʼ of the main tool post is mated to the housing and clamped by a urther 4 bolts. The main tool post can tilt 45 (degrees) from the vertical either left or right. There is an adjustable pointer and a scale mounted on the housing to give an indication of the amount of tilt that has been applied.

Milling head This is the ʻmilling machineʼ and the descriptions of its

various parts and components are detailed as follows:-

Milling head The main casting to which all the components are attached. The casting head has a dovetail housing machined at the rear, which allows

the casting to be fitted to the Main Tool Post. The left side of the dovetail slide is fitted with a gybe strip to maintain the fit.

Head clamp Located between the gybe strip adjusters and locknuts is an handled

bolt that clamps the gybe strip against the slide to effect a locking action for the rise and fall of the head.

Rise and fall An ʻLʼ shaped casting that is threaded to accept the rise and fall drive screw dog drive screw, and is driven along the thread when the screw is

turned. As it is bolted to the milling head, the head will therefore follow its movement as it is being driven.

Motor and The motor and gearbox assembly are mounted above the main gearbox head casting at the top of the arbor sleeve. The motor drive is

geared through to the spindle with an intermediate 2:1 gearbox.

MACHINE ILLUSTRATION OF THE MILL

Main tool post

Tilt housing

0-45˚ tilt

Typ. 4

bolts

Rear View

Tilt

scale

Rise & fall

drive screw

Rise & fall drive screw handle

Angle support casting

PARTS IDENTIFICATION AND DESCRIPTION

Gear change The gear change knob allows the selection of the high or low ratio knob of the gear train. The speed of the spindle is then governed by the

speed control on the motor panel. (You may have to ʻjoggleʼ the chuck/tool to aid the meshing action).

Motor A 220V d.c. motor rated at 150W.

Feed Handle Lever handle that is used to drive the quill (and hence the chuck or

the tool) up and down. The boss of the handle is fitted to the end of a ʻsplinedʼ gear shaft. This ʻsplinedʼ gear is, in turn, engaged in the rack cut into the quill body. There is a counter balance spring in the arbor and sleeve assembly, giving a more controlled ʻfeelʼ during drilling operations. It also retracts the quill when drilling is completed.

Fine feed The fine feed assembly floats around the splined gear shaft that assembly drives the quill up and down. When the action of the fine feed

mechanism is required; pulling out ʻengageʼ knob of the fine feed control meshes the gearing (you may have to ʻjoggleʼ the feed handle to aid the meshing action) between the splined shaft and the fine feed control shaft; this enables the spindle to be driven by the fine feed control wheel with greater precision. Behind the boss of the fine feed control wheel handle is a graduated ring (thimble) so that the movement of the quill can be measured. The thimble is held to the drive shaft by friction, and can be pre-positioned to establish a predetermined start or stop dimension.

Motor control Power On LED panel Green LED that indicates that power is available to the motor. i.e.

mains is applied, fuse is intact and the Emergency stop switch is not activated.

Fault LED

(marked UNNORMAL)

Amber LED that indicates that there is a fault or an incorrect control sequence. i.e. the chuck guard interlock has been activated or the speed control is activated without forward or reverse direction being selected. The Motor will not run if the fault LED is illuminated. If the safety interlock is activated, the safety interlock will remain in force until the interlock is reset and the start sequence re-initiated.

Fuse Cap

Access cap for the 20mm fuse cartridge (1 Amp 250V) Speed Control Knob Round raised ridge knob connected to the circuit that controls the spindle speed (100-1000 rpm or 100-2000 depending upon the gearbox selection).

Forward /Off/Reverse Switch

Three position switch that controls the direction of rotation of the spindle. Forward indicates that the spindle is turning clockwise (looking down from above, reverse, the spindle is turning anticlockwise. The centre OFF position inhibits the spindle from turning in either direction, under motor drive.

MACHINE ILLUSTRATION OF THE MILL

Power on LED

Fault LED

Fuse cap

Speed control

knob

Forward

/Off/Reverse

switch

Motor control

panel

MACHINE ILLUSTRATION OF THE MILL

PARTS IDENTIFICATION AND DESCRIPTION

Quill hold pocket The size of the machine precludes any ʻfancyʼ locking mechanism for

the quill. There is a blind pocket on the spindle that accepts the tommy bar supplied in the tool kit, to enable the spindle to be held in position whilst the draw bar is loosened.

Draw bar cover A moulded plastic cover that clips into the top of the Motor Gearbox

assembly, to afford protection from the rotating top of the draw bar, when the quill is at the top of its travel.

Draw bar This is a metal rod, threaded M10 at one end and with an 8mm (unseen) squared shank and flange machined on the other. It is fitted through the

spindle mandrel to hold the fitted tool/tooling hard into the No2 MT taper of the spindle shaft.

Draw bar cover

Top of draw bar

Spindle

Blind pocket

Fine feed thimble

Rise & fall drive

screw handle

Milling head

casting

Rise & Fall drive

screw dog

Gear change knob

Motor

Fine feed control

Coarse feed scale

Feed handle

Head clamp

High ratio

Low ratio

Fine feed thimble

Normal

Fine feed

Chuck

Gearbox

Fine feed engage knob

Thimble

MACHINE ILLUSTRATION OF THE MILL

GENERAL OPERATING INSTRUCTIONS

SETTING AND ADJUSTMENTS

GERERAL SAFETY POINTS

Warning Do not operate the mill in any function unless the head clamping lever is tightened.

Tool Changing

Note. The taper socket in the spindle mandrel does not have a ʻdrive flatʼ and all tooling, including the drill chuck is secured and driven by the taper lock and the draw bar.

Make sure the power is switched off or better still remove the power from the machine.

Locate and put to hand the 8mm A/F spanner and the tommy bar. Remove the Draw Bar Cover.

Hold the quill immoveable by inserting the tommy bar into the quill hold pocket and loosen the draw bar. Unscrew two or three turns and then strike sharply with a hammer (preferably a copper face, to prevent the head of the draw bar peining over) this will break the lock between the tool and the spindle tapers .

Unscrew the draw bar from the tool. Ensure the tool is supported, i.e. will not fall onto the workpiece/table et al. When it is free put the tool carefully aside, remove the draw bar, check the thread, check the taper and the thread of the new tool are clean and undamaged, introduce the new tool into the taper, re-insert the draw bar and screw into the top of the tool.

Screw in the draw bar finger tight. Hold the quill immoveable and tighten with the spanner. DO NOT OVERTIGHTEN. Replace the draw bar cover.

Remove all tooling and reconnect the machine. Ensure the tool path is clear, switch on, and check that the tool is correctly seated, is running true etc. If all is O.K, proceed.

Milling (all cases) Ensure the workpiece is securely clamped to the table.

Along the longitudinal Ensure that the quill is locked in position before Axis (X) milling is commenced. Ensure the traverse slide lock

is tightened.

Along the Traverse Axis (Y) Ensure that the quill is locked in position before milling is

commenced. Ensure the worktable lock is tightened.

Milling or Drilling Vertically Ensure the traverse slide and the worktable locks are (Z) tightened.

Milling Head adjustment

The Milling Head is mounted over a dovetail section. In order to maintain the ʻtightnessʼ of the fit; between the sloping surface of the component and its mating surface, on the left hand side, a gybe strip has been inserted. To adjust the gybe strip, use the supplied allen key and spanner, release the lock nuts and screw the gybe strip grubscrews clockwise to compensate for any slackness or anti-clockwise to loosen the movement. Check, using the rise and fall drive feed handles, that the head moves smoothly, If not, repeat the adjustments until the movement is smooth and tight over the whole of the travel.

Your Mill is a precision tool. In order to maintain this precision and prolong its useful life, it is advised that you follow the recommended daily and periodic maintenance tables printed below.

Daily and Periodic Maintenance

Daily

Carry out a visual inspection. Repair any damage immediately. Minor damage to the beds should be taken out with an oilstone. Move the worktable and the traverse feed back and forth by hand, check that the movement is smooth. Spread a light film of oil over the worktable and the traverse slide bed. Oil the end bearings of the drive shafts. Squirt oil onto the slide faces of mating components. Exercise the components to ensure the oil is spread over both visible and obscure surfaces.

Daily after-use

1. Clean all swarf and chips away from the machine bed, slide surfaces, and the tool post.

2. Exercise the slides and ensure no swarf etc., is lodged in the drive shaft tunnels. If you have been using a coolant make sure the machine is thoroughly dried off.

3. Check the tool, ensure it is usable the next time, if not re-sharpen or replace the tool tip.

4. Lightly oil spray all the machine beds and surfaces.

5. Clean and lightly oil any tools you may have been using (drill chucks, spanners, chuck keys etc), and put them away.

6. Switch off the power supply. Disconnect the plug.

7. Cover the machine over with a dust cloth.

Weekly

1. Move the traverse slide fully back to give access to the tunnel, blow out to make sure all swarf is cleared away and heavily spray oil the tunnel, exercise the slide to work the oil into the drive thread and to lubricate the dog.

2. Spray oil the slide and the worktable bed, exercise the worktable to spread the oil to all surfaces, both hidden and visible.

3. Spray oil the underside of the machine onto the drive screws, exercise to ensure the oil is coating all components.

4. Clean and spray oil the rise and fall drive screw, exercise to ensure all parts are coated.

5. Check the movement of the worktable, the traverse slide and the head, check they are smooth and ʻtightʼ, if necessary reset the gybe strips until the movements are smooth and tight.

6. Wipe the quill outer sleeve clean and lightly oil, exercise the quill to spread the oil in the sleeve bushes.

Monthly

a) Give the motor a good ʻblow throughʼ to remove any dust, dirt etc, b) Check all the interlocks function correctly.

Accessories

There are numerous accessories for the machine listed in the Axminster catalogue. Some are illustrated at the rear of this manual.

MAINTENANCE

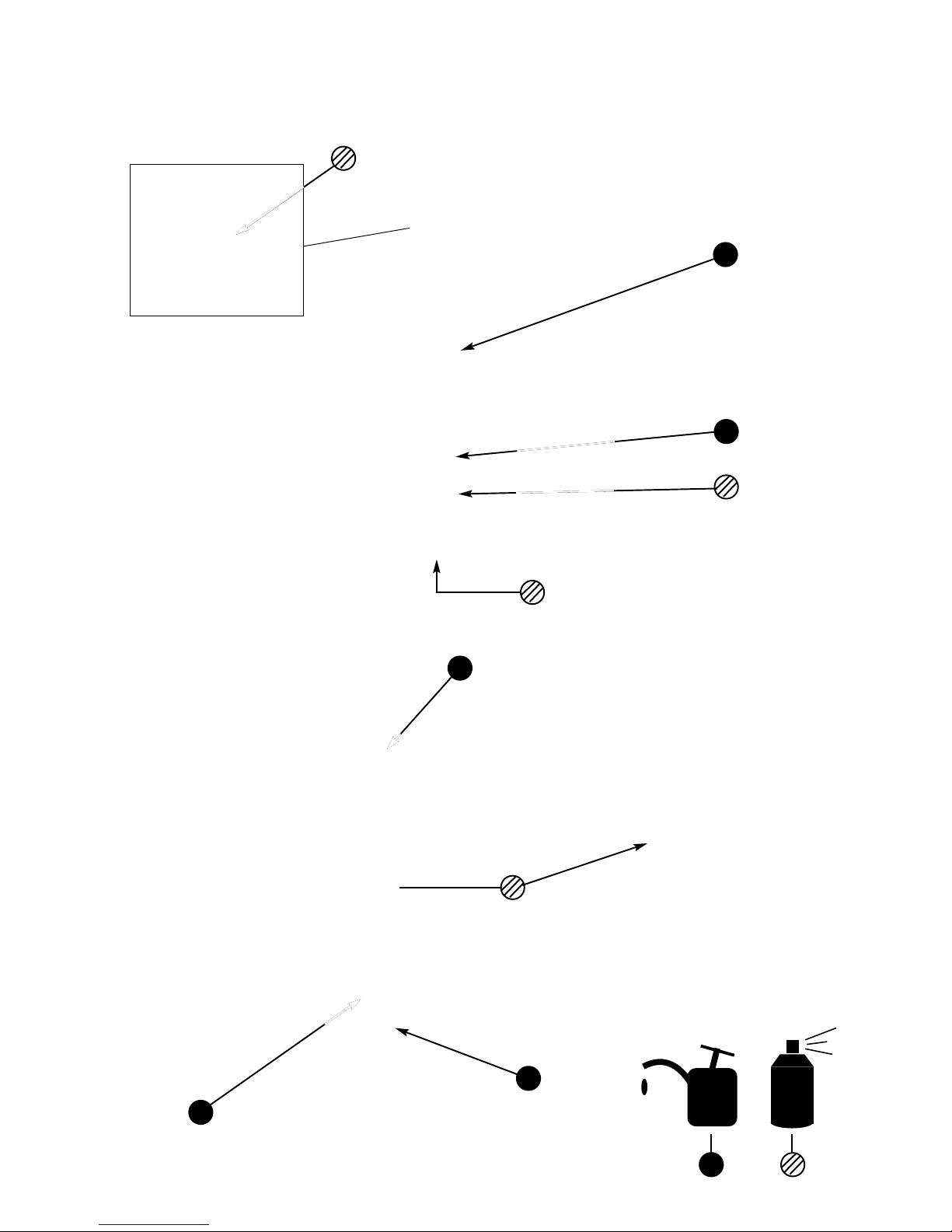

MAINTENANCE OILING POINTS

Oil

Top of draw bar

cover removed for

clarity

OIL

Clamping kit

Part No: (100033)

#2MT 6mm collet Part No: (100023)

#2MT 10mm collet

Part No: (100024)

Quick vice 50mm Part No: (100022)

Part No: (100034)

MILL ACCESSORIES

610184-14 Slot Drill 3mm 610185-14 Slot Drill 4mm 610186-14 Slot Drill 6mm 610187-14 Slot Drill 8mm 610181-14 Slot Drill 10mm

Order No Description

Metric Screwed Shank Two Flute Slot Drills.

Axminster HSS Slot Drills

610170-14 Bull Nose Slot Drill 3mm 610171-14 Bull Nose Slot Drill 4mm 610172-14 Bull Nose Slot Drill 6mm 610173-14 Bull Nose Slot Drill 8mm 610168-14 Bull Nose Slot Drill 10mm

Order No Description

Metric Screwed Shank Two Flute Bull Nose Slot Drills

Axminster Bull Nose Slot Drills

Rotary Milling Vice

for Micro Mill 55mm

Axminster Micro

Mill Collets

Micro Mill Clamping Kit

50mm Release Vise

610177-14 3mm End Mill 610178-14 4mm End Mill 610179-14 6mm End Mill 610180-14 8mm End Mill 610174-14 10mm End Mill

Order No Description

Metric Screwed Shank Three Flute End Mills.
