RSS16E
Variable Speed Scroll Saw
Code 508294
AXMINSTER
SERIES
Hobby
AT&M: 04/09/2014
Index of Contents
2
Declaration of Conformity
Copied from CE Certificate
The undersigned, T. Fuhrmann
Authorised by Qingdao D&D Electromechanical
Technologies Co., Ltd. 23rd FL., D&D Fortune Centre
No. 182-6 Haier Road Qingdao, Shandong 266000 P.R.
China.
Model Number: RSS16GA (Scroll Saw)
Manufactured by Qingdao D&D Electromechanical
Technologies Co., Ltd. is in compliance with the
standards determined in the following Council
Directive.
2006/42/EC
2006/95/EC (Low Voltage Directive)
Warning
The symbols below advise that you follow
the correct safety procedures when using
this machine.
Fully read manual
and safety instructions
before use
Eye protection
should be worn
Ear protection
should be worn
HAZARD
Motor gets hot
Dust mask
should be worn
Index of Contents 02
Declaration of Conformity 02
What’s Included 03
General Notes 03
Introduction 04
General Safety Instructions for 230V Machines 04-05
Additional Safety Instructions for Scroll Saw 05-06
Specification 06
Initial Assembly 06-07
Mounting the Scroll Saw 07
Illustration and Parts Description 08-09-10-11
Setting Up the Saw 12-13
Operating Instructions 13-14-15
Changing the Blade 16-17-18
(Standard Blades) 16
(Pinned Blades) 17-18
Maintenance 19-20
Parts Breakdown/List 21-22-23
Wiring Diagram 23
What’s Included
3
Quantity Item Part Model Number
RSS16GA
1 No RSS16E Hobby Scroll Saw
A
Blade comes fully assembled but not tensioned
1 No Blade Guard
B
2 No M5 x 10mm Butterfly Screw Knobs
and flat washers
C
1 No Manual
Please read the Instruction Manual prior to using
your new tool; as well as the operating procedures
for your new tool, there are numerous hints and tips
to help you to use the tool safely and to maintain its
efficiency and prolong its life. There is also a detailed
description of the parts of your scroll saw, which will
enable you to become familiar with terminology we
will use in this manual. Keep this Instruction Manual
readily accessible for any others who may also be
required to use the tool.
A
B
General Note
C
Introduction
4
Perfect for the hobby user who wants a more
advanced scroll saw, the RSS16E is a machine that
will allow you to take on more advanced projects.
Based around a cast iron base with cast alloy body
and table, it’s not too heavy to move and the
integrated handle makes this an easy task. Several
features make this scroll saw stand out: variable
motor speed giving a good cutting range for many
tasks, easy blade changing plus it can take both
pinned and un-pinned blades in the same blade
holders. The table tilts both ways up to 45° with a
geared hand knob. A clever flexible stalk combines a
blower nozzle and LED work light to keep the work
clear and illuminated. There is a hinge out blade tray
for convenient blade storage. A 35mm dust outlet
allows connection to a small vacuum extractor and
a wrap-around eye shield is supplied. Rubber feet
are provided for bench or worktable use; however,
for best performance we do recommend bolting the
machine to either a steel stand or sturdy workbench.
This would be a good choice of machine to let your
hobby skills grow.
General Safety Instructions for 230V Machines
Good Working Practices/Safety
The following suggestions will enable you to observe
good working practices, keep yourself and fellow
workers safe and maintain your tools and equipment
in good working order.
WARNING! KEEP TOOLS AND
EQUIPMENT OUT OF THE
REACH OF YOUNG CHILDREN
Primary Precautions
Work Place/Environment
The machine is supplied with a moulded 13 Amp.
Plug and 3 core power cable. Before using the tool
inspect the cable and the plug to make sure that
neither are damaged. If any damage is visible have
the tool inspected /repaired by a suitably qualified person. If it is necessary to replace the plug, it
is preferable to use an ‘unbreakable’ type that will
resist damage on site. Only use a 13 Amp plug, make
sure the cable clamp is tightened securely. Fuse at 5
Amp. It is also good practice to use switched outlets.
If extension leads are to be used, carry out the same
safety checks on them, and ensure that they are
correctly rated to safely supply the current that is
required for your machine.
Always mount the machine on a flat, level, stable
surface. There are several methods of achieving this,
bolting the machine directly to a ‘good solid
workbench’, bolting the machine to a sturdy base
board that can be clamped to the ‘good solid
workbench’; create an independent entity by bolting
the machine to its own stand. However you mount
your machine, make sure it is fastened down and
stable before use. The machine is not designed for
sub-aqua operation, do not use when or where it is
liable to get wet. If the machine is set up in the open,
and it starts to rain (unusual though this would be in
U.K.), cover it up or move it into the dry. If machine
has got wet; dry it off as soon as possible, with a cloth
or paper towel.
Do not
use 230V a.c. powered machines anywhere
within a site area that is flooded or puddled, and do
not trail extension cables across wet areas.
Keep
the machines clean; it will enable you to more
easily see any damage that may have occurred.
KEEP THE WORK AREA AS
UNCLUTTERED AS IS PRACTICAL,
THIS INCLUDES PERSONNEL AS
WELL AS MATERIAL. UNDER NO
CIRCUMSTANCES SHOULD
CHILDREN BE ALLOWED IN WORK
AREAS.
It is good practice to leave the machine unplugged
until work is about to commence, also make sure
to unplug the machine when it is not in use, or
unattended. Always disconnect by pulling on the
plug body and not the cable. Once you are ready to
commence work, remove all tools used in the setting
operations (if any) and place safely out of the way.
Re-connect the machine.
Make sure you are comfortable before you start work,
balanced, not reaching etc..
If the work you are carrying out is liable to generate
General Safety Instructions for 230V Machines
5
flying grit, dust or chips, wear the appropriate safety
clothing, goggles, gloves, masks etc., and if the work
operation appears to be excessively noisy, wear
ear-defenders. If you wear your hair in a long style,
wearing a cap, safety helmet, hairnet, even a
sweatband, will minimise the possibility of your hair
being caught up in the rotating parts of the tool,
likewise, consideration should be given to the
removal of rings and wristwatches, if these are liable
to be a ‘snag’ hazard. Consideration should also be
given to non-slip footwear, etc..
Do not
work with cutting tools of any description
if you are tired, your attention is wandering or you
are being subjected to distraction. A deep cut, a lost
fingertip or worse; is not worth it!
NEVER LEAVE MACHINE RUNNING UNATTENDED.
Turn the power OFF. Do not leave machine until it
comes to a complete stop.
MAKE WORKSHOP CHILDPROOF.
Cover the saw
adequately when not in use to prevent children from
damaging themselves by tampering with it.
NEVER STAND ON THE MACHINE.
Serious injury
could occur if the machine is tipped or if a cutting
tool is accidentally contacted.
DO NOT
store materials above or near a machine,
such that it is necessary to stand on the machine to
reach them.
HANDLE WITH EXTREME CARE
Whenever
transporting or installing machinery, and always
use a lifting tool.
AVOID ACCIDENTAL STARTING.
Ensure the switch is
OFF before plugging in to mains.
BE AWARE
that accidents are caused by carelessness
due to familiarity. ALWAYS concentrate on the job in
hand, no matter how trivial it may seem.
DO NOT
use this machine within the designated
safety areas of flammable liquid stores or in areas
where there may be volatile gases. There are very
expensive, very specialised machines for working in
these areas,
THIS IS NOT ONE OF THEM.
CHECK
that blades are the correct type and size, are
undamaged and are kept clean and sharp, this will
maintain their operating performance and lessen the
loading on the machine. Above all,
OBSERVE….
make
sure you know what is happening around you, and
USE YOUR COMMON SENSE.
Additional Safety Instructions for Scroll Saw
1.
Wear safety goggles as protection against flying
wood chips and saw dust. In many cases, a full face
shield is even better protection. A dust mask is also
recommended to keep saw dust out of your lungs.
2.
The scroll saw must be bolted securely to a stand
or workbench. If the saw has a tendency to move
during certain operations, bolt the stand or
workbench to the floor.
3.
A solid wood workbench is stronger and more
stable than a workbench with a plywood table.
4.
This scroll saw is for indoor use only.
5.
Do not cut pieces of material which are too small
to be held by hand.
6.
Clear the work table of all objects except the work
piece (tools, scraps .rulers etc.) before turning the
saw on.
7.
Make sure the blades’ teeth are pointing down,
toward the table, and that the blade tension is
correct.
8.
When cutting a large piece of material, support it
at the height of the table.
9.
Do not feed the work piece through the blade too
fast. Feed only as fast as the blade will cut.
10.
Keep your fingers away from the blade. Use a
push stick as you near the end of the cut.
11.
Take care when cutting a work piece which is
irregular in cross section. Moulding for example must
lie flat, and not ‘rock’ on the table as it is being cut. A
suitable support must be used.
12.
Take care when backing off a work piece from
the blade, as the blade may bind in the ‘kerf. In this
Additional Safety Instructions for Scroll Saw
6
event, switch OFF the machine and disconnect from
the supply. Wedge open the kerf, and withdraw the
work piece.
13. Switch off the saw, and make sure the blade has
come to a complete stop before clearing sawdust or
off-cuts from the table.
14. Make sure there are no nails or foreign objects in
the part of the work piece to be sawn.
15. Be extra cautious with very large or small, or
irregularly shaped work pieces.
16. Set up the machine and make all adjustments
with the power OFF, and disconnected from the
supply.
17. DO NOT operate the machine with the covers off.
They must all be in place and securely fastened when
performing any operation
18. Be sure to use the correct blade size and type.
19. Use ONLY approved replacement saw blades.
Contact your local Axminster Tool Centre for advice.
The use of inferior blades may increase the risk of
injury.
Code 508294
Model RSS16E
Rating Hobby
Power 100W 230V
Throat 406mm
Stroke 15mm
Cuts per Minute 400-1,600/min
Max Depth of Cut 50mm
Table Size 270 x 410mm
Table Tilt 0°-45° L & R
Dust Extraction Outlet 35mm
Overall L x W x H 600 x 270 x 400mm
Weight 14kg
Specification

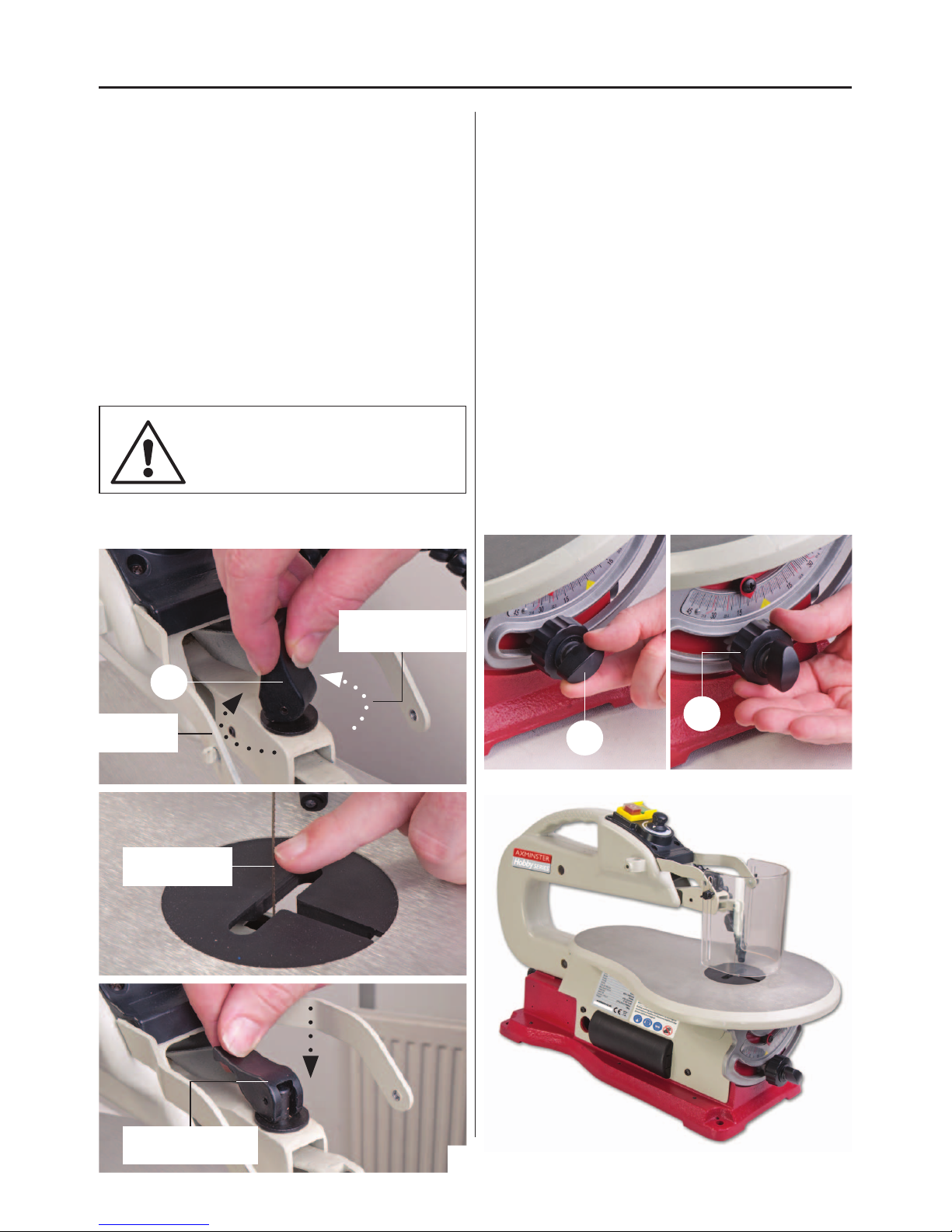

Initial Assembly
Your scroll saw is fully assembled, except for the Blade
Guard assembly.
Locate the guard (B) and the two butterfly screw
knobs and flat washers (C). Place a flat washer over
the M5 threaded knobs, slot the guard over the
outside edges of the guard supporting arms and
offer up the two elongated holes with the threaded
Having unpacked your scroll saw and its accessories
please dispose of any unwanted packaging
properly. The cardboard packaging is biodegradable.
PLEASE DISPOSE OF ANY
UNWANTED PACKAGING
PROPERLY . THE POLYTHENE,
POLYSTYRENE AND CARD IS
RECYCLABLE .
Fig 01
holes in the arms. While holding the guard in place
introduce the two butterfly knobs (C) through the
guard assembly and into the supporting arms, lightly
tighten to lock the guard (B) in position, see figs
01-02-03
B
C
Initial Assembly
7
Fig 02-03
DON’T OVERTIGHTEN AS THE
GUARD IS ONLY PLASTIC!
NOTE: The guard can be adjusted by loosening
the two butterfly knobs (C) and sliding the guard
assembly (B) up or down to accommodate different
timber thicknesses.
It is strongly recommended that you mount the
machine to a workbench or to a purpose built scroll
saw stand. A pad between the saw and the
workbench/stand is also recommended to reduce
vibration. Ensure you use flat washers between
the bolt head and mounting holes, see figs 04-05-06.
NOTE: Fretsaw Stand Only. You may need to add
a larger sub-table (MDF or Plywood plate) to give
extra support to larger models.
Mounting the Scroll Saw
Fig 05-06
Fig 04
SCROLL SAW
Mounting Holes
C
B
Illustration and Parts Description
8
Table tilt butterfly clamp
Spare blade holder
Lower blade access door
Table tilt scale
Table scale pointer
Adjustable guard
Guard supporting arms
Variable speed control
ON/OFF buttons
Bearing bushes
Table
Motor brush port
Illustration and Parts Description
9
ON/OFF buttons (A)
Variable speed control (B)
Blade tensioning clamp lever Spare blade holder
Table tilt scale (A), Adjusting knob (B) and Butterfly clamp (C) Scale pointer
Air delivery tube
( Place near work piece)
Scroll saw guard Lower blade holder access door
A
B
A
B
C
Illustration and Parts Description
10
Air delivery tube
Dust extraction outlet
Motor brush port
Scroll saw chassis
Scroll saw mounting hole
Table tilt control knob
Table insert
Guard butterfly clamp
Carrying handle
Illustration and Parts Description
11
Scroll saw table tilted to 45˚
Table tilt control clamp
Table tilt control knob
Upper blade holder Lower blade holder Table insert
Lower rocker arm and motor assembly Dust extraction outlet
Setting Up the Saw
12
The scroll saw comes with the blade assembled but
not tensioned and the table tilted. Please follow the
instruction below to set up your scroll saw.
Fig 07-08-09
Tensioning the Blade
Lift up the blade tensioning clamp lever (A) and turn
it clockwise to tension the blade, see fig 07. Check
that the blade is sufficiently tensioned by pinging
the blade, see fig 08 then press down the tensioning
lever to lock the setting, see fig 09
NOTE: If the lever doesn’t lock down, release the
tension slightly by turning the lever anti-clockwise
then try again.
Clockwise
(Tension)
Anti-Clockwise
(Release Tension)
A
WARNING! DO NOT OVERTIGHTEN
THE BLADE OTHERWISE THE BLADE
WILL BREAK.
Checking the
blade tension
Press down lever
to lock the tension
Setting the Table
1)
Loosen the table tilt butterfly clamp (B) and rotate
the table by turning the control knob (C) until the
table is level, see fig 10-11.
2) Place an engineer’s square on the table and place
it up-against the blade and check that the blade is
perpendicular (90˚) to the table, making sure that the
square is not in contact with any of the teeth, see fig
12-13.
3) If adjustment is required, rotate the table until the
blade is perpendicular to the table, then re-tighten the
butterfly clamp (B), see fig 14.
4) Check that the scale pointer is pointing at 0˚degrees
on the scale. If not, loosen the Phillips screw and adjust
until correct, re-tighten the screw, see fig 15.
Fig 10-11
B
C
Setting Up the Saw/ Operating Instructions
13
NOTE: If you are new to scroll saws, there will be
a learning period, a period to learn the saw itself,
and a period to learn how the wood and saw work
together.
Expect some blade breakages, scroll saw blades
are fairly fragile, compared to blades found on a
bandsaw.
Fig 12-13
Fig 14-15
Engineer’s squareBlade
Scale
Pointer
Adjusting screw
B
WARNING! UNDER NO
CIRCUMSTANCES SHOULD
CHILDREN BE ALLOWED IN
WORK AREAS.
CHECK THAT EVERYTHING IS SECURE,
THAT THE BLADE IS TIGHT AND ALL
NON ESSENTIAL ITEMS HAVE BEEN
CLEARED AWAY FROM THE WORK
AREA. CONNECT A DUST EXTRACTION
UNIT TO THE DUST EXTRACTION
OUTLET ON THE SCROLL SAW.
SEE THE SYMBOLS ON PAGE TWO
FOR WEARING THE CORRECT SAFETY
PROTECTION WHEN USING THIS
MACHINE.
PLUG IN AND SWITCH ON
THE MAINS
1)
Before turning on the scroll saw make sure the
variable speed control is turned down low, see fig 16.
Fig 16
Continues Over...
Operating Instructions
14
2)
Place the work piece on the table and lower the
guard so its just above the work piece.
3)
Switch on the scroll saw by pressing the ‘GREEN
ON’ button, see fig 17.
4)
Increase the speed to 400rpm, supporting the
work piece with both hands slowly guide the work
piece forward into the blade, see fig 18.
NOTE: You must guide the wood into the blade
SLOWLY, because the teeth are very small, and it
cuts ONLY on the downward stroke. If you push
the wood into the blade too rapidly, you can easily
break the blade.
NOTE: If you find the blade is struggling to cut
through, increase the speed by turning the variable
speed knob.
Fig 17-18
5)
Once you have completed your cut, switch off the
scroll saw by pressing the red ‘OFF’ button.
6)
If you have finished using the scroll saw, clean
above and below the work table and using a damp
cloth wipe the scroll saw over.
7) If the scroll saw is not going to be used for a period
of time, smear a light coat of oil over the work table to
prevent the table from rusting and place a dust sheet
over the scroll saw.
Tilting the table to 45˚
1)
Loosen the table’s butterfly clamp and rotate the
table to + /- 45˚ degrees and re-tighten clamp, see
fig 19.
2)
Place the work piece on the table and set the
guard so it’s just above the work piece, see fig 20-21
Fig 19
Fig 20-21
Guard
Work piece
Operating Instructions
15
3)
Switch on the scroll saw by pressing the green
‘ON’ button, set the variable speed and carefully
guide the work piece into the blade, see fig 22.
Once you have completed your cut, switch off the
scroll saw by pressing the red ’OFF’ button.
Fig 22
The scroll saw’s unique ability is cutting intricate
curves which other saws cannot do. A scroll saw can
also be used for straight line cutting such as cross
cuts, ripping and bevels. The following is a list of
points to remember when using a scroll saw.
1)
The saw does not cut wood by itself. You feed the
work piece into the blade, letting the blade cut the
wood as you move the piece ahead.
2)
You must guide the wood into the blade SLOWLY,
because the teeth are very small, and cut ONLY on
the down stroke. If you push the wood into the blade
too rapidly, you can easily break the blade.
3)
Although the capacity of the saw accepts wood up
to 2” thick, better results are obtained with wood no
more than 1” thick. For wood thicker than 1”, you must
guide the wood into the blade very slowly, taking
care not to bend or twist the blade.
4) The teeth on the blade will wear out sooner or later.
The blade must therefore be replaced often to obtain
the best cutting results. A blade will stay sharp for half
an hour to 2 hours of continuous running, depending
on the material being cut.
5) Be aware that the blade has a tendency to follow
the grain of the wood. You can compensate for this by
watching the grain carefully and guiding the wood
past the saw blade.
6) If you are not familiar with scroll saws, there will
naturally be a learning period - a period to learn the
saw itself, and a period to learn how the wood and saw
work together. Expect some blade breakages, scroll saw
blades are fairly fragile not the same types of blade you
find on a handsaw or circular saw.
Cutting Intricate Patterns
Scroll Saw Operating Characteristics
One capability a scroll saw has that other saws do not,
is cutting intricate patterns inside a work piece. To do
this, you should adopt the following procedure.
1. Drill a 1/4” hole in the middle of the work piece, in a
area which will not be a part of the finished object.
2. Switch off and unplug the machine from the supply.
3. Remove the blade from the machine. (See pages
16-17).
4. Place the work piece on the table, with the 1/4” hole
over the access hole in the table.
5. Replace the blade, through the hole in the work
piece, (with the teeth pointing downwards), and
re-tension the blade.
6. Plug the saw back in.
Check to ensure that the work piece is not touching
the blade before switching ON.
Changing the Blade
16
WARNING! DISCONNECT THE
SCROLL SAW FROM THE MAINS
BEFORE CONTINUING.
1)
Lift up the blade tensioning clamp lever and rotate
until the tension on the blade has been released,
see fig 7 on page 12.
2)
Remove the table insert, see fig 23.
3)
Remove the blade guard (B) and place safely aside,
see fig 24.
4)
Beneath the table to the side of the machine there
is an access door, using a Phillips screwdriver loosen
the right hand screw and slide the door away to gain
access to the lower blade holder assembly, see fig
25-26.
5)
Using a 3mm Hex Key loosen the Hex screws on
the blade holders and remove the blade, see figs
27-28-29.
Fig 23-24
Fig 25-26
Fig 27-28-29
Table insert
3mm Hex key
Access door
Phillips screw
Upper blade holder
Lower blade holder
B
Standard Blades
Changing the Blade
17
6)
Clean both blade holders and remove any
compacted crud before fitting a new blade.
7)
Check sawblade for flaws (cracks, broken teeth,
bending) before installation.
WARNING! DO NOT USE FAULTY
SAWBLADES.
MAKE SURE THE TEETH ARE
POINTING IN THE CUTTING
DOWN DIRECTION!
8)
Lower the blade down through the table insert
hole and into the lower housing. Insert the blade
between the slot in the upper blade holder, see fig 30
and re-tighten the Hex screw to secure the blade in
position see fig 27. Repeat for the lower blade holder.
9)
Re-tension the blade by turning the tensioning
lever clockwise then press down the lever to lock
the tension.
10)
Close the access door below the table, replace the
table inset and re-attach the blade guard assembly
(B).
Fig 30
Blade holder slot
Blade
Hex screw
Pin Blades
The scroll saw will accept pin blades, to fit see
instruction below.
PLUG IN AND SWITCH ON
THE MAINS.
CLEAR AWAY ANY TOOLS
AROUND THE WORK AREA.
11)
Start the scroll saw and check everything running
correctly. If all OK, switch off the saw. If not repeat
steps 1-10.
WARNING! DISCONNECT THE
SCROLL SAW FROM THE MAINS
BEFORE CONTINUING.
1)
Repeat steps 1-5 on the previous page to remove
the standard blade and clean both blade holders.
2)
Check pinned sawblade for flaws (cracks, broken
teeth, bending) before installation.
3)
Make sure the teeth are pointing down lower the
pinned blade down through the table insert hole and
into the lower housing.
4)
Insert the blade between the slot in the lower
blade holder so that the pins on the end of the blade
engage into the cradles recess, see fig 31.
Fig 31
Continues Over...
Cradle recess
Blade pin
Blade holder
Hex screw
Changing the Blade
18
5)
Repeat the process for the upper blade holder, see
fig 32.
Fig 32
Fig 33
Cradle recess
Blade pins
Blade tensioning lever
6)
Make sure that the pins are seated correctly in
both cradles. Re-tension the blade by turning the
tensioning lever clockwise then press down the
lever to lock the tension, see fig 33.
7)
Close the access door below the table, replace the
table insert and re-attach the blade guard assembly
(B).
8)
Start the scroll saw and check everything running
correctly. If all OK, switch off the saw.
PLUG IN AND SWITCH ON
THE MAINS.
CLEAR AWAY ANY TOOLS
AROUND THE WORK AREA.
Notes on Saw Blades
BLADES BREAK FOR FIVE PRINCIPAL REASONS
1.
Too much tension or too little tension on the blade.
2.
Overworking the blade by feeding the work piece
too fast.
3.
Twisting or bending the blade by feeding the work
piece off-centre.
4.
Over use, the blade has reached the end of its
useful life.
5.
Maximum cutting depth 50mm and exceeding the
depth for which it was designed.
How to determine the right blade for the job
The scroll saw will accept a wide variety of blade
widths and thicknesses. The width of the blade, the
thickness of the blade and the number of teeth per
inch (TPI) are determined by the type of material and
size of the radius being cut.
As a general rule, select the narrowest blades
recommended for intricate curve cutting and
widest blades for straight and large curve operations.
See our full range of scroll saw blades and
accessories in our catalogue or contact us by
phone or visit our website.
Telephone:
03332 406406
Online:
axminster.co.uk
Blade storage
If you have several blades you can, easily store them
away safely by using the scroll saw’s spare blade
holder to the side of the machine, see fig 34.
Fig 34
BladeSpare blade holder
Maintenance
19
Checking & Replacing the Motor Brushes
After a period of time the scroll saw’s motor brushes
are due to wear and may need replacing, please
follow the instruction below for checking and
replacing the brushes.
1)
There are two motor brush ports one on either side
of the machine, using a small flat head screwdriver
remove one of the motor’s brush access plugs and
place safely aside, see fig 35-36.
NOTE: Be careful when removing the plug, the motor
brush is sprung loaded.
NOTE: Take careful note of the orientation of the
brushes when you remove them, remember that
they have bedded themselves to the profile of the
commutator in that position. If you fit them reversed
they may not be in exactly the same position, which
can cause excessive sparking and heat until they
have re-bedded themselves.
2)
Carefully remove the motor brush, see fig 37. Check
the brush for signs of wear If it’s O.K. re-fit. If the brush
is badly worn, replace with a new one.
3)
Repeat the process for the other motor brush.
WARNING! DISCONNECT THE
SCROLL SAW FROM THE MAINS
BEFORE CONTINUING.
Fig 35-36
Fig 37
The motor is permanently lubricated. Do not try to
oil the motor bearings or service any internal parts
of the motor. If the power cord is worn, frayed, cut or
damaged, contact Axminster Tools & Machinery. Do
not try to patch it up with electrical tape, this could
lead to more trouble.
Cleaning
1)
Remove the scroll saws side panel and base plate
and blow out the dust that may accumulate inside
the motor housing, see figs 38-39-40-41
Flat head screwdriver
Motor brush plug
Remove the plug
Remove the motor brush
General Maintenance
Continues Over...
Fig 38
Side panel
Screw
Screw
Maintenance
20
Fig 39-40-41
Base plate
Motor assembly
Rocker arm Lower blade holder
Dust extraction outlet
2)
An occasional light coat of oil on the table to
prevent surface rust is recommended.
3)
Occasionally wipe the machine over with a damp
cloth.
4)
If the scroll saw is not going to be used for a period
of time, smear a light coat of oil over the work table
and place a dust sheet over the saw.
Rocker Arm Bearing Bushes
After a period of use it is recommended to lightly oil
the upper and lower rocker arm bearings, see fig 42.
Fig 42
Bearing bushes
Parts Breakdown/List
21
Parts Breakdown/List
22
Part Description Qty
1 Variable Speed Control Knob 1
2 Switch 1
3 Cross Recessed Pan Head Screw M4x10 4
4 Switch Plate 1
5 Ferrite Ring 2
6 Variable Speed Control 1
7 Blade Guard Adjustment Knob 2
10 Blade 1
15 Hex Socket Set Screw 1
16 Arm Housing left 1
17 Oil Bushing 4
18 Arm Upper 1
19 Hinge bolt 2
20 Blade Tension Set 1
21 Blade Tension Knob 1
22 Sping-type straight pins-Slotted ø
3×16
1
23 Big Washer 8 1
24 Tension Pole 1
25 Sping-type straight pins-Slotted 4×25 1
26 Tensioning lever 1
27 Sping-type straight pins-Slotted ø
4×16
4
28 Blade Adapter clamp 2
29 Hex Socket Cap Head Screw M4x20 2
30 Spring 2
31 Blade Adapter 2
32 Hex Socket Cap Head Screw M5x30 2
33 Spring Washer 5 12
34 Link Board 1
35 Hex Nut M5 3
36 Arm Lower 1
37 Spacer 2
38 Bellows 1
39 Pan Head Tapping Screw ST4.2x13 2
40 Bellows Lock 1
41 Strain Relief 1
42 Cable 1
43 Pan Head Tapping Screw ST4.2x8 9
44 Cable clamp 5
45 Arm Housing right 1
47 Cross Recessed Pan Head Screw M5x40 5
48 Cross Recessed Pan Head Screw M4x8 1
49 Cross Recessed Pan Head Screw M5x50 1
50 Cross Recessed Pan Head Screw M5x30 1
51 Saw Dust Blower&LED 1
52 PCB Box Cover 1
53 PCB 1
54 Cross Recessed Pan Head Screw M5x8 12
55 PCB Box 1
56 Base 1
58 Hex Socket Cap Head Screw M6x12 4
59 Spring Washer 6 11
60 Hex Nut M6 2
61 Rivets 2
62 Plate Cover 1
63 Blade Storage 1
64 Throat Plate 1
65 Table 1
66 Hex Socket Cap Head Screw M6x30 2
67 Scale Support 1
68 Hold Set 1
69 Scale Indicator 1
70 Cross Recessed Pan Head Screw M5x10 4
71 Table Lock Knob 1
72 Disc cover 1
73 Knob 1
74 Revolve Gear 1
75 Threaded Shaft 1
76 Hex Socket Cap Head Screw M5x20 1
77 Bearing Retainer 2
Parts Breakdown/List
23
78 Radial Spherical Plain Bearing 1
79 Bearing 625ZZ 1
80 Link 1
81 Big Spacer 1
82 Eccentric 1
83 Hex Socket Set Screw M8x8 1
84 Base Foot 4
85 Moter 1
86 soleplate 1
87 Back Plate Cover 1
88 Tooth Washer 4 4
89 Hex Bolt M6x20 4
90 small Cover 1
91 Cross Recessed Pan Head Screw M4x10 2
92 Blade Guard Support 1
93 Blade Guard 1
94 Dust Port 1
95 Hex Socket Cap Wrench S4 1
96 Washer ø 6 3
97 Hex Nut M10 1
98 Washer ø 10 1
99 spring 1
100 Hex Socket Cap Wrench S3 1
101 Washer ø 5 2
102 Cross Recessed Pan Head Screw M5x6 6
104 Hex Nut M6 2
Wiring Diagram
Axminster Tools & Machinery Ltd
Weycroft Avenue, Axminster, Devon EX13 5PH
axminster.co.uk
Please dispose of packaging for the product in a responsible manner. It is suitable for recycling.
Help to protect the environment, take the packaging to the local recycling centre and place into
the appropriate recycling bin.
Do not dispose of electric tools together with household waste material. In observance of
European Directive 2002/96/EC on waste electrical and electronic equipment and its
implementation in accordance with national law, electric tools that have reached the end of their
life must be collected separately and returned to an environmentally compatible recycling facility.
Only for EU countries
The Axminster guarantee is available on
Hobby, Trade, Industrial, Engineer, Air Tool & CNC Technology Series machines
It’s probably the most comprehensive FREE guarantee ever- buy with confidence from Axminster!
So sure are we of the quality, we cover all parts and labour free of charge for three years!
• Look for the icon and put your trust in Axminster
• No registration necessary - just keep your proof of purchase
• Optional Service Plan for Industrial Series machinery
Great value & easy-to-use,
perfect for use at home
Solid, reliable machines
designed for daily use
Top performers with class leading features and
build quality for use in busy workshops
Quality, precision machines
for the workshop or education
Precision CNC machines for
industry and education
Small machines for the home
engineer
Compressors and tools for home or
workshop use; durable and great value
Free Three Year Guarantee on Axminster Hobby, Trade and Industrial Series
woodworking and engineering machines, Axminster Air compressors and Air
Tools, and bench top grinders - no registration necessary just proof of purchase.
We will repair or replace at our discretion and will collect only from a UK
mainland address, irrespective of the original delivery address.
The Guarantee assumes that you have bought the correct machine for the
required operation, in accordance with our guidelines; have operated and
maintained it in accordance with the instruction manual; and that all cutting
machines will be used with a blade which is sharp and serviceable at all times.
It does not cover consumable items purchased with the original product,
including original blades or abrasives.
Normal wear and tear; misuse, abuse and neglect are excluded and the machine
should not have been modified in any way. Please do not attempt to service the
product without first contacting us; we are happy to guide you but failure to do
so may invalidate the guarantee.
The Guarantee is transferable from owner to owner in the first three years but
you must have original proof of purchase. Should we need to replace a machine
in the first three years the guarantee will still continue to be effective from the
original purchase date.
Full Terms and Conditions can be found at axminster.co.uk/terms
This guarantee does not affect your statutory rights.
For more information visit axminster.co.uk/3years
Loading...
