RBG150D 6” & RBG200 8”
Bench Grinders
Code 508345
Code 508346
AT&M: 08/01/2015
Code 508346

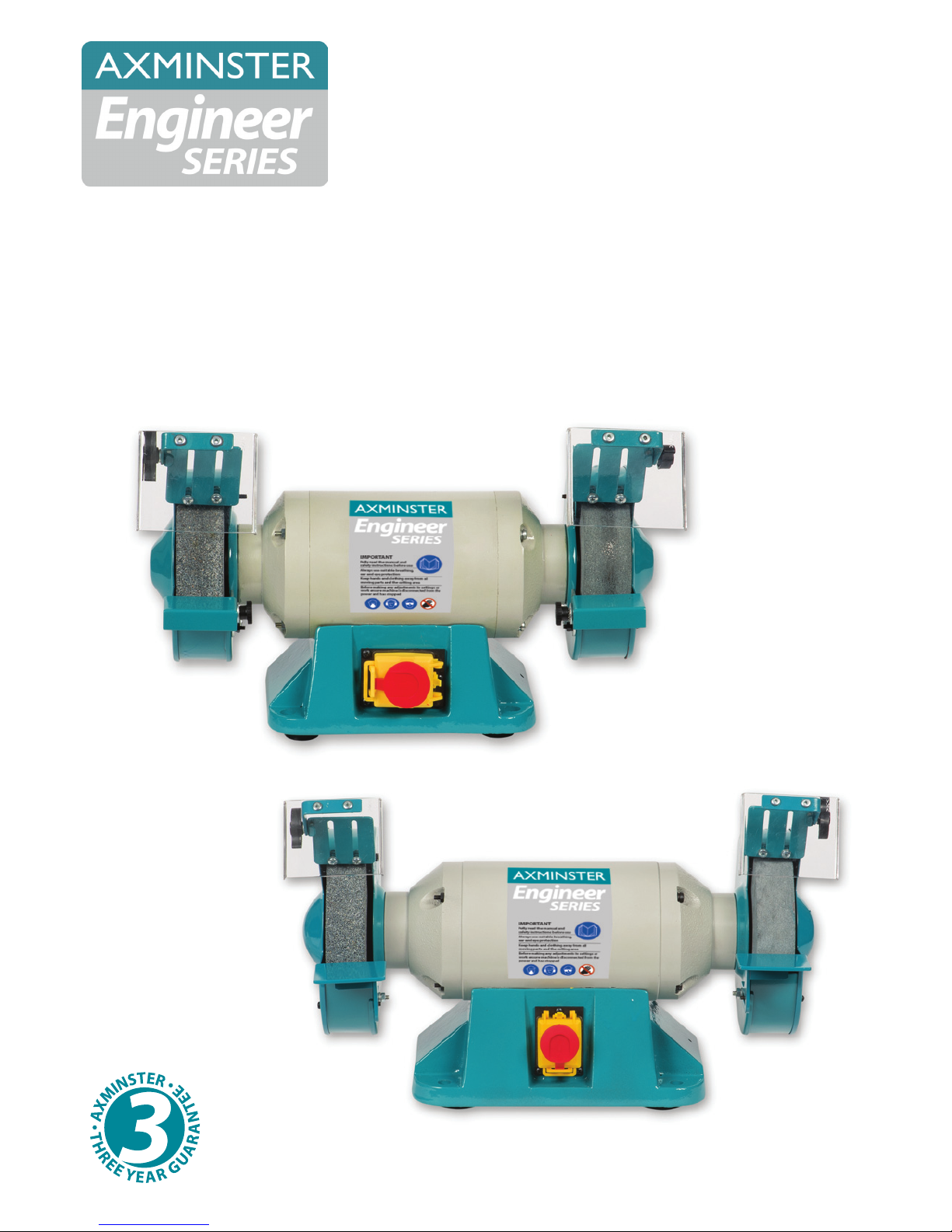

RBG200
Code 508345
RBG150
Page 2
General Instruction
You are welcomed for purchasing the industrial bench grinder. The quality of this machine has
achieved European Standard. What’s more, to meet users’ requirement, this machine has a large
number of accessories. In order to achieve better effect , we only recommend you to use the
accessories of our machine.
Technical Specification:
Specifications
RBG150ID
RBG200ID
RBG250ID
Rated voltage
V
230
230
230
Rated frequency
Hz
50
50
50
Rated input power
W
350
450
600
Rated running speed
min
-1
2850
2850
2850
Wheel Size
mm
d1×b×d2
150×40×32
200×40×32
250×40×32
Granularity（L/R）
36/60
36/60
36/60
Weight kg
18
27.5
35.5
Noise Level
dB（A）
70
70
70
The following symbols will be used in the
instruction manual
If ignore the using instructions in the
manual, the users will be possibly
injured or the instrument will be
damaged.
Page 3
It has the danger of getting an electric
shock.
Safety Instruction
When using power tools, please observe
the safety instructions for national power tool
to reduce fire disaster, electric shock and
serious personal injury. Please read this manual
carefully before using this kind of machine.
General Instruction
1. Keep work area clean
Massy work area and table may cause
accident.
2. Keep work environment well
Don’t use this tool in damp location
or below 0℃, and keep the illume well.
Don’t use the tools in the presence
of flammable liquids or gases.
3. Dress properly
Don’t wear loose clothes and
decorations, which may get caught in
moving parts. Wear protective hair
covering to contain long hair.
4. Wear safety glasses
Safety glasses or dust mask are
necessary to prevent the dust and
splashing grain flying into eyes in
the manufacturing process.
5. Keep children away
Don’t let others especially the
children under 16 years old make
contact with the tool.
6. Use the tool correctly
Don’t force the miniature tool or
accessories to do the job which should
be done under the heavy tool.
7. Keep the tools carefully
Please keep the tools clean and in
safe operation.
8. Repair or replace the accessories
according to eh manual
Checking the main parts frequently. A
part that is damaged should be repaired
by an authorized person.
Electricity Safety
Before connect the tool to the electric
power, check whether the voltage of the
local electrical source is in accordance with that
marked in the label.
Tool instruction
This bench grinder is specially
designed for burnishing or polishing
metal knives and other metal materials,
This machine can do professional
burnishing. After 30 minutes’load
working, it can continue unload working
spasmodically or turn off for cooling.

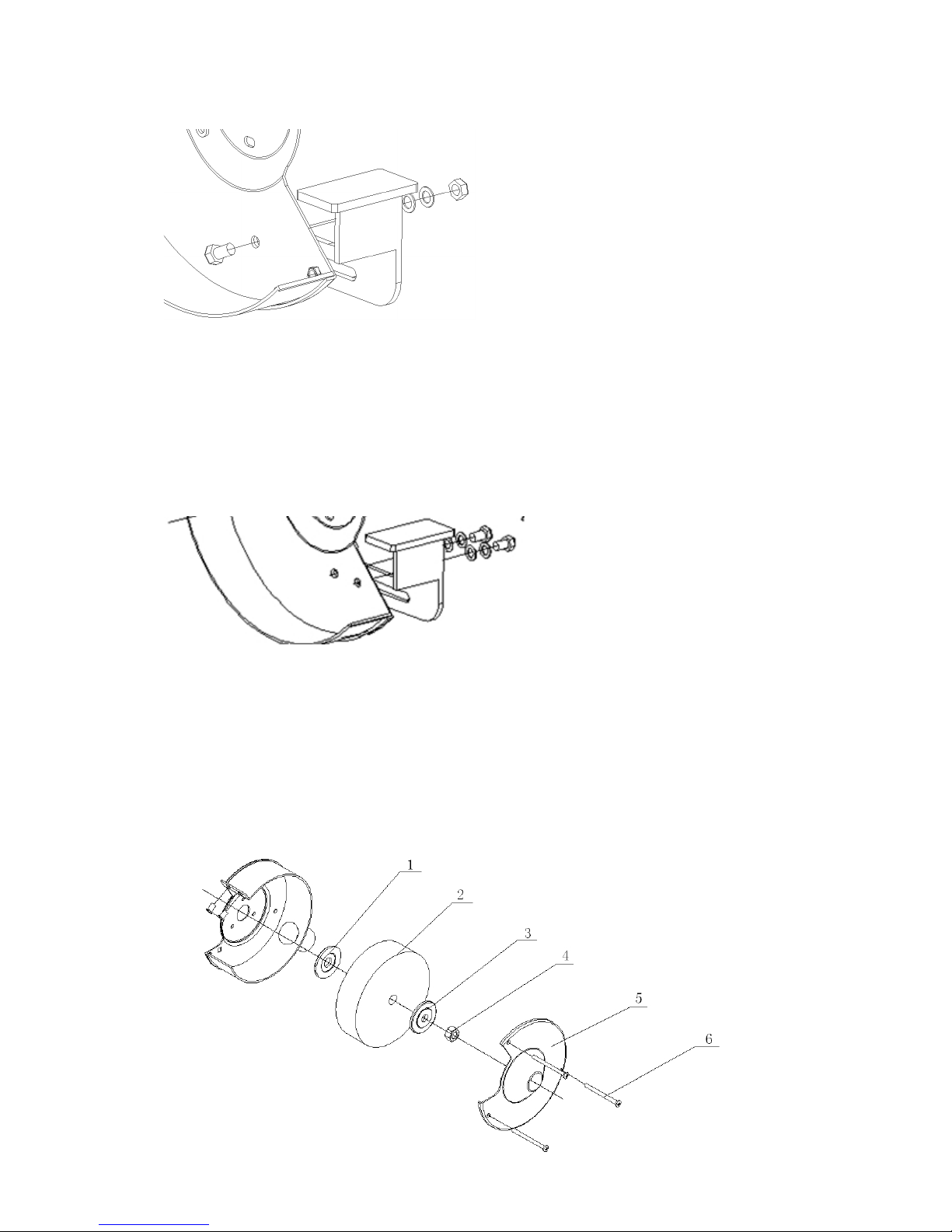

instructions for picture(D,E)
1. inner flange
2. grinding wheel
3. outer flange
4. nut
5. outer guard of the grinding wheel
Page 4
6. screw
7. long bolt
8. base
9. big washer
10. spring washer
11. nut
Fitting and adjusting
In order to achieve better effect, we only
recommend the accessories of our machine.
when using bench grinder or
replacing parts, you should observe
the following instructions
Generally speaking:
Only use the parts or accessories in
proper size
Turn off the switch and cut off the
electric power before replace the
parts or begin other operation.
Fitting the bench grinder(picture E)
·Put the bench grinder on the flat table.
·Fix the bench grinder to the table or
proper table frame with bolts.
To achieve the requirements, you can
fix with 4 proper long bolts. When using
short bolts, you must take the rubber mat
away from the fitting hole.
Fitting parts( picture A,B,C,F)
Before using, you need to fix eye
shield brackets, fit and adjust the
adjustable tool rest, and fit the eye
shield bracket to keep the maximum
distance between parts.( picture A,B,C)
·the distance between the bracket and
wheels is 2mm
·the distance between the tool rest and
wheels is 2mm
If the bench grinder you bought has two
different adjustable tool rests, the
wider one should be fitted on the side of
the wider grinding wheel.
·Adjust the eye shield brackets to ensure
they can supply the maximum protection.
·The grinding wheels should be changed
if they are damaged 20% during polishing.
·When using the bench grinder for the
first time, you should let it work 5
minutes under non-load condition.
Grinding wheel
When the distance between grinding
wheel and eye shield brackets reaches 5mm,
grinding wheel should be changed.
“sound test” should be taken when
using new grinding wheel. Knocking the
grinding wheel lightly can produce
ringing sound.
If you hear depressing sound,
the grinding wheels can’t be
used.

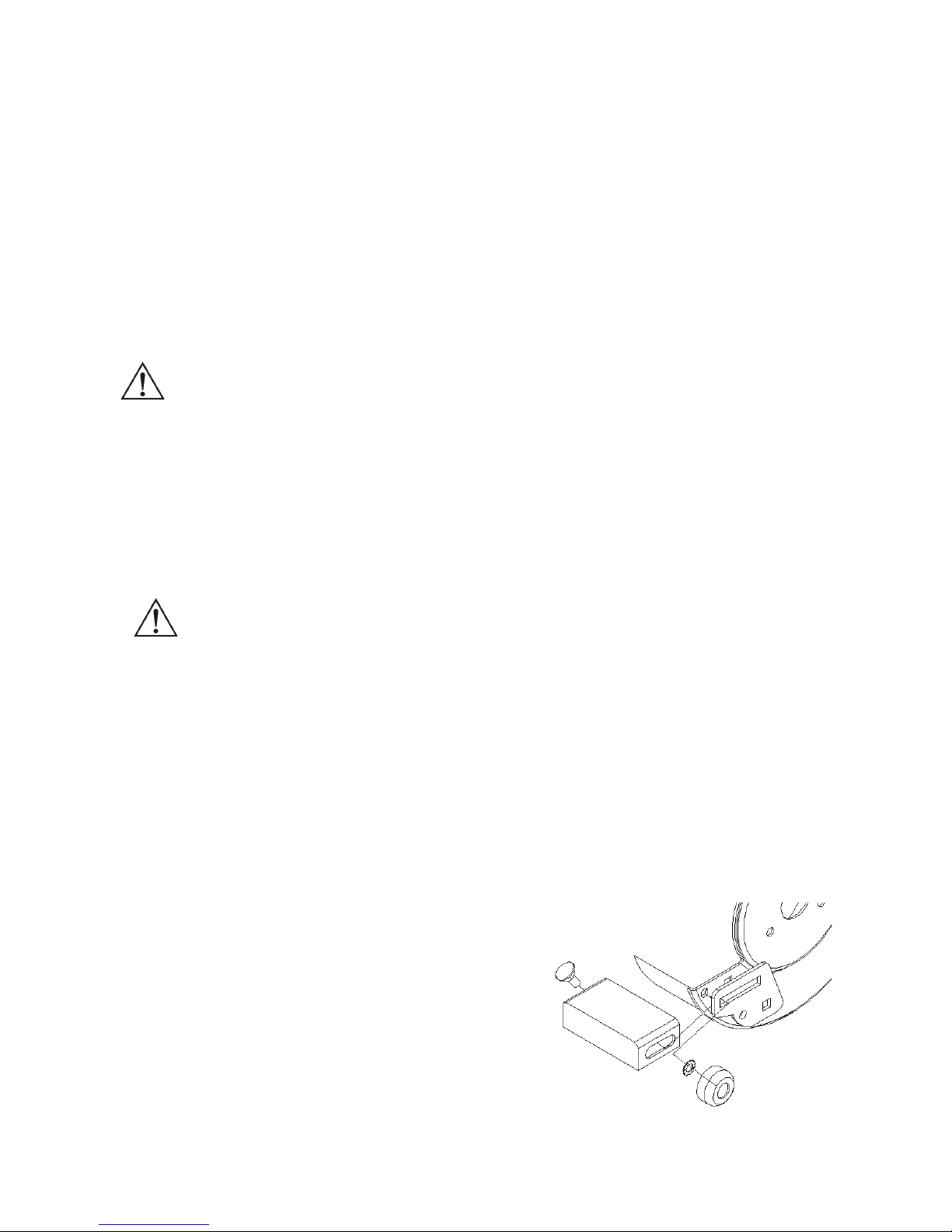

Replace the grinding wheel(picture D)
·Take off the bolt(6) with turret spanner
and remove the outer guard(5).
·Loosen nut ( 4) with 18mm spanner, and
remove outer flange(3)and grinding
wheel(2) in turn.
·Make sure that inner flange(1) is on
the axes.
·Take off the old grinding wheel, and fit
the new grinding wheel on the axes(make
sure that the new grinding wheel is
Page 5
consistent with that matched the
machine).
·Fit outer flange（3）and nut (4).
·Screw down nut(7) with 18mm spanner.
·Fix the outer guard(5) of the grinding
wheel properly with bolt (6).
· According to the above, adjust eye
shield bracket, adjustable tool test
and eye shield.
When replace the flange (1) and
法兰(1(3),the diameter of the flange
used should be at least 1/3 diameter of
the grinding wheel, and their apertures
are consistent. The swing measured from
the grinding wheel circumference is
normal. The axial wobble and the radial
wobble within 0.5mm are normal swing.
Usage
· Check that all the parts are well
fitted or adjusted.
·Start the bench grinder.
·Let the bench grinder work at
rated speed so that it can polish
well.
According to different results of polishing, you
should choose different grinding wheels.
· If necessary, you should polish working
pieces with rough grinding wheels firstly,
and then with fine grinding wheels.
·Before polishing, check the working piece
usually to make sure that there’s no oil,
grease and painting feculence to avoid being
blocked up or becoming dirty
·Avoid the bench grinder over-heated.
·The working piece can only bear slight press.
·If blocked up, you can repair it with D-Mart
handle repairing machine.
Maintenance and Cleaning
Using the grinder under low load requires no
maintenance.
Clean the bench grinder regularly..
Remove dust and dirt produced by polishing
with a soft brush.
Environment Protection
Putting away waste grinding wheel should
according to the requirements of environment
protection.
Picture A (RBG150ID)
Page 6
Picture B (RBG200ID)
Picture C(RBG250ID)
Page 7
Axminster Tools & Machinery Ltd
Weycroft Avenue, Axminster, Devon EX13 5PH
axminster.co.uk
Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to
protect the environment, take the packaging to the local recycling centre and place into the appropriate
recycling bin.
Do not dispose of electric tools together with household waste material. In observance of European
Directive 2002/96/EC on waste electrical and electronic equipment and itsimplementation in accordance
with national law, electric tools that have reached the end of their life must be collected separately and
returned to an environmentally compatible recycling facility.
Only for EU countries
Free Three Year Guarantee on Axminster Hobby, Trade and Industrial Series woodworking and
engineering machines, Axminster Air compressors and Air Tools, and bench top grinders - no
registration necessary just proof of purchase.
We will repair or replace at our discretion and will collect only from a UK mainland address,
irrespective of the original delivery address.
The Guarantee assumes that you have bought the correct machine for the required operation, in
accordance with our guidelines; have operated and maintained it in accordance with the instruction
manual; and that all cutting machines will be used with a blade which is sharp and serviceable at all
times. It does not cover consumable items purchased with the original product, including original
blades or abrasives.
The Axminster guarantee is available on
Hobby, Trade, Industrial, Engineer, Air Tools & CNC Technology Series machines
It’s probably the most comprehensive FREE guarantee ever- buy with confidence from Axminster!
So sure are we of the quality, we cover all parts and labour free of charge for three years!
• Look for the icon and put your trust in Axminster
• No registration necessary - just keep your proof of purchase
• Optional Service Plan for Industrial Series machinery
AXMINSTER
SERIES
Hobby
Great value & easy-to-use,
perfect for use at home
Quality, precision machines
for the workshop or education
Precision CNC machines for
industry and education
Solid, reliable machines
designed for daily use
Small machines for the home
engineer
Top performers with class leading features and
build quality for use in busy workshops
Compressors and tools for home or
workshop use; durable and great value
Normal wear and tear; misuse, abuse and neglect are excluded and the machine should not have been
modified in any way. Please do not attempt to service the product without first contacting us; we are
happy to guide you but failure to do so may invalidate the guarantee.
The Guarantee is transferable from owner to owner in the first three years but you must have original
proof of purchase. Should we need to replace a machine in the first three years the guarantee will still
continue to be effective from the original purchase date.
Full Terms and Conditions can be found at axminster.co.uk/terms
This guarantee does not affect your statutory rights.
For more information visit axminster.co.uk/3years
