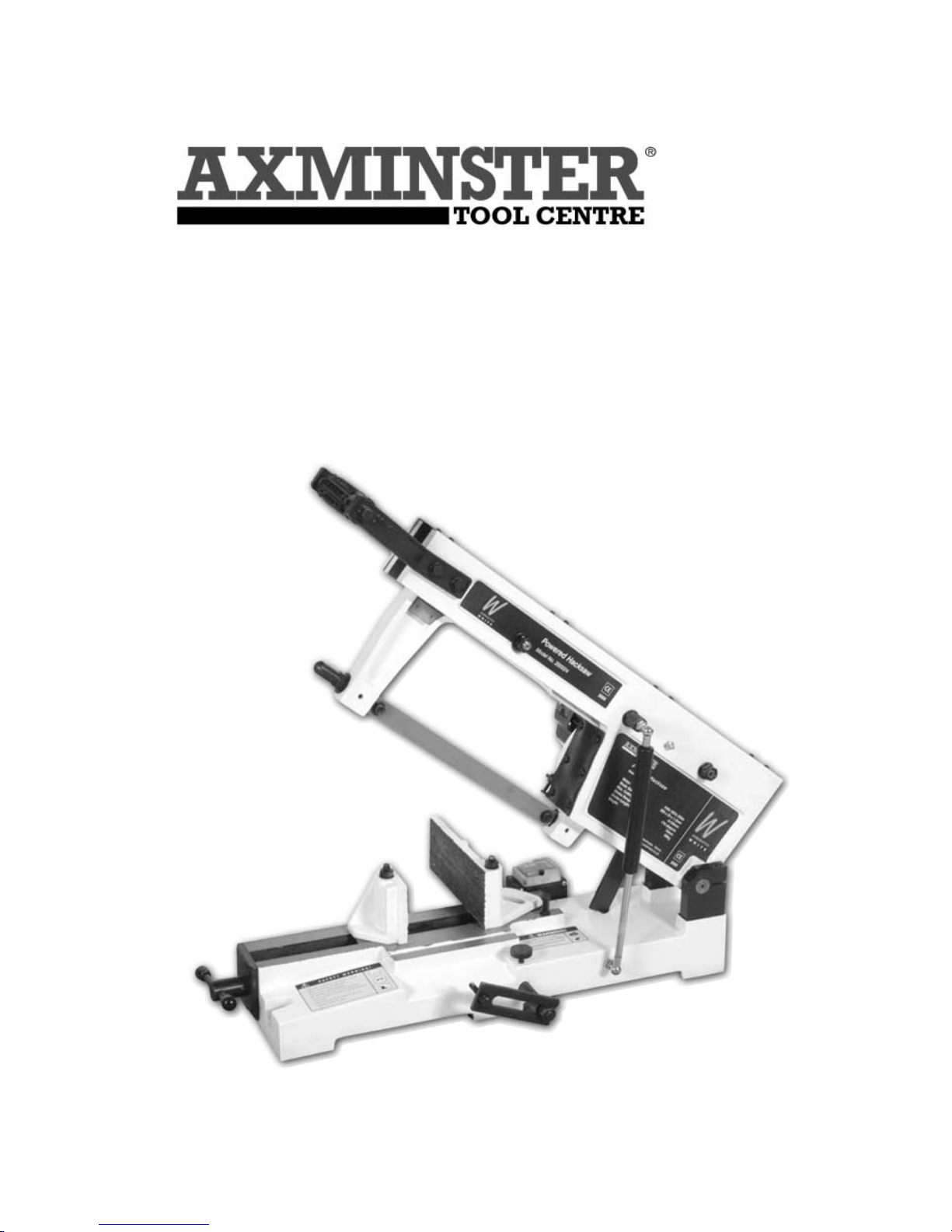

SIEG Powered
Hacksaw
Axminster Tool Centre,
Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH
www.axminster.co.uk
Index of Contents...
Page No.
Index of Contents...................................................................................................................02
Declaration of Conformity
………….………........……..………….......................................03
What’s in the Box………….………........……..………….........................................................04
General Instructions for 230v Machines...........................................................05-06
Specific Safety for the Powered Hacksaws...........................................................06
Initial Assembly Instructions...................................................................................07
Specifications
….………........……..………….......................................................................08
Illustration and Parts Description..........................
................................................. 09-10
Operation of the Powered Hacksaw...................................................................... 11
Routine Maintenance............................................................................................. 12
Parts Breakdown for the Powered Hacksaw..........................................................13
Parts List for the Powered Hacksaw.................................................................14-15
Warning
The symbols below advise that you follow the correct
safety procedures when using this machine.
Dust mask
should be worn
Ear protection
should be worn
Eye protection
should be worn
Fully read manual
and safety instructions
before use
HAZARD
Motor gets hot
03
Declaration of Conformity...
The undersigned, Ole Stilling authorised
by Shanghai SIEG Machinery Co., Ltd
No. 555 Caofeng Rd, South to No.17 Bridge of
Caoan Rd, Shanghai, P.R China
declares that this product:
Bench Cutter
G1
manufactured by Shanghai SIEG Machinery Co.
is in compliance with the following standards or
standardisation documents in accordance
with Council Directives
73/23/EEC 93/68/EEC 98/37/EC
Copied from CE Certificate
04

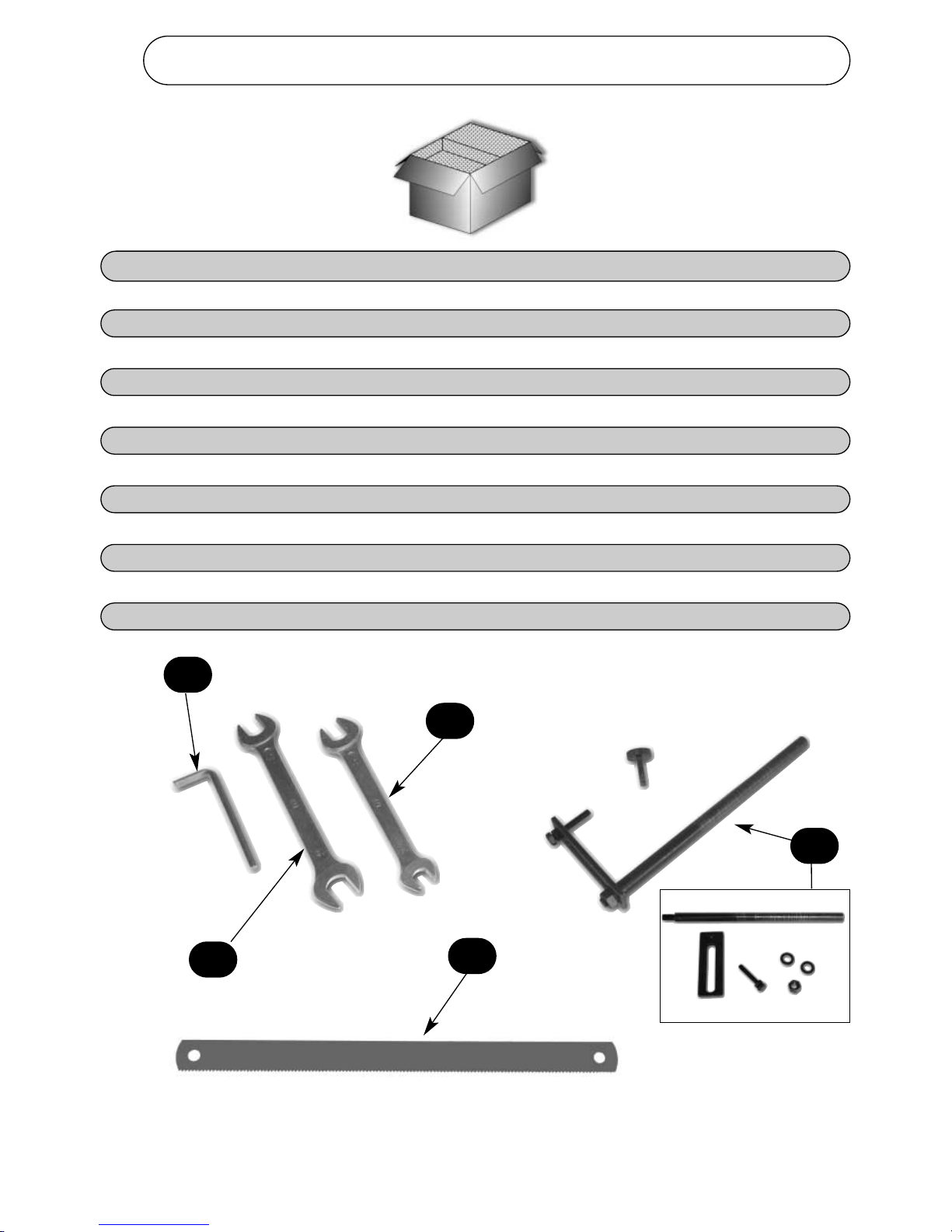

What’s in the Box...
Model Number: G1
1 No. Powered Hacksaw
1 No. Material Length Stop Kit
1 No. Saw Blade
Tool set Comprising of:
1 No. 14-17mm Open Ended Spanner
1 No. 17-19mm Open Ended Spanner
1 No. 6mm Allen Key
1 No. Guarantee Card
1 No. Instruction Manual
A
B
C
D
E
A
B
C
D
E
05
General Instructions for 230v Machines...
The following suggestions will enable you to observe good working
practices, keep yourself and fellow workers safe and maintain your
tools and equipment in good working order.
Good Working Practices/Safety
Mains Powered Tools and Machines
Work Place/Environment
WARNING!!
!
KEEP TOOLS AND EQUIPMENT OUT
OF THE REACH OF YOUNG CHILDREN
Primary Precautions
These machines are supplied with a moulded 13 amp. Plug and 3 core power cable. Before
using the machine inspect the cable and the plug to make sure that neither are damaged. If
any damage is visible have the damaged item inspected/repaired by a suitably qualified
person. If it is necessary to replace the plug, it is preferable to use an 'unbreakable' type
that will most resist damage. Only use a 13 amp plug, and make sure the cable clamp is
tightened securely. Fuse as required. If extension leads are to be used, carry out the same
safety checks on them, and ensure that they are correctly rated to safely supply the current
that is required for your machine. Remember, most machines or tools have handles or
holding positions, the power cable is not one of them!
The machine is not designed for use outside. Keep the machine clean; it will enable you to
more easily see any damage that may have occurred. Clean the machine with a damp
soapy cloth if needs be, do not use any solvents or cleaners, as these may cause damage
to any plastic parts or to the electrical components.
Keep the work area as uncluttered as is practical, this includes personnel as well as
material.
Under no circumstances should CHILDREN be allowed in work areas.
It is good practice to leave the machine unplugged until work is about to commence, also
make sure to unplug the machine when it is not in use, or unattended. To avoid inadvertent
'start up'; if your machine is not fitted with a NVR system, ensure the switch is always
returned to the OFF position. Once you are ready to commence work, remove any tools,
objects or items that could inadvertently get 'sucked up' by the machine (if any) and place
safely out of the way.
Re-connect the machine, ensuring the power cable is not 'snagged' or routed where it could
be tripped over as you move about the workshop, it is not too close to an unguarded heat
source or is laid over or around a sharp edge.
If the work you are carrying out is liable to generate flying grit, dust or chips, wear the
appropriate safety clothing, goggles, gloves, masks etc. If the work operation appears to be
excessively noisy, wear ear-defenders. If you wear your hair in a long style, wearing a cap,
safety helmet, hairnet, even a sweatband, will minimise the possibility of your hair being
caught up in the rotating parts of the machine, likewise, consideration should be given to
the removal of rings and wristwatches if these are liable to be a 'snag' hazard. Consideration
should also be given to non-slip footwear, etc.
06
General Instructions for 230v Machines...
Do not work with cutting or boring tools of any description if you are
tired, your attention is wandering or you are being subjected to
distraction. A deep cut, a lost fingertip or worse, is not worth it!
Do not use this machine within the designated safety areas of
flammable liquid stores or in areas where there may be volatile gases. There are
very expensive, very specialised machines for working in these
areas, THIS IS NOT ONE OF THEM.
Above all, OBSERVE…. make sure you know what is happening around you, and USE
YOUR COMMON SENSE.
IT IS RECOMMENDED THAT YOU WEAR EAR PROTECTION IF YOU ARE
USING THIS MACHINE.
Specific Safety for the Powered Hacksaws...
1. Make sure that the blade is sharp, undamaged and of the correct type for the material
being processed.
2. Make sure that the material is clamped firmly in the vice jaws, any movement will result in
a blade fracturing, possibly producing shards of blade material.
3. Make sure that the blade is correctly tensioned, a loose blade will have a shortened life
and may break.
4. Make sure that long lengths of stock are adequately supported, the machine vice jaws
are not designed for this purpose.
5. Check for damaged parts, any part that is damaged must be assessed to ensure that it
can carry out its function properly. If it cannot, it must be replaced before the machine is
used.
6. Never leave the machine running unattended. When you have finished your cutting
operations, turn the power supply off. Do not leave the machine until it has come to a
complete stop.
7. Be aware that the blade will become very hot during cutting, if you need to change the
blade during a cutting operation, allow the blade to cool before changing it.
07
Initial Assembly Instructions...
Please refer to the Assembly Drawing if you experience difficulties, this will enable
you to more readily identify those parts of the machine to which we will be referring.
Having unpacked your Powered Hacksaw machine and all its components, please check
against the 'What's in the box' list above. If any parts are missing please contact your
supplier or our Customer Services personnel straight away using the numbers listed in the
Axminster catalogue. Having unpacked the machine and checked it over, please store the
packaging for a short period in case the machine needs to be returned to your supplier or
ourselves for any reason.
The machine comes assembled inside its packaging.
WARNING
!
WE STRONGLY ADVISE YOU GET THE ASSISTANCE OF ANOTHER
PERSON BECAUSE OF THE WEIGHT OF THE MACHINE.
Take out the machine from the package carefully. You will need the assistance of another
person for this task because of the weight of the machine (68kg).

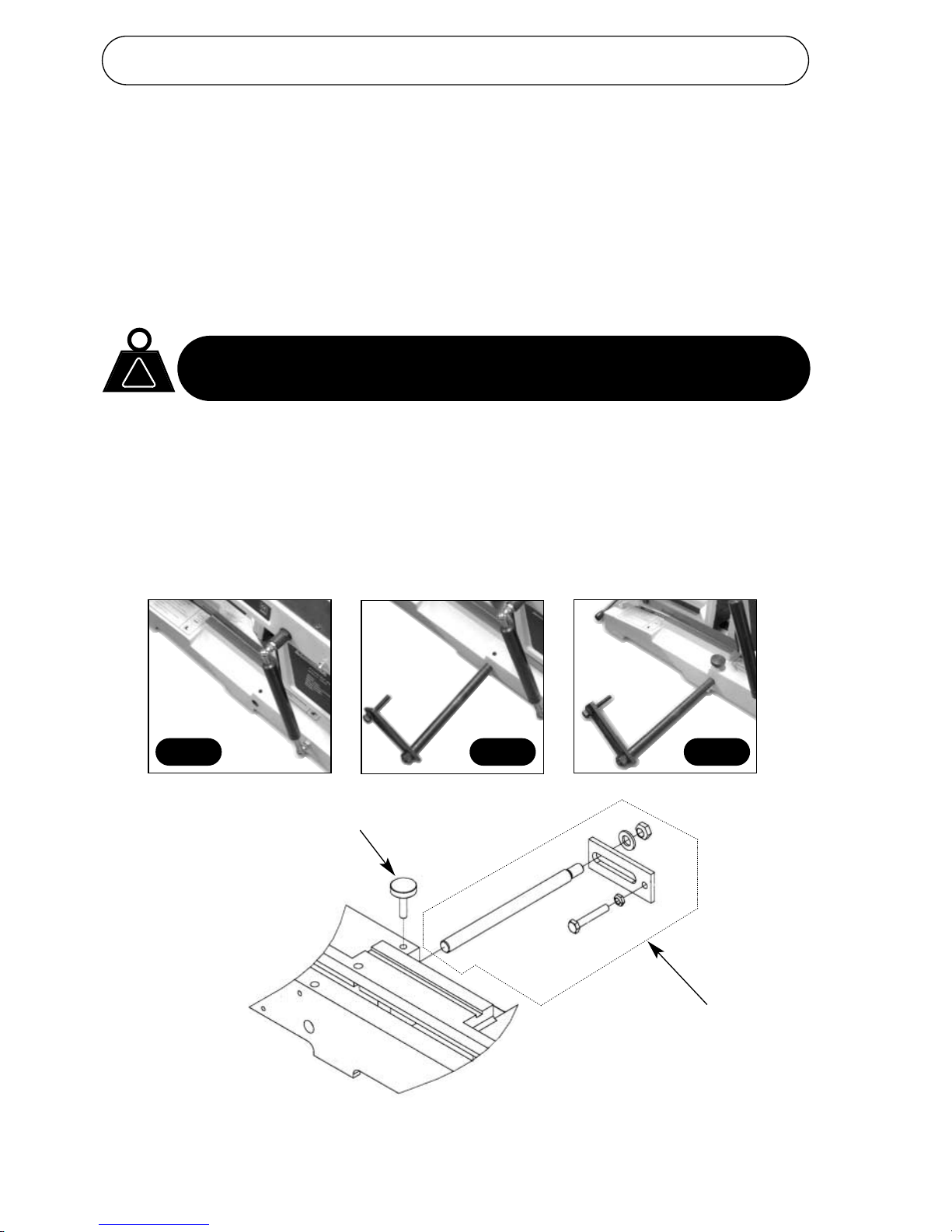

Material Length Stop Assembly
You will need to assemble the material length stop, refer to the diagrams below and use the
tools provided.
Length stop assembly
Screw pin
Step 1 Step 2 Step 3
08
Specifications...
Axminster No. 200024
Motor power 250W
Overall Size Depth 380 x Width 820 x Height 755mm
Maximum cutting capacity 130mm diameter
Cutting stroke speed 170 strokes/min
Blade stroke length 70mm
Blade size 300 X 25 X 1.2mm
Weight 68 kg

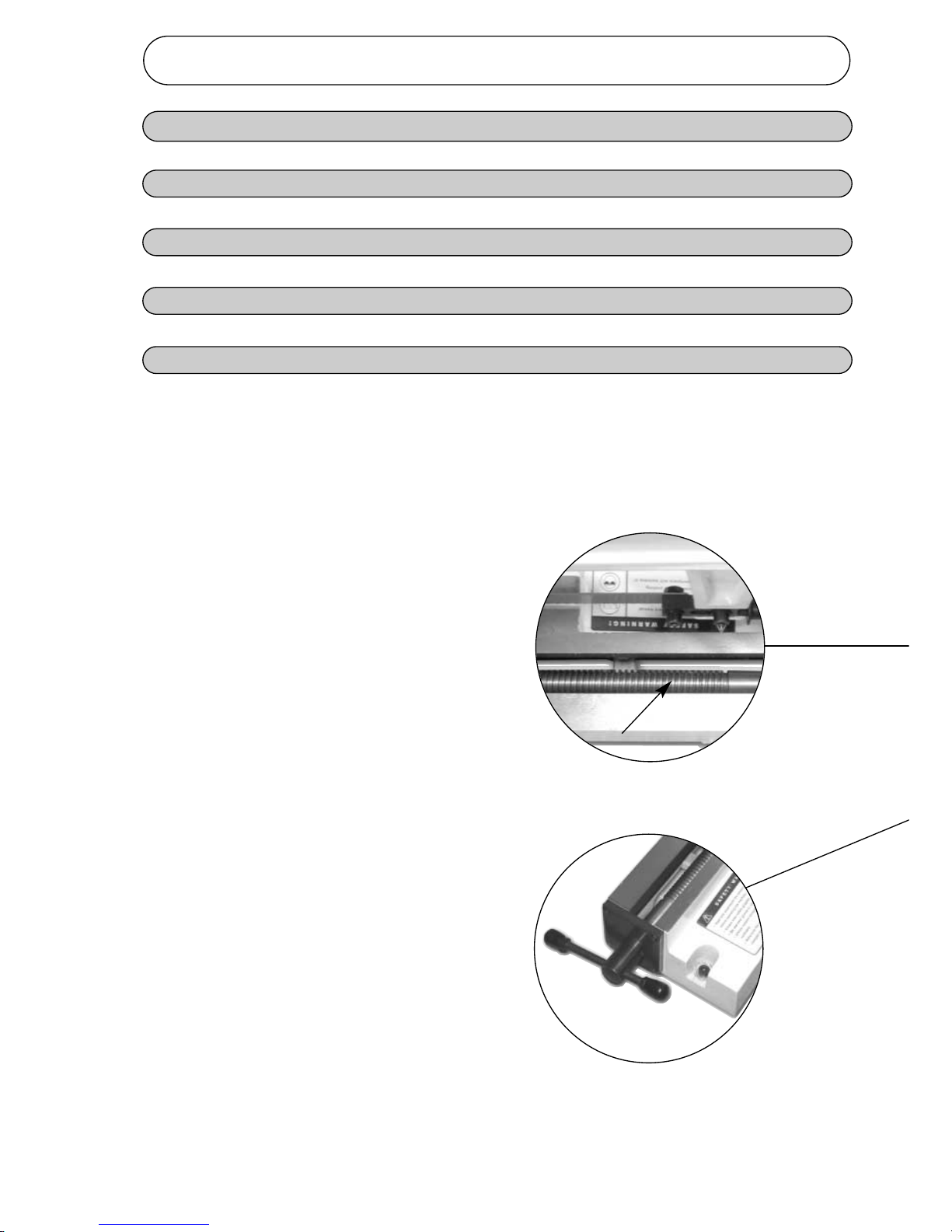

Clamp vice handle
Vice shaft

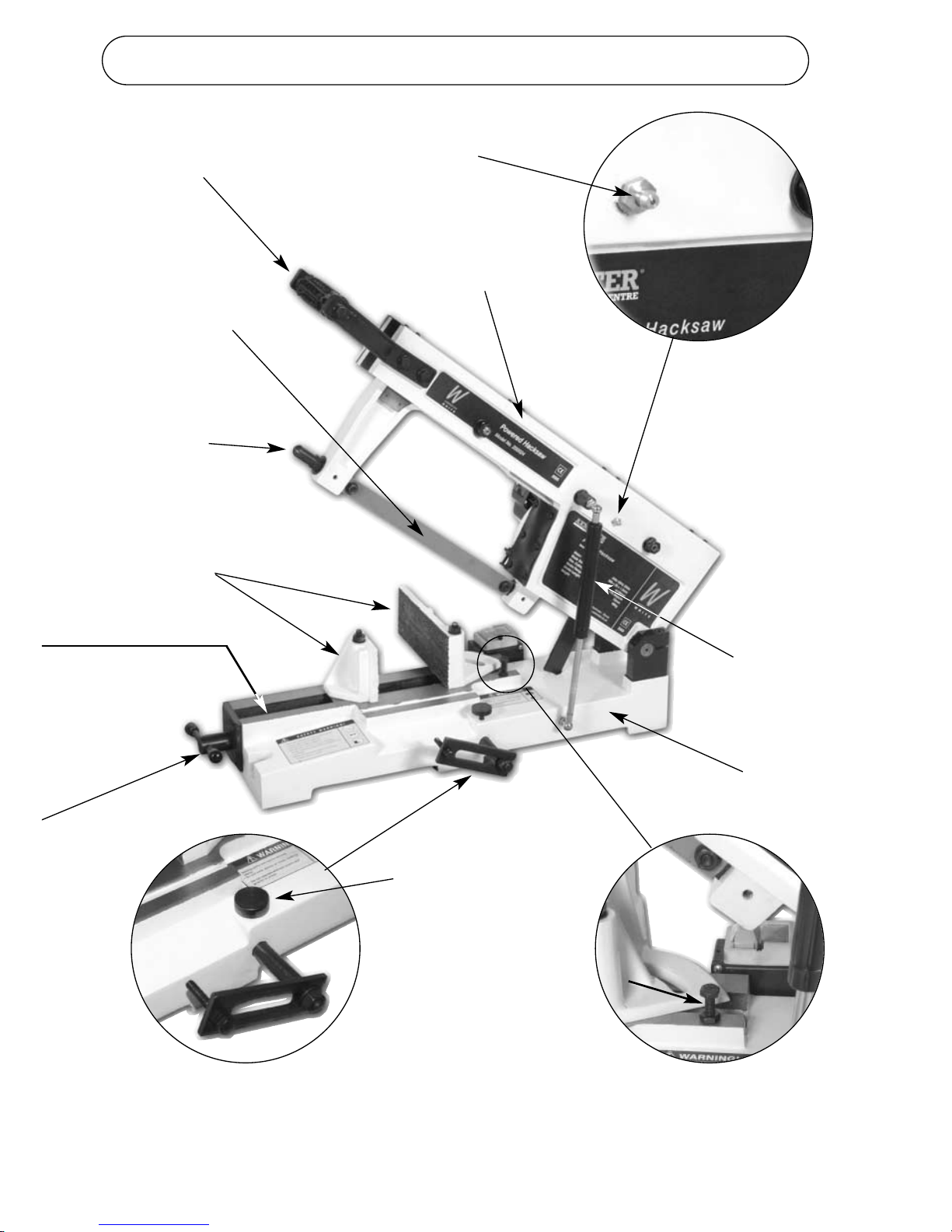

Illustration and Parts Description...
Material length stop assembly Depth stop
Adjustable
vice
Handle
Saw blade
Gas strut
Arm
Chassis
Grease nipple
Saw clamp
screw
Screw pin
09
10

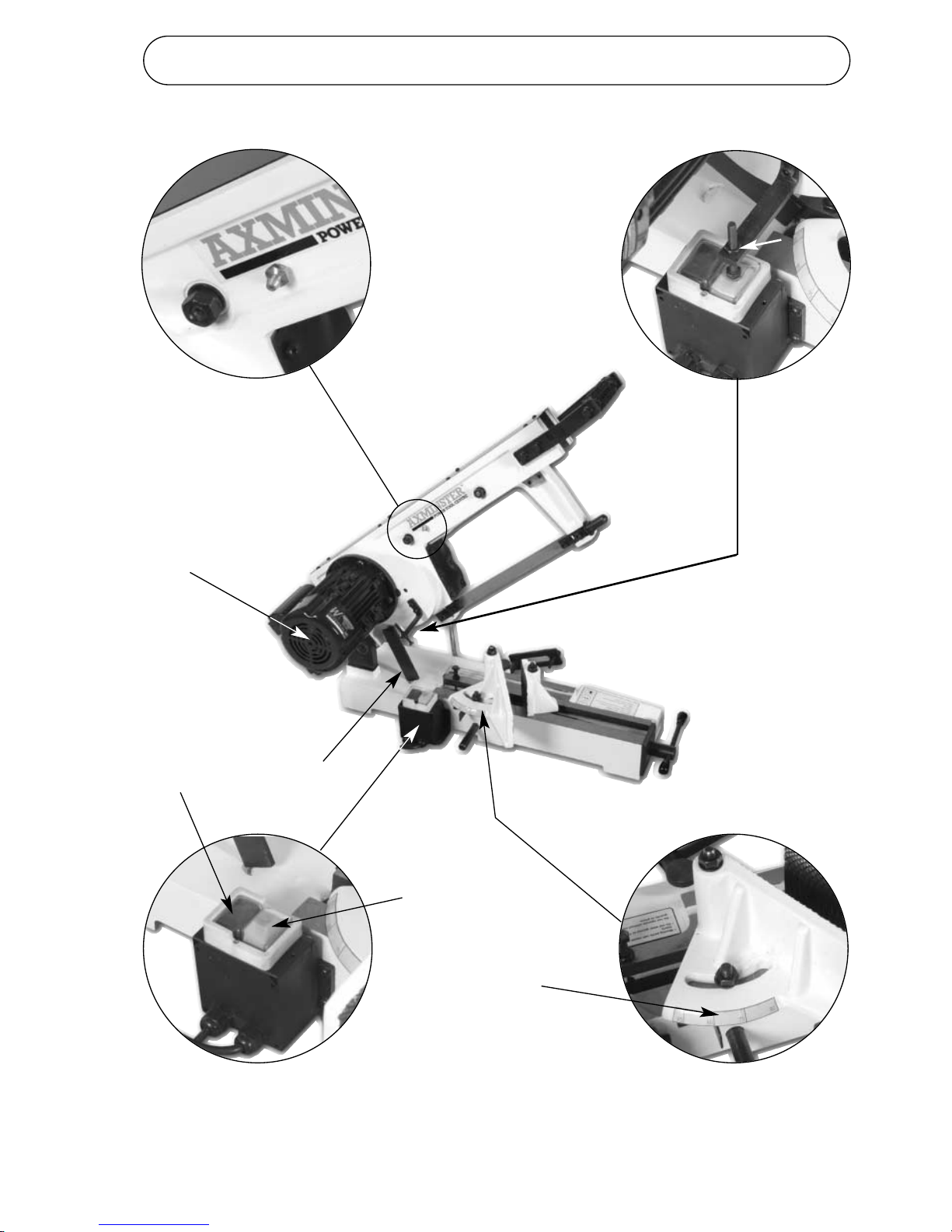

Illustration and Parts Description...
NVR On/Off switch
Stop actuator
0-45˚ Vice clamp
Grease nipple
Off
On
Scale
Motor
Latching arm
11

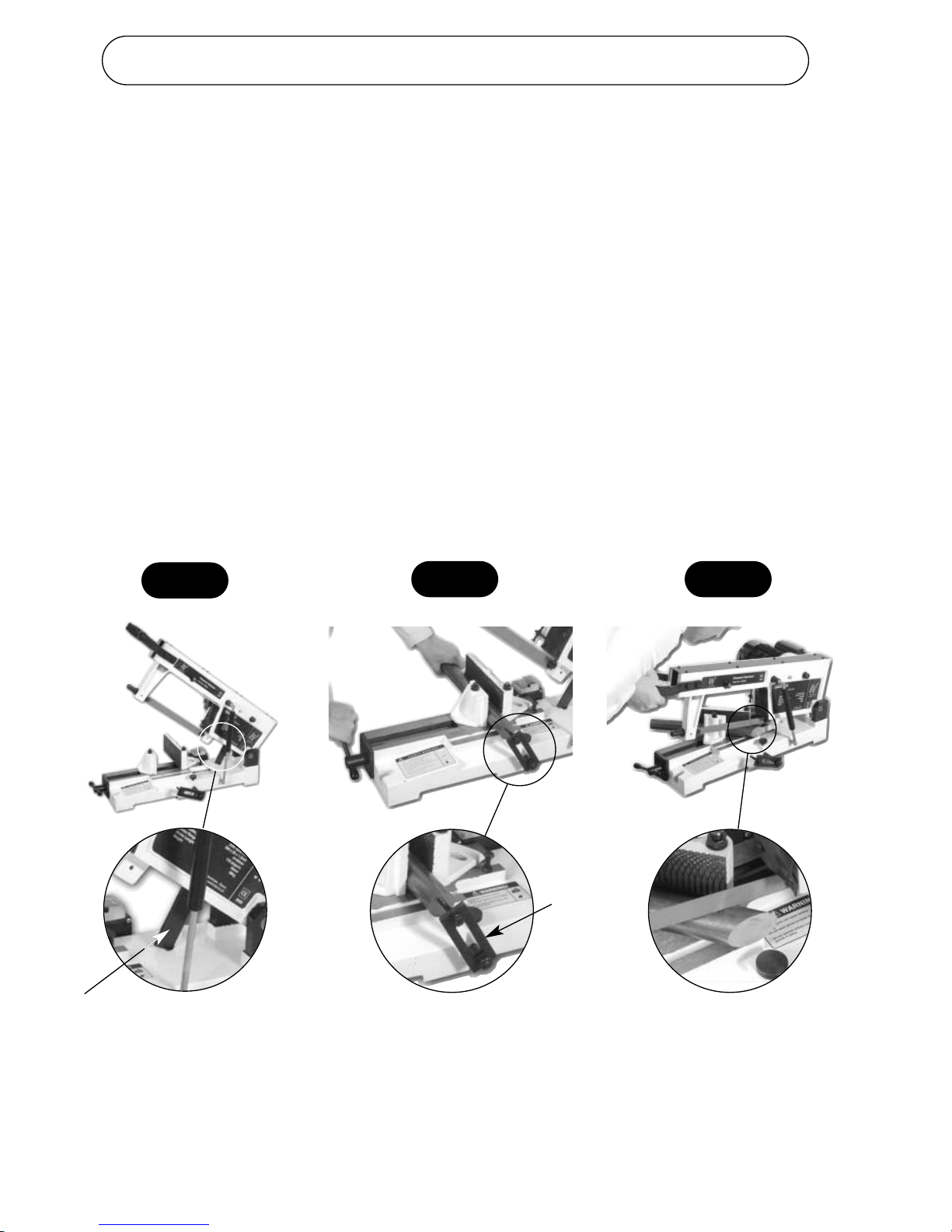

Operation of the Powered Hacksaw...
This is a very simple machine to operate, there are no choices of speeds or down-feed
settings to select.
The arm has a supporting gas strut to take some of the weight of the arm and allow the arm
to descend in a controlled fashion.
When you raise the arm, there is a latching arm that will drop into place to support the arm
in the raised position. (See Fig A)
When you wish to begin cutting, lower the arm onto the material and press the ON (green)
button on the switch. (See Fig C)
DO NOT lean on the arm to increase the cutting rate.
Use the length stop assembly to create identical lengths of materials. (See Fig B)
The machine should switch off automatically when the cut is completed, if the machine does
not switch off, press the STOP (red) button manually. Disconnect the power supply and
adjust the stop actuator mounted on the lower part of the arm so that it pushes the stop
button down further.
Latching arm
Length stop
assembly
Lower the arm onto
the material ready
for cutting
Fig A
Fig B Fig C
12

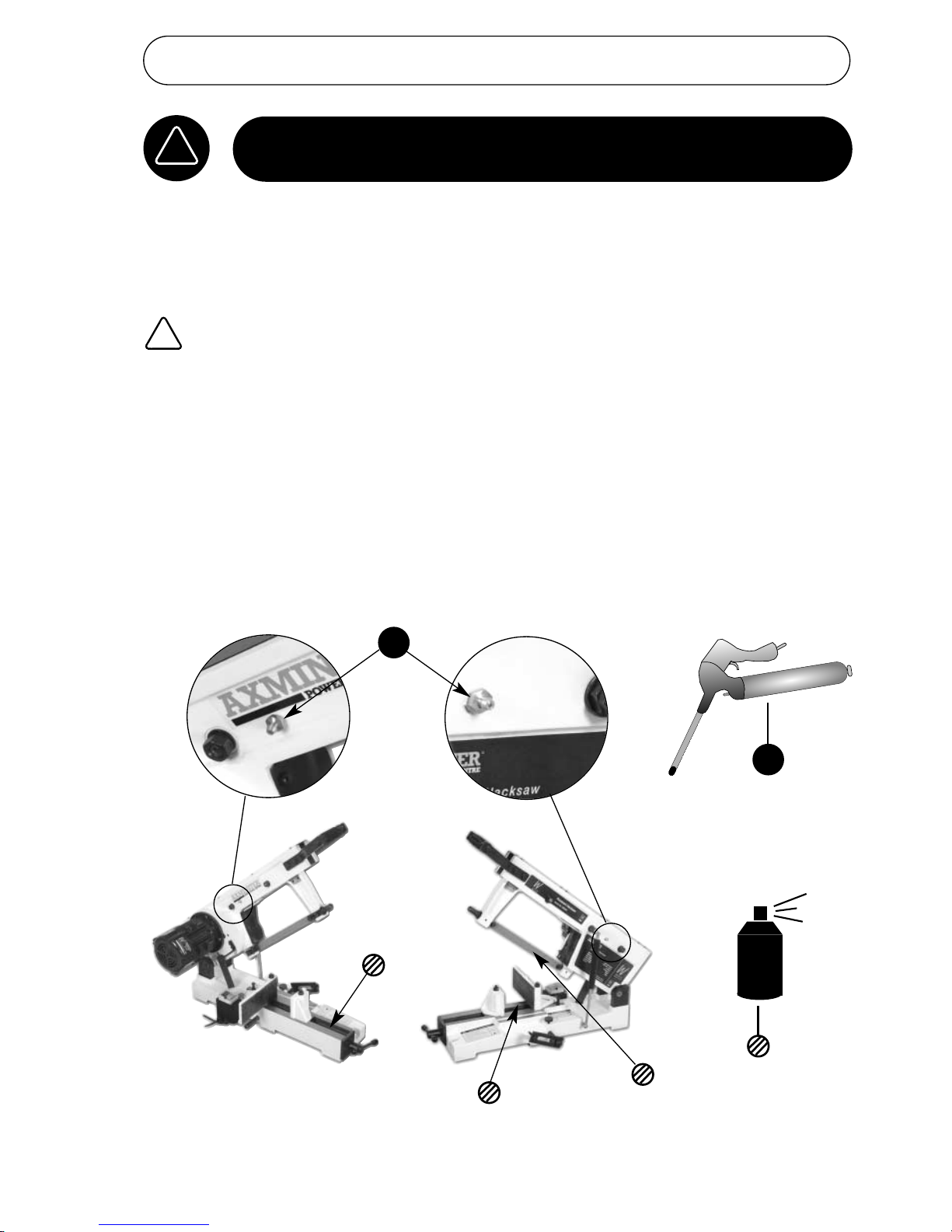

Routine Maintenance...
Excessive dust in the motor can cause excessive heat to develop. Every effort should be
made to prevent foreign material from entering the motor. When operated under conditions
likely to permit accumulations of dust, dirt or waste, a visual inspection should be made at
frequent intervals.
Accumulations of dry dust can usually be blown out successfully.
Caution: To avoid eye injury or adverse reaction to dust, high pressure hoses should
not be used especially in poorly ventilated areas. The operator performing this cleaning
function should wear safety goggles and dust filter mask.
Every 2 hours of use, apply a general purpose grease to the arm slides via the grease
nipples provided with a high pressure grease gun.
If the machine is going to stand idle for any length of time, a light coat of spray or machine
oil over the vice, bed and other non painted parts will prevent rusting.
DO NOT use the machine if the power cable has become damaged.
If any servicing (other than the above cleaning) becomes necessary the unit should be
returned to your supplier or repaired by a qualified technician.
WARNING!!
!
DISCONNECT THE MACHINE FROM
THE MAINS SUPPLY.
!
Oil
Grease Gun
13

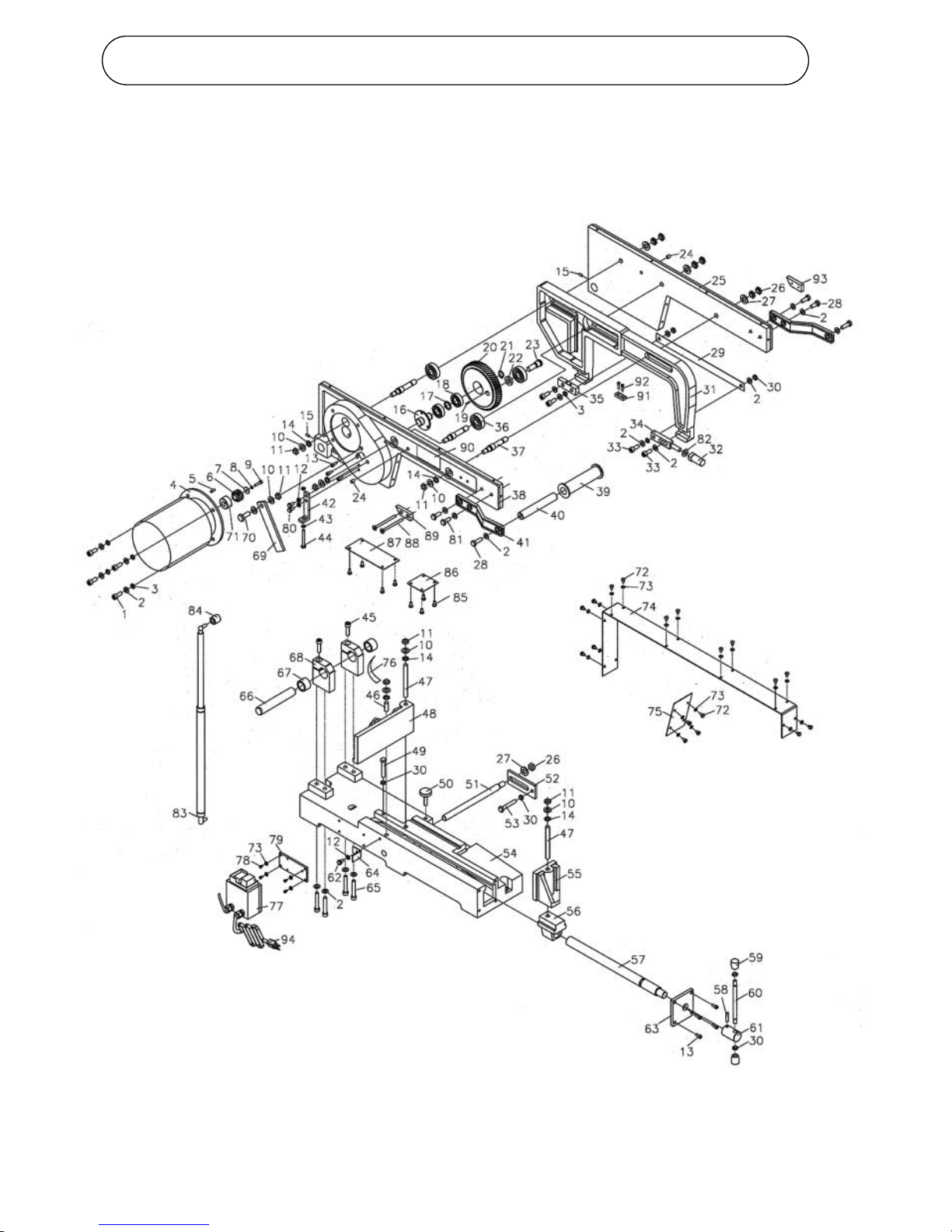

Parts Breakdown for the Powered Hacksaw...
14

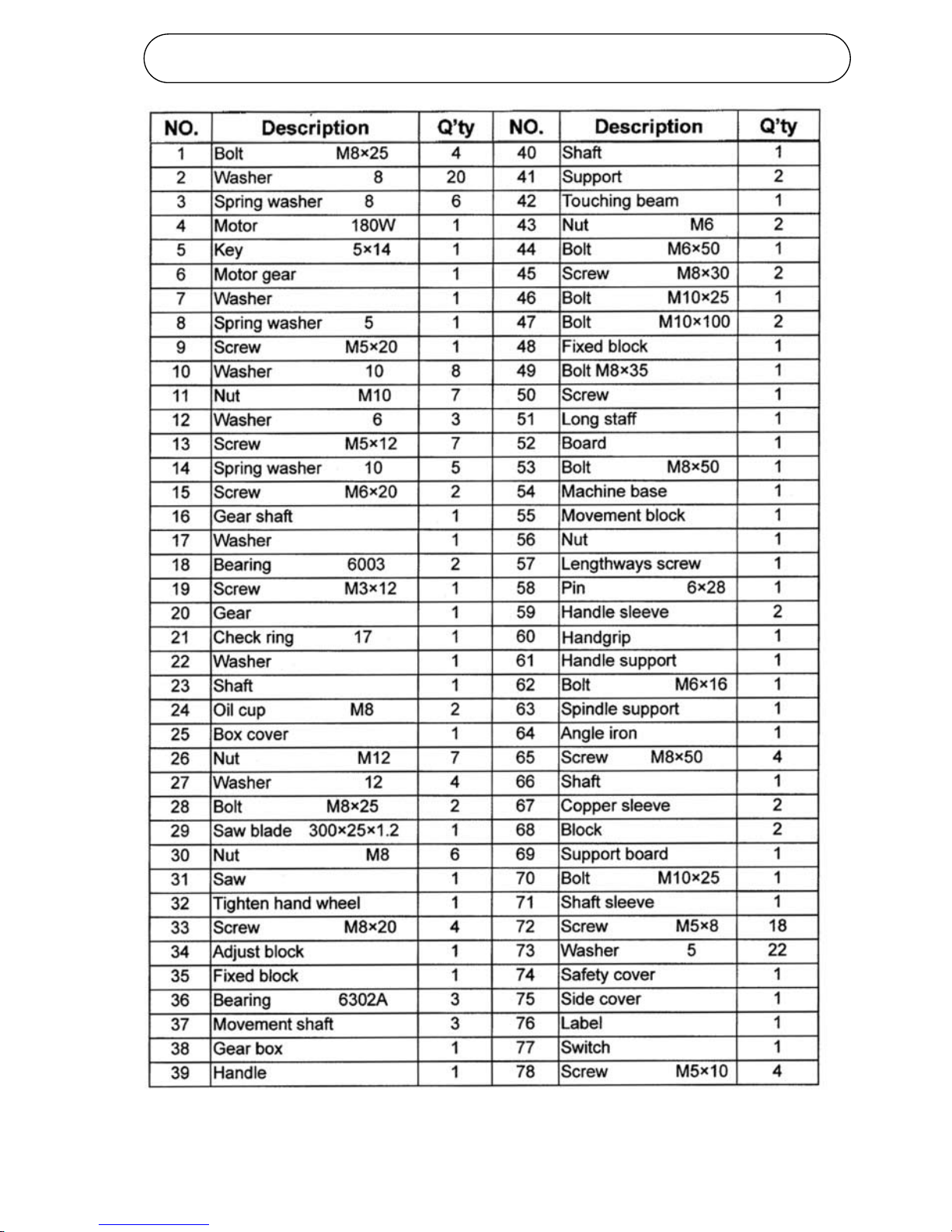

Parts List for the Powered Hacksaw...
15

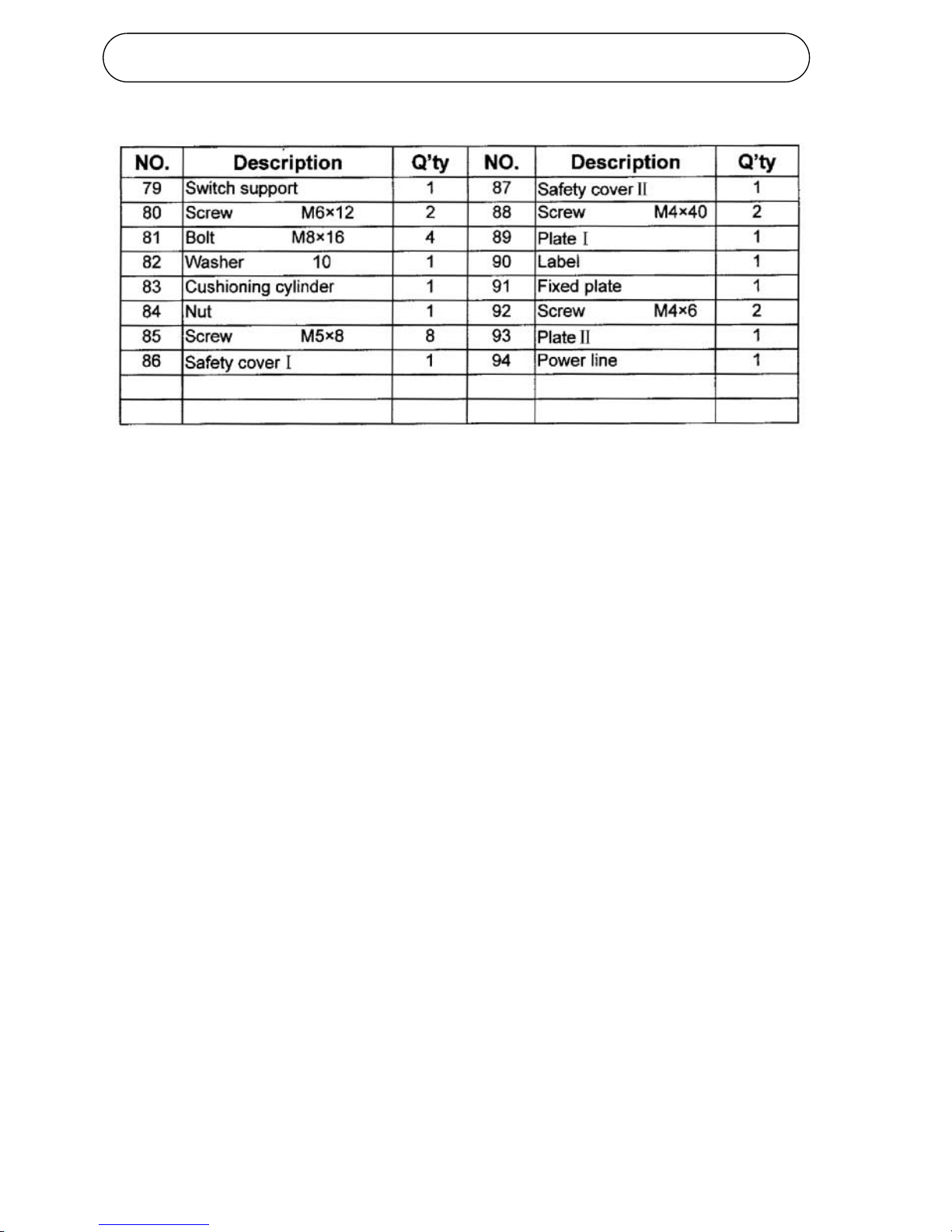

Parts List for the Powered Hacksaw Continued...
