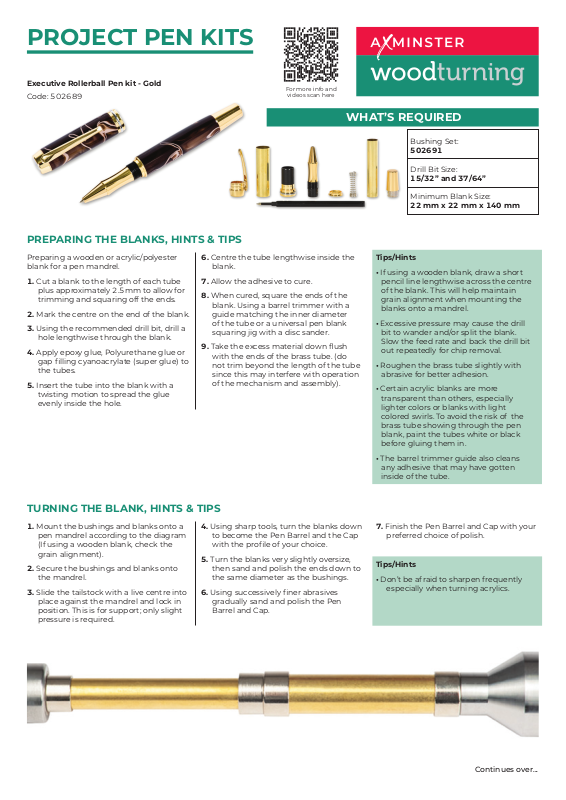

PROJECT PEN KITS
Executive Rollerball Pen kit - Gold
Code: 502689
PREPARING THE BLANKS, HINTS & TIPS
Preparing a wooden or acrylic/polyester
blank for a pen mandrel.
1. Cut a blank to the length of each tube
plus approximately 2.5mm to allow for
trimming and squaring off the ends.
2. Mark the centre on the end of the blank.
3. Using the recommended drill bit, drill a
hole lengthwise through the blank.
4. Apply epoxy glue, Polyurethane glue or
gap filling cyanoacrylate (super glue) to
the tubes.
5. Insert the tube into the blank with a
twisting motion to spread the glue
evenly inside the hole.
6. Centre the tube lengthwise inside the
blank.
7. Allow the adhesive to cure.
8. When cured, square the ends of the
blank. Using a barrel trimmer with a
guide matching the inner diameter
of the tube or a universal pen blank
squaring jig with a disc sander.
9. Take the excess material down flush
with the ends of the brass tube. (do
not trim beyond the length of the tube
since this may interfere with operation
of the mechanism and assembly).
For more info and
videos scan here
WHAT’S REQUIRED
Bushing Set:
502691
Drill Bit Size:
15/32” and 37/64”
Minimum Blank Size:
22 mm x 22 mm x 140 mm
Tips/Hints
• If using a wooden blank, draw a short
pencil line lengthwise across the centre
of the blank. This will help maintain
grain alignment when mounting the
blanks onto a mandrel.
• Excessive pressure may cause the drill
bit to wander and/or split the blank.
Slow the feed rate and back the drill bit
out repeatedly for chip removal.
• Roughen the brass tube slightly with
abrasive for better adhesion.
• Certain acrylic blanks are more
transparent than others, especially
lighter colors or blanks with light
colored swirls. To avoid the risk of the
brass tube showing through the pen
blank, paint the tubes white or black
before gluing them in.
• The barrel trimmer guide also cleans
any adhesive that may have gotten
inside of the tube.
TURNING THE BLANK, HINTS & TIPS

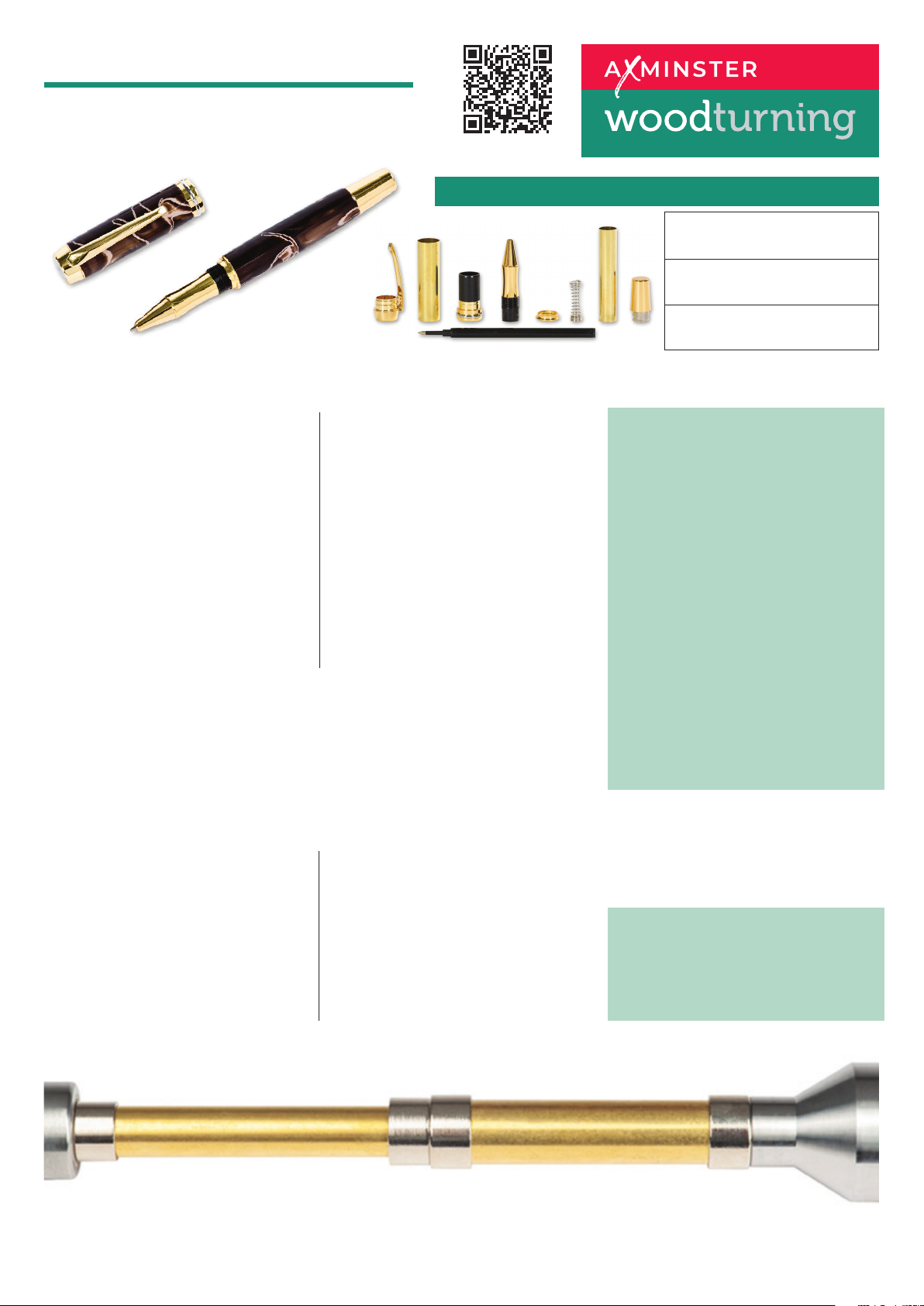

1. Mount the bushings and blanks onto a
pen mandrel according to the diagram
(If using a wooden blank, check the
grain alignment).
2. Secure the bushings and blanks onto
the mandrel.
3. Slide the tailstock with a live centre into
place against the mandrel and lock in
position. This is for support; only slight
pressure is required.
4. Using sharp tools, turn the blanks down
to become the Pen Barrel and the Cap
with the profile of your choice.
5. Turn the blanks very slightly oversize,
then sand and polish the ends down to
the same diameter as the bushings.
6. Using successively finer abrasives
gradually sand and polish the Pen
Barrel and Cap.
7. Finish the Pen Barrel and Cap with your
preferred choice of polish.
Tips/Hints
• Don’t be afraid to sharpen frequently
especially when turning acrylics.
Continues over...
Page 2
ASSEMBLY, HINTS & TIPS

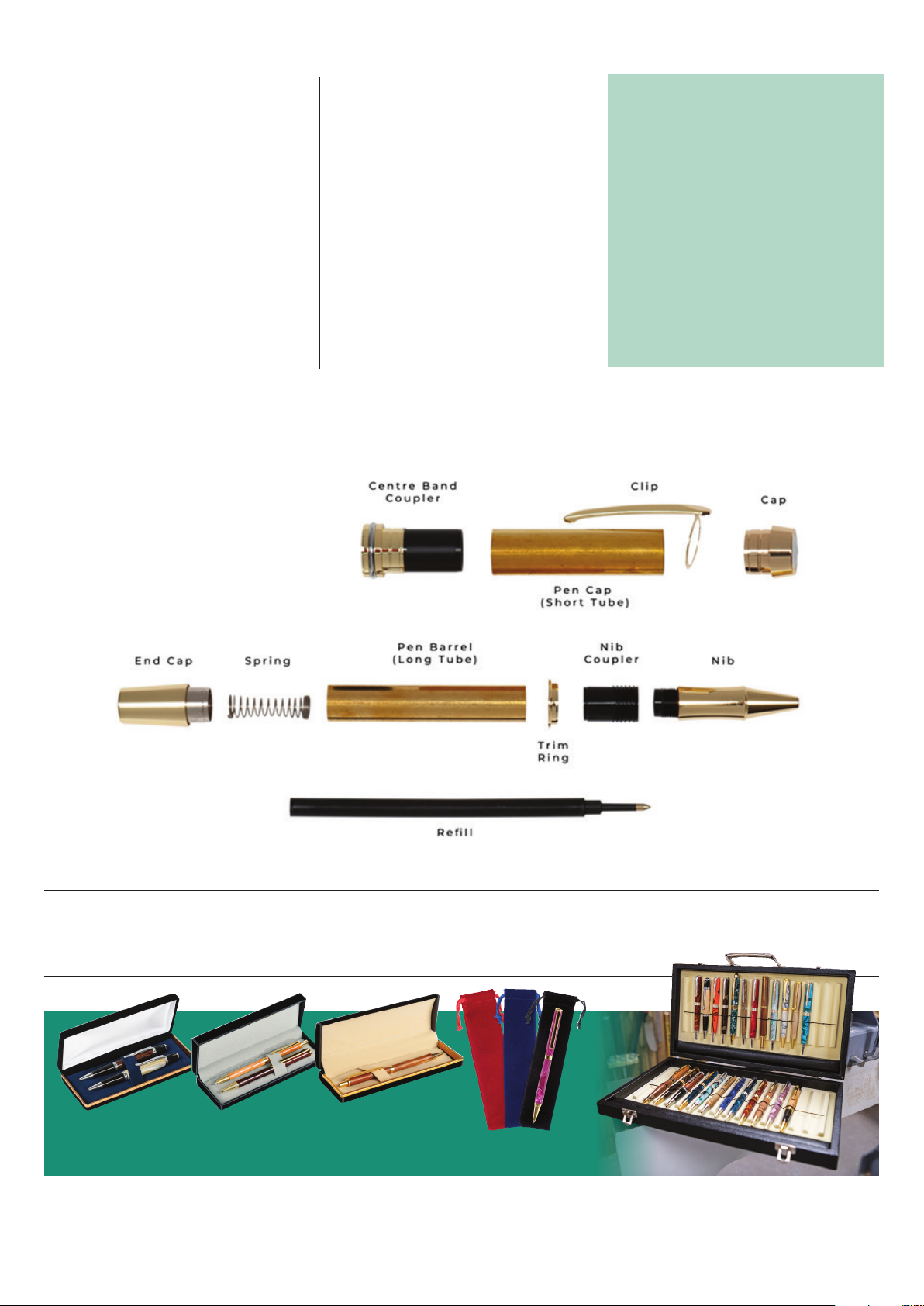

1. Layout parts according to diagram A,
ensuring the turned Pen Barrels are the
same orientation as when mounted on
the mandrel.
Note: When removing the blanks from
the mandrel, use a felt tip pen to mark
the inside of each tube where they join to
maintain the grain or pattern alignment.
2. Press the End Cap into the smaller
diameter end of the Pen Barrel (long
tube).
3. Place the Coupling Ring over the
unthreaded end of the Nib Coupler
(note orientation)
4. Press the unthreaded end of the Nib
Coupler into the larger diameter end
of the Pen Barrel (long tube).
DIAGRAM A
5. Insert the Spring then the Ink Refill into
the Pen Barrel.
6. Screw the Nib onto the Nib Coupler.
7. Slide the Clip onto the Cap, then press
them in the top of the Pen Cap (short
tube).
8. Press the Centre Band Coupler into the
other end of the Pen Cap (short tube) to
complete the pen.
Note: This pen uses a coarse thread for
quick and smooth opening and closing.
This coarse thread has four starting points.
In order to ensure the wood grain lines up,
the pen must be closed using the same
starting point each time.
Tips/Hints
• Use a woodworking vice, one handed bar
clamp, arbor press or a dedicated pen
press.
• Press parts together slowly and steadily
• When pressing the parts together,
CHECK the parts are correctly aligned
with each other and straight. If the part
is crooked or misaligned, it will result in
a poor fit or render the pen unuseable.
• When laying out your pen barrel with the
parts, pay careful attention to keep the
pen barrels in the same orientation as
when on the mandrel. i.e. a pen barrel
may have a “top” and “bottom”, now is
the time to be certain of the orientation.
Visit the Knowledge blog ‘How To Make A Pen’ for hints, tips and videos
knowledge.axminstertools.com/pen-turning
