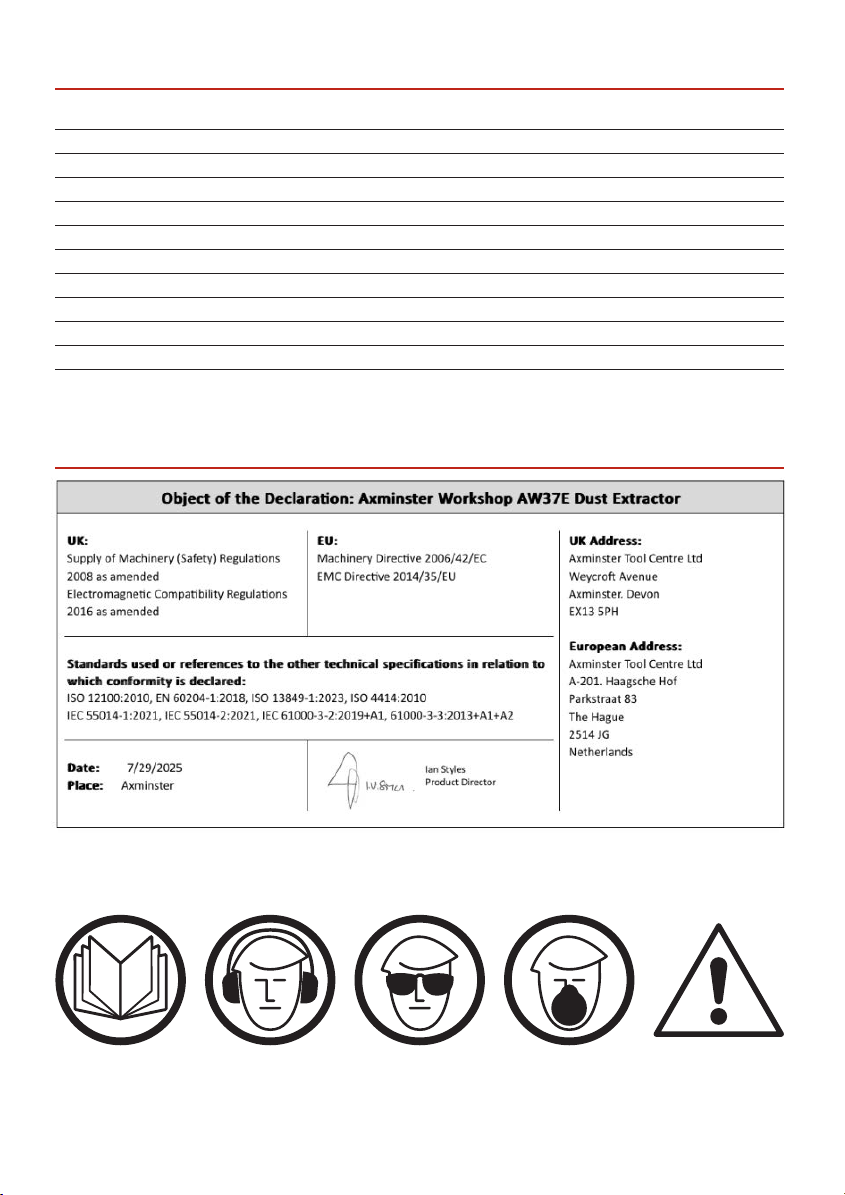

The symbols below advise the correct safety procedures when using this machine.
Fully read manual
and safety instructions
before use
Ear protection
should be worn
Eye protection
should be worn
2
Dust mask
should be worn
HAZARD
Motor gets hot
Page 3

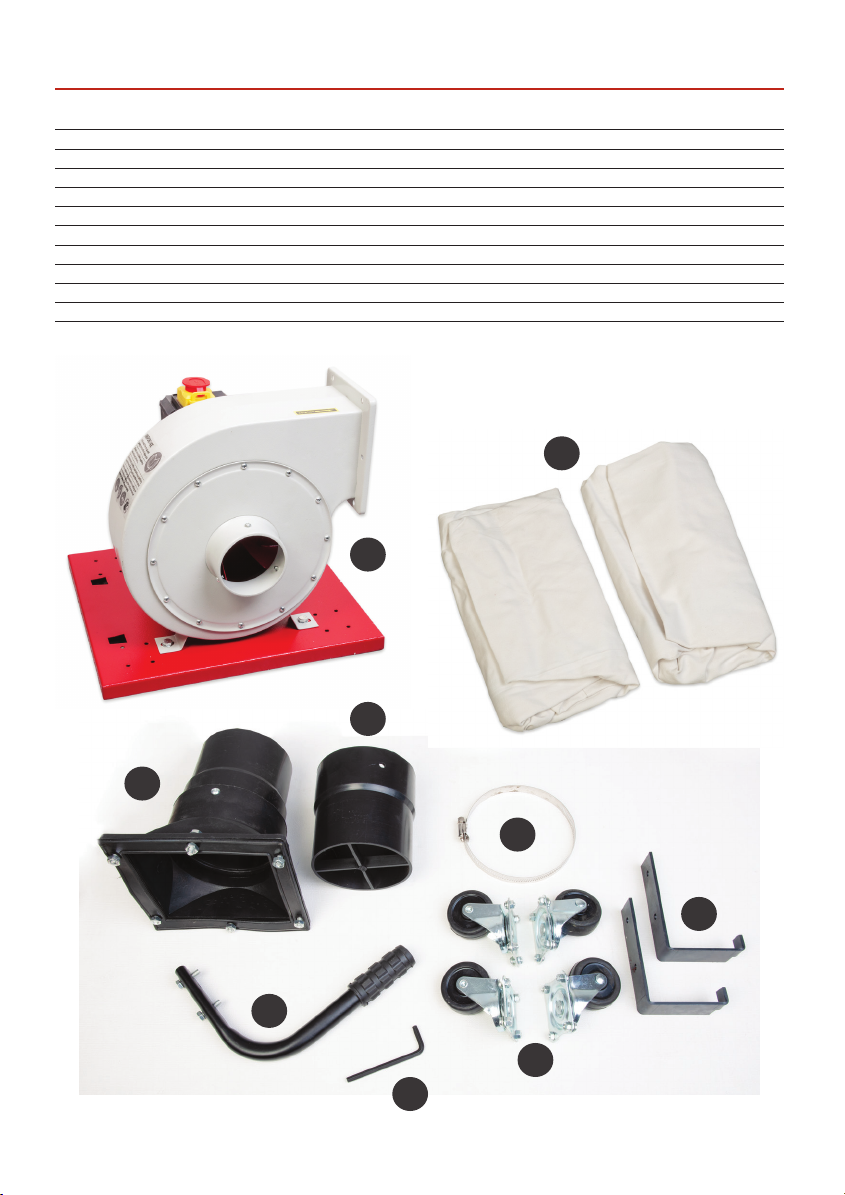

WHAT’S INCLUDED
Quantity Item Part Model Number
1 Dust Extractor A
2 Dust Bag B
1 Outlet Duct and Gasket C
1 Inlet Grill D
1 Large Clip E
1 Handle F
4 Castor Wheels with Fixings G
2 Wall Mounted Hook Brackets H
1 Hex Key I
AW37E
B
A
C
D
E
H
F
G
I
3
Page 4
GENERAL INSTRUCTIONS FOR 230V MACHINES
The following will enable you to observe good
working practices, keep yourself and fellow workers
safe and maintain your tools and equipment in good
working order.
WARNING!! KEEP TOOLS AND
EQUIPMENT OUT OF REACH OF
YOUNG CHILDREN.
KEEP WORK AREA AS
UNCLUTTERED AS IS PRACTICAL.
UNDER NO CIRCUMSTANCES
SHOULD CHILDREN BE ALLOWED
IN WORK AREAS.
Mains Powered Tools
• Tools are supplied with an attached 13 Amp plug.
• Inspect the cable and plug to ensure that neither
are damaged. Repair if necessary by a suitably
qualified person.
• Do not use when or where it is liable to get wet.
Workplace
• Do not use 230V a.c. powered tools anywhere
within a site area that is flooded.
• Keep machine clean.
• Leave machine unplugged until work is about to
commence.
• Always disconnect by pulling on the plug body
and not the cable.
• Carry out a final check e.g. check the cutting tool
is securely tightened in the machine andthe
correct speed and function set.
• Ensure you are comfortable before you start work,
balanced, not reaching etc.
• Wear appropriate safety clothing, goggles, gloves,
masks etc. Wear ear defenders at all times.
• If you have long hair wear a hair net or helmet to
prevent it being caught up in the rotating parts of
the machine.
• Consideration should be given to the removal
of rings and wristwatches.
• Consideration should also be given to non-slip
footwear etc.
• If another person is to use the machine, ensure they
are suitably qualified to use it.
• Do not use the machine if you are tired or distracted.
• Do not use this machine within the designated
safety areas of flammable liquid stores or in areas
where there may be volatile gases.
• Check cutters are correct type and size, are
undamaged and are kept clean and sharp. This will
maintain their operating performance and lessen
the loading on the machine.
•
OBSERVE….
happening around you and
SENSE.
make sure you know what is
USE YOUR COMMON
4
Page 5
SPECIFIC SAFETY FOR DUST EXTRACTORS
DO NOT use this machine as a vacuum cleaner, try to
keep the waste medium to wood by-products.
DO NOT uplift workshop floor debris (stones, nails,
screws, paper etc., etc). Be aware that wood dust is an
explosive medium.
DO NOT allow any ‘naked light’ source to occur
anywhere near the machine. This includes cigarettes,
matches, etc, and do not place the machine near
any unprotected light bulbs, that could possibly get
broken.
The suction force is generated by a high speed fan
unit. This has the potential to amputate fingers, grab
loose clothing (ties etc.,) and ‘bat’ large chips etc, at
high speeds. Keep all guarding in place, and if access
to the fan becomes necessary (due to blockage etc.,)
disconnect the machine from the mains supply
and ensure the fan has come to a complete stop
before putting your hands anywhere near it.
If you are not using ‘clear’ extraction hose, periodically
remove the hose to check that the inlet to the
machine is not getting restricted. The safety guard
grill of the inlet duct can be particularly irksome
in this way, as long strand shavings etc., can wrap
around the grill fret.
UNDER NO CIRCUMSTANCES
SHOULD CHILDREN BE ALLOWED
IN WORK AREAS. KEEP THE WORK
AREA AS UNCLUTTERED AS IS
PRACTICAL, THIS INCLUDES
PERSONNEL AS WELL AS
MATERIAL.
KEEP the particle filter clean. The machine relies on
its ability to ‘blow’ air through the filter to generate
good suction. If the particle filter starts to clog this
reduces the air flow and the machine becomes less
efficient.
The particle filter can be cleaned by using an ‘M’ class
vacuum cleaner clean the inside of the filter.
BE AWARE that in dry air periods or areas the
movement of the air through the machine can
generate static electric fields. These are not normally
a problem as the machine is bonded together via its
construction and the whole is earthed back through
the electrical supply. Problems can occur, however
with isolated items such as stands or hosing that are
insulated from the ground (standing on rubber feet,
suspended in the air etc). If possible, try to connect
everything together electrically to eliminate static
shocks. Use the integral metal coil in flexible hosing
to connect the units together.
Try to route the power cable and the hosing away
from busy walkways.
WARNING! KEEP TOOLS AND
EQUIPMENT OUT OF THE REACH
OF YOUNG CHILDREN.
ONLY USE DUST EXTRACTION
BAGS WITH THIS MACHINE NOT
DOMESTIC WASTE BAGS!
5
Page 6
SPECIFICATION
Code 107695
Model AW37E
Rating Workshop
Power 230V 50Hz 750W 1ph
Air Flow 640 m³/hr @ 100mm
Filtration 30 micron
Sound Power Level 70 dB(A) (1.5 dB)
Hose Diameter 100mm
Bag Capacity 37 litre
Overall L x W x H 1,100 x 380 x 415mm
Weight 22kg
ASSEMBLY
Having unpacked your machine and all its
components, please check against the ‘What’s
Included on page 3. If any parts are missing please
contact our technical department on 03332 406406.
Having unpacked the machine and checked it over
please recycle any unwanted packaging in a
responsible manner.
Please assemble the extractor as follows:-
Step 1
Mounting holes
A
Step 2
G
G

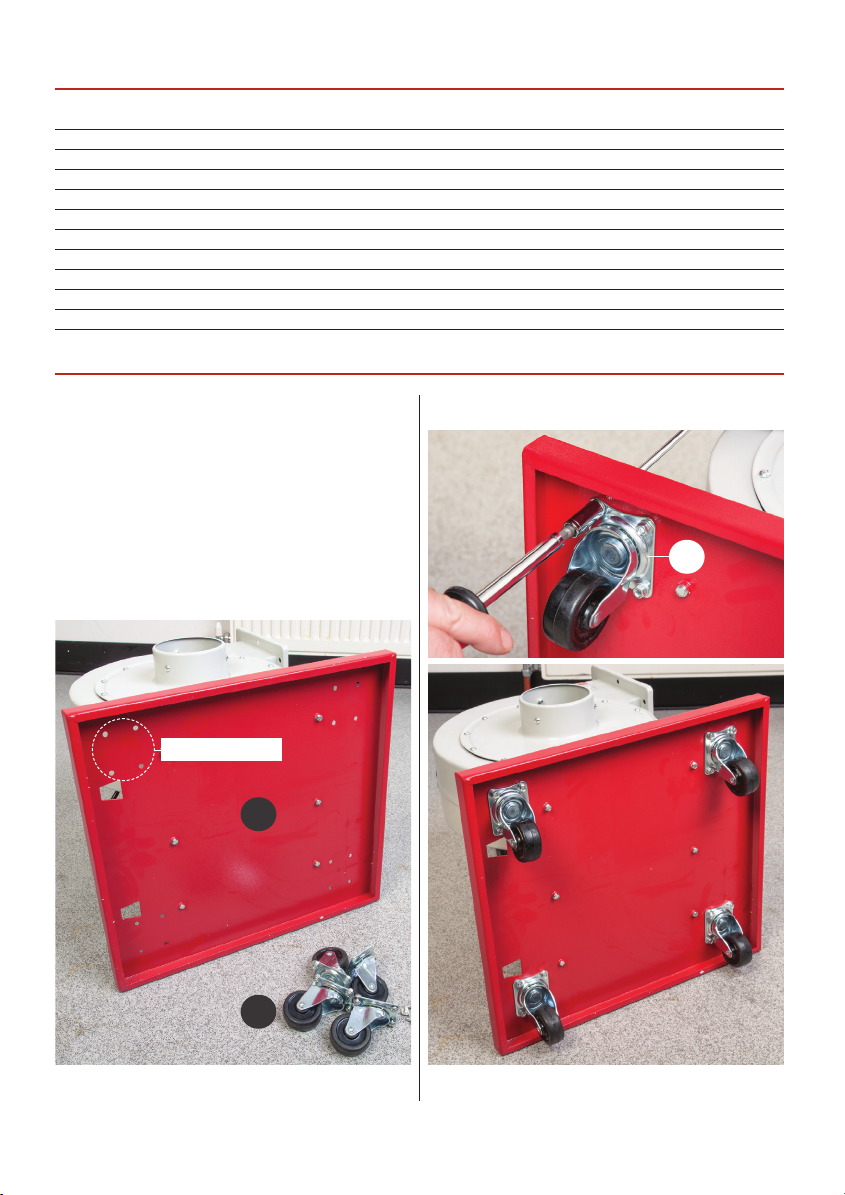

• Locate the dust extractor (A) and castor wheels (G).
• Mount the four, castor wheels (G) to each corner of
the extractors base plate assembly (A).
6
Page 7

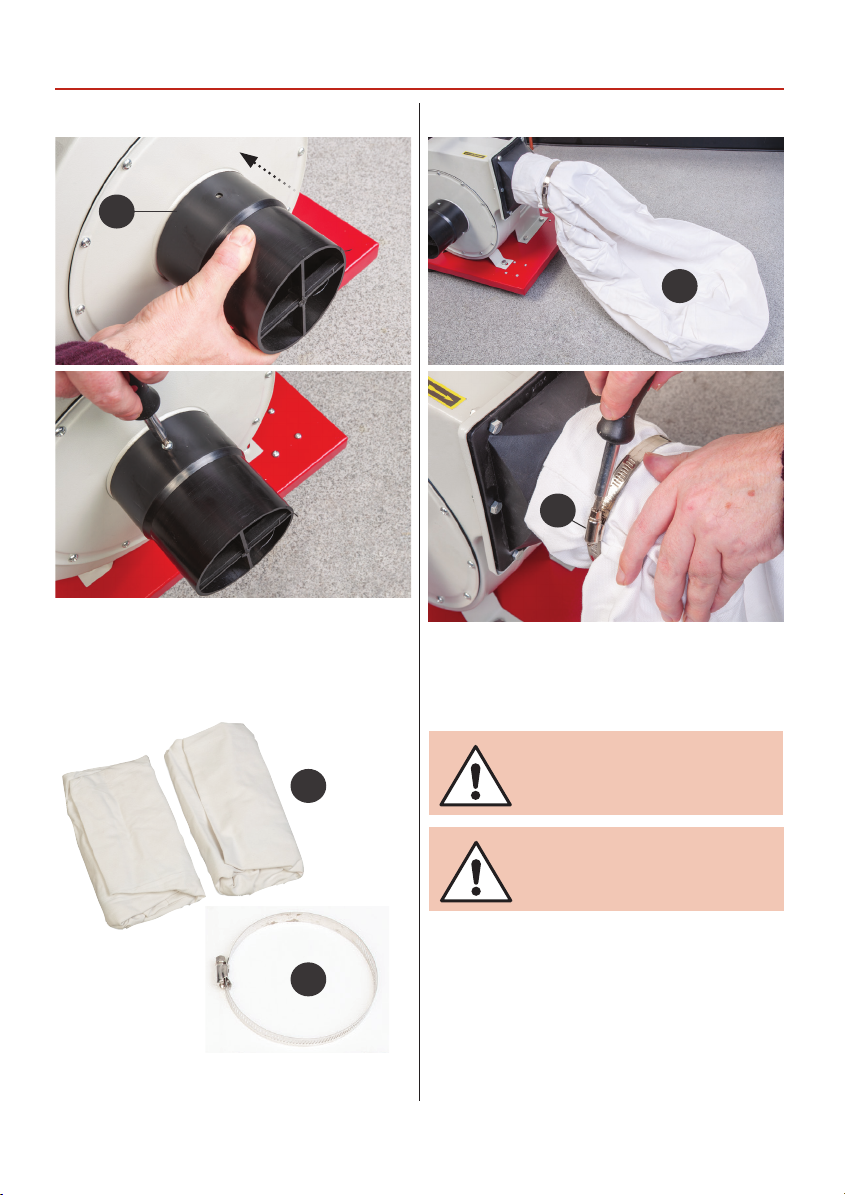

ASSEMBLY
Step 3
C
• Locate the outlet duct and gasket (C) assembly and
remove the bolts nuts and washers.
Step 4
Gasket
Step 5
F
C

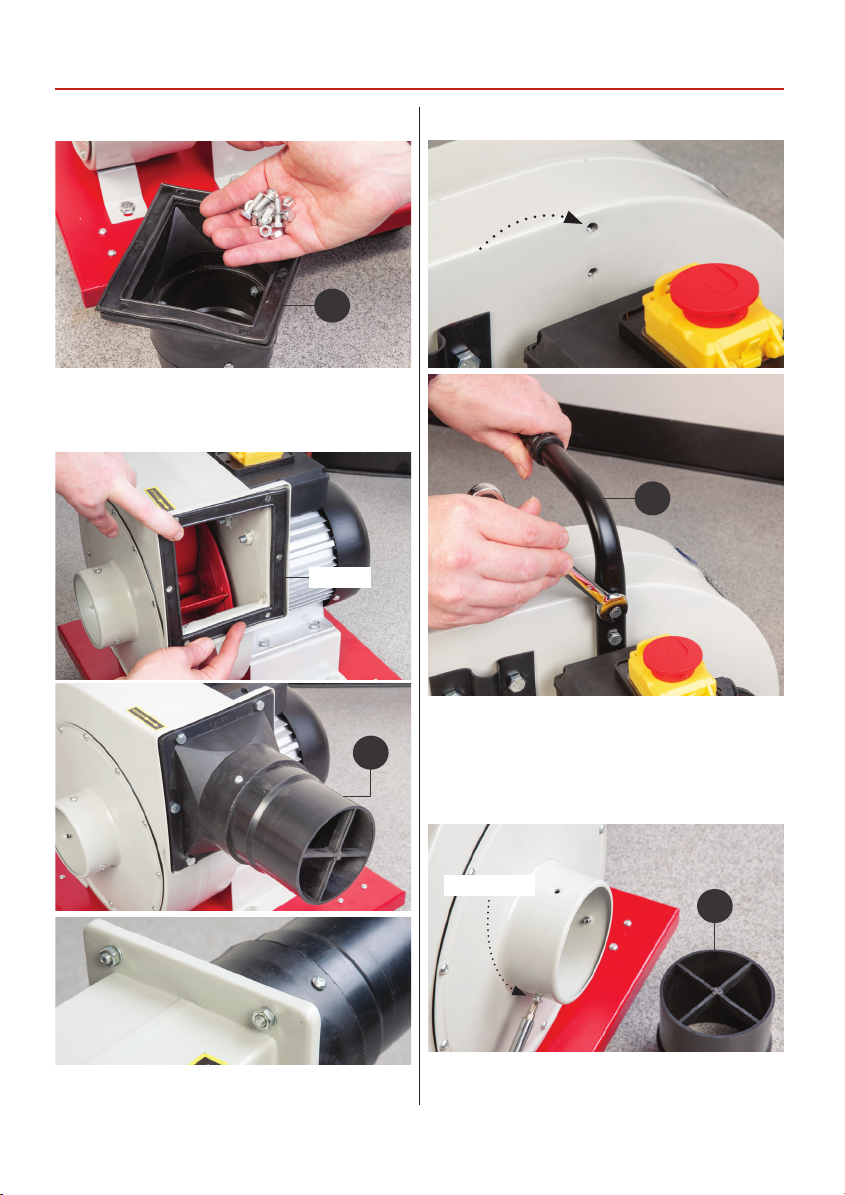

• Position the rubber gasket onto the fan’s outlet housing
and secure the outlet duct assembly (C) over the housing
using the bolts nuts and washers you removed earlier.
• Remove the two thread bolts on the handle (F). Line
up the holes with the pre-drilled holes to the rear of
the fan housing and secure in position with the two
bolts.
Step 6
Phillips screw
D
• Locate the inlet grill (D) and remove the three
Phillips screws from around the inlet duct.
7
Continues Over...
Page 8
ASSEMBLY
Step 7
D
• Introduce the inlet duct (D) over the inlet fan
housing. Line up the holes and replace the Phillips
screws to secure it in position.
Step 8
Step 9
B
E
• Open up the dust bag and introduce the large
clip (E) over the bag’s opening. Insert the dust bag
(B) over the outlet duct (C) tighten the large clip to
secure the dust bag in position. Clear all tools away.
B
E
• Locate one dust bag (B) and the large clip (E).
WARNING! KEEP TOOLS AND
EQUIPMENT OUT OF THE REACH
OF YOUNG CHILDREN.
CONNECT THE EXTRACTOR TO
MAINS SUPPLY.
Open the switch shroud on the extractor and
press the ‘GREEN’ button to switch on. Check that
everything is working correctly then switch off the
extractor by pressing the ‘RED’ button. Disconnect
the machine from the mains supply.
8
Page 9

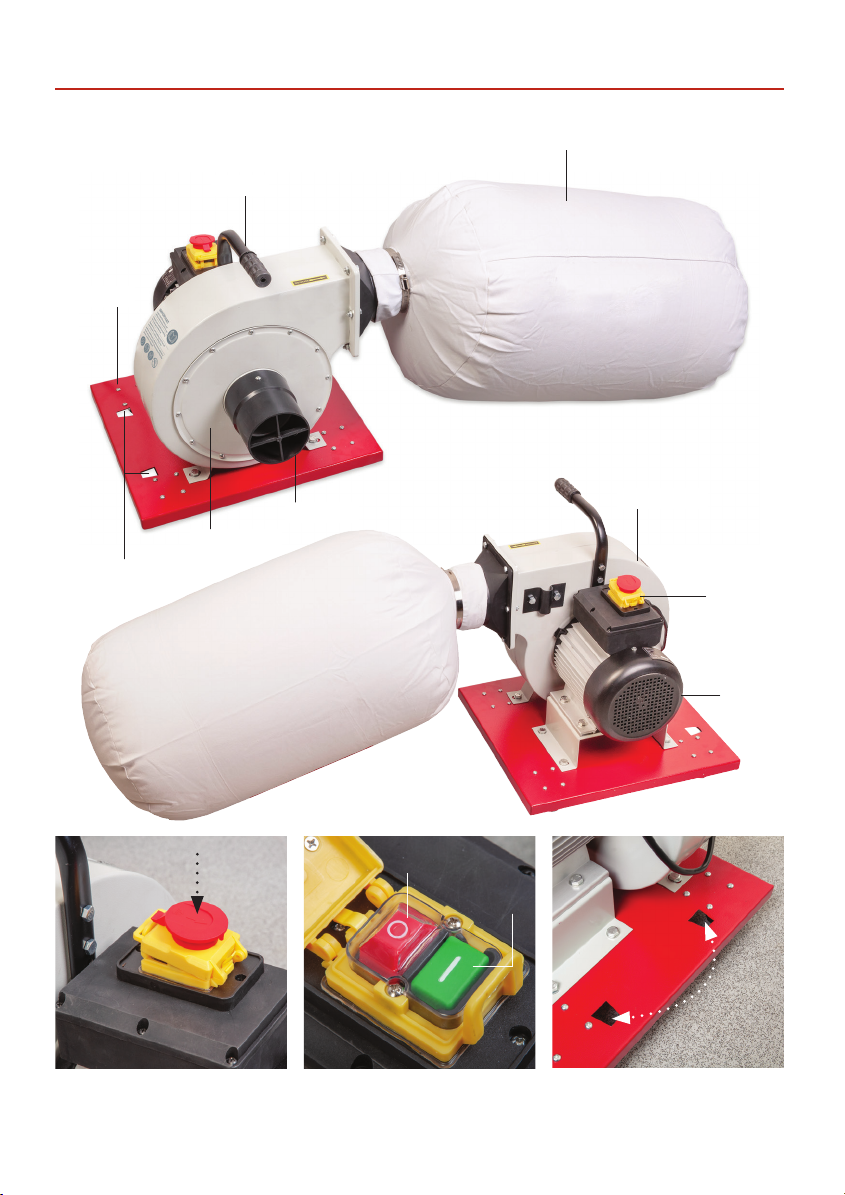

Base plate
ILLUSTRATION AND PARTS DESCRIPTION
Dust bag
Handle
Wall mounting slots
Access plate
Inlet duct
Fan housing
NVR Control
switch
Motor
OFF
ON
Emergency Stop
Press down to stop the machine
NVR Switch ON/OFF buttonsCutout slots for wall
mounted hook brackets (H)
9
Page 10

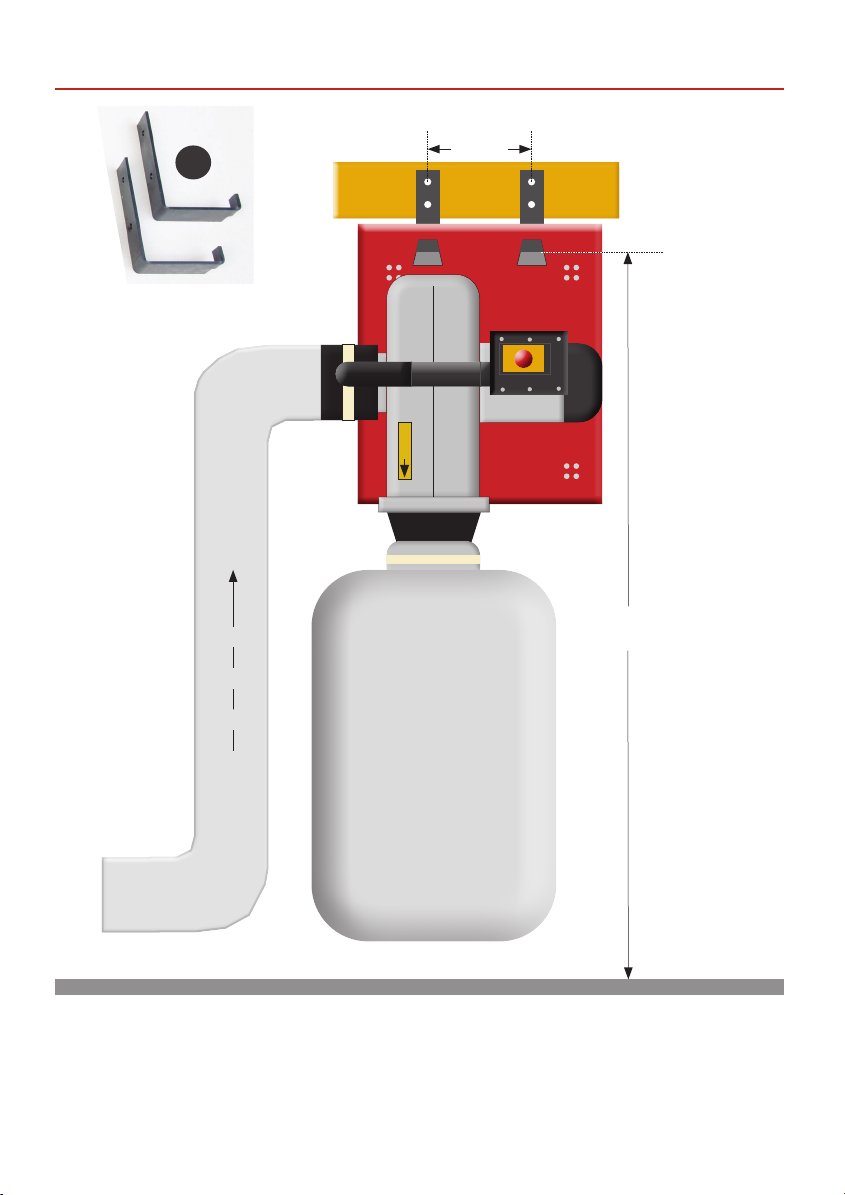

WALL MOUNTING
10
Page 11

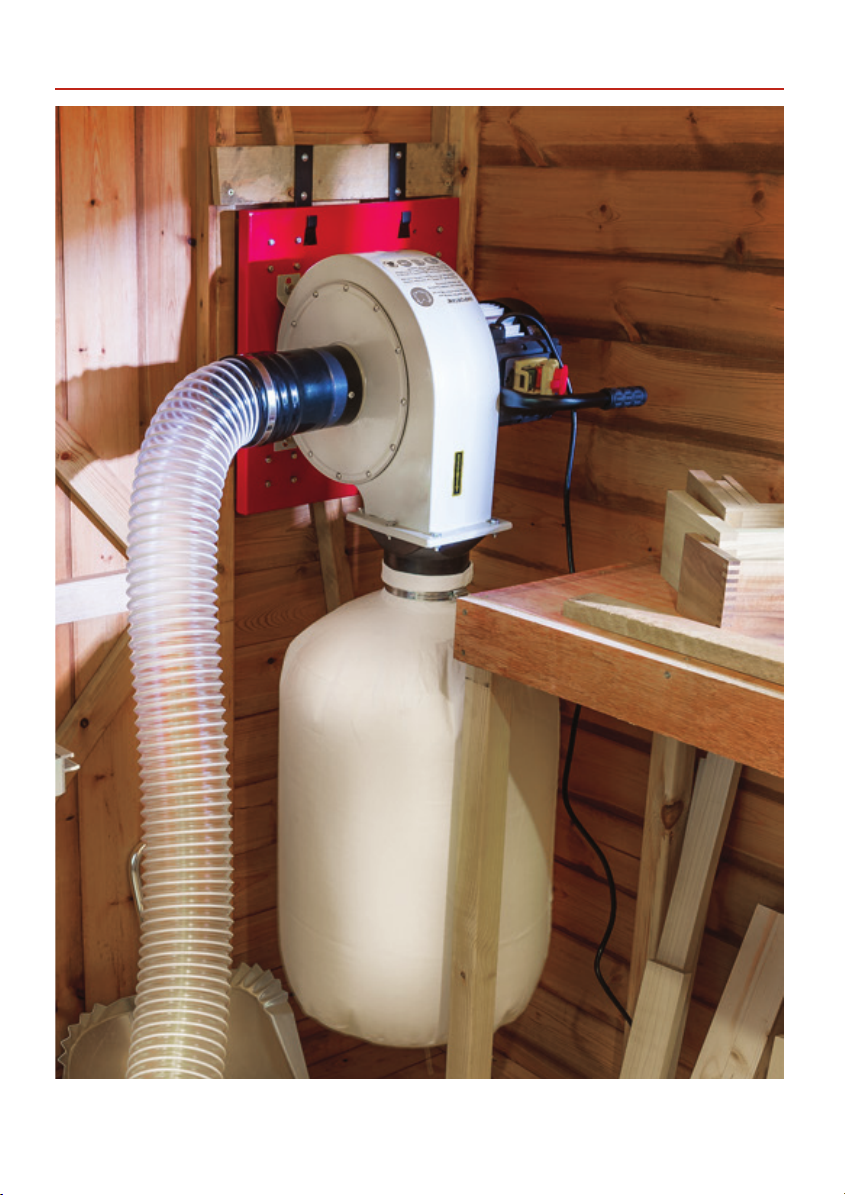

WALL MOUNTING
H
Wall hook brackets
172mm
ROTATION
1,100mm
Inlet hose
Locate the wall mounting brackets (H) and fasten to
the wall, using wall plugs and screws. The position
of the wall brackets needs to be 172mm (centre
to centre) with the ‘hook’ of the brackets at least
1,100mm above the floor.
Floor
11
Page 12
MAINTENANCE
DISCONNECT THE EXTRACTOR
FROM THE MAINS SUPPLY BEFORE
CONTINUING.
ALWAYS WEAR A DUST MASK
AND EYE PROTECTION WHEN
CLEANING THE EXTRACTOR.
Daily
• Empty the collection bag before it overflows; wear a
dust mask whilst removing and emptying the bag.
Weekly
• Check the inlet and outlet duct and remove any
accumulated sawdust.
• Check the inlet hoses for splits and cracks; repair as
necessary.
• Check the dust collection bag for wear and tear,
especially around the neck of the retaining clip. If
wear or fraying is occurring, replace the bag.
• Check the motor for dust, sawdust, shavings etc,
build up. If this has occurred, clean with a ‘M’ class
vacuum cleaner.
12
Page 13

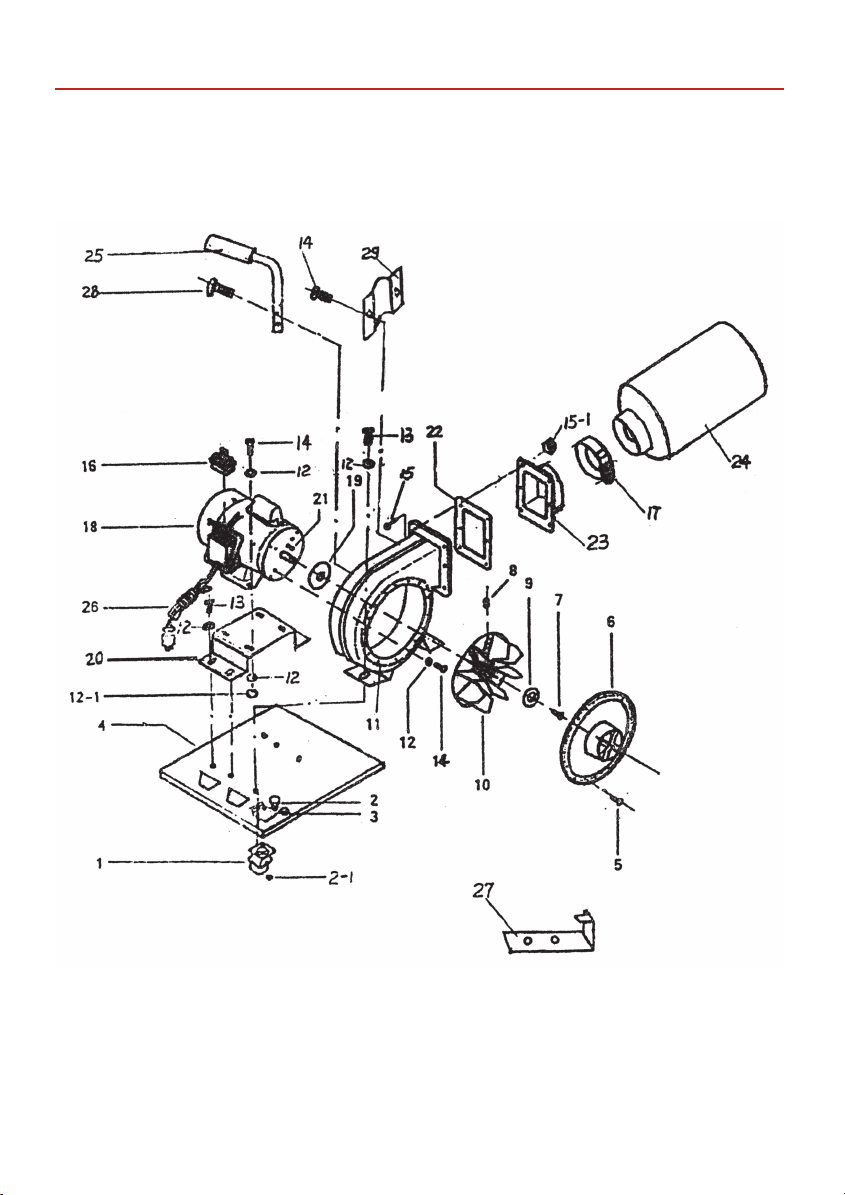

EXPLODED DIAGRAMS/LISTS
13
Page 14
EXPLODED DIAGRAMS/LISTS
PART NODESCRIPTIONSIZEQTY
1CASTER4
2SCREW PAN. HEAD.M6X1616
2-1NUTM616
3SPRING WASHERø616
4BASE PLATE1
5SCREW PAN. HEAD.M5X1012
6INLET COVER1
7SCREW HEX.SOCKET. HEAD.M6 X
20L(L.H.)
8SET SCREW SOCKET. HEAD.M8X102
9WASHER1
10TURBO FAN1
11FAN HOUSING1
12WASHERø818
12-1NUTM86
13SCREW HEX. HEAD.M8X106
14SCREW HEX. HEAD.M8X15’12
15SCREW HEX. HEAD.M6X156
15-1NUTM66
16NVR 𝛟SWITCH1
17CLAMP1
18MOTOR1
19PACKING1
20COLUMN & MOTOR PLATE1
21KEY5X5X301
22GASKET1
23OUTLET DUCT1
24DUST BAG1
25HANDLE1
26POWER CORD1
27HOOK BRACKETS2
28SCREW HEX. HEAD.M6X252
29BRACKET1
1
14
Page 15

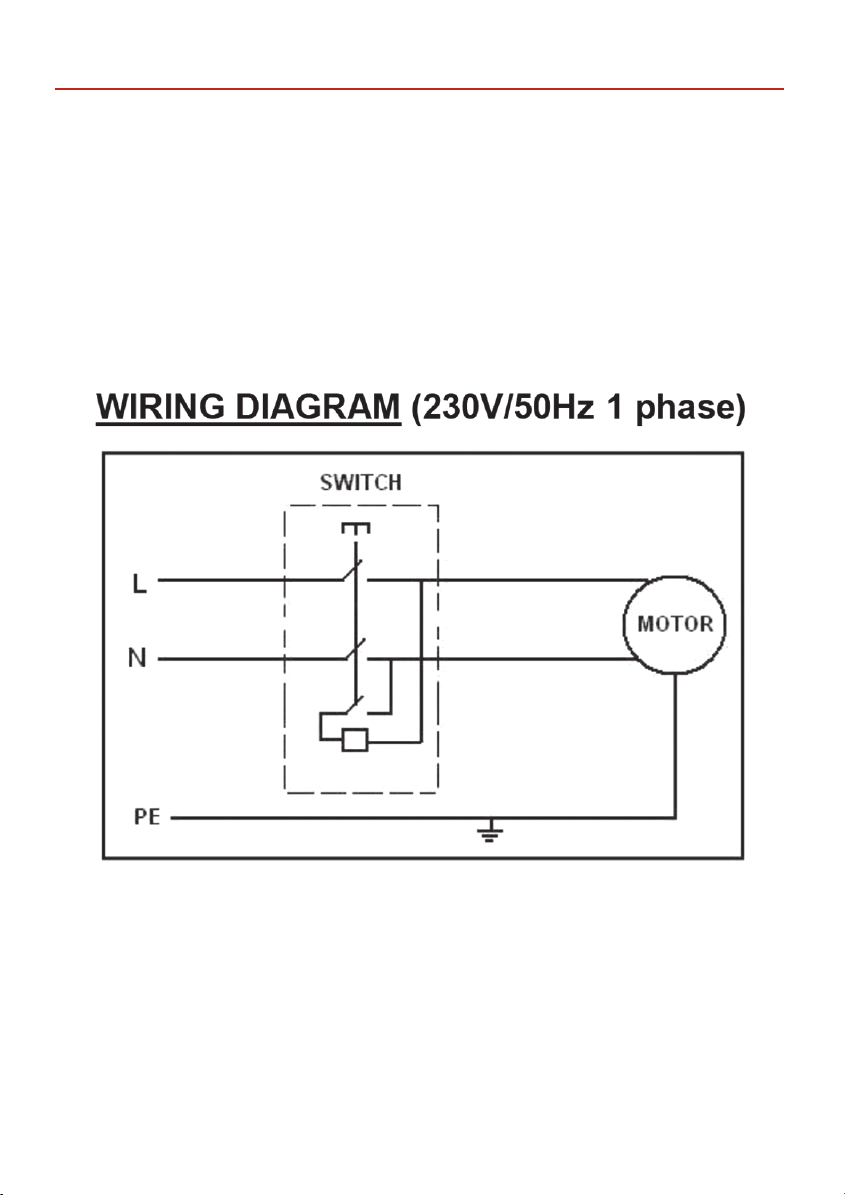

WIRING DIAGRAM
15
Page 16
