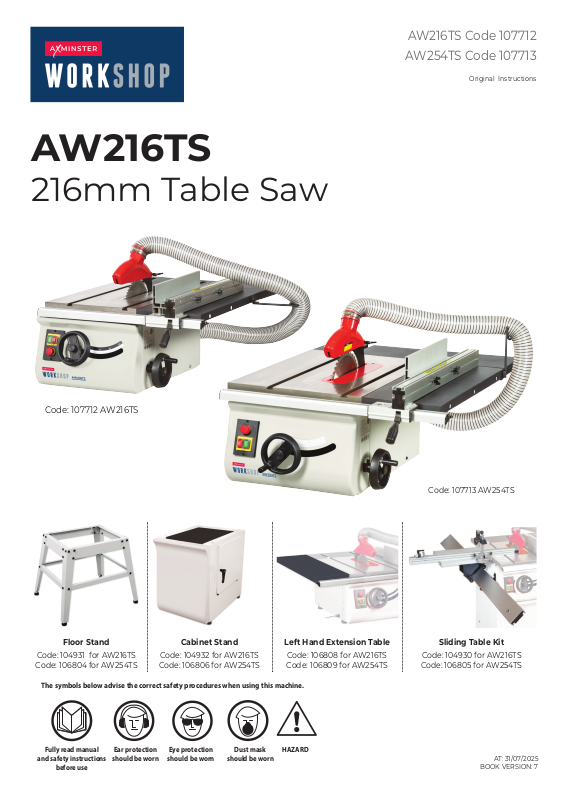

AW216TS
216mm T
able Saw
AW216TS Code 107712
AW254TS Code 107713
Original Instructions
Floor Stand
Code: 104931 for AW216TS
Code: 106804 for AW254TS
Cabinet Stand
Code: 104932 for AW216TS
Code: 106806 for AW254TS

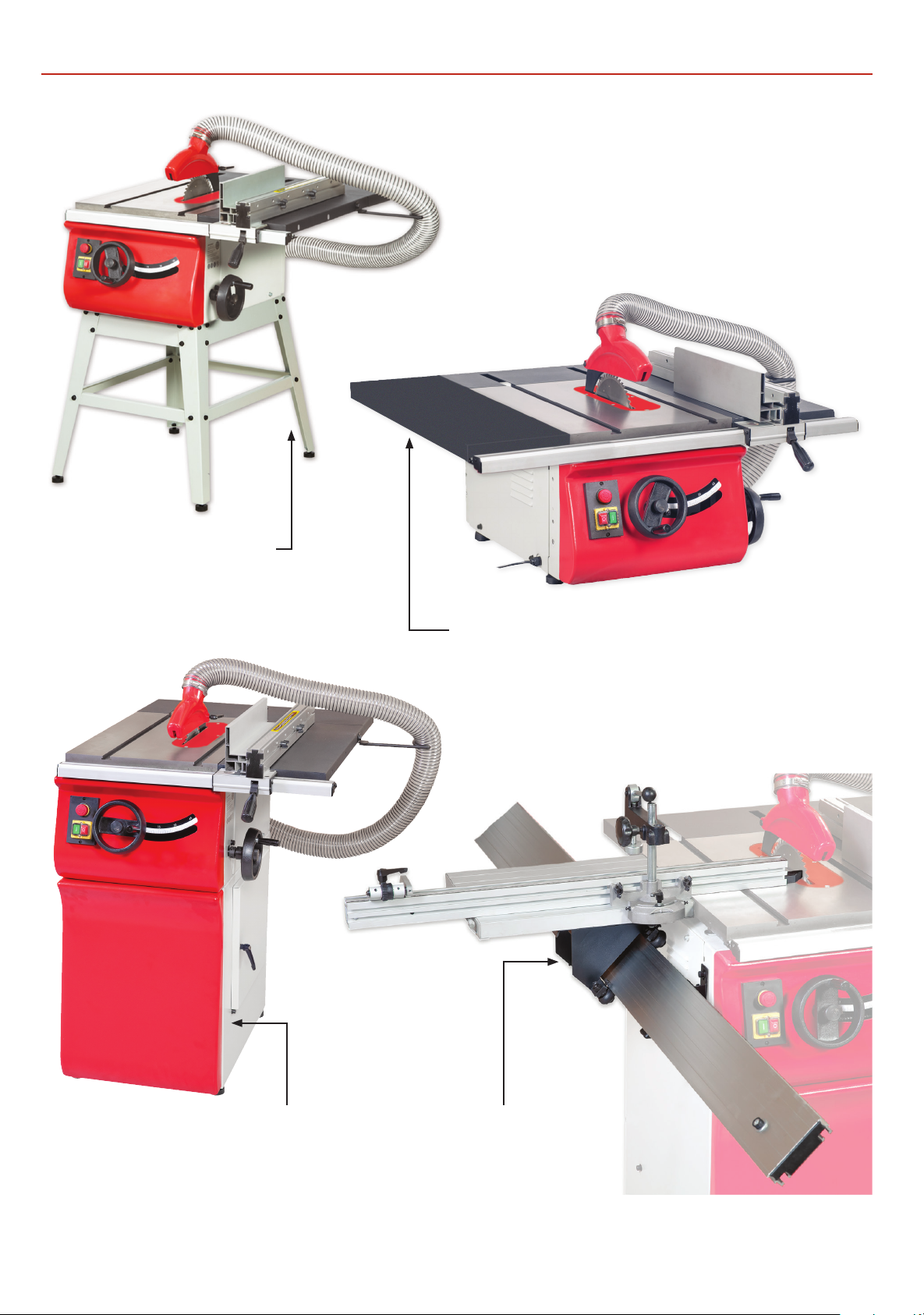

Left Hand Extension Table
Code: 106808 for AW216TS
Code: 106809 for AW254TS
Sliding Table Kit
Code: 104930 for AW216TS
Code: 106805 for AW254TS
Code: 107712 AW216TS
Code: 107713 AW254TS
AT: 31/07/2025
BOOK VERSION: 7
The symbols below advise the correct safety procedures when using this machine.
Fully read manual
and safety instructions
before use
Ear protection
should be worn
Eye protection
should be worn
Dust mask
should be worn
HAZARD
Page 2
INDEX OF CONTENTS
EU Declaration of Conformity 02
What’s Included 03
Optional Accessories 04-05-06
General Instructions for 230V Machines 06
Specific Instructions for Table Saws 07
Specification 08
Assembly 08-09-10-11-12-13-14-15-16-17
Illustration and Parts Description 18-19-20-21
Set Up and Adjustment 22-23-23-24-25
Operating Instructions 26
Changing the Saw Blade 27
Maintenance 28
Exploded Diagrams/Lists 29-30-31-32-33-34-35-36-38-7-38
Wiring Diagram 39
2
Page 3

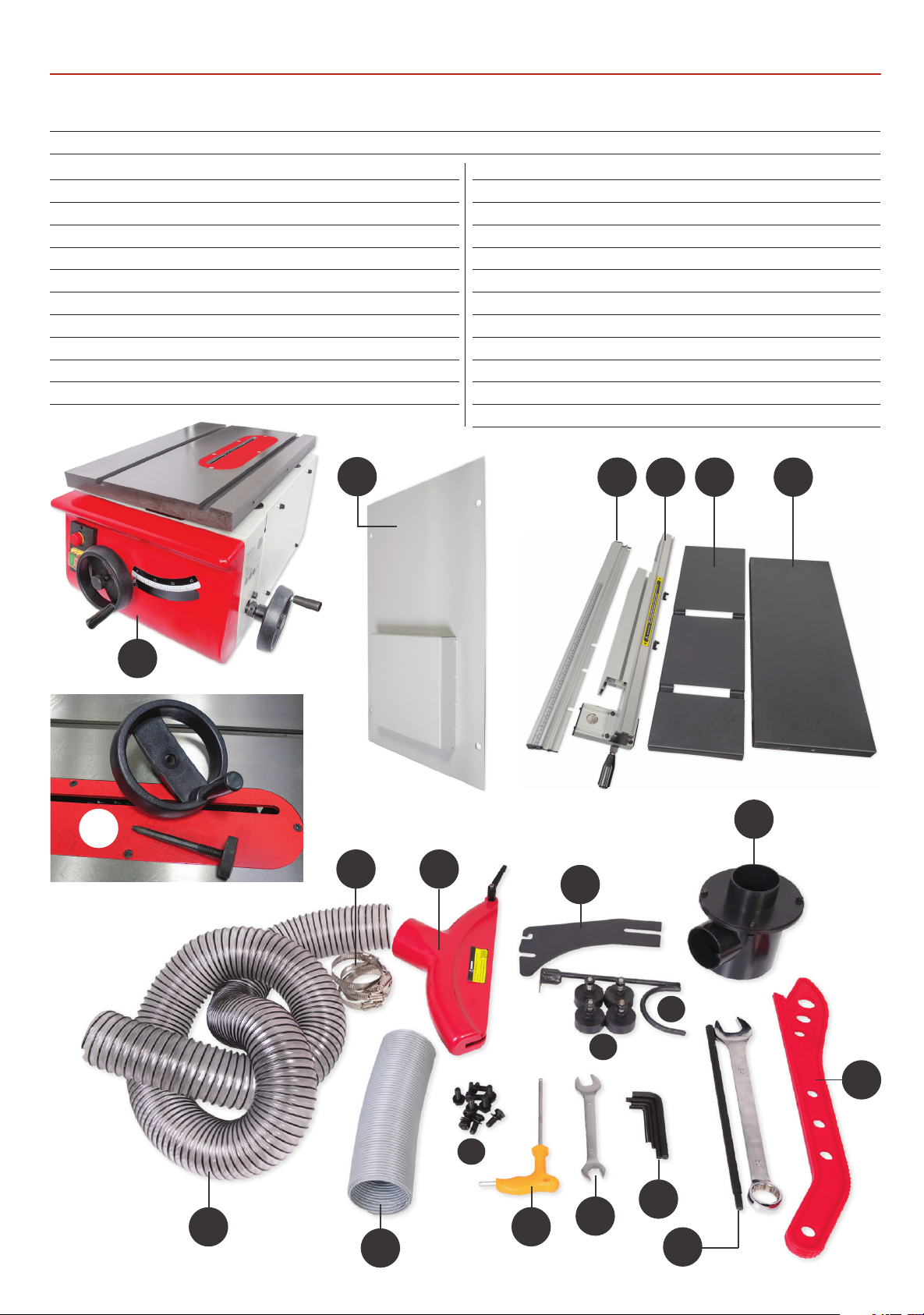

WHAT’S INCLUDED
Quantity Item Part Model Number
AW216TS, AW254TS
1 Basic Table Saw A
1 Side Extension Table B
1 Rear Extension Table C
2 Operating Wheels with Clamping Knobs D
1 Rip Fence Assembly E
1 Rip Fence Extension F
1 Rip Fence Rail with Scale G
1 Riving Knife H
1 Hose Support Bracket I
1 Dust Extraction Moulding J
1 Crown Guard with Clamping Handle K
1 Outer Flexible Hose L
4 Hose Clips M
1 Push Stick N
1 Blade Locking Bar O
1 24mm Spanner P
1 13-15mm Spanner Q
4 Hex Keys 6,5,3,2mm R
1 Handle Hex Key S
4 M8 Threaded Feet with nut/washer T
9 M8 Bolts, washers & one nut U
1 Inner Flexible Hose V
1 Base Plate W
D
A
W
M
K
H
EG
C B
J
L
V
3
U
S
I
T
N
R
Q
O
Page 4
OPTIONAL ACCESSORIES

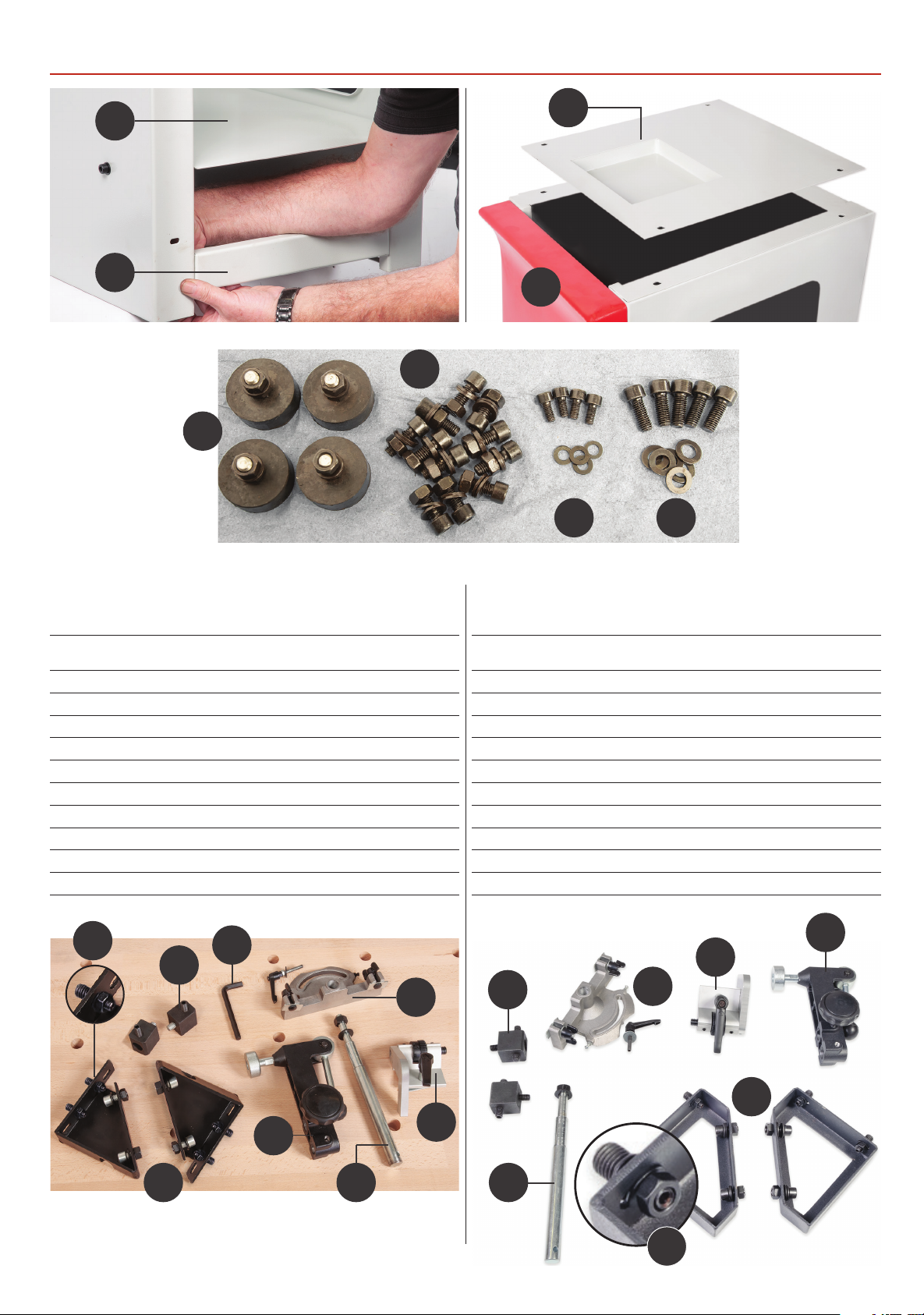

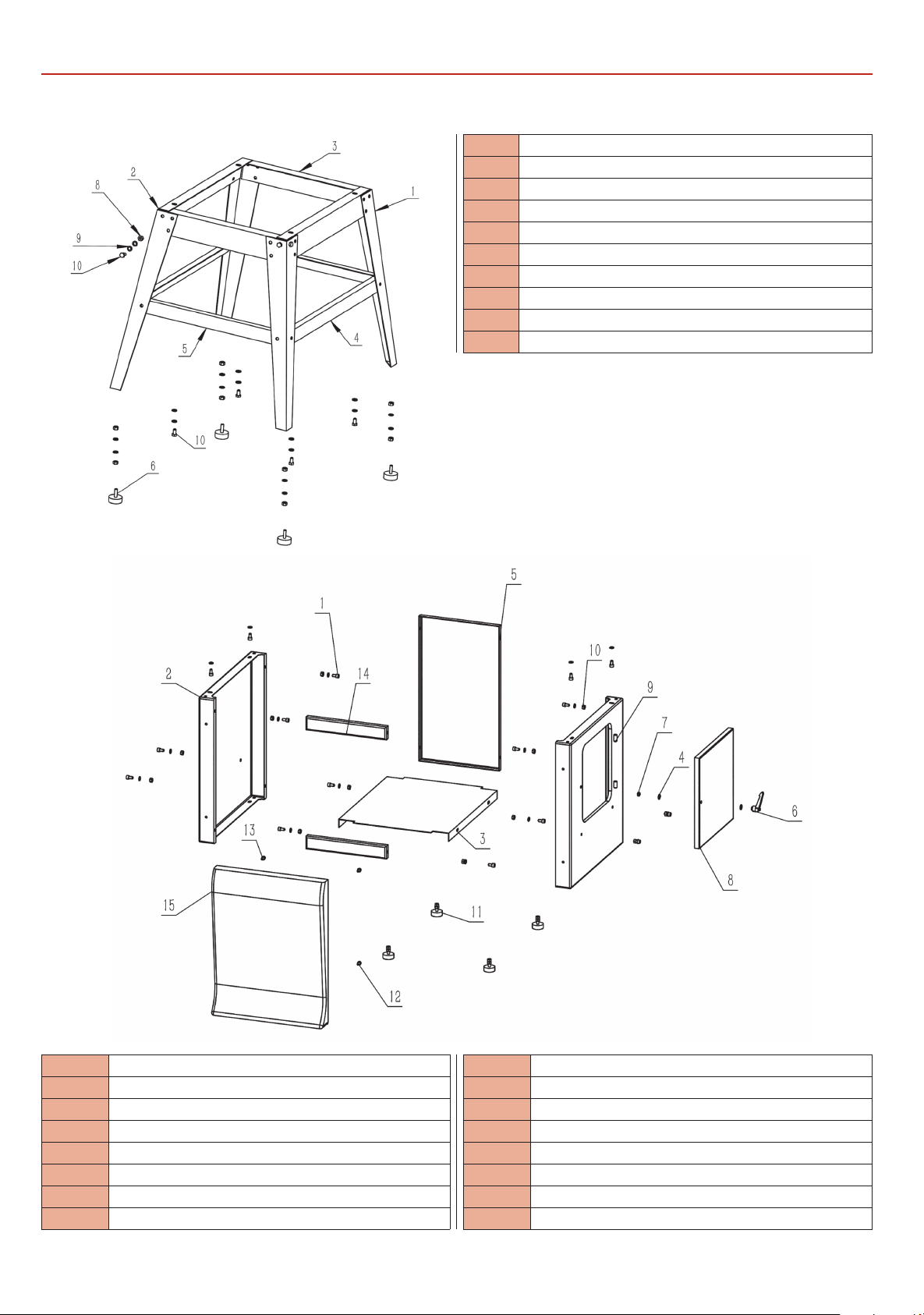

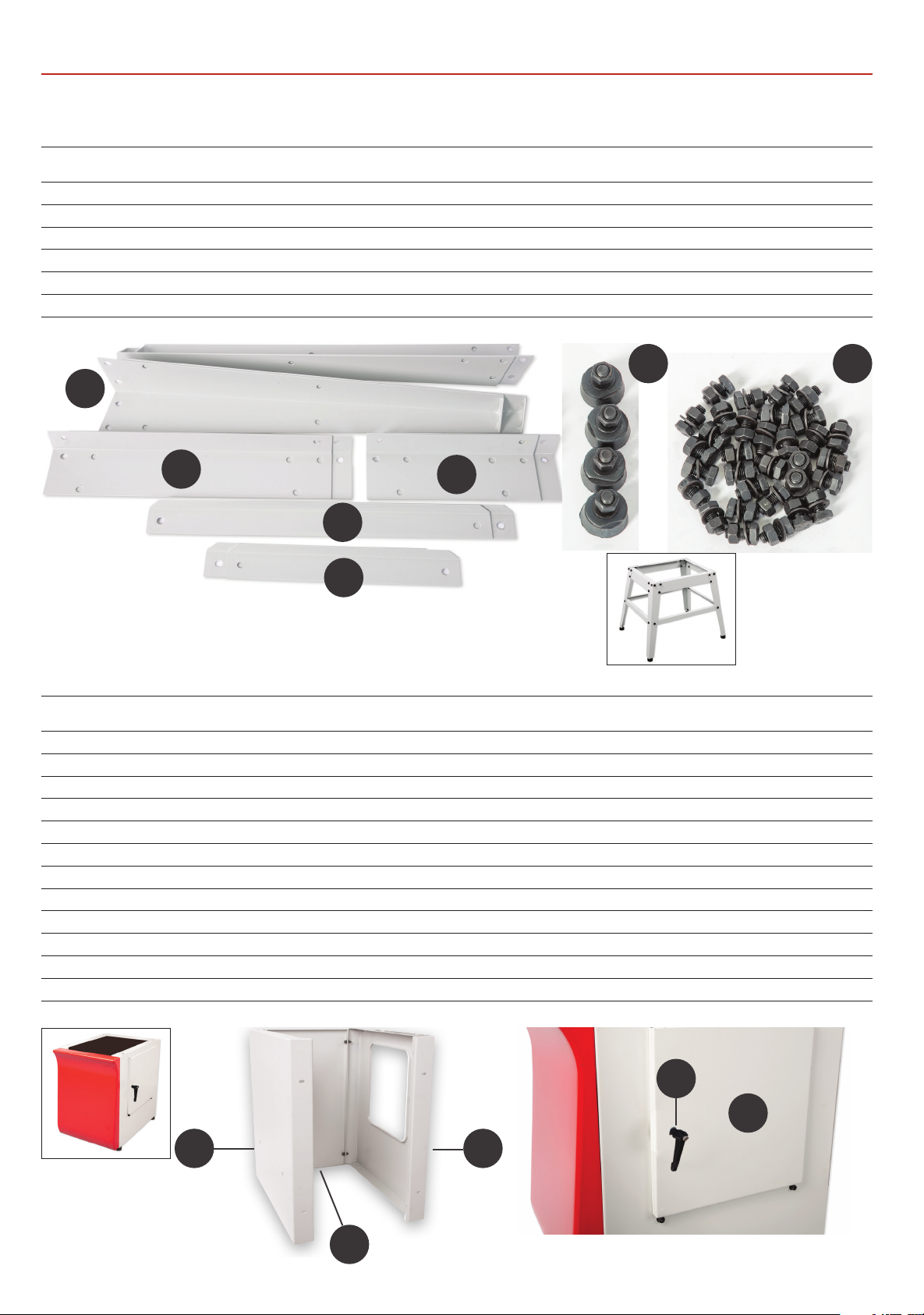

Code 104931 Floor Stand Assembly
Quantity Item Part
4 Leg Brackets 1
2 Long Upper Support Struts 2
2 Short Upper Support Struts 3
2 Long Lower Support Struts 4
2 Short Lower Support Struts 5
2 Threaded Rubber Feet 6
1 Floor Stand Bag of Fixings 7
6 7
1
2
3
4
5

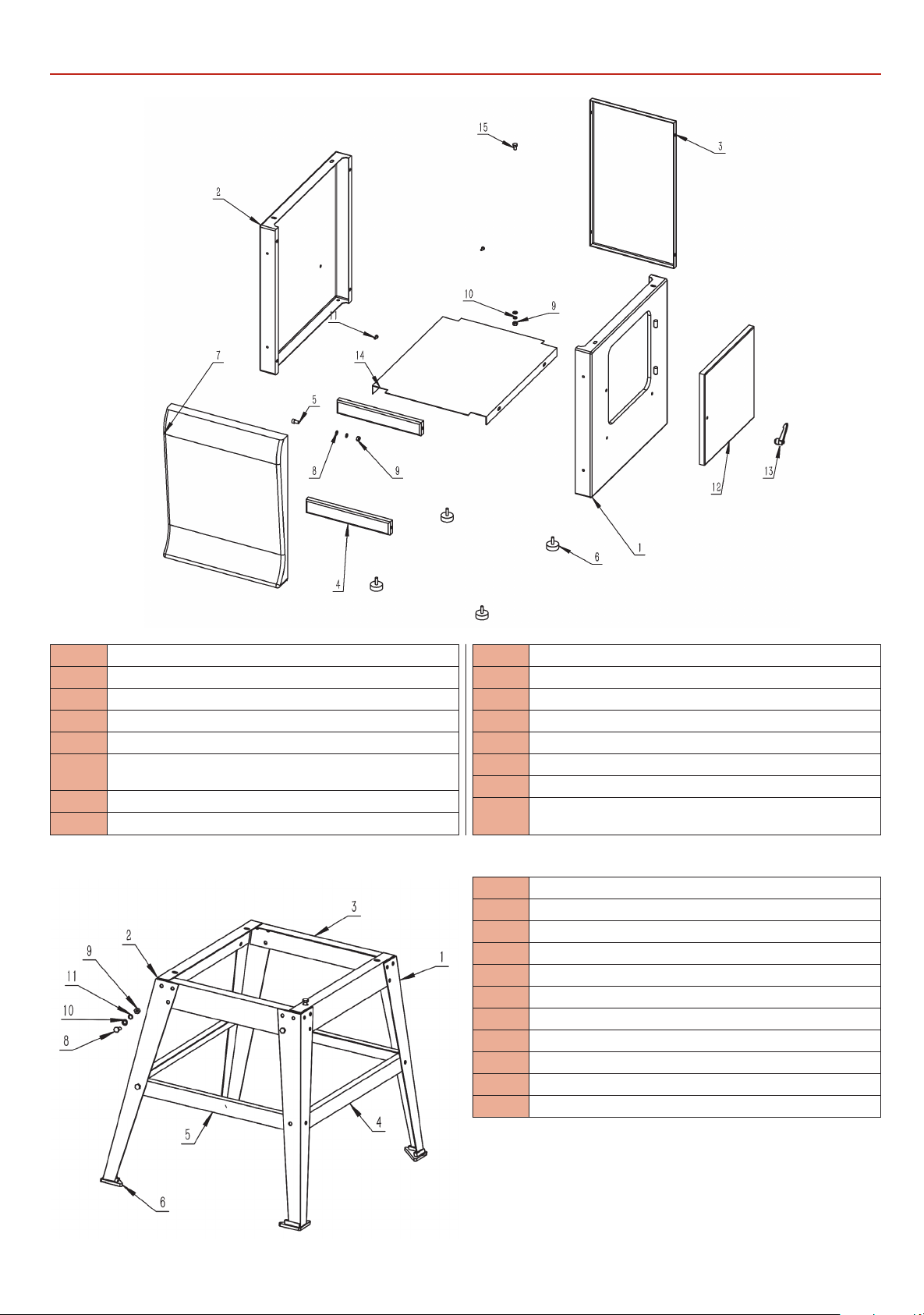

Code 104932 Cabinet Stand Assembly
Quantity Item Part
1 Right Side Panel with Door Cut out 8
1 Left Side Panel 9
1 Rear Panel 10
1 Door Panel 11
1 Cabinet Shelf 12
2 Upper and Lower Support Struts 13
1 Moulded Red Front Panel 14
Base Plate (W) (Supplied with Main Saw Assembly) 15
4 M8 Threaded Feet with Nut/Washer 16
11 M8 Cap head Bolts with Nut and Washers 17
4 Short Cap head Screws and Washer 18
5 M8 Cap head Bolts and Washers 19
1 Door Locking Handle & Nut 19A
9
19A
11
8
10
4
Page 5
OPTIONAL ACCESSORIES
12
13
15
14
17
16
18 19
Code 104930 Sliding Table Kit (AW216TS) Code 106805 Sliding Table Kit (AW254TS)
Quantity Item Part Quantity Item Part
2 Sliding Carriage Support Bracket 20
2 Threaded Adjuster Assembly 21
2 Height Adjusting Blocks 22
1 Hex Key 23
1 Fence Mitre Casting with Lift & Shift Handle 24
1 Tool Post for Hold Down Clamp 25
1 Hold Down Clamp 26
1 Fence Distance Stop with Micro Adjuster 27
1 Sliding Table Assembly 28
1 Fence 29
1 Sliding Carriage Assembly 30
21
23
22
24
2 Sliding Carriage Support Bracket 20
2 Threaded Adjuster Assembly 21
2 Height Adjusting Blocks 22
1 Hex Key 23
1 Fence Mitre Casting with Lift & Shift Handle 24
1 Tool Post for Hold Down Clamp 25
1 Hold Down Clamp 26
1 Fence Distance Stop with Micro Adjuster 27
1 Sliding Table Assembly 28
1 Fence 29
1 Sliding Carriage Assembly 30
26
27
22
24
20
26
27
25 25
5
21
20
Continues over...
Page 6
OPTIONAL ACCESSORIES

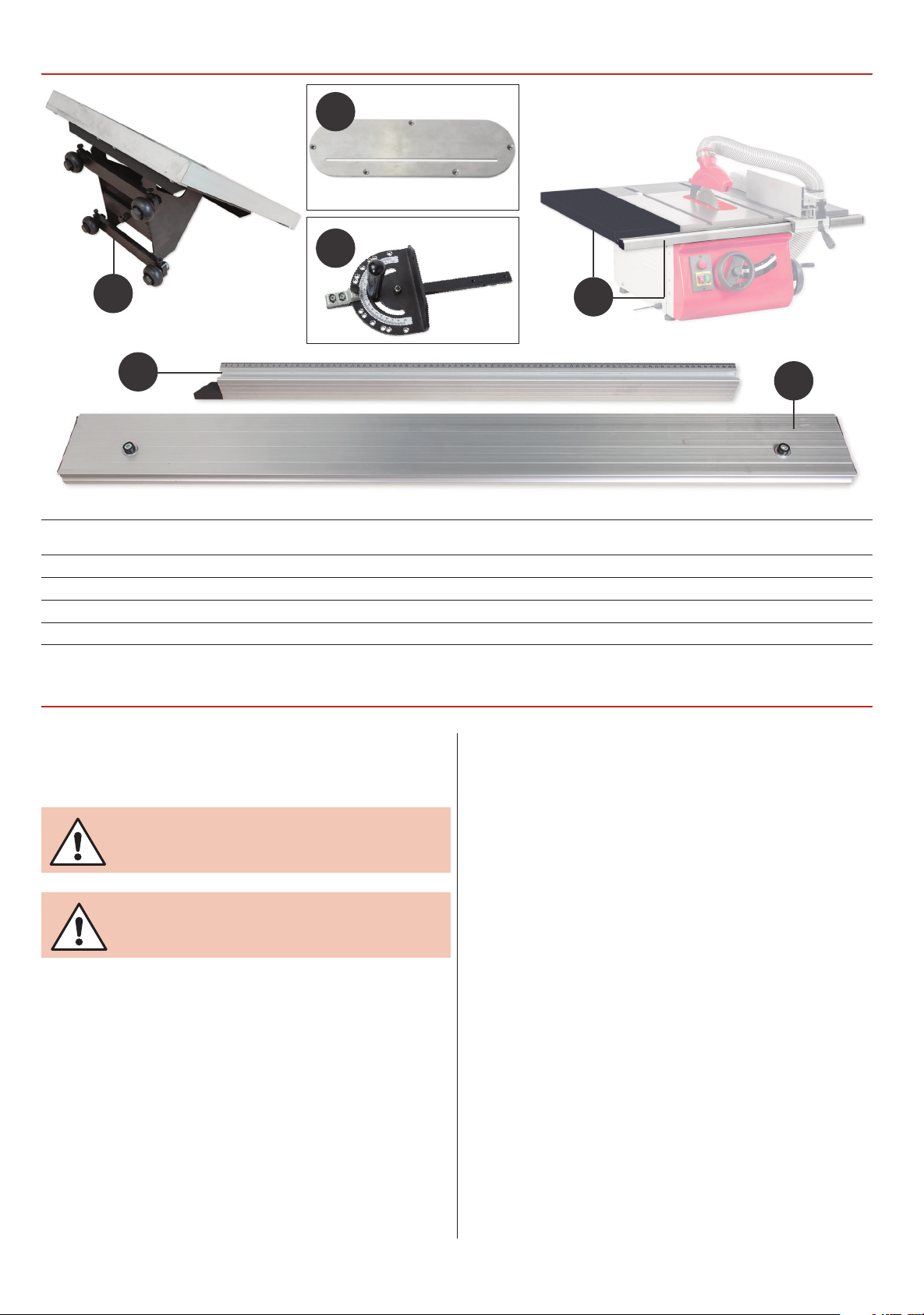

31
32
28
29
33
30
Quantity Item Part
1 Table Insert for the AW216TS Code: 104933 31
Table Insert for the AW254TS Code: 106807
1 19mm Mitre Fence 32
1 Left Hand Extension Table with Long Rip Fence Rail/Scale AW216TS Code: 106808 33
1 Left Hand Extension Table with Long Rip Fence Rail/Scale AW254TS Code: 106809
GENERAL INSTRUCTIONS FOR 230V MACHINES
The following will enable you to observe good working
practices, keep yourself and fellow workers safe and maintain
your tools and equipment in good working order.
WARNING!! KEEP TOOLS AND EQUIPMENT
OUT OF REACH OF YOUNG CHILDREN
KEEP WORK AREA AS UNCLUTTERED AS IS PRACTICAL.
UNDER NO CIRCUMSTANCES SHOULD CHILDREN BE
ALLOWED IN WORK AREAS.
Mains Powered Tools
• Tools are supplied with an attached 13 Amp plug.
• Inspect the cable and plug to ensure that neither are
damaged. Repair if necessary by a suitably qualified person.
• Do not use when or where it is liable to get wet.
Workplace
• Do not use 230V a.c. powered tools anywhere
within a site area that is flooded.
• Keep machine clean.
• Leave machine unplugged until work is about to commence.
• Always disconnect by pulling on the plug body and not the
cable.
• Carry out a final check e.g. check the cutting tool
is securely tightened in the machine and the correct
speed and function set.
• Ensure you are comfortable before you start work,
balanced, not reaching etc.
•
Wear appropriate safety clothing, goggles, gloves,
masks etc. Wear ear defenders at all times.
If you have long hair wear a hair net or helmet to prevent it
•
being caught up in the rotating parts of the machine.
• Consideration should be given to the removal of rings and
wristwatches.
• Consideration should also be given to non-slip footwear etc.
• If another person is to use the machine, ensure they are
suitably qualified to use it.
• Do not use the machine if you are tired or distracted
• Do not use this machine within the designated safety areas
of flammable liquid stores or in areas where there may be
volatile gases.
• Check cutters are correct type and size, are undamaged
and are kept clean and sharp, this will maintain their
operating performance and lessen the loading on the
machine.
• OBSERVE…. make sure you know what is happening
around you and USE YOUR COMMON SENSE.
6
Page 7
SPECIFIC INSTRUCTIONS FOR TABLE SAWS
Make sure the saw blade is the correct type for the job in hand.
Do not force the saw, if the saw begins to ‘stall’ you are ‘forcing
the cut’ or over working the saw.
Ensure that the saw blade is clean and sharp.
Resin build up on the blades will increase the friction of the
saw passing through the timber, and cause over heating of
the blade, blunt teeth will work harder tearing the fibre of
the timber as opposed to shearing it, also with subsequent
overheating. Both faults unnecessarily load the machine
beyond normal usage, and shorten its longevity.
Do not use blades that are deformed in any way.
Do not remove the blade guard. The design of the riving knife
on the machine will not allow for slotting or ‘blind’ grooving,
so there is no reason to remove the guard.
FOR YOUR OWN SAFETY NEVER OPERATE
THE TABLE SAW WITHOUT THE RIVING KNIFE
IN PLACE!
Do not remove the riving knife.
Do not use any blades that cut a smaller kerf than the riving
knife thickness. Make sure the riving knife is correctly adjusted
to the blade and is securely fastened. If the table insert
becomes damaged or broken, and will not support the timber
‘up close’ to the blade, replace it.
After switching off, never try to slow the saw down more
quickly by applying side pressure (with a piece of wood?) to
the blade. Apply the old joiner’s adage of never getting hands
within one handbreadth of the blade. Leave the machine
disconnected from the mains supply until you are about to
commence work.
Always disconnect the machine if you are leaving it unattended.
Never leave the vicinity of the machine unless the blade has
come to a complete stop.
Do not attempt to carry out any maintenance, corrective work,
setting up etc., unless the machine is disconnected from the
mains supply. If any tools have been used during setting up
procedures, make sure they are removed from the machine
and stowed safely away.
USE THE SUPPLIED PUSH STICK
WHEN CUTTING SMALL PIECES.
Do not attempt to carry out cross cutting operations ‘freehand’,
always use the mitre fence for small stuff and the sliding
carriage for larger work pieces. Do not attempt to ‘rip’ freehand,
always use the guiding facility of the rip fence.
It is perfectly acceptable to support guide and feed the timber
with your hands whilst ripping stuff of some length, however,
as you approach the blade ensure that the push stick is to hand,
and you use it.
UNDER NO CIRCUMSTANCES SHOULD
CHILDREN BE ALLOWED IN THE WORK AREA
AND KEEP TOOLS AND EQUIPMENT OUT OF
REACH OF YOUNG CHILDREN!
CONNECT A DUST EXTRACTION
MACHINE TO THE SAW.
Do not start the saw with the work piece touching the blade.
Do not commence sawing until the blade has run up to full
speed.
Remember the emphasis of the ‘push’ should be between the
blade and the fence and close to the fence. Use your free hand
to support and guide the material on the offside of the saw
blade and at least 100mm away from it. If the timber does not
extend to at least 100mm to the offside of the saw blade,
the material possibly does not need guiding or supporting.
WARNING! IF THE SAW JAMS!
SWITCH OFF IMMEDIATELY.
Check that there are no foreign objects e.g. old nails, screws,
small stones etc embedded in the material you are about to cut.
If necessary take a wire brush to the timber before working.
7
Page 8
SPECIFICATION
Code 107712
Model AW216TS
Rating Workshop
Power 1.1 kW 50Hz 230V 1ph
Blade Dia/Bore 216 mm / 30 mm
Blade Tilt 0° to 45°
Max Depth of Cut @ 45˚ 45 mm
Max Depth of Cut @ 90˚ 65 mm
Max Width of Cut with Fence 370 mm
Table Size 570 mm x 400 mm
Table Height 320 mm (bench mounted)
Table Size With Extensions 570 mm x 675 mm
Dust Extraction Outlet 100 mm and 63 mm
Min Extraction Airflow Required 850 m³/hr
Overall L x W x H 670 mm x 695 mm x 420 mm
Weight 70 kg
ASSEMBLY
107712-107713 Basic Saw
WARNING! THE SAW IS HEAVY SEEK
ASSISTANCE BEFORE LIFTING.
Code 107713
Model AW254TS
Rating Workshop
Power 1.5 kW 50Hz 230V 1ph
Blade Dia/Bore 254 mm / 30 mm
Blade Tilt 0° to 45°
Max Depth of Cut @ 45˚ 56 mm
Max Depth of Cut @ 90˚ 80 mm
Max Width of Cut with Fence 430 mm
Table Size 485 mm x 680 mm
Table Height 375 mm (bench mounted)
Table Size With Extensions 760 mm x 900 mm
Dust Extraction Outlet 100 mm and 63 mm
Min Extraction Airflow Required 1,000 m³/hr
Bench Mounted 1,070 x 800 x 645 mm
Stand/Cabinet Mounted 1,070 x 800 x 1,170 mm
Weight 89 kg
Fig 03-04-05
NOTE: If either sand or cabinet has been purchased,
assemble them first, see page 12-13.Then mount the stand
to the saw before moving the saw and standing it upright.

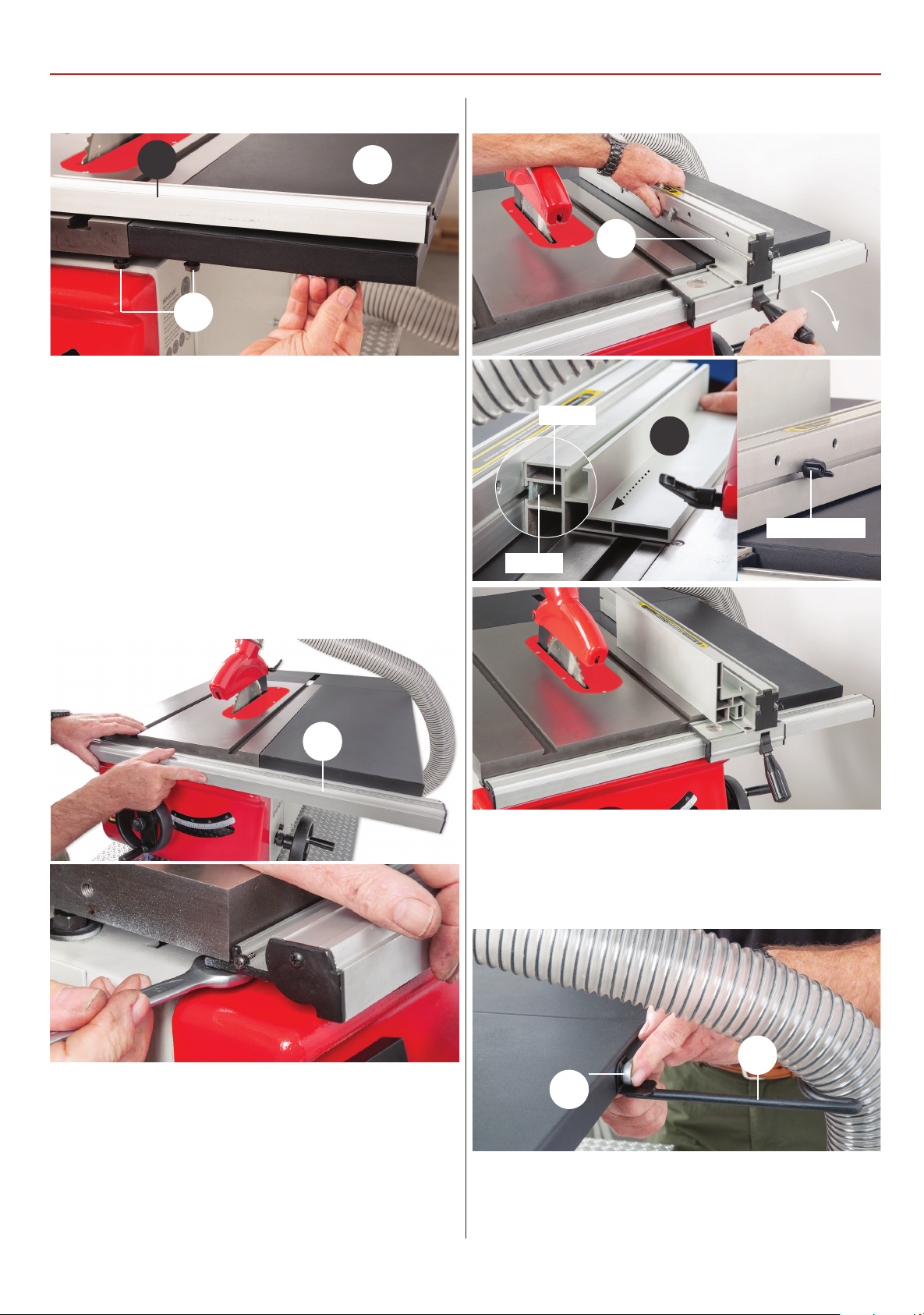

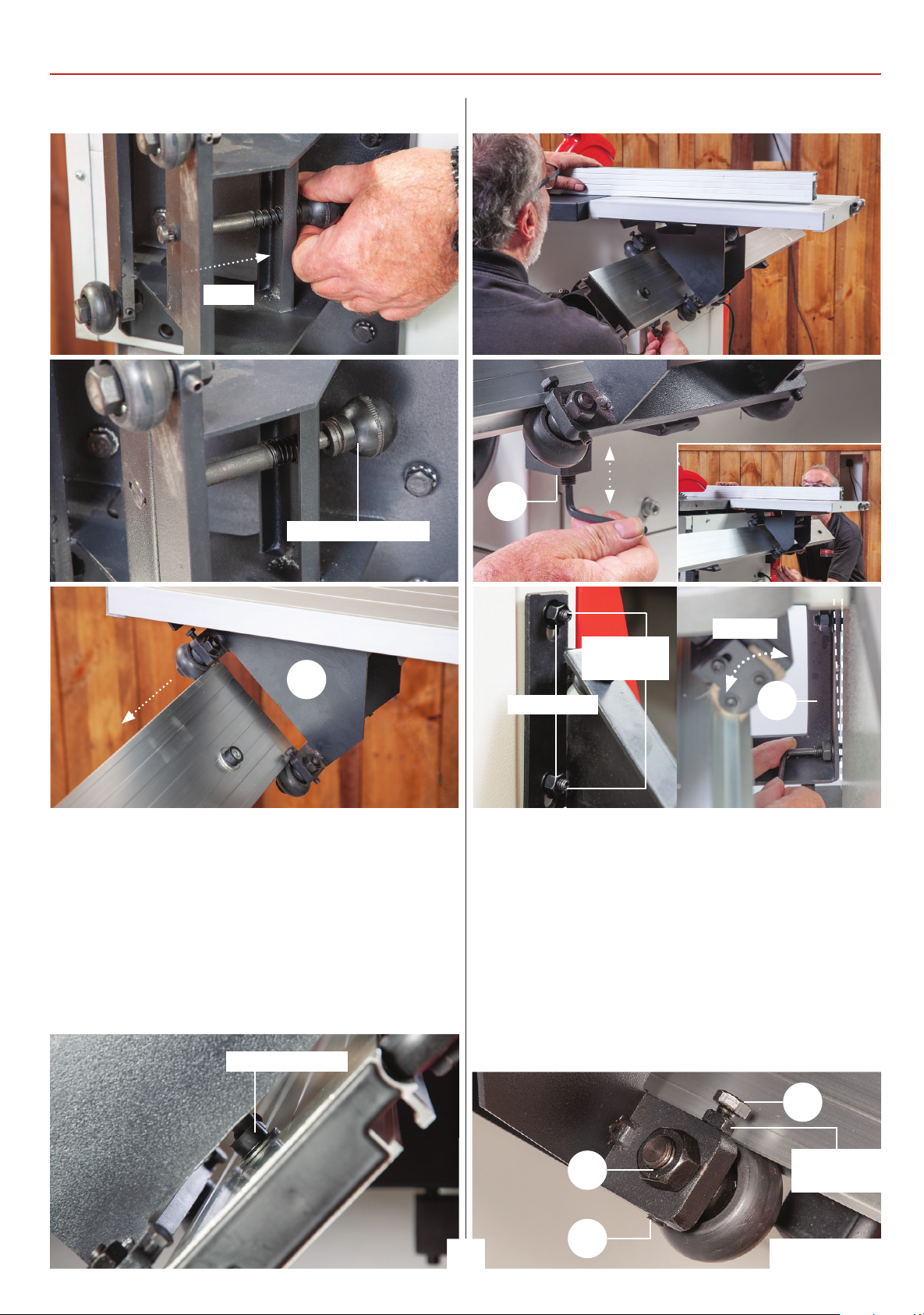

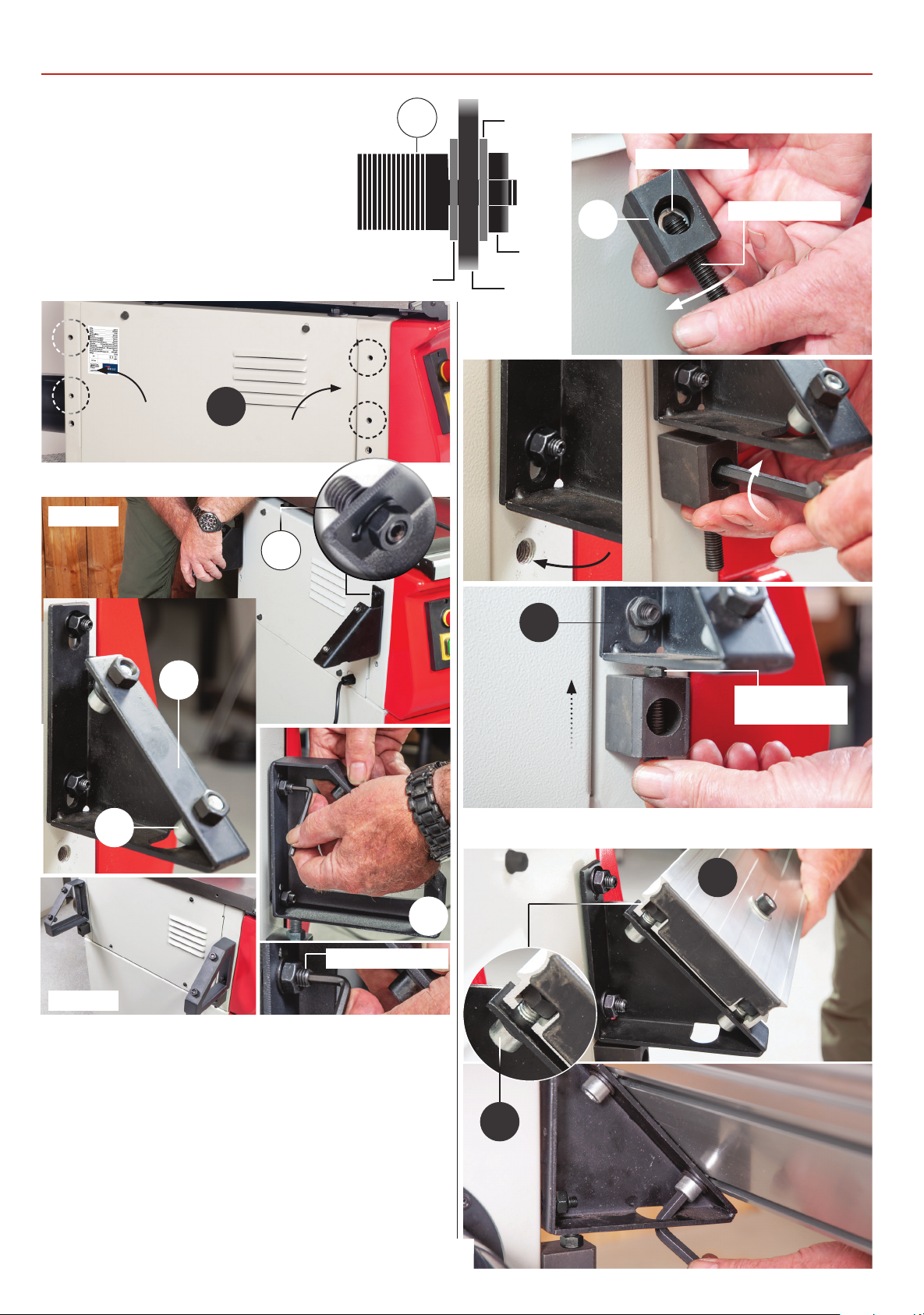

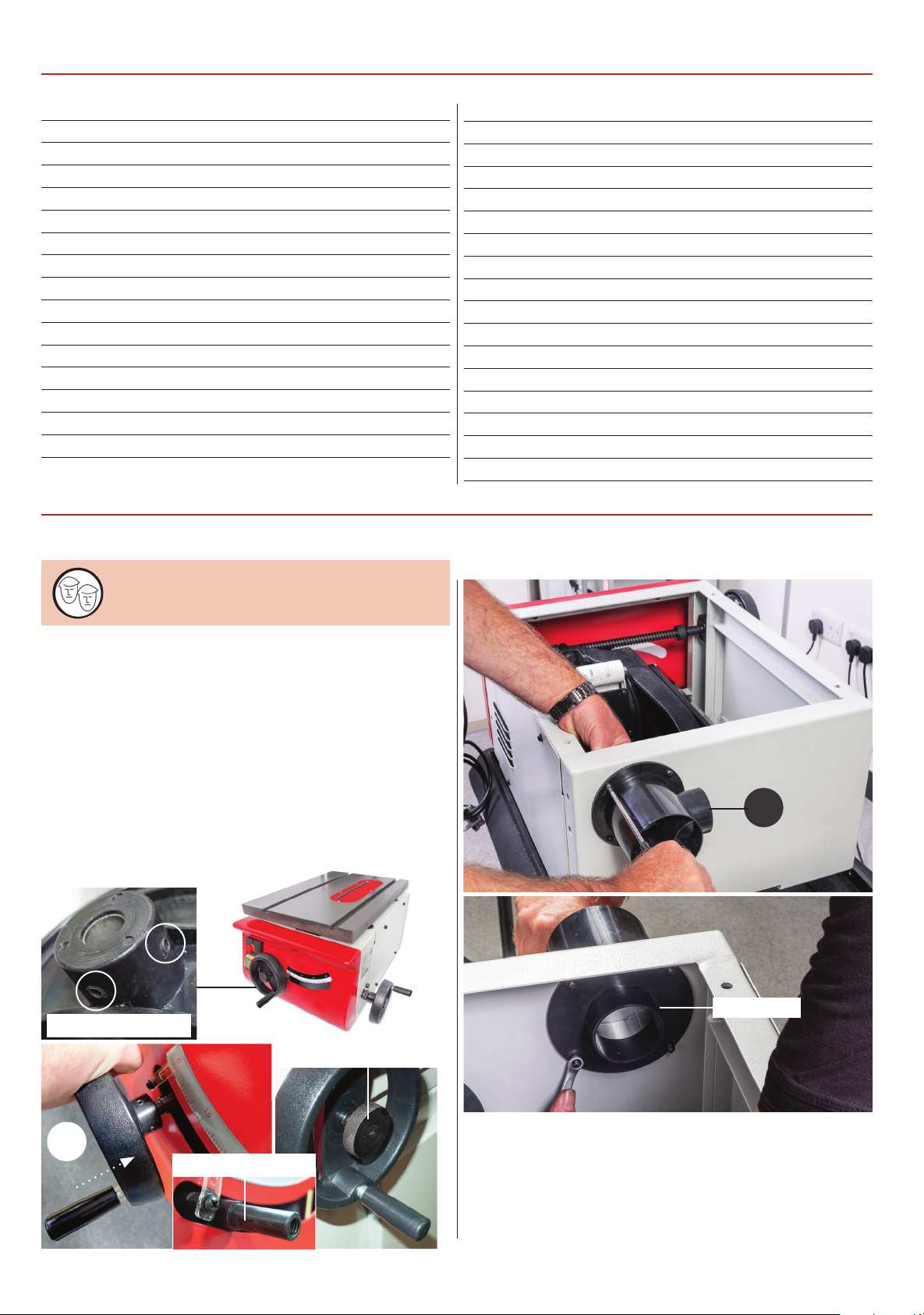

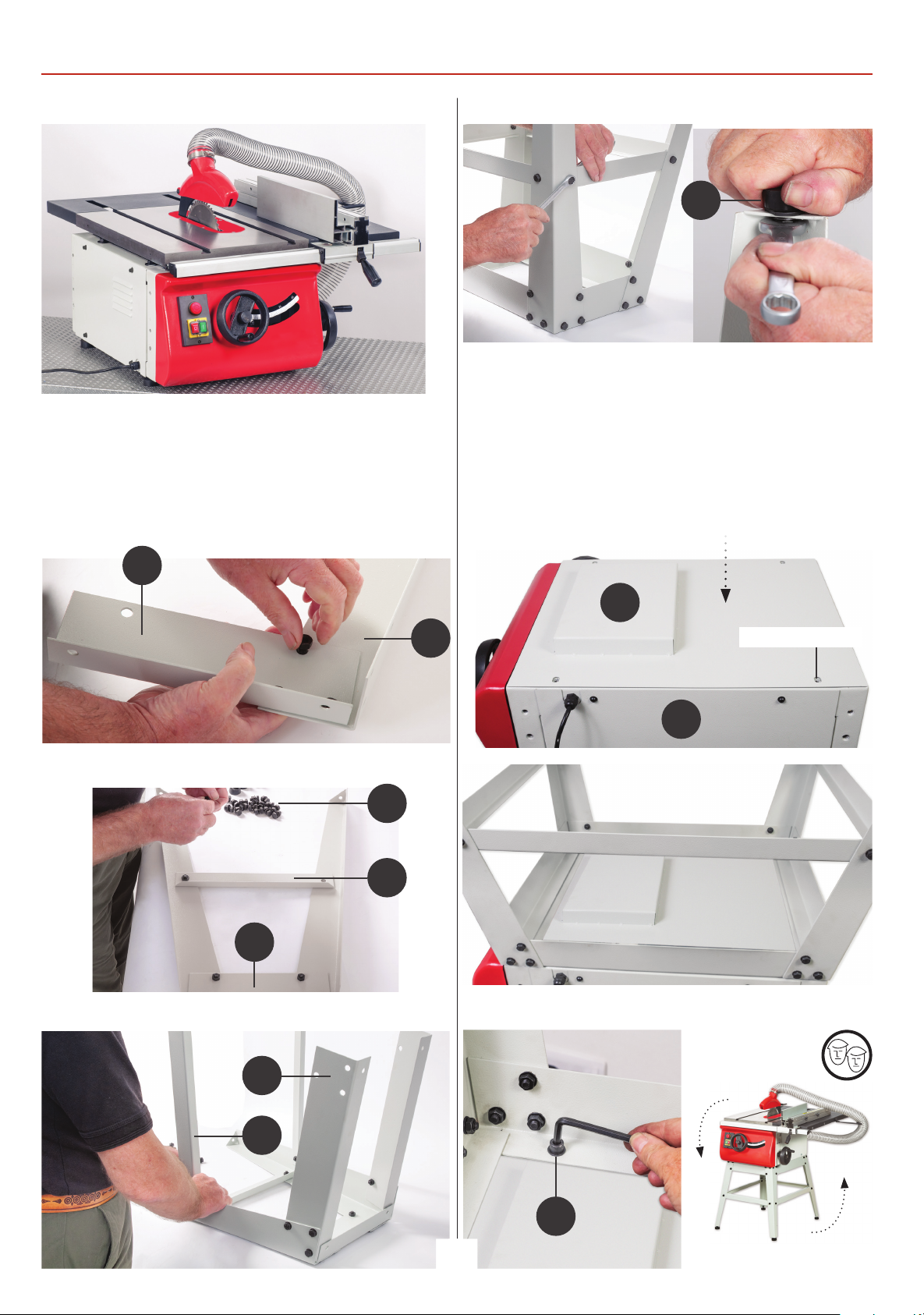

1. With assistance lift the saw assembly (A) from the box
onto a suitable work surface. loosen the two grub screws on
the operating wheels (D) and side each wheel onto the shafts.
Nip-up grub screws to securing in place, see fig 01-02. Make
sure the screws clamp against the machined face on the shaft.
Insert the threaded locking knobs through the centre of
each operating wheel and finger tighten.
Fig 01-02
Grub screws
Locking knob
J
Inner plate
D
Machined face
2. Undo and remove the screws,washers & nuts to separate
the two parts of the dust extraction moulding (J). Position the
inner mounting plate over the machine cut out for the
extraction outlet. Repeat for the outer moulding, line up the
holes and replace the screws to secure the assembly (J) in
position, see fig 03-04-05.
8
Page 9
ASSEMBLY
Fig 06-07
V

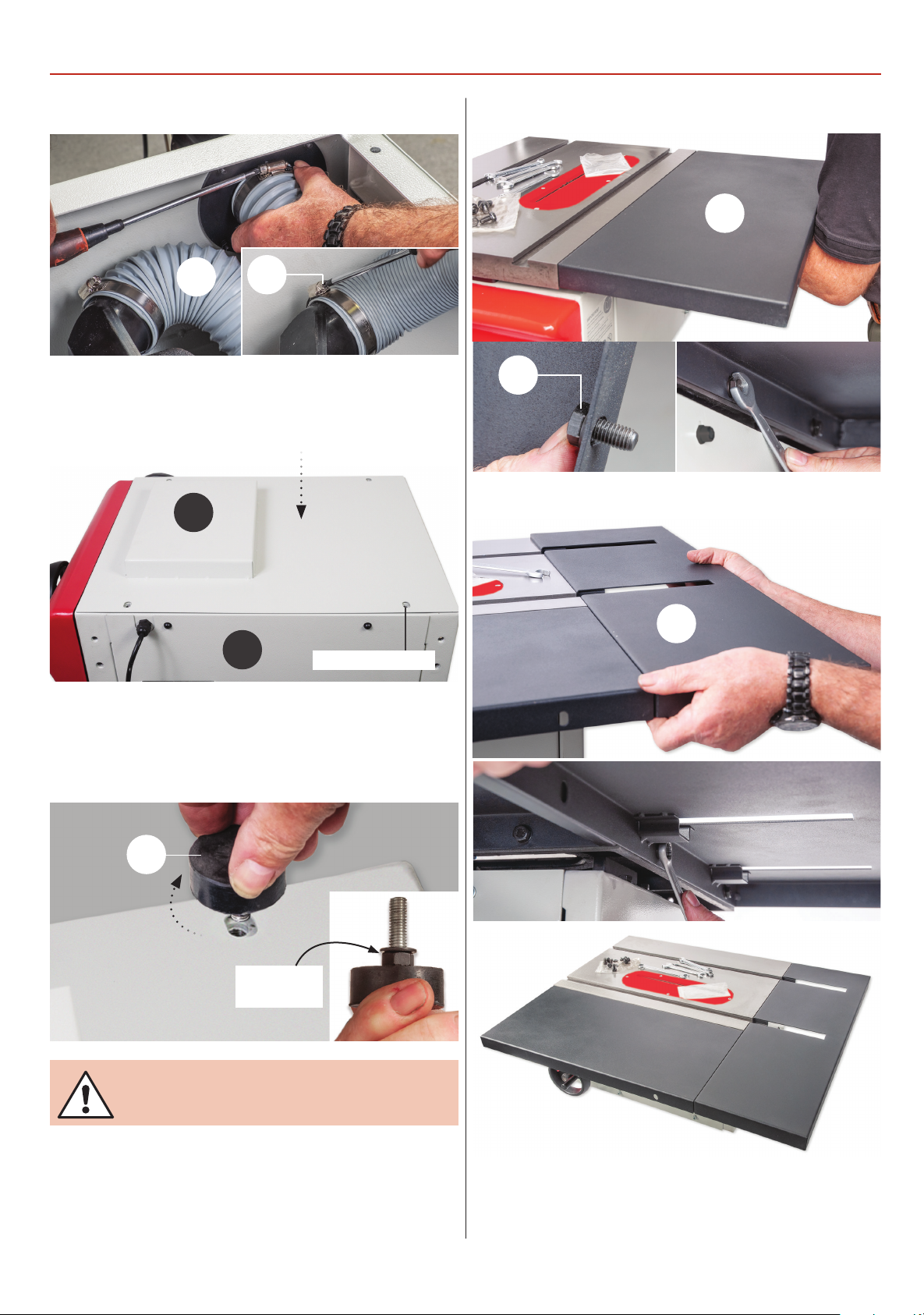

3. Locate the inner flexible hose (V) and two hose clips (M).
Place a clip over each end of the hose and secure the hose over
the extraction outlets, see fig 06-07.
M
Fig 08
W
Fig 10-11-12
B
U
Fig 13-14-15
A
4. Place the base plate (W) to the base of the saw (A) and
align the holes as shown in fig 8. Find the four threaded feet (T),
screw each foot in turn into the threaded holes in each corner
of the chassis, see fig 09 below.
Line up the holes
T
Locking nut &
washer
C
WITH ASSISTANCE TURN THE SAW
ASSEMBLY OVER!
5. Lower the saw down, locate the side and rear extension
tables (B-C) and M8 bolts/washers (U). Line up the holes in the
side extension table (B) with the threaded holes to the side
of the main cast iron table. Insert the bolts with washers (U)
through the holes and secure the extension table (B) to the
main cast iron table, see fig 10-11-12.
6. Repeat the procedure for the rear extension table (C).
Note: make sure you line up the machined slots in the table
with the 19mm mitre ‘T’ slots in the cast iron table. Secure
both extension tables together, see fig 13-14-15.
9
Continues over...
Page 10
ASSEMBLY
Fig 16-17
Insert plate

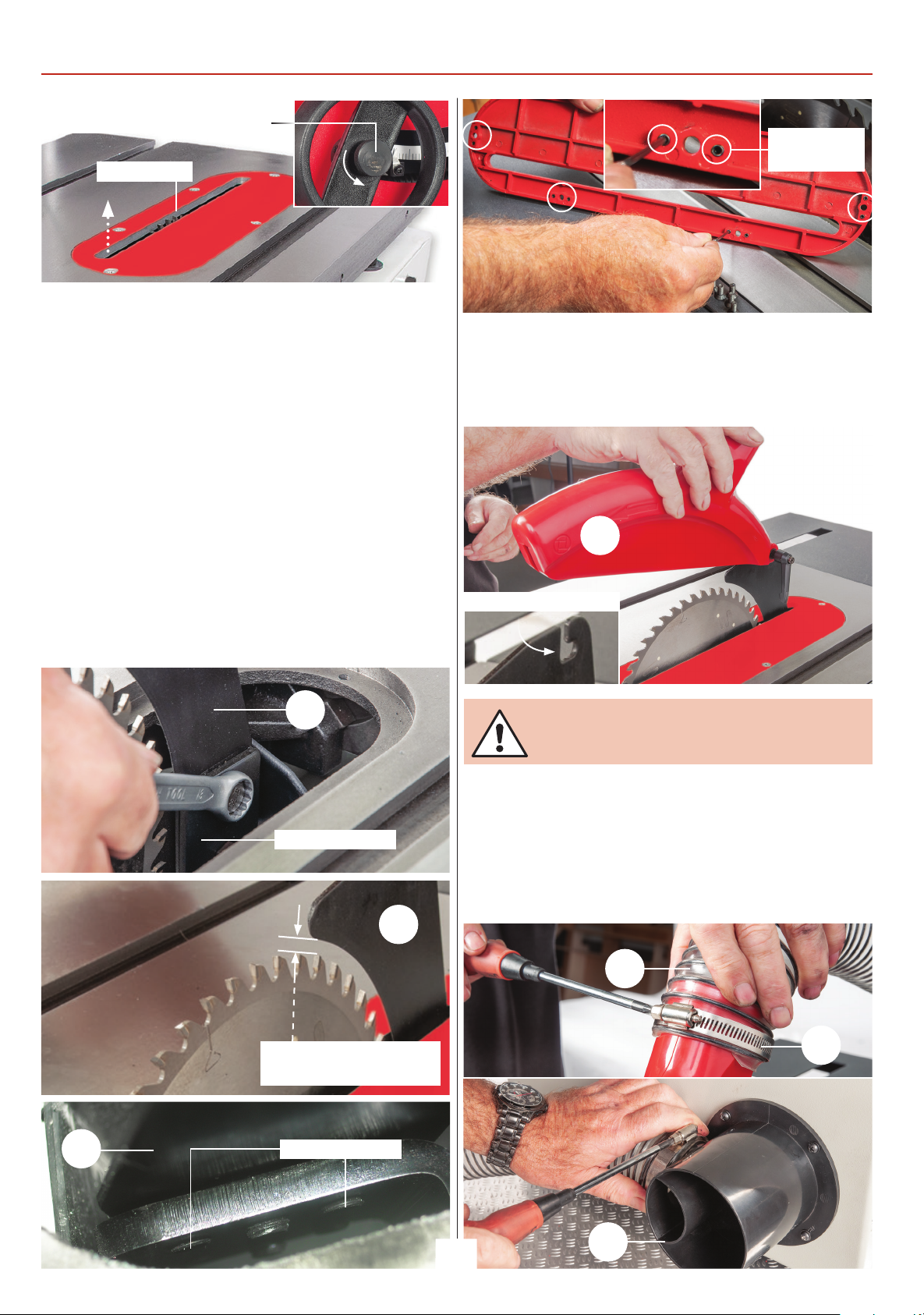

7. Raise the saw by first releasing the rise & fall operating
wheel clamping knob, remove the five cross head screws
holding the table insert and place safely aside, see 16-17.
Raise the saw to its maximum height by turning the
operating wheel anti-clockwise.
8. Find the riving knife (H) loosen the two nuts holding the
riving knife clamping plates, slide the riving knife down
between the two plates and lightly tighten to hold the riving
knife in place. Check that the tip of the knife has a clearance
of 3-8mm between the blade. Adjust the four grub screws to
the opposite side of the clamping plate to aline the riving
knife with the blade. Tighten the nuts to secure the riving
knife in place, see fig18-19-20. Adjust the levelling grub
screws on the insert plate so it’s level with the main table,
see fig 21. Re-secure the insert plate.
Clamping knob
Levelling
grub screws
9. Locate the crown guard (K), flexible hose (L) and hose
clips (M). Loosen the lift & shift handle on the crown guard.
Introduce the slot to the rear of the crown guard (K) over the
riving knife and slot pin bolt into the curved slot in the riving
knife. Tighten the handle, see fig 22.
Fig 22
K
Curved slot
Fig 18-19-20-21
H
Clamping plates
H
3-8mm Gap between the
riving knife and the blade
NOTE: DO NOT OVERTIGHTEN AS THE CROWN
GUARD IS PLASTIC AND COULD BE DAMAGED!
10. Locate the flexible hose (L), place a hose clip (M) over one
end. Insert the hose over the extraction outlet on the crown
guard (K) and tighten the clip. Place the remaining clip over
the opposite end of the hose, insert the hose over the
extraction out moulding (J) and tighten, see fig 23-24.
Fig 23-34
L
M
H
Grub screws
J
10
Page 11
ASSEMBLY
Fig 35
G
B
U
11. Put to hand four M8 Bolts with washer/nuts (U) and rip
fence rail with scale (G). Insert two bolts with washers up
through the holes to the underside end of the side extension
table (B) and lightly screw on two bolts. Place the remaining
two bolts with washer into the threaded holes to the underside
of cast iron table, see fig 35. Note: make sure to give enough
clearance between the tables and bolts for the next step.
12. Line up the machined slots in the rip fence rail (G) with the
bolts and slide the rail up against the tables. Nip up the bolts to
secure the rail, see fig 36-37.
Fig 38-39-40
E
‘T’ Slot
F
Butterfly knob
‘T’ bolt
Fig 36-37
G
13. Locate the rip fence (E) and lower the clamp assembly
down over the fence rail (G) and press down the locking lever
to secure in position, see fig 38.
15. Locate the hose support bracket (I) and secure it to the side
extension table (B) using a M8 bolt washer/nut (U). Insert the
holes (L) into the hose bracket, see fig 41.
Fig 41
I
U
14. Find the rip fence extension (F), slot the two ‘T’ bolts
mounted in the rip fence (E) into the ‘T’ slot on the fence
extension and nip up the butterfly knob clamps, see fig 39.
Note: the extension (F) can be set in two positions,
see fig 40.
16. Place a straight edge across the tables and check they are
level and make adjustment until correct.
11
Continues over...
Page 12
ASSEMBLY
107712-107713 Basic Saw
AW216TS Table Saw assembled for work bench set up
104931 Optional Floor Stand for AW216TS
106804 Optional Floor Stand for AW254TS
Locate all the components on page 04 and assemble as follows.
Step 1
Step 4
6
Mounting the Stand to the Saw
Remove the rip fence, crown guard and hose and lower saw
blade below the table. With assistance turn the saw assembly
(A) over & remove the four rubber feet (T). Place the base plate
(W ) on top and align the holes as shown in step 5. Lower the
stand on top of the saw, line up the holes and secure using the
caphead bolts & washers (19). Place the assembly upright on
the floor, see step 6.
Step 5
Step 2
Step 3
3
3
7
5
1
W
Line up the holes
A
Step 6
2
4
19
12
Page 13
ASSEMBLY
104932 Optional Cabinet Stand for AW216TS
106806 Optional Cabinet Stand for AW254TS

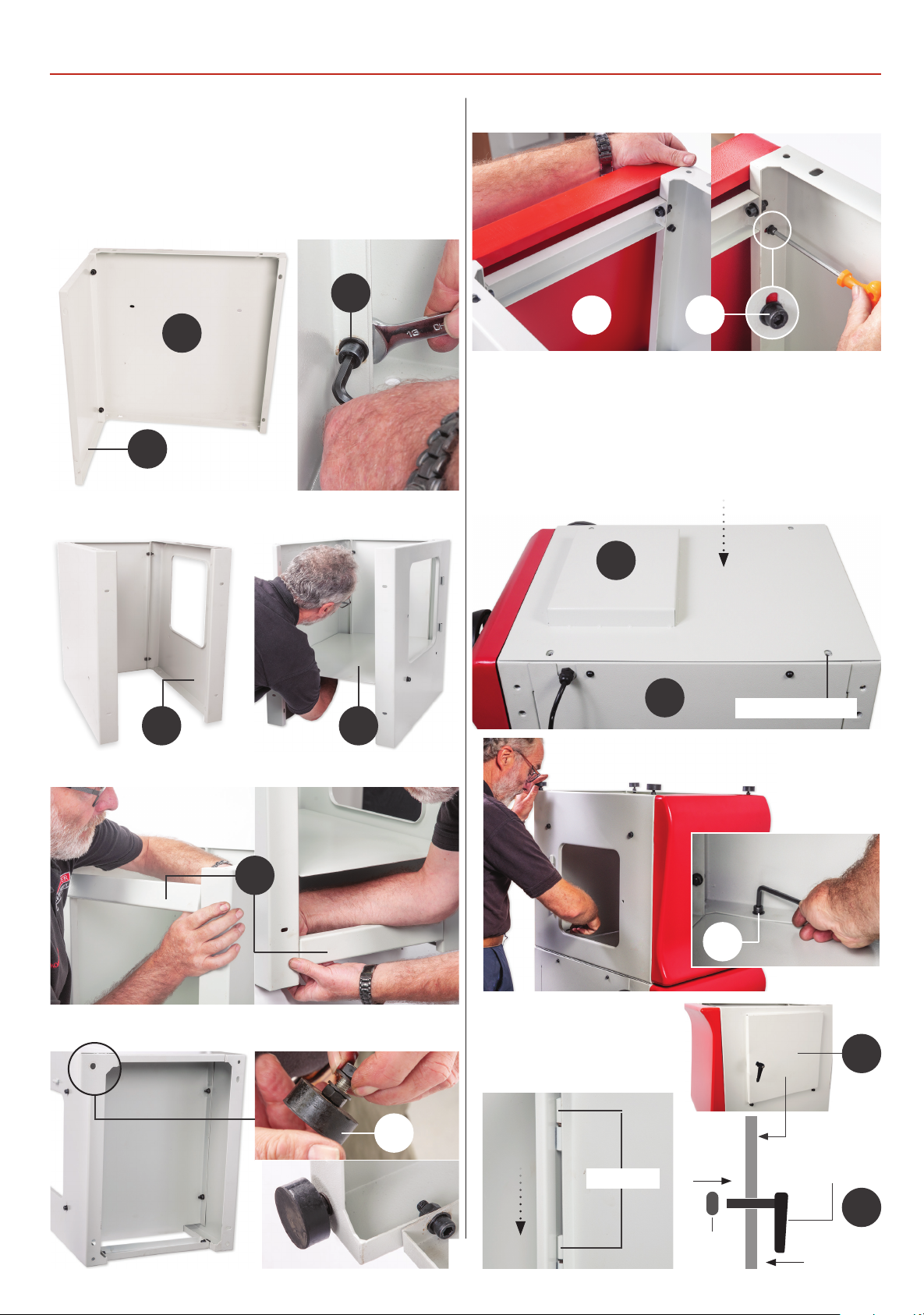

Locate all the components for the cabinet stand as shown on
page 04-05 and follow the instructions below.
Step 1
17
9
10
Step 2
Step 5
14
Mounting the Cabinet to the Saw
Turn the saw assembly (A) over, place the base plate (W) on
top and align the holes as shown in step 6. Turn the cabinet
over and place on top of the saw. Align the threaded holes
and secure using the caphead bolts & washers (19),
see step 7-8 below.
18
Step 6
Step 3
Step 4
8
13
12
W
A
Line up the holes
Step 7
19
Step 8
16
13
Hinges
11
Door locking handle
19A
Nut
Page 14
ASSEMBLY
104930 Optional Sliding Table Kit for AW216TS
106805 Optional Sliding Table Kit for AW254TS
1. Locate the carriage support brackets (20).
Offer up the elongated slots in both support
brackets with the threaded holes in the side
of the saw assembly (A). Using the supplied
Hex key (R) secure the bracket in place using
the threaded adjusters (21), see fig 42-43-44.
Fig 42-43-44
A
Threaded holes
21
Threaded
adjuster
Washer
Washer
Nut
Support
Bracket
Fig 45-46-47
Cap head bolt
Height adjuster
22
AW216TS
a
20
21
20
Height adjuster
locking nut
Fig 48-49
30
20
Threaded adjuster
AW254TS
2. Find the two height adjusting blocks (22), unscrew the
height adjuster thread & remove the locking nut to give you
access to the cap head bolt, see fig 45. Fix the blocks against the
saw using the threaded holes beneath each bracket, see fig 46.
Replace the height adjuster locking nut & screw the adjuster
thread, so it touches the base of the bracket (20), see fig 47.
3. Locate the sliding carriage (30), loosen the two cap head
bolts/nuts (a) on the brackets (20). Introduce the first two nuts
into the ‘T’ slot rails on either side of the carriage (30) and slide
on, repeat for the opposite end. Adjust the carriage to your
preference and nip up the four bolts, see fig 48-49.
14
a
Page 15
ASSEMBLY
Fig 50-51-52
Fig 54-55-56-57
PULL
22
Table stop pin knob
28
4. Locate the sliding table (28), turn the table over and pull
out and twist the table stop pin knob so it’s in the unlocked
position, see fig 50-51.
5. Position the sliding table (28) so the wheel assembly engages
either side of the sliding carriage (30) and roll on the table, see
fig 52. Reengage the stop pin and slide it up against the stop on
the carriage, see fig 53.
Fig 53
Carriage stop
6. Place a level across both tables, using the supplied hex key
(R) adjust both height adjusting blocks (22) and the threaded
adjusters on each support bracket (20), until the sliding table
(28) is level with the cast iron table, see fig 54-55-56-57.
7. The sliding table (28) can also be raised or lowered
independently in small increments by adjusting the wheel
assembly, see fig 58. Adjust each wheel in turn by loosening
the wheel locking nut (a), adjust the stop bolt (b) and grub
screw (c) until you are correct, see fig 59 on next page. Nip-up
the wheel nuts (a) and the stop bolt (b) locking nut.
Locking nuts
Pivot
Self tapping
screws
20
Fig 58
15
a
c
b
Stop bolt
locking nut
Continues over...
Page 16
ASSEMBLY
Fig 59

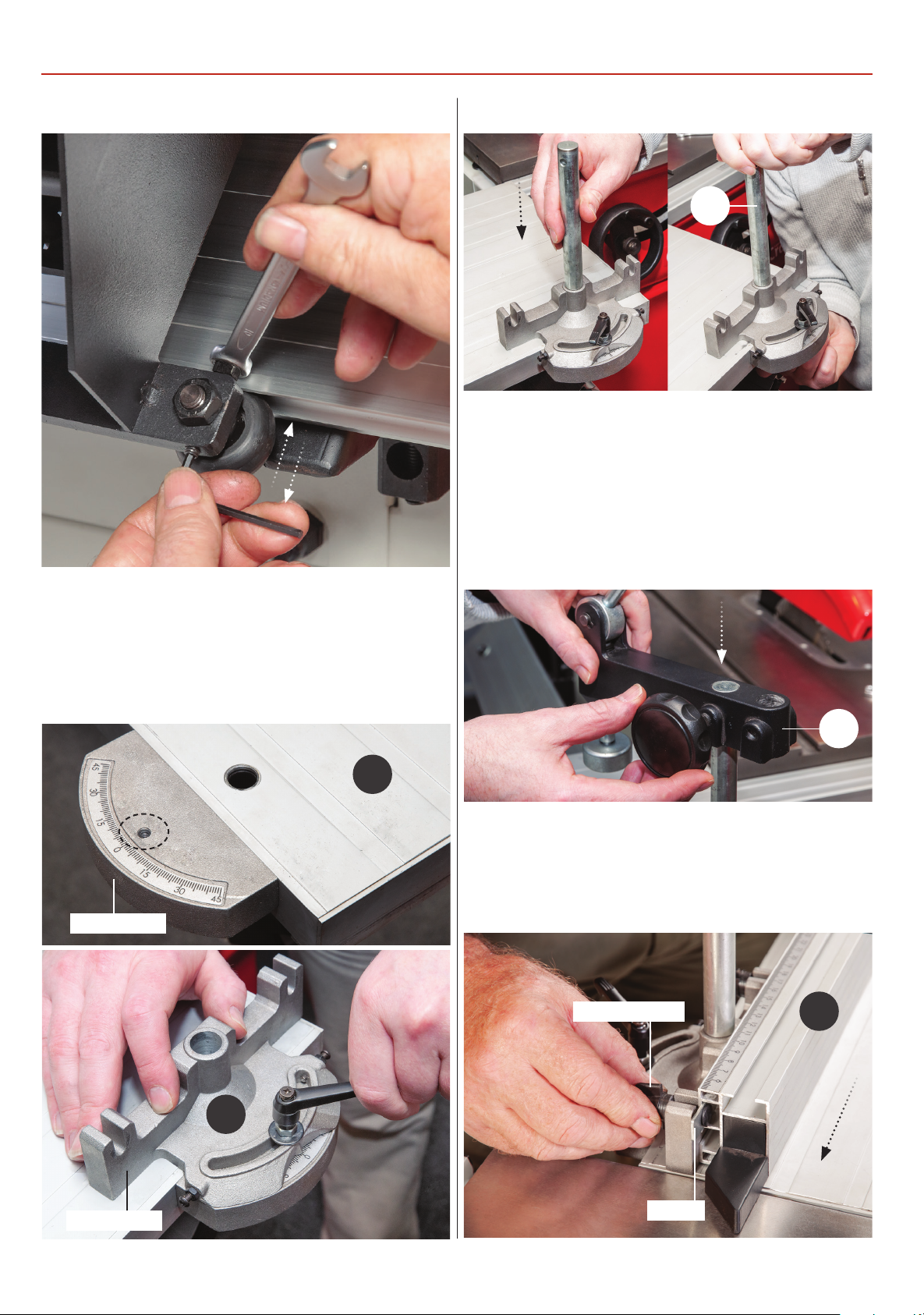

8. Locate the fence mitre casting and lift and shift hand (24).
Insert the locking handle with washer through the elongated
slot in the fence mitre casting and down into the threaded hole
in the scale casting. This is mounted to the side of the sliding
table (28), see fig 60-61.
Fig 62
25
9. Remove the washer/nut from the tool post (25), insert the
post down through the machined holes in both mitre casting
(24) and sliding table (28) and secure using the washer/nut,
see fig 62.
10. Loosen the hold down clamping knob (26) and slide the
assembly down the tool post (25) and clamp in position, see
fig 63.
Fig 63
Fig 60-61
Scale casting
24
28
26

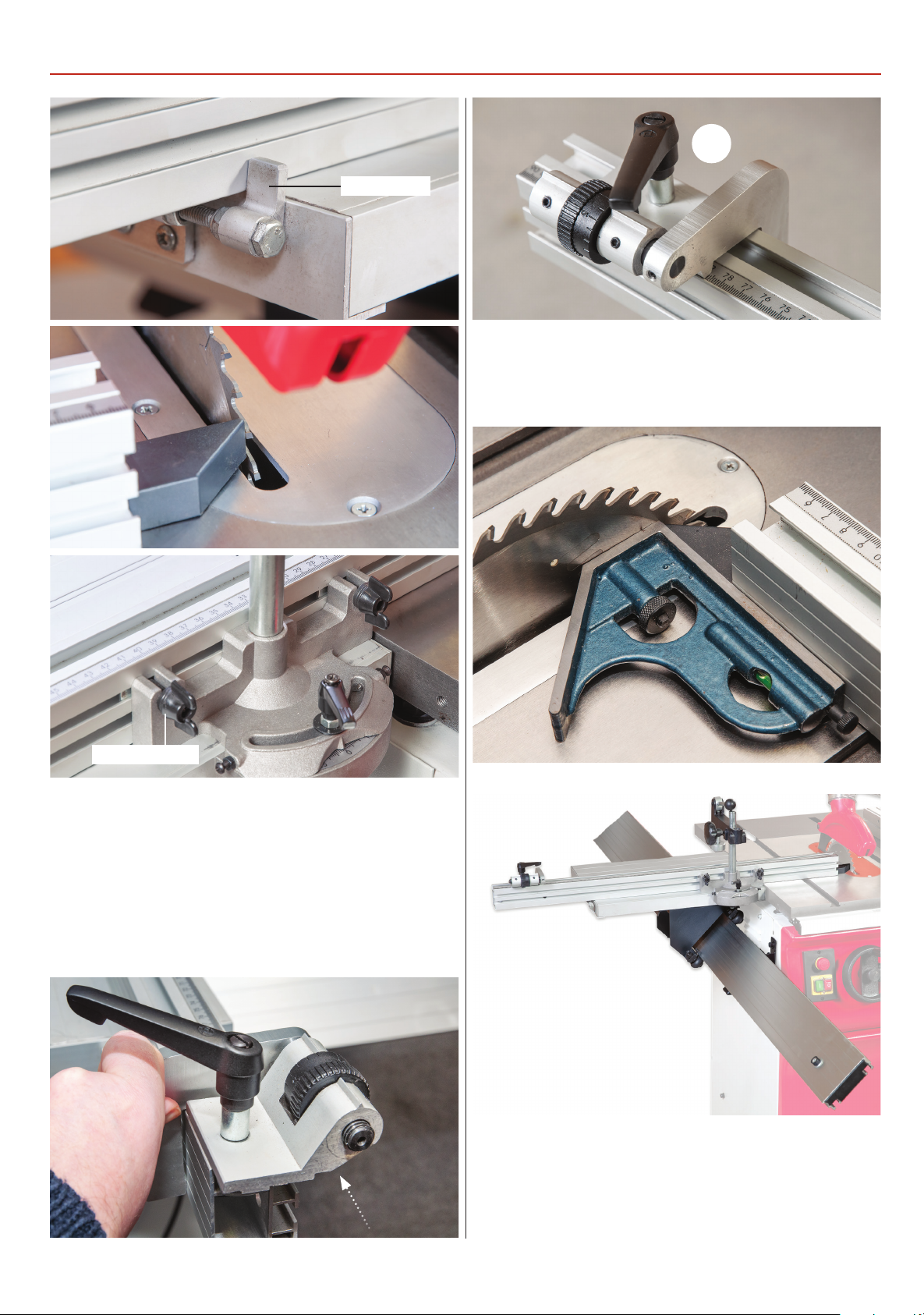

11. Loosen the butterfly knobs on the mitre casting (24), insert
the ‘T’ bolts into the fence’s ‘T’ slot rail (29). Lift-up the 90˚ stop
located in the corners of the sliding table (28) and push the
fence up against the stop, see fig 64-65.
Fig 64-65-66-67
Butterfly knobs
29
Mitre casting
‘T’ Bolt
16
Page 17
90˚ Stop
ASSEMBLY
27
14. Using a 90˚ square check that the blade is at 90˚ to the
fence assembly (29) and make adjustments until correct, see
fig 70.
Fig 70
Butterfly knob
12. Slide the fence (29) near the blade but not touching, tighten
the butterfly knobs, see fig 66-67. Note: check that the fence
does not come into contact with the riving knife.
13. Locate the fence distance stop (27). Loosen the clamping
handle, slide the assembly into the ‘T’ slot to the opposite end
of the fence (29) and secure in place, see fig 68-69.
Fig 68-69
Sliding table kit assembled
17
Page 18

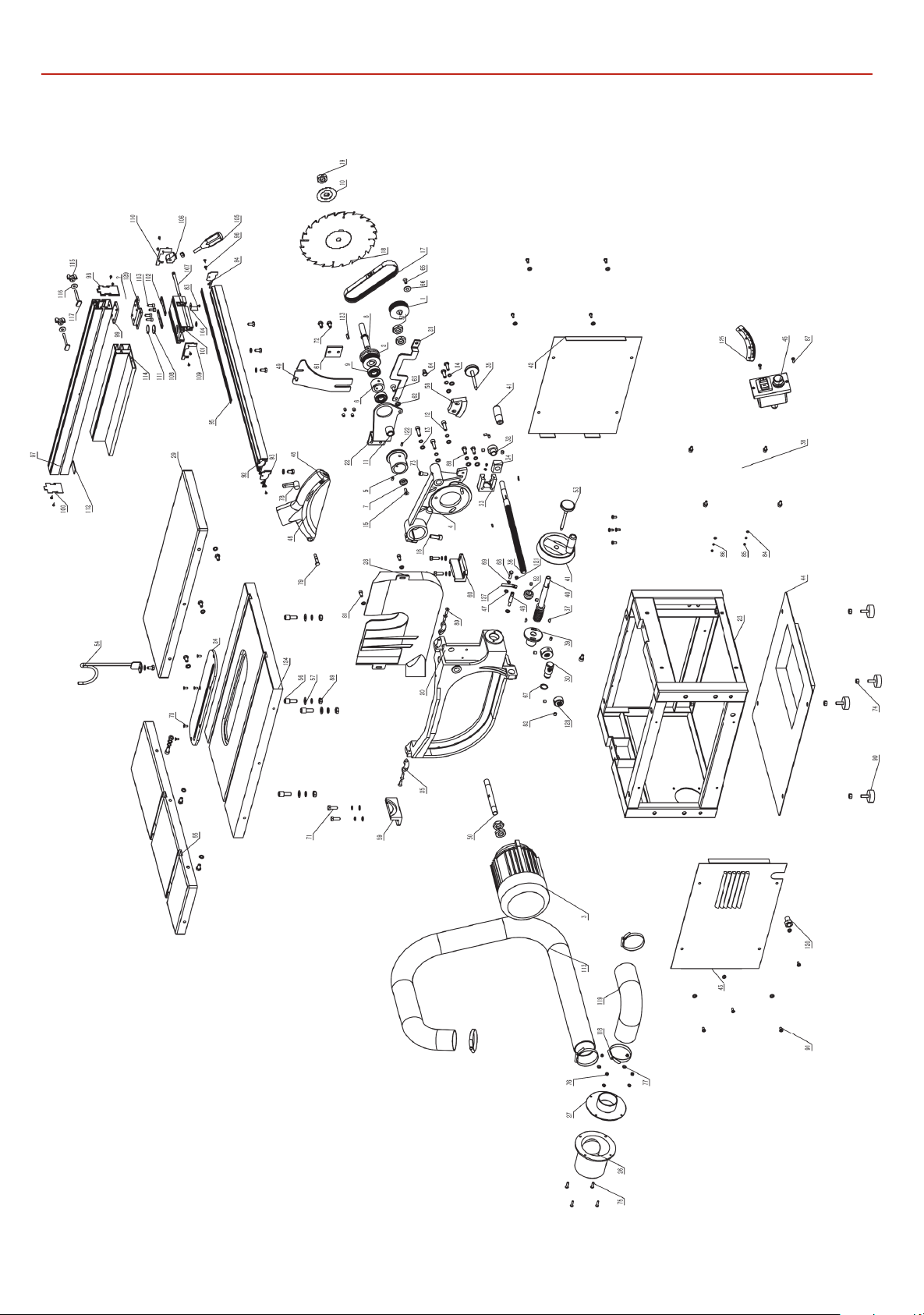

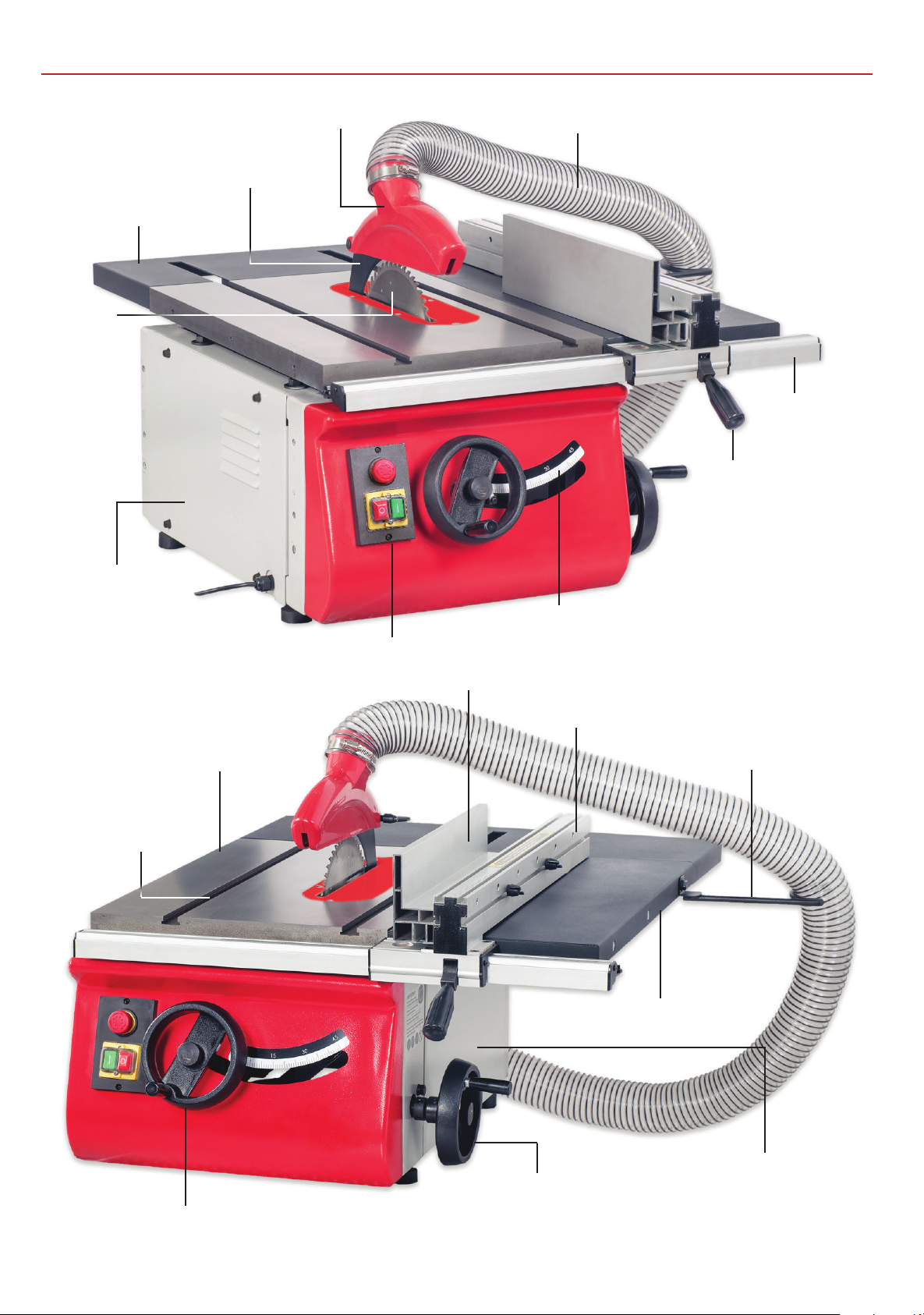

ILLUSTRATION AND PARTS DESCRIPTION
Code 107712 Basic Table Saw
Code 107713 Basic Table Saw
Riving knife
Rear extension table
Saw blade
Crown guard
Flexible hose
Rip fence rail
Rip fence
clamping handle
Saw assembly
access panel
19mm ‘T ’ slots
Cast iron table
NVR Control panel
45˚ Scale
Main Table Saw
Rip fence extension
Rip fence
Hose support bracket
Side extension table
Rise & fall operating handle
18
45˚ Operating wheel
Saw assembly
access panel
Page 19
A

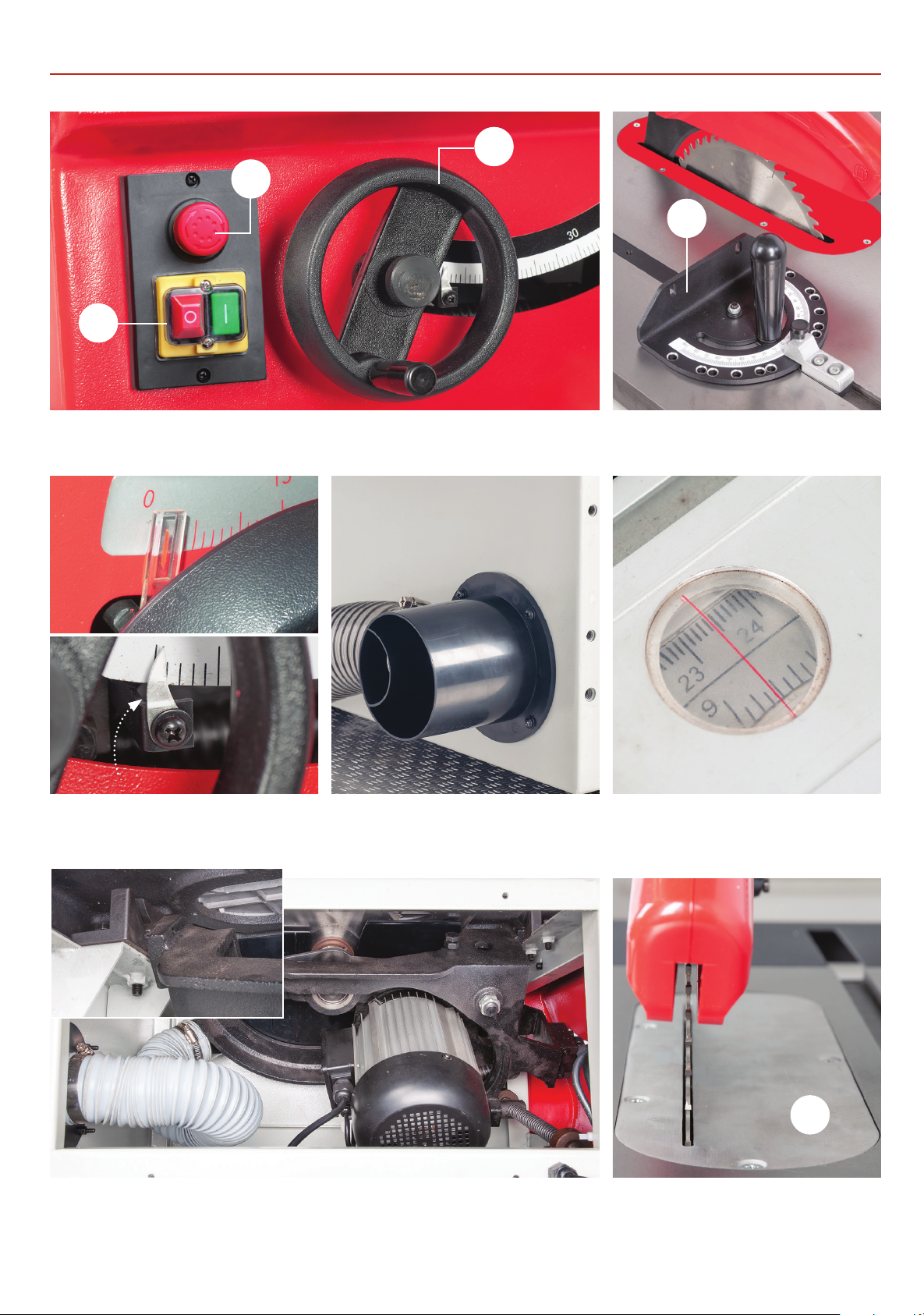

ILLUSTRATION AND PARTS DESCRIPTION
C
B
32
ON/OFF control switch (A), Emergency stop button (B)
Rise and Fall operating wheel (C)
Tilt scale pointer and adjusting screw 100mm Dust extraction moulding Rip fence magnifying glass
Optional 104928 Mitre Fence
and index marker
31
Motor and saw assembly Optional 104933 insert gives
better material support for
cutting thin strips
19
Page 20
ILLUSTRATION AND PARTS DESCRIPTION
Table Saw Optional Accessories
Code 104931 AW216TS Floor Stand
Code 106804 AW254TS Floor Stand
Code 106808 AW216TS Left Hand Extension Table
Code 106809 AW254TS Left Hand Extension Table
Code 104932 AW216TS Cabinet Stand
Code 106806 AW254TS Cabinet Stand
Code 104930 AW216TS Sliding Table
Code 106805 AW254TS Sliding Table
20
Page 21
ILLUSTRATION AND PARTS DESCRIPTION
a

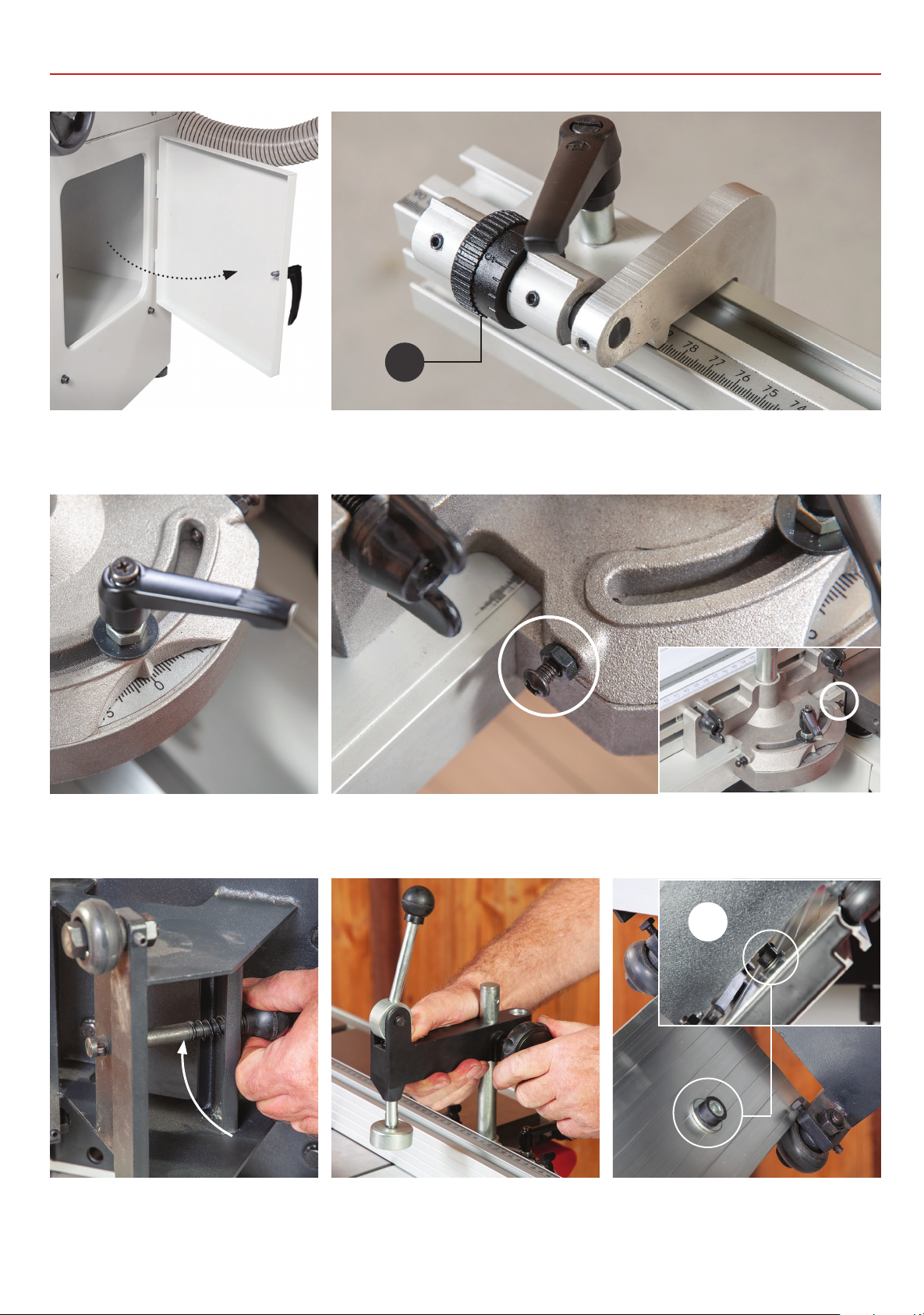

Cabinet stand storage door Distance stop (27) with micro adjusting wheel (a)
Fence mitre scale, pointer
and clamping handle
Table stop pin knob, engage to
prevent the table from sliding
off the carriage assembly
Fence mitre adjusting screw stops for -45˚ to +45˚
28
Hold down clamp assembly Sliding carriage stop,
prevents the sliding table
from coming off the carriage
21
Page 22
SET UP AND ADJUSTMENT

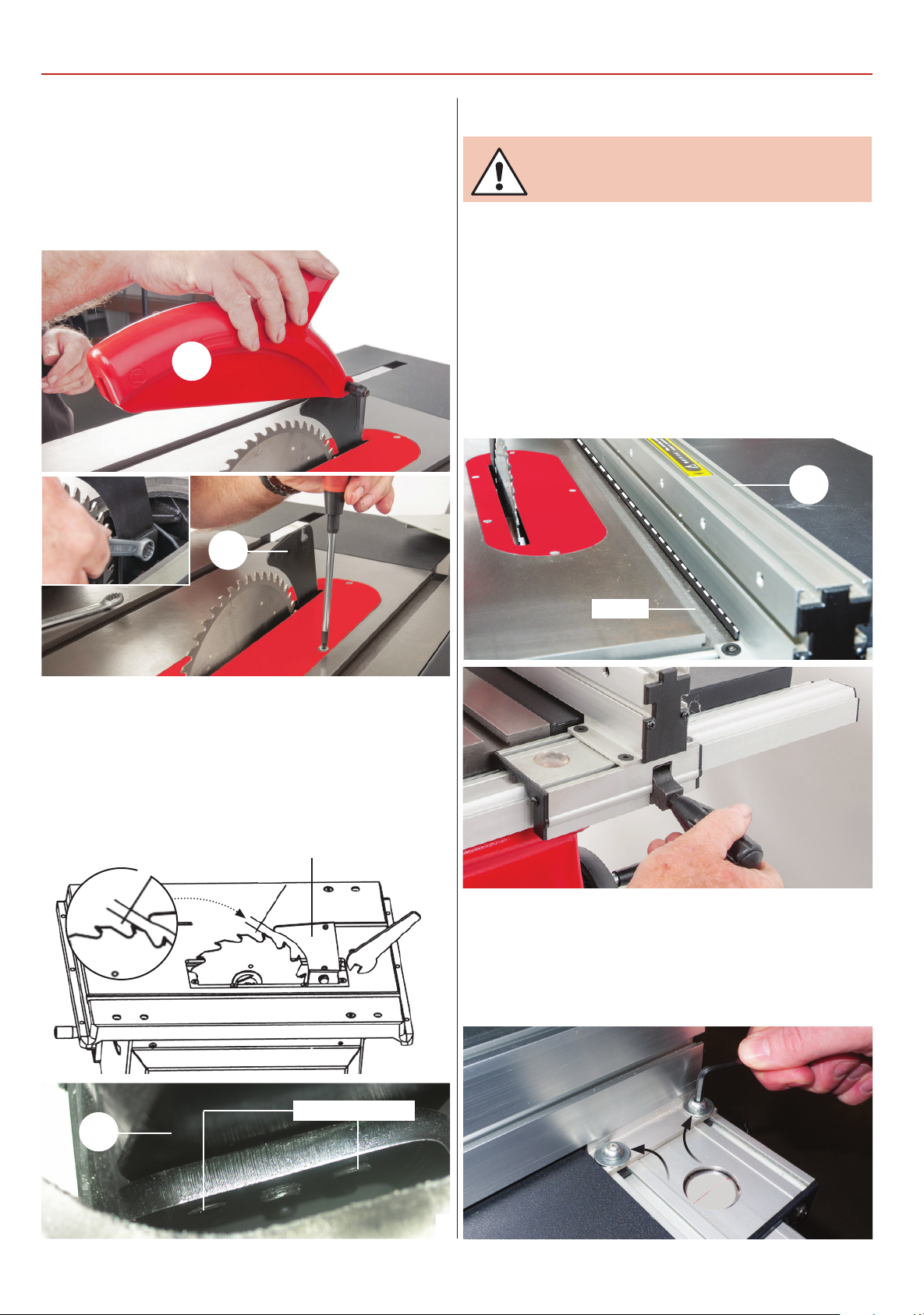

The Riving Knife
1. Raise the saw blade to its highest point and remove the saw
blade crown guard (K) and the table insert, place safely aside,
see fig 71-72.
Fig 71-72
K
H

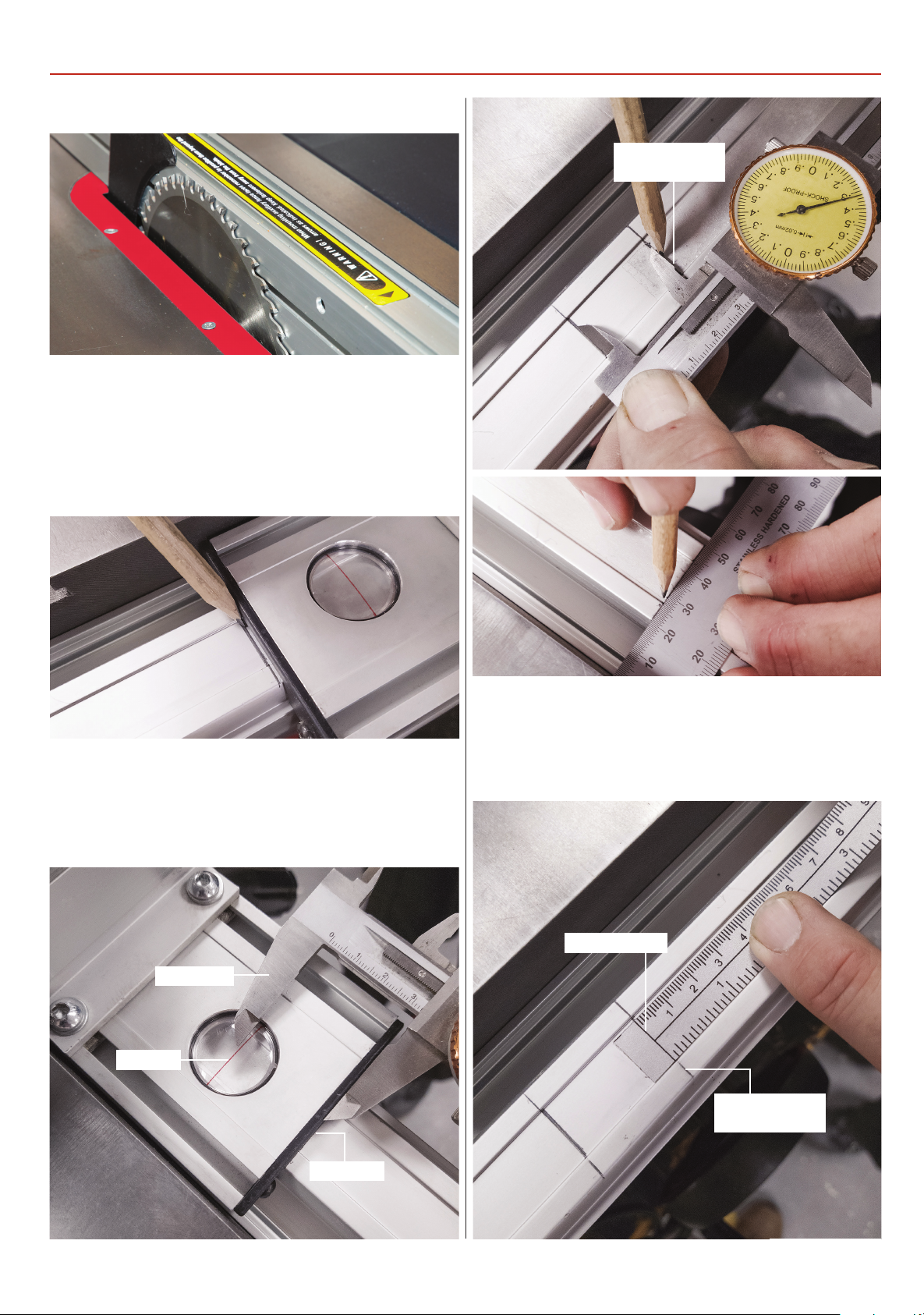

Setting the Rip Fence & Scale
MAKESURE THE BLADE IS SQUARE TO THE
TABLE AND THE FENCE IS SQUARE TO THE
BLADE!
The fence scale does not come pre-mounted to the fence
rail and needs to be stuck in place. NOTE: Before sticking
the scale down make sure the table and fence assembly is
square to the blade. Follow the instruction below.
1. Remove the crown guard (K) and rip fence extension (F) and
‘T’ bolts and place safely aside. Line up the fence (E) with the
edge of the tables ’T’ slot and press down the locking handle,
see fig 75-76.
Fig 75-76
E
2. Using the spanner loosen the riving knife (H) and check that
the tip of the knife has a clearance of 3-8mm between the
blade. Adjust the four grub screws to the opposite side of the
clamping plate to align the riving knife with the blade. Tighten
the nuts to secure the riving knife in place. NOTE: Check that
the riving knife is parallel to the saw blade by placing the
fence up against them, see fig 73-74.
Fig 73-74
3-8mm
Riving knife (H)
‘T’ Slot
2. Check the fence is parallel with the ‘T’ slot, if adjustment is
required loosen the four Hex screws on either side of the fence
assembly and adjust the fence until it’s in line, see fig 77,
re-tighten the Hex screws.
Fig 77
H
Grub screws
22
Page 23
Fig 78
3. Place the fence assembly up against the blade and lock in
place, see fig 78.
4. Using a pencil draw a line on the fence rail to mark the
postion, see fig 79.
Fig 79
SET UP AND ADJUSTMENT
Pointer position
pencil mark
5. Use a steel rule or vernier measure the distance between the
pointer & pencil line, remove the fence assembly & mark the
second position on the fence rail, see figs 80-81-82.
Fig 80-81-82
Vernier
Pointer
6. Locate the scale strip and peal off the backing, line-up the
scale’s ‘Zero’ line with pencil line’s pointer and carefully stick
down the scale strip, see 83-84.
Fig 83-84
Scale ‘Zero’ line
Pointer position
pencil mark
Pencil line
23
Continues over...
Page 24
SET UP AND ADJUSTMENT
Magnifing Class Pointer
set to ‘ZERO’

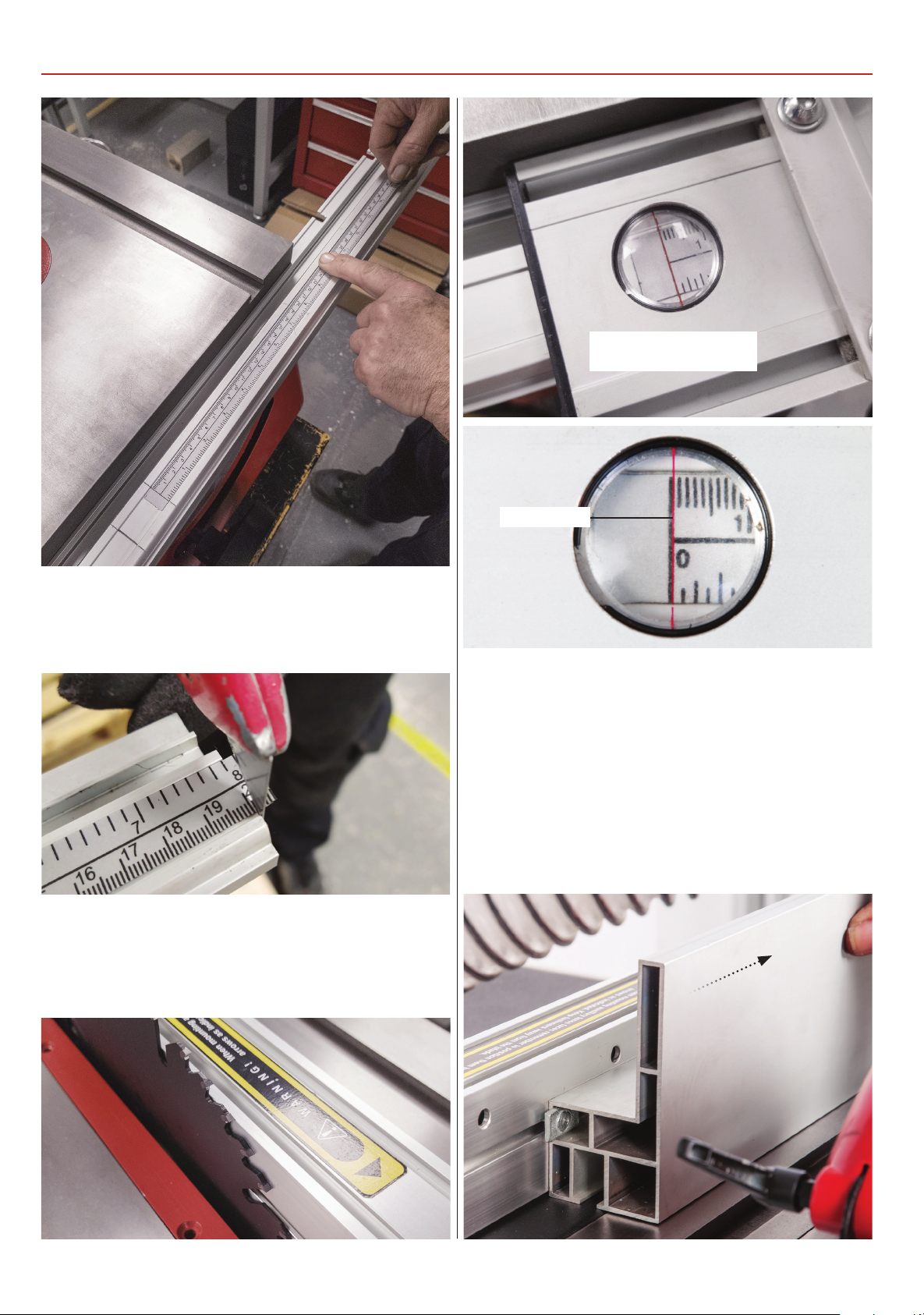

7. Trim any excess material from the end of the fence rail, see
fig 85.
Fig 85
8. Replace the fence assembly and place against the blade. The
magnifying glass pointer should read ‘Zero’ on the fence rail
scale, see fig 86-87.
‘Zero’ pointer
Rip Fence Extension
The rip fence extension can be repositioned from the vertical
to a horizontal position for guiding thin pieces through. Loosen
the two butterfly knobs holding the fence extension, remove,
lay the fence extension down in the horizontal position and
remount the fence extension as before, see fig 89-90. Move
the extension down until the end face is centred with the
blade and tighten the two butterfly knobs.
Fig 89-90
Fig 86-87-88
24
Page 25

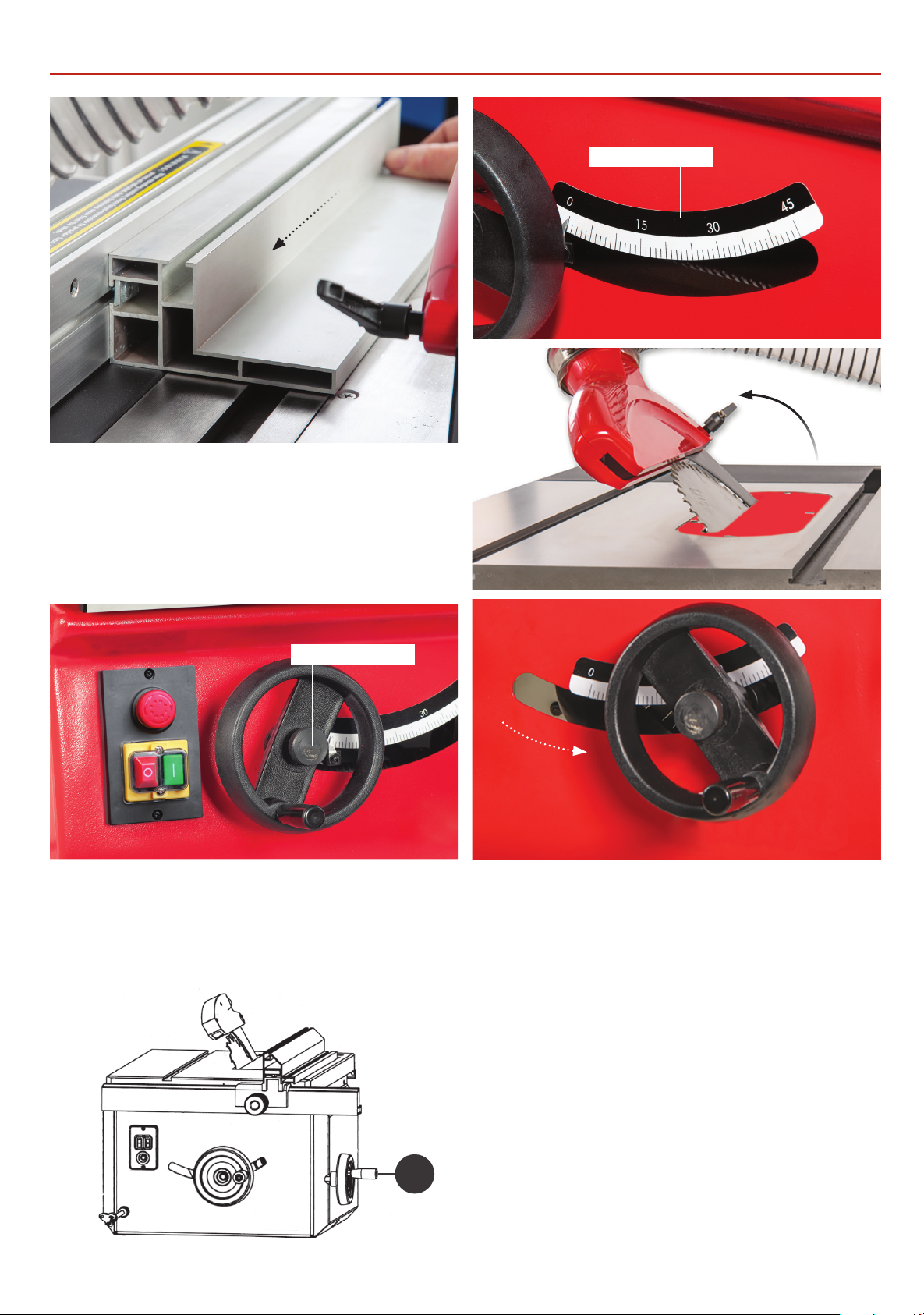

Adjusting the Cutting Height
Release the clamping knob, adjust the blade height with the
rise and fall operating wheel, see fig 91, so that the blade teeth
are protruding through the work piece.
SET UP AND ADJUSTMENT
Saw pivot scale
45˚
Fig 91
Clamping knob
Adjusting the Pivot
Release the locking knob to the centre of the operating wheel
(a) to the side of the saw assembly and turn clockwise to pivot
the saw to a maximum of 45˚ degrees, indicated on the scale,
see fig 92-93-94.
Fig 92-93-94
a
25
Page 26

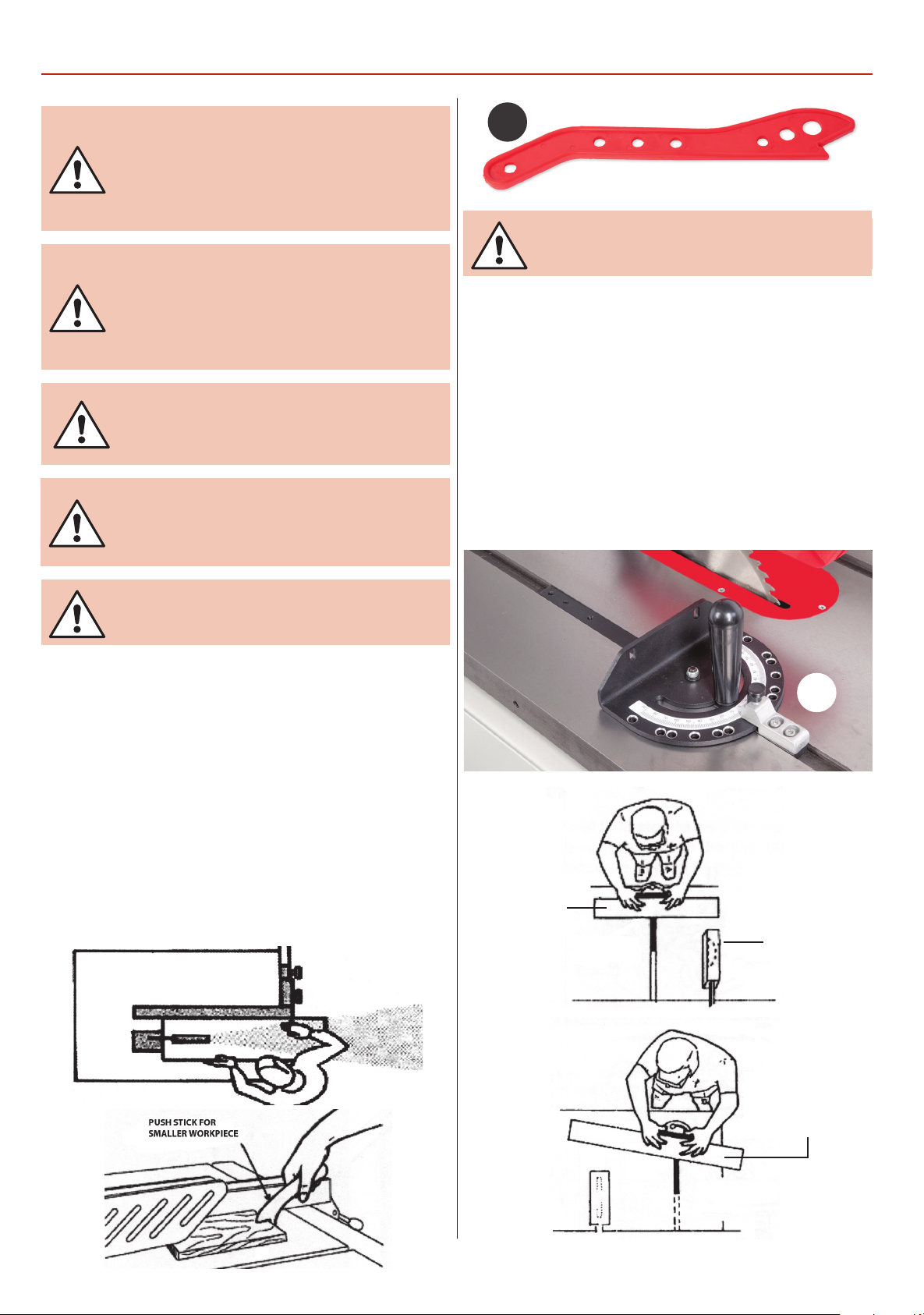

OPERATING INSTRUCTIONS
NOTE: BEFORE USING YOUR SAW, GO
ROUND AND MAKE SURE EVERYTHING
IS SECURE, FASTENED DOWN, THAT ALL
TOOLS ARE CLEARED AWAY FROM THE
WORK AREA!
CHECK: THE BLADE FOR SHARPNESS,
MISSING TEETH, RESIN BUILD UP ETC.,
CLEAN IF NECESSARY. CHECK THE BLADE
IS SECURELY CLAMPED IN PLACE (I.E. NOT
LOOSE)!
CONNECT A DUST EXTRACTION
MACHINE TO THE SAW.
UNDER NO CIRCUMSTANCES SHOULD
CHILDREN BE ALLOWED IN THE WORK AREA
AND KEEP TOOLS AND EQUIPMENT OUT OF
REACH OF YOUNG CHILDREN!
N
NOTE: Secure larger pieces of timber to
the table by using the hold down clamp.
Cutting Narrow Pieces
Use the small flat surface of the rip fence extension (F) to cut
thin timber narrower that 120mm, note: use a push stick.
The Optional Mitre Fence
The mitre fence (32) can be mounted on either side of the saw
blade in the two 19mm ‘T’ slots, pre machined into the cast iron
table. The mitre fence can be angled from 90˚ to 45˚ degrees,
see fig 98-99-100.
Fig 98-99-100
CONNECT THE SAW TO
THE MAINS SUPPLY!
Give the machine a ‘quick’ burst check ( i.e. quick ON-OFF) to
ensure everything is O.K. If everything is satisfactory, the table
saw is ready for use.
Feeding the Work by Hand
Start up the saw, wait until it has reached full speed and slowly
feed the timber through using both handles, (making sure to
keep your hands well clear of the blade and using a push stick
for small pieces), until the timber is behind the riving knife.
Switch off the saw, wait until the blade has come to a complete
stop and remove the timber, see fig 95-96-97.
Fig 95-96-97
HOLD THE
WORK FIRMLY
32
THE BLADE IS SET
AT AN ANGLE
LESS THAN 90˚
DEGREES FOR
BEVEL CUTS
BLADE GUARD
26
LOCK THE MITRE
FENCE AND HOLD
THE WORK FIRMLY
Page 27
DISCONNECT THE MACHINE
FROM THE MAINS SUPPLY!

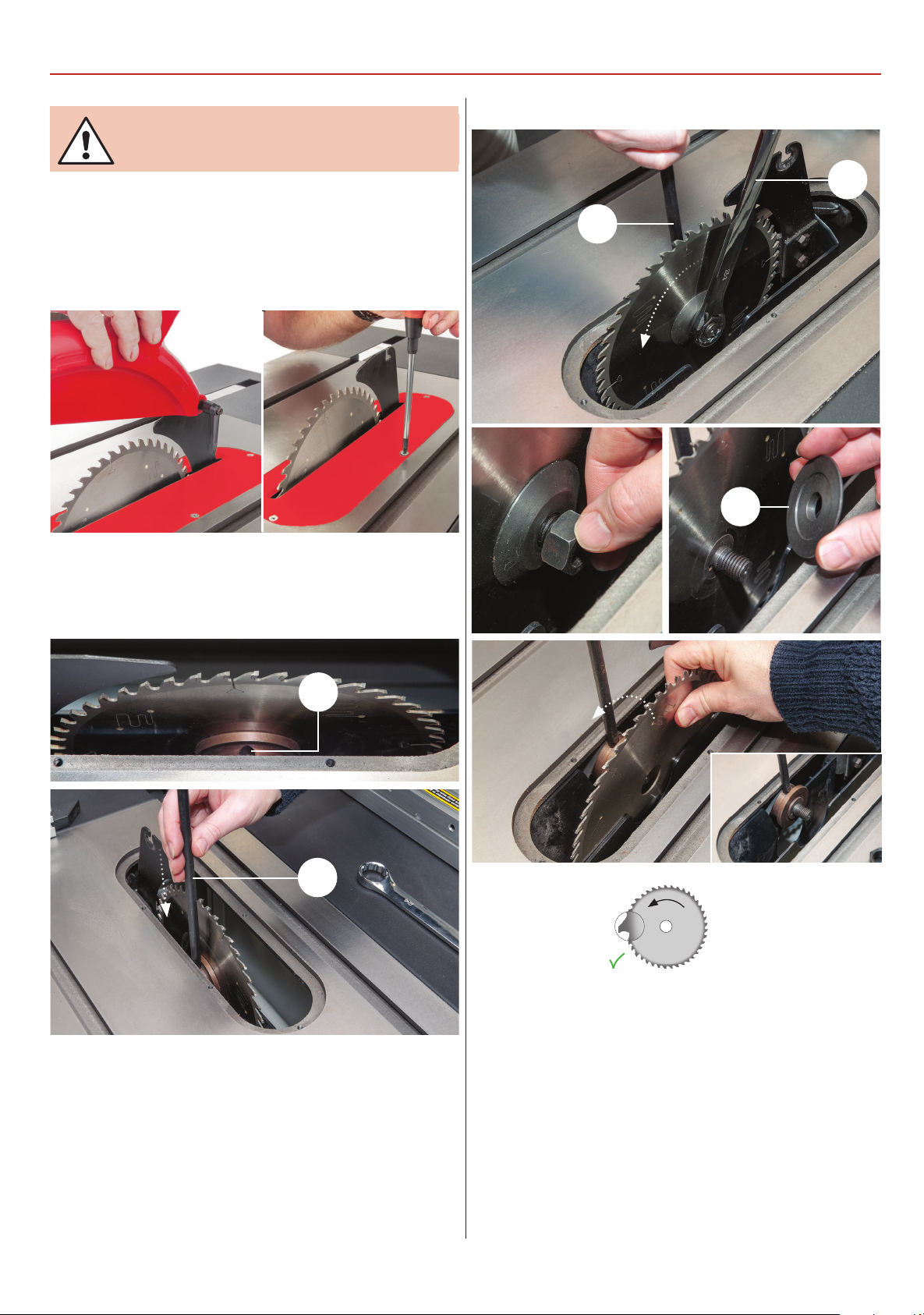

CHANGING THE SAW BLADE
Fig 105-106-107-108
1. Raise the saw blade to its highest point, remove the saw
blade crown guard, remove the five cross head screws that
secure the table insert, place carefully aside and remove the
table insert, see fig 101-102.
Fig 101-102
2. Turn the saw until the locking bar hole (a) is visible and insert
the blade locking bar (O) into the hole, see fig 103-104.
Fig 103-104
P
O
b
a
O
3. Hold the locking bar (O) undo and remove the nut using
the 24mm spanner (P), see fig 105-106. Remove the saw plate
washer (b) and the saw blade and place to one side, see fig 107-
108.
4. Give the interior of the machine, the dust extraction
channels, etc. a thorough clean. Check the new blade for
damage, missing teeth, sharpness etc. Fit the new blade, ensure
that the teeth are pointing towards the front of the machine.
Put the saw plate washer onto the shaft and replace the ‘Nut’
Teeth forward
until finger tight and check the saw is correctly seated.
5. Tighten up the ‘Nut’, using the blade locking bar (O) to hold
the shaft steady. Check the riving knife is aligned with the saw
blade, and correctly positioned. Replace the table insert and
secure with the cross head screws. Replace the crown guard.
When everything is satisfactory, turn the saw blade once by
hand to check it doesn’t foul anywhere.
6. Reconnect the machine to the mains supply. Give the
machine a ‘quick’ burst (i.e. quick ON-OFF) check to ensure
everything is O.K. If everything is satisfactory, continue to use
the machine.
27
Page 28
MAINTENANCE
Fig 109-110

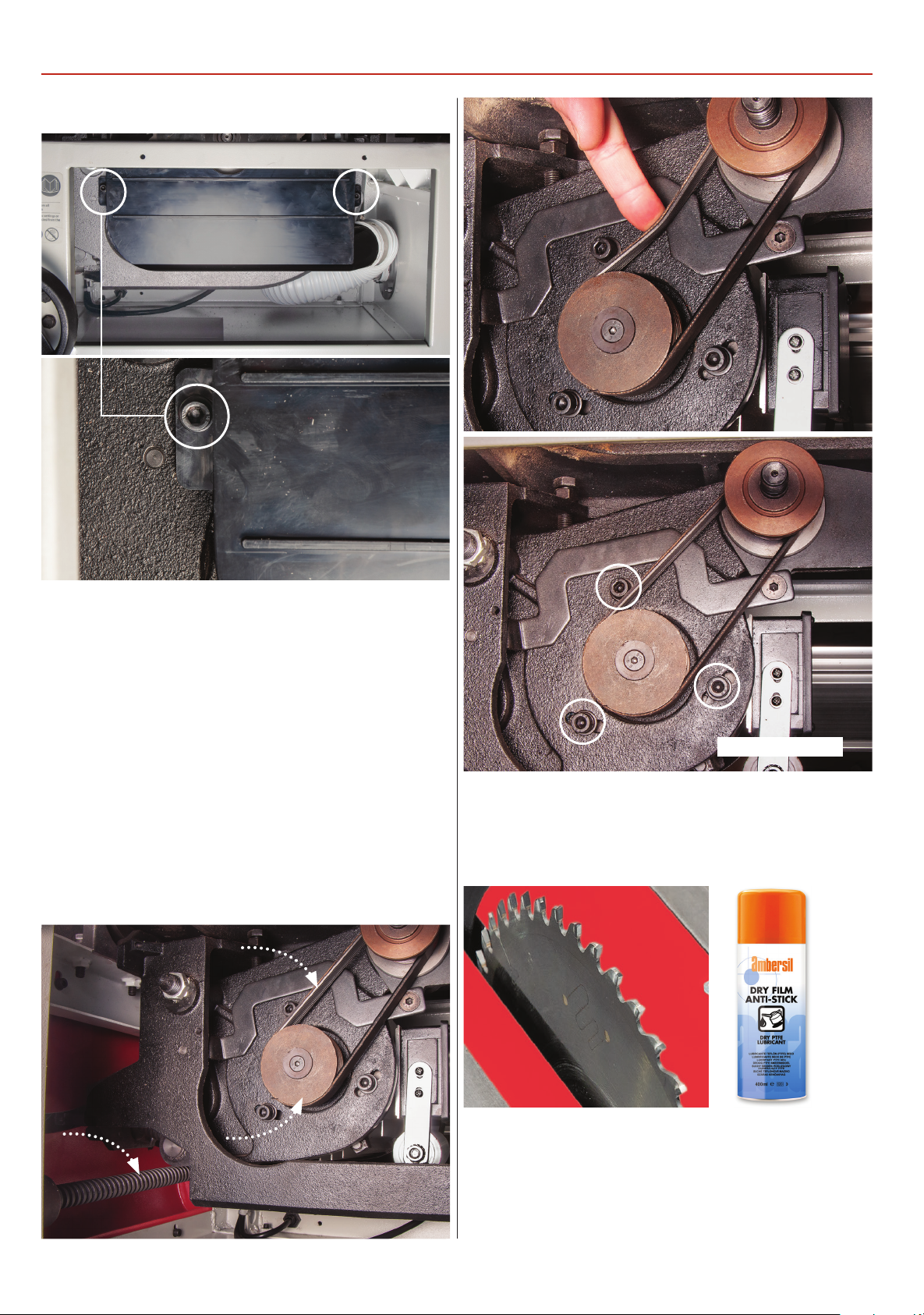

1. Keep the saw as clean and free from saw dust build up as is
practical. Periodically, remove the saw gullet by removing the
side access panel to the side of the machine and undo the two
Hex screws on either side of the gullet, see fig 109-110. Vacuum
out and clean out the saw box and the extraction housing.
Remove any resin build up in the saw box, using a proprietary
resin cleaner.
2. Clean the threaded drive shafts of the rise and fall and tilt
mechanisms, see fig 111. At the same time check the belt drive,
i.e. the belt is not ‘glazing’ with resin build up, likewise with
the pulley wheels. Check the belt tension, see fig 112. If the belt
is becoming slack, loosen the motor Hex bolts and push the
motor down, see fig 113. Re-tighten the Hex bolts.
Fig 111-112-113
Motor Hex bolts
3. Check the saw blade regularly for chipped, missing, damaged
teeth etc. and remove any resin build up from the blade, riving
knife etc, see fig 114.
Fig 114
4. If you have finished using the saw bench, clean above and
below the work table, wipe the saw bench over. If the saw is not
going to be used for a period of time, use ‘Ambersil Dry PTFE
Film Antistick’, spray, code 952137 over the work table, blade, tilt
and rise and fall screw threads and place a dust sheet over the
saw bench.
28
Page 29

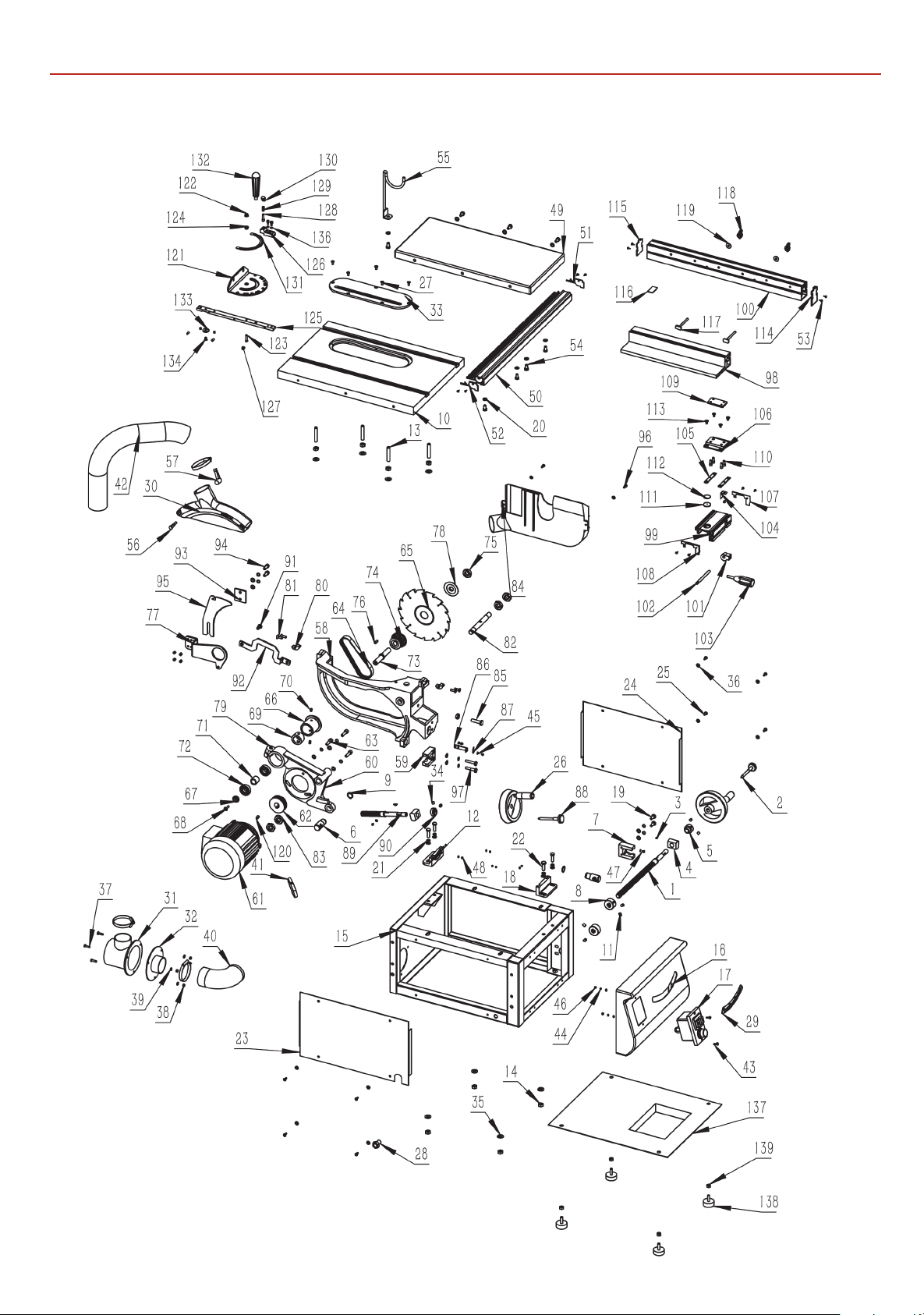

107712 AW216TS Basic Table Saw Diagram A
EXPLODED DIAGRAMS/LISTS
29
Continues over...
Page 30
EXPLODED DIAGRAMS/LISTS
107712 AW216TS Basic Table Saw Diagram A
No. Description
1 Adjusting Thread Rod
2 Locking Knob
3 Semi-circle key 3x16
4 Angel Connection Knob
5 Stop A
6 Nut of Adjusting Thread Rod
7 Mounting Seat
8 Stop Collar
9 Cir-clips for Shaft D=20
10 Worktable
11 Hex.Socket Set Screw M8 x 10
12 Mounting Base A
13 Hex.Socket Set Screw with Flat Point M10 x 50
14 Hex.Nut M10
15 Machine body
16 Front Panel
17 Switch
18 Mounting Base B
19 Hex.Bolt M8 x 20
20 Flat Washer 8mm
21 Spring Washer 8mm
22 Hex.bolt M8 x 30
23 Left Panel
24 Right Panel
25 Cross Recessed Pan Head Screw M6 x 12
26 Handwheel
27 Cross Recessed Socket Screw M5 x 12
28 Cablegland M14
29 Rotating Scale
30 Blade Guard
31 Tie-in B
32 Tie-in A
33 Table Insert
34 Hex.Socket Set Screw M8 x 8
35 Flat Washer 10mm
36 Flat Washer 6mm
37 Cross Recessed Pan Head Screw M5 x 20
38 Hex.Nut M5
39 Flat Washer 5mm
40 Dust Collection Tube Inside the Machine
41 Neck Chain
42 Dust Collection Tube
43 Cross Recessed Pan Head Screw M4 x 15
44 Spring Washer 4mm
45 Flat Washer 4mm
46 Hex.Nut M4
47 Cross Recessed Pan Head Screw M4 x 6
48 Hex.Socket Set Screw M4 x 5
49 Extension Table
50 Front Rail
51 Right End Captor Front Rail
52 Left End Captor Front Rail
53 Taping Screw ST4.2 x 10
54 Hex.Bolt M8 x 16
55 Tube Support
56 Locking Guard Guard
57 Adjusting Handle
58 Rotating Bracket
59 Housing Knob
60 Shaft Base
61 Motor
62 Motor Pulley
63 Hex. Socket Cap Head Bolt M8 x 30
64 Multi-Grooves Belt
65 Saw Blade
66 Saw Blade Sleeve
67 End Bush of Arbor Shaft
68 Cross Recessed Socket Screw M6 x 20
69 Arbor Shaft Bush
70 Spring Pin 6
71 Arbor Shaft Bush
72 Bearing 6203
73 Arbor Shaft
74 Blade Pulley
75 Nut M16
76 Flat Key 5 x 20
77 Riving Knife Bracket
78 Outer Blade Washer
79 Hex. Socket Cap Head Bolt M10 x 30
80 Rotating Block
81 Cross Recessed Socket Screw M6 x 15
82 Shaft
83 Thin Nut M16 x 1.5
84 Dust Collection Cover
85 Hex.Bolt M10 x 40
86 Pointer Block
87 Pointer
88 Locking Knob
89 Height Adjusting Thread Rod
90 Stop Collar B
91 Pull-Rod Shaft
92 Connection Rod of Riving Knife Bracket
93 Pressing Plate of Riving Knife
94 Hex. Socket Cap Head Bolt M8 x 20
95 Riving Knife
96 Hex. Socket Cap Head Bolt M5 x 12
97 Hex.Bolt M8 x 40
98 L shape Fence
99 Scale Rail Housing
100 Rip Fence
101 Eccentric Wheel
102 Locking Shaft
103 Locking Knob
104 Locking Spring Plate
105 Locking Nut Board
106 Fence Plate
107 Right End Cap for Rail Housing
108 Left End Cap for Rail Housing
109 Screw Guide
110 Hex. Socket Cap Head Bolt M6 x 16
111 Scale Indicator
112 Circle Ring
113 Hex.Socket Bolt M6 x 12
114 Front End Cap for Fence
115 Rear End Cap for Fence
116 Supporting Plate
117 Locking Screw
118 Wing Nut
119 Big Washer 6mm
120 Key 6 x 20
121 Mitre Gauge Base
122 Self-Locking Nut M6
123 Hex.Pan Head Bolt M6 x 20
124 Bush
125 Mitre Gauge Guide Rod
126 Block Indicator
127 Set Screw M6 x 12
128 Stop Pin
129 Stop Spring
130 Brass Knob
131 Scale / Gauge
132 Mitre Gauge Knob
133 Washer
134 Cross Recessed Socket Screw M5 x 10
135 Hex.Socket Set Screw M6 x 6
136 Spring Washer
137 Bottom Panel
138 Levelling Foot
139 Hex.Nut M8
30
Page 31

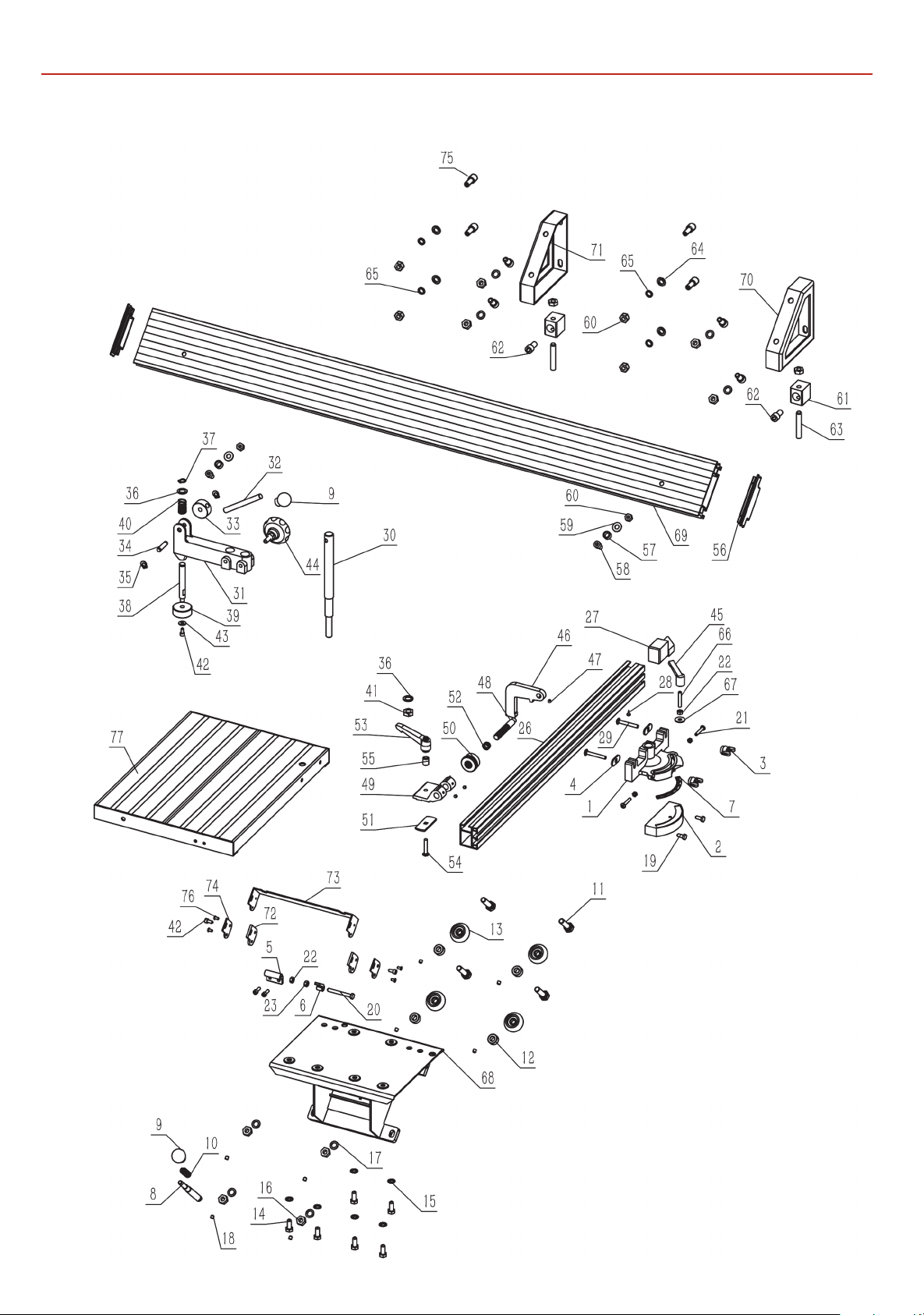

104930 AW216TS Optional Sliding Table Kit Diagram B
EXPLODED DIAGRAMS/LISTS
31
Continues over...
Page 32
EXPLODED DIAGRAMS/LISTS
104930 AW216TS Optional Sliding Table Kit Diagram B
No. Description
1 Mounting Bracket
2 Mitre Guage
3 Scale Mount
4 Wing Nut
5 Bolt Guide
7 Locating Bracket
8 Locating Plate
9 Scale
11 Stop Shaft
12 Knob-Lever
13 Spring Stop Shaft
14 Shaft Roller Wheel
15 Bush Roller Wheel
16 Roller Wheel
17 Hex.Bolt M8 x 20
18 Teeth shape washer 8mm
19 Hex.Nut M10
20 Washer 10mm
21 Hex. Socket Set sSrew M6 x 6
23 Hex.Bolt M6 x 15
24 Hex.Bolt M6 x 55
25 Cross Recessed Pan Head Screw M5 x 30
26 Hex.Nut M6
27 Self-Locking Nut M6
29 Hex.Nut M5
30 Sliding Table
34 Cross Cut Fence
35 End Cap Cross Cut Fence
36 Taping Screw ST4.2 x 10
37 Step Bolt
38 Stud Hold Down
39 Arm Hold Down
40 Handle Hold Down
41 Eccentric Hold Down
42 Pin Hold Down
43 Cir-Clips for Shaft 8mm
44 Washer 12mm
45 Cir-Clips for Shaft 12mm
46 Stud Hold Down
47 Disc Hold Down
48 Spring Hold Down
49 Hex.Nut M12
50 Hex. Socket Cap Head Bolt M5 x 12
51 Washer 5mm
52 Star-Type Knob Hold Down
53 Ratchet Lever
54 Flip Stop
55 Hex.Socket Set Screw M5 x 5
56 Stud Hold Down
57 Flip Stop Base
58 Knurled Knob
59 Screw Guide
60 Spring Flip Stop
61 Ratchet Lever Flip Stop
62 Step Bolt M6 x 35
63 Spacer Ratchet Lever
66 Sliding Rail
67 End cap,sliding rail
68 Rubber Bush
69 Hex. Socket Cap Head Bolt M8 x 16
70 Washer 8mm
71 Hex.Nut M8
72 Carriage
73 Carriage Sliding Rail
74 Hex. Socket Cap Head Bolt M10 x 20
75 Flat end set screw M10 x 50
76 Treaded Adjuster
77 Washer 8mm
78 Spring Washer 8mm
79 Hex.Socket Set Screw M8 x 15
80 Hex.Socket Set Screw M6 x 35
81 Washer 6mm
32
Page 33
104932 AW216TS Optional Cabinet Stand Diagram C
EXPLODED DIAGRAMS/LISTS
No. Description
1 Right Panel,Cabinet Stand
2 Left Panel, Cabinet Stand
3 Rear Panel,Cabinet Stand
4 Sidelong Support Front Panel
5 Hex. Socket Cap Head Bolt M8 x 16
6 Levelling Foot
7 Front Panel, Cabinet Stand
104931 AW216TS Optional Floor Stand Diagram D
8 Washer 8mm
9 Hex.Nut M8
10 Spring Washer 8
11 Cross Recessed Pan Head Screw M6 x 12
12 Access Door, Cabinet Stand
13 Ratchet Lever
14 Internal Shelf
15 Hex.Bolt M8 x 16
No. Description
1 Stand Leg
2 Upper Long Bracket Stand Leg
3 Upper Short Bracket Stand Leg
4 Lower Long Bracket Stand Leg
5 Lower Short Bracket Stand Leg
6 Levelling Foot
8 Hex.Bolt M8 x 20
9 Hex.Nut M8
10 Washer 8mm
11 Spring Washer 8mm
33
Continues over...
Page 34
EXPLODED DIAGRAMS/LISTS
107713 AW254TS Basic Table Saw Diagram A
34
Page 35
107713 AW254TS Basic Table Saw Diagram A
EXPLODED DIAGRAMS/LISTS
No. Description
1 Motor Pulley
2 Pulley
3 Motor
4 Shaft Base
5 Saw Blade Sleeve
6 Arbor Shaft Bush
7 End Bush of Arbor Shaft
8 Arbor Shaft
9 Bearing 6203
10 Outer Blade Washer
11 Arbor Shaft Bush
12 Hex.Socket Cap Head Bolt M8 x 30
13 Washer 8
14 Spring Washer 8
15 Cross Recessed Socket Screw M6 x 20
16 Hex.Socket Cap Head Bolt M10 x 30
17 Multi-Groove Belt
18 Saw Blade
19 M16 Nut
20 Rotating Bracket
21 Connection Rod of Riving Knife
22 Riving Knife Bracket
23 Machine Body
24 Table Insert
25 Rotating Block
26 Tie-in B
27 Tie-in A
28 Saw Blade Guard
29 Extension Table
30 Adjusting Thread Rod Nut
31 Stop Collar
32 Stop A
33 Mounting Seat A
34 Angel Connection Knob
35 Locking Knob A
36 Adjust Thread Rod
37 Semi-Circle Key 3 x16
38 Front Panel
39 Mounting Seat B
40 Height Adjusting Thread Rod
41 Hand Wheel
42 Right Panel
43 Left Panel
44 Bottom Panel
45 Switch
46 Pointer Block
47 Washer 6mm
48 Blade Guard
49 Riving Knife
50 Motor Shaft
51 Thin Nut M16 x1.5
52 Stop B
53 Locking Knob B
54 Tube Support
55 Rear Extension Table
56 Step Screw
57 Big Washer 10
58 Height Adjusting Gear
59 Mounting Base A
60 Mounting Base B
61 Pressing Plate Riving Knife
62 Washer 10
63 Hex.Recessed Socket Screw M8 x 20
64 Pull-Rod Shaft
65 Hex.Recessed Socket Screw M6 x 15
66 Motor Pad
67 Cir-Clips for Shaft D=20
68 Hex.Bolt M6 x 25
69 Spring Washer 6
70 Hex.Recessed Socket Screw M5 x 12
71 Hex.Bolt M8 x 25
72 Hex.Bolt M8 x 16
73 Hex.Socket Cap Head Screw M8 x 20
74 Hex.nut M8
75 Cross Recessed Pan Head Screw M5 x 20
76 Hex.Nut M5
77 Washer 5
78 Ratchet Lever
79 Bolt,blade guard
80 Cross Recessed Socket Screw M6 x 15
81 Hex.Socket Cap Head Screw M6 x 12
82 Hex.Socket Set Screw M8 x 8
83 Cross Recessed Pan Head Screw M4 x 6
84 Washer 4
85 Hex.Nut M4
86 Spring Washer 4
87 Cross Recessed Pan Head Screw M4 x 15
88 Hex.Bolt M8 x 20
89 Hex.Nut M10
90 Levelling Foot
91 Cross Recessed Pan Head Screw M6 x 12
92 Front Rail
93 Left End Cap Front Rail
94 Right End Cap Front Rail
95 Scale Front Rail
96 Taping Screw ST4.2 x 10
97 Rip Fence
98 Front End Cap Rip Fence
99 Screw Guide
100 Rear End Cap Rip Fence
101 Scale Rail Housing
102 Locking Nut Board
103 Hex.Socket Cap Head Bolt M6 x 16
104 Locking Spring Plate
105 Locking Knob
106 Eccentric Wheel
107 Locking Shaft
108 Scale Indicator
109 Left End Cap Scale Rail Housing
110 Right End Cap Scale Rail Housing
111 Circle Ring
112 Supporting Plate
113 Dust Collection Tube
114 Rip Fence
115 Wing Nut
116 Big Washer 6
117 Locking Screw
118 Neck Chain
119 Dust Collection Tube Inside The Machine
Body
120 Cableland M14
121 Cross Recessed Pan Head Screw M5 x 8
122 Spring Pin 6
123 Key 5 x 20
124 Worktable
125 Scale Table Rotation
126 Hex.Socket Cap Head Bolt M8 x 16
128 Pointer
129 Stop Collar
130 Fence Plate
35
Continues over...
Page 36
EXPLODED DIAGRAMS/LISTS
106805 AW254TS Optional Sliding Table Kit Diagram B
36
Page 37

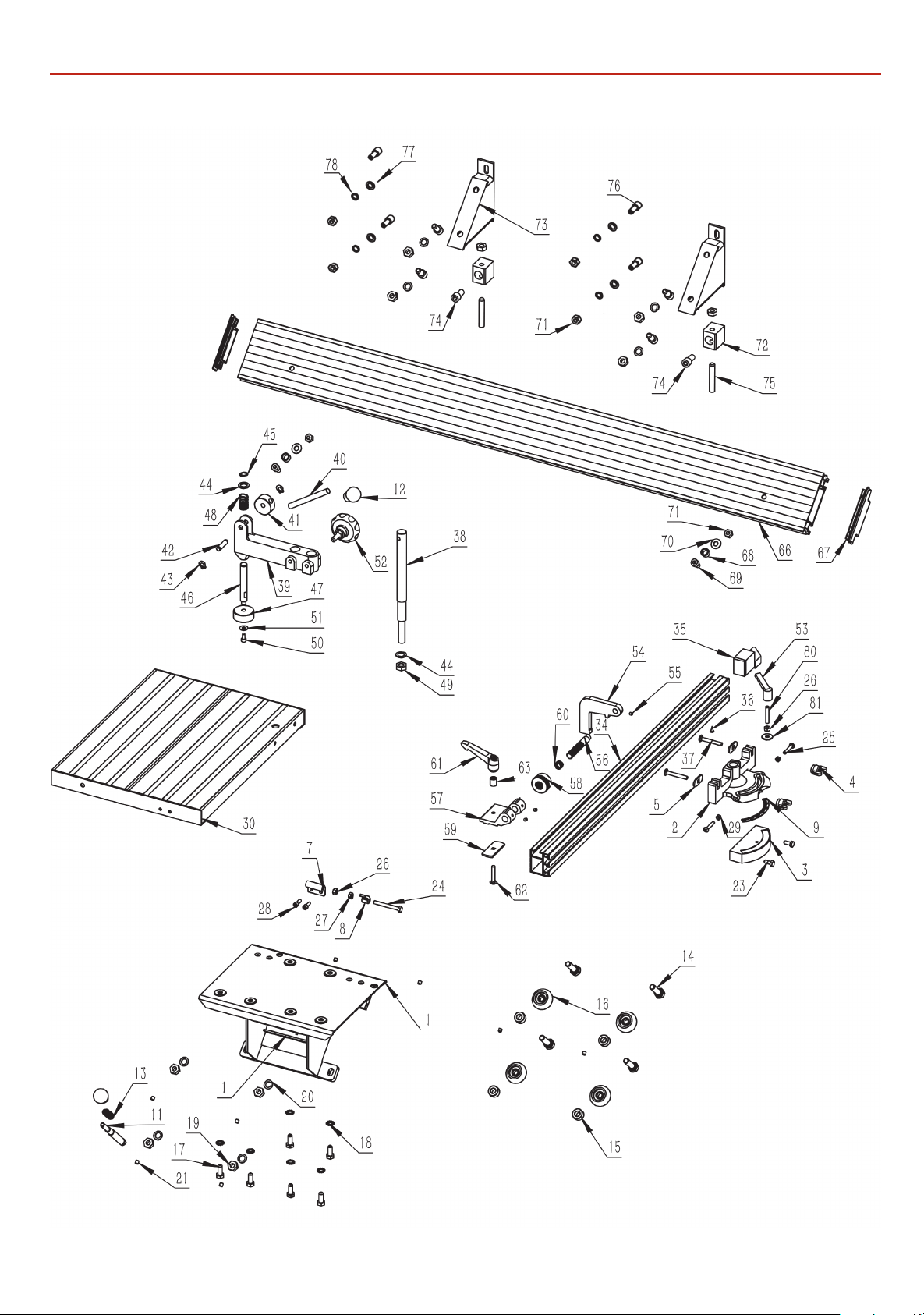

106805 AW254TS Optional Sliding Table Kit Diagram B
EXPLODED DIAGRAMS/LISTS
No. Description
1 Mitre Gauge
2 Scale Mount
3 Wing Nut
4 Bolt Guide
5 Locating Bracket
6 Locating Plate
7 Scale
8 Stop Shaft
9 Knob-Lever
10 Spring Stop Shaft
11 Shaft Roller Wheel
12 Bush Roller Wheel
13 Roller Wheel
14 Hex.Bolt M8 x 20
15 Teeth Shape Washer 8mm
16 Hex.Nut M10
17 Washer 10mm
18 Hex.Socket Set Screw M6 x 6
19 Hex.Bolt M6 x 16
20 Hex.Bolt M6 x 55
21 Cross Recessed Pan Head Screw M5 x 30
22 Hex.Nut M6
23 Self-Locking Nut M6
24 Hex.Socket Cap Head Bolt M5 x 15
25 Hex.Nut M5
26 Cross Cut Fence
27 End Cap Cross Cut Fence
28 Taping Screw ST4.2 x 10
29 Step Bolt M6 x 45
30 Stud Hold Down
31 Arm Hold Down
32 Handle Hold Down
33 Eccentric Hold Down
34 Pin Hold Down
35 Cir-clips for Shaft 8mm
36 Washer 12mm
37 Cir-clips for Shaft 12mm
38 Stud Hold Down
39 Disc Hold Down
40 Spring Hold Down
41 Hex.Nut M12
42 Hex. Socket Cap Head Bolt M5 x 12
43 Washer 5mm
44 Star-Type Knob Hold Down
45 Ratchet Lever
46 Flip stop
47 Hex Socket Set Screw M5 x 5
48 Stud Hold Down
49 Flip Stop Base
50 Knurled knob
51 Screw Guide
52 Spring,flip stop
53 Ratchet Lever Flip Stop
54 Step Bolt M6 x 35
55 Spacer Ratchet Lever
56 End Cap Sliding Rail
57 Rubber Bush
58 Hex. Socket Cap Head Bolt M8 x 16
59 Washer 8mm
60 Hex.Nut M8
61 Carriage
62 Hex. Socket Cap Head Bolt M10 x 20
63 Hex. Flat End Set Screw M10 x 50
64 Washer 8mm
65 Spring Washer 8mm
66 Hex.Socket Set Screw M5 x 5
67 Big Washer 6mm
68 Mounting Bracket
69 Sliding Rail
70 Left Carriage Sliding Rail
71 Right Carriage Sliding Rail
72 Felt Pad
73 Dust Guard Plate
74 Press Plate Felt
75 Treaded Adjuster
76 Cross Recessed Pan Head Screw M4 x 8
77 Sliding Table
37
Continues over...
Page 38
EXPLODED DIAGRAMS/LISTS
106806 AW254TS Optional Floor Stand Diagram C
No. Description
1 Stand Leg
2 Upper Long Bracket Stand Leg
3 Upper Short Bracket Stand Leg
4 Lower Long Bracket Stand Leg
5 Lower Short Bracket Stand Leg
6 Levelling Foot
8 Hex.Nut M8
9 Washer 8mm
10 Hex.Bolt M8 x 16
106806 AW254TS Optional Cabinet Stand Diagram D
No. Description
1 Hex.Socket Cap Head Bolt M8 x 16
2 Left Panel Cabinet Stand
3 Internal Shelf
4 Washer 8
5 Rear Panel Cabinet Stand
6 Ratchet Lever
7 Self-Locking Nut M8
8 Access Door Cabinet Stand
9 Right Panel,Cabinet Stand
10 Hex.Nut M8
11 Levelling Foot
12 Hex.Socket Cap Head Bolt M6 x 12
13 Washer 6
14 Sidelong Support Front Panel
15 Front Panel Cabinet Stand
38
Page 39

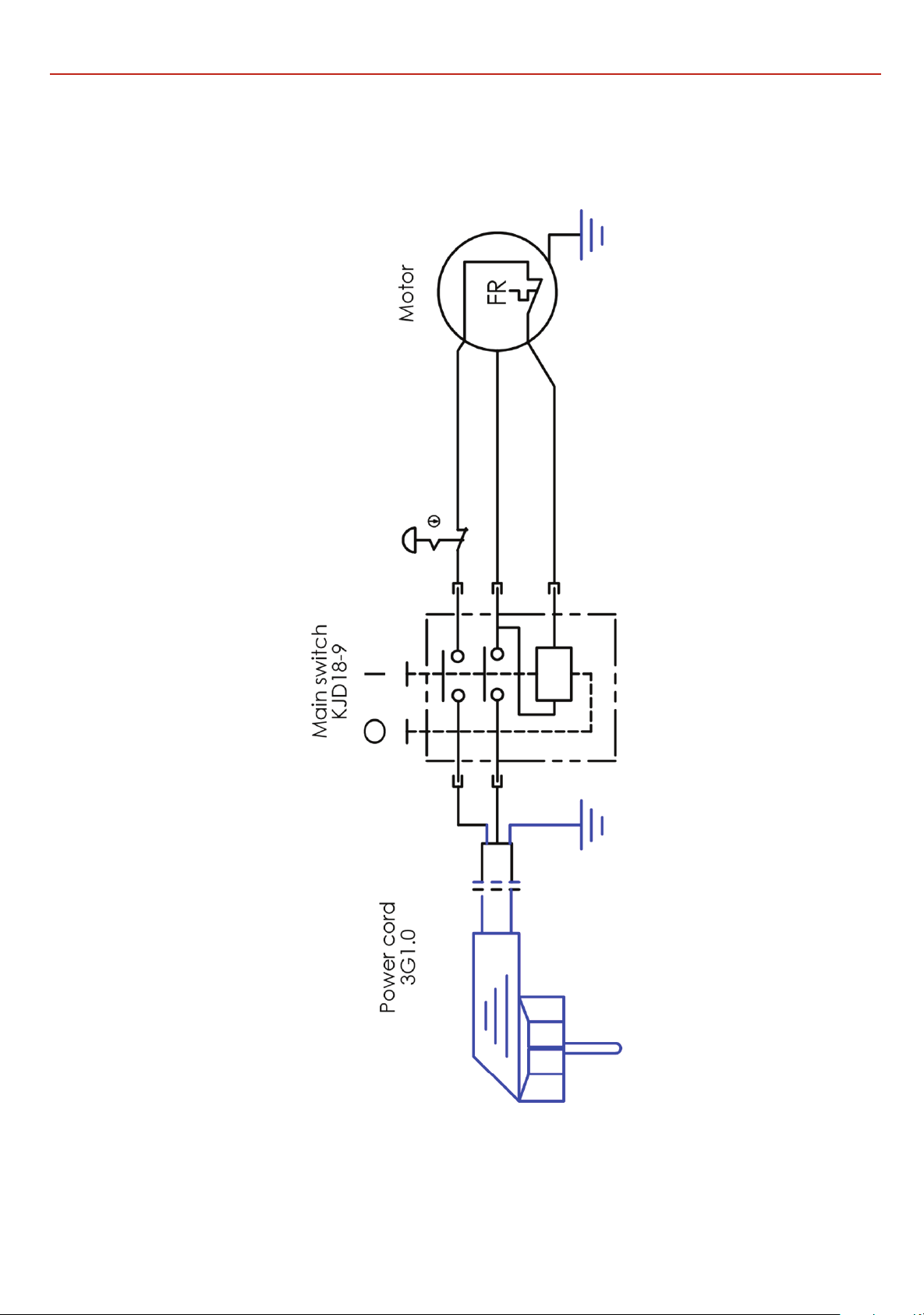

WIRING DIAGRAM
39
Page 40
The packaging is suitable for recycling.
Please dispose of it in a responsible manner.
EU Countries Only
Do not dispose of electric tools together with household waste material.
By law they must be collected and recycled separately.
Axminster Tools, Axminster Devon EX13 5PH
axminstertools.com
Loading...
