Page 1
Code 107685
Original Instructions
AW200WSG Wide
Stone Bench Grinder
AT: 16/02/2023
BOOK VERSION: 9
Page 2
INDEX OF CONTENTS
EU Declaration of Conformity 02
What’s Included 03
General Instructions for 230V Machines 04
Specic Safety Precautions for Grinding Machines 04-05
Assembly 05-06
Illustration and Parts Description 07
Specication 08
Setting Up the Grinder 08-09
Changing the Grinding Stone 09-10
Dressing the Stone 11
Exploded Diagrams/Lists 12-13
Wiring Diagram 14
EU DECLARATION OF CONFORMITY
Cert No: HBG825HL
Axminster Tool Centre Ltd
Axminster Devon
EX13 5PH UK
axminstertools.com
declares that the machinery described:-
Bench Grinder
Type
AW200WSG
Model
Signed
Andrew Parkhouse
Operations Director Date: 19/10/2021
EU Declaration of Conformity
This machine complies with the following directives:
2006/42/EC
2014/30EU
EN 55014-1: 2017
EN IEC 61000-3-2: 2019
and conforms to the machinery example for which the EC Type-Examination
Certicate No SHEM201000845601, SHES200801665601 has been issued by
Wendeng Allwin Motors Manufacturing Co., Ltd. at: No. 15 Sichan Road
Wendeng, Shandong, China 264400
and complies with the relevant essential health and safety requirements.
EN 61000-3-3: 2013+A1: 2019
EN 55014-2: 2015
EN 62841-1: 2015
EN 62841-3-4: 2016+A11: 2017+A12: 2020
The symbols below advise the correct safety procedures when using this machine.
Fully read manual
and safety instructions
before use
Ear protection
should be worn
Eye protection
should be worn
Dust mask
should be worn
HAZARD
Motor gets hot
2
Page 3
WHAT’S INCLUDED
Quantity Item Part Model Number
1 Wide Stone Bench Grinder A AW200WSG
2 Adjustable Tool Rests & Mounting Brackets B
2 Buttery Knobs & Washers C
2 Tool Rest Clamping Knob & Washers C1
2 Spark Guard Brackets with Screws/Washers D
2 Eye Shield Mounting Bars E
2 Mounting Bar Square Brackets with Bolts & Washers
2 Eye sheilds, with one Magnifying Glass G
1 Instruction Manual
F
C1
B
C
A
D
Magnifying glass
E
G
F
3
Page 4
GENERAL INSTRUCTIONS FOR 230V MACHINES
The following will enable you to observe good working
practices, keep yourself and fellow workers safe and
maintain your tools and equipment in good working order.
WARNING!! KEEP TOOLS AND
EQUIPMENT OUT OF REACH OF
YOUNG CHILDREN
KEEP WORK AREA AS
UNCLUTTERED AS IS PRACTICAL.
UNDER NO CIRCUMSTANCES
SHOULD CHILDREN BE ALLOWED
IN WORK AREAS.
Mains Powered Tools
Tools are supplied with an attached 13 Amp UK 3 pin
•
plug, fitted with 5 amp fuse.
• Inspect the cable and plug to ensure that neither are
damaged. Repair if necessary by a suitably
qualified person.
• Do not use when or where it is liable to get wet.
Workplace
Do not use 230V a.c. powered tools anywhere
•
within a site area that is flooded.
• Keep machine clean.
Leave machine unplugged until work is about to
•
commence.
•
Always disconnect by pulling on the plug body
and not the cable.
• Carry out a final check e.g. check the cutting tool
is securely tightened in the machine and the
correct speed and function set.
• Ensure you are comfortable before you start work,
balanced, not reaching etc.
Wear appropriate safety clothing, goggles, gloves,
•
masks etc. Wear ear defenders at all times.
•
If you have long hair wear a hair net or helmet to prevent
it being caught up in the rotating parts of the machine.
Consideration should be given to the removal of rings and
•
wristwatches.
• Consideration should also be given to non-slip
footwear etc.
• If another person is to use the machine, ensure they are
suitably qualified to use it.
• Do not use the machine if you are tired or distracted.
• Do not use this machine within the designated safety
areas of flammable liquid stores or in areas where there
may be volatile gases.
Check cutters are correct type and size, are
•
undamaged and are kept clean and sharp, this will
maintain their operating performance and lessen the
loading on the machine.
•
OBSERVE…. make sure you know what is
happening around you and USE YOUR COMMON SENSE.
SPECIFIC SAFETY PRECAUTIONS FOR GRINDING MACHINES
1. Do not operate your machine until it is completely
assembled and installed according to the instructions.
2. If you are not familiar with the operation of grinding
machines obtain advice from your supervisor or instructor
or another qualified person.
3. Only use grinding wheels or attachments rated higher
than 3600 rpm with a 5/8”(16mm) arbor on this machine.
4. Never use a chipped or cracked wheel. Always inspect
each wheel before mounting it on the grinder. If during
inspection you discover a damaged grinding wheel, replace
it immediately.
5. Do not over tighten wheel nuts.
6. Always maintain a distance of 2mm or less between the
wheel and the tool rest. Adjust the tool rests as the wheels
decrease in size.
7. Ensure the tool rests are tightened so they cannot move
while in use.
8. Never grind on a cold wheel. The grinder should always
be run for at least one minute before applying work to it.
9. Never grind on the side of the wheel. Always grind on
the face of the wheel only.
10. Never apply coolant directly to a grinding wheel, it may
cause the bonding to fail. If the work piece becomes hot,
dip it into a water pot to cool it down.
4
Page 5
SPECIFIC SAFETY PRECAUTIONS FOR GRINDING MACHINES
11. Hot sparks are a hazard! Never carry out grinding
operations near flammable gas or liquid.
12. Always make sure the spark guards and eye shields
are in place, that they are properly adjusted and secured.
13. Keep the spark guards close to the wheels and
re-adjust them as the wheels wear.
14. Ensure the soft washer and the flanges furnished with
the grinder are used to mount any attachments (grinding
wheels, wire brushes, buffing wheels, etc) onto the shaft.
15. Always stand to one side of the grinder when starting
the machine.
16. Avoid awkward hand positions where a sudden slip
could cause the hands to come into contact with a grinding
wheel, wire brush etc.
17. If the wheel requires dressing, dress only the front of
the wheel, do not dress the sides.
18. Do not use any attachments that causes the machine
to vibrate. If, after changing grinding wheels or adding
attachments, the machine does vibrate, remove the
recently replaced item and change again.
19. Grinding creates heat. Do not touch the work face
of the work piece until you are sure it has cooled down
sufficiently.
ASSEMBLY
1 2
B
C1
C
B
C
3
Gears
Tool rest
42
C1
Locating pin
5
Continues Over...
Page 6
ASSEMBLY
5
D
6
7
Adjust the spark guard so its just above the stone
10
11
12
G
Nip-up the
eye sheild
8
E
F
Magnifying
glass
13
9
E
6
Page 7
Grinding
stone guard
ILLUSTRATION AND PARTS DESCRIPTION
Eye shield guard
Eye shield guard
with integrated
magnifying glass
Motor
40mm
80 grit
Grinding
stone
Adjustable Tool rest
25mm
60 grit
Grinding
stone
Housing slot for
bolting the grinder
to the work bench
Mounting bracket
Tool rest clamping knob
Tool rest
buttery clamp
On/O switch
Storage drawer
7
Page 8
SPECIFICATION
SETTING UP THE GRINDER
Code 107685
Model AW200WSG
Rating Home Workshop
Power 370W 230V 50Hz 1Ph
Speed 2,980 rpm
Wheel Diameter 200 mm
Wheel Width 25mm & 40 mm
Grit 25mm 60 grit & 40mm 80 grit
Bore 15.88 mm
Overall L x W x H 420 x 310 x 315 mm
Weight 18 kg
Place the grinder on a at level surface. There are
two machined slots to either side of the grinder
housing to bolt the machine onto a work bench if
required, see g 01.
Adjust the two tool rests leaving a gap of approximately 1.5mm clearance between the grinding stone
and the tool rest, see g 02
Fig 01
NOTE: ADJUST THE TOOL
RESTS AS THE GRINDING
STONE WEARS DOWN.
Fig 02
1.5mm
clearance
8
Page 9
Step 1-2
CONNECT THE GRINDER TO THE
MAINS SUPPLY.
ALWAYS WEAR EAR DEFENDERS
AND SAFETY GOGGLES.
DISCONNECT THE GRINDER
FROM THE MAINS SUPPLY.
SETTING UP THE GRINDER
Carry out final checks e.g. check the gap between the tool
rest and the stone is correct, check the stone is not badly
deformed (rounded edges, grooved face, etc; unless you
have specifically shaped the stone to these profiles), check
the eye shield is correctly positioned. Have a cooling pot to
hand if you need it. Start the machine, wait until it reaches
full speed. Check it runs smoothly, no knocking or scraping
noises for example. If all ok, switch off the grinder and wait
until it comes to a complete stop. Disconnect the machine
from the mains supply.
CHANGING THE GRINDING STONE
Step 3
Using a spanner remove the three nuts and washers from
the stone guard cover and place to one side.
Remove side cover and place safely to one side.
Step 4
Grasp the stone using a cloth, use a 24mm spanner to
loosen the nut, remember undo the nut in the direction of
the stone’s rotation as indicated by the arrow on the guard
co ver.
9
Continues Over...
Page 10
CHANGING THE GRINDING STONE
Step 5-6
Remove plate flange and carefully remove the stone.
Clean the interior stone guard, inspect the new stone for
cracks and damage to either the front face or the edges
before fitting. Carefully slide the stone on the shaft, replace
the plate flange, the nut and tighten against the rotation
of the stone. DO NOT OVERTIGHTEN.
Step 8-9-10
Step 7
CONNECT THE GRINDER
TO THE MAINS SUPPLY.
Reconnect the grinder to the mains supply, give the grinder
a ‘short burst’, by switching it on and off quickly. Check the
grinder is not subject to any undue vibration. If the grinder
does vibrate, switch off immediately and disconnect from
the mains supply. Remove the guard cover and check
stone and plate flange is fitted correctly. Check again, if
the grinder is still vibrating the stone/s may need dressing.
Dress the new stone lightly to ensure a ‘good face’ and
good concentricity.
10
Page 11
DRESSING THE STONECHANGING THE LIGHT BULB
CONNECT THE GRINDER
TO THE MAINS SUPPLY.
Switch on the grinder, wait until it reaches full speed and
leave the machine running for at least one minute before
carrying out any work. Apply a work piece and check that
the spark guard is correctly positioned and that the tool
rest is securely fixed. Switch off and wait until the grinder
comes to a complete stop.
DISCONNECT THE GRINDER
FROM THE MAINS SUPPLY.
After a period of time uneven wear on the stones including,
crests dips or rounded edges will appear. They will need to
be dressed out using a suitable wheel dressing stick. See
our website and in our catalogue for details, see fig 10-11.
Fig 10-11
Code 410074
CONNECT THE GRINDER
TO THE MAINS SUPPLY.
Switch the grinder on and allow it to run for at least one
minute. Rest the dressing tool on the tool rest and advance
it to the stone until it touches the maximum diameter;
Fig 12
gently move the dresser back and forth across the face of
the stone until all irregularities have been removed and
the edges of the stone are nice and sharp, see fig 12.
Wheel Dressing Stick for coarse carborundum
and dressing worn or unbalanced wheels.
Code 410057
Diamond Dressing Block useful for dressing across the
width of the grinding wheels or to produce flatter surfaces
than single point dressers.
11
Page 12
Page 13
EXPLODED DIAGRAMS/LISTS
NO. Specication QTY
1 Hex ange nut M6 8
2 Left shield cover plate 1
3 Hex nut Type I M16 Left 1
4 Wheel plate ange 4
5 Left Wheel WA 60# 200x25x
6 Phillips screw+spring
washer+at washer
7 Sleeve 2
8 Left shield inner cover 1
9 Left spark deector 1
10 Flat washer D5 4
11 Phillips screw+spring
washer+at washer
12 Left eyeshield support 1
13 Press plate 2
14 Flat washer D6 10
15 Hex bolt M6x14 2
16 Hex nut Type I M16 1
17 Flat washer D8 2
18 Eyeshield press plate 2
19 Screw M6x16 2
20 Philips screw M5x155 4
21 Wire subplate 1
22 Motor end cover 2
23 Motor housing 1
24 Washer D39 1
25 Bearing 6203-2RZ 2
26 Stator with Thermal
27 Anti-explosion capacitor 10μF/450V 1
28 Rotor 1
30 Hexagon ange nuts M5 4
31 Locking knob M8x12 2
32 Washer M10 1
33 Phillips screw M4X8 10
15.88mm
M5x10 6
M5x8 2
insulation
NO. Specication QTY
34 Right spark deector 1
35 Flat Eyeshield 1
36 Eyeshild with Magnier 1
37 Right Wheel WA 100# 200x40x
1
1
38 Phillips screw M4x10 4
39 Wahser D4 1
40 Phillips screw+spring
washer+at washer
41 Cable sheath 1
42 Right shield inner cover 1
43 Hex nut Type I M8 1
44 Capacitor stand 1
45 Base plate 1
46 Power cable clip 1
47 Power cable with plug 1
50 Nut M10x1 1
51 Switch base board 1
52 switch HY12 1
53 Right shield cover plate 1
54 Philips screw+ big at
washer assy
55 Rubber 4
56 Tool box 1
57 Base 1
58 Right xed work rest 1
59 Right eyeshield support 1
60 Left xed work rest 1
61 Hex ange nut M4 6
63 Phillips screw M4X16 2
64 Wire x plate 1
65 Left moveable work rest 1
66 Locking knob for moveable
work rest
67
Right moveable work rest
15.88mm
M4x8 2
M5x45 4
M6X21 2
1
1
13
Page 14
WIRING DIAGRAM
14
Page 15

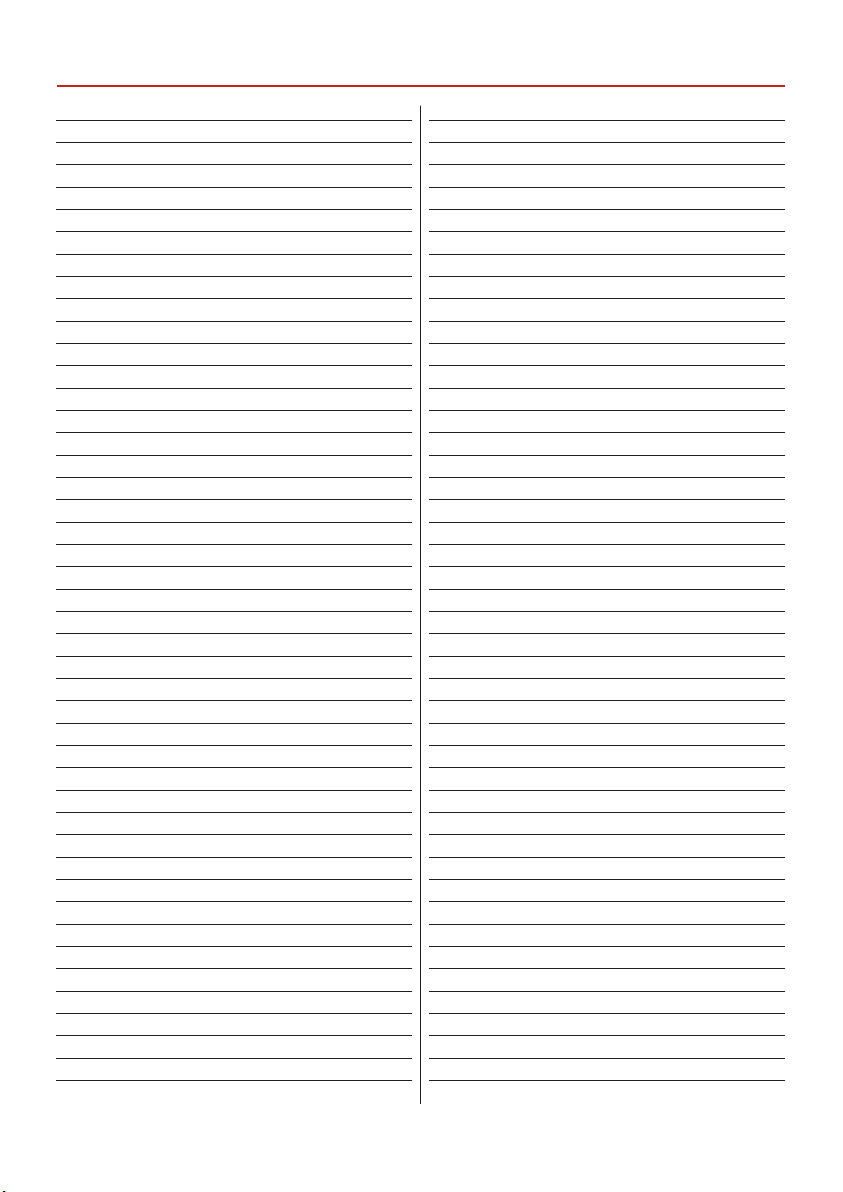

NOTES
15
Page 16
The Axminster guarantee
Buy with confidence from Axminster!
So sure are we of the quality, we cover all parts and labour free of charge for three years!
For more information visit axminstertools.com/3years
The packaging is suitable for recycling.
Please dispose of it in a responsible manner.
EU Countries Only
Do not dispose of electric tools together with household waste material.
By law they must be collected and recycled separately.
Axminster Tools, Axminster Devon EX13 5PH
axminstertools.com
Loading...
