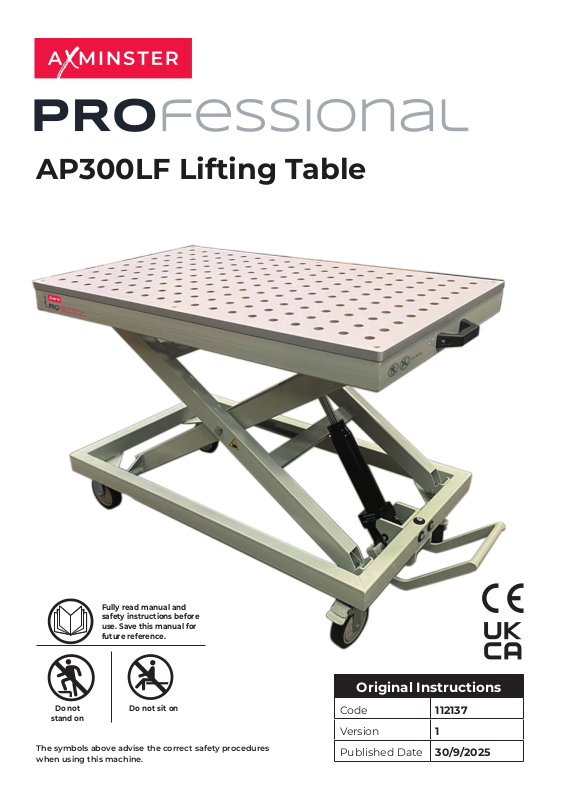

Page 1
AP300LF Lifting Table
Fully read manual and
safety instructions before
use. Save this manual for
future reference.
Do not
stand on
The symbols above advise the correct safety procedures
when using this machine.
Do not sit on
Original Instructions
Code 112137
Version 1
Published Date 30/9/2025
Page 2
Dear User:
Thank you for purchasing this product.
Please read this manual carefully before using our AP300LF Lifting Table.
Do not
stand on
Do not sit on
300 kg
Max. Load
Scope of Use:
This worktable is designed for lifting workpieces within its specified load capacity.
Application Environment and Relevance:
This product must be used on hard, flat ground.
Precautions and Related Information:
1 Before using this product, read the manual carefully to understand its performance
and usage. Obtain proper authorization before use.
2 Do not overload the worktable. Use it within the rated capacity (300 kg).
3 This product is not designed to carry people.
4 Keep hands and feet away from the surface coverage area.
5 Do not load loose or unstable items.
6 Do not load items on the platform or operate the worktable on inclined or uneven
surfaces.
7 Engage the brakes when loading goods to prevent the worktable from moving.
8 Do not load cargo while moving the worktable.
9 After lifting, ensure goods do not move sideways on the platform.
2
Page 3
Key Components:
1 Foot Pedal
2 Wheels
3 Base
4 Oil Cylinder
5 Lifting Arm
6 Upper Platform
7 Surface
7
5
6
300 kg
Max. Load
Specifications:
Model AP300LF
Base Dimensions (A x B) (mm) 1100 x 640
Total Height E (Position: Upper)
Approx. 1030 mm
Total Height E1 (Position: Lower)
Approx. 425 mm
Load Capacity (Max.) 300 kg
Net Weight Approx. 52.5 kg
Operating Temperature 10°C to 40°C
Note: The work surface is an optional part.
Assembly and Usage Instructions:
Assembly:
For convenient transportation and packing, the wheels (2) are not pre-assembled.
Usage:
1 Raising the Platform: Repeatedly press the foot pedal (1) up and down.
2 Lowering the Platform: Lift the foot pedal (1) upward (ensure it is lifted to the top).
3 Important: Always engage the brakes while loading and unloading.
4
E
E1
A
B
2
1
Care and Maintenance
Proper care and maintenance of this product can extend its service life and improve safety.
The following checks must be carried out before each use:
1 Inspect the body for any deformation or damage.
2 Check for bending or other visible damage.
3 Ensure all fasteners on the body are secure and not loose or missing.
4 Inspect the wheels and brakes for excessive wear.
5 Check the hydraulic system for any leakage.
6 If any of the above issues are found, repair or replace the affected parts promptly.
7 Check all f riction parts before use. If lubricating oil is lacking, please refill it.
Note: This should be checked at least once a year.
3
3
Page 4
This worktable is designed for lifting
workpieces within its specified 300 kg or less.
EAN: 5052511138296 Country of Origin: China
Axminster Tools UK Address
Unit 16 Weycroft Avenue,
Axminster, Devon, EX13 SPH
Axminster Tools European Address
A-201. Haagsche Hof. Partstratt 83.
The Hague. 2514JG. Netherlands
Axminster Tools, Axminster Devon EX13 5PH
axminstertools.com
