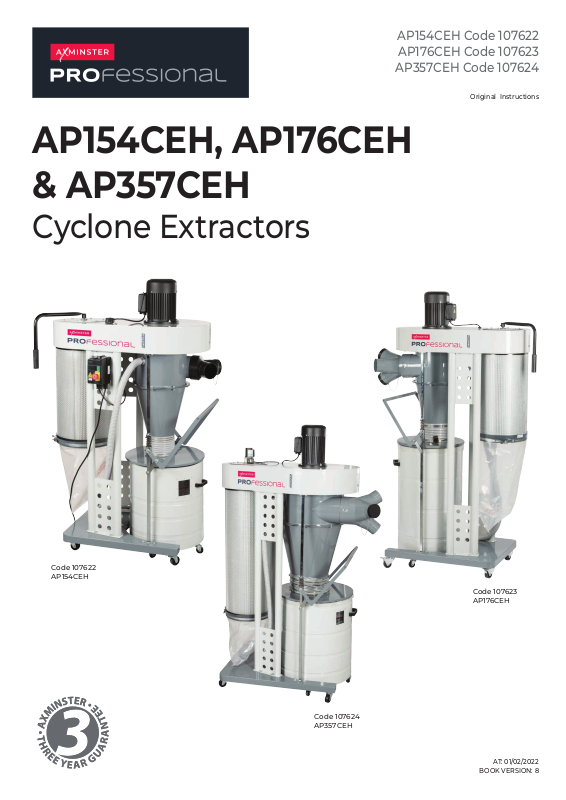

Axminster AP154CEH User guide

AP154CEH Code 107622

AP176CEH Code 107623

AP357CEH Code 107624

AP154CEH, AP176CEH
& AP357CEH

Cyclone Extractors

Original Instructions

Code 107622
AP154CEH

Code 107623
AP176CEH

Code 107624
AP357CEH

AT: 01/02/2022

BOOK VERSION: 8

INDEX OF CONTENTS

EU Declaration of Conformity 02

What’s Included 03

General Instructions for 230V Machines 04

Specific Safety for Dust Extractors 05

Specification 05

Assembly Instructions 06-07

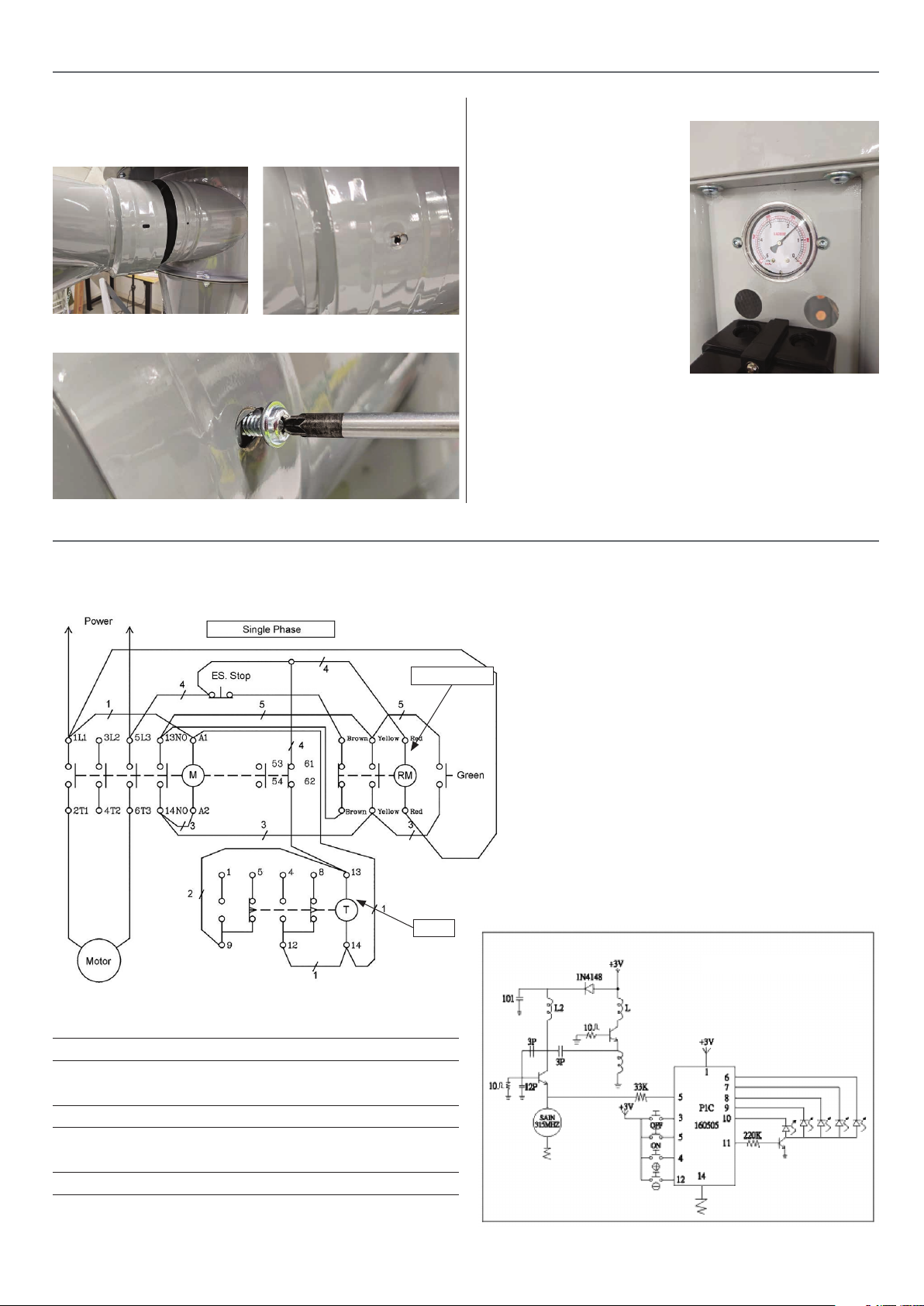

Wiring Diagram 07

Operating and Adjustments 08

Maintenance 09

LEV Testing 09

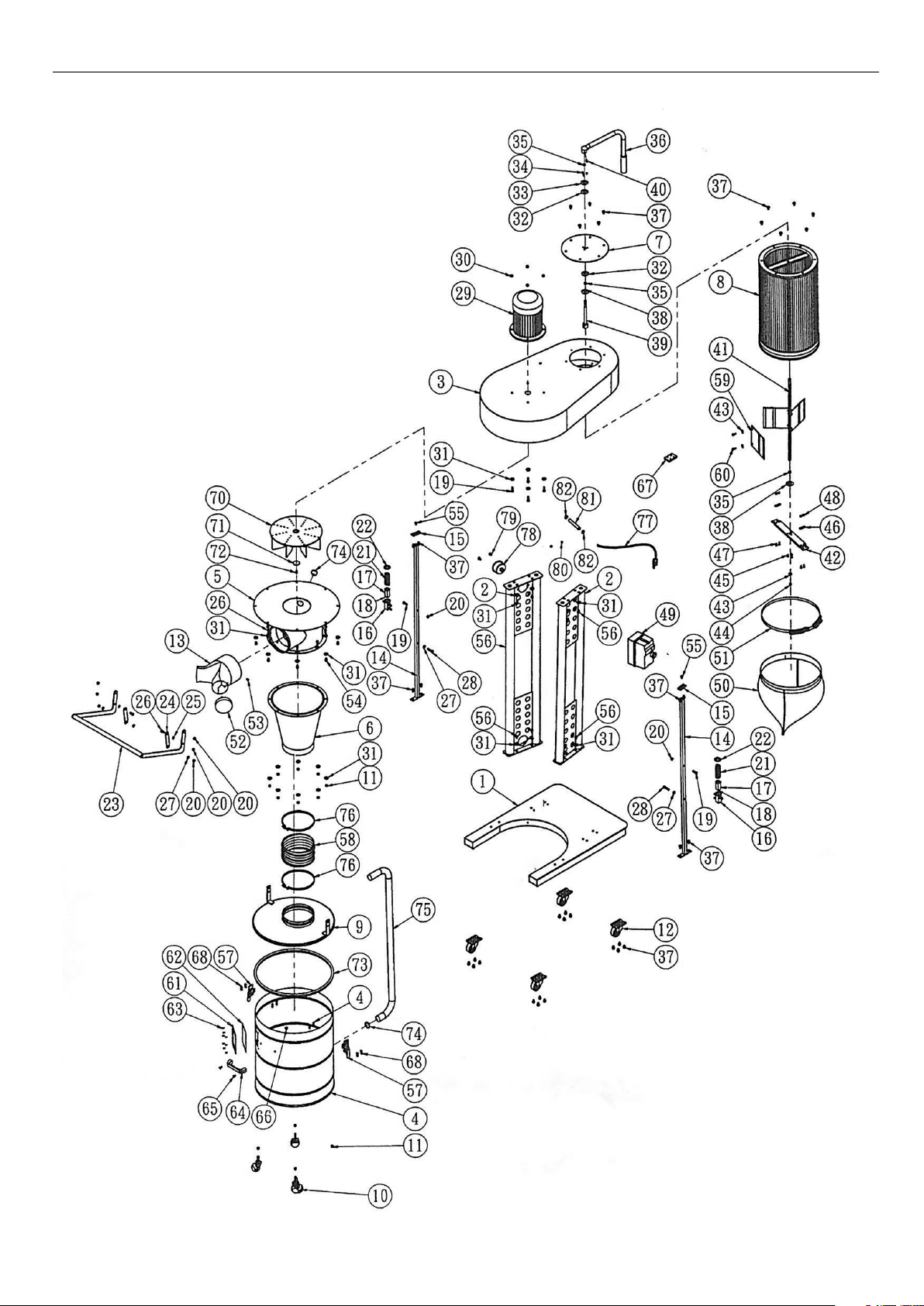

Exploded Diagrams/Lists 10-15

EU DECLARATION OF CONFORMITY

Cert No: 88150T, 88200T, 88300T

Axminster Tool Centre Ltd
Axminster Devon
EX13 5PH UK

axminstertools.com

declares that the machinery described:-

Type Cyclone Extractor

Models

Signed

Andrew Parkhouse

Operations Director

AP154CEH, AP175CEH,
AP357CEH

Da te: 09/11/2018

The symbols below advise the correct safety procedures when using this machine.

EU Declaration of Conformity

This machine complies with the following directives:

2006/42/EC
2014/42/EU
EN ISO 12100:2010
EN ISO 4414: 2010

and conforms to the machinery example for which the
EC Type-Examination Certificate No 3X181109.FTQD79
has been issued by FUSSO TOOL CORP.
at: No. 679, Sec. 4, Changping Rd., Daya Dist., Taichung City 428, Taiwan (R.O.C.)

and complies with the relevant essential health and safety requirements.

EN 60204-1:2006+A1:2009+AC:2010

Fully read manual

and safety instructions

before use

Ear protection

should be worn

Eye protection

should be worn

2

Dust mask

should be worn

HAZARD

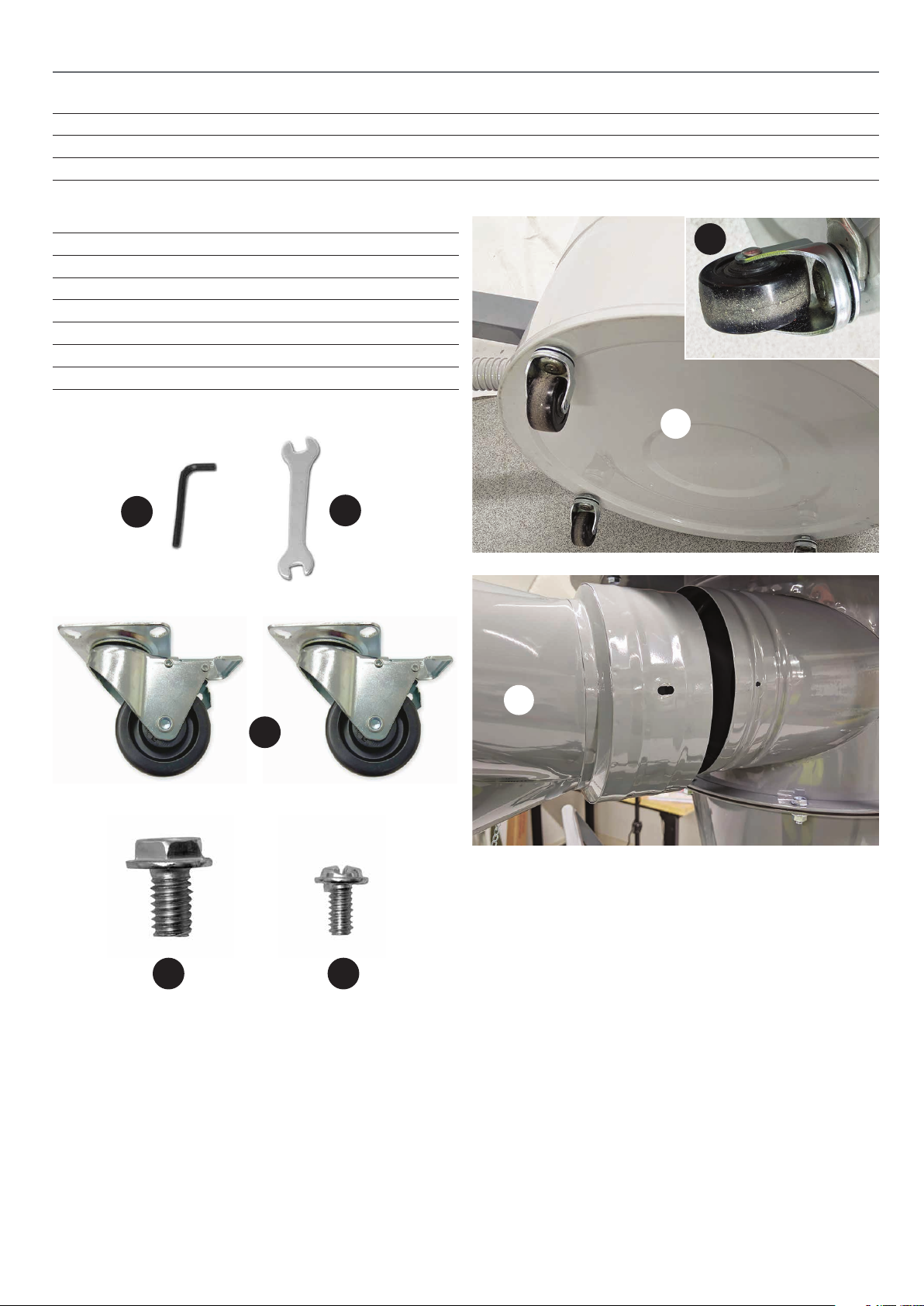

WHAT’S INCLUDED

Quantity Item Model Number

107622/107623/107624

1 Cyclone Extractor
1 Instruction Manual

1 5mm Hex Key 1
1 10-12mm Spanner 2
4 Waste Bin Swivel Castor Wheels 3
4 Brake Pedal Castor Wheels 4
1 Waste Bin 5

1 Inlet Adaptor 6
16 Large Bolts 7
1 Inlet Adaptor Small Screw 8

3

5

1

2

6

4

7 8

Please read the Instruction Manual prior to using your new machine. As well as the operating procedures for your
new machine, there are numerous hints and tips to help you to use the machine safely and to maintain its efficiency
and prolong its life. There is also a detailed description of the parts of your Cyclone Extractor, which will enable you to
become familiar with terminology we will use in this manual. Keep this Instruction Manual readily accessible for any
others who may also be required to use the machine.

3

GENERAL INSTRUCTION FOR 230V MACHINES

Good Working Practices/Safety

The following suggestions will enable you to observe
good working practices, keep yourself and fellow workers
safe and maintain your tools and equipment in good
working order.

WARNING!! KEEP TOOLS AND EQUIPMENT OUT
OF THE REACH OF YOUNG CHILDREN

Mains Powered Tools and Machines

Primary Precautions

These machines are supplied with a moulded 16 Amp
plug and 3 core power cable. Before using the machine,
inspect the cable and the plug to make sure that neither
are damaged. If any damage is visible, have the damaged
item inspected/repaired by a suitably qualified person.
If it is necessary to replace the plug, it is preferable to
use an ‘unbreakable’ type that will most resist damage.
Only use a 16 Amp plug, and make sure the cable clamp
is tightened securely. Fuse as required. If extension leads
are to be used, carry out the same safety checks on them,
and ensure that they are correctly rated to safely supply
the current that is required for your machine. Remember,
most machines or tools have handles or holding
positions, the power cable is not one of them.

or around a sharp edge. If the work you are carrying out
is liable to generate flying grit, dust or chips, wear the
appropriate safety clothing, goggles, gloves, masks etc.
If the work operation appears to be excessively noisy,
wear ear-defenders. If you wear your hair in a long style,
wearing a cap, safety helmet, hairnet, even a sweatband,
will minimise the possibility of your hair being caught
up in the rotating parts of the machine, likewise,
consideration should be given to the removal of rings
and wristwatches if these are liable to be a ‘snag’ hazard.
Consideration should also be given to non-slip footwear,
etc.

Do not use this machine if you are tired, your attention is

wandering or you are being subjected to distraction.

Do not use this machine within the designated safety

areas of flammable liquid stores or in areas where there
may be volatile gases. There are very expensive, very
specialised machines for working in these areas. Above
all, OBSERVE…. make sure you know what is happening
around you, and USE YOUR COMMON SENSE.

SPECIFIC SAFETY
FOR DUST EXTRACTORS

Workplace/Environment

The machine is not designed for use outside. Keep the
machine clean; it will enable you to more easily see any
damage that may have occurred. Clean the machine with
a damp soapy cloth if needs be, do not use any solvents
or cleaners, as these may cause damage to any plastic
parts or to the electrical components.
It is good practice to leave the machine unplugged until
work is about to commence, also make sure to unplug
the machine when it is not in use, or unattended. To
avoid inadvertent ‘start up’, if your machine is not fitted

KEEP THE WORK AREA AS UNCLUTTERED AS
IS PRACTICAL, THIS INCLUDES PERSONNEL
AS WELL AS MATERIAL.
UNDER NO CIRCUMSTANCES SHOULD
CHILDREN BE ALLOWED IN WORK AREAS.

with a NVR system, ensure the switch is always returned
to the OFF position. Once you are ready to commence
work, remove any tools, objects or items that could
inadvertently get ‘sucked up’ by the machine and place
safely out of the way. Re-connect the machine, ensuring
the power cable is not ‘snagged’ or routed where it could
be tripped over as you move about the workshop; it is
not too close to an unguarded heat source, or is laid over

Do not use this machine as a vacuum cleaner, try to keep

the waste medium to wood by products.

Do not uplift workshop floor debris (stones, nails, screws,

paper etc., etc). Be aware that wood dust is an explosive
medium.

Do not allow any ‘naked light’ source to occur anywhere

near the machine. This includes cigarettes, matches, etc,
and do not place the machine near any unprotected light
bulbs, that could possibly get broken.

The suction force is generated by a high speed fan unit.
This has the potential to amputate fingers, grab loose
clothing (ties etc.,) and ‘bat’ large chips etc, at high
speeds. Keep all guarding in place, and if access to the fan
becomes necessary (due to blockage etc.,) disconnect
the machine from the mains supply and ensure the fan
has come to a complete stop before putting your hands
anywhere near to it.

If you are not using ‘clear’ extraction hose, periodically
remove the hose to check that the inlet to the machine
is not getting restricted. (The safety guard grill of the
inlet duct can be particularly irksome in this way, as long
strand shavings etc., can wrap around the grill fret.)

4

SPECIFIC SAFETY FOR DUST EXTRACTORS

Keep the particle filter clean. The machine relies on its
ability to ‘blow’ air through the filter, to generate good
suction. If the particle filter starts to clog, this reduces the
air flow and hence the machine becomes less efficient.

The particle filter can be cleaned, by removing the rear
filter cover (20) and using a vacuum cleaner, clean the
inside of the filter as illustrated on page 17.

Be aware that in dry air periods or areas, the movement
of the air through the machine can generate static
electric fields. These are not normally a problem as the
machine is bonded together via its construction and
the whole is earthed back through the electrical supply;
problems can occur with isolated items, such as stands

or hosing that are insulated from the ground (standing

on rubber feet?, suspended in the air etc).

If possible, try to connect everything together electrically,
to eliminate static shocks.

(Use the integral metal coil in flexible plastic hosing to
connect units together).

Try to route the power cable and the hosing away from
busy walkways.

Do not allow the inlet to become ‘dead ended’, or block

or restrict the outlet, this puts undue strain on the motor
and can lead to overheating.

SPECIFICATION

Code 107622 107623 107624
Model AP154CEH 1.5HP AP176CEH 2HP AP357CEH 3HP
Rating Professional Professional Professional
Power 1.1 kW 1Phase 1.5 kW 1Phase 2.2 kW 1Phase
Supply Circuit 16 Amps (Type C Breaker) 16 Amps (Type C Breaker) 16 Amps (Type C Breaker)
Air Flow 1,600 m³/hr @ 150 mm 1,715 m³/hr @ 178 mm 3,700 m³/hr @ 200 mm
Sound Pressure
Level [Uncertainty K] 76 dB(A) 76 dB(A) 77 dB(A)
Static Pressure 2,440 Pa 2,490 Pa 2,735 Pa
Filter Performance 99.97% >0.3 micron 99.97% >0.3 micron 99.97% >0.3 micron
Filter Surface Area 2.5 m² 2.5 m² 4.35 m²
Container Volume 110 litre 168 litre 198 litre
Inlet 1 x 150 mm or 2 x 100 mm 1 x 178 mm or 3 x 100 mm 1 x 200 mm or 3 x 100 mm
Overall L x W x H 1,120 x 700 x 1,780mm 1,120 x 700 x 2,080mm 1,370 x 790 x 2,030mm
Weight 117kg 127kg 155kg

ASSEMBLY INSTRUCTIONS

Please read through the section entitled Parts identification and Description, this will enable you to more readily
identify those parts of the cyclone extractor.

Please note: some of this assembly procedure is best accomplished by two persons. Although

the tasks are not impossible, some of the items are heavy and awkward, and a mishandling
error could cause injury. Please think about what you are doing, your capabilities and your
personal safety. We have added the ‘two person symbol’ to any operation that we recommend
should be a two person task.

Unpack all the boxes and check all the components listed in the “What’s Included” section. If any parts or components
are missing, please contact our Customer Services Department using the procedures and telephone numbers listed
in our catalogue.

Please note: on occasions the packing list is not strictly adhered to. Please check all the boxes, packets
etc. to make sure that all the parts have been accounted for.

PLEASE RECYCLE ANY UNWANTED PACKAGING RESPONSIBLY!

5

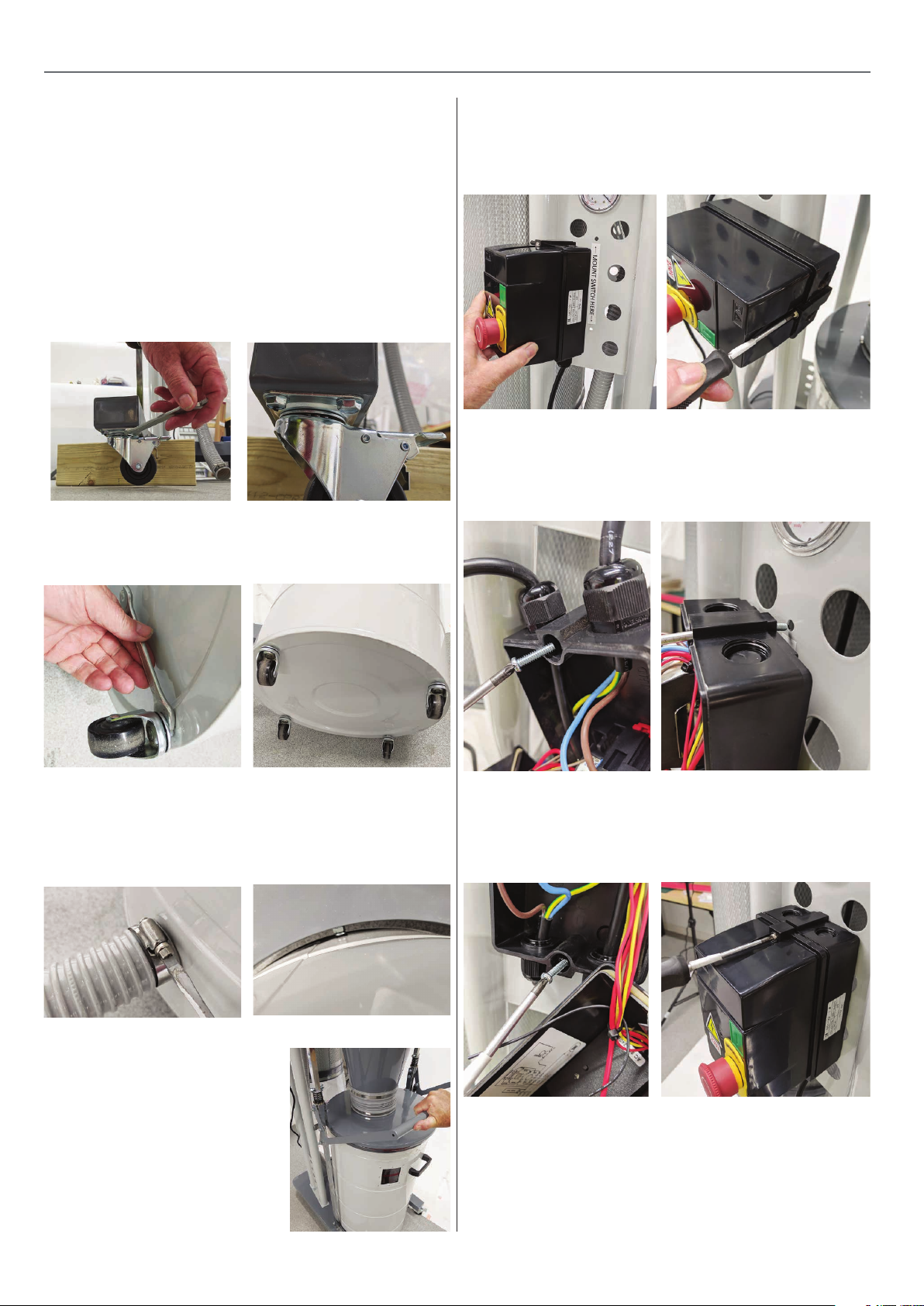

ASSEMBLY INSTRUCTIONS

These extractors come almost completely assembled with the exception
of the mobility castors, waste bin suction hose, switch and inlet adaptor.

Once you had dismantled the crate, remove the waste bin. Now place
some short lengths of 50 x 100mm timber upright on the floor and with
help manhandle the extractor onto the timbers.

Inside the waste bin there should be a pack containing the two sets of
castors, 4 with brake pedals, 4 smaller swivel castors.

The braked castors use 4 x M* bolts each, these fit under the base frame
at each corner. Fit one to each corner and tighten the bolts securely
(Figures 01 and 02).

Figure 01 Figure 02

Now fit the castors to the underside of the waste bin and tighten
securely (Figures 03 and 04).

Unpack the switch, there should be a small pack containing two small
machine screws with nuts, and the remote control fob.

The switch is mounted with the two machine screws here (Figure 08),

Figure 08 Figure 09

Remove the lid from the switch, (Figure 09)

Leave it loose (or get an assistant to hold it), taking care not to disturb
any wiring, fit one machine screw down the now open hole (Figure 10),

Figure 10 Figure 11

Figure 03 Figure 04

Carefully remove the machine from the timbers onto it’s castors.

Fit the vacuum hose to the outlet near the bottom of the waste bin.
Tighten the clip securely. (Figure 05)

Figure 05 Figure 06

Fit the screw through the hole in the frame and secure using a nut on
the back (Figure 11).

Repeat for the lower side (Figure 12),

Figure 12 Figure 13

Remove the remaining items from the
waste bin. The waste bin fits into a recess
in the base plate, so with the large handle
lowered, place the bin against the two
rubber stoppers (Figure 06), and raise the
handle (Figure 07).

Figure 07

Refit the lid, carefully checking that no wires become pinched or
trapped (Figure 13).

The remote control fob has a sliding cover that protects the buttons,
slide back to expose the red and green stop and start buttons. When
using, please make sure that the main switch box “STOP” button has
been released, twist clockwise to make sure.

6

ASSEMBLY INSTRUCTIONS

Now fit the inlet adaptor with the single self tapping screw as shown
(Figures 14, 15 & 16).

Figure 14 Figure 15

Figure 16

The manometer gauge is your
machine performance indicator, it is
a visual indicator that the machine,
and your system is functioning. If
the needle is in this region then
enough air flow is reaching the
machine to enable it to function
correctly.

You must operate the filter cleaning
lever (AP154/AP176 CEH) very
regularly to maintain the filter
performance. The AP357CEH is
fitted with electric filter cleaning
which operates when the machine
is switched off.

The filter has a very long life, and barring damage, even when partially
clogged can be cleaned from the inside with an “M” Class vacuum
cleaner. Never use a high pressure blow gun from the outside to disturb
dust that may be attached to the inside surface.

The golden rule with filter cleaning is little and often.

Figure 17

WIRING DIAGRAM

Security Breaker

Remote control

Timer

Wiring of remote control

107622 1.5HP 230V 50Hz 1Phase
Power Supply Circuit

16 Amps (Type C Breaker)

107623 2HP 230V 50Hz 1Phase
Power Supply Circuit

16 Amps (Type C Breaker)

107624 3HP 230V 50Hz 1Phase
Power Supply Circuit

16 Amps (Type C Breaker)

7

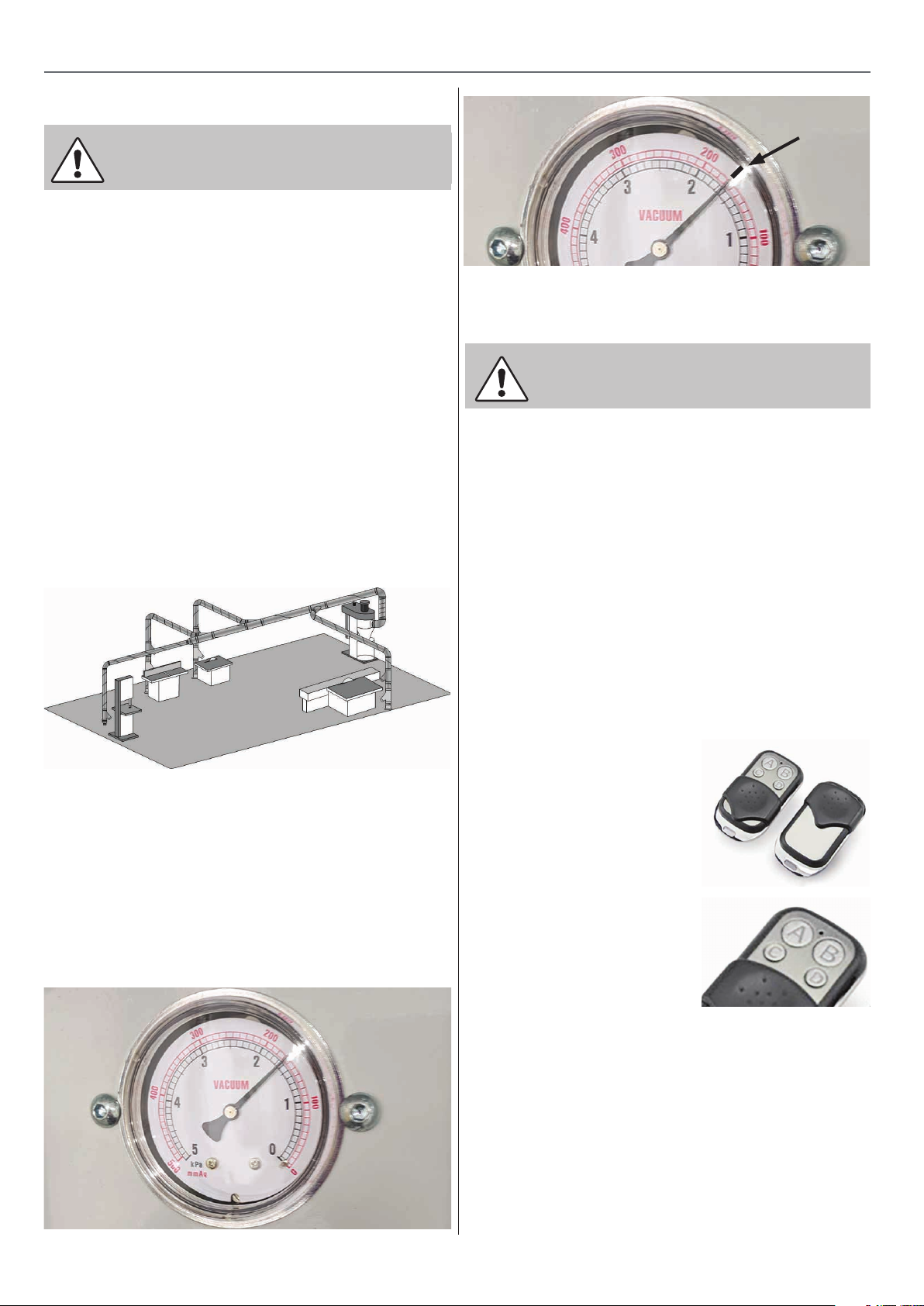

OPERATING AND ADJUSTMENTS

Switching ON/Off

ALWAYS TURN ON/OFF THE EXTRACTOR BY THE
NVR CONTROL SWITCH NOT THE MAINS SWITCH

This is to allow the shaker motor on the (AP357CEH)
to perform the self cleaning operation. If the cyclone
extractor is turned off at the mains switch, the shaker
motor will not cut in. If this is constantly repeated,
eventually the filter will become blocked, causing
reduced performance.

The manometer is used to monitor the air flow in the
ducting system. When you first use your extractor it is
recommended you mark on ‘manometer’ the pressure
the extractor it running at, to do this follow the
instructions below.

Note: the reading can vary depending on the size of
the ducting system.

1. Connect your cyclone extractor to the ducting system.

If you find the reading has increased there could be a
blockage in the ducting system or extractor unit, check
the following:

• Check the rear filter for signs of build of sawdust and
clean with a vacuum cleaner

• Check the shaker motor is working properly

• Check the hoses for blockages

• Check the bin bag and empty if full

If the reading has decreased, check the following:

WARNING!! BEFORE CARRYING OUT ANY
MAINTENANCE DISCONNECT THE CYCLONE
EXTRACTOR FROM THE MAINS SUPPLY

2. Start up the extractor by pressing the ‘green’ button on
the NVR switch assembly and check the reading on the
manometer.

3. Using a marker or sticky label mark the reading on the
manometer, (see figure 01). This is to confirm that every
time you switch on you know what the read will be.

Figure 01

• Check the hoses are secure, ‘NOT LOOSE’ which will
lead to air leakages

• Check hoses for splits and cracks

• Check “Blastgates” that are not in use are shut

THE REMOTE CONTROL

1. Green button turns ON the

extractor

2. Red button turns OFF the extractor

3. NOTE: C & D buttons are

disconnected and no longer in use.

Requires a 12V, type A27 battery.

Note: The remote control operates on
radio frequency and has a 60-ft. range.
It does not need to be aimed at the
control box tooperate.

Extraction Accessories

For all of our accessories please see our catalogue and
website or contact us on:

Freephone: 03332 406 406

Replacement Waste Sacks

Code: 106369 Bin Sacks for AP154CEH & AP176CEH
Code: 106370 Bin Sacks for AP357CEH
Code: 106368 Filter Sacks for AP154CEH, AP176CEH, AP357CEH

8

MAINTENANCE LEV TESTING

WARNING!! BEFORE CARRYING OUT ANY
MAINTENANCE DISCONNECT THE CYCLONE
EXTRACTOR FROM THE MAINS SUPPLY

WARNING!! KEEP CHILDREN AWAY FROM WORK
AREA

WARNING!! always wear a dust mask

WARNING!! Always wear eye protection

After a period of time dust, sawdust and shavings can
build-up causing blockages and reduced suction
performance. Follow the maintenance instructions below
to keep your extractor working a peak performance.

Basic Maintenance

Daily

Why should I bother with LEV?

The law says you must control the risks from these substances
(the Control of Substances Hazardous to Health (COSHH)
Regulations). Installing LEV may help you to do this.

For more information about other ways of eliminating or
reducing airborne contamination at work look at HSE’s COSHH
website, hse.gov.uk/coshh.

Health and Safety Executive

• Operate the filter cleaning handle.

• Empty the collection bag before it overflows, wear a
dust mask whilst removing and emptying the bag.

Weekly

• Check the inlet and outlet ducts and remove any
accumulated sawdust.

• Check the inlet hoses for splits and cracks, repair as

necessary.

• Check the dust collection bag for wear and tear,
especially around the neck at the jubilee clip. If wear
or fraying is occurring, replace the bag.

• Check the motor for dust, sawdust, shavings etc,
build up. If this has occurred, clean with an ‘M’ class
vacuum cleaner.

(MODEL AP357CEH ONLY)

• Start up the extractor, wait a few seconds and
switch off, approximately 60 seconds later the
shaker motor will start up. There will be a distinct
clicking noise as the shaker motor paddles goes
round, switching off automatically. If no sound
is heard remove the filter bag and look up inside
the filter for any signs that the paddles are being
obstructed. If there is no obstruction contact
Axminster Tool Centre’s on 03332 406406 for
assistance.

A guide to local exhaust ventilation (LEV)

Ref Code: HSG258

The book above provides guidance on the supply of local
exhaust ventilation (LEV) equipment. It describes the principles
and good practice of deciding on, designing, commissioning
and testing cost-effective LEV.

The guidance is written for the suppliers of LEV goods and
services, but will also be helpful for employers and managers in
medium-sized businesses, and trade union and employee safety
representatives. All of these groups need to work together to
provide, maintain and use effective LEV and to reduce exposure
from inhalation of hazardous substances.

The book contains information about the roles and legal
responsibilities of suppliers and of their clients as employers;
competence; principles of good design practice for effective
LEV hoods and their classification; ducts, air movers, air cleaners;
and system documentation with checking and maintenance
schedules, and the marking of defective equipment.

It also includes guidance on the specification of LEV; the
supplier’s quotation; commissioning; zone marking; the user
manual and logbook; testing and hood labels.

9

EXPLODED DIAGRAMSLISTS  AP154CEH 1.5HP

Model: 88150T

No Description Qty

1 Base 1

2 Leg 2

3 Main Housing 1

4 Dust Drum 1

5 Round Collector 1

6 Reducing Collector 1

7 Housing top cover 1

8 Cansiter Filter 600mm Long 1

9 Drum Lid 1

10 Caster 4

11 Nut 5/16” 12

12 Wheel 4

13 Inlet 6” x 4” x 2 1

14 Guide Tube 2

15 Guide Tube fixing Plate 2

16 Sliding Bracket 2

17 Copper Plate 4

18 Copper Plate 4

19 Hex Screw 5/16”x 1” 6

20 Lock Nut 5/16” 8

21 Spring 2

22 Blocking Washer 2

23 Lever Handle 1

24 linkage Plate 2

25 Plastic Washer 4

26 Button HD Screw 5/16” x 3/4” 2

27 Waher 5/16” 4

28 Hex Bolt 5/16” x 1-1/2” 2

29 Motor 1.5HP 1

30 Flange Nut 5/16” 4

31 Washer 5/16” x 23 44

32 Packing 2

33 Bearing Fixing Plate 1

34 Philp HD Screw M5 x 15 3

35 Bearing 3

36 L type Handle 1

37 Flange Bolt 5/16” x 1/2” 36

38 Bearing Fixing Plate Thread 2

39 Connecting Spindle 1

40 Hex Bolt M6 x 16L 1

No Description Qty

41 Main Spindle 1

42 Lower Bracket 1

43 Whasher 1/4” 7

44 Philp HD Screw M6 * 10 1

45 Philp HD Screw M5 * 8 3

46 Lower Bracket Fixing Plate 2

47 Philp HD Screw M5 x 15 4

48 Nut M5 4

49 Magnetic Switch with remote receiver 1

50 Dust bag ( Small) 1

51 Belt Clamp 1

52 Inlet Cap 4” 1

53 Philp HD Screw 3/16” x3/8” 1

54 Hex Bolt 5/16” x 1/2” 8

55 Flate HD Screw 5/16” x 1-1/4” 2

56 Button HD Screw 5/16” x 1/2” 16

58 Hose 7” 1

59 Flapper 3

60 Hex Screw M6 x 16 6

61 Square pad 1

62 PC Board 1

63 Rivet 8

64 Handle 1

65 Philp HD Screw 1/4” x 5/8” 2

66 Cap Nut 1/4” 2

67 Remote 1

70 Impeller 12-3/4” Aluminum 1

71 Impeller Washer 1

72 Cap Screw M6 x 30 1

73 Rubber Strip 1

74 Hose Clamp 1-1/2” 2

75 Hose 1-1/2” 1

76 Hose Clamp 7” 2

77 Power Cord 1

78 Negartive Pressure Gage 1

79 Button HD Screw 1/4” x 3/4” 2

80 Hose 1/2” 1

81 Hose Clamp 1/2” 2

82 Dust Bag(Large) 1

10

Model: 88150T

EXPLODED DIAGRAMSLISTS  AP154CEH 1.5HP

11

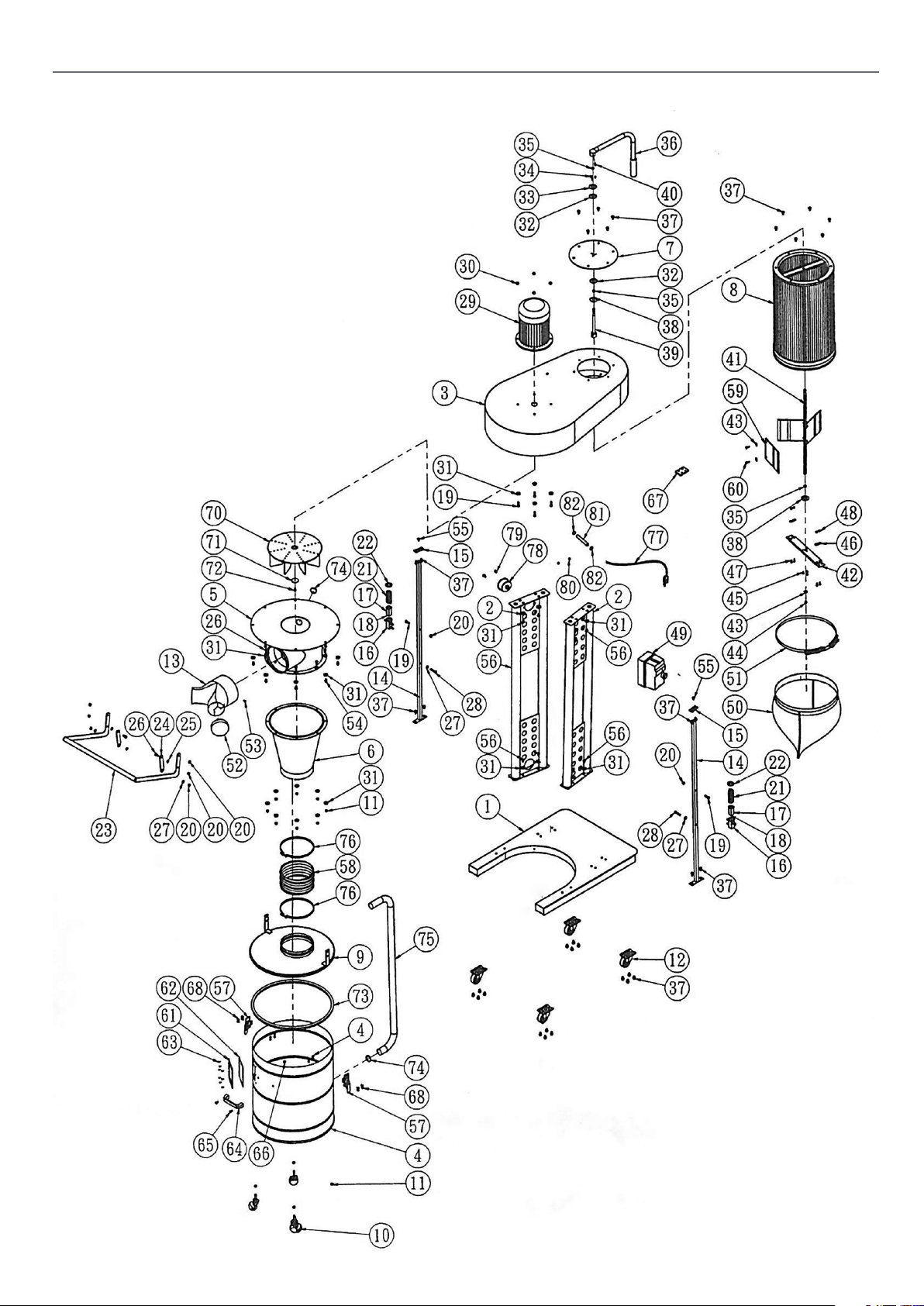

EXPLODED DIAGRAMSLISTS  AP176CEH 2HP

Model: 88200T

No Description Qty

1 Base 1

2 Leg (longer) 2

3 Main Housing 1

4 Dust Drum (Tall) 1

5 Round Collector 1

6 Reducing Collector 1

7 Housing top cover 1

8 Cansiter Filter 600mm Long 1

9 Drum Lid 8” 1

10 Caster 4

11 Nut 5/16” 12

12 Wheel 4

13 Inlet 7” x 4” x 2 1

14 Guide Tube 2

15 Guide Tube fixing Plate 2

16 Sliding Bracket 2

17 Copper Plate 4

18 Copper Plate 4

19 Hex Screw 5/16”x 1” 6

20 Lock Nut 5/16” 8

21 Spring 2

22 Blocking Washer 2

23 Lever Handle 1

24 linkage Plate 2

25 Plastic Washer 4

26 Hex HD Screw 10

27 Waher 5/16” 4

28 Hex Bolt 5/16” x 1-1/2” 2

29 Motor 2HP 1

30 Flange Nut 5/16” 4

31 Washer 5/16” x 23 44

32 Packing 2

33 Bearing Fixing Plate 1

34 Philp HD Screw M5 x 15 3

35 Bearing 3

36 L type Handle 1

37 Flange Bolt 5/16” x 1/2” 36

38 Bearing Fixing Plate Thread 2

39 Connecting Spindle 1

40 Hex Bolt M6 x 16L 1

No Description Qty

41 Main Spindle 1

42 Lower Bracket 1

43 Whasher 1/4” 7

44 Philp HD Screw M6 * 10 1

45 Philp HD Screw M5 * 8 3

46 Lower Bracket Fixing Plate 2

47 Philp HD Screw M5 x 15 4

48 Nut M5 4

49 Magnetic Switch with remote

receiver

50 Dust bag ( Small) 1

51 Belt Clamp 1

52 Inlet Cap 4” 1

53 Philp HD Screw 3/16” x3/8” 1

54 Hex Bolt 5/16” x 1/2” 8

55 Flate HD Screw 5/16” x 1-1/4” 2

56 Button HD Screw 5/16” x 1/2” 16

58 Hose 8” 1

59 Flapper 3

60 Hex Screw M6 x 16 6

61 Square pad 1

62 PC Board 1

63 Rivet 8

64 Handle 1

65 Philp HD Screw 1/4” x 5/8” 2

66 Cap Nut 1/4” 2

67 Remote 1

70 Impeller 1

71 Impeller Washer 1

72 Cap Screw M6 x 30 1

73 Rubber Strip 1

74 Hose Clamp 1-1/2” 2

75 Hose 1-1/2” 1

76 Hose Clamp 8” 2

77 Power Cord 1

78 Negartive Pressure Gage 1

79 Button HD Screw 1/4” x 3/4” 2

80 Hose 1/2” 1

81 Hose Clamp 1/2” 2

82 Dust Bag(Large) 1

1

12

Model: 88200T

EXPLODED DIAGRAMSLISTS  AP176CEH 2HP

13

EXPLODED DIAGRAMSLISTS  AP357CEH 3HP

Model: 88300TA

No Description Qty

1 Base 1

2 Stand 2

3 Main Housing 1

4 Dust Drum 1

5 Collector 1

6 Reducing Collector 1

7 Housing Cover 1

8 Canister Filter 1

9 Drum Lid 1

10 Caster 4

11 Nut -5/16” 12

12 Wheel 4

13 Motor 3HP 1

14 Washer 5/16” 44

15 Button HD Screw 5/16”x 1/2” 16

16 Inlet 1

17 Cap 4” 1

18 Flange Screw 4

19 Hex Screw 5/16” x 1-1/4” 4

20 Impeller 1

21 Impeller Washer 1

22 Cap Screw M6 x 30 1

23 Hex Screw 5/16” x 1/2” 8

24 Hex Screw 5/16” x 3/4” 10

25 12” Hose 1

26 Hose Clamp 12” 2

27 Rubber Strip 1

28 Handle 1

29 Philp HD Screw 1/4”*1/2” 2

30 Nut 1/4” 2

31 Squre Foam 1

32 PC Board 1

33 Rivet 4-2 8

34 Sliding Bar 2

35 Fixing Plate 2

36 Flat HD Screw 5/16” x 1-1/4” 2

37 Flange Screw 5/16” x 1/2” 30

38 Sliding Block 2

39 Spring 2

40 Copper Plate 4

No Description Qty

41 Copper Plate 4

42 Special Washer 2

43 Lever Handle 1

44 Connecting Plate 2

45 Plastic Washer 4

46 Lock Nut 5/16” 6

47 Washer 5/16” 4

48 Hex Bolt 5/16” x 1-1/2” 2

51 Hex Bolt 5/16” x 1” 2

52 Philp HD Screw 3/16” x 3/8” 1

53 Magnetic Switch with Receiver 1

54 Power Cord 1

55 Reducer 1

56 Small Motor 1

57 Cap Screw M5 x 50 4

58 Flange Screw 5/16” x1/2” 6

59 Upper Flapping Hook 1

60 Lower Flapping Bar 1

61 Connecting Shaft 1

62 Main Shaft 1

63 Lower Plate 1

64 Bearing 1

65 Bearing Fixing Plate 1

66 Dust Bag (Small) 1

67 Belt Clamp 1

68 Flat Washer 1/4” 7

69 Philp HD Screw M5*8 1

70 Philp HD Screw M5 x 10 3

71 Fix Plate 2

72 Philp HD Screw M5 x 15 4

73 Flapper 3

74 Hex Bolt M6 x 16 6

75 Hose 1-1/2” 1

76 Hose Clamp 1-1/2” 2

77 Remote 1

78 Plastic Bag. 1

79 Negartive Gage 1

80 Hose 1/2” 1

81 Hose Clamp 1/2” 2

14

Model: 88300TA

EXPLODED DIAGRAMSLISTS  AP357CEH 3HP

15

The Axminster guarantee

Buy with confidence from Axminster!
So sure are we of the quality, we cover all parts and labour free of charge for three years!

For more information visit axminstertools.com/3years

The packaging is suitable for recycling.
Please dispose of it in a responsible manner.

EU Countries Only

Do not dispose of electric tools together with household waste material.
By law they must be collected and recycled separately.

Axminster Tools, Axminster Devon EX13 5PH

axminstertools.com
