Page 1
AP145CE Cyclone
Extractor
Fully read manual and safety
instructions before use.
Save this manual for future
reference.
Eye protection
should be worn
The symbols above advise the correct safety procedures when using this machine.
Ear protection
should be worn
Dust mask
should be worn
Hazard
The packaging is suitable for recycling.
Please dispose of it in a responsible manner.
Do not dispose of electric tools together with
household waste material. By law they must be
collected and recycled separately.
EU Countries Only
Original Instructions
Code 113353
Version 1
Published Date 8/10/2025
Page 2
Table of contents
Preface 1
1. Safety ............................................................................................................................................. 2
1.1 Safety instructions for general machinery ................................................................................. 2
1.11 Personal protective equipment ............................................................................................ 3
1.2 Safety instructions for dust collector .......................................................................................... 3

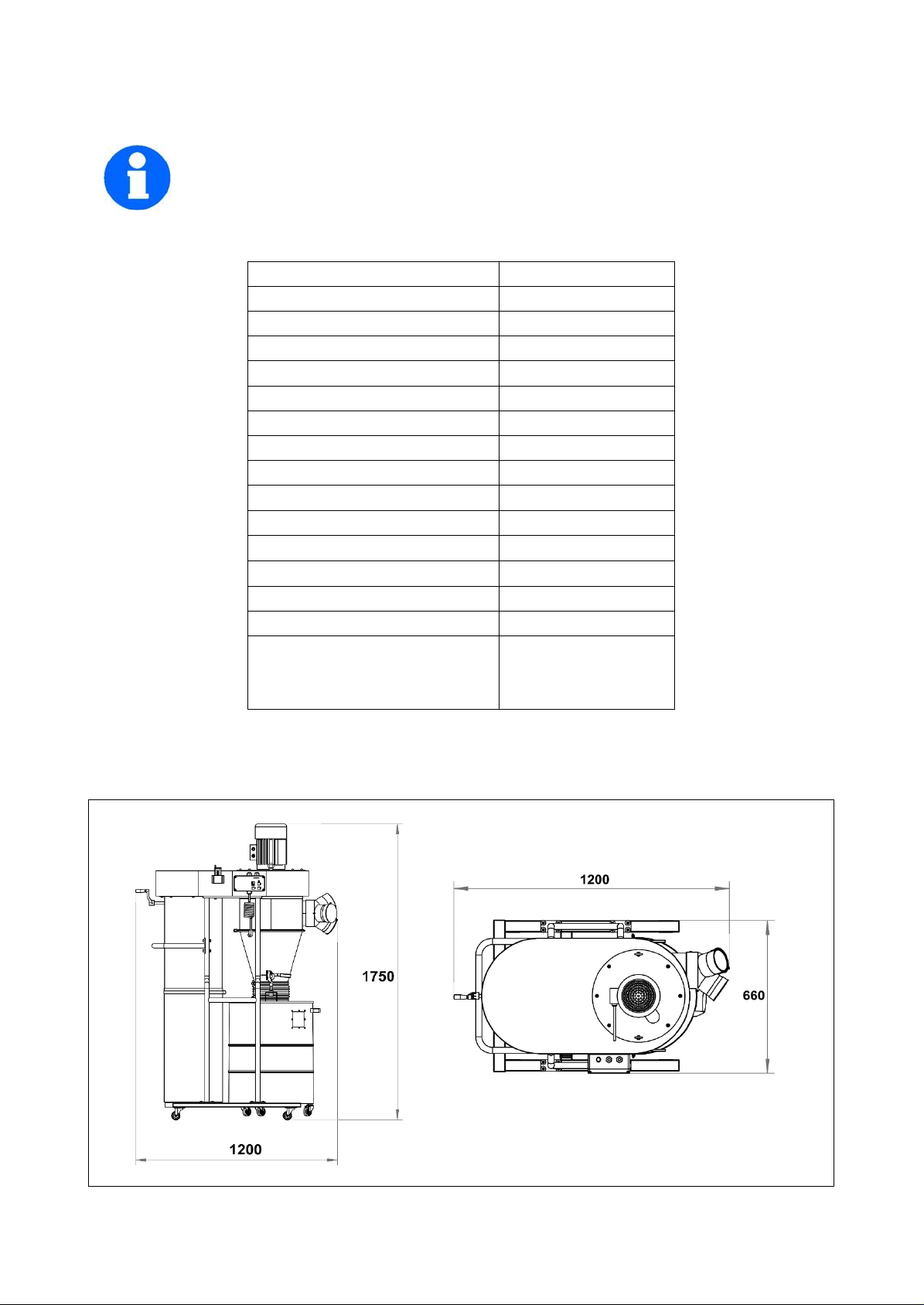

2. Technical Specification ................................................................................................................ 6
2.1 Specification .............................................................................................................................. 6
2.2 Dimensions ............................................................................................................................... 6
3. Assembly ....................................................................................................................................... 7
3.1 Grounding instructions .............................................................................................................. 7
3.2 Placement location .................................................................................................................... 7
3.3 Unpacking ................................................................................................................................. 7
3.4 Assembly ................................................................................................................................... 8

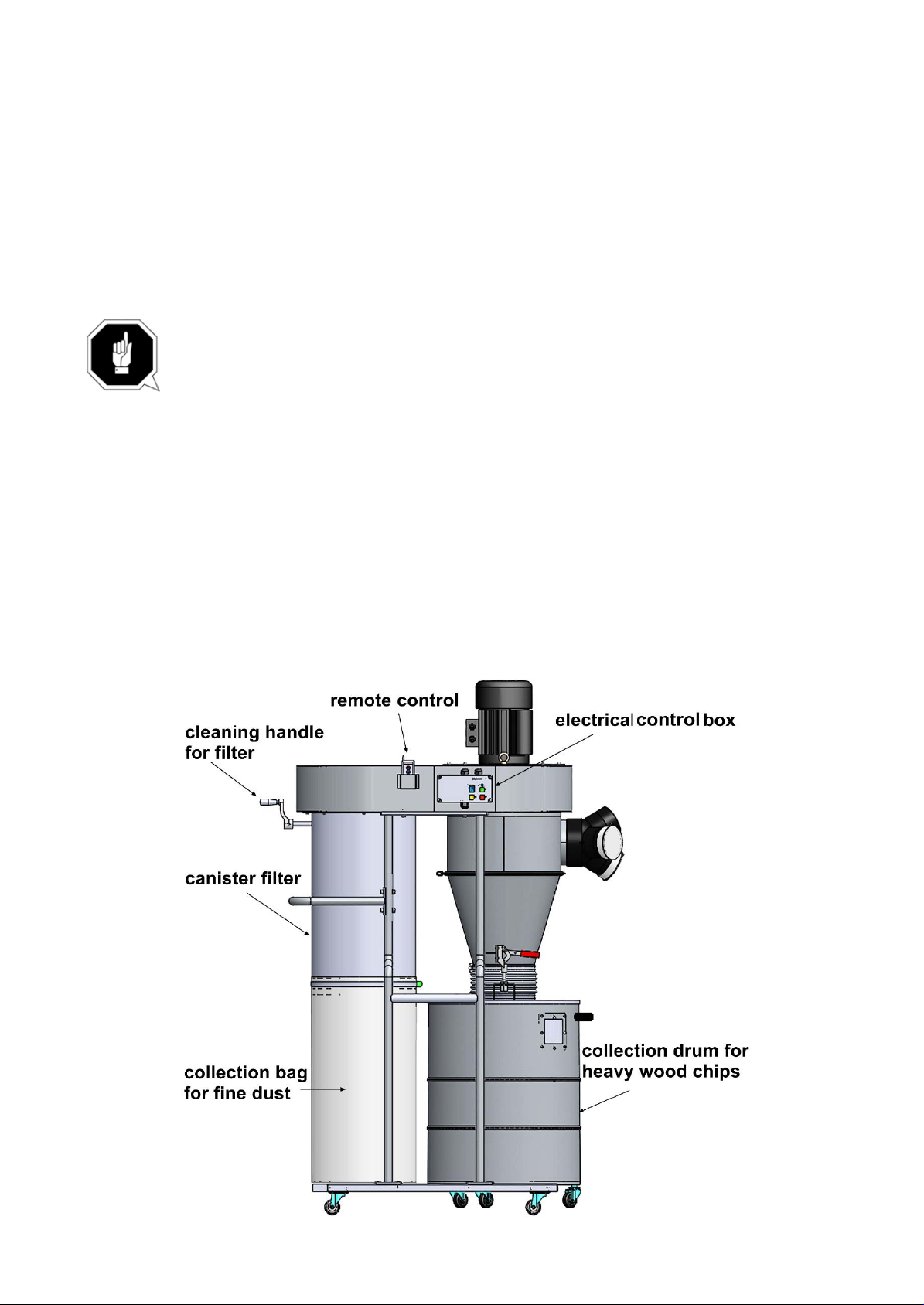

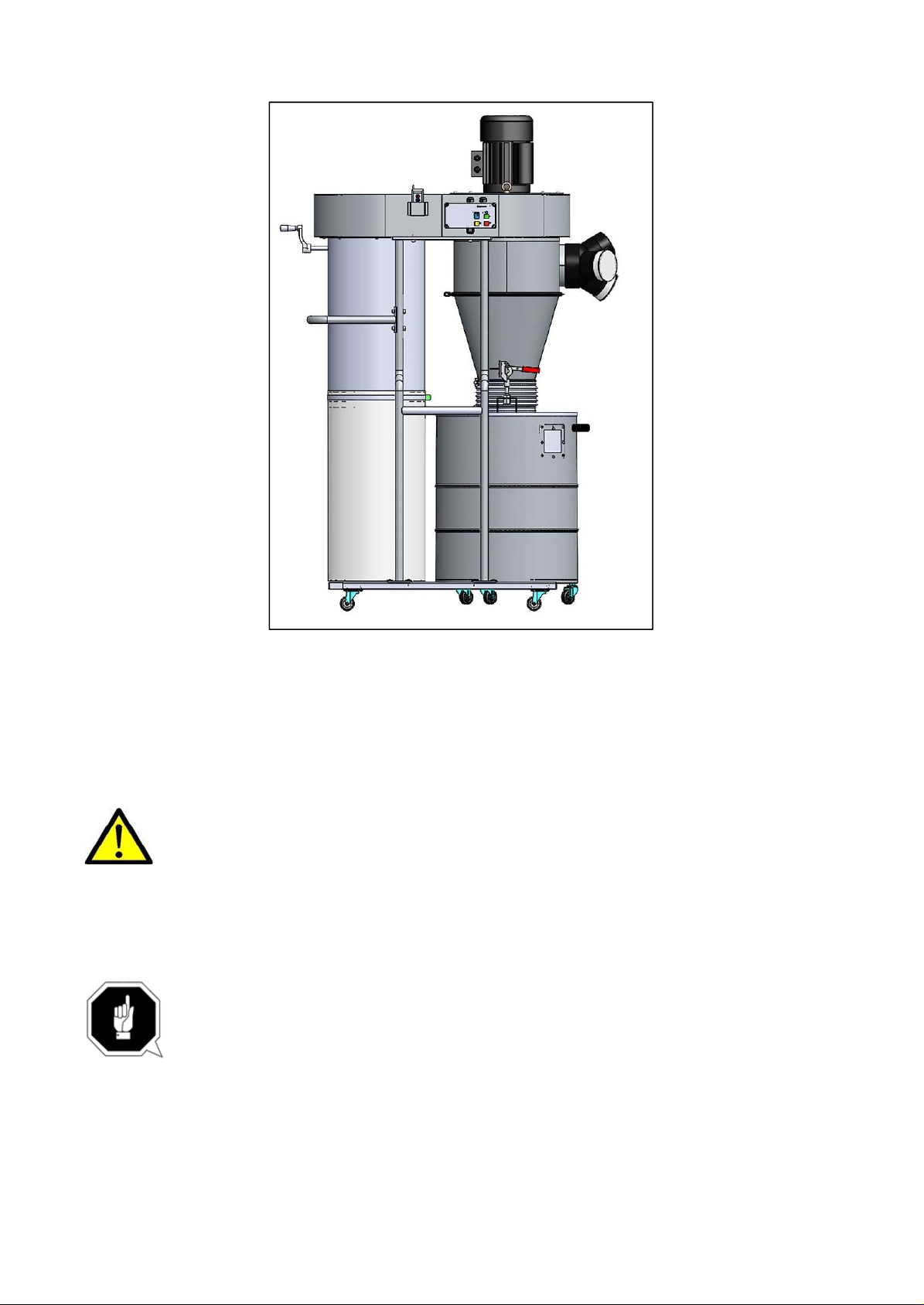

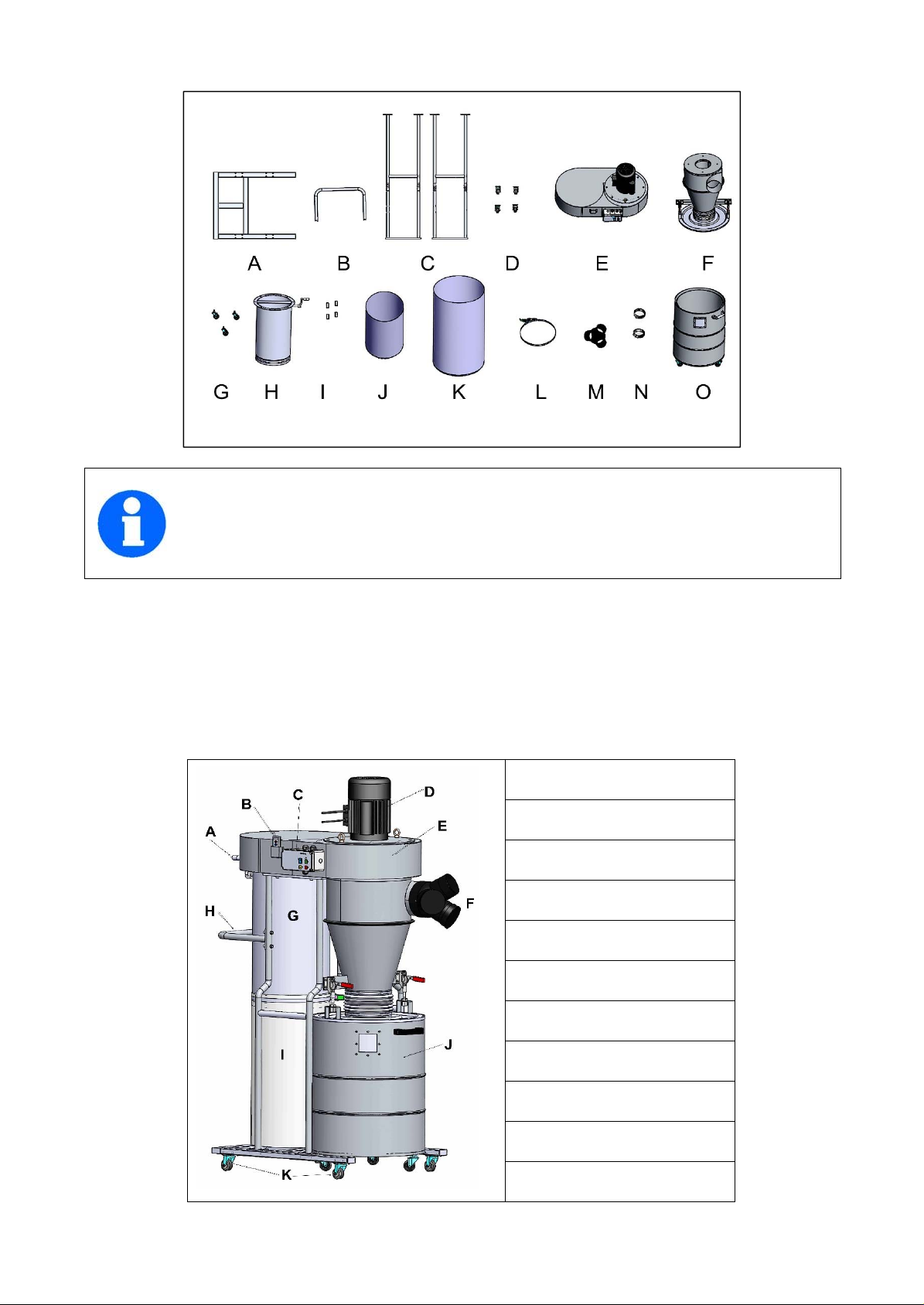

3.4.1 Know your dust collector .................................................................................................... 8

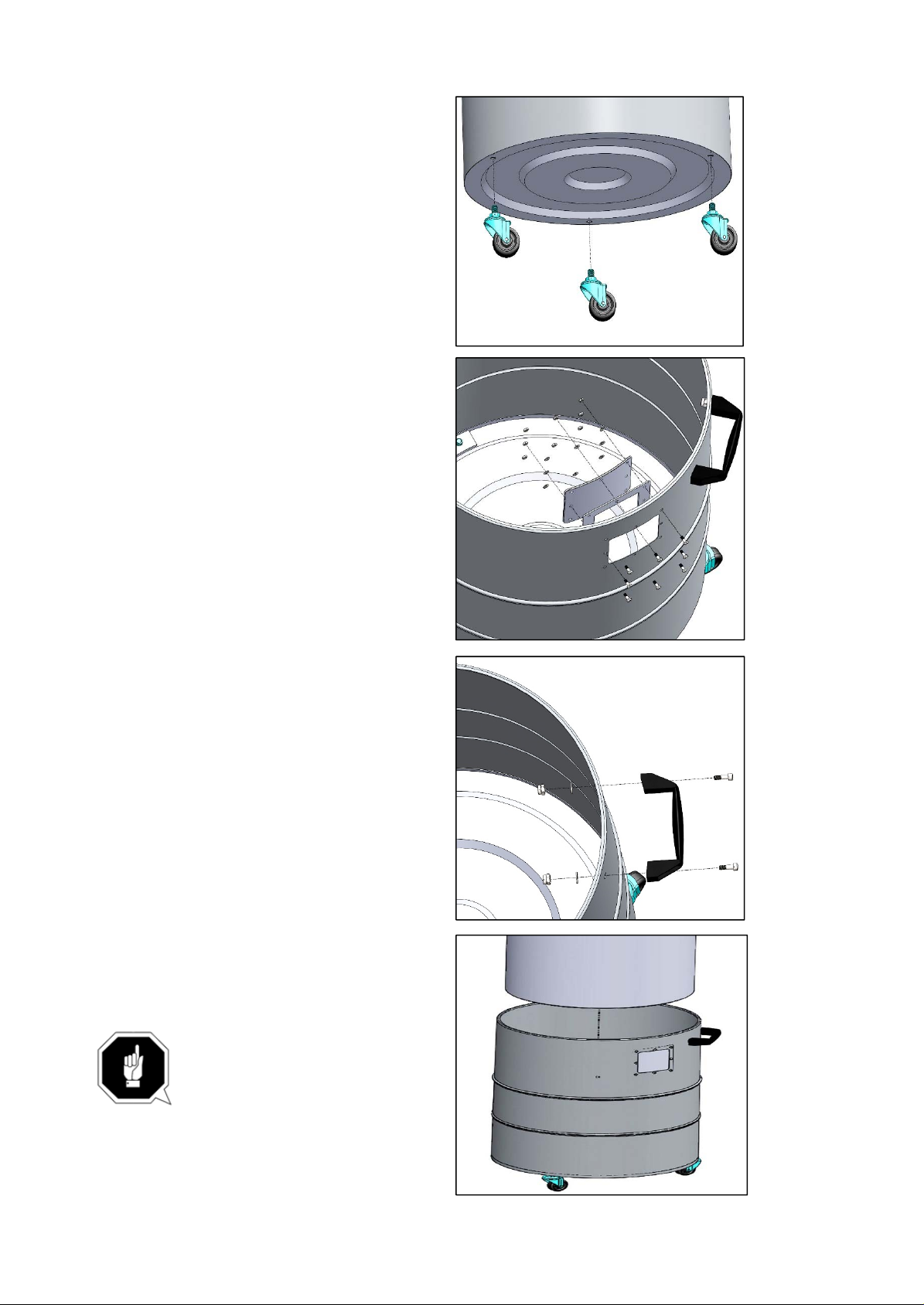

3.4.2 To assemble machine ........................................................................................................ 9
3.5 Initial commissioning ............................................................................................................... 14

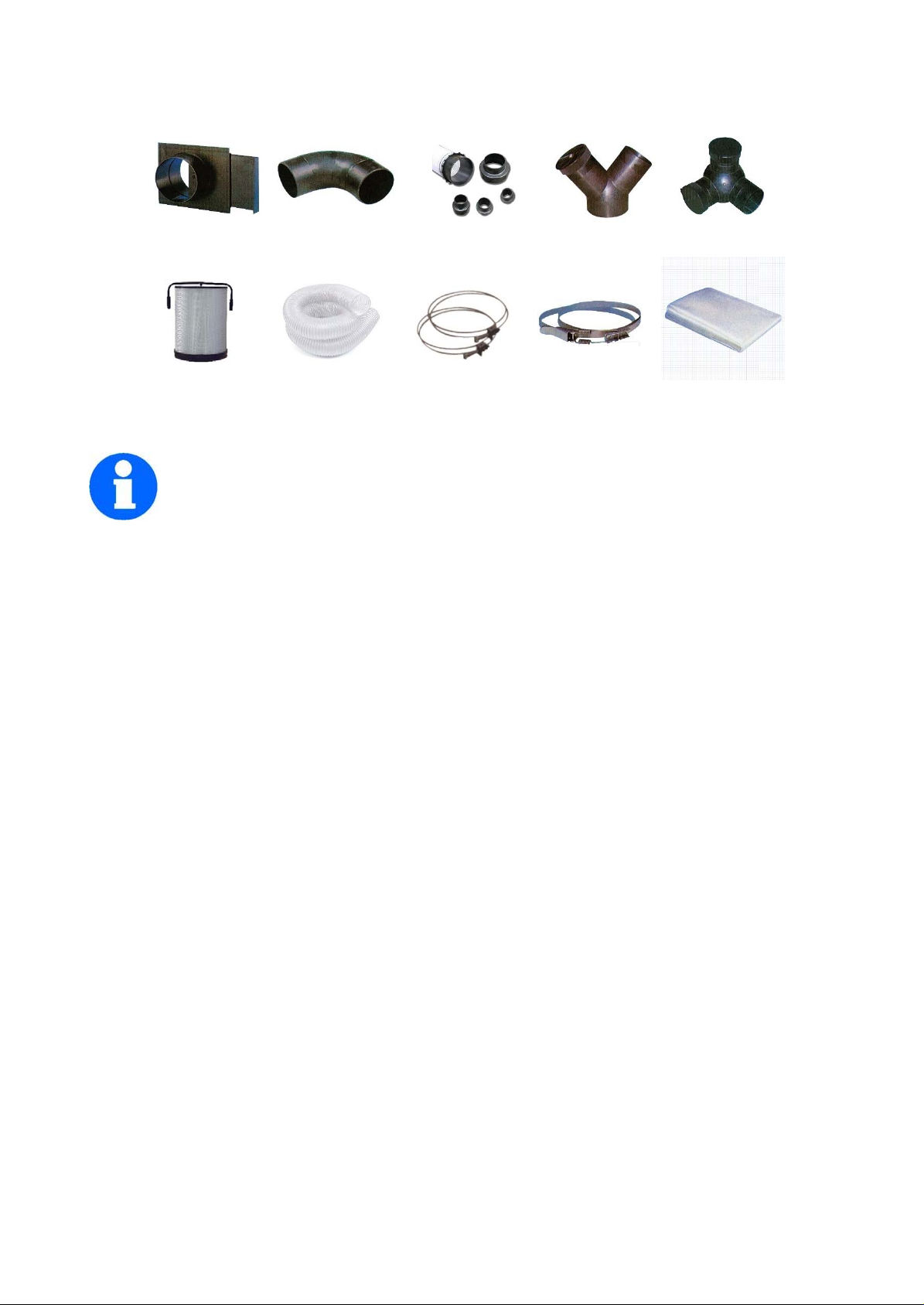

3.6 Accessories for dust collector ................................................................................................. 15
4. Operation ..................................................................................................................................... 16

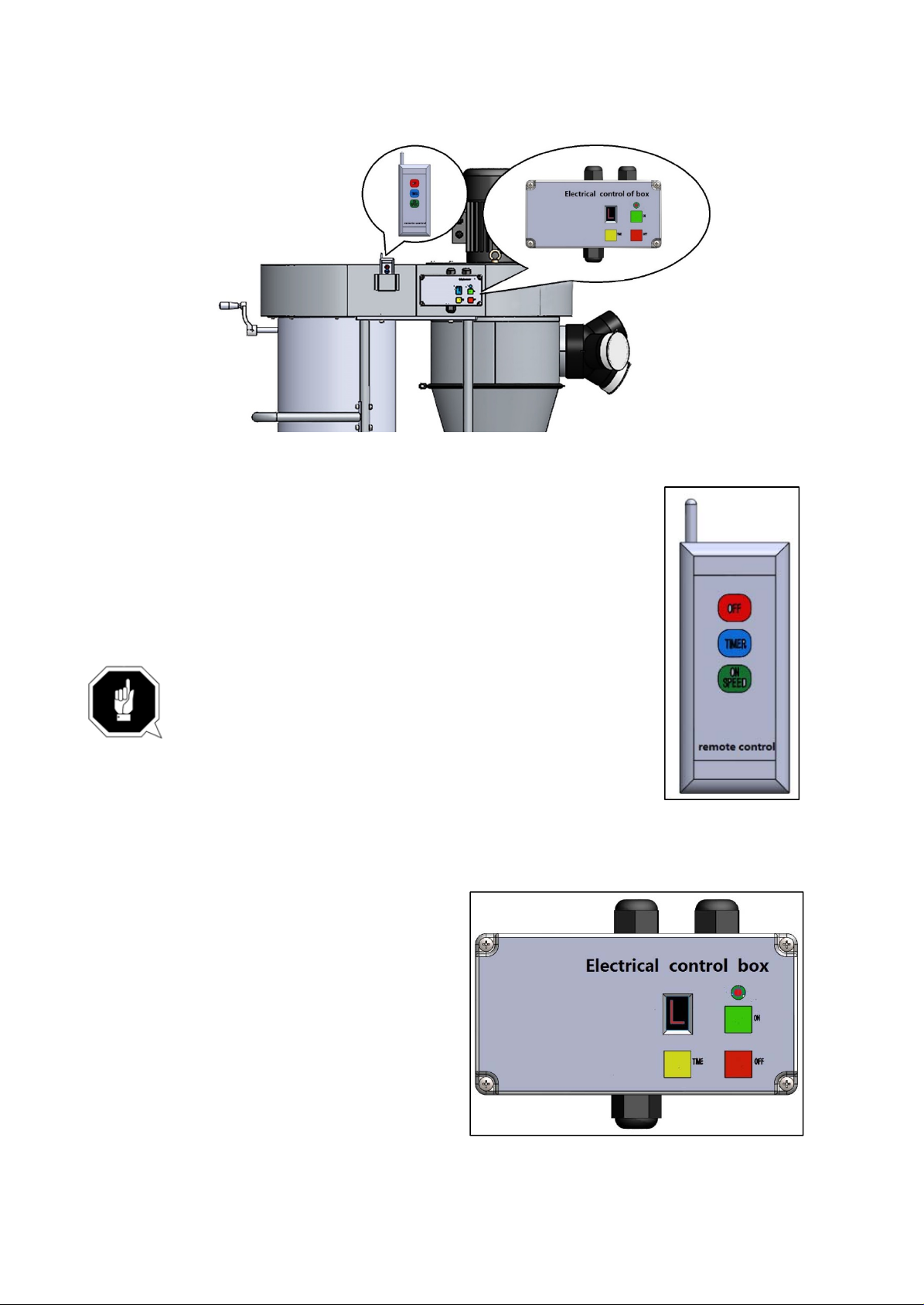

4.1 Remote control and electrical control box............................................................................... 17
4.1.1 Remote control ................................................................................................................. 17
4.1.2 Control box ....................................................................................................................... 17
4.2 Tips for optimum performance ................................................................................................ 18
4.3 Required CFMs ....................................................................................................................... 18
5.Maintenan
5.1 Schedule ................................................................................................................................. 19

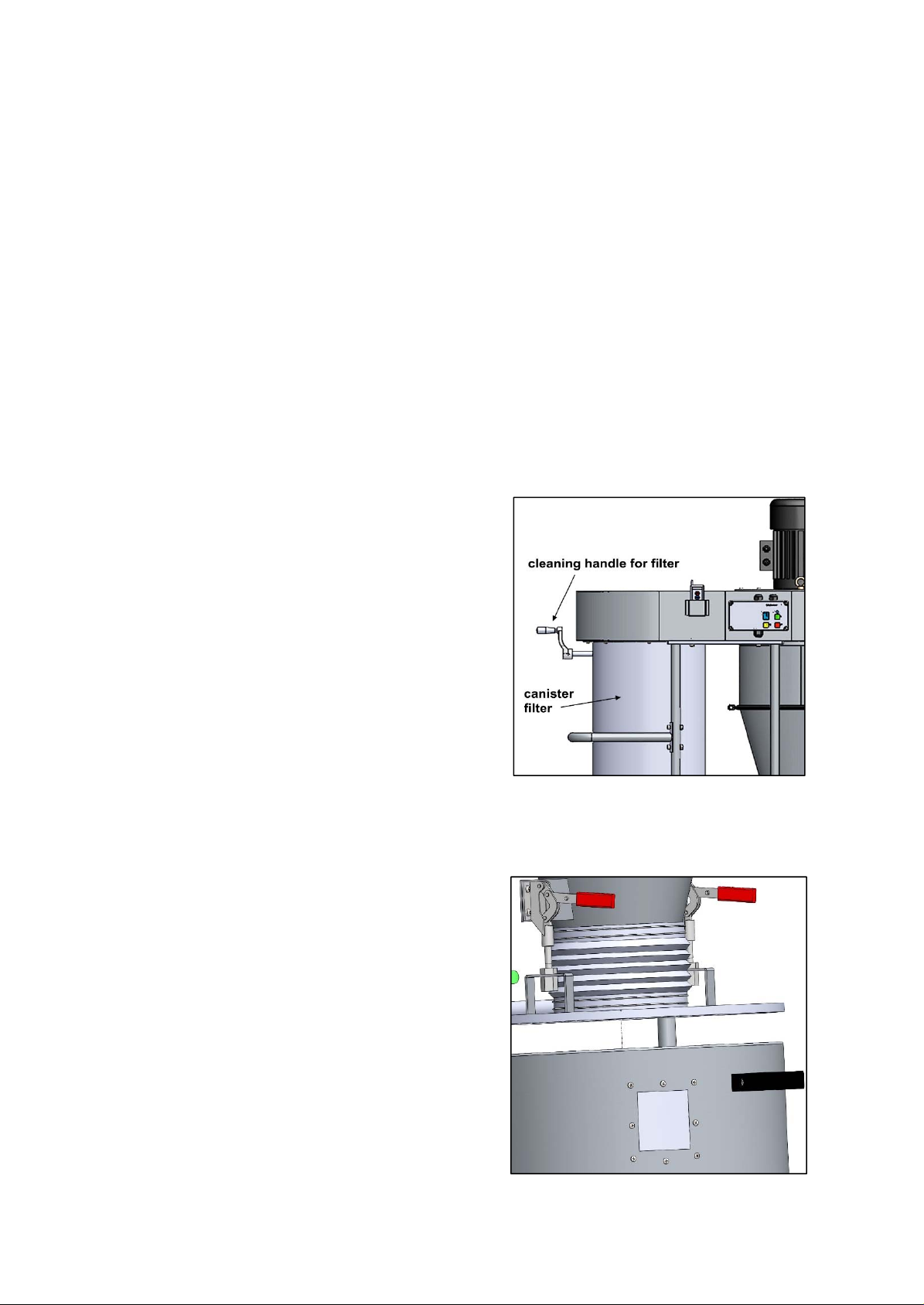

5.2 Cleaning canister filter ............................................................................................................. 19
5.3 Removing/Replacing collection drum bag ............................................................................... 19

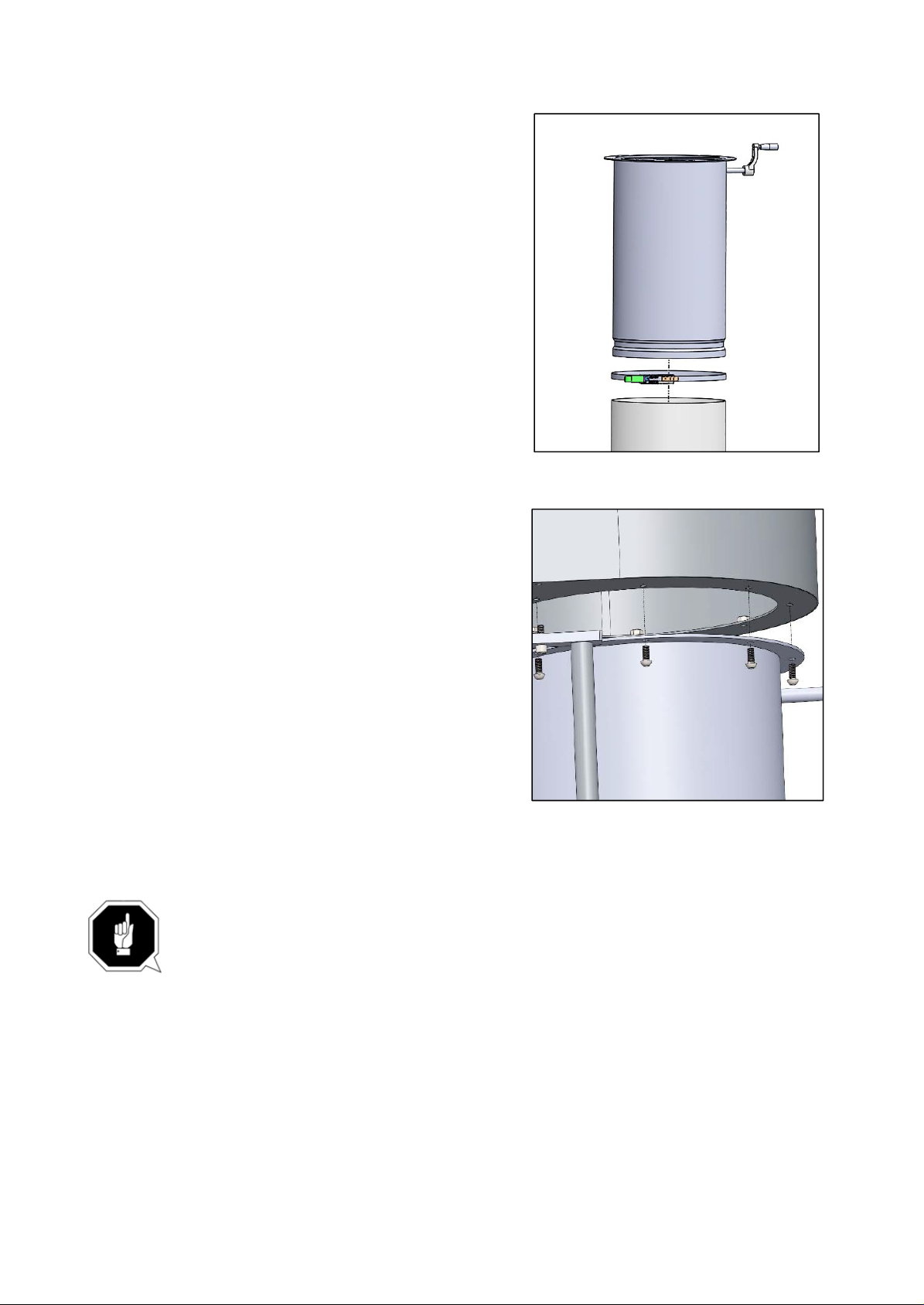

5.4 Removing/Replacing filter bag ................................................................................................ 20
5.5 Removing/Replacing canister filter .......................................................................................... 20
6.Troubleshooting...........................................................................................................................
7.Diagram and part list ................................................................................................................... 23
ce .................................................................................................................................
19
21

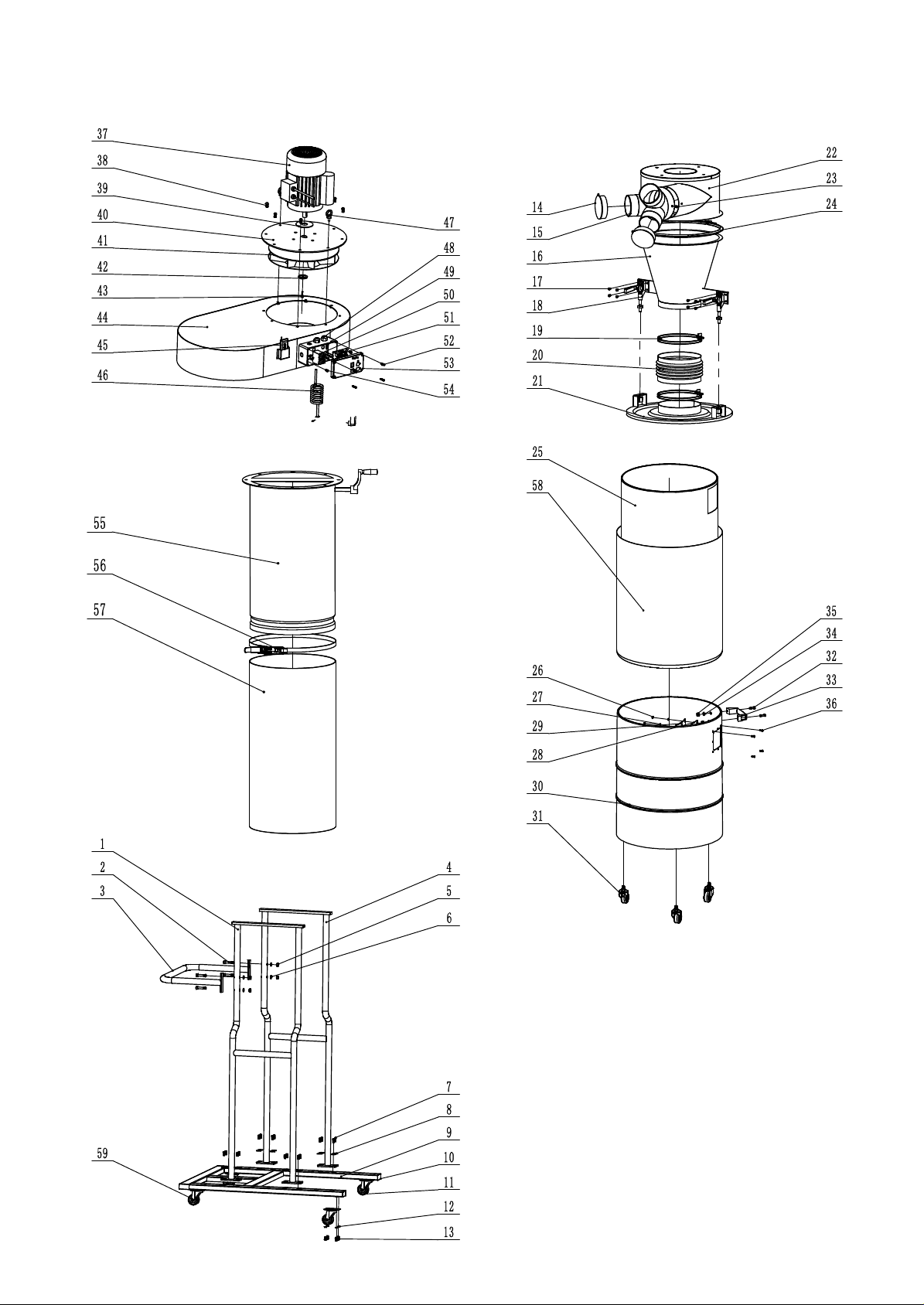

7.1 Diagram ................................................................................................................................... 23
7.2 Part list .................................................................................................................................... 24

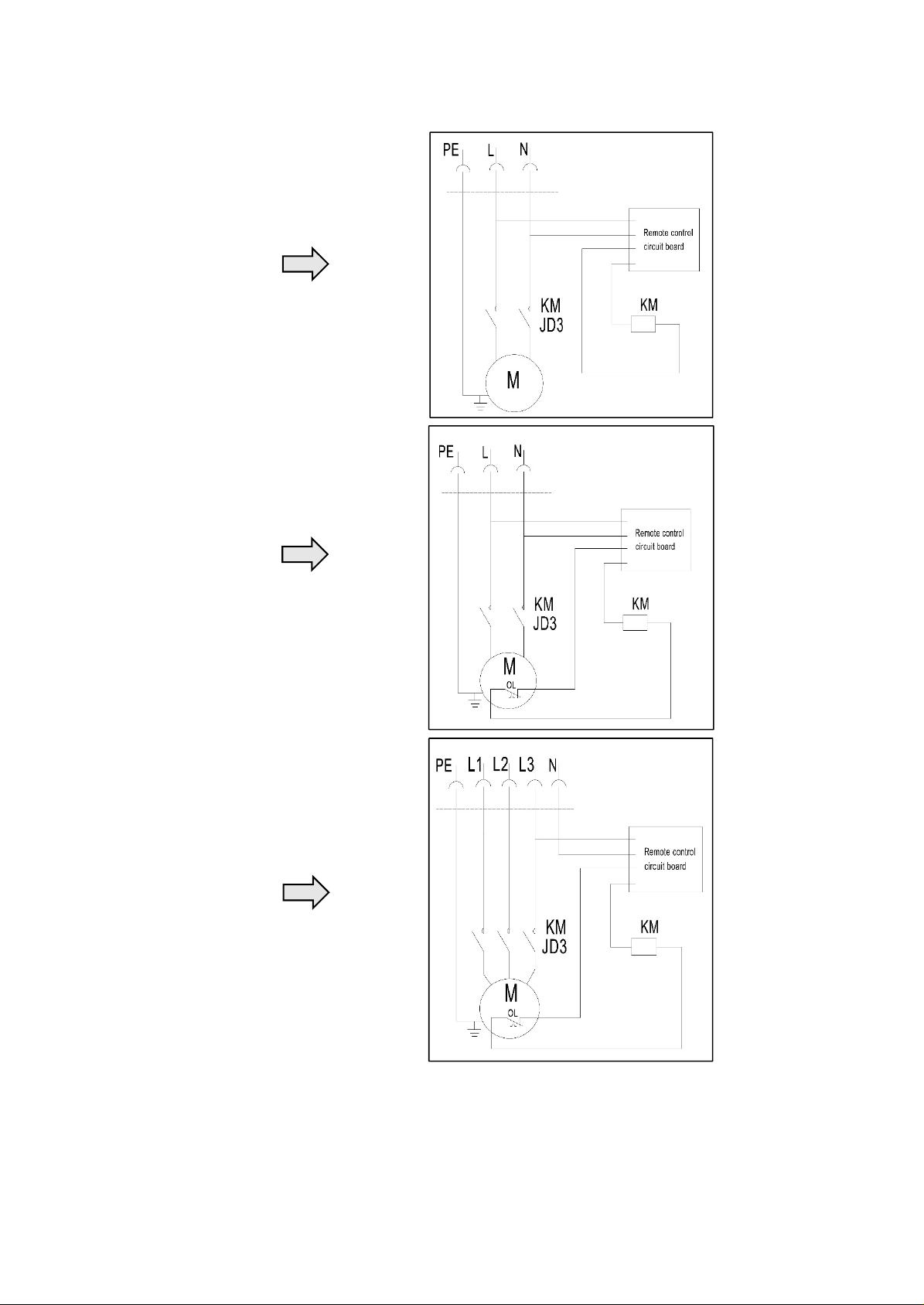

7.3 Wiring diagram ........................................................................................................................ 25
Page 3
Preface
Before commissioning the machine, please read these operating instructions thoroughly
and get familiar with the machine. Please also make sure that all persons operating the
machine have read and understood the operating instructions beforehand.
Keep these operating instructions in a safety place nearby the machine.
Information
The operating instructions include indications for safety-relevant and proper
installation, operation and maintenance of the machine. The continuous observance
of all notes included in this manual guarantee the safety of persons and of the machine.
The manual determines the intended use of the machine and includes all necessary information for
its economic operation as well as its long service life.
The illustration and information included in the present manual can possibly deviate from the current
state of construction of your machine. Being the manufacturer we are continuously seeking for
improvements and renewal of the products. Therefore, changes might be performed without prior
notice. The illustrations of the machine may be different from the illustrations in these instructions with
regard to a few details. However, this does not have any influence on the operability of the machine.
Therefore, no claims may be derived from the indications and descriptions.
Your suggestion with regard to these operating instructions are an important contribution to optimising
our work which we offer to our customers. For any questions or suggestions for improvement, please
do not hesitate to contact our service department.
WARNING
Failure to read, understand and follow the instructions in this manual may result
in fire or serious personal injury—including amputation, electrocution.
The owner of this machine/tool is solely responsible for its safe use. This
responsibility includes but is not limited to proper installation in a safe environment, personnel
training and usage authorization, proper inspection and maintenance, manual availability and
comprehension, application of safety devices, cutting/sanding/grinding toolb integrity, and the
usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage from negligence,
improper training, machine modifications or misuse.
1
Page 4
1. Safety
This operating instructions
▲explains the meaning and use of the warning notes included in the operating instructions
▲points out the dangers that might arise for you or others if these instructions are not
observed.
▲informs you how to avoid dangers.
In addition to these operation instructions, please observe
▲the applicable laws and regulations
▲the statutory provisions for accident prevention
▲the prohibition, warning and mandatory signs as well as the warning notes on the machine.
If required, the relevant measures to comply with the country-specific regulations must be taken
before commissioning the machine.
Always keep this documentation close to the machine.
1.1 Safety instructions for general machinery
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words intended to convey the level of importance of the
safety messages. The progression of symbols is described below. Remember that safety messages
by themselves do not eliminate danger and are not a substitute for proper accident prevention
measures.
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
may contain chemicals, including lead, birth defects, or other reproductive harm. Wash hands after
handling. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area with approved safety equipment
such as dust masks specially designed to filter out microscopic particles.
2
Page 5
For your own safety, read instruction manual before operating the machine. Learn
the machine’s application and limitations as well as the specific hazards peculiar.
Always wear approved safety glasses or a face shield when operating or observing
machinery to reduce the risk of eye injury or blindness from flying particles everyday.
Eyeglasses are not approved safety glasses.
Dust created while usingmachinery may cause cancer, birth defects, or long-term
respiratory damage. Be aware of dust hazards associated with each workpiece
material, and always wear an approved respirator to reduce your risk.
Always wear hearing protection when operating or observing loud machinery.
Extended exposure to this noise without hearing protection can cause permanent
hearing loss.
Keep hands and clothing away from moving parts. Always tie back or cover long hair.
Wear non-slip footwear to avoid accidental slips which could cause a loss of
workpiece control.
1.11 Personal protective equipment
protective suit safety shoes protective gloves protective glasses
Dirty or contaminated personal protective equipment can cause illness. Clean your
personal protective equipment after each use and once a week.
1.2 Safety instructions for dust collector
Long-term respiratory damage can occur from using dust collectors without proper
use of a respirator. Fire or explosions can result in smoke inhalation, serious burns,
or death—if machine is used to collect incorrect materials, is operated near
potential explosion sources, or ducting is improperly grounded. Entanglement, amputation, or
death can occur if hair, clothing, or fingers are pulled into the inlet. To reduce the risk of these
hazards, operator and bystanders MUST completely heed the hazards and warnings below.
3
Page 6
INTENDED USE
HAZARDOUS DUST
DUST ALLERGIES
WEAR RESPIRATOR
EMPTYING DUST
DISCONNECTING POWER
SUPPLY
SUSPENDED DUST
PARTICLES AND IGNITION
SOURCES
FIRE SUPPRESSION
IMPELLER HAZARDS
AVOIDING SPARKS
OPERATING LOCATION
This dust collector is only intended for collecting wood dust and
chips from woodworking machines. Do not use this dust collector
to collect metal, dirt, pebbles, drywall, asbestos, lead paint, silica,
liquids, aerosols, or any flammable, combustible, or hazardous
materials.
Dust created while using machinery may cause cancer, birth
defects, or long-term respiratory damage. Be aware of dust
hazards associated with each work piece material, and always
wear a NIOSH-approved respirator to reduce your risk.
Dust from certain woods may cause an allergic reaction in people
and animals.
Make sure you know what type of wood dust you will be exposed
to in case there is a possibility of an allergic reaction.
Fine dust that is too small to be caught in the filter will be blown
into the ambient air during operation. Always wear a NIOSHapproved respirator during operation and for a short time after to
reduce your risk of permanent respiratory damage.
When emptying dust from the collection container, wear a
respirator and safety glasses. Empty dust away from ignition
sources and into an approved container.
Turn the switch off, disconnect the dust collector from the power
supply, and allow the impeller to come to a complete stop before
leaving the machine unattended or doing any service, cleaning,
maintenance, or adjustments.
Do not operate the dust collector in areas where explosion risks
are high. Areas of high risk include, but are not limited to, areas
near pilot lights, open flames, or other ignition sources.
Only operate the dust collector in locations that contain a fire
suppression system or have a fire extinguisher nearby.
Do not place your hands or tools near the open inlet during
operation for any reason. The powerful suction could easily cause
accidental contact with the impeller, which will cause serious
personal injury or damage to the machine. Always keep small
animals and children away from open dust collection inlets.
Do not allow steel or rocks to strike the impeller—this may produce
sparks. Sparks can smolder in wood dust for a long time before a
fire is detected. If you accidentally cut into wood containing tramp
metal (nails, staples, spikes, etc.), immediately turn off the dust
collector, disconnect it from power, and wait for the impeller to
stop—then empty the collection container into an approved airtight
metal container.
To reduce respiratory exposure to fine dust, locate permanently
installed dust collectors away from the working area, or in another
room that is equipped with a smoke detector. Do not operate the
dust collector in rainy or wet locations—exposure to water may
create a shock hazard or decrease the life of the machine.
4
Page 7
STATIC ELECTRICITY
Plastic dust lines generate high amounts of static electricity as dust
chips pass through them. Although rare, sparks caused by static
electricity can cause explosions or fire. To reduce this risk, make
sure all dust lines are thoroughly grounded by Using a grounding
wire.
REGULAR CLEANING
Regularly check/empty the collection bags or drum to avoid the
buildup of fine dust that can increase the risk of fire. Make sure to
regularly clean the surrounding area where the machine is
operated—excessive dust buildup on overhead lights, heaters,
electrical panels, or other heat sources will increase the risk of fire.
No list of safety guidelines can be complete. Every shop environment is different.
Accidents are frequently caused by lack of familiarity or failure to pay attention. Use
this machine with respect and caution to lessen the possibility of operator injury. If
normal safety precautions are overlooked or ignored, serious personal injury may occur.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE INSTRUCTION MANUAL
BEFORE OPERATING THE MACHINE.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in damp or wet
locations, or expose it to rain. Keep work area well-lighted.
KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be kept
a safe distance from work area.
DISCONNECT UNIT before servicing.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair or
replace any part that is damaged.
5
Page 8
2. Technical Specification
The following information represents the dimensions and weight information and the
manufacturer‘s approved machine data.
2.1 Specification
MODEL NO. FM330C-2000H
Motor speed 50Hz (RPM) 2850r/min
Motor speed 60Hz (RPM) 3450r/min
Impeller size(MM) Φ330mm
Inlet hole size(MM) Φ150mm
Number of Intake holes(MM) 3XΦ100mm
Bag size(MM) Φ500x1100mm
Bag volume (m³)
Air speed 50Hz (m³/h)
Filter area(m²): 2.6 m²
Filter capacity (Micro) 1
Noise level (dB) 84 dB
Width X Depth X Height(MM) 1200X660X1750
Packing size(MM
W0051 )W(rotoM
0.118 m³
1080 @ 100mm
1380 @ 150mm
1020×590×900mm
)
1240×412×170mm
650×430×430mm
2.2 Dimensions
6
Page 9
3. Assembly
The cyclone dust collector is not pre-assembled. After unpacking, the machine must be installed.
Transport the dust collector in its packing crate to a place near its final installation site
before unpacking it. If the packaging shows signs of possible transport damage, take the
necessary precautions not to damage the machine when unpacking. If any damage is
discovered, the carrier and/or shipper must be notified of this fact immediately to
establish any claim which might arise.
3.1 Grounding instructions
The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This appliance is equipped
with a cord having equipment-ground conductor and grounding plug. The plug must be inserted into
an appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
For grounded, cord-connected appliances: Make sure that the appliance is connected to an outlet
having the same configuration as the plug. No adaptor should be used with this appliance. If the
appliance must be reconnected for use on a different type of electric circuit, qualified service personnel
should make the reconnection.
For a permanently connected appliance: This appliance must be connected to a grounded metal,
permanent wiring system; or an equipment-grounding conductor must be run with the circuit
conductors and connected to the equipment grounding terminal or lead on the appliance.
Inspect the machine completely and carefully, making sure that all materials, such as shipping
documents, instructions and accessories supplied with the machine have been received.
3.2 Placement location
Consider anticipated workpiece sizes and additional space needed for auxiliary stands, work tables,
or other machinery when establishing a location for this machine in the shop. See 2.2 Dimensions for
reference.
3.3 Unpacking
The mahcine is packed in three packages (One plywood cases and two cartons.)The following is a
list of items shipped with your machine. Before beginning setup, lay these items out and inventory
them.
A. Base F.Cyclone funnel K.Dust bag for collection drum
B.Handle G.Wheels for collection drum L.Bag clamp
C.Bracket H.Canister filter M.Inlet adapter
D.Wheels for base I. End cap for base N.Hose clamps
E.Impeller housing J. Dust bag for filter O.Collection drum
7
Page 10
If you cannot find an item on this list, carefully check around/inside the machine
and packaging materials. Often, these items get lost in packaging materials while
unpacking or they are pre-installed at the factory.
3.4 Assembly
The machine must be fully assembled before it can be operated. Before beginning the assembly
process, gather all listed items. To ensure the assembly process goes smoothly, first clean any parts
that are covered or coated in heavy-duty rust preventative (if applicable).
3.4.1 Know your dust collector
A: Filter cleaning handle
B: Remote control
C: Electrical control box
D: Motor
E: Impleller housing
F: Inlet adapter
G: Filter
H: Handle
I: Dust collection bag
J: Collection drum
K: Wheels
8
Page 11
3.4.2 To assemble machine
The machine is heavy.
DO NOT over-exert yourself while assemble the machine. 2-3 manpower
required to safely assemble it.

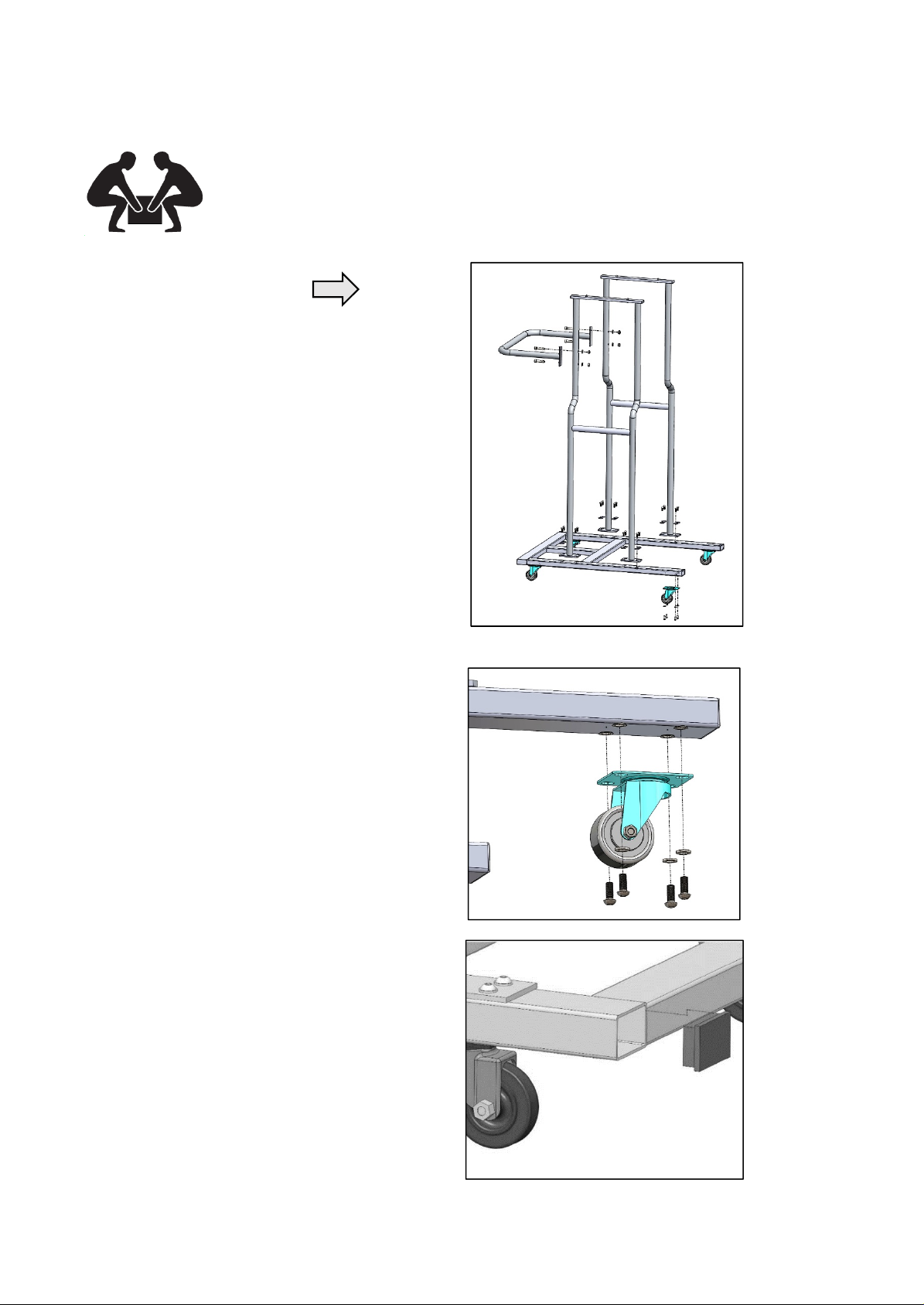

STEP-1 Install the main bracket.
Please refer to the picture.
1.1 Install the wheels to the base by
using the hexagon socket head bolt
M6x15 and flat washer Φ6.
1.2 Insert the end cap into the four sides
of the base.
9
Page 12

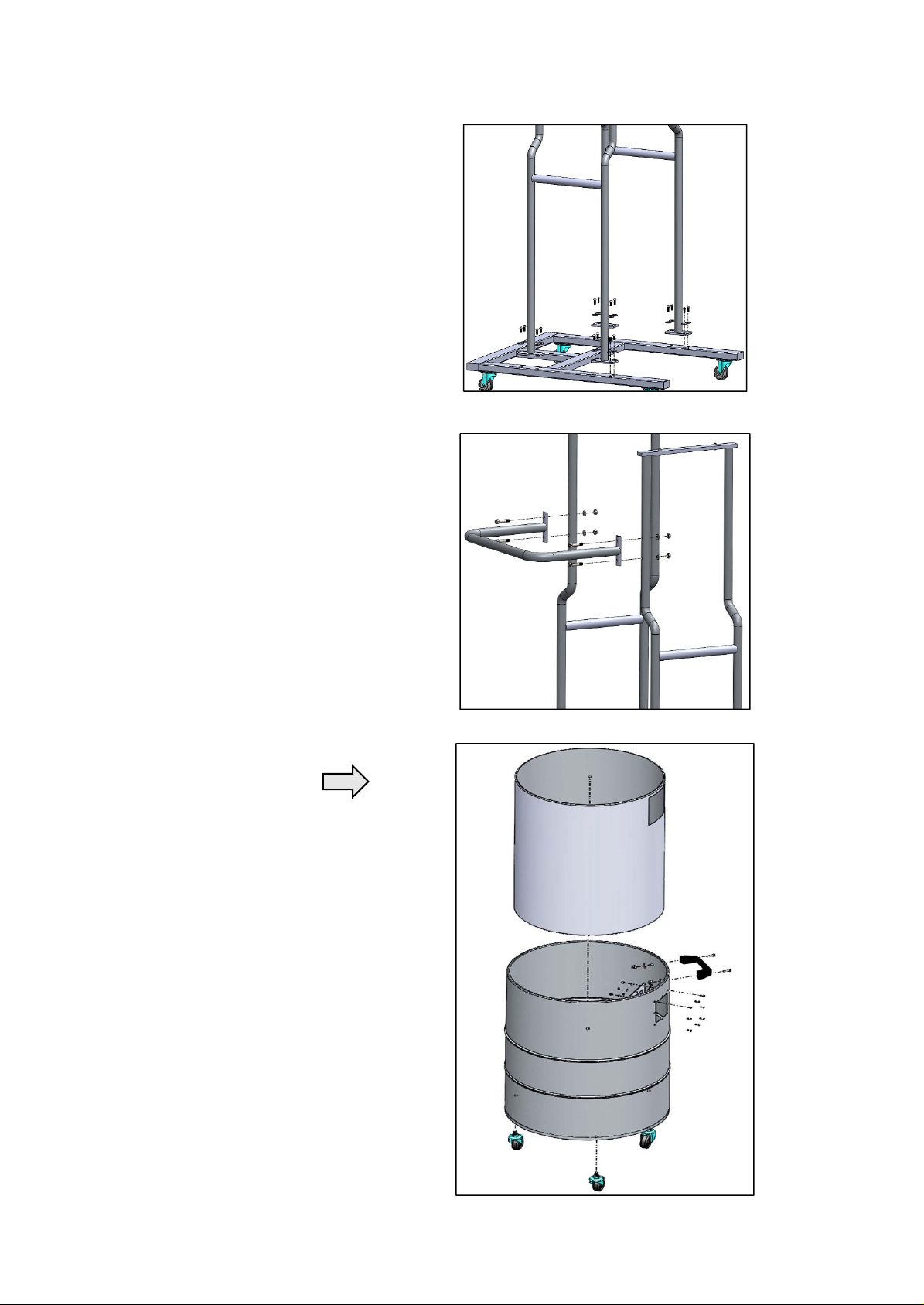

1.3 Fix the bracket to the base by using
the hexagon socket head bolt M6x15
and washer Φ6.
1.4 Install the handle to the bracket by
using hexagon socket head cap bolt
M8X40, washer Φ8 and nut M8.
STEP-2 Install the dust collection drum.
Please refer to the picture.
10
Page 13
2.1 Install the three wheels to the base of the
dust collection drum.
2.2 Fix the plexiglass and the rubber pad by
head screw M4X12, flat washer Φ4 and nut
M4.
2.3 Install the handle bar to the dust collection
drum by hexagon socket head bolt M8X20
and flat washer 8, self-locking nut M8.
2.4 Place the inner drum into the dust collect
bag and then put them togher into the
collection drum.
NOTE: The positons of two
windows (inner & outer) should
align to each other
11
Page 14

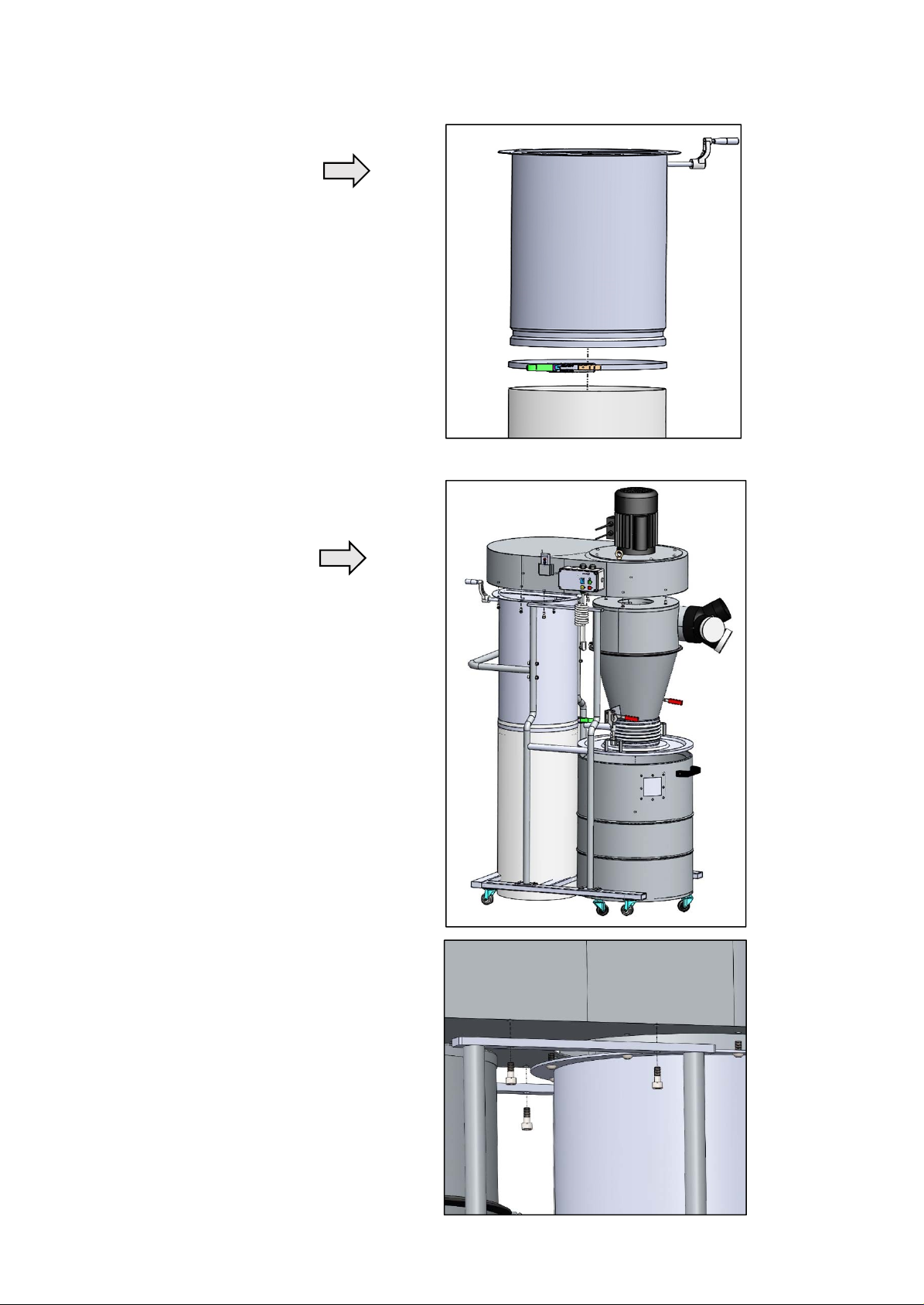

STEP-3 Fasten the dust collect bag on the
canister filter by bag clamp.
Please refer to the picture.
STEP-4 Final step: Combine the impller
housing, machine bracket, cyclone funnel
assembly, canister filter together.
Please refer to the picture.
4.1 Fasten the impeller housing on the main
bracket by bolt M8X20.
12
Page 15

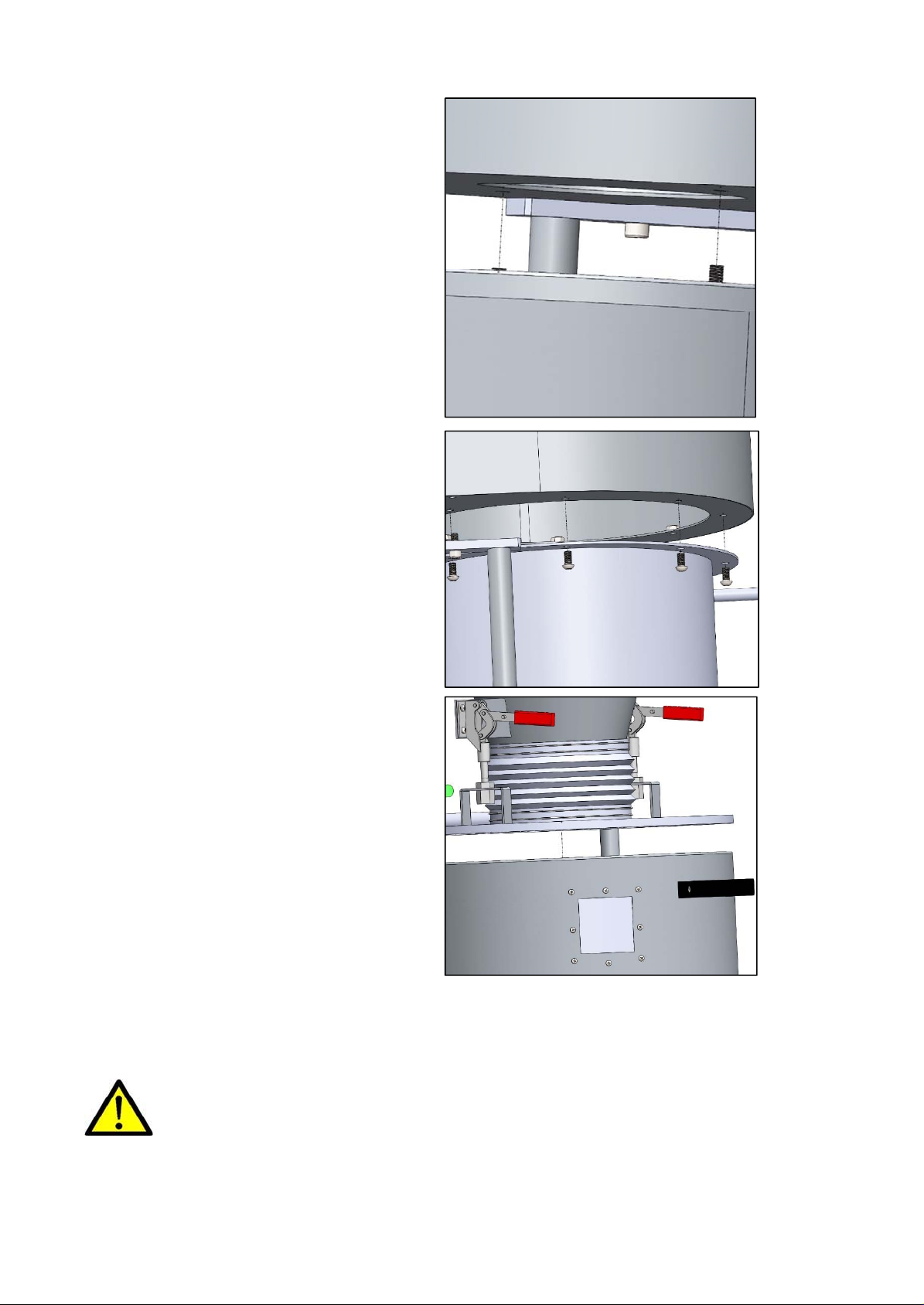

4.2 Fasten the cyclone funel assemly on the
impeller housing by bolt M8X16.
4.3 Fasten the canister filter on the impeller
housing by bolt M8X16.
4.3 Fasten the dust collection drum on the
drum cover by two drum lock handles.
The machine is installed well as the following picture.
Attention: Before use the machine, please check all the screws and bolts are tightened.
13
Page 16
3.5 Initial commissioning
Once assembly is complete, test run the machine to ensure it is properly connected to power and
safety components are functioning correctly.
If you find an unusual problem during the test run, immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the machine again.
DO NOT start machine until all preceding setup instructions have been performed.
Operating an improperly set up machine may result in malfunction or unexpected results
that can lead to serious injury, death, or machine/property damage.
To test run machine:
1. Clear all setup tools away from machine.
2. Lock all swivel casters on base stand.
3. Connect machine to dust-collection system or place covers over inlet adapter ports.
DO NOT operate the dust collector without first connecting it to a dust-collection
system or covering an inlet adapter port. Otherwise, the lack of airflow resistance
will cause the motor to operate at full amperage load, which could trip your circuit
breaker or blow a fuse.
4. Connect machine to power.
5. Standing away from intake port, press button “ON” on the remote control to turn machine on.
6. Verify motor starts up and runs smoothly without any problems or unusual noises.
7. Press “OFF” button on the remote control to turn machine OFF.
14
Page 17
3.6 Optional accessories for dust collector
4
Blast gate Elbow Adaptor Connector Connector
Canister filter Flexible hose Hose clamp Bag clamp Dust bag
More accessories available, please inquire the local retailer.
15
Page 18
4. Operation
The purpose of this overview is to provide the novice machine operator with a basic understanding
of how the machine is used during operation, so the machine controls/components discussed later
in this manual are easier to understand. Due to the generic nature of this overview, it is not intended
to be an instructional guide. To learn more about specific operations, read this entire manual, seek
additional training from experienced machine operators, and do additional research outside of this
manual by reading "how-to" books, trade magazines, or websites.
If you are not experienced with this type of machine, WE STRONGLY
RECOMMEND that you seek additional training outside of this manual. Read
books/magazines or get formal training before beginning any projects.
This cyclone dust collector creates a vortex of incoming air that extracts heavy wood chips and large
dust particles, and then drops them into the collection drum.
The remaining fine dust travels past the impeller and is then caught by a canister filter and deposited
in the plastic collection bag below. The spun-bond polyester filters are pleated to provide maximum
surface area for efficient air flow.
To maintain CFM during heavy dust-collection operations, turn the filter cleaning handle to knock
caked-on dust into the plastic collection bag.
Always lock the front two swivel casters before operation.
16
Page 19
4.1 Remote control and electrical control box
4.1.1 Remote control
The machines comes with a remote control which is convenient to
control the machine at a certain distance.
There are three keys on the remote control:
The top one is stop button.
The middle one is timer, which we could timing the machine to run at
2 hours, 4 hours, 6 hours and 8 horus.
The bottom buttons is ON to start the machine.
Note: The remote control requires one 23A 12V battery for
operation.
4.1.2 Control box
Except controlling the machine by remote
control, the three buttons on the control box
could be also used when need.
Green for ON: start the machine.
Yellow for TIMER: timing the running time.
Red for OFF: Turnoff the machine.
Besides, a digital readout on the panel is
used to show the running time.
17
Page 20
4.2 Tips for optimum performance
▲ Avoid using more than 10' of flexible hose on any ducting line. The ridges inside flexible hose
greatly increase static pressure loss, which reduces suction performance.
▲ Keep ducts between the dust collector and machines as short as possible.
▲ Keep ducting directional changes to a minimum. The more curved fittings you use, the greater the
loss of suction at the dust-producing machine.
▲ Gradual directional changes are more efficient than sudden directional changes (i.e. use 45°
elbows in place of 90° elbows whenever possible).
▲ The simpler the system, the more efficient and less costly it will be.
4.3 Required CFMs
Since each machine produces a different amount of sawdust, the requirements for the minimum
amount of CFM to move that sawdust is unique to the machine (for example, a planer produces more
sawdust than a table saw). Knowing this required CFM is important to gauging which size of duct to
use.
Refer to the figure below for a close estimation of the airflow each machine requires. Keep in mind
that machines that generate the most sawdust should be placed closest to the dust collector. If the
machine has multiple dust ports, the total CFM required is the sum of all ports.
Machine dust port Size
Approximate Required CFM
2" 2.5" 3" 4" 5" 6" 7" 8" 9" 10"
100 150 250 400 600 850 1200 1600 2000 2500
18
Page 21
5. Maintenance
5.1 Schedule
For optimum performance from this machine, this maintenance schedule must be strictly followed
ongoing.
To maintain a low risk of injury and proper machine operation, if you ever observe any of the items
below, shut down the machine immediately and fix the problem before continuing operations:
▲ Loose mounting bolts.
▲ Damaged filter canister, cleaning paddle components, or collection bags.
▲ Worn or damaged wires.
▲ Suction leaks.
▲ Any other unsafe condition.
Monthly Check
▲ Clean/vacuum dust buildup off machine body and motor.
5.2 Cleaning canister filter
This dust collector uses a handle and internal
paddles to remove dust buildup and debris from
the filter pleats. Turn the handle through its range
of motion to clean the canister filter and knock
dust cake into the filter bag.
For a more thorough cleaning every few months
under heavy use, wash the filter by hand.
IMPORTANT: To contain wood dust and
minimize risk of exposure, firmly tie bag
closed.
5.3 Removing/Replacing collection drum bag
Dispose of the collection drum bag when dust fills it
3⁄4 full. Replace the bag if it develops a leak or
becomes damaged.
1. DISCONNECT MACHINE FROM POWER!
2. Loose the two drum lock handles which tighten
the drum cover to the collection drum
3. Take out the inner drum from the collection
drum.
4. Clean or replace the bag.
5. Put the inner drum into the cleaned or new bag.
6. Tighten the drum cover to the collection drum by
using the clamps.
19
Page 22
5.4 Removing/Replacing filter bag
Remove and replace the filter bag when it is about
1/2 full .
To remove & replace filter bag or bags:
1. DISCONNECT MACHINE FROM POWER!
2. Release clamp around bottom of canister filter,
then remove filter bag.
3. Attach new filter bag around bottom of canister
filter and secure with clamp.
5.5 Removing/Replacing canister filter
If the canister filter is clogged or dirty and cleaning or
washing it does not improve dust-collection
performance, the canister filter must be replaced.
To remove and replace canister filter:
1. DISCONNECT MACHINE FROM POWER!
2. Loose the hexagon socket button screw M6X15
which fixed the seal pad and canister filter to the main
housing assembly.
3. Install the seal pad and new canister filter to the
main
housing assembly by the screw M6X15.
Dust exposure created while using machinery may cause cancer, birth defects, or
long-term respiratory damage. Always wear goggles and a NIOSH approved
respirator when working with the dust collection bags or canisters.
20
Page 23
6. Troubleshooting
Review the troubleshooting procedures in this section if a problem develops with your machine. If you
need replacement parts or additional help with a procedure, callb us.
Note: Please gather the serial number and manufacture date of your machine before calling.
Symptom Possible Cause Possible Solution
Machine does not
start, or powersupply
fuse/breaker trips
immediately after
startup.
Machine seems
underpowered.
Machine has vibration
or noisy operation.
Loud, repetitious
noise, or excessive
vibration coming from
dust collector (non-
motor related).
1. Dust collector not properly connected to
ducting.
2. Incorrect power supply voltage or circuit
size.
3. Power supply circuit breaker tripped or
fuse blown.
4. Motor overheated.
5. Machine circuit breaker has tripped.
6. Wiring open/has high resistance.
7. Power switch/circuit breaker at fault.
8. Start capacitor at fault.
9. Motor at fault.
1. Motor overheated.
2. Dust-collection ducting problem.
3. Canister filter clogged/at fault.
4. Dust collector too far from machine or
undersized for dust-collection system.
5. Run capacitor at fault.
6. Motor bearings at fault.
1. Motor or component loose.
2. Motor fan rubbing on fan cover.
3. Motor mount loose/broken.
4. Impeller damaged, unbalanced, or loose.
5. Motor bearings at fault.
6. Motor shaft bent.
1. Dust collector not on a flat surface and
wobbles.
2. Impeller damaged and unbalanced.
3. Impeller loose on the motor shaft.
21
1. Connect dust collector to ducting.
2. Ensure correct power supply voltage and circuit
size.
3. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.
4. Allow motor to cool, reset overload if necessary.
5. Reset circuit breaker on switch.
6. Check/fix broken, disconnected, or corroded
wires.
7. Test/replace.
8. Replace.
9. Test/repair/replace.
1. Allow motor to cool, reset overload if necessary.
2. Clear blockages, seal leaks, use smooth-wall
duct, eliminate bends, close other branches.
3. Clean canister filter; replace canister filter.
4. Move closer to machine/redesign ducting layout/
upgrade dust collector.
5. Test/repair/replace.
6. Test by rotating shaft; rotational grinding/loose
shaft requires bearing replacement.
1. Inspect/replace damaged bolts/nuts, and
retighten with thread-locking fluid.
2. Fix /replace fan cover; replace loose/damaged
fan.
3. Tighten/replace.
4. Inspect/tighten/replace.
5. Test by rotating shaft; rotational grinding/loose
shaft requires bearing replacement.
6. Test with dial indicator. Replace motor if
damaged.
1. Stabilize dust collector; lock casters.
2. Inspect/replace.
3. Secure impeller; replace motor and impeller as a
set if motor shaft and impeller hub are damaged.
Page 24
Symptom Possible Cause Possible Solution
Dust collector does
not adequately collect
dust or chips; poor
performance.
Dust collector blows
sawdust into the air.
1. Collection bag full.
2. Canister filter clogged/at fault.
3. Ducting blocked/restricted.
4. Dust collector too far away from point of
suction; duct clamps not properly secured;
too many sharp bends in ducting.
5. Lumber is wet and dust is not flowing
smoothly through ducting.
6. Ducting has one or more leaks, or too
many open ports.
7. Not enough open branch lines at one
time, causing velocity drop in main line.
8. Ducting and ports are incorrectly sized.
9. The machine dust-collection design
inadequate.
10. Dust collector undersized.
1. Duct clamps or filter bag(s) are not
properly clamped and secured; ducting
loose/ damaged.
2. Cylinder or funnel seals are loose or
damaged.
1. Empty collection bag.
2. Clean canister filter; replace canister filter.
3. Remove ducting from dust collector inlet and
unblock restriction. A plumbing snake may be
necessary.
4. Relocate dust collector closer to point of suction;
re-secure ducts; remove sharp bends.
5. Only process lumber with less than 20% moisture
content.
6. Seal/eliminate all ducting leaks; close dust ports
for lines not being used. Refer to Designing the
System in manual.
7. Open 1 or 2 more blast gates to different branch
lines to increase main line velocity.
8. Install correctly sized ducts and fittings
9. Use dust-collection hood on stand.
10. Install larger dust collector.
1. Re-secure ducts and filter bag, making sure duct
and bag clamp are tight; tighten/replace ducting.
2. Retighten all mounting and sealing points;
replace damaged seals/gaskets.
22
Page 25
7. Diagram and part list
7.1 Diagram
23
Page 26
7.2 Part list
Part No. Description Qty Part No. Description Qty
1 Left bracket 1 30 Dust collection drum 1
2 Hexagon screw M8X40 4 31 Caster 3
3 Pull handle 1 32 Hexagon screw M8X20 2
4 Right bracket 1 33 Handle 1
5 M8 nut 4 34 Flat washer 8 2
6 Flat washer 8 4 35 Self-locking nut M8 2
7 Round head screw M6X15 16 36 Cross head screw M4X12 8
8 Washer 6 16 37 Motor 1
9 Base 1 38 Hexagon screw M8X16 6
10 End cap 4 39 Rubber pad 1
11 Casters 2 40 Motor plate 1
12 Flat washer 6 16 41 Impeller 1
13 Hexagon screw M6X15 16 42 Retaining ring 1
14 Cover 2 43 Hexagon screw M6X20-Left 1
15 Connector 1-3 1 44 Volute 1
16 Cyclone funel 1 45 Remote control 1
17 Cross head screw M5X8 8 46 Power cable 1
18 Drum clamp handle 2 47 Ring screw M8X16 2
19 Hose clamp Ф 200 2 48 Strain relief M20X1.5 3
20 Tube 1 49 Switch box 1
21 Drum cover 1 50 AC contactor 1
22 Impleller housing 1 51 PCB 1
23 Cross head screw M5X8 1 52 Self-tapping screw S3.5X20 4
24 Steel hoop 1 53 Switch cover 1
25 Inner drum 1 54 Cross head screw M5X8 4
26 M4 nut 8 55 Filter 1
27 Flat washer 4 8 56 Hose clamp 1
28 Rubber pad 1 57 Small dust bag 1
29 Plastic plate 1 58 Big dust bag 1
24
59 Caster 2
Page 27
7.3 Wiring diagram
120V/60HZ
230V/50HZ
400V/50HZ
25
Page 28

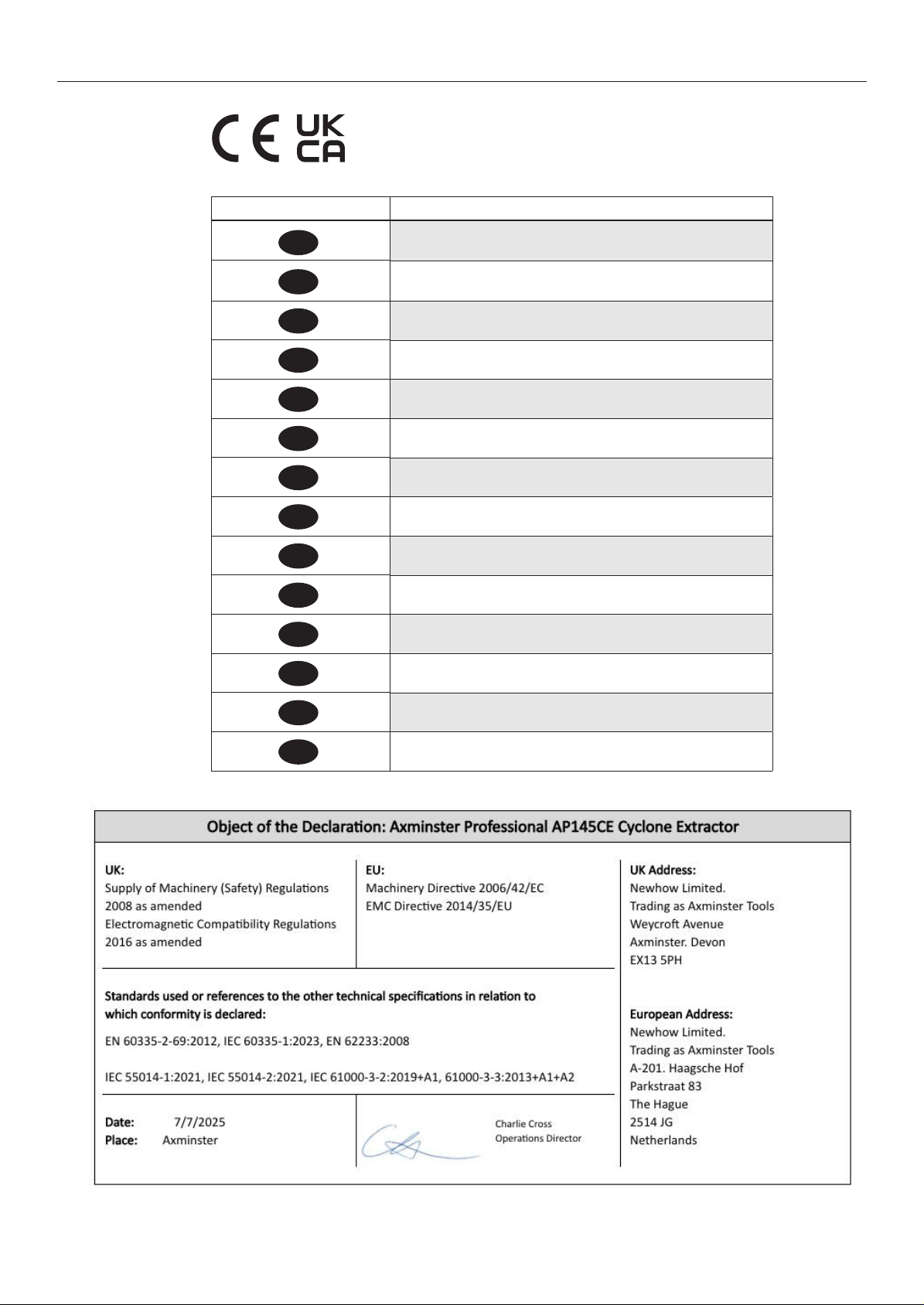

Declaration of Conformity
Nationality
GB
DE
FR
IT
ES
NL
DK
SE
CZ
PL
POR
NOR
FI
IS
The object of the declaration described is in conformity
with the relevant GB/EU legislation.
Der Gegenstand der beschriebenen Erklärung stimmt mit
den einschlägigen GB/EU-Rechtsvorschriften überein.
L’objet de la déclaration décrite est conforme à la législation
GB/UE pertinente.
L’oggetto della dichiarazione descritta è conforme alla
legislazione GB/UE pertinente.
El objeto de la declaración descrita está en conformidad
con la legislación GB/UE pertinente.
Het voorwerp van de beschreven verklaring is in
overeenstemming met de relevante GB/EU-wetgeving.
Genstanden for den beskrevne erklæring er i
overensstemmelse med den relevante GB/EU-lovgivning.
Föremålet för den beskrivna deklarationen
överensstämmer med den relevanta GB/EU-lagstiftningen.
Předmět popsaného prohlášení je v souladu s příslušnými
právními předpisy GB/EU.
Przedmiot opisanej deklaracji jest zgodny z odpowiednimi
przepisami GB/UE.
O objeto da declaração descrita está em conformidade
com a legislação GB/UE relevante.
Gjenstanden for den beskrevne erklæringen er i samsvar
med den relevante GB/EU-lovgivningen.
Määritellyn ilmoituksen kohde on asiaankuuluvan IsonBritannian/EU: n lainsäädännön mukainen.
Hluturinn í lýsingunni er í samræmi við viðeigandi lög
GB/ESB.
Axminster Tools, Axminster Devon EX13 5PH
axminstertools.com
Loading...
