Axminster Tool Centre,
Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH
axminster.co.uk
FM300BC
Dust Extractor
Code 501264

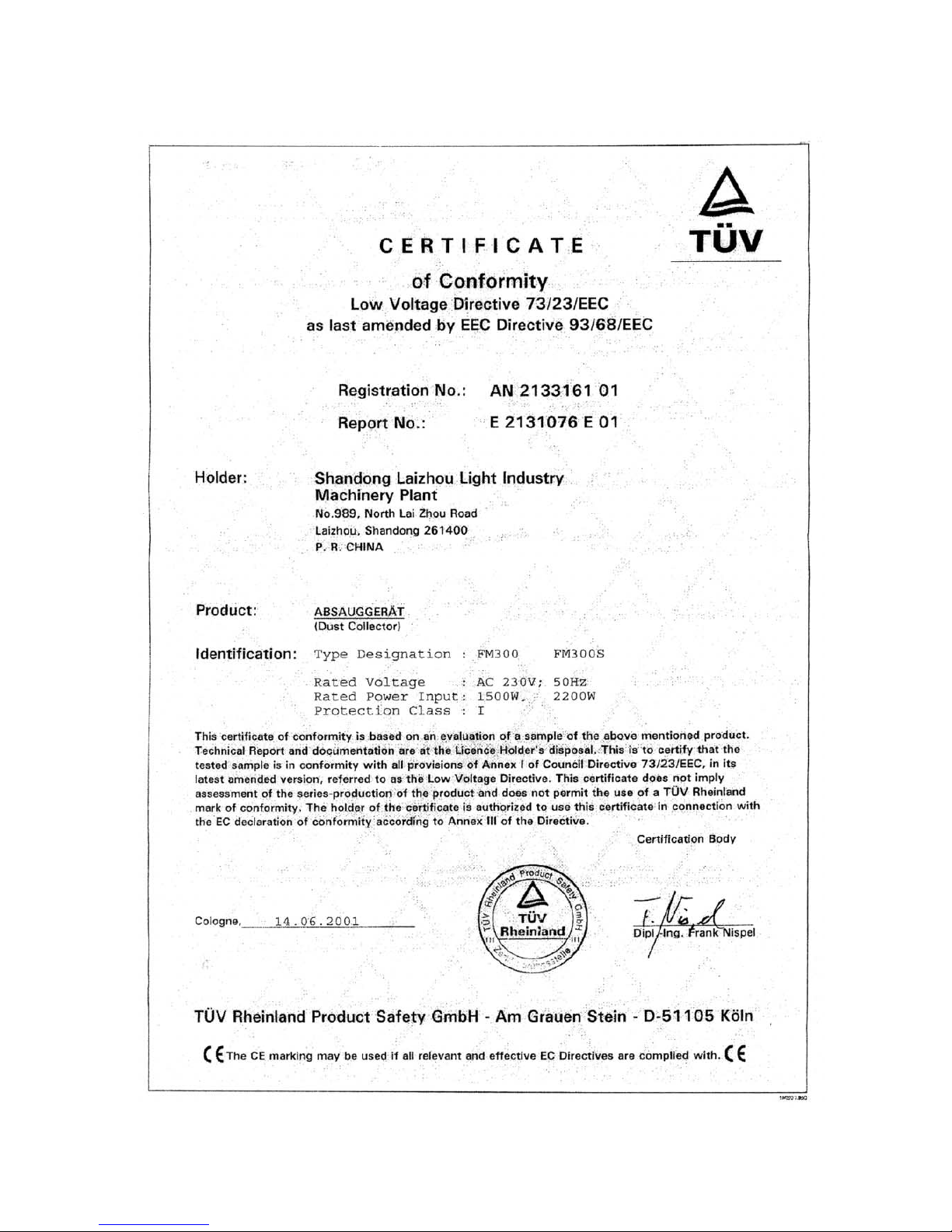

Page 2
Page 3
CONTENTS
TECHNICAL DATA……………………………………………………………….1
UNPACKING AND CHECKING CONTENTS………………………………….2
ASSEMBLY………………………………………………………………………..3
SAFETY RULES………………………………………………………………….8
WIRING DIAGRAM…………………………………………………………….…9

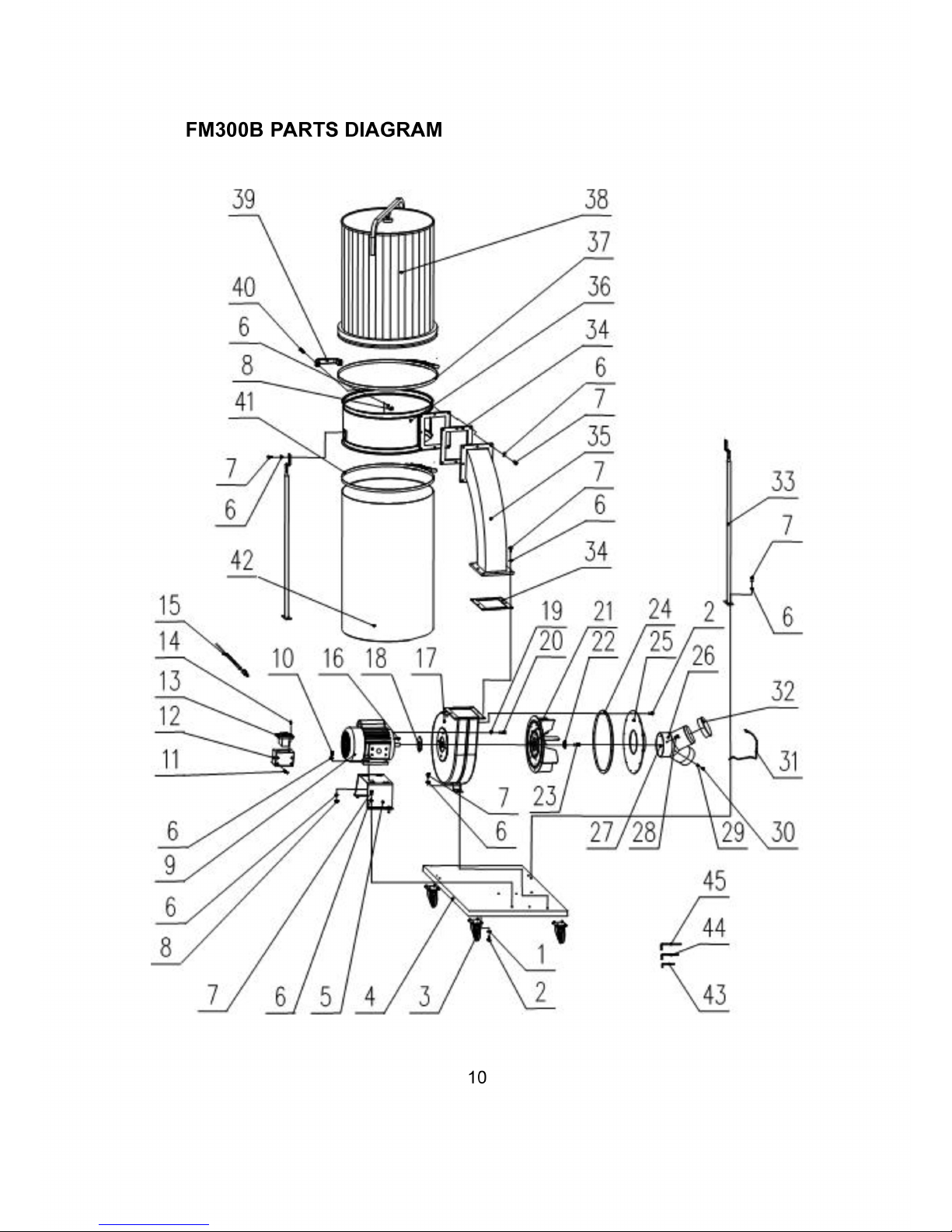

PARTS DIAGRAM FOR FM300B……………………………………………….10

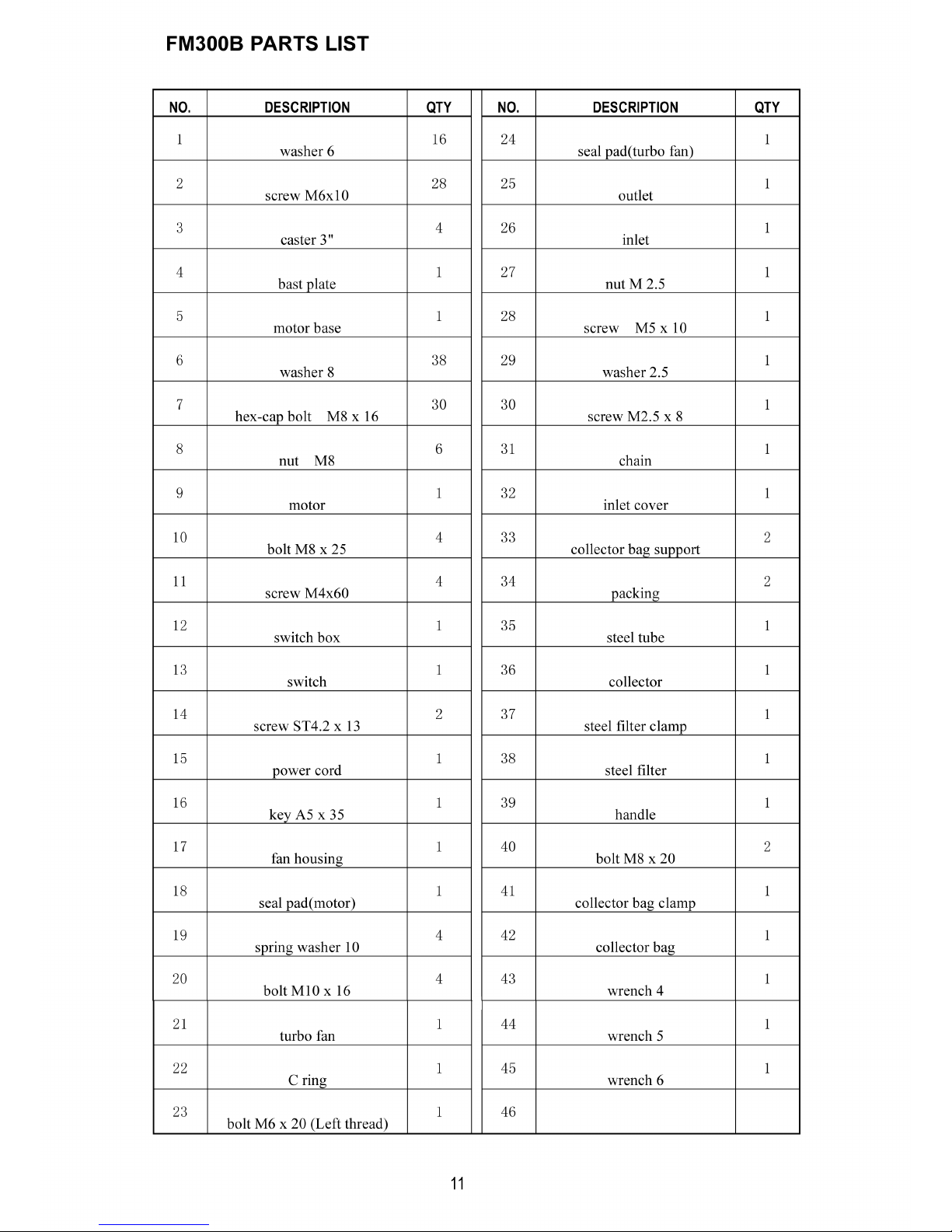

PARTS LIST FOR FM300B………………………………………………………11
Page 4
FM300B TECHNICAL DATA
Motor power (Watt)
1500
Inlet diameter (mm)
1-125/2-100
Fan diameter (mm)
300
Bag capacity (cubic meter)
0.15
Collection capacity (CFM)
1490
Overall size (LWH)(MM)
850x560x1860
1
Page 5
UNPACKING AND CHECKING CONTENTS

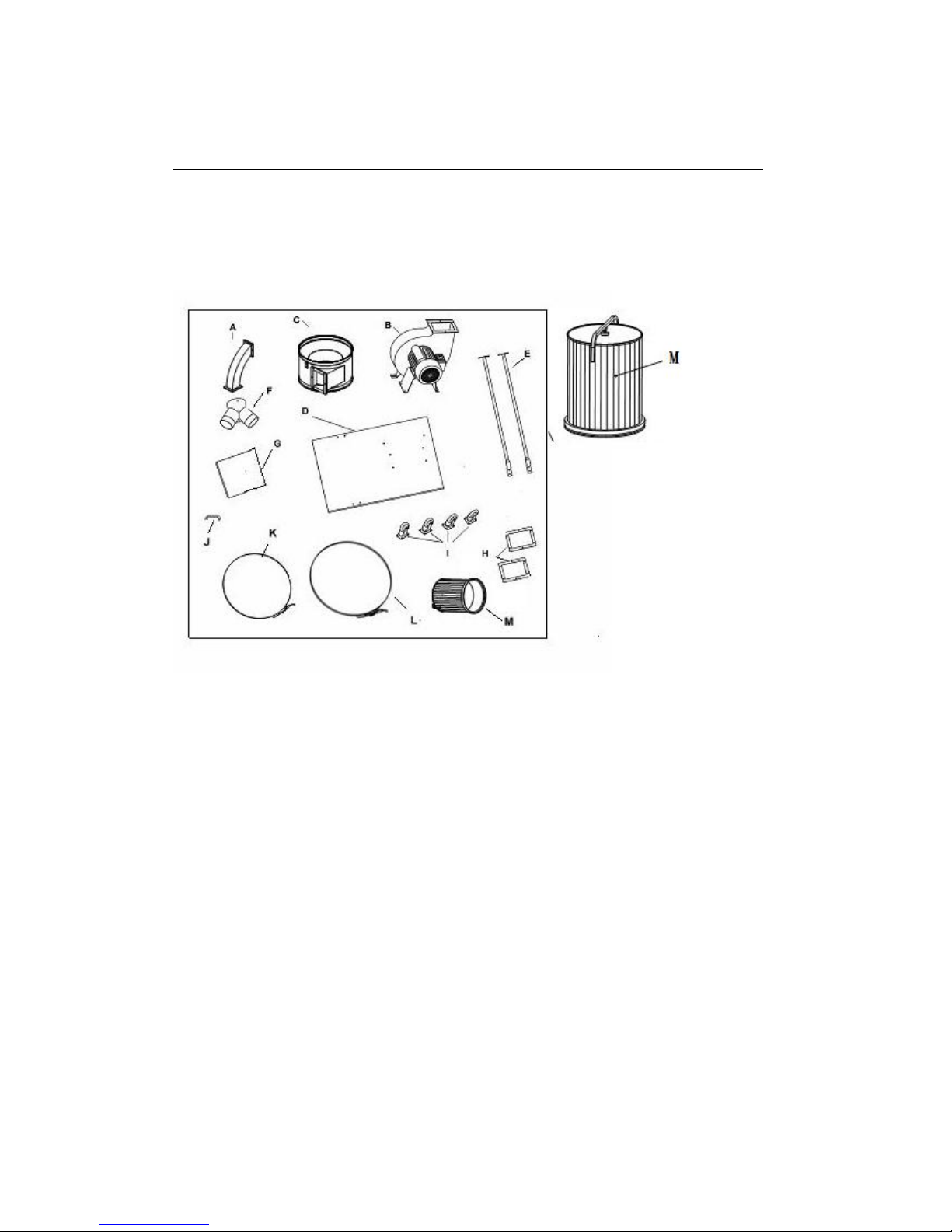

Unpack carton, check machine, to see parts listed below:
A. STEEL TUBE
B. FAN HOUSING & FAN/MOTOR ASSEMBLY
C. COLLECTOR
D. BASE PLATE
E. COLLECTOR BAG SUPPORT
F. INLET
G.COLLECTOR BAG
H. PACKING
I. FOUR CASTERS
J.HANDLE
K. COLLECTOR BAG CLAMP
L. METAL FILTER BAG CLAMP
M. STEEL FILTER
2
Page 6
ASSEMBLY

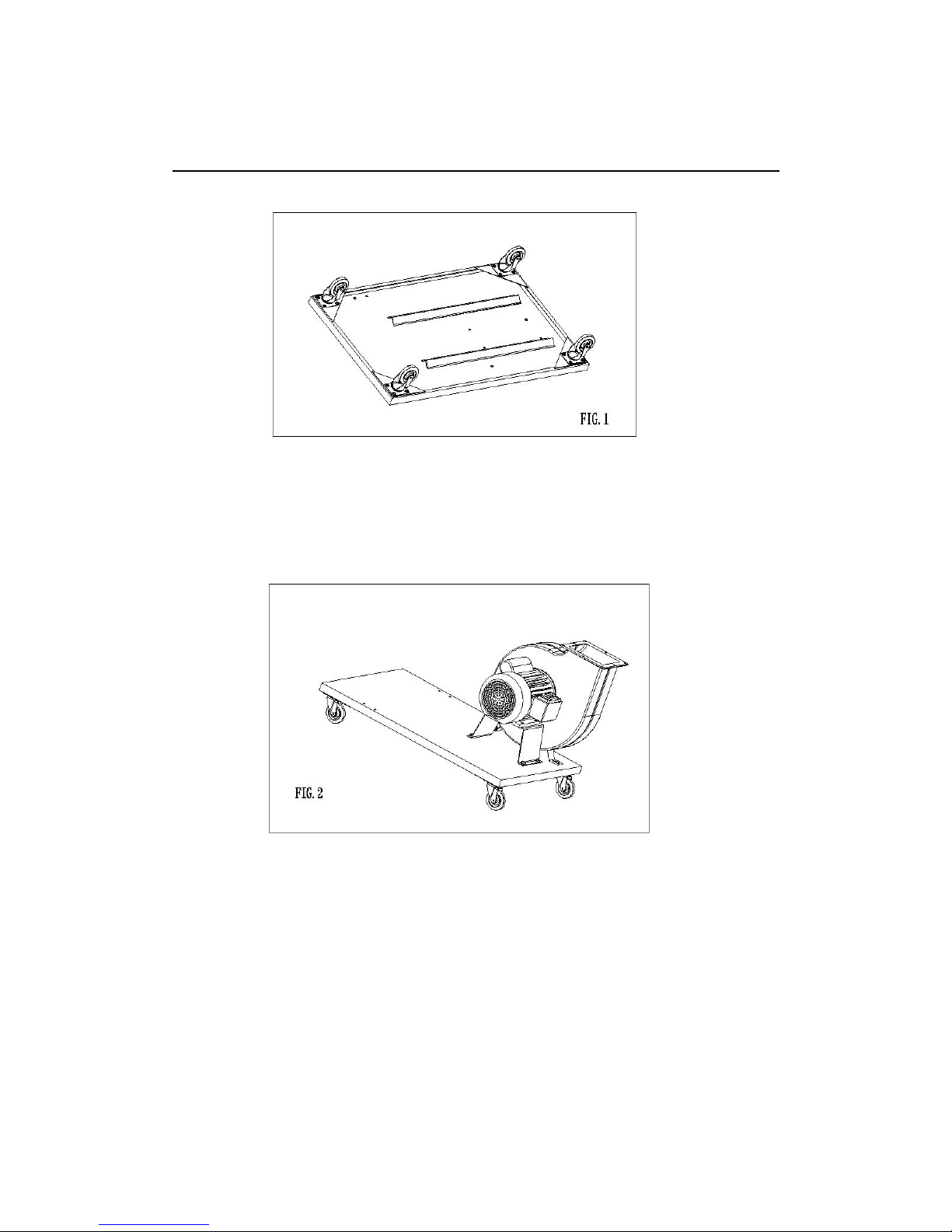

TO ASSEMBLY, FIRST PLACE THE BASE PLATE UPSIDE DOWN AND
ATTACH THE FOUR CASTERS TO THE HOLES PROVIDED AND
TOGHTEN WITH THE WRENCH. FIG.1
PUT THE FAN HOUSING & FAN/MOTOR ASSEMBLY IN PLACE,
SECURE IT TO THE BASE PLATE USING THE SCREWS AND WASHERS
PROVIDED AS SHOWN IN FIG.2.
3

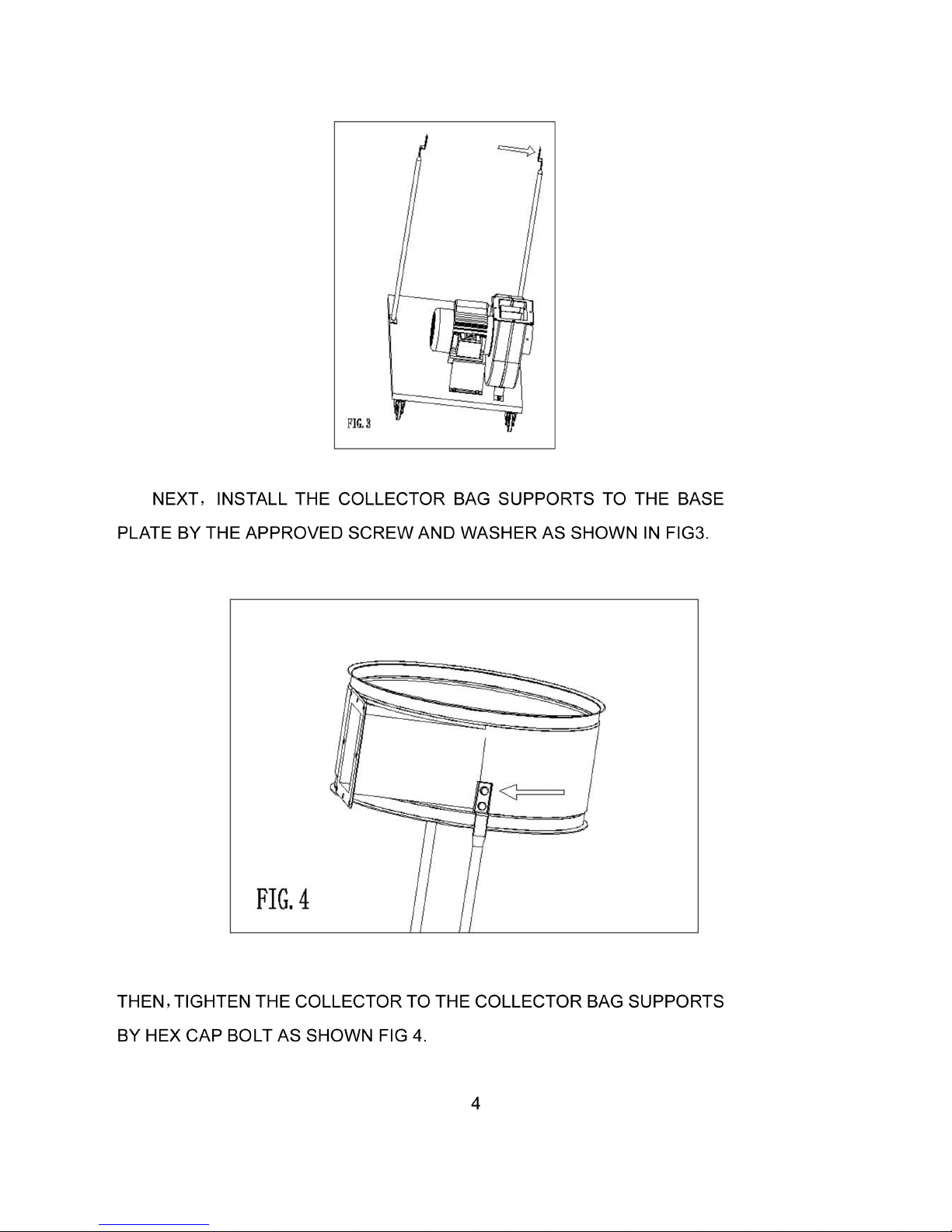

Page 7

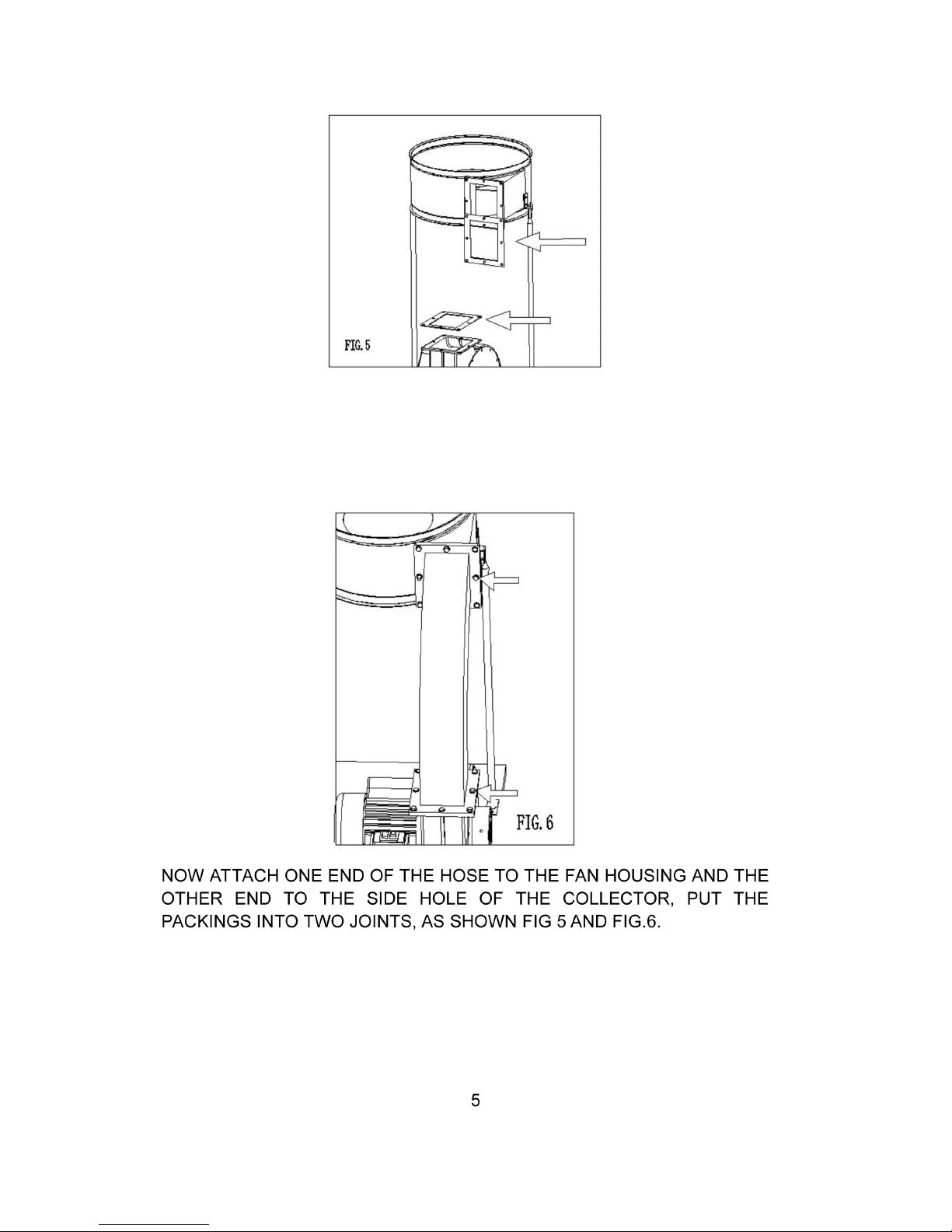

Page 8
Page 9

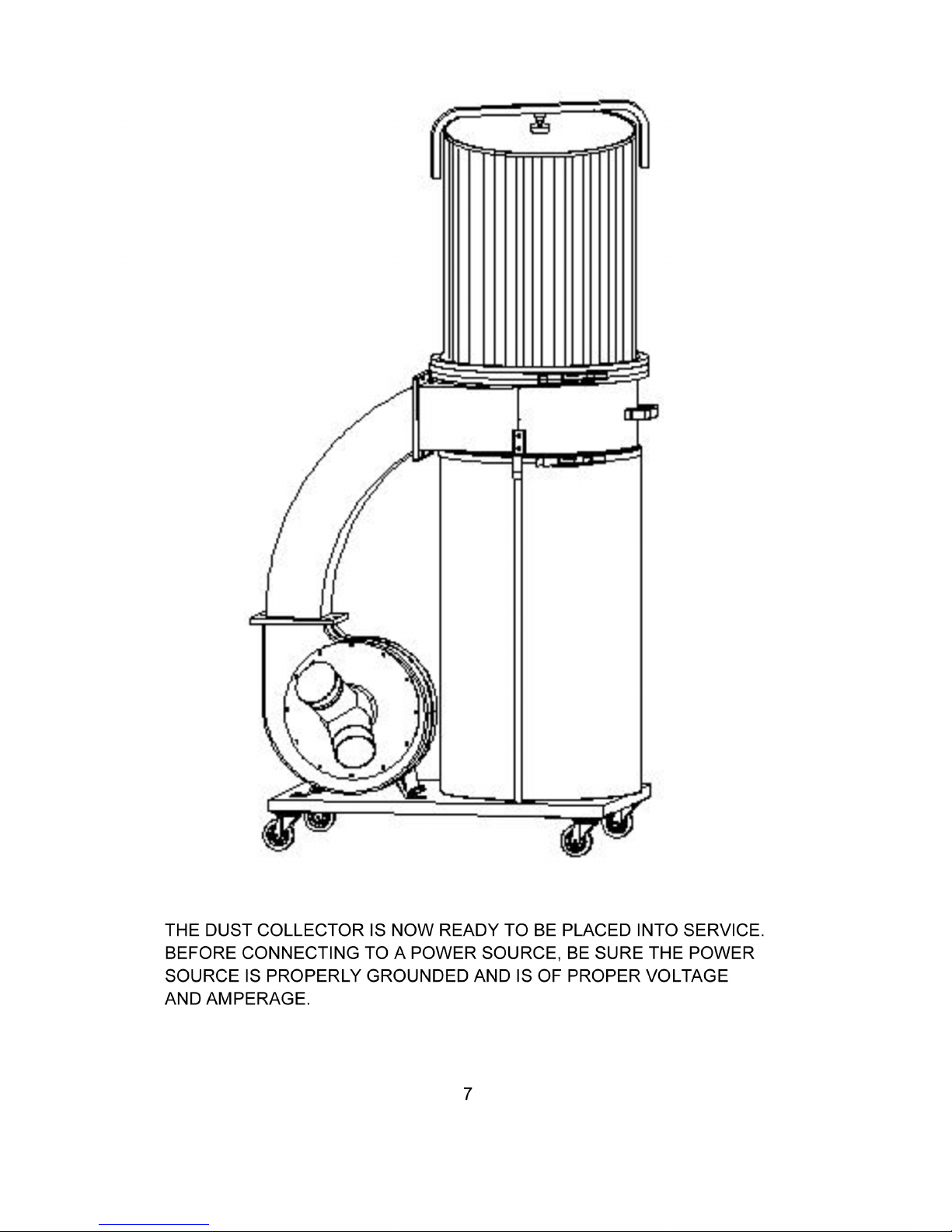

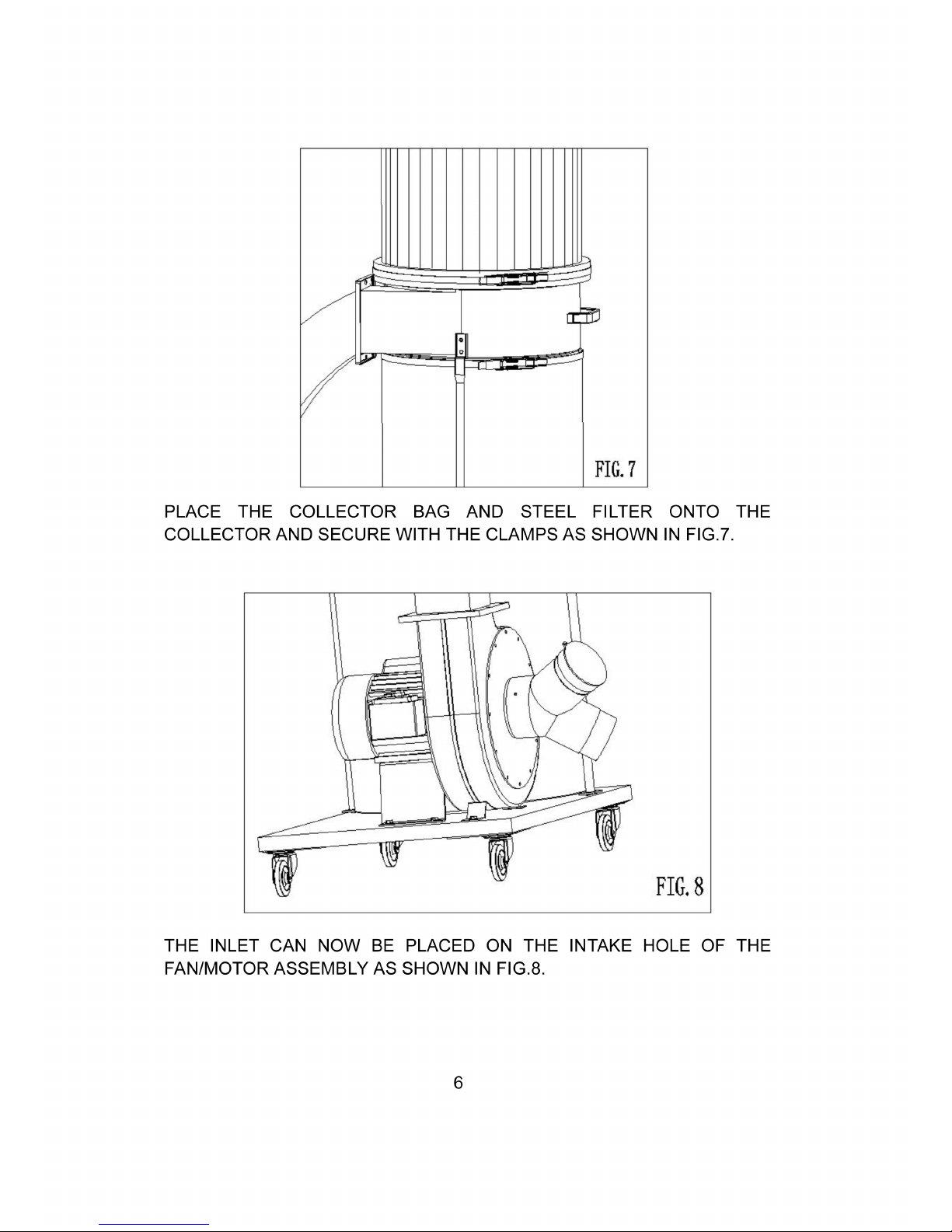

Page 10
Page 11
SAFETY RULES
1. Read and become familiar with the entire operating manual.
2.Keep guards and cover in place and in working order.
3.Wear eye protection at all times. Use safety glasses with side shields or
safety goggles, meeting the national safety standards, while operating this
machine.
4. Keep work area clean and well lighted. Clutter and inadequate lighting invite
potential hazards.
5.Ground all tools. If a machine is equipped with a three-prong plug, it must be
plugged into a three-hole electrical outlet or grounded extension cord. If
using an adapter to aid in accommodating a two holes receptacle, ground
using a screw to a known ground.
6. Avoid dangerous environments. Do not operate this machine in wet or flame
environments. Airborne dust particles could cause an explosion and severe
fire hazard.
7. Make sure switch is in the “OFF” position before connecting power to
machine.
8. Keep children and visitors away. All visitors should be kept a safe distance
away while operating unit.
9. Childproof workshop with padlocks, master switch or by removing starter
keys.
10. Disconnect machine when cleaning, adjusting or servicing.
11. Do not force tool. The machine will do a safer and better job at the rate for
which it was designed.
12. Use correct tool. Do not force machine or attachment to do a job for which
it was not designed.
13. Wear proper apparel. Do not wear loose clothing, neck ties, gloves, jewelry,
etc.
14. Remove adjusting keys and wrenches. Before turning the machine on,
make it a habit to check that all adjusting keys and wrenches have been
removed.
15. Do not leave machine unattended. Wait until it comes to a complete stop
before leaving the area.
16. Do not use dust collector for anything except wood dust. Material such as
liquids, metal shavings, metal dust, screw, glass, plastic or rock can cause
sparks when coming into contact with any part of the collection system.
17. Do not place your hands, lumber or tools near inlet opening while machine
is running or connected to power.
18. Always wear a respirator and safety glasses when removing, emptying or
replacing collection bags. Secure bags tightly to dust collector to avoid
bags from “blowing off”.
8
Page 12

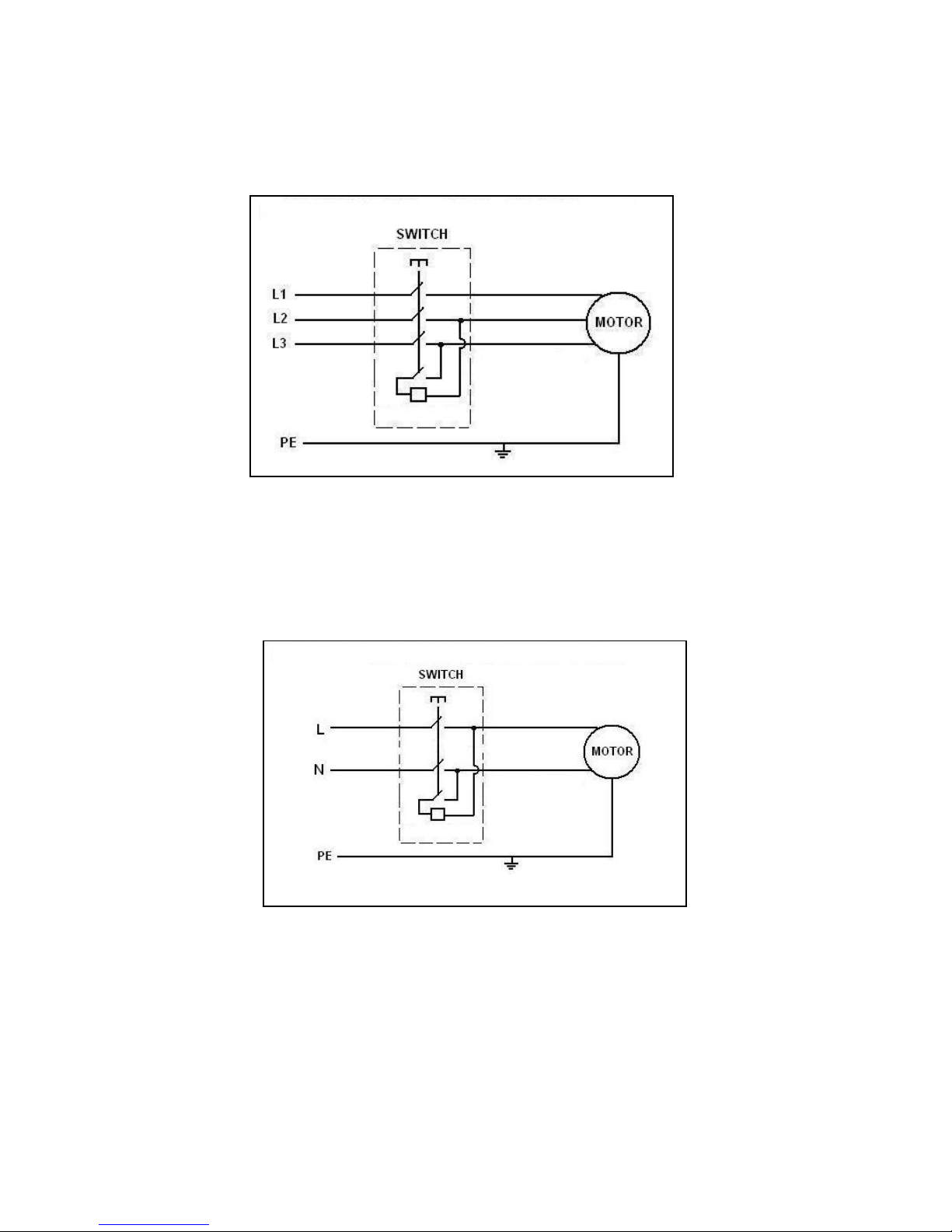

WIRING DIAGRAM (400V/50Hz, 3 phase)
WIRING DIAGRAM (230V/50Hz, 1 phase)
9
Page 13
Page 14
Page 15
Page 16
Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to
protect the environment, take the packaging to the local recycling centre and place into the appropriate
recycling bin.
Do not dispose of electric tools together with household waste material. In observance of European
Directive 2002/96/EC on waste electrical and electronic equipment and itsimplementation in accordance
with national law, electric tools that have reached the end of their life must be collected separately and
returned to an environmentally compatible recycling facility.
Only for EU countries
