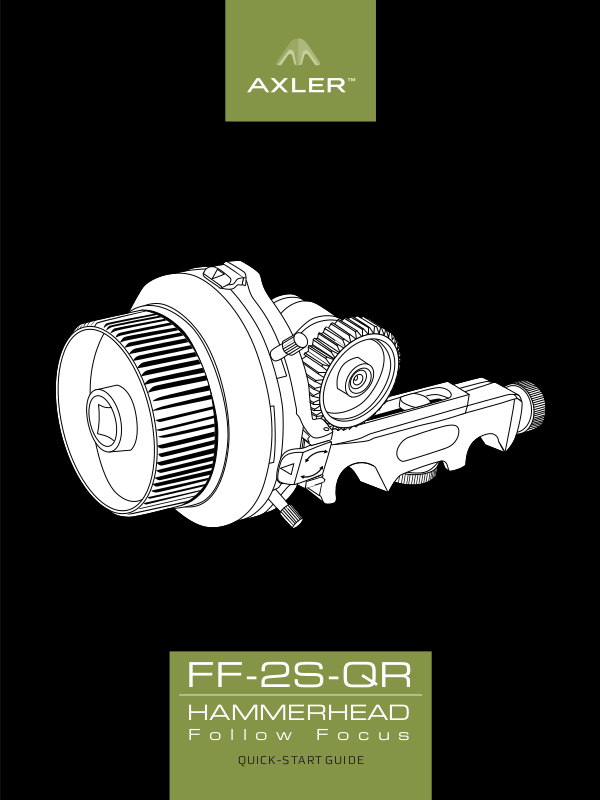

Axler FF-2S-QR Quick Start Manual

FF-2S-QR

HAMMERHEAD

Follow Focus

QUICK-STA RT GUIDE

THANK YOU FOR CHOOSING AXLER.

PRECAUTIONS

• Please read and follow these instructions,
and keep this manual in a safe place.

• Make sure that this product is intact and that
there are no missing parts.

• Use only parts provided by the manufacturer.

• Handle the unit with care.

• To avoid damage to this product, be careful
not to overtighten or improperly thread any
of the threaded fittings.

• Clean the unit with a soft, dry cloth.

• Make sure everything is secure before use.

• All images are for illustrative purposes only.

SPECIFICATIONS

Drive gear 43 tooth/0.8 film pitch

Lens gear wrap 152 tooth/0.8 pitch

Rail width 0.5 in. (15 mm)

Lens diameter Max: 100 mm
Min: 20 mm

Dimensions Height: 3.5 in. (8.9 cm)
Max. width: 8 in. (20 cm)
Min. width: 6.5 in. (16.5 cm)
Depth: 3 in. (7.6 cm)

Weight 9.2 oz. (260 g)
