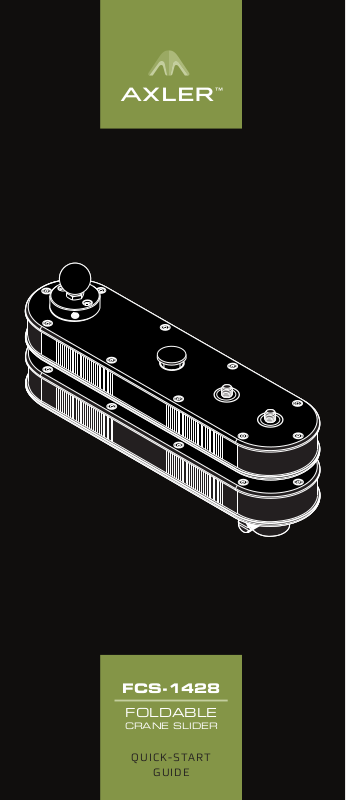

FCS-1428
FOLDABLE
CRANE SLIDER
QUICK-START
GUIDE
Page 2
PRECAUTIONS
• Please read and follow these instructions, and
keep this manual in a safe place.
• Keep this product away from children.
• Make sure everything is secure before
proceeding.
• Make sure that this produc t is intact and that
there are no missing parts.
• To avoid damage to this product, be careful not
to overtighten or improperly thread any of the
threaded fittings.
• Do not exceed the maximum load capacity.
• Be careful not to catch your fingers in any of the
moving parts.
• All images are for illustrative purposes only.
SPECIFICATIONS
Tracking distance 27.75” (70.5 cm)
Max. load capacity 4.4 lb. (2 kg)
Material Aluminum alloy
Dimensions
(H ¬ W ¬ D)
Weight 2.45 lb. (1.1 kg)
4.5” ¬ 2.5” ¬ 9.4”
(11.5 ¬ 6.3 ¬ 24 cm)
Page 3
OVERVIEW

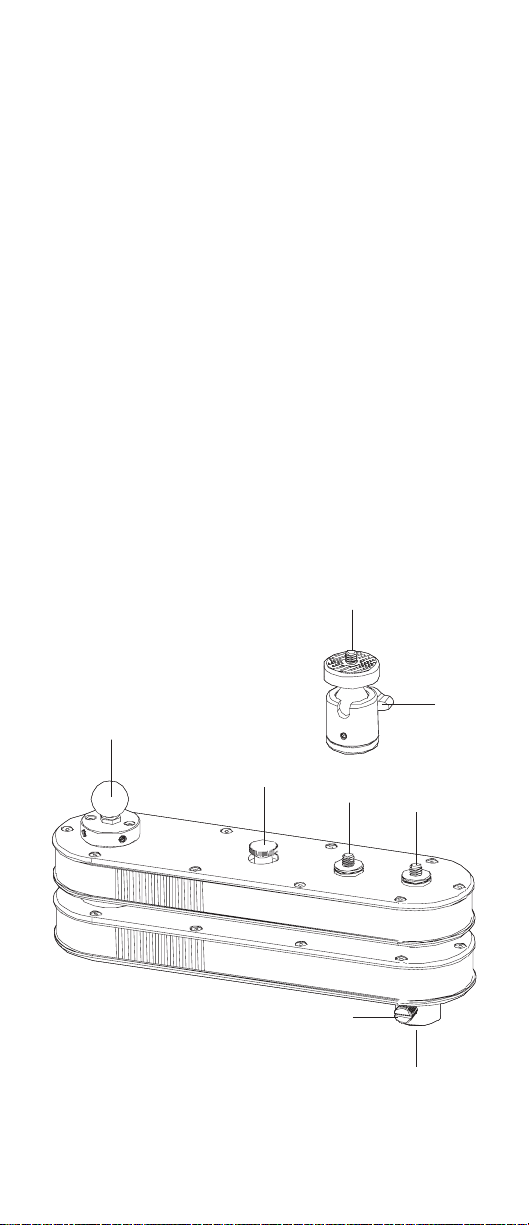

Slider:
1. Slide handle
2. Slider lock: To unlock, pull up and twist 90°.
3. 1/4”-20 Parabolic camera mount
4. 1/4”-20 Linear camera mount
5. 3/8”-16 tripod mount
6. Tripod locking knob
Ball Head:
7. 1/4”-20 ball-head adapter
8. Ball-head locking knob
7
8
1
2
3
6
4
5
Page 4

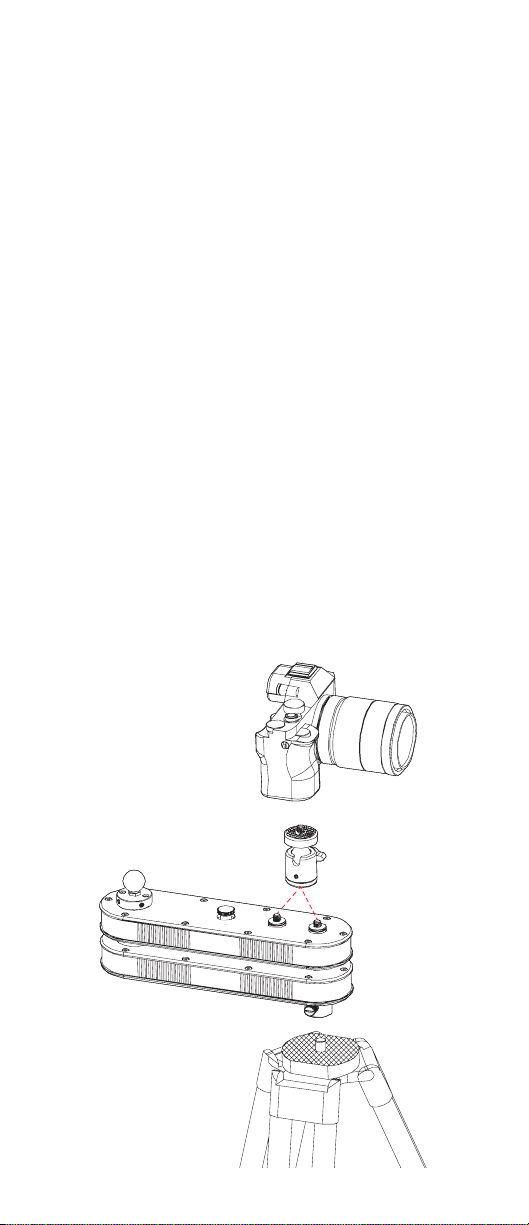

MOUNTING THE SLIDER AND CAMERA
Important! Make sure your tripod base is as
wide as the extended width of the Crane Slider.
1. Before you begin, check that the slider lock is in
the locked position.
2. Align and seat the 3/8”-16 tripod mount onto
your tripod. Rotate clockwise until secure.
3. Tighten the tripod locking knob by rotating it
clockwise.
4. Lock down the included ball head by tightening
its locking knob.
5. Align the 1/4”-20 ball-head adapter with either
of the t wo camera mounts. Rotate the ball-head
adapter clockwise until secure.
6. Align and seat your camera’s tripod mount onto
the ball-head adapter. Rotate your camera
clock wise until secure.
Page 5
SLIDER MOTION
There are two types of motion the crane slider can
achieve for smooth and creative shots—linear and
parabolic.
Before engaging the slider, pull the slider lock and
twist 90°. Push or pull the slide handle to move the
slider arms.

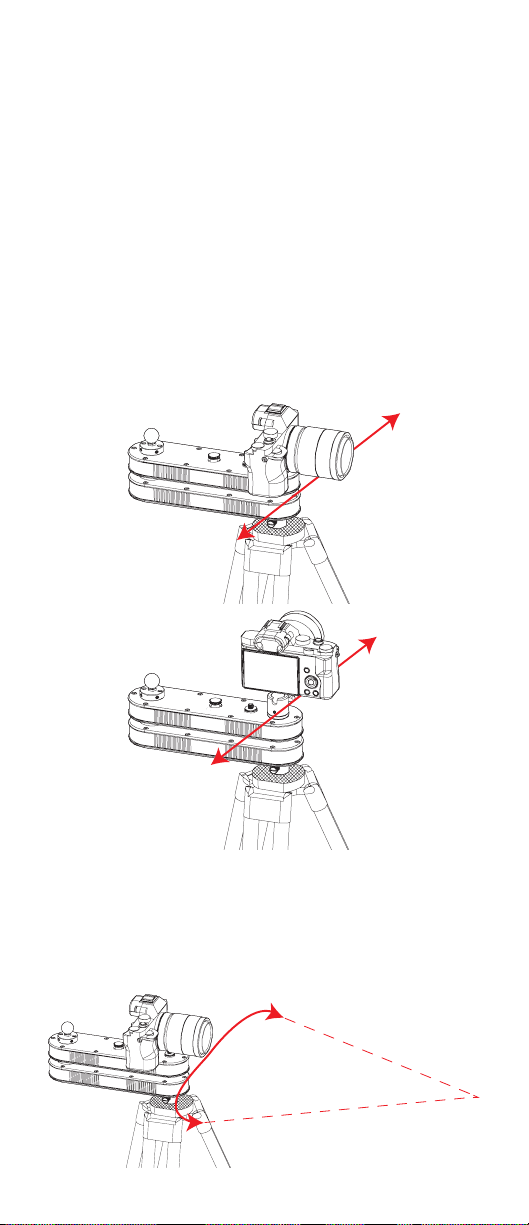

Linear
This moves your camera in a straight line to capture
side-to-side (Fig. 1) or front-to-back shots (Fig. 2).
Fig. 1
Fig. 2
Parabolic Panning
This mode rotates your camera so it pans on a
parabolic curve (Fig. 3).
Fig. 3
Page 6
