INSTALLATION GUIDE

AXIS T8051 Power Converter AC/DC

ENGLISH

FRAN

Ç AIS

DEUTSCH

ITALIANO

ESPAÑOL

日本語

Electromagnetic Compatibility (EMC)

This equipment has been designed and tested to fulfill applicable standards for:

• Radio frequency emission when installed according to the instructions and used in its intended environment.

• Immunity to electrical and electromagnetic phenomena when installed according to the instructions and used in its intended environment.

USA - This equipment has been

tested using a shielded network cable (STP) and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canada - This Class B digital

apparatus complies with Canadian ICES-003.

Europe - This digital equipment

fulfills the requirements for RF emission according to the Class B limit of EN 55022. This product fulfills the requirements for emission and immunity according to EN 50121-4 and IEC 62236-4 railway applications. This product fulfills the requirements for immunity according to EN 610006-1 residential, commercial and lightindustrial environments. This product fulfills the requirements for immunity according to EN 610006-2 industrial environments. This product fulfills the requirements for immunity according to EN 55024 residential and commercial environments.

Australia/New Zealand

This digital equipment fulfills the requirements for RF emission according to the Class B limit of AS/ NZS CISPR 22.

Korea -

ࢇЕɼࢽࡈ%ࢷ࢕ળࢶଢԻ۰

࣯Իɼࢽ߾۰یࡈଜЕʨࡶּࢶࡳԻଜֲֻҘ ࠇ߾۰یࡈଟܹ࢑ݡТЬ

Japan -

この装置は、クラスB 情報技術装置です。この装置は、家庭環境で使用することを目的としていますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあります。取扱説明書に従って正しい取り扱いをして下さい。

Safety

This product complies with IEC/EN/UL 60950-22, Safety of Information Technology Equipment.

The power supply used with this product shall fulfill the requirements for Safety Extra Low Voltage (SELV) and Limited Power Source (LPS) according to EN/IEC/UL 60950-22.

Equipment Modifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Liability

Every care has been taken in the preparation of this document. Please inform your local Axis office of any inaccuracies or omissions. Axis Communications AB cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and documentation without prior notice. Axis Communications AB makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Axis Communications AB shall not be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material. This product is only to be used for its intended purpose.

Disposal and Recycling

When this product has reached the end of its useful life, dispose of it according to local raws and regulations. For information about

your nearest designated collection point, contact your local authority responsible for waste disposal. In accordance with local legislation, penalties may be applicable for incorrect disposal of this waste.

Europe

This symbol means that the product shall not be disposed of together with household or commercial waste. Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) is applicable in the European Union member states. To prevent potential harm to human health and the environment, the product must be disposed of in an approved and environmentally safe recycling process. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. Businesses should contact the product supplier for information about how to dispose of this product correctly. This product complies with the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).

China

This product complies with the requirements of the legislative act Administration on the Control of Pollution Caused by Electronic Information Products (ACPEIP).

Support

Should you require any technical assistance, please contact your Axis

reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channels to ensure a rapid response. If you are connected to the Internet, you can:

• download user documentation and firmware updates

• find answers to resolved problems in the FAQ database. Search by product, category, or phrases

• report problems to Axis support by logging in to your private support area.

Safeguards

Please read through this Installation Guide carefully before installing the Axis product. Keep the Installation Guide for further reference.

• Store the Axis product in a dry and ventilated environment.

• Avoid exposing the Axis product to vibration, shocks or heavy pressure.

• Do not install the product on unstable brackets, unstable or vibrating surfaces or walls, since this could cause damage to the product.

• Only use applicable tools when installing the Axis product; excessive force could cause damage to the product.

• Do not use chemicals, caustic agents, or aerosol cleaners. Use a damp cloth for cleaning.

• Use only accessories that comply with technical specification of the product. These can be provided by Axis or a third party.

• Use only spare parts provided by or

recommended by Axis.

• Do not attempt to repair the product by yourself, contact Axis or your Axis reseller for service matters.

• This Axis product shall be used in compliance with local laws and regulations.

• Conservez le produit Axis dans un environnement sec et aéré.

• Évitez d'exposer le produit Axis aux vibrations, aux chocs ou à une forte pression. N'installez pas le produit sur un support instable, ou des surfaces ou des murs instables ou vibrants, car cela pourrait l'endommager.

• N'utilisez que les outils applicables pour installer le produit Axis ; une force excessive pourrait endommager le produit.

• Pour le nettoyage, n’utilisez ni produits chimiques, ni substances caustiques ou aérosols. Utilisez un chiffon humide pour le nettoyage.

• N’utilisez que des accessoires conformes aux caractéristiques techniques du produit. Ceuxci peuvent être fournis par Axis ou par un fournisseur tiers.

• Utilisez uniquement des pièces de rechange fournies ou recommandées par Axis.

• Ne tentez pas de réparer le produit vous-même, contactez Axis ou votre revendeur Axis pour toute réparation.

• Ce produit Axis doit être utilisé conformément aux lois et réglementations locales en vigueur.

• Lagern Sie das Axis-Produkt in einer trockenen und belüfteten Umgebung.

• Setzen Sie das Axis Produkt keinen Vibrationen, Erschütterungen oder starkem Druck aus. Installieren Sie das Produkt nicht an instabilen Halterungen oder instabilen oder vibrierenden Oberflächen oder Mauern, da dadurch das Produkt beschädigt werden könnte.

• Verwenden Sie bei der Installation des Axis Produkts nur geeignetes Werkzeug; zu hoher Kraftaufwand kann das Produkt beschädigen.

• Verwenden Sie keine chemischen, ätzenden oder aerosolhaltigen Reinigungsmittel.

• Verwenden Sie zur Reinigung ein feuchtes Tuch.

• Verwenden Sie nur Zubehör, das den technischen Spezifikationen des Produkts entspricht. Dieses ist von Axis oder Drittanbietern erhältlich.

• Verwenden Sie nur Ersatzteile, die von Axis empfohlen bzw. bereitgestellt wurden.

• Versuchen Sie nicht, das Produkt selbst zu reparieren. Wenden Sie sich bei Service- Angelegenheiten an Axis oder an Ihren Axis-Händler.

Verwenden Sie dieses Axis-Produkt unter Beachtung der vor Ort geltenden rechtlichen Bestimmungen.

• Conservare il prodotto Axis in un ambiente asciutto e ben ventilato.

• Evitare di esporre il prodotto Axis alle vibrazioni, agli urti o a forte pressione. Non installare il prodotto su staffe instabili, superfici o pareti instabili o vibranti, poiché ciò potrebbe danneggiare il prodotto.

• Utilizzare solo strumenti idonei quando si installa il prodotto Axis. Una forza eccessiva potrebbe danneggiare il prodotto.

• Non utilizzare sostanze chimiche, agenti caustici o detergenti spray. Utilizzare un panno umido per la pulizia.

• Utilizzare solo accessori conformi con le specifiche tecniche del prodotto. Queste possono essere fornite da Axis o da terze parti.

• Utilizzare solo parti di ricambio fornite o raccomandate da Axis.

• Non tentare di riparare il prodotto da soli, contattare Axis o il rivenditore di zona Axis per assistenza.

• Questo prodotto Axis deve essere utilizzato in conformità alle leggi e alle disposizioni locali.

• Guarde el producto Axis en un entorno seco y ventilado.

• Evite exponer el producto Axis a vibraciones, golpes o presiones excesivas. No instale el producto en soportes inestables ni en superficies o paredes inestables o con vibraciones, ya que esto podría

dañarlo.

• Utilice solo las herramientas apropiadas para instalar el producto Axis; una fuerza excesiva podría dañarlo.

• No utilice productos químicos, agentes cáusticos ni limpiadores en aerosol. Límpielo con un paño húmedo.

• Utilice solo accesorios que cumplan las especificaciones técnicas del producto. Puede obtenerlos de Axis o de un tercero.

• Utilice solo piezas de recambio suministradas o recomendadas por Axis.

• No intente reparar el producto usted mismo, póngase en contacto con Axis o con el distribuidor de Axis para los temas de servicio técnico.

• Este producto Axis se utilizará de conformidad con la legislación y normativas locales.

• 本製品は、乾燥した通気のよい

環境に保管してください。

• 本製品に衝撃または強い圧力を加えないでください。

• 本製品を不安定なブラケット、場所または壁に設置しないでください。

• 本製品を設置する際には、適切な工具のみを使用してください。不適切な工具を使用すると、製品に過剰な力がかかり、損傷することがあります。

• 化学薬品、腐食剤、噴霧式クリ

ーナーは使用しないでください。清掃はきれいな水に浸した清潔な布を使用して行ってください。

• 製品の技術仕様に準拠したアク

セサリーのみを使用してください。Axis またはサードパーティから入手することができます。

• Axis が提供または推奨する交換

部品のみを使用してください。

• 製品を自分で修理しないでくだ

さい。修理に関しては、Axis または Axis の販売代理店にお問い合わせください。

• 本製品は、お使いになる国、地

域の法律、規制にしたがって使用してください。

Contact Information

Axis Communications AB Emdalavägen 14 223 69 Lund Sweden Tel: +46 46 272 18 00 Fax: +46 46 13 61 30

www.axis.com

Warranty

www.axis.com/warranty

AXIS T8051 Power Converter AC/DC Page 7

1x 1x

1x1x 1x

AXIS Q3505-VE

21.3VA@24 V AC

15W@12 V DC

Power Information

ENGLISH

Note:

For further information about the network camera and its parts, refer to the Axis camera’s installation guide.

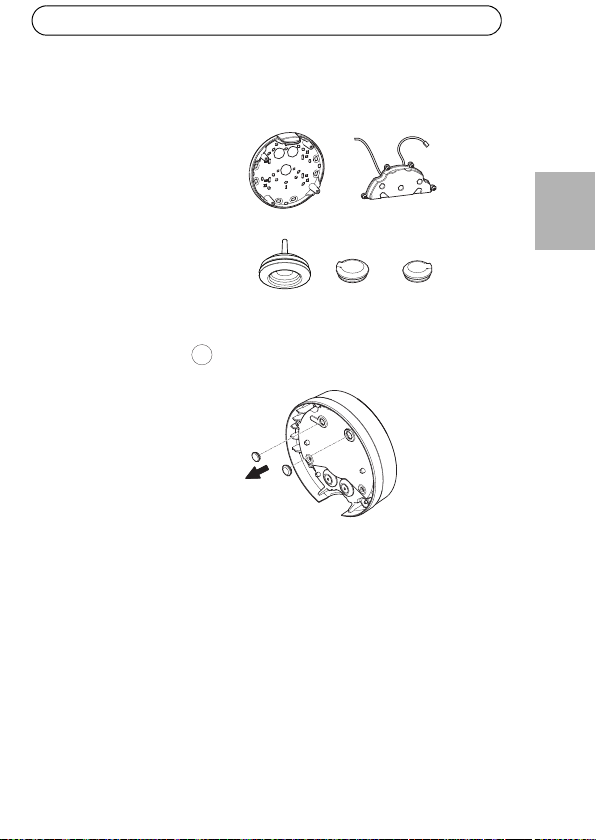

Separate the mounting bracket from the unit casing and use the extended mounting bracket.

Remove the two plugs from the holes in the unit casing.

Page 8 AXIS T8051 Power Converter AC/DC

T20

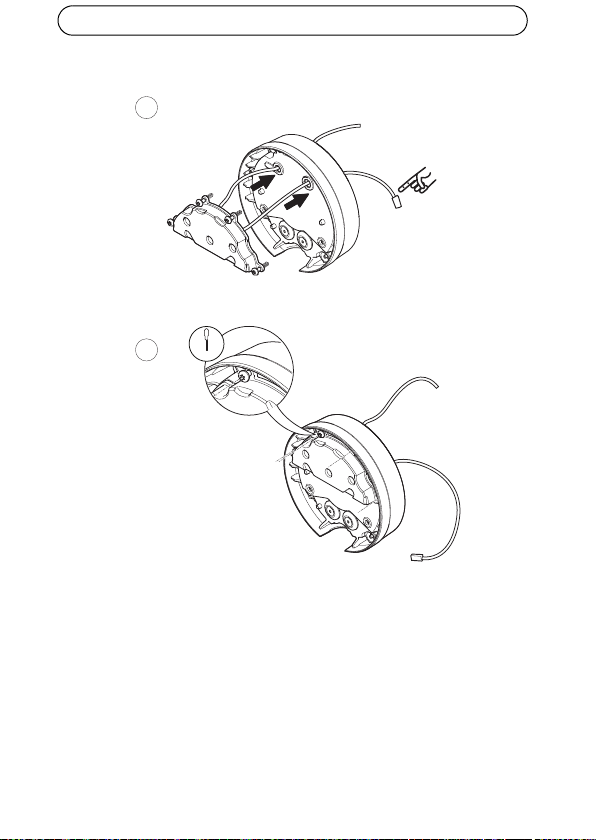

Route the two cables in the AC/DC module through the two holes in back of the unit casing. The cable with the connector goes into the hole on the right.

Attach the AC/DC module onto the unit casing with the four supplied screws.

AXIS T8051 Power Converter AC/DC Page 9

ENGLISH

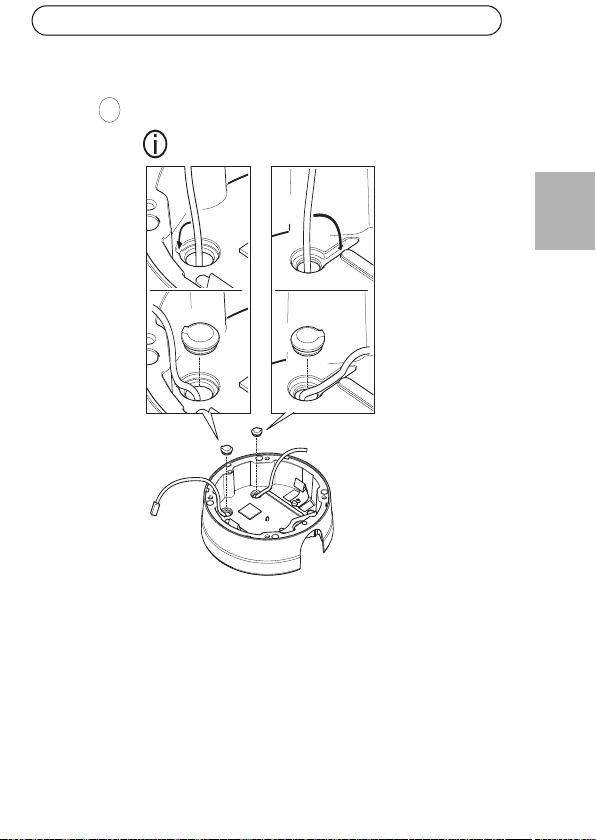

Draw the cables along the grooves and press the supplied cable guides in the holes to keep them in place.

Page 10 AXIS T8051 Power Converter AC/DC

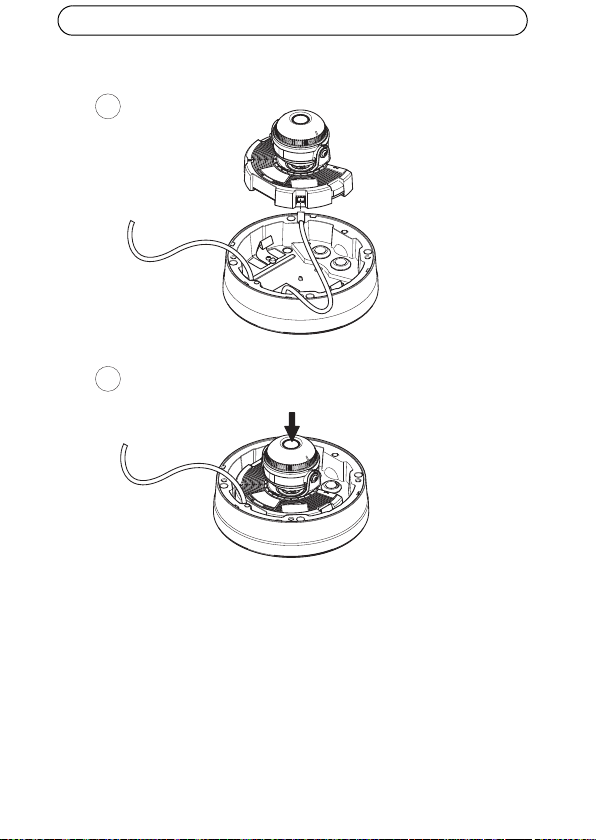

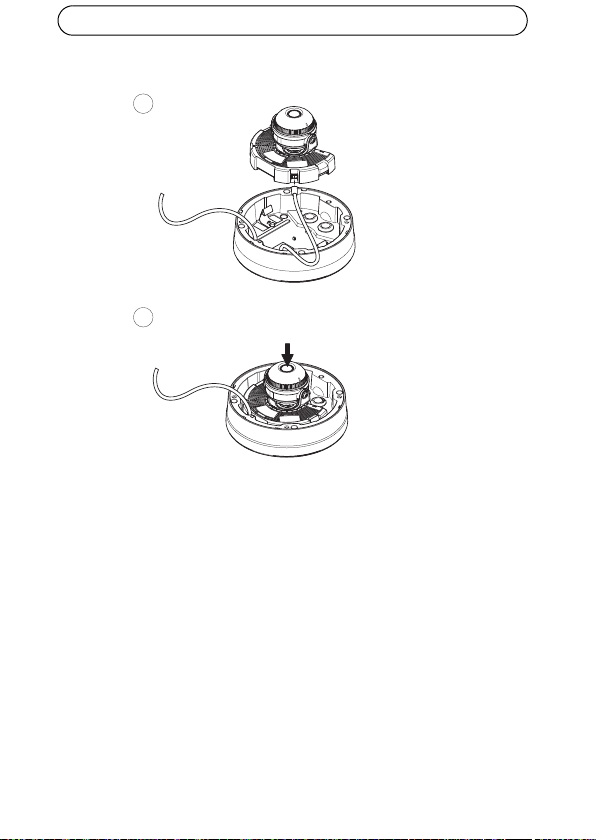

Connect the DC cable to the power connector in the camera unit. Attach the camera to the unit casing.

AXIS T8051 Power Converter AC/DC Page 11

ENGLISH

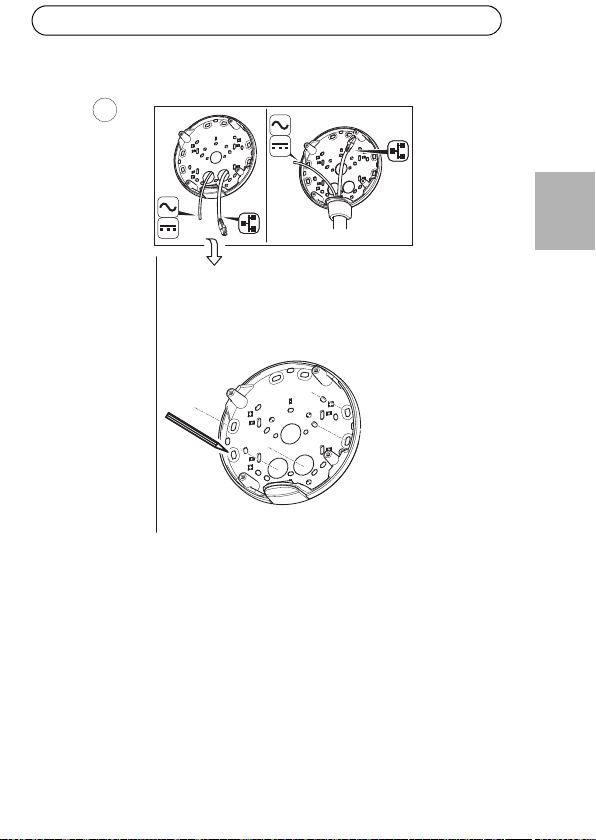

Using the drill template mark the holes for attaching the mounting bracket on the wall.

Page 12 AXIS T8051 Power Converter AC/DC

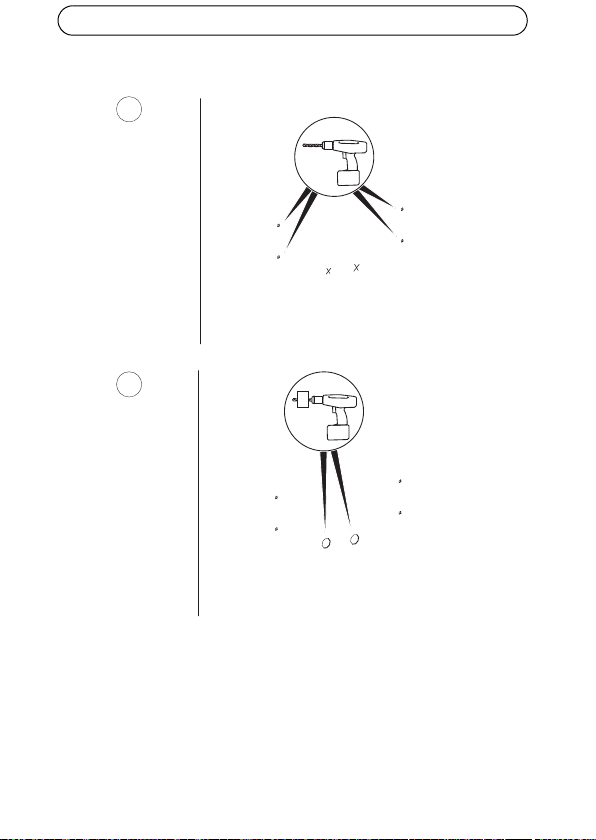

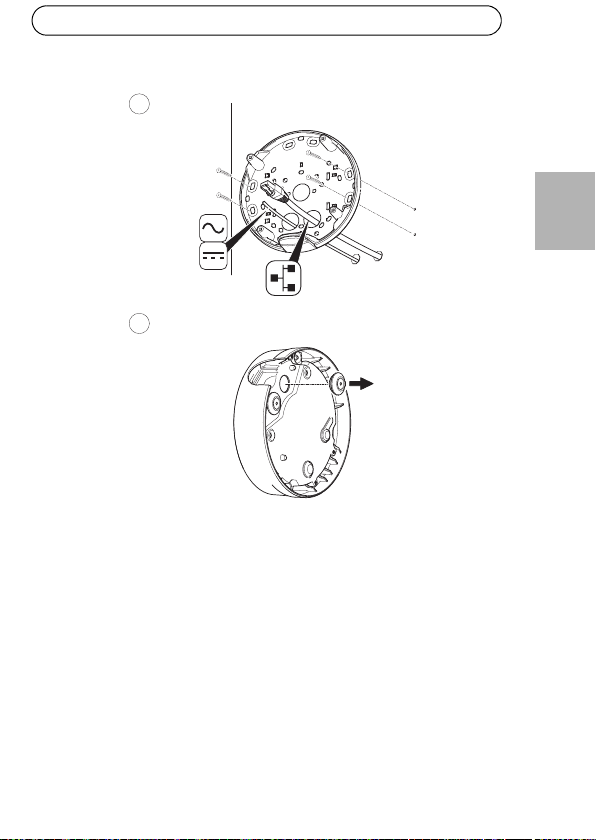

Drill holes for attaching the mounting bracket to the wall, and holes for cables if cables are to be drawn through the wall.

AXIS T8051 Power Converter AC/DC Page 13

Draw the cables through the hole or holes in the mounting bracket and through the gaskets in the unit casing.

Connect the AC/DC cables coming from the wall and from the AC/DC module according to the table below.

ENGLISH

Wires Specifications

Red + DC or AC Black – DC or AC

Page 14 AXIS T8051 Power Converter AC/DC

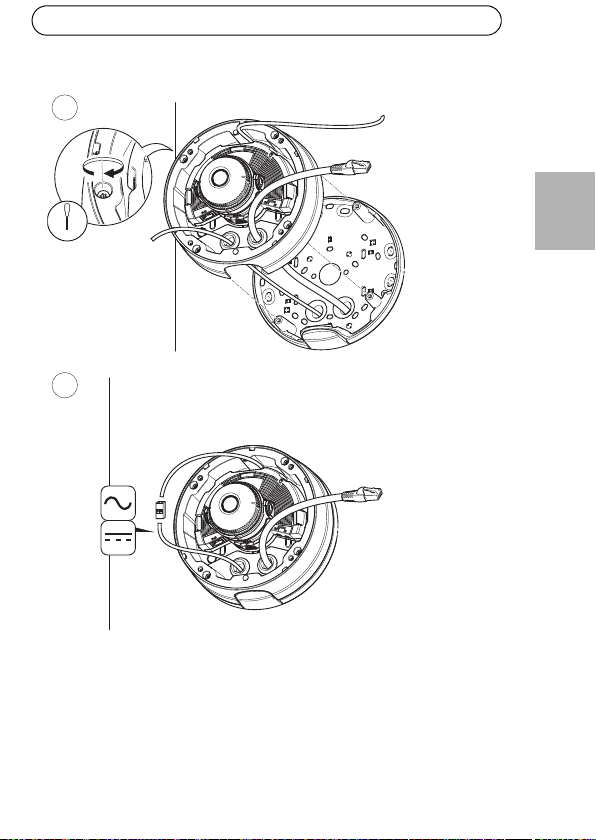

Push the network cable through the black cable gasket in one of the holes in the unit casing, using the connector guard provided. Pull the network cable back slightly so that the cable gasket adjusts itself on the cable.

AXIS T8051 Power Converter AC/DC Page 15

T20

ENGLISH

Draw the AC/DC cable through the 3mm cable gasket. Connect the AC/ DC cable to the power connector.

Page 16 AXIS T8051 Power Converter AC/DC

T20

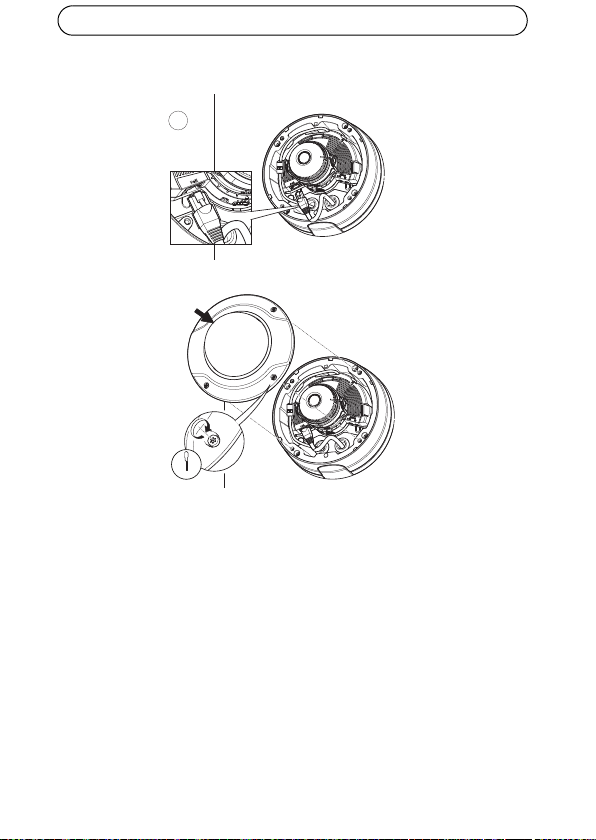

Connect the network cable to the camera and put the dome cover in place.

Convertisseur électrique CA/CC AXIS T8051 Page 17

1x 1x

1x1x 1x

AXIS Q3505-VE

21,3 VA à 24 V CA

15 W à 12 V CC

Informations sur l'alimentation

FRAN

Ç AIS

Remarque :

Pour plus d'informations concernant la caméra réseau et ses pièces, reportez-vous à son guide d’installation.

Séparez le support de montage du boîtier de l’unité et utilisez le support de montage rallongé.

Retirez les deux caches obturant les trous du boîtier de l’unité.

Page 18 Convertisseur électrique CA/CC AXIS T8051

T20

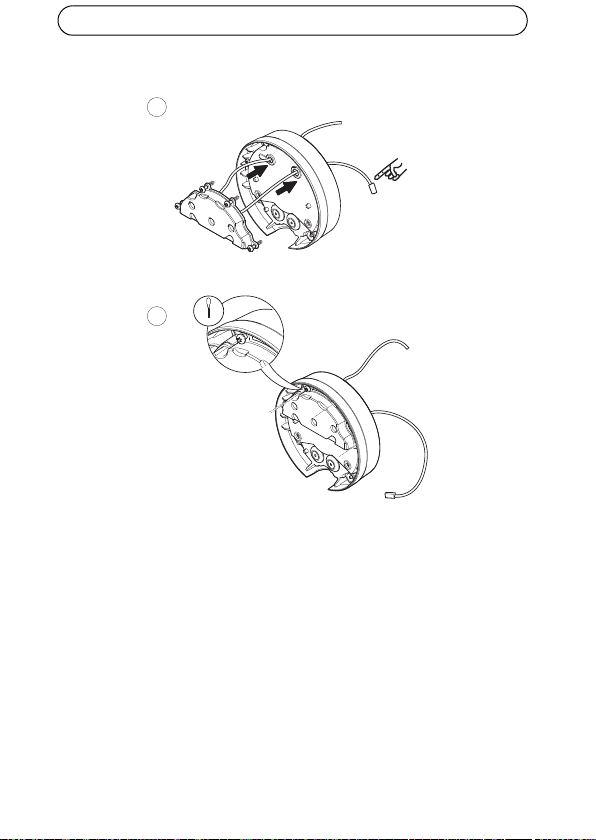

Faites passer les deux câbles dans le module CA/CC par les deux trous situés à l'arrière du boîtier de l’unité. Le câble équipé du connecteur passe par le trou situé à droite.

Fixez le module CA/CC au boîtier de l’unité à l'aide des quatre vis fournies.
