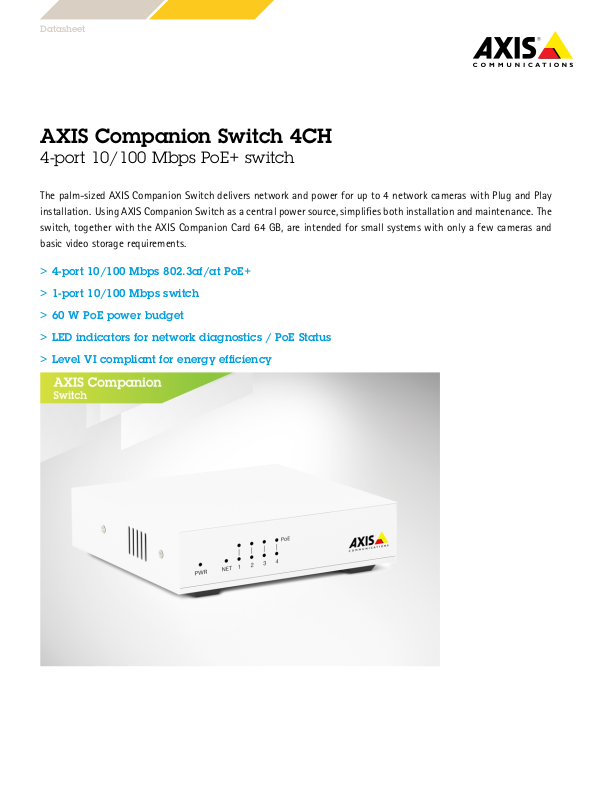

Datasheet

AXISCompanionSwitch4CH

4-port10/100MbpsPoE+switch

Thepalm-sizedAXISCompanionSwitchdeliversnetworkandpowerforupto4networkcameraswithPlugandPlay
installation.UsingAXISCompanionSwitchasacentralpowersource,simpliesbothinstallationandmaintenance.The
switch,togetherwiththeAXISCompanionCard64GB,areintendedforsmallsystemswithonlyafewcamerasand
basicvideostoragerequirements.

>4-port10/100Mbps802.3af/atPoE+

>1-port10/100Mbpsswitch

>60WPoEpowerbudget

>LEDindicatorsfornetworkdiagnostics/PoEStatus

>LevelVIcompliantforenergyefficiency

www.axis.com

AXISCompanionSwitch4CH

General

Casing

EnvironmentIndoor

Dimensions

Weight

Inputpower

Max.output
power

Connectors

Operating
conditions

Storage
conditions

Approvals

Metal
Color:White

90x80x21mm

3.54x3.15x0.83in

172g(0.38lb)

100–240VAC,50–60Hz
Max62W
Powerplugpolarity:Center-pinpositive

PoweroverEthernet(PoE)IEEE802.3af/802.3atType1Class3
PoweroverEthernet(PoE+)IEEE802atType2Class4
Totalmax60W
4x15W,2x30Wor1x30W+2x15W

1xRJ451 0BASE-T/100BASE-TX
4xRJ4510BASE-T/100BASE-TXPoE

0°Cto50°C(32°Fto122°F)
Humidity5–95%RH(non-condensing)

-10°Cto7 0°C(14°Fto158°F)
Humidity5–95%RH(non-condensing)

EN55022:2010/55032:2012+AC:2013ClassB

Included
accessories

Warranty

Environmentalresponsibility:

www.axis.com/environmental-responsibility

EN55024
EN61000-3-2
EN61000-3-3
FCCPart15SubpartBClassB
ICES-003ClassB
IEC/EN/UL60950–1
IEC/EN/UL62368–1
CE
WEEE
EN50581

InstallationGuide
Powercord
Poweradapter
Rubberfeet(4x)
Brackets(2x)

Axis3-yearwarranty,seewww.axis.com/warranty
