Axis ACH13HB Specifications

n Indoor and outdoor models

n IP65- rated protection

n 24 VAC heater and blower

n Side hinge for easy access when servicing

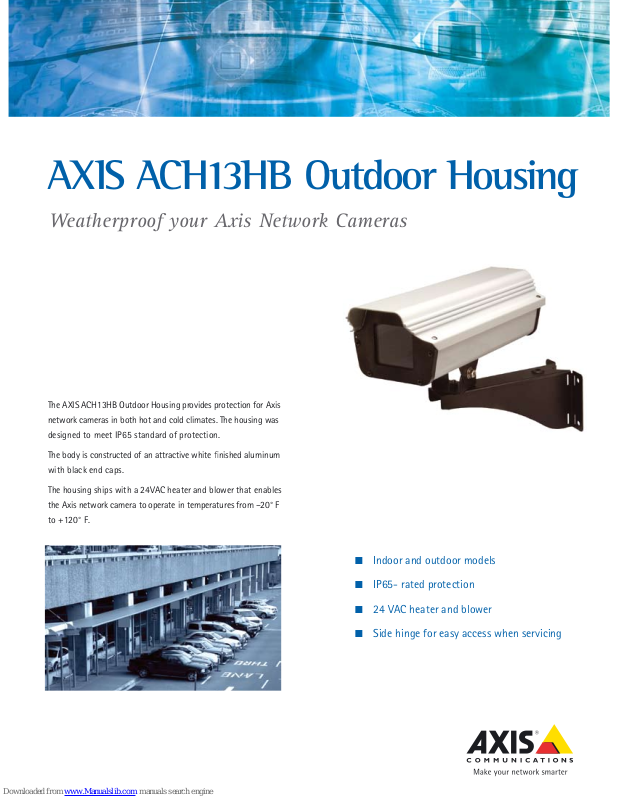

AXIS ACH13HB Outdoor Housing

The AXIS ACH13HB Outdoor Housing provides protection for Axis
network cameras in both hot and cold climates. The housing was
designed to meet IP65 standard of protection.

The body is constructed of an attractive white finished aluminum
with black end caps.

The housing ships with a 24VAC heater and blower that enables
the Axis network camera to operate in temperatures from –20° F
to +120° F.

Weatherproof your Axis Network Cameras

General

• Made of aluminum

• White finish with black end caps

•

Two watertight strain relief valves for network

and power cables

• For use with AXIS 211 and AXIS 221

Network Camera

Electrical

• 24 VAC, 50/60 Hz

• Heater: 24 VAC, 25 vA, 1.04 Amps

•

Blower: 24 VAC, input (RECTIFIED), 1.4 vA

• 24 VAC to 12 VDC transformer, 1.0 Amp

Dimensions and Weight

• Product measurements

Weight (excluding power supply): 4 lbs
Dimensions (H x W x D): 15.25 x 4.33 x 5.5 inches

• Shipping measurements

Weight: 5 lbs
Dimensions (H x W x D): 17 x 5 x 6 inches

Operating Conditions

• Indoor/outdoor (Indoor version with no

electronics available)

The indoor model does not include:
Heater or blower;
24vac to 12vdc power supply;
Sunshield
Works with the AXIS 210 Network Camera

• IP65 rated (with cable glands)

• Operating Temperature –20 F to +120 F

Approvals

• CE

• UL Listed

•

24 VAC, 40 VA Power Supply

• Integrated Sunshield

•

Heater and Blower

• Installation Guide

©2005 Axis Communications AB. Axis is a registered trademark. All other company names and products are trademarks or registered
trademarks of their respective companies. We reserve the right to introduce modifications without notice.

0805/25355/R1

www.axis.com

AXIS ACH13HB Outdoor Housing

Technical Data – Housing
