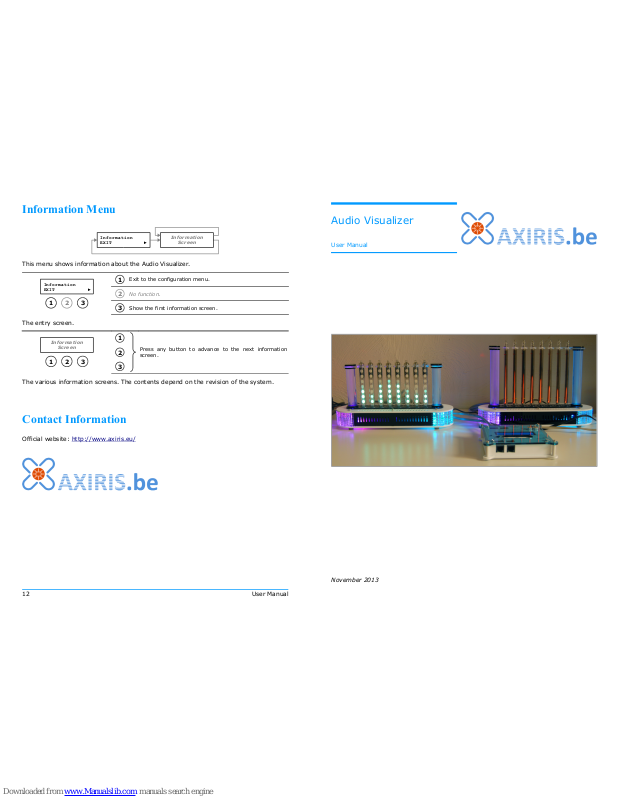

Information Menu
This menu shows information about the Audio Visualizer.
Exit to the configuration menu.
No function.
Show the first information screen.
The entry screen.
Press any button to advance to the next information
screen.
The various information screens. The contents depend on the revision of the system.
Contact Information
Official website: http://www.axiris.eu/
12 User Manual
Inf orm ati on
EXI T ►
Inf ormat ion
Scr een
1 2 3
Inf orm ation
Scr een
1
2
3
2
1 32
Inf orm ati on
EXI T ►
1
3
Audio Visualizer
User Manual
November 2013
Safety Precautions
Do not power on a display module when tubes are damaged or missing.
Risk of electrical shock. Do not power on any display module when the casing of one or
more modules is incomplete, broken or taken apart. Keep the modules in a dry place.
Do not take apart the display modules or the control module.
Use the power supply that came with the display module, or use a power supply that's
compliant with the technical specifications of the display module.
Operate the system in a well-ventilated area only and keep it away from flammable
materials. Always clean the system with a dry or very slightly damp cloth. Do not use any
detergents or alcohols. Be careful while touching the tubes, esp. the nozzle at the top.
Power off the system before cleaning. The system must be completely dry when it's
powered on.
Technical Information
Control Module
Power consumption 2.5 W max.
Dimensions 124 mm x 125 mm x 34 mm (W x D x H)
Weight 270 g
IN-13 Display Module
Power supply 12 VDC, 1000 mA, regulated
Power consumption 10 W max.
DC-connector
5.5 x 2.1 mm
and allowed
Dimensions 264 mm x 74 mm x 195 mm (W x D x H)
Weight 660 g
IV-26 Display Module
Power supply 12 VDC, 500 mA regulated
Power consumption 5 W max.
DC-connector
5.5 x 2.1 mm
and
allowed
Dimensions 264 mm x 74 mm x 150 mm (W x D x H)
Weight 600 g
2 User Manual
Selecting the previous item.
Selecting the next item.
Go to the next screen.
Select the menu that the system activates after start-up.
Select YES or NO.
Select YES or NO.
Go to the next screen.
Select whether or not the system starts up in standby mode (sleep mode).
This feature is useful if main power may go down while you keep the system in standby.
If start-up standby mode is ON, and main power goes down and comes back up after a
while, the system will restart and immediately go back to standby.
Cycle through the group of RGB animation types:
WAVE ► SOLID
Select the next RGB animation.
Go to the next screen.
Here you can select the default RGB animation. This selection becomes apparent when
you enter the audio menu or the animation menu.
Select the previous value.
Select the next value.
Go to the next screen.
The communication speed between the main module and the display module is
selectable. Select 160 kHz or higher if you've hooked up two IV-26 display modules. 100
kHz suffices for all other combinations of display modules.
When you change the bus speed, it'll only take effect when you save the settings and
restart the system.
Save all change s to the EEPROM and go back to the first
screen.
Discard all changes and go to the next screen.
Restart modifying the settings. All changes made so far are
preserved.
When you choose YES, the settings are saved in the EEPROM of the main module.
User Manual 11
Sta rtu p M en u
◄► Aud io ►
1 2 3
1
2
3
Sta rtu p S ta ndb y
◄► OF F ►
1 2 3
1
2
3
Bus Sp eed
◄► 100 kH z ►
1 2 3
1
2
3
Sav e?
YE S NO BA CK
1 2 3
1
2
3
RGB An ima ti on
WAV E 1 ►
1 2 3
1
2
3
Burn In Menu
IN-13 tubes are subjected to a burn-in procedure during the production of the display
module. You should not perform the burn-in procedure yourself. Only after the display
module hasn't been used for a very long time, the tubes may require another burn-in.
Start burning in the tubes on the left display. IN-13 only.
Start burning in the tubes on the right display. IN-13 only.
Exit to the configuration menu.
Select the IN-13 display module you want to subject to the burn-in procedure.
Decrement the value.
Increment the value.
Select the next tube. When the last tube has been handled,
go to the first screen.
The timer starts running when a value of 2000 or higher is selected. When the timer
reaches 15:00 the system will automatically reset the value to 600. This measure
prevents a tube from being damaged in case one forgets to select the next tube.
Settings Menu
Exit to the configuration menu.
No function.
Start modifying settings.
The entry screen.
10 User Manual
Bur n i n
IV- 26 IN- 13
Rig ht tub e 5
◄► 360 0 04: 25
1 2 3
Bur n in
IV- 26 IN- 13
1
2
3
1 2 3
Rig ht tub e 5
◄► 360 0 04: 25
1
2
3
1 3
Set ti ngs
EXI T ►
2
1
2
3
Set tin gs
EXI T ►
Sta rtu p M en u
◄► Aud io ►
Sta rtu p S ta ndb y RGB An ima ti on
Bus S peed
◄► OF F ► WAV E 1 ►
◄► 16 0 kH z ►
Sav e?
YE S NO BA CK
Handling
Do not carry an IN-13 display module or an
IV-26 display module while holding the outer
columns, the tubes, or the horizontal top
latch that secures the tubes.
Always carry an IN-13 display module or an
IV-26 display module while holding the left
side and the right side of the base in your
hands. You can also carry the display module
with the middle of the base.
Control Module
[1]
Not used at the moment.
Installation
An Audio Visualizer system consists of a control module and one or two display modules.
Connect each display module with an UTP cable to the corresponding display port.
When a the line input is plugged in, the system visualizes the audio from the line input,
else the system visualizes the audio from the built-in microphone. The audio is outputted
User Manual 3
Left Display
Stereo Line Output
Extension Ports
[1]
Reset Button
LCD Contrast
LCD
USB Port
Menu Buttons
Microphone
Right Volume
Left Volume
Right Display
Stereo Line Input
to the stereo line output jack.
The system is powered by the display modules.
WARNING!
Use a regulated 12 VDC power supply. If you use an unregulated power supply, it may
damage the display modules.
Bootloader
There are two methods for invoking the bootloader.
1. Hold down buttons 1 and 3 while powering up the system. The system will start up in
bootloader mode.
2. When the system is powered up, hold down the RESET button along with buttons 1
and 3. When you release the RESET button, the system will go to bootloader mode.
With the bootloader active, you can update the firmware in the control module. Connect
the USB port to a PC for this purpose.
Main Menu
Select the previous menu.
Select the next menu.
Enter the selected menu.
4 User Manual
Mai n Menu
◄► Au dio
1 2 3
1
2
3
Mai n M enu
◄► Aud io
Mai n M enu
◄► Ani mat io n
Mai n M enu
◄► Dem o M od e
Mai n M enu
◄► Con fig ur ati on
POWER UP
1 2 3
Boo tl oad er
1 2 3
1 2 3
RESET
Boo tlo ade r
1 2 3
RESET
Calibration Menu
Each IN-13 tube shoots out differently. The calibration menu offers a method for finetuning the height at w hich the tubes glow for a specific reference level. The red markers
near to top of the IN-13 tubes may serve as the reference level.
The red markers may not be aligned perfectly
horizontal. If this is the case, you're advised
to use something different as a means of
reference level, like a ruler, a piece of paper,
or a rubber band that's not too tightly
wrapped around the display's outer columns.
It's preferably to align this means with the
lowest red marker of all tubes in the vertical
direction.
During the calibration procedure, you must
adjust each tube's glowing height to the
reference level.
Start calibrating the tubes on the left display. IN-13 only.
Start calibrating the tubes on the right display. IN-13 only.
Exit to the configuration menu.
In the entry screen you can select the display module you want to calibrate.
Decrement the value.
Increment the value.
Select the next tube. When the last tube has been
calibrated, go to the next screen.
The tubes on the display are calibrated from left (tube 1) to right (tube 8).
Save the calibration values in the display's EEPROM.
Discard the calibration values and go back to the first
screen.
Resume calibrating the tubes. All values are retained.
You can choose BACK to check the calibration values and to further fine-tune the
calibration of each tube.
When you choose YES, the calibration data is saved in the EEPROM of the IN-13 display.
User Manual 9
1
2
3
1
2
3
1 2 3
Rig ht tu be 5
◄► 8 40
1 2 3
Sav e?
YE S N O BA CK
1 2 3
Cal ib rat ion
IV- 26 IN -13
1
2
3
Cal ibr ati on
IV- 26 IN- 13
Rig ht tub e 5
◄► 84 0
Sav e?
YE S NO BA CK
Configuration Menu
Select the previous menu.
Select the next menu.
Enter the selected menu.
8 User Manual
1
2
3
Cfg . Menu
◄► Ca libr at ion
1 2 3
Cfg . M enu
◄► Cal ibr at ion
Cfg . M enu
◄► Bur n i n
Cfg . M enu
◄► Set tin gs
Cfg . M enu
◄► Inf orm at ion
Cfg . Menu
◄► Ma in
Audio Menu
This menu enables audio visualization on the display modules. The system samples the
stereo audio input signal and visualizes the frequency bands on the connected displays.
The display connected to the left port visualizes the left audio channel, the display
connected to the right port visualizes the right audio channel. The audio input signal
comes from the audio input or the built-in microphone.
Reinitialize the left display.
Reinitialize the right display.
Go to the next screen.
This is the entry screen of the audio menu. It shows which display modules are
connected. You can reinitialize a display module by pressing the corresponding button.
Cycle through the group of RGB animation types:
WAVE ► SOLID ► SPECTRUM
Select the next RGB animation.
Go to the next screen.
Here you can change the RGB animation on the display modules.
The spectrum animation is exclusively available in the audio menu. It animates the RGB
LEDs based on the sampled audio signal.
Exit to the main menu.
Put the system in sleep mode. Press any button to wake up.
Go to the first screen.
Here you can exit to the main menu, put the system to sleep or go back to the entry
screen.
User Manual 5
Aud io
IV- 26 IN- 13 ►
Aud io
SOL ID 24 ►
Aud io
EXI T SLE EP ►
1
2
3
Aud io
IV- 26 IN- 13 ►
1 2 3
1
2
3
Aud io
EXI T SLE EP ►
1 2 3
1
2
3
Aud io
SOL ID 24 ►
1 2 3
Animation Menu
When this menu is active, the system shows animations on the connected display
modules. You can change both tube animations and RGB animations.
Select the next animation on the left display.
Select the next animation on the right display.
Go to the next screen.
The entry screen of the animation menu shows which displays are connected. You can
advance to the next animation by presses the display's corresponding button.
Cycle through the group of RGB animation types:
WAVE ► SOLID
Select the next RGB animation.
Go to the next screen.
Here you can change the RGB animation on the display modules.
Exit to the main menu.
Put the system in sleep mode. Press any button to wake up.
Go to the first screen.
Here you can exit to the main menu, put the system to sleep or go back to the entry
screen.
6 User Manual
1
2
3
1
2
3
1
2
3
Ani mat ion
IV- 26 IN- 13 ►
Ani mat ion
WAV E 5 ►
Ani mat ion
EXI T SLE EP ►
IV- 26 IN- 13 ►
1 2 3
Ani ma tion
1 2 3
Ani mat ion
WAV E 5 ►
EXI T SLE EP ►
1 2 3
Ani ma tion
Demo Menu
The demo menu allows you to run a demonstration program. Such program takes over
control of the buttons and uses the system as if it were a real-life user. A demonstration
program may run definitely and indefinitely.
Exit to the main menu.
No function.
Go to the next screen.
Entry screen.
Select the previous demo program.
Select the next demo program.
Go to the next screen.
Choose one of the available demonstration programs:
1. Animations Showcase: The program shows tube and RGB animations indefinitely. You
can run this program to show the system unattended in a store or public place.
2. Menu Presentation: The program walks through the various menu screens and allows
one to explore or present to an audience the available features and settings. This
program runs definitely and ends up in the entry screen of the demo menu.
Select YES or NO.
Select YES or NO.
Go to the next screen.
Decide whether one may or may not interrupt a running demonstration program. If set to
YES, one can stop the demonstration program by pressing any of the buttons. If NO is
selected, the only way to stop the demonstration program is to power-cycle or reset the
system.
Start running the selected demo program.
No function.
Go to the first screen.
Here you can start the selected demonstration program.
User Manual 7
1
3
1
3
1
2
3
1
2
3
Dem o M ode
EXI T ►
Cho ose Pr og ram Can St op ?
◄► 1 ► ◄► YES ►
Run De mo Pr ogr am
STA RT ►
1 2 3
Dem o Mod e
EXI T ►
1 2 3
Cho os e P rog ram
◄► 1 ►
1 2 3
Can St op?
◄► YES ►
Run De mo Pr ogr am
STA RT ►
1 32
2
2
Loading...
