AXIOMTEK MANO300 User Manual

Download
MANO300 Series
Intel
®
Braswell SoC CPU
Mini ITX Motherboard
Disclaimers
This manual has been carefully checked and believed to contain accurate information. Axiomtek Co., Ltd. assumes no responsibility for any infringements of patents or any third party’s rights, and any liability arising from such use.
Axiomtek does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document. Axiomtek does not make any commitment to update the information in this manual.
Axiomtek reserves the right to change or revise this document and/or product at any time without notice.
No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.
CAUTION
If you replace wrong batteries, it causes the danger of explosion. It is recommended by the manufacturer that you follow the manufacturer’s instructions to only replace the same or equivalent type of battery, and dispose of used ones.
Copyright 2016 Axiomtek Co., Ltd.
All Rights Reserved April 2016, Version A1 Printed in Taiwan
ii
ESD Precautions
Computer boards have integrated circuits sensitive to static electricity. To prevent chipsets from electrostatic discharge damage, please take care of the following jobs with precautions:
Do not remove boards or integrated circuits from their anti-static packaging until you are
ready to install them.
Before holding the board or integrated circuit, touch an unpainted portion of the system
unit chassis for a few seconds. It discharges static electricity from your body.
Wear a wrist-grounding strap, available from most electronic component stores, when
handling boards and components.
Trademarks Acknowledgments
Axiomtek is a trademark of Axiomtek Co., Ltd. Intel® and Celeron® are trademarks of Intel Corporation. Windows® is a trademark of Microsoft Corporation. AMI is a trademark of American Megatrend Inc. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. Other brand names and trademarks are the properties and registered brands of their
respective owners.
iii
Table of Contents
Disclaimers ...................................................................................................... ii
ESD Precautions ............................................................................................. iii
Chapter 1 Introduction ............................................. 1
1.1 Features ................................................................................................ 1
1.2 Specifications ........................................................................................ 2
1.3 Utilities Supported ................................................................................. 3
1.4 Block Diagram ....................................................................................... 4
Chapter 2 Board and Pin Assignments .................... 5
2.1 Board Layout ......................................................................................... 5
2.2 Rear I/O ................................................................................................. 6
2.3 Jumper Settings .................................................................................... 7
2.3.1 Clear CMOS Select (JP2) ........................................................................... 8
2.3.2 AT/ATX Power Mode Select (JP3) .............................................................. 8
2.3.3 LVDS Backlight PWM/CCFL Select (JP5) ................................................... 9
2.3.4 LVDS VDD Select (JP4) .............................................................................. 9
2.3.5 COM1 RS-232/422/485 Mode Select (JP7, JP8, JP9) ............................... 9
2.3.6 COM2 RS-232/422/485 Mode Select (JP10, JP11, JP12) ........................ 10
2.3.7 COM3 Data/Power Select (JP13) ............................................................. 10
2.4 Connectors .......................................................................................... 11
2.4.1 Fan Connectors (CN3 and CN4) ............................................................... 12
2.4.2 Internal USB 2.0 Header (CN5) ................................................................ 12
2.4.3 Internal USB 2.0 Connector (CN6) ............................................................ 12
2.4.4 SATA 3.0 Connector (CN7) ....................................................................... 13
2.4.5 SD Card Slot (CN8) ................................................................................... 13
2.4.6 SIM Card Slot (CN9) ................................................................................. 13
2.4.7 LVDS Signal Header (CN10) ..................................................................... 14
2.4.8 LVDS Backlight Control Header (CN11) .................................................... 14
2.4.9 12VDC Jack Power Input Connector (CN12) ......................................... 15
2.4.10 ATX 12V Only Power Input Connector (CN13) ......................................... 15
2.4.11 Front Panel Header (CN14) ...................................................................... 15
2.4.12 Power Status Header (CN15) .................................................................... 16
2.4.13 DC12V/5V Power Output Connector (CN16) ............................................ 16
2.4.14 PS/2 Keyboard and Mouse Connector (CN17) ......................................... 16
2.4.15 GPIO Header (CN18) ................................................................................ 17
2.4.16 COM Connector (CN19) ............................................................................ 17
2.4.17 COM Headers (CN20~CN23) ................................................................... 18
2.4.18 LAN and USB 3.0 Connectors (CN25 and CN26) .................................... 18
iv
2.4.19 PCI-Express x1 Slot (CN27) ..................................................................... 19
2.4.20 PCI-Express Mini Card Connector (CN28) ............................................... 20
2.4.21 mSATA Slot (CN29) ................................................................................... 21
2.4.22 VGA Connector (CN30) ............................................................................. 21
2.4.23 HDMI Connector (CN31) ........................................................................... 22
2.4.24 Audio Jack (CN32) .................................................................................... 22
2.4.25 Front Audio Header (CN33) ...................................................................... 22
2.4.26 ATX Power Input Connector (CN34) ......................................................... 23
Chapter 3 Hardware Description ........................... 25
3.1 Microprocessors .................................................................................. 25
3.2 BIOS.................................................................................................... 25
3.3 System Memory .................................................................................. 25
Chapter 4 AMI BIOS Setup Utility .......................... 27
4.1 Starting ................................................................................................ 27
4.2 Navigation Keys .................................................................................. 27
4.3 Main Menu .......................................................................................... 29
4.4 Advanced Menu .................................................................................. 30
4.5 Chipset Menu ...................................................................................... 40
4.6 Security Menu ..................................................................................... 43
4.7 Boot Menu ........................................................................................... 44
4.8 Save & Exit Menu ................................................................................ 45
Appendix A BIOS Flash Utility ................................ 47
v
This page is intentionally left blank.
vi
MANO300 Mini ITX Motherboard
Chapter 1
Introduction
The MANO300 is a Mini ITX board based on Intel® Celeron® N3160 processor. It delivers outstanding system performance through high-bandwidth interfaces, multiple I/O functions for interactive applications and various embedded computing solutions. There are two 204-pin DDR3L SO-DIMM for DDR3L 1600/1333MHz memory with maximum capacity up to 8GB. This Mini ITX board features two Gigabit Ethernet ports, one SATA 3.0 port with maximum transfer rate up to 6Gb/s, four USB 3.0 and two USB 2.0 high speed compliant ports that can achieve the best stability and reliability for industrial applications.
1.1 Features
Intel 2 DDR3L 1600/1333MHz memory with maximum capacity up to 8GB 1 PCI-Express x1 1 PCI-Express Mini Card 1 SATA-600 1 mSATA 4 USB 3.0 and 2 USB 2.0 ports Triple view display Display: VGA/HDMI/LVDS
®
Celeron® N3160 processor
Introduction 1
MANO300 Mini ITX Motherboard
Note
If only one memory module is used, please install in DIMM1 (the upper SO-DIMM socket).
1.2 Specifications
CPU
Intel
®
Celeron
BIOS
AMI BIOS.
System Memory
Two 204-pin SO-DIMM sockets. The upper socket must be installed. Maximum up to 8GB DDR3L memory. Support 1600/1333MHz memory.
Onboard Multi I/O
Controller: ITE8786. One PS/2 keyboard and mouse on the rear I/O. Six serial ports:
- COM1~COM2 support RS-232/422/485; COM3~COM6 support RS-232 only.
- COM1~COM2 on the rear I/O; COM3~COM6 in box headers.
USB Interface
Four USB 3.0 ports (on the rear I/O). Two USB 2.0 ports (internal).
Ethernet
Two Realtek GbE LAN ports. Support 1000/100/10Mbps Gigabit/Fast Ethernet.
Serial ATA
One SATA 3.0 port (6Gb/s). One mSATA slot; only support mSATA.
Audio
Realtek ALC662 5.1 channel HDA codec. Support line-out/MIC-in.
Display
One 15-pin D-Sub as VGA connector. Resolution max. up to 1920x1200. One HDMI with resolution max. up to (3840x2160) @ 30Hz or 2560x1600 @ 60Hz. One 24-bit dual channel LVDS and one 8-pin inverter connector. LVDS resolution is
max. up to 1920x1200.
Expansion Interface
One PCI-Express x1 slot. One PCI-Express Mini Card; support WiFi USB signal. One SIM card slot.
SSD
One SD card slot.
®
quad core N3160 (up to 2.08GHz).
2 Introduction
Note
Please plug only one of the three power input interfaces when power on.
Note
All specifications and images are subject to change without notice.
Power Input
One ATX power input connector. One 12V only ATX power input connector. One 12VDC jack power input connector.
Operating Temperature
0~60°C.
Storage Temperature
-20~60°C.
Form Factor
Mini ITX (6.7” x 6.7”, 17.0cm x 17.0cm).
MANO300 Mini ITX Motherboard
1.3 Utilities Supported
Chipset driver Ethernet driver Graphics driver Audio driver
Introduction 3
MANO300 Mini ITX Motherboard
1.4 Block Diagram
4 Introduction
Board and Pin Assignments

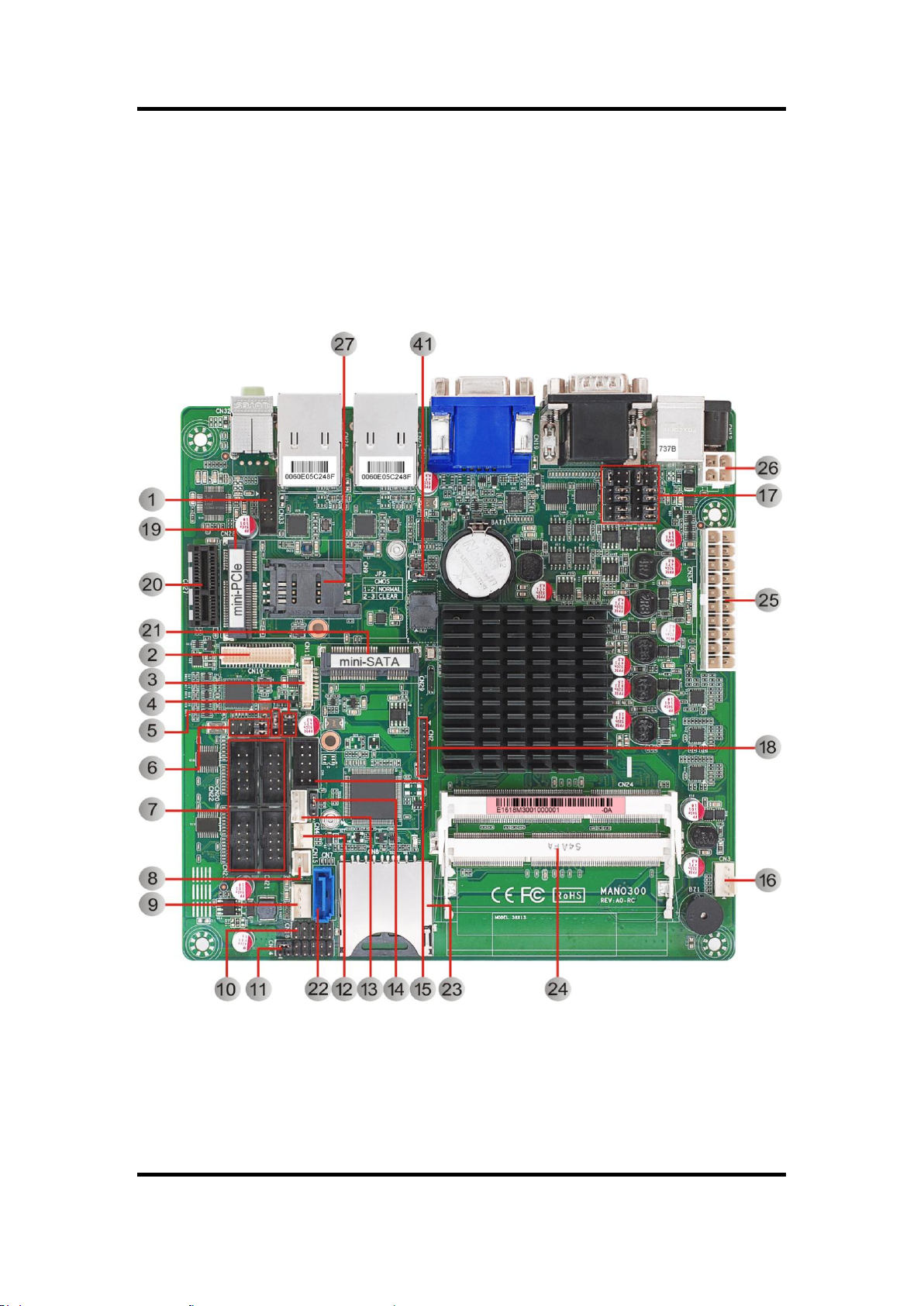

2.1 Board Layout
MANO300 Mini ITX Motherboard
Chapter 2
Board and Pin Assignments 5
MANO300 Mini ITX Motherboard
1
Front Audio Header (CN33)
22
SATA 3.0 Connector (CN7)
2
LVDS Signal Header (CN10)
23
SD Card Slot (CN8)
3
LVDS Backlight Control Header (CN11)
24
DDR3L SO-DIMM Sockets (CN24)
4
LVDS VDD Select Jumper (JP4)
25
ATX Power Input Connector (CN34)
5
LVDS Backlight PWM/CCFL Select Jumper (JP5)
26
ATX 12V Only Power Input Connector (CN13)
6
COM3 Data/Power Select Jumper (JP13)
27
SIM Card Slot (CN9)
7
COM3~COM6 Headers (CN20~CN23)
28
12VDC Jack Power Input Connector (CN12)
8
Power Status Header (CN15)
29
PS/2 Keyboard and Mouse Connector (CN17)
9
DC12V/5V Power Output Connector (CN16)
30
COM1 Connector (CN19)
10
GPIO Header (CN18)
31
COM2 Connector (CN19)
11
Front Panel Header (CN14)
32
VGA Connector (CN30)
12
System Fan Connector (CN4)
33
HDMI Connector (CN31)
13
Internal USB 2.0 Connector (CN6)
34
LAN1 Connector (CN25)
14
AT/ATX Power Mode Select Jumper (JP3)
35
LAN2 Connector (CN26)
15
Internal USB 2.0 Header (CN5)
36
USB 3.0 port 1 (CN25,CN26)
16
CPU Fan Connector (CN3)
37
USB 3.0 port 2 (CN25,CN26)
17
COM1/COM2 RS-232/422/485 Mode Select Jumpers (JP7~JP12)
38
USB 3.0 port 3 (CN25,CN26)
18
Debug Header (CN2)
39
USB 3.0 port 4 (CN25,CN26)
19
PCI-Express Mini Card Connector (CN28)
40
Audio Jack (CN32)
20
PCI-Express x1 Slot (CN27)
41
CMOS Clear Jumper (JP2)
21
mSATA Slot (CN29)
2.2 Rear I/O
6 Board and Pin Assignments
MANO300 Mini ITX Motherboard
Note

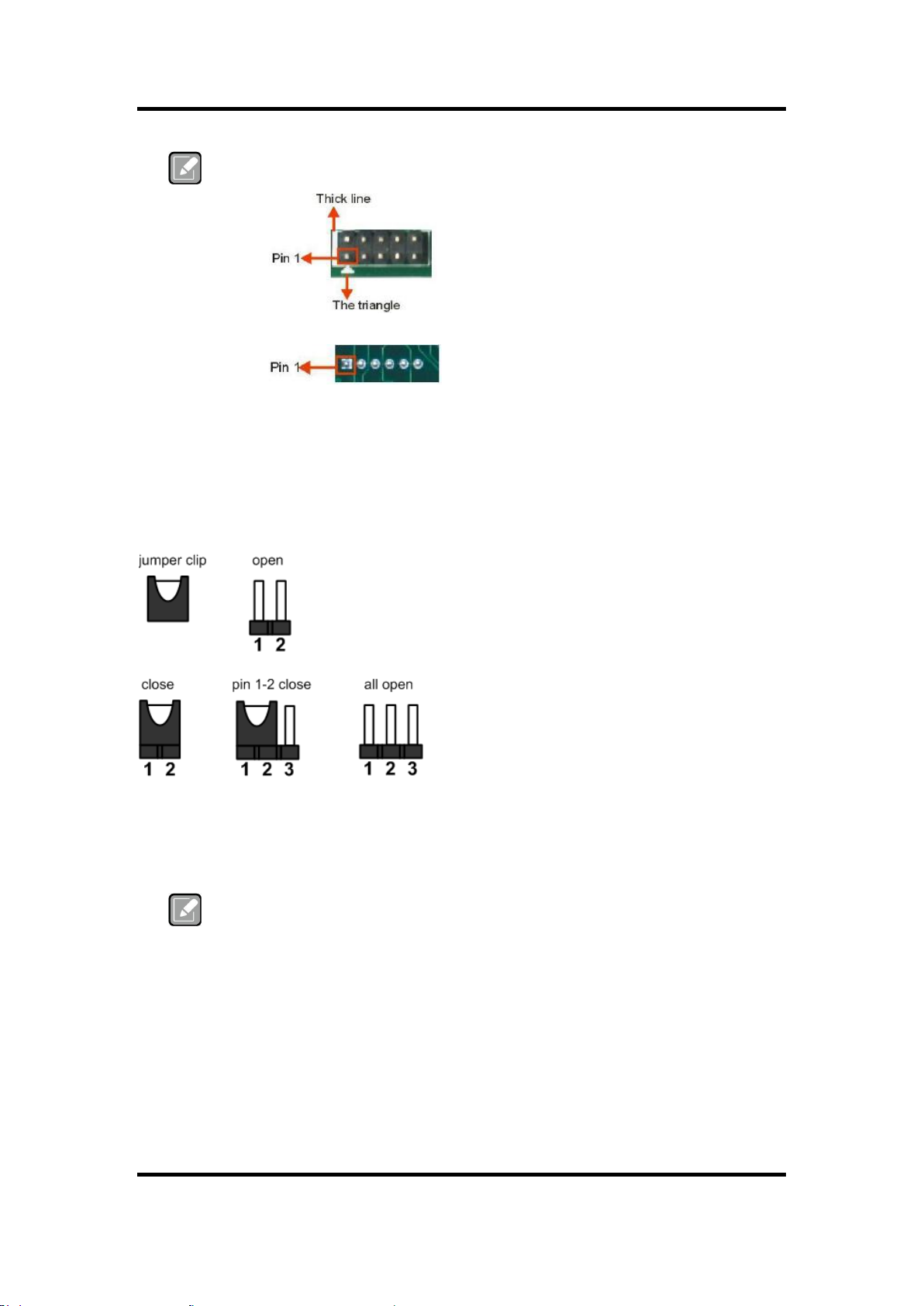

To identify the first pin of a header or jumper, please refer to the following information:
Usually, there is a thick line or a triangle near the header or jumper pin 1.
Square pad, which you can find on the back of the motherboard, is usually
used for pin 1.
Note
Once the default jumper setting needs to be changed, please do it under power-off condition.
2.3 Jumper Settings
Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2 jumper pins to close. And remove jumper clip from 2 jumper pins to open. The following illustration shows how to set up jumper.
Before applying power to MANO300 Series, please make sure all of the jumpers are in factory default position. Below you can find a summary table of all jumpers and onboard default settings.
Board and Pin Assignments 7
MANO300 Mini ITX Motherboard
Jumper
Description
Setting
JP2
Clear CMOS Default: Normal
1-2 Close
JP3
AT/ATX Power Mode Select Default: ATX Mode
1-2 Close
JP5
LVDS Backlight PWM/CCFL Select Default: PWM
1-2 Close
JP4
LVDS VDD Select Default: +3.3V
1-2 Close
JP7
COM1 RS-232/422/485 Mode Select Default: RS-232
1-2 Close
JP8
3-5, 4-6 Close
JP9
3-5, 4-6 Close
JP10
COM2 RS-232/422/485 Mode Select Default: RS-232
1-2 Close
JP11
3-5, 4-6 Close
JP12
3-5, 4-6 Close
JP13
COM3 Data/Power Select Default: RS-232 Data
COM3 Pin 1: DCD#
7-9 Close
COM3 Pin 8: RI#
8-10 Close
Function
Setting
Normal operation (Default)
1-2 close
Clear CMOS
2-3 close
Function
Setting
ATX mode (Default)
1-2 close
AT mode
2-3 close
2.3.1 Clear CMOS Select (JP2)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which includes system setup information such as system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Remove the onboard battery.
3. Move the jumper clip from pins 1-2 (default) to pins 2-3. Keep the clip on pins 2-3 for about 5~10 seconds, then move the clip back to pins 1-2.
4. Re-install the battery.
5. Plug the power cord and turn ON the computer.
6. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.
2.3.2 AT/ATX Power Mode Select (JP3)
This 3x1-pin p=2.54mm jumper allows you to select AT or ATX power mode.
8 Board and Pin Assignments
MANO300 Mini ITX Motherboard
Function
Setting
Controlled by PWM (Default)
1-2 close
Controlled by DC Voltage
2-3 close
Function
Setting
+3.3V (Default)
1-2 close
+5V
3-4 close
+12V
5-6 close
Function
Setting
RS-232 mode (Default)
JP7 1-2 close JP8 3-5, 4-6 close JP9 3-5, 4-6 close
RS-422 mode
JP7 3-4 close JP8 1-3, 2-4 close JP9 1-3, 2-4 close
RS-485 mode
JP7 5-6 close JP8 1-3, 2-4 close
2.3.3 LVDS Backlight PWM/CCFL Select (JP5)
This 3x1-pin p=2.54mm jumper enables you to select PWM or voltage control mode for LVDS backlight control header (CN11). These two control modes are for adjusting the brightness of LVDS panel.
2.3.4 LVDS VDD Select (JP4)
This motherboard supports voltage selection for flat panel displays. Use this 3x2-pin p=2.54mm jumper to set up VDD power of the LVDS connector. To prevent hardware damage, before connecting please make sure that the input voltage of LVDS panel is correct.
2.3.5 COM1 RS-232/422/485 Mode Select (JP7, JP8, JP9)
Use these jumpers (3x2-pin p=2.54mm) to set COM1 port to operate as RS-232, RS-422 or RS-485 communication mode.
JP7 JP8 JP9
Board and Pin Assignments 9
MANO300 Mini ITX Motherboard
Function
Setting
RS-232 mode (Default)
JP10 1-2 close JP11 3-5, 4-6 close JP12 3-5, 4-6 close
RS-422 mode
JP10 3-4 close JP11 1-3, 2-4 close JP12 1-3, 2-4 close
RS-485 mode
JP11 5-6 close JP12 1-3, 2-4 close
Function
Setting
Power: Set COM3 pin 1 to +12V level
1-3 close
Power: Set COM3 pin 1 to +5V level
3-5 close
Data: Set COM3 pin 1 to DCD# (Default)
7-9 close
Power: Set COM3 pin 8 to +12V level
2-4 close
Power: Set COM3 pin 8 to +5V level
4-6 close
Data: Set COM3 pin 8 to RI# (Default)
9-10 close
2.3.6 COM2 RS-232/422/485 Mode Select (JP10, JP11, JP12)
Use these jumpers (3x2-pin p=2.54mm) to set COM2 port to operate as RS-232, RS-422 or RS-485 communication mode.
JP10 JP11 JP12
2.3.7 COM3 Data/Power Select (JP13)
The COM3 port has +5V/+12V power capability on DCD and +5V/+12V on RI by setting this jumper (5x2-pin p=2.54mm).
10 Board and Pin Assignments
MANO300 Mini ITX Motherboard
Connector
Description
CN3
CPU Fan Connector
CN4
System Fan Connector
CN5
Internal USB 2.0 Header
CN6
Internal USB 2.0 Connector
CN7
SATA 3.0 Connector
CN8
SD Card Slot
CN9
SIM Card Slot
CN10
LVDS Signal Header
CN11
LVDS Backlight Control Header
CN12
12VDC Jack Power Input Connector
CN13
ATX 12V Only Power Input Connector
CN14
Front Panel Header
CN15
Power Status Header
CN16
DC12V/5V Power Output Connector
CN17
PS/2 Keyboard and Mouse Connector
CN18
GPIO Header
CN19
COM1~COM2 Connector
CN20~CN23
COM3~COM6 Headers
CN24
DDR3L SO-DIMM Sockets
CN25, CN26
LAN and USB 3.0 Connectors
CN27
PCI-Express x1 Slot
CN28
PCI-Express Mini Card Connector
CN29
mSATA Slot
CN30
VGA Connector
CN31
HDMI Connector
CN32
Audio Jack
CN33
Front Audio Header
CN34

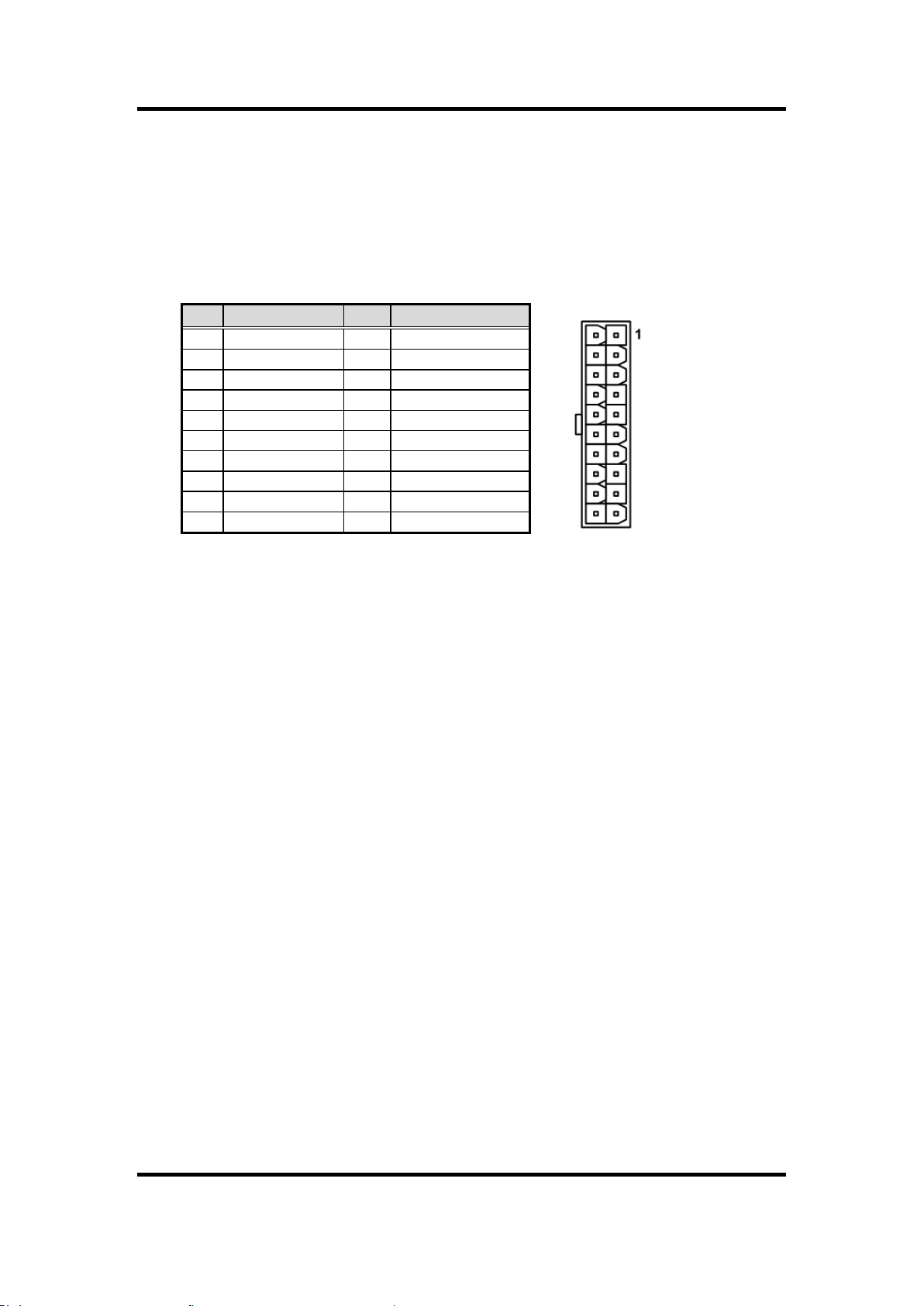

ATX Power Input Connector
2.4 Connectors
Signals go to other parts of the system through connectors. Loose or improper connection might cause problems, please make sure all connectors are properly and firmly connected. Here is a summary table showing connectors on the hardware.
Board and Pin Assignments 11
MANO300 Mini ITX Motherboard
Pin
Signal
1
GND
2
+12V
3
FAN Speed Detection
4
FAN Speed Control
Pin
Signal
1
GND
2
+12V
3
FAN Speed Detection
Pin
Signal
Pin
Signal
1
+5V 2 +5V 3 USB1-
4
USB2-
5
USB1+
6
USB2+
7
GND
8
GND
9
N/C
10
N/C
Pin
Signal
1
+5V 2 USB D-
3
USB D+
4
GND

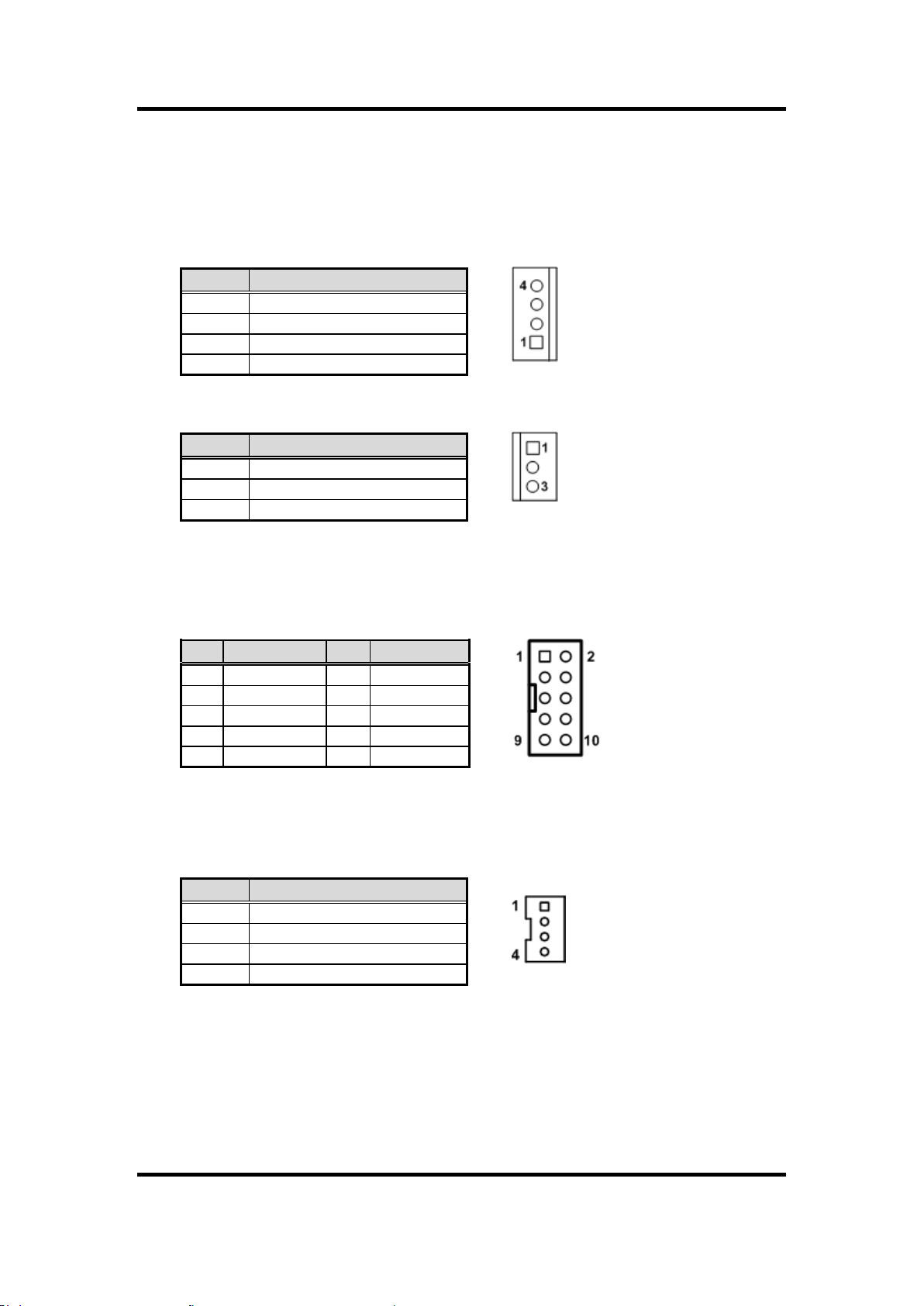

2.4.1 Fan Connectors (CN3 and CN4)
This motherboard has two fan connectors. You can find fan speed option(s) at BIOS Setup Utility. For further information, see BIOS Setup Utility: Advanced\HW Monitor\PC Health Status.
The CN3 (4x1-pin p=2.54mm) is for CPU fan interface.
The CN4 (3x1-pin p=2.54mm) is for system fan interface.
2.4.2 Internal USB 2.0 Header (CN5)
This is a USB 2.0 header (5x2-pin p=2.54mm).
2.4.3 Internal USB 2.0 Connector (CN6)
This is an internal USB 2.0 connector (4x1-pin p=2.00mm).
12 Board and Pin Assignments
MANO300 Mini ITX Motherboard
Pin
Signal
1
GND
2
SATA_TX+
3
SATA_TX-
4
GND
5
SATA_RX-
6
SATA_RX+
7
GND
Pin
Signal
Pin
Signal
1
WP 7 GND
2
DATE 1
8
CD 3 DATE 0
9
CMD
4
GND
10
DATE 3
5
CLK
11
DATE 2
6
VCC
Pin
Signal
1
PWR
2
RST
3
CLK
4
NC
5
GND
6
VPP
7
I/O 8 NC
2.4.4 SATA 3.0 Connector (CN7)
This Serial Advanced Technology Attachment (Serial ATA or SATA) connector is for SATA 3.0 interface allowing up to 6.0Gb/s data transfer rate. It is a computer bus interface for connecting to devices such as hard disk drive.
2.4.5 SD Card Slot (CN8)
The CN8 is for inserting SD card.
1 11
2.4.6 SIM Card Slot (CN9)
The CN9 is for inserting SIM Card. It is mainly used in 3G wireless network application. In order to work properly, the SIM Card must be used together with 3G module which is inserted to CN28.
Board and Pin Assignments 13
MANO300 Mini ITX Motherboard
Note
[*]
: Panel power VDD is +3.3V by default, +5V or 12V is selectable by
jumper JP4, see section 2.3.4.
[**]
: Grounding of this pin is required to ensure normal LVDS output.
Note
[*]
: This signal is selectable by jumper JP3, see section 2.3.2.
Pin
Signal
Pin
Signal
1
VDD
[*]
2
VDD
[*]
3
VDD
[*]
4
VDD
[*]
5
VDD
[*]
6
VDD
[*]
7
N/C 8 N/C 9 GND(Detect)
[**]
10
GND
11
LVDS_B_DATA3-
12
LVDS_B_DATA0-
13
LVDS_B_DATA3+
14
LVDS_B_DATA0+
15
GND
16
GND
17
LVDS_B_CLK-
18
LVDS_B_DATA1-
19
LVDS_B_ CLK +
20
LVDS_B_DATA1+
21
GND
22
GND
23
LVDS_A_DATA0-
24
LVDS_B_DATA2-
25
LVDS_A_DATA0+
26
LVDS_B_DATA2+
27
GND
28
GND
29
LVDS_A_DATA1-
30
LVDS_A_DATA3-
31
LVDS_A_DATA1+
32
LVDS_A_DATA3+
33
LVDS_PRSNT#
34
GND
35
LVDS_A_DATA2-
36
LVDS_A_CLK-
37
LVDS_A_DATA2+
38
LVDS_A_ CLK +
39
GND(Detect)
[**]
40
GND
Pin
Signal
1
+12V
2
+12V
3
+5V 4 LVDS_BKL_EN
5
GND
6
GND
7
GND
8
LVDS_BKL_CTL
[*]
2.4.7 LVDS Signal Header (CN10)
This motherboard has a 20x2-pin p=1.00mm header for LVDS panel interface.
2.4.8 LVDS Backlight Control Header (CN11)
This is an 8x1-pin p=1.25mm header for LVDS backlight control interface.
14 Board and Pin Assignments
MANO300 Mini ITX Motherboard
Firmly insert power adapter into this connector. Loose connection may cause system instability and make sure all components/devices are properly installed before connecting.
Note
[*]
: The buzzer on motherboard will be active when pin 2 and pin 4 is connecting, the external speaker on chassis will be active when pin 2 and pin 4 is open.
Pin
Signal
1
GND
2
GND
3
+ 12V IN
4
+ 12V IN
Pin
Signal
1
Power LED+
2
SPK-
[*]
3
GND
4
BUZZER
5
Power LED-
6
N/C
7
N/C 8 SPK+
[*]
9
PWR-
10
PWR+
11
RESET-
12
RESET+
13
HD LED-
14
HD LED+
1 3
2 4

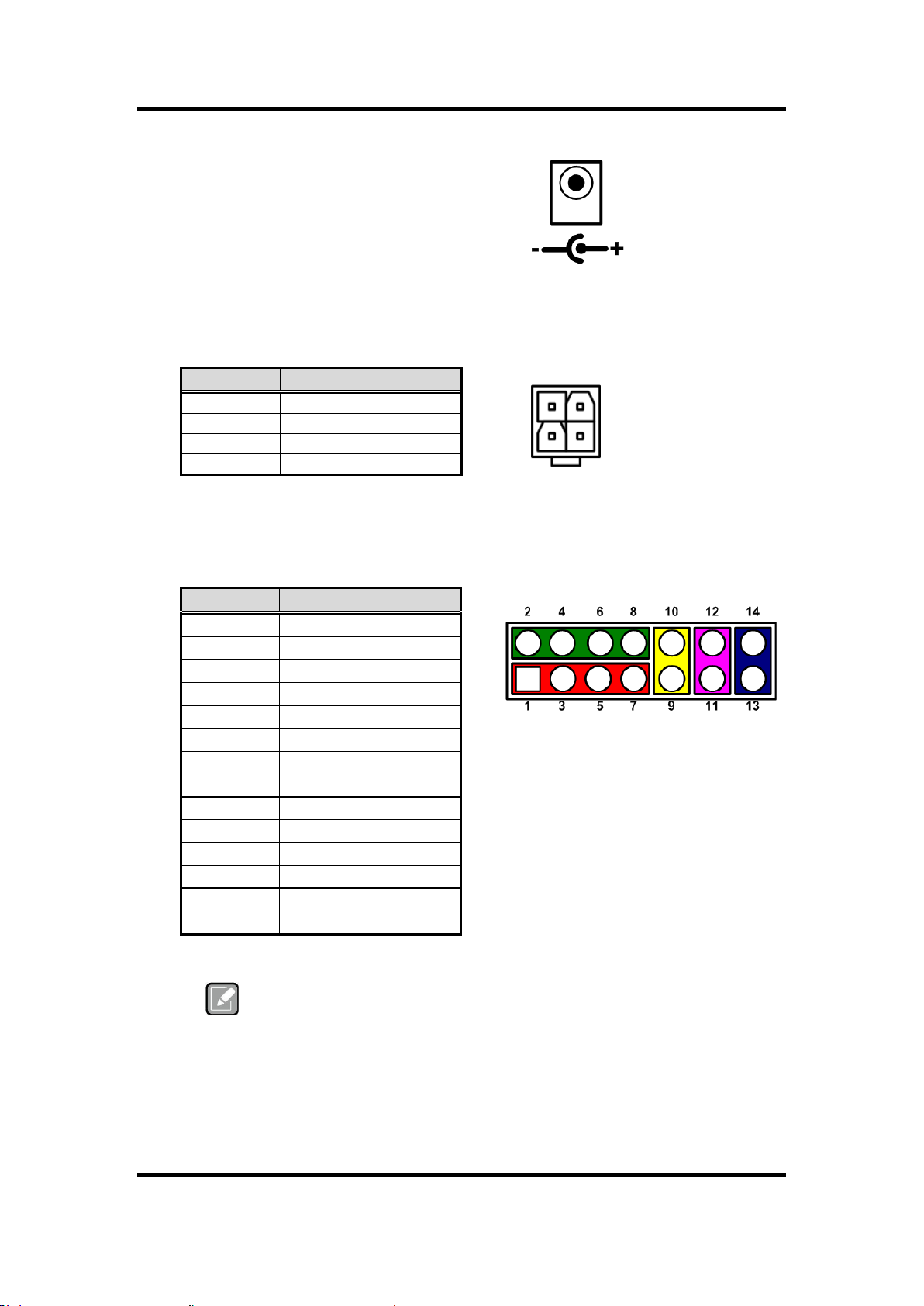

2.4.9 12VDC Jack Power Input Connector (CN12)
2.4.10 ATX 12V Only Power Input Connector (CN13)
This is a 4-pin connector for DC +12V power input.
2.4.11 Front Panel Header (CN14)
This is front panel header (7x2-pin p=2.54mm).
Board and Pin Assignments 15
MANO300 Mini ITX Motherboard
Pin
Signal
1
PWR+
2
PWR-
Pin
Signal
1
+12V
2
GND
3
GND
4
+5V
Pin
Signal
Pin
Signal
1
K/B Data
7
M/S Data
2
NC 8 NC 3 GND
9
GND
4
+5V
10
+5V
5
K/B CLK
11
M/S CLK
6
NC
12
NC
1
2.4.12 Power Status Header (CN15)
This is power button header (2x1-pin p=2.54mm), let customer know the power status of this board.
2.4.13 DC12V/5V Power Output Connector (CN16)
This is a 4x1-pin p=2.54mm connector for DC +12V and +5V power output.
2.4.14 PS/2 Keyboard and Mouse Connector (CN17)
The motherboard has two 6-pin mini-DIN PS/2 connectors; green for mouse and purple for keyboard.
16 Board and Pin Assignments
Note
[*]
: “H” or “L” means the default voltage is High or Low level, and GPIO output is 5V.
Pin
Signal
Pin
Signal
1
SIO_GPO74 (0xA06, Bit4, H)
[*]
2
SIO_GPI70 (0xA06, Bit0)
3
SIO_GPO75 (0xA06, Bit5, H)
[*]
4
SIO_GPI71 (0xA06, Bit1)
5
SIO_GPO76 (0xA06, Bit6, H)
[*]
6
SIO_GPI72 (0xA06, Bit2)
7
SIO_GPO77 (0xA06, Bit7, H)
[*]
8
SIO_GPI73 (0xA06, Bit3)
9
GND
10
GND
Pin
RS-232
RS-422
RS-485
1
DCD#
TX-
485-
2
RXD
TX+
485+
3
TXD
RX+
N/C 4 DTR#
RX-
N/C 5 GND
GND
GND
6
DSR#
N/C
N/C 7 RTS#
N/C
N/C 8 CTS#
N/C
N/C 9 RI#
N/C
N/C
2.4.15 GPIO Header (CN18)
This header (5x2-pin p=2.54mm) is for digital I/O interface.
MANO300 Mini ITX Motherboard
2.4.16 COM Connector (CN19)
This connector is for COM1 and COM2 serial port interfaces which are selectable for RS-232/422/485 mode. The default setting is RS232. If you need COM1 to support RS-422 or RS-485, please refer to section 2.3.5. If you need COM2 to support RS-422 or RS-485, please refer to section 2.3.6. The pin assignments of RS-232/422/485 are listed in table below.
COM1
Board and Pin Assignments 17
COM2
MANO300 Mini ITX Motherboard
LAN
USB
Pin
Signal
Pin
Signal
1
DCD#
2
DSR#
3
RXD
4
RTS#
5
TXD
6
CTS#
7
DTR#
8
RI# 9 GND
10
N/C
Pin
LAN Signal
Pin
USB Signal
L1
MDI0+
1/10
USB3_POWER
L2
MDI0-
2/11
USB D0-
L3
MDI1+
3/12
USB D0+
L4
MDI1-
4/13
GND
L5
MDI2+
5/14
USB3_SSRX0-
L6
MDI2-
6/15
USB3_SSRX0+
L7
MDI3+
7/16
GND
L8
MDI3-
8/17
USB3_SSTX0-
A
Active LED (Yellow)
9/18
USB3_SSTX0+
B
Speed LED 100Mbps turns Green/1000Mbps turns orange
CN20 (COM3)
CN23
CN21
CN22
2.4.17 COM Headers (CN20~CN23)
The motherboard comes with 5x2-pin p=2.54mm headers for COM3~COM6 serial port interfaces. Only COM3 comes with power capability on DCD# and RI# pins by setting JP13 (see section 2.3.7).
2.4.18 LAN and USB 3.0 Connectors (CN25 and CN26)
The motherboard comes with two high performance plug and play Ethernet interfaces (RJ-45) which are fully compliant with the IEEE 802.3 standard. Connection can be established by plugging one end of the Ethernet cable into this RJ-45 connector and the other end to a 1000/100/10-Base-T hub.
The Universal Serial Bus (compliant with USB 3.0) connectors on the rear I/O are for installing USB peripherals such as keyboard, mouse, scanner, etc.
18 Board and Pin Assignments
Pin
Signal
Pin
Signal
B1
+12V
A1
PRSNT1#
B2
+12V
A2
+12V
B3
RSVD
A3
+12V
B4
GND
A4
GND
B5
SMCLK
A5
NC
B6
SMDAT
A6
NC
B7
GND
A7
NC
B8
+3.3V
A8
NC
B9
NC
A9
+3.3V
B10
3.3Vaux
A10
+3.3V
B11
WAKE#
A11
PERST#
B12
NC
A12
GND
B13
GND
A13
REFCLK+
B14
HSOP0
A14
REFCLK-
B15
HSON0
A15
GND
B16
GND
A16
HSIP0
B17
NC
A17
HSIN0
B18
GND
A18
GND
2.4.19 PCI-Express x1 Slot (CN27)
This motherboard has one PCI-Express x1 slot.
MANO300 Mini ITX Motherboard
Board and Pin Assignments 19
MANO300 Mini ITX Motherboard
Pin
Signal
Pin
Signal
1
WAKE#
2
+3.3VAUX
3
RSVD1
4
GND
5
RSVD2
6
+1.5V
7
CLKREQ#
8
UIM_PWR
9
GND
10
UIM_DAT
11
REFCLK-
12
UIM_CLK
13
REFCLK+
14
UIM_REST
15
GND
16
UIM_VPP
17
RSVD3
18
GND
19
RSVD4
20
W_DISABLE#
21
GND
22
PERST#
23
PERN0
24
+3.3VAUX
25
PERP0
26
GND
27
GND
28
+1.5V
29
GND
30
SMB_CLK
31
PETN0
32
SMB_DATA
33
PETP0
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
+3.3VAUX
40
GND
41
+3.3VAUX
42
N/C
43
GND
44
N/C
45
RVD5
46
N/C
47
RVD6
48
+1.5V
49
RVD7
50
GND
51
RVD8
52
+3.3VAUX

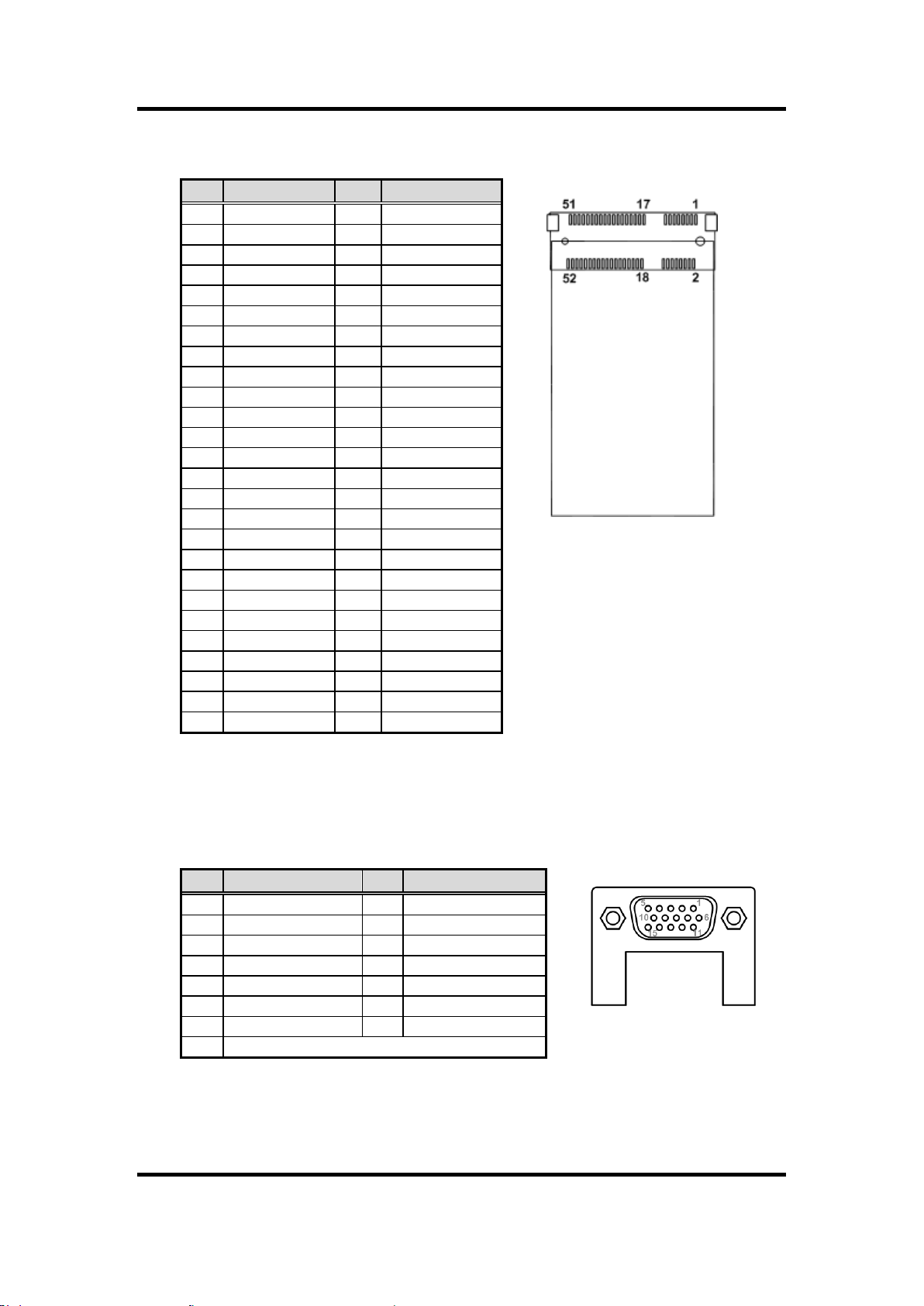

2.4.20 PCI-Express Mini Card Connector (CN28)
This is a PCI-Express Mini Card connector applying to PCI-Express or USB 2.0. It also complies with PCI-Express Mini Card Spec. V1.2.
20 Board and Pin Assignments
Pin
Signal
Pin
Signal
1
WAKE#
2
+3.3VAUX
3
RSVD1
4
GND
5
RSVD2
6
+1.5V
7
CLKREQ#
8
UIM_PWR
9
GND
10
UIM_DAT
11
REFCLK-
12
UIM_CLK
13
REFCLK+
14
UIM_REST
15
GND
16
UIM_VPP
17
RSVD3
18
GND
19
RSVD4
20
W_DISABLE#
21
GND
22
PERST#
23
PERN0
24
+3.3VAUX
25
PERP0
26
GND
27
GND
28
+1.5V
29
GND
30
SMB_CLK
31
PETN0
32
SMB_DATA
33
PETP0
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
+3.3VAUX
40
GND
41
+3.3VAUX
42
N/C
43
GND
44
N/C
45
RVD5
46
N/C
47
RVD6
48
+1.5V
49
RVD7
50
GND
51
RVD8
52
+3.3VAUX
Pin
Signal
Pin
Signal
1
Red 2 Green
3
Blue
4
NC 5 GND
6
DETECT
7
GND
8
GND
9
VCC
10
GND
11
NC
12
DDC DATA
13
Horizontal Sync
14
Vertical Sync
15
DDC CLK
2.4.21 mSATA Slot (CN29)
MANO300 Mini ITX Motherboard
2.4.22 VGA Connector (CN30)
The CN30 is a high rise 15-pin D-Sub connector which is commonly used for VGA monitor. This VGA interface configuration can be configured via software utility.
Board and Pin Assignments 21
MANO300 Mini ITX Motherboard
Pin
Signal
Pin
Signal
1
HDMI OUT_DATA2+
2
GND
3
HDMI OUT_DATA2-
4
HDMI OUT_DATA1+
5
GND
6
HDMI OUT_DATA1-
7
HDMI OUT_DATA0+
8
GND
9
HDMI OUT_DATA0-
10
HDMI OUT_Clock+
11
GND
12
HDMI OUT_Clock-
13
N/C
14
RSVD
15
HDMI OUT_SCL
16
HDMI OUT_SDA
17
GND
18
+5V
19
HDMI_HTPLG
Pin Color
Signal
Green
Line-out
Pink
MIC-in
Pin
Signal
Pin
Signal
1
MIC_IN
2
GND
3
LINE_IN_L
4
GND
5
LINE_IN_R
6
GND
7
AUD_OUT_L
8
GND
9
AUD_OUT_R
10
GND
2.4.23 HDMI Connector (CN31)
The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is capable of transmitting high-definition video and high-resolution audio over a single cable.
19 1
18 2
2.4.24 Audio Jack (CN32)
The motherboard provides HD audio jack on the rear I/O. Install audio driver, and then attach audio devices to CN32.
2.4.25 Front Audio Header (CN33)
This is front audio header (5x2-pin p=2.00mm) for convenient connection and control of audio devices.
22 Board and Pin Assignments
MANO300 Mini ITX Motherboard
Pin
Signal
Pin
Signal
1
+3V
11
+3V 2 +3V
12
-12V
3
GND
13
GND
4
+5V
14
PS_ON
5
GND
15
GND
6
+5V
16
GND
7
GND
17
GND
8
Power OK
18
-5V 9 +5VSB
19
+5V
10
+12V
20
+5V
10
2.4.26 ATX Power Input Connector (CN34)
Steady and sufficient power can be supplied to all components on the board by connecting power connector. Please make sure all components and devices are properly installed before connecting the power connector.
External power supply plug fits into this connector in only one orientation. Properly press down power supply plug until it completely and firmly fits into this connector. Loose connection may cause system instability.
Board and Pin Assignments 23
MANO300 Mini ITX Motherboard
This page is intentionally left blank.
24 Board and Pin Assignments
MANO300 Mini ITX Motherboard
Note
If only one memory module is used, please install in DIMM1 (the upper SO-DIMM socket).
Chapter 3
Hardware Description
3.1 Microprocessors
The MANO300 Series supports Intel® Celeron® N3160 processor, which enable your system to operate under Windows® 7, Windows® 8.1, Windows® 10 and Linux environments. The system performance depends on the microprocessor. Make sure all correct settings are arranged for your installed microprocessor to prevent the CPU from damages.
3.2 BIOS
The MANO300 Series uses AMI Plug and Play BIOS with a single SPI Flash.
3.3 System Memory
The MANO300 supports two 204-pin DDR3L SO-DIMM sockets for maximum memory capacity up to 8GB DDR3L SDRAMs. The memory module comes in sizes of 1GB, 2GB, 4GB and 8GB.
Hardware Description 25
MANO300 Mini ITX Motherboard
This page is intentionally left blank.
26 Hardware Description
MANO300 Mini ITX Motherboard
Note
If your computer cannot boot after making and saving system changes with BIOS setup, you can restore BIOS optimal defaults by setting JP2 (see section 2.3.1).
Note
Some of the navigation keys differ from one screen to another.
Chapter 4
AMI BIOS Setup Utility
The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off. This chapter provides users with detailed description about how to set up basic system configuration through the AMI BIOS setup utility.
4.1 Starting
To enter the setup screens, follow the steps below:
1. Turn on the computer and press <Del> during the Power On Self Test (POST) to enter BIOS setup, otherwise, POST will continue with its test routines.
2. Once you enter the BIOS, the main BIOS setup menu displays. You can access the other setup screens from the main BIOS setup menu, such as the Advanced and Chipset menus.
It is strongly recommended that you should avoid changing the chipset’s defaults. Both AMI and your system manufacturer have carefully set up these defaults that provide the best performance and reliability.
4.2 Navigation Keys
The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. These keys include <F1>, <F2>, <Enter>, <ESC>, <Arrow> keys, and so on.
AMI BIOS Setup Utility 27
MANO300 Mini ITX Motherboard
Hot Keys
Description
 Left/Right
The Left and Right <Arrow> keys allow you to select a setup screen.
 Up/Down
The Up and Down <Arrow> keys allow you to select a setup screen or sub screen.
Enter
The <Enter> key allows you to display or change the setup option listed for a particular setup item. The <Enter> key can also allow you to display the setup sub screens.
+ Plus/Minus
The Plus and Minus <Arrow> keys allow you to change the field value of a particular setup item.
F1
The <F1> key allows you to display the General Help screen.
F2
The <F2> key allows you to Load Previous Values.
F3
The <F3> key allows you to Load Optimized Defaults.
F4
The <F4> key allows you to save any changes you have made and exit Setup. Press the <F4> key to save your changes.
Esc
The <Esc> key allows you to discard any changes you have made and exit the Setup. Press the <Esc> key to exit the setup without saving your changes.
28 AMI BIOS Setup Utility
MANO300 Mini ITX Motherboard
4.3 Main Menu
When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below. The Main BIOS setup screen is shown below.
BIOS Information
Display the BIOS information.
System Date/Time
Use this option to change the system time and date. Highlight System Time or System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time is entered in HH:MM:SS format.
Access Level
Display the access level of current user.
AMI BIOS Setup Utility 29
MANO300 Mini ITX Motherboard
4.4 Advanced Menu
The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus:
► IT8786 Super IO Configuration ► Hardware Monitor ► Smart Fan Function ► S5 RTC Wake Settings ► Utility Configuration ► ACPI Settings ► CPU Configuration ► SATA Configuration ► USB Configuration
For items marked with “”, please press <Enter> for more options.
30 AMI BIOS Setup Utility
MANO300 Mini ITX Motherboard
Super IO Configuration
You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen. For items marked with “”, please press <Enter> for more options.
Serial Port 1~6 Configuration Use these items to set parameters related to serial port 1~6.
AMI BIOS Setup Utility 31
MANO300 Mini ITX Motherboard
Hardware Monitor
This screen monitors hardware health status.
This screen displays the temperature of system and CPU, cooling fans speed in RPM and system voltages (VCC_CPU, VCC_DDR, +12V, +5V, +3.3V and VBAT).
32 AMI BIOS Setup Utility
Smart Fan Function
This screen allows you to select CPU fan mode.
MANO300 Mini ITX Motherboard
CPU_Fan1 Mode
This item allows you to select CPU fan mode, which can be set to Full on, Manual, Auto PWM or Auto RPM Mode.
AMI BIOS Setup Utility 33
MANO300 Mini ITX Motherboard
S5 RTC Wake Settings
Wake system from S5
Enable or disable system wake on alarm event. It allows you to wake up the system in a certain time. Select Fixed Time to set the system to wake on the specified time. Use <> <> to switch among the items: Day, Hour, Minute and Second, and type the value in the selected item as you wish. For example, if you want the system to start up automatically at 16:20:15, the 18th day of each month, then you should enter 18, 16, 20, and 15 from top to bottom.
34 AMI BIOS Setup Utility
Utility Configuration
MANO300 Mini ITX Motherboard
BIOS Flash Utility
BIOS flash utility configuration. For more detailed information, please refer to Appendix A.
AMI BIOS Setup Utility 35
MANO300 Mini ITX Motherboard
ACPI Settings
You can use this screen to select options for the ACPI configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
ACPI Sleep State
Select the ACPI (Advanced Configuration and Power Interface) sleep state. Configuration options are Suspend Disabled and S3 (Suspend to RAM). The default setting is S3 (Suspend to RAM); this option selects ACPI sleep state the system will enter when suspend button is pressed.
36 AMI BIOS Setup Utility
MANO300 Mini ITX Motherboard
CPU Configuration
This screen shows the CPU information, and you can change the value of the selected option.
AMI BIOS Setup Utility 37
MANO300 Mini ITX Motherboard
SATA Configuration
During system boot up, the BIOS automatically detects the presence of SATA devices. In the SATA Configuration menu, you can see the currently installed hardware in the SATA ports.
SATA Controller
Enable or disable the SATA controller feature.
Port 0~1
Enable or disable the onboard SATA port 0~1.
38 AMI BIOS Setup Utility
USB Configuration
MANO300 Mini ITX Motherboard
USB Devices
Display all detected USB devices.
Legacy USB Support
Use this item to enable or disable legacy support for USB devices. The default setting is Enabled. Auto option disables legacy support if no USB devices are connected. Disable option will keep USB devices available only for EFI applications.
AMI BIOS Setup Utility 39
MANO300 Mini ITX Motherboard

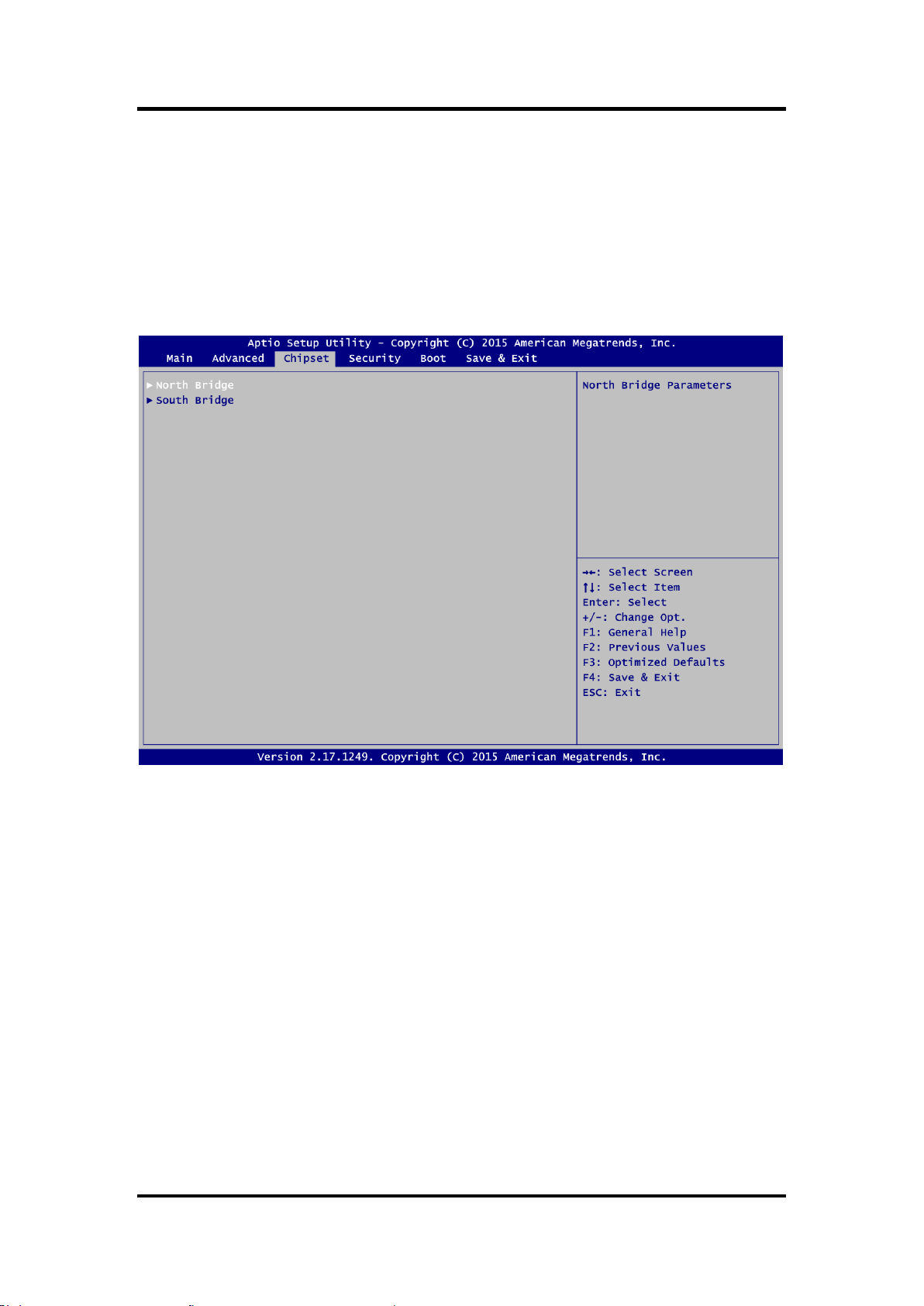

4.5 Chipset Menu
The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus:
► North Bridge ► South Bridge
For items marked with “”, please press <Enter> for more options.
40 AMI BIOS Setup Utility
MANO300 Mini ITX Motherboard
North Bridge
This screen allows users to configure parameters of North Bridge chipset.
Primary IGFX Boot Display
Select the video device which will be activated during POST (Power-On Self Test). The default is LVDS.
LVDS Panel Type
Select LVDS panel resolution.
AMI BIOS Setup Utility 41
MANO300 Mini ITX Motherboard
South Bridge
This screen allows users to configure parameters of South Bridge chipset.
XHCI Mode Select operation mode of XHCI controller.
Audio Controller
Control detection of the audio device.
- Disabled: Audio device will be unconditionally disabled.
- Enabled: Audio device will be unconditionally enabled.
- Auto: If device is present, audio controller will be enabled, otherwise will be disabled.
42 AMI BIOS Setup Utility
MANO300 Mini ITX Motherboard
4.6 Security Menu
The Security menu allows users to change the security settings for the system.
Administrator Password
This item indicates whether an administrator password has been set (installed or uninstalled).
User Password
This item indicates whether a user password has been set (installed or uninstalled).
AMI BIOS Setup Utility 43
MANO300 Mini ITX Motherboard

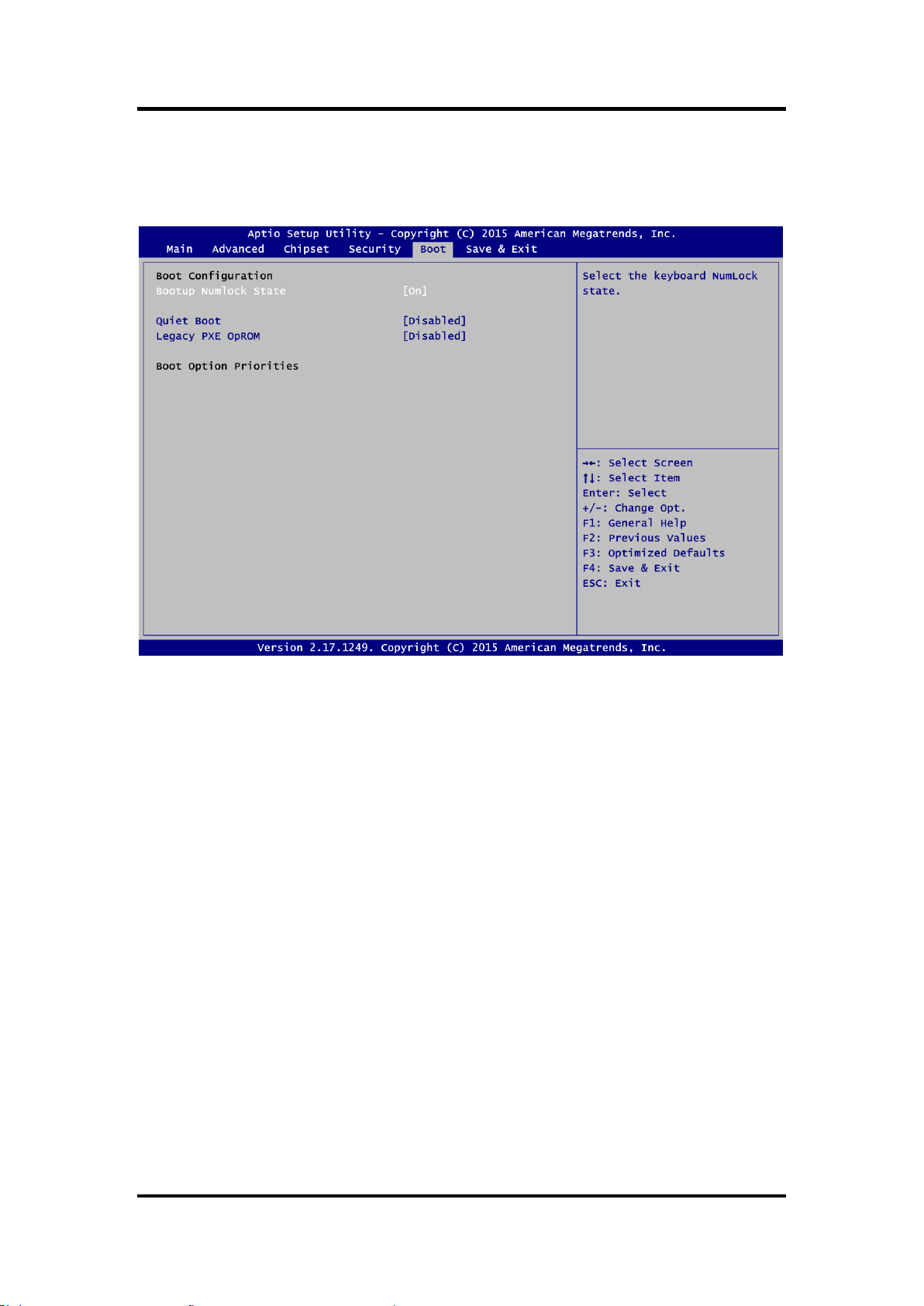

4.7 Boot Menu
The Boot menu allows users to change boot options of the system.
Bootup NumLock State
Use this item to select the power-on state for the keyboard NumLock.
Quiet Boot
Select to display either POST output messages or a splash screen during boot-up.
Legacy PXE OpROM
Enable or disable the Preboot eXecution Environment (PXE) boot ROM function of the onboard LAN chip during system boots up.
Boot Option Priorities [Boot Option #1, …]
These are settings for boot priority. Specify the boot device priority sequence from the available devices.
44 AMI BIOS Setup Utility
MANO300 Mini ITX Motherboard

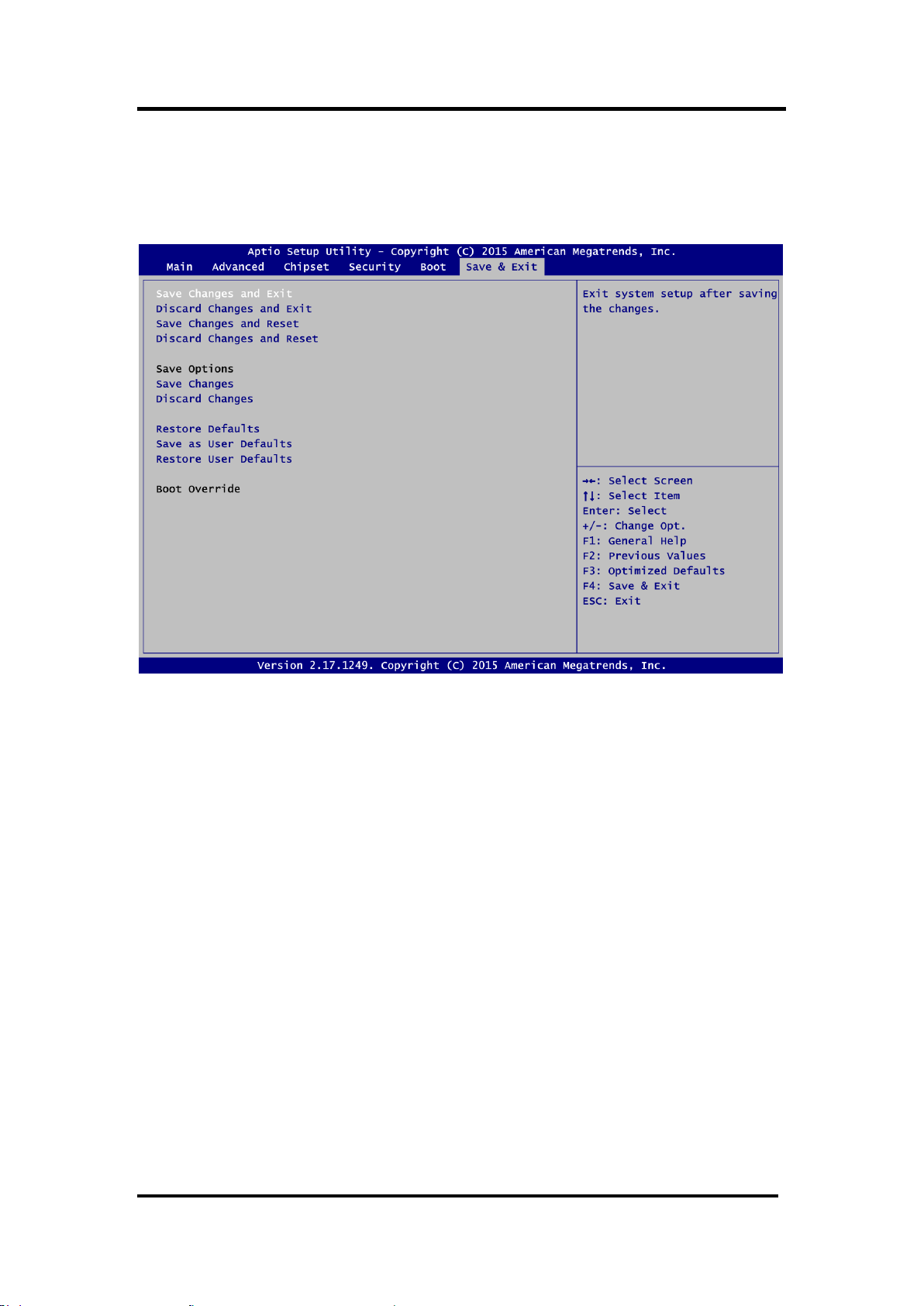

4.8 Save & Exit Menu
The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values.
Save Changes and Exit
When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu. Select Save Changes and Exit from the Save & Exit menu and press <Enter>. Select Yes to save changes and exit.
Discard Changes and Exit
Select this option to quit Setup without making any permanent changes to the system configuration and return to Main Menu. Select Discard Changes and Exit from the Save & Exit menu and press <Enter>. Select Yes to discard changes and exit.
Save Changes and Reset
When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect. Select Save Changes and Reset from the Save & Exit menu and press <Enter>. Select Yes to save changes and reset.
Discard Changes and Reset
Select this option to quit Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Reset from the Save & Exit menu and press <Enter>. Select Yes to discard changes and reset.
Save Changes
When you have completed the system configuration changes, select this option to save changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select Yes to save changes.
AMI BIOS Setup Utility 45
MANO300 Mini ITX Motherboard
Discard Changes
Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>. Select Yes to discard changes.
Restore Defaults
It automatically sets all Setup options to a complete set of default settings when you select this option. Select Restore Defaults from the Save & Exit menu and press <Enter>.
Save as User Defaults
Select this option to save system configuration changes done so far as User Defaults. Select Save as User Defaults from the Save & Exit menu and press <Enter>.
Restore User Defaults
It automatically sets all Setup options to a complete set of User Defaults when you select this option. Select Restore User Defaults from the Save & Exit menu and press <Enter>.
Boot Override
Select a drive to immediately boot that device regardless of the current boot order.
46 AMI BIOS Setup Utility
MANO300 Mini ITX Motherboard
MANO300.005
Appendix A
BIOS Flash Utility
The BIOS Flash utility is a new helpful function in BIOS setup program. With this function you can easily update system BIOS without having to enter operating system. In this appendix you may learn how to do it in just a few steps. Please read and follow the instructions below carefully.
1. In your USB flash drive, create a new folder and name it “Axiomtek”, see figure below.
2. Copy BIOS ROM file (e.g. MANO300.005) to “Axiomtek” folder.
3. Insert the USB flash drive to your system.
4. Enter BIOS setup menu and go to Advanced\Utility Configuration. Select BIOS Flash Utility and press <Enter>.
BIOS Flash Utility 47
MANO300 Mini ITX Motherboard
MANO300.005
5. BIOS automatically detect all USB drive(s) attached to the system. In this example only one USB drive is attached to the system. That’s why, you can see only one device is displayed in figure below.
6. Select the USB drive containing BIOS ROM file you want to update using the <> or <> key. Then press <Enter> to get into “Axiomtek” folder.
7. Now you can see the BIOS ROM file on the screen, press <Enter> to select.
8. Select Start to flash system BIOS option to begin updating procedure.
48 BIOS Flash Utility
MANO300 Mini ITX Motherboard
9. Please wait while BIOS completes the entire flash update process: erase data, write new data and verify data.
10. When you see the following figure, press <Enter> to finish the update process. After that the system will shut down and restart immediately.
BIOS Flash Utility 49
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
