AXIOMTEK MANO120 User Manual

Download

MANO120

AMD G-Series T56N 1.65GHz APU

With A55E Controller Hub (FCH) Mini-ITX Motherboard

User’s Manual

MANO120 Mini-ITX SBC User’s Manual

Contents

Safety Information ................................................................................ iv

CHAPTER 1 INTRODUCTION ........................................................................ 1

1.1 Before you proceed ............................................................................. 1

1.2 Motherboard Overview ........................................................................ 2

1.2.1 Placement Direction..................................................................................................2

1.2.2 Screw Holes ..............................................................................................................2

1.3 Motherboard Layout ............................................................................ 3

1.4 Central Processing Unit (CPU) ............................................................ 5

1.5 System Memory .................................................................................. 6

1.5.1 DIMM Sockets Location ............................................................................................6

1.5.2 Memory Configurations ............................................................................................7

1.5.3 Installing a DDR3 DIMM ...........................................................................................8

1.5.4 Removing a DDR3 DIMM .........................................................................................9

1.6 Expansion Slots ................................................................................ 10

1.6.1 Installing an Expansion Card ................................................................................. 10

1.6.2 Configuring an Expansion Card ............................................................................. 10

1.6.3 Standard Interrupt Assignments ............................................................................ 11

1.7 Jumpers ............................................................................................ 12

1.7.1 Clear CMOS (CMOS1) .......................................................................................... 12

1.7.2 COM3 RI/+5V/+12V Selection (JSETCOM3) ........................................................ 13

1.7.3 COM4 RI/+5V/+12V Selection (JSETCOM4) ........................................................ 14

1.8 Connectors ........................................................................................ 15

1.8.1 Rear Panel Connectors ......................................................................................... 15

1.8.2 Front Panel Audio Connector (AAFP) ................................................................... 17

1.8.3 ATX Power Connector (ATXPWR) ........................................................................ 18

1.8.4 AT/ATX Mode Select (PSON1) ............................................................................. 19

1.8.5 LCD POWER (VDDSAFE) (JBL3) ......................................................................... 20

1.8.6 Serial Port Connector (COM3, COM4). ................................................................. 21

1.8.7 System Panel & Speaker (JFP1 + JFP2) .............................................................. 22

1.8.8 ower LED & Key lock (JFP3) ................................................................................. 23

1.8.9 Inverter PWR (JBL1).............................................................................................. 24

1.8.10 SPI connector (CN4).............................................................................................. 25

1.8.11 SPDIF OUT (SPDIF_OUT1) .................................................................................. 26

1.8.12 18-bit LVDS Connector (LVDS1) ........................................................................... 27

1.8.13 AMP_R+R-/AMP_L+L- (CN10) .............................................................................. 28

1.8.14 Serial ATA Connector (SATA1, SATA2)................................................................ 29

1.8.15 USB 2.0 Connector (USB5,6) ................................................................................ 33

MANO120 Mini-ITX SBC User’s Manual

iii

CHAPTER 2 BIOS Setup ................................ ................................ .............. 35

2.1 BIOS Setup Program ...................................................................... 35

2.1.1 Legend Box ............................................................................................................ 37

2.1.2 List Box .................................................................................................................. 37

2.1.3 Sub-menu .............................................................................................................. 38

2.2 BIOS Menu Screen ......................................................................... 39

2.2.1 Main ....................................................................................................................... 39

2.2.2 Advanced ............................................................................................................... 41

2.2.3 Chipset ................................................................................................................... 49

2.2.4 Boot........................................................................................................................ 57

2.2.5 Save & Exit ............................................................................................................ 58

MANO120 Mini-ITX SBC User’s Manual

The symbol of the crossed out wheeled bin indicates that the product (Electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

 Safety Information

Electrical safety

 To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

before relocating the system.

 When adding or removing devices to or from the system, ensure that the power cables

for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

 Before connecting or removing signal cables from the motherboard, ensure that all power

cables are unplugged.

 Seek professional assistance before using an adapter or extension cord. These devices

could interrupt the grounding circuit.

 Make sure that your power supply is set to the correct voltage in your area. If you are not

sure about the voltage of the electrical outlet you are using, contact your local power company.

 If the power supply is broken, do not try to fix it by yourself. Contact a qualified service

technician or your retailer.

Operation safety

 Before installing the motherboard and adding devices on it, carefully read all the manuals

that came with the package.

 Before using the product, make sure all cables are correctly connected and the power

cables are not damaged. If you detect any damage, contact your dealer immediately.

 To avoid short circuits, keep paper clips, screws, and staples away from connectors,

slots, sockets and circuitry.

 Avoid dust, humidity, and temperature extremes. Do not place the product in any area

where it may become wet.

 Place the product on a stable surface.  If you encounter technical problems with the product, contact a qualified service

technician or your retailer.

MANO120 Mini-ITX SBC User’s Manual

DANGER/WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the Axiomtek website for FAQ, technical guide, BIOS updates, driver updates, and other information:

http://www.axiomtek.com

Conventions Used in This Guide

To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

MANO120 Mini-ITX SBC User’s Manual

If any of the above items is damaged or missing, please contact your retailer.

Packing List

Before you begin installing your single board, please make sure that the following materials have been shipped:

 1 x MANO120 Mini ITX Main board  1 x CD-ROM contains the followings:

－ User’s manual (this manual in PDF file) － Drivers

 1 x I/O Shield  1 x CPU Cooler  1 x SATA cable

vii

Revision

Revision History

Date

V 1.0

First release

2012/3/5

APU

G-Series

APU Type

AMD G-Series T56N 1.65GHz DC

Processor Family

AMD G-Series

Long Life Processor List

TDP 18W, T shutdown 125℃

Package

FT1 (BGA) 413 balls p=0.8mm, 19x19 mm

L2 Cache

L1: 32KB+32KB per core, L2: 512KB cache per core

UMI

4-Lane(x4) PCIe gen2

Power Management

C6 supported

PCIE

4-Lane(x4) PCIe gen2

CPU Process

40 nm

Memory

System Memory

Memory Type

One DDR3 1066/1333 SODIMM

DIMM #

1x SODIMM 204Pin/ Single Channel

Max. Capacity

4 GB

Revision History

Specifications Summary

MANO120 Mini-ITX SBC User’s Manual

Chipset

FCH

Fusion Controller Hub

AMD A55E Controller Hub (Hudson-E1)

PCIe

x4 Gen 2

USB

8 USB 2.0 (4 Rear, 4 Internal)

SMBus

Yes

LPC

Yes

SATA

5 SATA 3.0 (One support SATADOM)

HD Audio

support 4 channel, Power Saving, 4 codec

Clock Gen.

Integrated

Package

FCBGA 23x23mm, 605 balls

Environment

TDP 2.7~5.7W, T case 105℃

Display

Integrated Graphic

Controller

AMD Radeon HD 6320(T56N)

HW decoder/3D

feature

DirectX 11, OpenGL4.0, dedicated HW(UVD3.0)for H.264, VC-1,

MPEG-2, DivX decode

LVDS

1, 18bpp (Single link LVDS up to 1400 x 1050)

VGA

T56N (18W) supports up to 2560 x 1600

HDMI

1 support HDMI 1.3a & 1080p up to 1920 x 1080

Dual Display

VGA+LVDS, VGA+HDMI, HDMI+LVDS

viii

MANO120 Mini-ITX SBC User’s Manual

BIOS

BIOS Core

AMI EFI

BIOS Flash

16Mb SPI

SW RAID

None

Boot up Device

Serial ATA

Yes (CFast)

IDE device

N/A

USB device

Yes

Boot from LAN

Yes

Power Management

ACPI

ACPI 3.0

APM

Sleep State

S3, S4, S5

Other Feature

PC Health

YES

CMOS backup

BIOS CMOS automatic backup and restore setup data

Smart FAN

CPU, SYS FAN, Smart Fan III+

Graphics memory mode

Shared Memory up to 2GB

Power Play

380, 200MHz, configure Power to 2.7~5.7W

SATA

Support SATA III(6Gbps)

MANO120 Mini-ITX SBC User’s Manual

Internal Connector

Debug Port

CPU

HDT header

SPI

Display

LVDS

esp.

1, (optional)

Inverter

LVDS INV

1, 3.3 V

Audio

Front Panel

Amplifier

SPDI/F

USB

Serial

COM

IDE

SATA

5 (SATA III 6 Gb/s)

SATA power

Fan connector

System fan connector

1 system fan(3pin for system with smart fan control)

CPU fan connector

1 CPU fan(3pin for system with smart fan control)

MANO120 Mini-ITX SBC User’s Manual

Audio

Phone Jack

1 Line-out 1 MIC co-lay 1 jack connector

Power

Power Connector

Power Type

AT/ATX

Power Requirement

+3.3V, +5V, +12V, -12V, 5Vsb

GPIO

General

8bit

Front I/O

Display

HDMI

VGA

1, co-layout with header

DVI

Ethernet

RJ-45

2, stack with USB

USB

4 (USB 2.0 port)

COM

Serial port

2* RS-232

PS/2

KB/MS

2, co-lay single DIN

MANO120 Mini-ITX SBC User’s Manual

LED Indicator

LED

HDD Status

4; alive, green; dead, red 4; access, flash yellow

Power on rear IO

1; Blue

Expansion Slot

Mini-PCI Express

PCIex 4

PCB Physical Feature

Dimension

170x 170mm

Layer

6 Layer

Power Consumption

< 45W

Operating Temperature

0℃-60℃

Heat Sink

Cooler FAN

Storage Temperature

-20℃ ~ 80℃

Vibration (non OP)

3.0 Germs, heat sink backplane TBD

Accessory

Accessory List

FP_USB cable

None

SATA cable Kit

1 data and 1 power

Serial Port

I/O Shield

Driver CD

Startup Manual

FP_Power button, power LED, HDD LED kit

None

AVL

OS Support List

Windows XP SP3, Windows 7 Pro, Linux Fedora 14

xii

MANO120 Mini-ITX SBC User’s Manual

xiii

PCB Printing

Model name in silkscreen

None

Revision in silkscreen

PCB Color

Blue

CE mark on PCB

Yes

WEEE

Yes

axiomtek PCB part number

Yes

Version

FCC mark on PCB

Yes

Cert. Compliance

Pre-scan for Class B, EN-55022/24

FCC

Pre-scan for FCC PART 15, Class B

IEC-60601

compliance

MANO120 Mini-ITX SBC User’s Manual

Block Diagram

This chapter describes the main board features and the new technologies it supports

xiv

MANO120 Mini-ITX SBC User’s Manual

1.1 Before you proceed

 Unplug the power cord from the wall socket before touching any

component.

 Use a grounded wrist strap or touch a safely grounded object or

a metal object, such as the power supply case, before handling components to avoid damaging them due to static electricity

 Hold components by the edges to avoid touching the ICs on

them.

 Whenever you uninstall any component, place it on a grounded

antistatic pad or in the bag that came with the component.

 Before you install or remove any component, ensure that the

ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

CHAPTER 1

INTRODUCTION

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.2 Motherboard Overview

Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components.

Do not over tighten the screws! Doing so can damage the motherboard.

Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Refer to the chassis documentation before installing the motherboard.

1.2.1 Placement Direction

When installing the motherboard, make sure that you place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis as indicated in the image below.

1.2.2 Screw Holes

Place four (4) screws into the holes indicated by circles to secure the motherboard to the chassis.

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.3 Motherboard Layout

Introduction

MANO120 Mini-ITX SBC User’s Manual

Slots

Label

Function

Note

CFast

Compact Flash socket

Rear side

MINI_PCIE

Mini PCI-E slot

52PIN

PCIE

PCI E slot

64PIN

SODIMM_A1

204-PIN SODIMM slot 1

204-PIN

Jumpers

Label

Function

Note

CLRTC

Clear CMOS1

3 x 1 header, pitch 2.54mm

JCOMPWR1

COM1 RI/+5V/+12V Selection

3 x 2 header, pitch 2.0mm

JCOMPWR2

COM2 RI/+5V/+12V Selection

3 x 2 header, pitch 2.0mm

Rear IO

Label

Function

Note

KBMS

PS/2 keyboard and mouse

6-pin Mini-Din

COM12

Serial Port Connector

D-sub 9-pin, male

VGA_DVI

VGA Connector

D-sub 15-pin, female

USB1,2,3,4

USB Connector x 4

2 x 5 Header, pitch 2.54mm

LAN1,2

RJ-45 Ethernet Connector x 2

AUDIO

Line-out Port, Microphone Port,

7.1 Channel Audio I/O (2 jacks)

Layout Content List

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.4 Central Processing Unit (CPU)

1.4.1 Connect the CPU Fan cable to the CPU_FAN connector on the motherboard.

Do not forget to connect the CPU Fan connector! Hardware monitoring errors can occur if you fail to plug this connector.

After installation, make sure to plug-in the ATX power cable to the motherboard.

Connect the CPU fan cable to the CPU_FAN connector on the motherboard.

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.5 System Memory

1.5.1 DIMM Sockets Location

The motherboard comes with one 204-pin Double Data Rate 3 (DDR3) SODIMM sockets.

A DDR3 module has the same physical dimensions as a DDR DIMM but has a 204-pin footprint. DDR3 DIMMs are notched differently to prevent installation on a DDR DIMM socket. The following figure illustrates the location of the sockets:

Introduction

MANO120 Mini-ITX SBC User’s Manual

 Installing DDR3 DIMM other than the recommended configurations

may cause memory sizing error or system boot failure. Use any of the recommended configurations.

 Always install DIMMs with the same CAS latency. For optimum

compatibility, it is recommended that you obtain memory modules from the same vendor.

 This motherboard does not support memory modules made up of

128 Mb chips or double-sided x16 memory modules. Make sure that the memory frequency matches the CPU FSB (Front Side Bus). Refer to the Memory frequency/CPU FSB synchronization table.

1.5.2 Memory Configurations

You can install 1GB, 2GB and 4GB DDR3 DIMMs into the SODIMM sockets using the memory configurations in this section.

Introduction

MANO120 Mini-ITX SBC User’s Manual

Make sure to unplug the power supply before adding or removing DIMMs or other system components. Failure to do so may cause severe damage to both the motherboard and the components.

 A DDR3 DIMM is keyed with a notch so that it fits in only one

direction. DO NOT force a DIMM into a socket to avoid damaging the DIMM.

 The DDR3 DIMM sockets do not support DDR DIMMs. DO NOT

install DDR DIMMs to the DDR3 DIMM socket.

1.5.3 Installing a DDR3 DIMM

1. Locate the DIMM socket on the board.

2. Hold two edges of the DIMM module carefully, and keep away of touching its connectors.

3. Align the notch key on the module with the rib on the slot.

4. Firmly press the modules into the socket automatically snaps into the mounting notch. Do not force the DIMM module in with extra force as the DIMM module only fit in one direction.

Introduction

MANO120 Mini-ITX SBC User’s Manual

Support the DIMM lightly with your fingers when pressing the ejector tabs. The DIMM might get damaged when it flips out with extra force.

1.5.4 Removing a DDR3 DIMM

Press the two ejector tabs on the slot outward simultaneously, and then pull out the DIMM module.

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.6 Expansion Slots

Make sure to unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

In the future, you may need to install expansion cards. The following sub‑sections describe the slots and the expansion cards that they support.

1.6.1 Installing an Expansion Card

1. Before installing the expansion card, read the documentation that came with it and make

the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.

4. Align the card connector with the slot and press firmly until the card is completely seated

on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

1.6.2 Configuring an Expansion Card

After installing the expansion card, configure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings if any.

2. Assign an IRQ to the card if needed. Refer to the tables on the next page.

3. Install the software drivers for the expansion card.

Introduction

MANO120 Mini-ITX SBC User’s Manual

IRQ

Priority

Standard Function

System Timer

Keyboard Controller

Redirect to IRQ#9

IRQ holder for PCI streering*

Communications Port (COM1)*

IRQ holder for PCI streering*

Floppy Disk Controller

Printer Port (LPT)*

System CMOS/Rear Time

IRQ holder for PCI streeing*

PS/2 Compatible Mouse Port*

Numeric Data Processor

Primary IDE Channel

Secondary IDE Channel

1.6.3 Standard Interrupt Assignments

* There IRQs are usually available for ISA or PCI device

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.7 Jumpers

Except when clearing the CMOS, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

Normal (Default)

Clear CMOS

1.7.1 Clear CMOS (CMOS1)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords. To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Remove the onboard battery.

3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2.

4. Re-install the battery.

5. Plug the power cord and turn ON the computer.

6. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.

Introduction

+5V (Default)

+12V

Ring

1.7.2 COM3 RI/+5V/+12V Selection (JSETCOM3)

MANO120 Mini-ITX SBC User’s Manual

Introduction

MANO120 Mini-ITX SBC User’s Manual

+5V (Default)

+12V

Ring

1.7.3 COM4 RI/+5V/+12V Selection (JSETCOM4)

Introduction

1.8 Connectors

ACT / LINK LED

SPEED LED

Status

Description

Status

Description

OFF

No link

OFF

10Mbps connection

Orange

Linked

ORANGE

100Mbps connection

Blinking

Data activity

GREEN

1Gbps connection

Label

Function

Description

KBMS

PS/2 mouse

connector

The standard PS/2 mouse DIN connector is for a PS/2 mouse.

COM12

Serial port

connector

D-Sub 9-pin, male

LAN_USB12

LAN (RJ-45)

connector

This port allows Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the table below for the LAN port LED indications. The optional 10/100 Mbps LAN controller allows 10/100 Mbps connection to a Local Area Network (LAN) through a network hub.

1.8.1 Rear Panel Connectors

MANO120 Mini-ITX SBC User’s Manual

Introduction

MANO120 Mini-ITX SBC User’s Manual

AUDIO

Line-Out port

(Lime)

This port connects a headphone or a speaker. In 4-channel, 6-channel, and 8-channel configuration, the function of this port becomes Front Speaker Out.

AUDIO

Microphone port

This port connects a microphone.

Port

Headset

2-channel

4-channel

6-channel

8-channel

Lime

Line out

Front speaker

out

Front speaker

out

Front speaker

out

Pink

Mic In

LAN_USB3,

4,5,6

USB 2.0

connector

These two 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.

HDMI

VGA_DVI

VGA port

This 15-pin port is for a VGA monitor or other

VGA-compatible devices.

KBMS

PS/2 KB

connector

This port is for a PS/2 keyboard

Refer to the audio configuration table below for the function of the audio ports in 2, 4, 6, or 8-channel configuration.

Introduction

MANO120 Mini-ITX SBC User’s Manual

For motherboards with the optional HD Audio feature, we recommend

that you connect a high-definition front panel audio module to this

connector to avail of the motherboard’s high‑definition audio

capability.

1.8.2 Front Panel Audio Connector (AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC ‘97 (optional) audio standard. Connect one end of the front panel audio I/O module cable to this connector.

Component type: HEADER 2X5P / 2.54mm

Introduction

MANO120 Mini-ITX SBC User’s Manual

EATXPWR

 Make sure that your ATX 12V power supply can provide 8A on the

+12V lead and at least 1A on the +5-volt standby lead (+5VSB). The minimum recommended wattage is 230W, or 300W for a fully configured system. The system can become unstable and might experience difficulty powering up if the power supply is inadequate.

 You must install a PSU with a higher power rating if you intend to

install additional devices.

1.8.3 ATX Power Connector (ATXPWR)

These connectors are for ATX power supply plugs. The power supply plugs are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.

Important notes on the Motherboard Power Requirements

Introduction

1.8.4 AT/ATX Mode Select (PSON1)

MANO120 Mini-ITX SBC User’s Manual

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.8.5 LCD POWER (VDDSAFE) (JBL3)

Introduction

MANO120 Mini-ITX SBC User’s Manual

COM3

COM4

1.8.6 Serial Port Connector (COM3, COM4).

Component type: HEADER 2X5P /2.54mm, w/o Pin10

Introduction

MANO120 Mini-ITX SBC User’s Manual

PIN7-10 PIN1-10

Internal

SPK

External

SPK

PIN3-6

PIN9-12

POWER BT

SYS_RESET

1.8.7 System Panel & Speaker (JFP1 + JFP2)

Component type: HEADER 4x3P /2.54mm

Introduction

1.8.8 ower LED & Key lock (JFP3)

Component type: HEADER 1X5P /2.54mm

MANO120 Mini-ITX SBC User’s Manual

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.8.9 Inverter PWR (JBL1)

Component type: WAFER 1x5P / 2.0mm

Introduction

1.8.10 SPI connector (CN4)

Component type: HEADER 2X4P /2.54mm

MANO120 Mini-ITX SBC User’s Manual

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.8.11 SPDIF OUT (SPDIF_OUT1)

Component type: HEADER 1X4P /2.54mm

Introduction

1.8.12 18-bit LVDS Connector (LVDS1)

Component type: HIROSE DF-13 /40P,1.25mm

MANO120 Mini-ITX SBC User’s Manual

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.8.13 AMP_R+R-/AMP_L+L- (CN10)

Component type: HEADER 1X4P /2.54mm

Introduction

MANO120 Mini-ITX SBC User’s Manual

1.8.14 Serial ATA Connector (SATA1, SATA2)

These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives.

SATA1

SATA2

Introduction

MANO120 Mini-ITX SBC User’s Manual

SATA3

SATA4

Serial ATA Connector (SATA3, SATA4)

These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives.

Introduction

MANO120 Mini-ITX SBC User’s Manual

Serial ATA Connector (SATA5)

These connectors are for the SATADOM and Serial ATA signal cables for Serial ATA hard

disk drives.

SATA5

Introduction

MANO120 Mini-ITX SBC User’s Manual

Connect the right-angle side may connect the

right-angle side of SATA cable to the onboard SATA port to avoid Mechanical conflict with huge graphics cards.

 Install the Windows® 2000 Service Pack 4 or the Windows® XP

Service Pack1 before using Serial ATA.

 When using the connectors in Standard IDE mode, connect the

primary (boot) hard disk drive to the SATA1 connector.

Introduction

MANO120 Mini-ITX SBC User’s Manual

Never connect a 1394 cable to the USB connectors. Doing so will

damage the motherboard!

The USB module is purchased separately.

1.8.15 USB 2.0 Connector (USB5,6)

These connectors are for USB 2.0 ports. Connect the USB/GAME module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed.

Component type: HEADER 2X5P /2.54mm

Introduction

MANO120 Mini-ITX SBC User’s Manual

Never connect a 1394 cable to the USB connectors. Doing so will

damage the motherboard!

The USB module is purchased separately.

USB 2.0 Connector (USB7,8)

Component type: HEADER 2X5P /2.54mm

MEMO :

Introduction

MANO120 Mini-ITX SBC User’s Manual

2.1 BIOS Setup Program

CHAPTER 2

BIOS Setup

This motherboard supports a programmable firmware chip that you can update using the provided utility. Use the BIOS Setup program when you are installing a motherboard, reconfiguring your system, or prompted to “Run Setup.” This section explains how to configure your system using this utility. Even if you are not prompted to use the Setup program, you can change the configuration of your computer in the future. For example, you can enable the security password feature or change the power management settings. This requires you to reconfigure your system using the BIOS Setup program so that the computer can recognize these changes and record them in the CMOS RAM of the firmware hub. The firmware hub on the motherboard stores the Setup utility. When you start up the computer, the system provides you with the opportunity to run this program. Press <Del> during the Power-On-Self-Test (POST) to enter the Setup utility; otherwise, POST continues with its test routines. If you wish to enter Setup after POST, restart the system by pressing <Ctrl + Alt + Delete>, or by pressing the reset button on the system chassis. You can also restart by turning the system off and then back on. Do this last option only if the first two failed.

BIOS Setup

MANO120 Mini-ITX SBC User’s Manual

 The default BIOS settings for this motherboard apply for most

conditions to ensure optimum performance. If the system becomes unstable after changing any BIOS settings, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults from the BIOS menu screen.

 The BIOS setup screens shown in this section are for reference

purposes only, and may not exactly match what you see on your screen.

 Visit the system builder’s website to download the latest BIOS file

for this motherboard

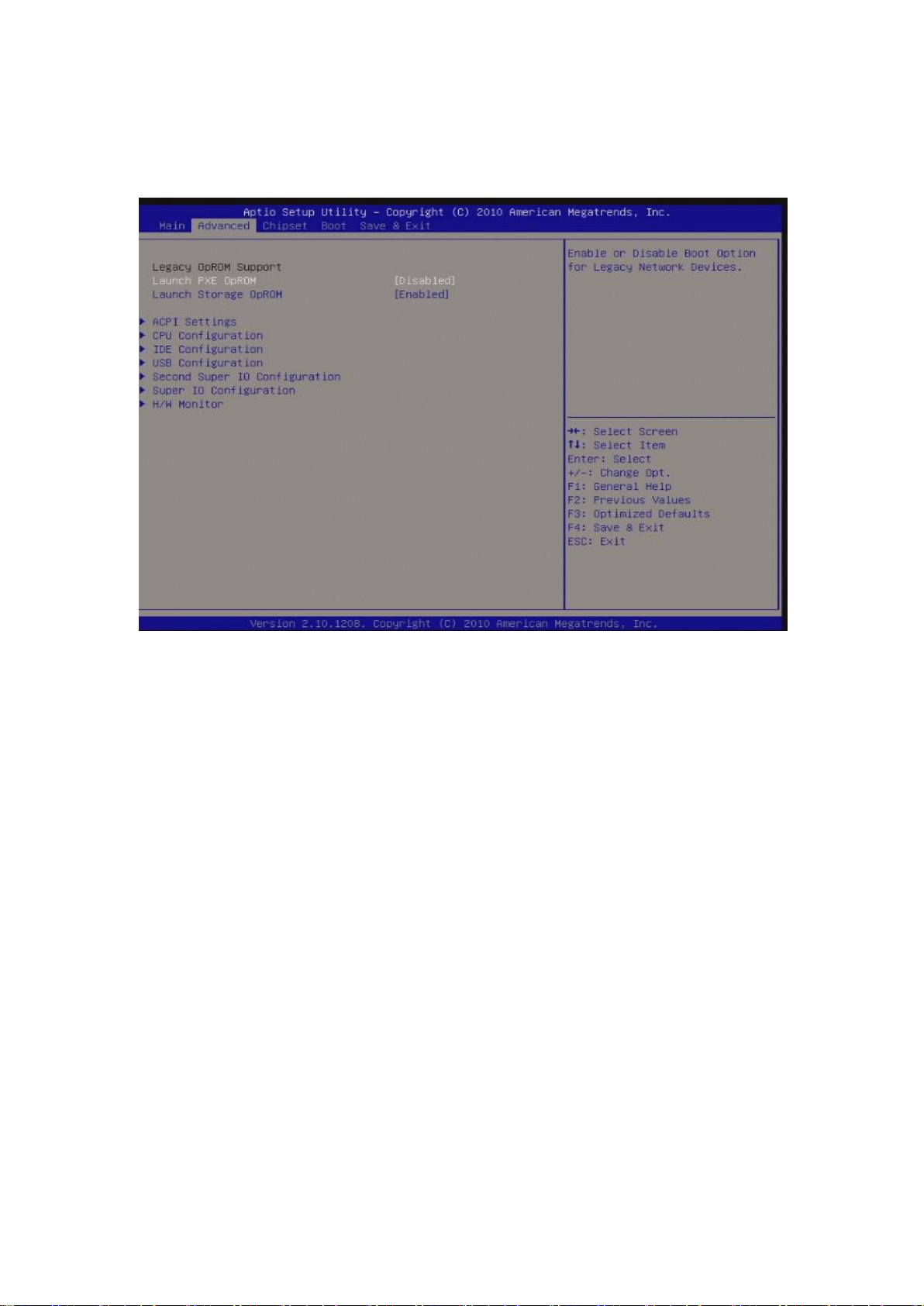

The Setup program is designed to make it as easy to use as possible. Being a menu-driven program, it lets you scroll through the various sub-menus and make your selections from the available options using the navigation keys.

BIOS Setup

MANO120 Mini-ITX SBC User’s Manual

Key(s)

Function Description

←

Select Screen

↑↓

Select Item

+ -

Change Option / Field

Enter

Go to Sub Screen

PGDN

PGUP

HOME

Go to Top of Screen

END

Go to Bottom of Screen

F2/F3

Change Colors

Discard Changes

Load Failsafe Defaults

Load Optimal Defaults

F10

Save and Exit

ESC

Exit

2.1.1 Legend Box

The keys in the legend bar allow you to navigate through the various setup menus

2.1.2 List Box

This box appears only in the opening screen. The box displays an initial list of configurable items in the menu you selected.

BIOS Setup

MANO120 Mini-ITX SBC User’s Manual

2.1.3 Sub-menu

Note that a right pointer symbol appears to the left of certain fields. This pointer indicates that you can display a sub-menu from this field. A sub-menu contains additional

options for a field parameter. To display a sub-menu, move the highlight to the field and press <Enter>. The sub‑menu appears. Use the legend keys to enter values and move from field to field within a sub-menu as you would within a menu. Use the <Esc> key to return to the main menu.

Take some time to familiarize yourself with the legend keys and their corresponding functions. Practice navigating through the various menus and submenus. If you accidentally make unwanted changes to any of the fields, press <F6> to load the fail-safe default values. While moving around through the Setup program, note that explanations appear in the Item Specific Help window located to the right of each menu. This window displays the help text for the currently highlighted field.

BIOS Setup

MANO120 Mini-ITX SBC User’s Manual

2.2 BIOS Menu Screen

When you enter the BIOS, the following screen appears. The BIOS menu screen displays the items that allow you to make changes to the system configuration. To access the menu items, press the up/down/right/left arrow key on the keyboard until the desired item is highlighted, then press [Enter] to open the specific menu.

2.2.1 Main

BIOS Setup
